Mercedes-Benz ML320. Service manual - part 783





Filling capacity of anticorrosion/
antifreeze agent down to
-37 °C

Liter

Y

5.5

Filling capacity of anticorrosion/
antifreeze up to -45 °C

Liter

Y

6.25

Specifications for Operating
Fluids

Sheet

BB00.40-P-0310-01A

Sheet

BB00.40-P-0325-00A

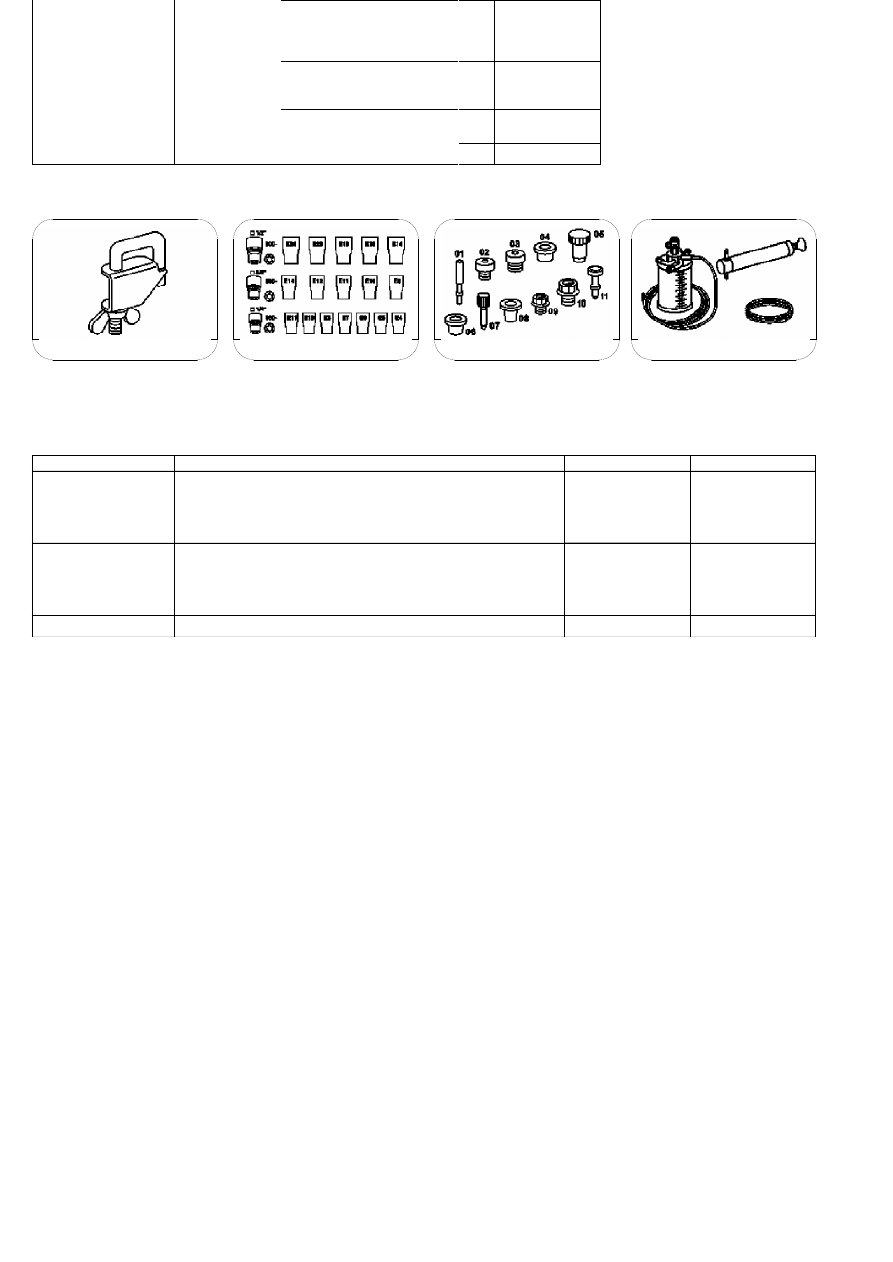

001 589 76 09 00

Set of stop plugs

External Torx set

Clamp

Hand pump

000 589 54 37 00

129 589 00 91 00

210 589 00 71 00

Commercially available tools

Number

Designation

Make (e. g.)

Order number

WH58.30-Z-1001-06A

6 mm hexagon socket wrench to flexible shaft for hose clamps with
worm drive

Hazet

Güldenwerther
Bahnhofstraße 25-28
D-42857 Remscheid

426-6

WH58.30-Z-1002-06A

7 mm hexagon socket wrench to flexible shaft for hose clamps with
worm drive

Hazet

Güldenwerther
Bahnhofstraße 25-28
D-42857 Remscheid

426-7

WH58.30-Z-1005-09A

CMP 12.2 quiescent current retention unit

Hans Zeheter

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 4

AR82.60-P-7502EA

Remove/install radio

5.5.94

MODEL

129

with single-block unit, 2nd generation two-component unit control element and MB radios
MODEL

163
with CODE (257) Hi-Line radio
with CODE (259) Premium radio with Bose sound system
with CODE (352) COMAND operating and display system
with CODE (353) Audio 30 APS
with CODE (357) Navigation system - additional unit
with CODE (522) Modular control system (MCS) radio USA
with CODE (750) MB Audio 30 RDS radio
with CODE (752) Becker Mexico 2000 radio with traffic news decoder
with CODE (753) MB Audio 30 RDS radio
with CODE (756) MB Audio 10 RDS radio with CD compartment

MODEL

168
with CODE (353) Audio 30 APS
with CODE (750) MB Audio 30 radio with TP/RDS
with CODE (752) MB Audio 30 radio without TP/RDS
with CODE (753) MB Audio 10 CC radio with TP/RDS
with CODE (754) MB Audio 10 CC radio without TP/RDS
with CODE (756) MB Audio 10 CD radio with TP/RDS
with CODE (758) MB Audio 5 radio
with CODE (759) MB Audio 5 TP radio with RDS

MODEL

170
with CODE (510) MB Exquisit radio with traffic news decoder, with RDS (Becker)
with CODE (512) MB Special radio with traffic news decoder, with RDS
with CODE (515) MB Classic radio with traffic news decoder, with RDS
with CODE (516) MB Classic radio without traffic news decoder
with CODE (755) MB Special radio with CD tray

MODEL

202
with CODE (510) MB Exquisit radio with traffic news decoder, with RDS (Becker)
with CODE (512) MB Special radio with traffic news decoder, with RDS
with CODE (515) MB Classic radio with traffic news decoder, with RDS
with CODE (516) MB Classic radio without traffic news decoder
with CODE (750) Becker Europa 2000 radio
with CODE (751) Becker Grand Prix 2000 radio with RDS

MODEL

208
with CODE (510) MB Exquisit radio with traffic news decoder, with RDS (Becker)
with CODE (512) MB Special radio with traffic news decoder, with RDS
with CODE (515) MB Classic radio with traffic news decoder, with RDS
with CODE (516) MB Classic radio without traffic news decoder

MODEL

MODEL 210
with CODE (510a) MB Exquisit radio with traffic news decoder, with RDS (Becker)
with CODE (512a) MB Special radio with traffic news decoder, with RDS
with CODE (515a) MB Classic radio with traffic news decoder, with RDS
with CODE (516a) MB Classic radio without traffic news decoder
with CODE (750a) MB Audio 30 RDS radio
with CODE (753) MB Audio 30 RDS radio
with CODE (756a) MB Audio 10 RDS radio with CD compartment

MODELS  463.200 /204 /206 /207 /208 /209 /220 /221 /224 /225 /227 /228 /230 /231 /232 /233 /240 /241 /243 /244 /245 /246

/247 /248 /249 /250 /254 /300 /304 /307 /308 /309 /320 /321 /322 /323 /324 /325 /327 /328 /330 /331 /332 /333
with CODE (ER5) MB "Classic" radio or standard class stereo cassette radio
with CODE (ER6) MB "Special" radio or mid-class stereo cassette radio
with CODE (ER7) MB "Exquisit" radio or comfort class stereo cassette radio

MODEL

414.700
with CODE (EF8) Sound 10 radio
with CODE (EF9) Sound 20 radio
with CODE (EG5) Sound 30 radio
with CODE (EG6) Audio 10 comfort radio, D2B networked
with CODE (EU0) Sound 30 radio with single CD drive
with CODE (EF2) Audio 10 RDS with CD insertion slot

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

P82.60-0001-06

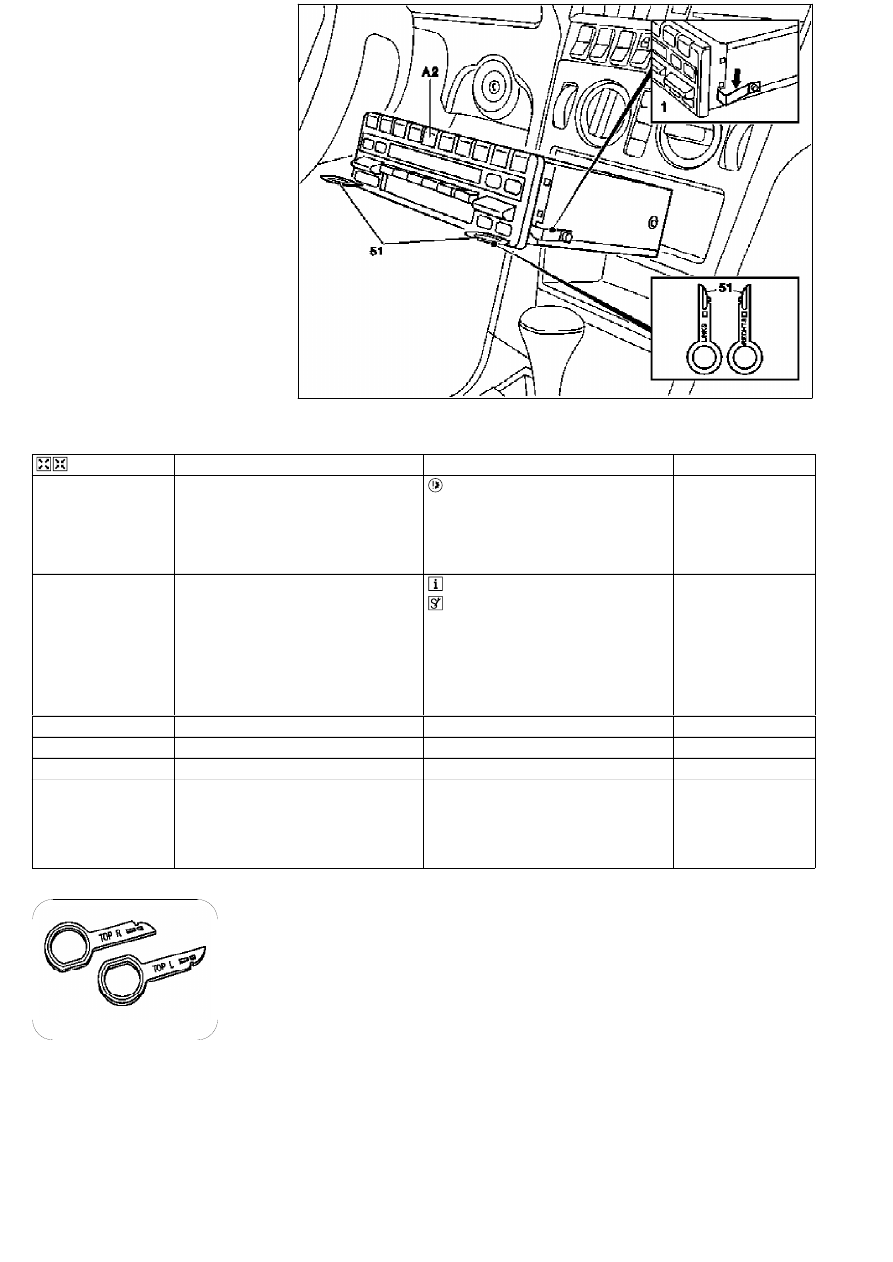

The figure shows removal of radio in
model 202

51

Removal assembly

A2

Radio

Remove/Install

1

Disconnect battery ground cable

 On model 163, 210, insulate cable

terminal for ground lead to prevent
unintentional contact between disconnected
ground lead and ground point W10

AR54.10-P-0003A

Model 463 except 463.241 with code 979

AR54.10-P-0003G

Model 463.241 with code 979

AR54.10-P-0003PV

2

Pull out radio (A2)

 Insert removal fixture (51) for this purpose.



*000589886300

Push back retaining springs (arrow) on
removed radio (A2) and pull out removal
fixture (51).

k



MB radio

Model 202

BT82.60-P-9309-01A

k



MB radio

as of 02/97

BT82.60-P-9309-01B

k



MB radio

MODEL 129 as of 02/91

BT82.60-P-9309-01C

3

Disconnect electrical connectors

4

Install in the reverse order

5

Enter radio code

Code 750, 751

AR82.60-P-7502-01A

Code 510a, 512a, 515a, 516a, 755, ER5,
ER6, ER7

AR82.60-P-7502-01B

Model 129

AR82.60-P-7502-01C

Model 168, 414

AR82.60-P-7502-01GC

Model 163

AR82.60-P-7502-01GH

Removal assembly

000 589 88 63 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR00.60-P-1000GH

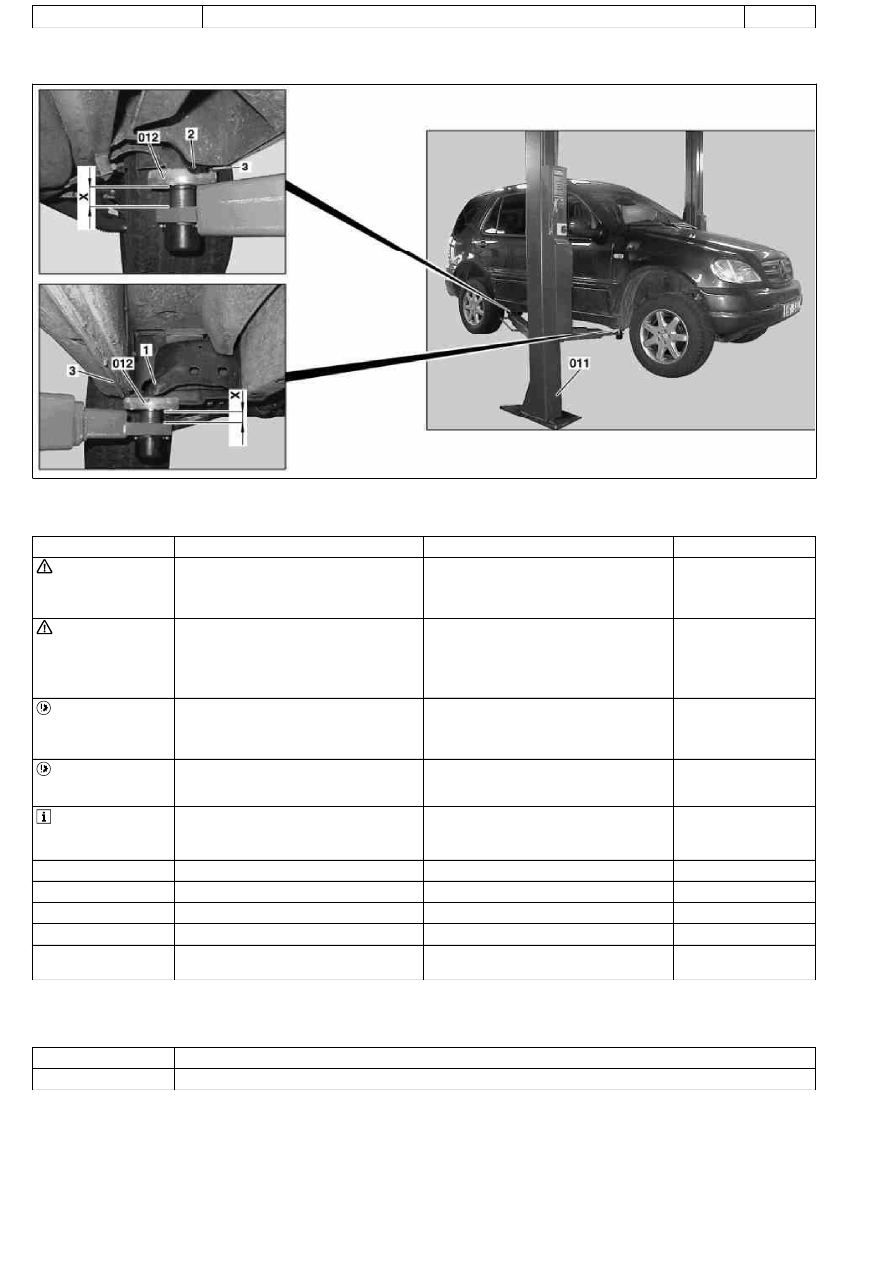

Raising, jacking up vehicle

27.1.00

MODEL

163

P00.60-2013-09

Fig. item, etc.

Work instructions



Danger!

Lethal injuries are possible if vehicle slips off
of lifting platform

Align vehicle between the four lifting platform
pillars and position the four support plates at
the hoist mounting points specified by the
vehicle manufacturer.

AS00.00-Z-0010-01A



Danger!

Danger of accident through self-acting
movement of the vehicle when jacked up
Risk of injury through intrusion into engine
compartment or driveline where rotating parts
pose a serious hazard.

Make sure that the jack stands are securely
positioned.



If the support plates are not properly mounted
(012) at the vehicle's designated jacking
points (1,2) damage may occur to the side sill
covers (3).



The vehicle should be secured against tipping
or falling off the platform when removing any
units.



Lifting vehicle with inspection pit lift or garage
jack

AR00.60-P-1000-01GH

Inspection pit lift.

*WE58.40-Z-1002-05A

1

Forward jacking points

2

Rear jacking points

3

Side sill covers

011

Lifting platform

*WE58.40-Z-1001-05A

012

Support plates

All four support plates must be extended to an
equal distance (Dimension X).

Workshop equipment/MB testers (see Workshop Equipment Manual)

WE58.40-Z-1001-05A

Two-column lift

WE58.40-Z-1002-05A

Inspection pit lift

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
