Mercedes-Benz ML320. Service manual - part 742





Fig. 80: Identifying Accessory Hook, Clamping Strap Mount And Pivot Handle - On Vehicles With
FMVSS201


MODIFY ROOF PANELING FOR INSTALLING HANDLE AND CLAMPING STRAP MOUNT - AN68.30-P-0001-02B

Model 163.113 /154 #A as of 289565, Model 163.113 #X as of 754620, Model 163.128/ 157/ 175 with code
(847), 3rd seat row


1. Remove accessory hook.

2. Position template (1) to roof paneling.

 Fasten template with adhesive tape.

3. Mark points which must be cut out for installing pivot handle and clamping strap.

4. Remove template (1).

Fig. 81: Identifying Pivot Handle Template

5. Cut out cutouts for pivot handle and clamping strap mount.

 Do not cut into window airbag or wiring harness.

6. Repeat on opposite side.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



6 Install accessory hook (2), clamping strap mount (3) and handle (4).

7 Repeat on opposite side.

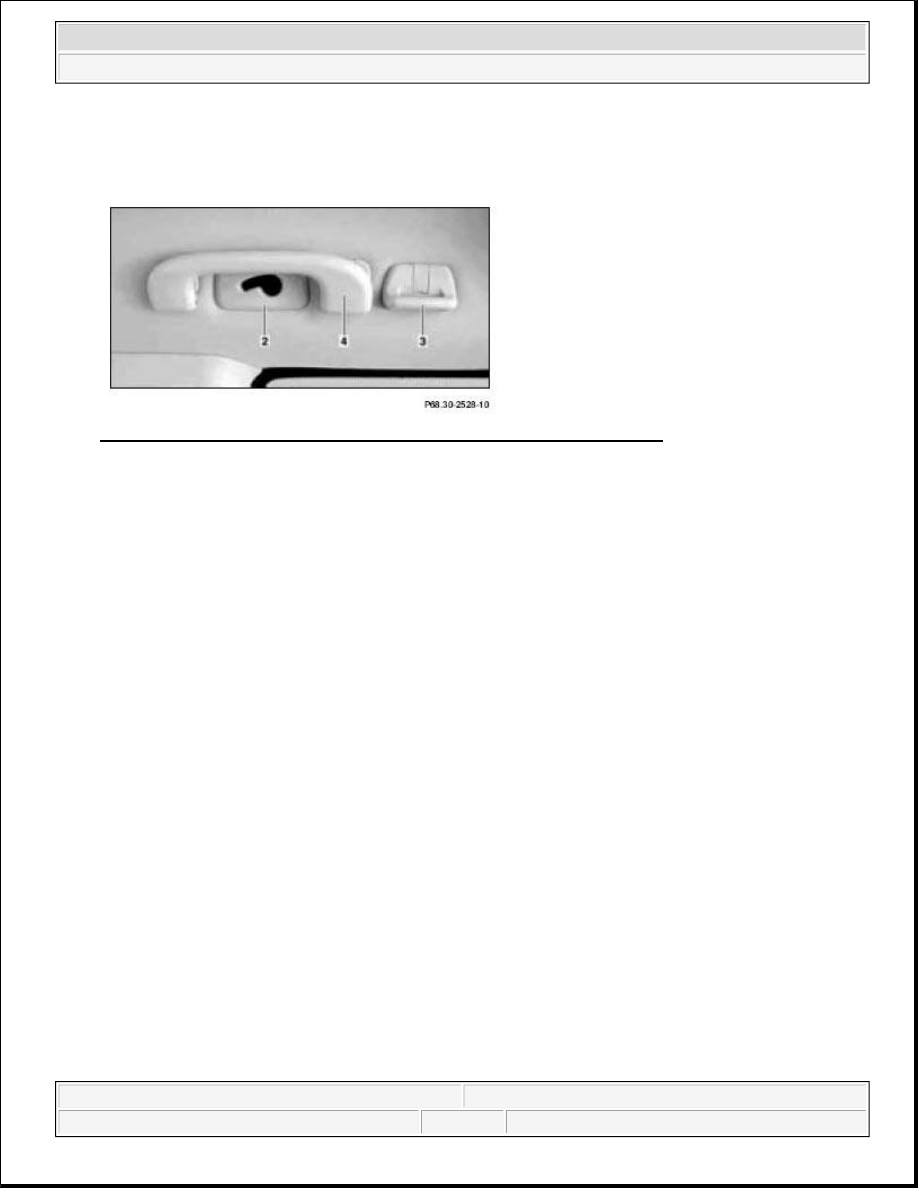

Fig. 82: Identifying Accessory Hook, Clamping Strap Mount And Handle



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



AR00.60-P-1000-01GH

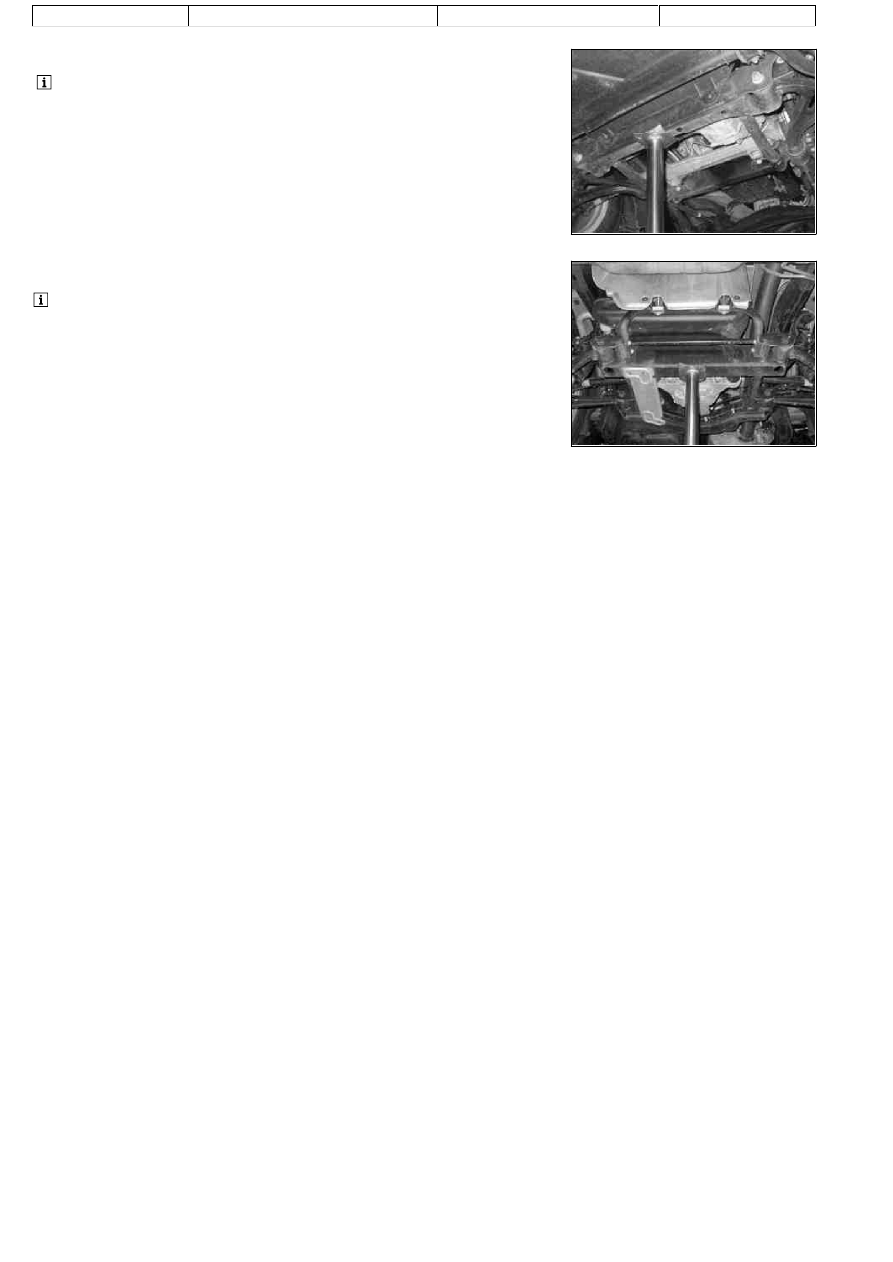

Lifting vehicle with pit lift or workshop jack

P00.60-2016-01

Lifting at front

Place inspection pit lift or garage jack at the front cross bridge for the front-axle carrier

The garage jack can use the side jacking points.

P00.60-2017-01

Lifting at rear

Place inspection pit lift or garage jack at the rear cross bridge for the rear-axle carrier

The garage jack can use the side jacking points.

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF54.30-P-3015A

Liquid crystal display (LCD), location/task/function

7.7.99

MODEL

129, 140 as of 1.6.96,

163, 168, 170,
202 as of 1.8.96,
208,
210 as of 1.6.96,
215, 220

P54.30-0523-06

Task
The liquid crystal displays (LCDs) can display
numbers, letters and other symbols. They are
therefore used as the output devices of
electronic systems. They are increasingly
used as a replacement for the conventional
analog indicating instruments and indicator
lamps.

Operating principle

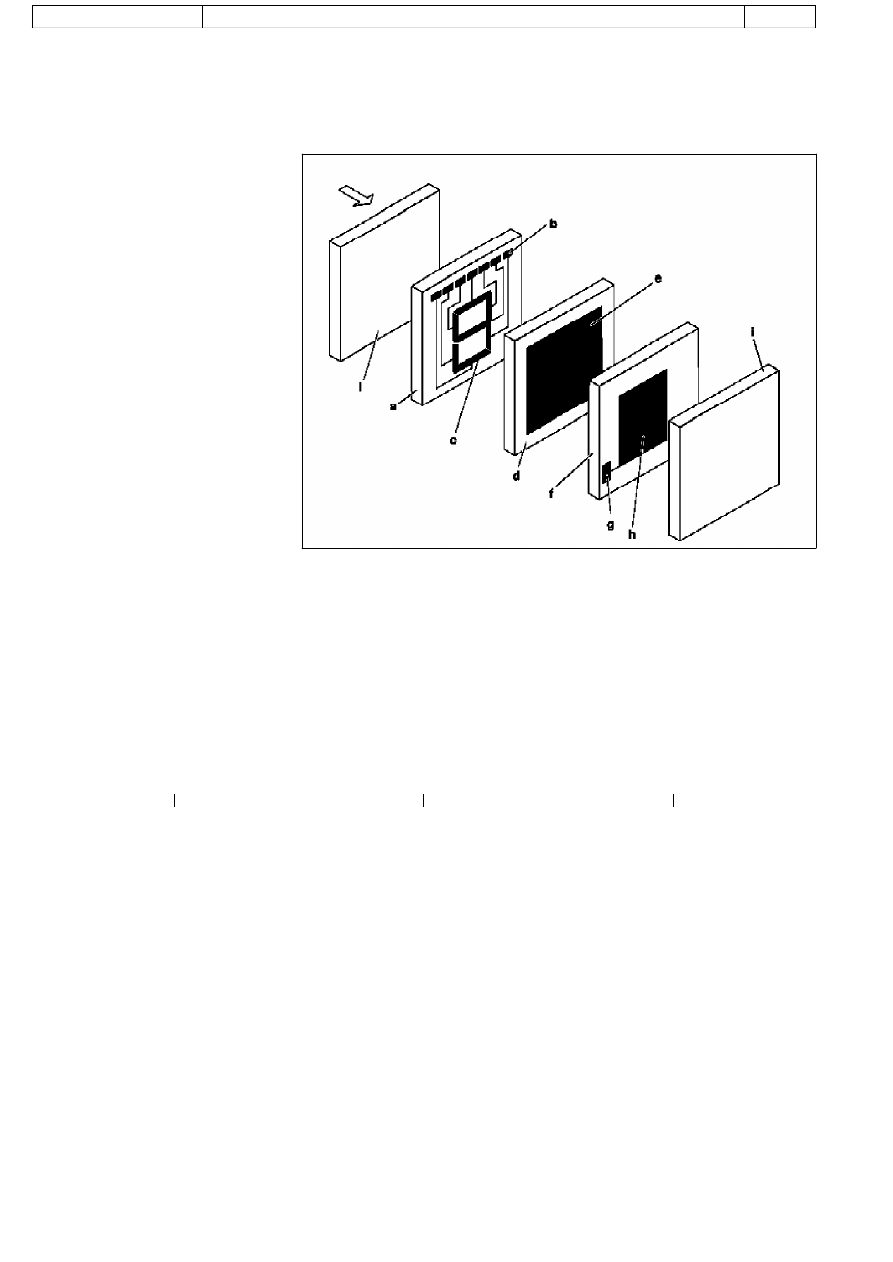

The operating principle of the liquid crystal
display is explained using a seven-segment
display as an example (see illustration).
A spacer frame (d) which surrounds a thin
layer of liquid crystal (e) is sandwiched
between the glass plates (a) and (f).
Transparent electrodes (segments) are
attached to glass plate (a) in the shape of the
desired characters.

The transparent counter-electrode (h) is on glass plate (f). If a
voltage is applied between the contact (g) of the counter-electrode
(h) and one or more contacts (b) of the segmented electrodes (c), the
optical properties of the liquid crystal between the counter-electrode
(h) and the energized electrodes (c) change. If the LCD is viewed in
the direction of the arrow, the energized electrodes (c) appear dark
and are thus visible. By actuating the appropriate electrodes (c) it is
possible to display any number.
The liquid crystal display also has 2 polarization filters (i). These
types of display have a better contrast and require a lower supply
voltage (approx. 1.5 - 5 V).

Other characters can also be displayed if the appropriate electrode
layout or shape is selected. Strip-type electrodes are usually used in
the multifunction display (A1p13). Here strip-type electrodes are
attached to both of the glass plates (a) and (f). The strips on glass
plate (a) are arranged vertically to the strips on glass plate (f). This
arrangement allows individual dots (pixels) to be actuated. If different
dots are actuated repeatedly in sequence at a sufficiently high speed
, it is possible to produce almost any "image".

Copyright DaimlerChrysler AG  04.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
