Mercedes-Benz ML320. Service manual - part 690





MODEL 163 up to 31.8.01 with CODE (580) Air conditioning or Tempmatic for USA

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

IN-CAR TEMPERATURE SENSOR, LOCATION - GF83.57-P-2115-01GH

The in-car temperature sensor (B10/4) with suction jet nozzle is located on the left of the center console next to
the radio.

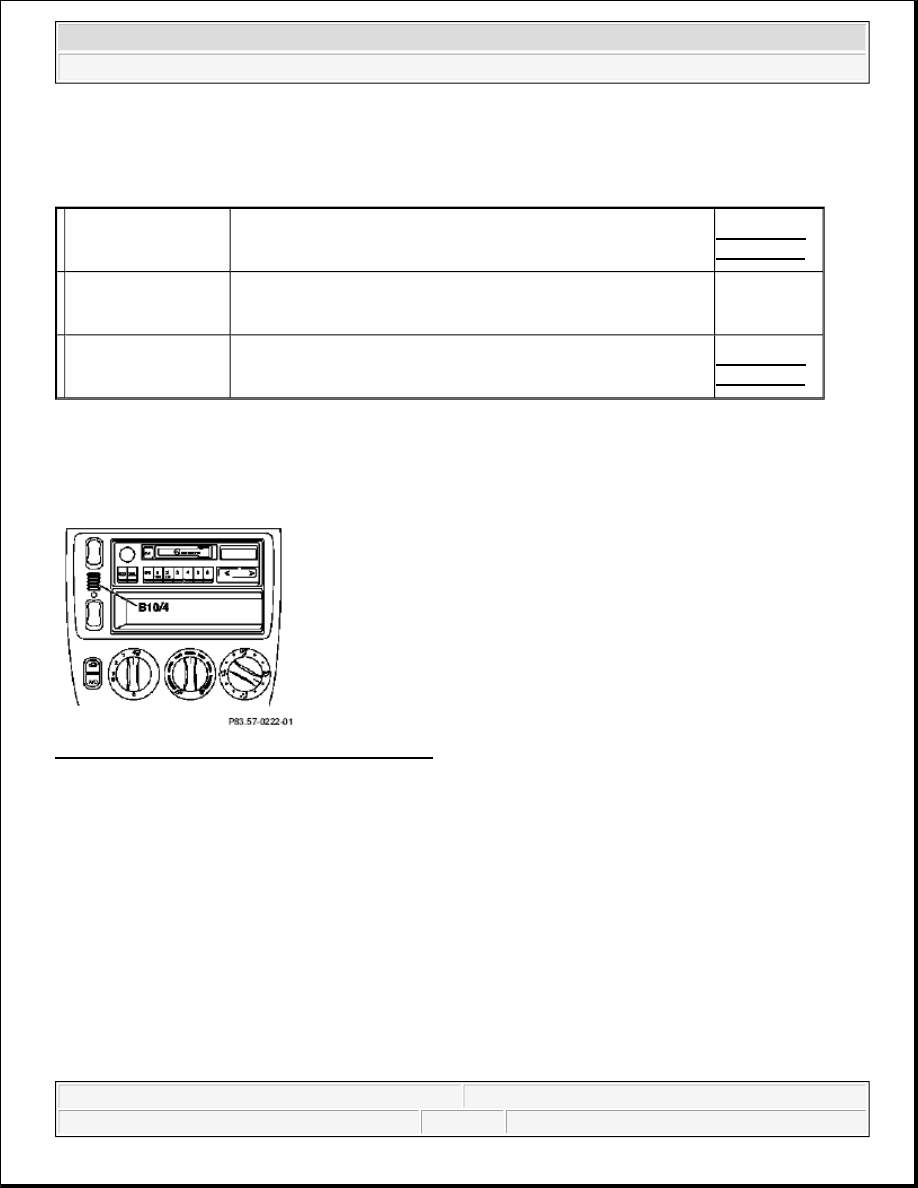

Fig. 124: Identifying In-Car Temperature Sensor

IN-CAR TEMPERATURE SENSOR, FUNCTION - GF83.57-P-2115-02GH

Function

When the blower is running, air is constantly drawn out of the vehicle interior by a suction jet nozzle for the in-
car temperature sensor (B10/4) to measure the temperature when the ignition is. ON .

The in-car temperature sensor (B10/4) records the interior temperature and conveys it to the AAC push-button
control module, where a comparison is made with the setting on the temperature selector. The blend air flap is
repositioned depending on the result of this.

It is connected to the AAC push-button control module via a separate electric cable.

Constant circulation of interior air at the in-car temperature sensor (B10/4) is achieved by this ventilation and
therefore a high level of control accuracy is guaranteed.



Icing protection
temperature sensor,
location



GF83.57-P-
2106-01GH



Icing protection
temperature sensor,
task

The icing protection temperature sensor (R35) records the
evaporator temperature, whereupon the refrigerant compressor is
switched off and the evaporator protected against icing up.





Icing protection
temperature sensor,
function



GF83.57-P-
2106-02GH



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



IN-CAR TEMPERATURE SENSOR, LOCATION/TASK/FUNCTION - GF83.57-P-2115GH

MODEL 163 up to 30.11.99 with CODE (580) Air conditioning or Tempmatic for USA with suction jet
nozzle


IN-CAR TEMPERATURE SENSOR, LOCATION/TASK/FUNCTION - GF83.57-P-2115GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

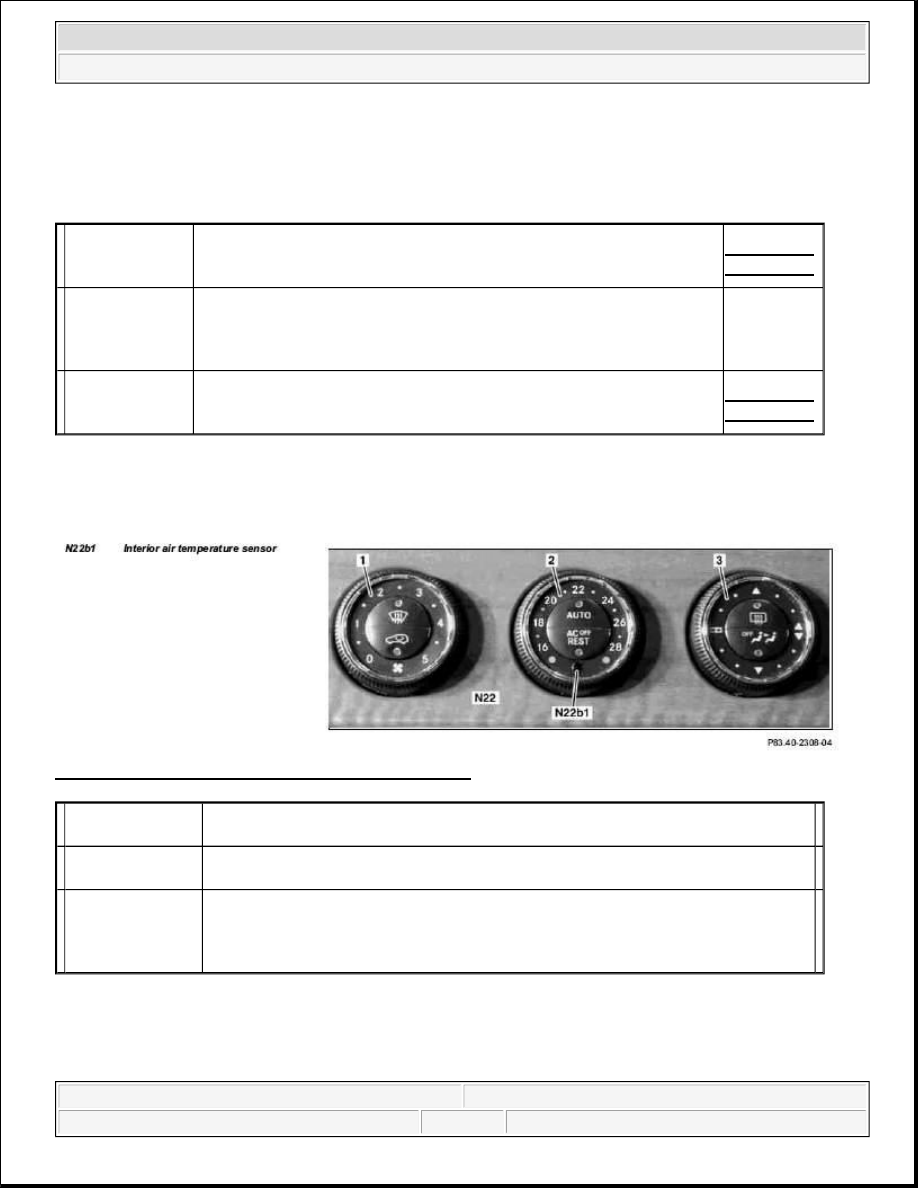

Fig. 125: Identifying Interior Air Temperature Sensor

CENTER NOZZLE VENT AIR TEMPERATURE SENSOR, LOCATION/TASK/FUNCTION - GF83.57-P-2116GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning



In-car
temperature
sensor, location



GF83.57-P-
2115-01GH



In-car
temperature
sensor, task

The in-car temperature sensor (B10/4) with suction jet nozzle records
the interior temperature and conveys this to the AAC push-button
control module. The suction jet nozzle ensures air from the vehicle
interior flows evenly around the in-car temperature sensor (B10/4).





In-car
temperature
sensor, function



GF83.57-P-
2115-02GH



In-car temperature
sensor, location

The in-car temperature sensor (N22b1) is located below in the temperature selector
wheel of the AAC push-button control module.





In-car temperature
sensor, task

The in-car temperature sensor (N22b1) records the in-car temperature and sends it
to the AAC push-button control module (N22).





In-car temperature
sensor, function

The recorded in-car temperature value is compared by the AAC push-button control
module with the setting in the temperature selector wheel whereupon it authorizes a
corresponding adjustment to the blending air flap to be made depending upon the
result.





2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



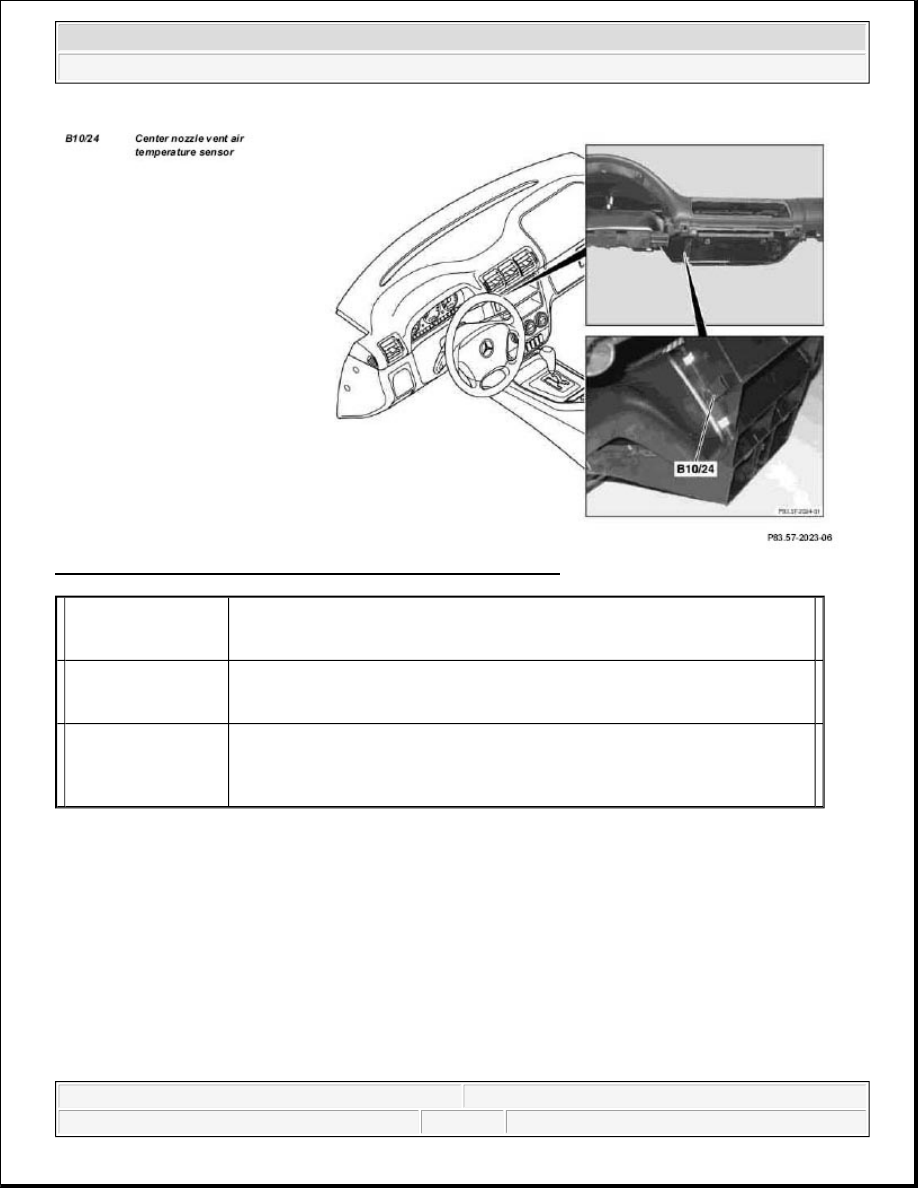

Fig. 126: Identifying Center Nozzle Vent Air Temperature Sensor

FRONT FOOTWELL VENT AIR TEMPERATURE SENSOR, LOCATION/TASK/FUNCTION - GF83.57-P-2117GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning



Center nozzle vent air
temperature sensor,
location

The center nozzle vent air temperature sensor (B10/24) is located to the left of
the air duct's center nozzle below the instrument panel.





Center nozzle vent air
temperature sensor,
task

The center nozzle vent air temperature sensor (B10/24) records the temperature
of the air flowing out of the center nozzle and sends it to the AAC push-button
control module (N22).





Center nozzle vent air
temperature sensor,
function

The vent air's recorded temperature value is compared by the AAC push-button
control module (N22) with the setting in the temperature selector wheel
whereupon it authorizes a corresponding adjustment to the blending air flap to
be made depending upon the result.





2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



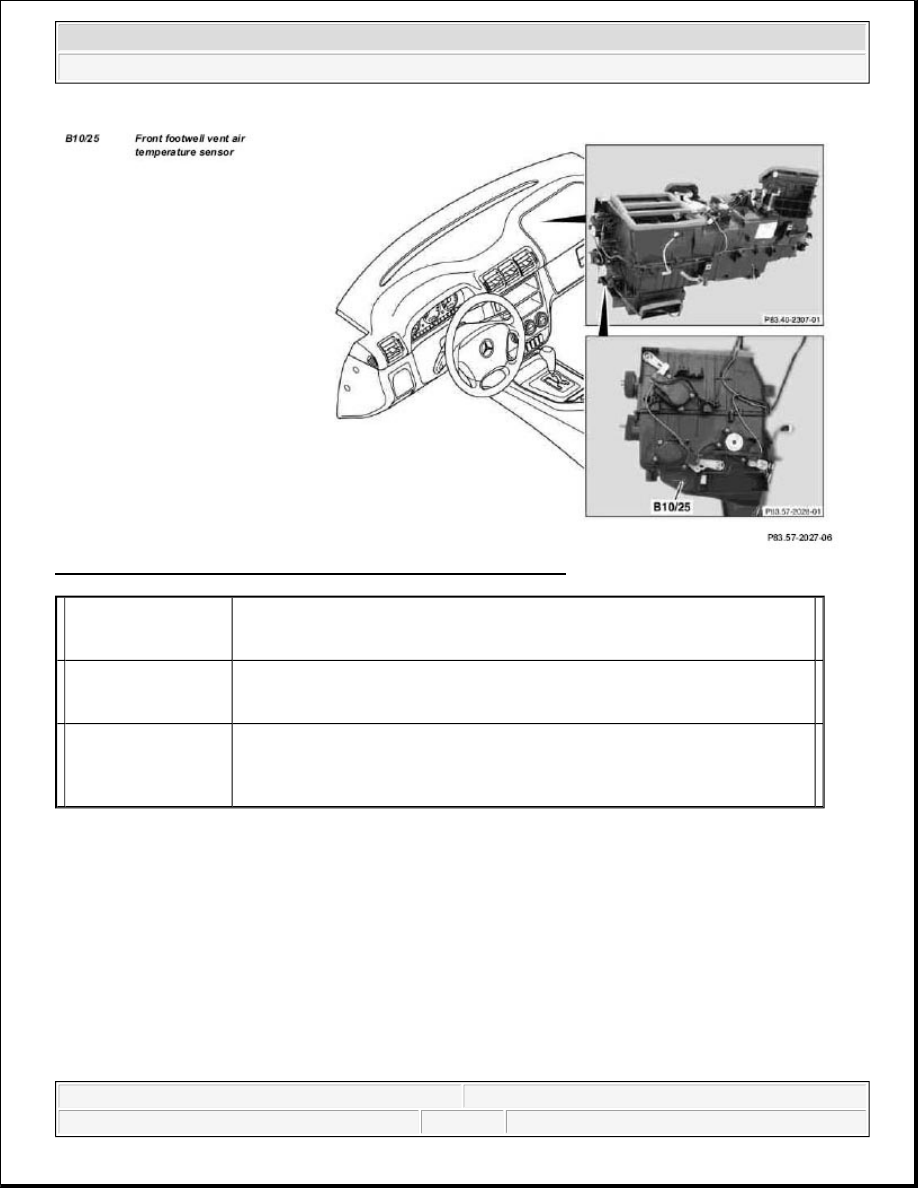

Fig. 127: Identifying Front Footwell Vent Air Temperature Sensor

REAR AIR STREAM TEMPERATURE SENSOR, LOCATION/TASK/FUNCTION - GF83.57-P-2118GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning



Front footwell vent air
temperature sensor,
location

The front footwell vent air temperature sensor (B10/25) is located to the left of
the automatic air conditioning box below the instrument panel.





Front footwell vent air
temperature sensor,
task

The front footwell vent air temperature sensor (B10/25) records the temperature
of the air flowing in the front footwell and sends it to the AAC push-button
control module (N22).





Front footwell vent air
temperature sensor,
function

The vent air's recorded temperature value is compared by the AAC push-button
control module (N22) with the setting in the temperature selector wheel and
authorizes a corresponding adjustment to the blending air flap to be made
depending upon the result.





2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me
