Mercedes-Benz ML320. Service manual - part 450





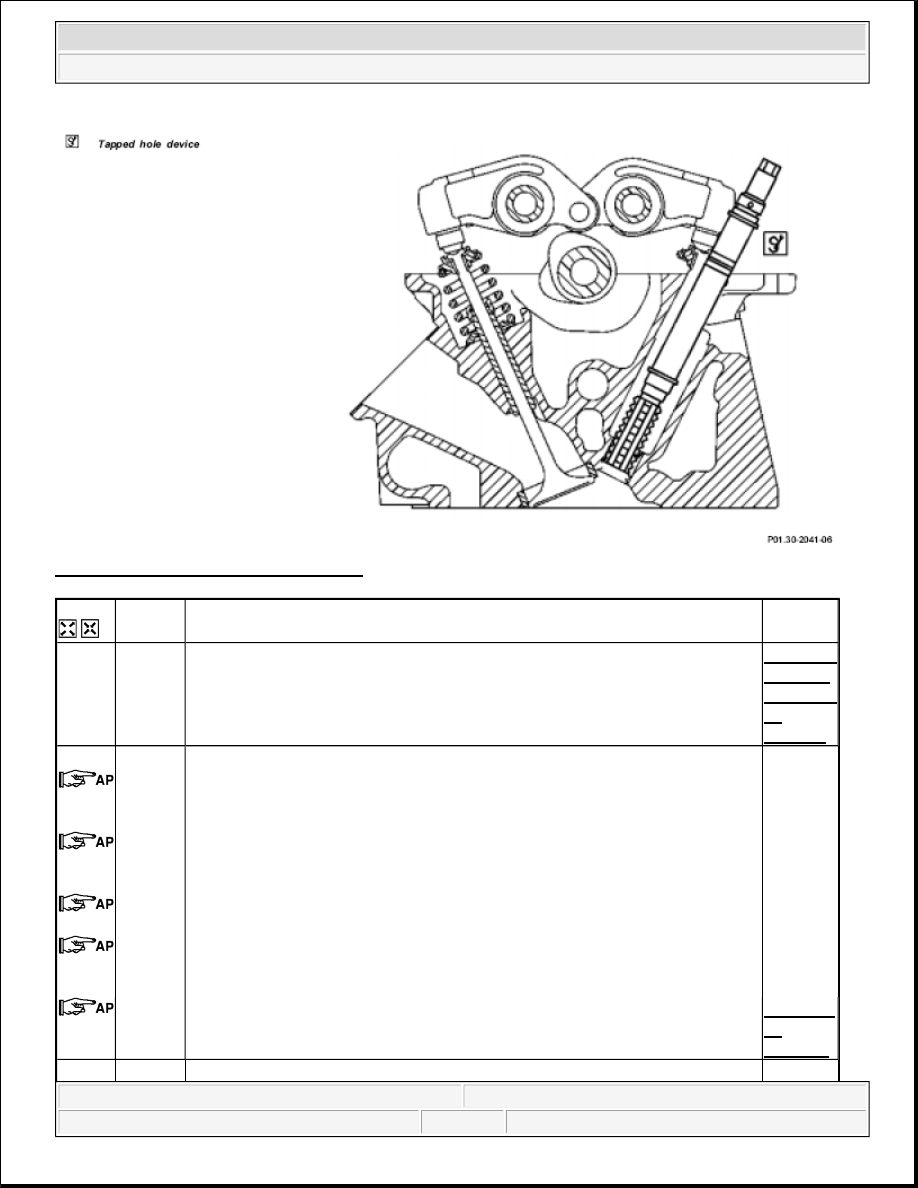

Fig. 69: Identifying Tapped Hole Device





Remove,
Install





1

Remove
cylinder
head
cover

Air cleaner located at vehicle side.
Air cleaner located at engine side.

AR01.20-
P-5014B
AR01.20-
P-
5014BV

2

Remove
spark
plugs







Model 463.206/209/ 232/233/240/241/243/244/245/ 246/247/248/249 /250/254 AP15.10-

P-
1580GA



Model 220, 230.474/475, 211.061/065/070

AP15.10-
P-
1580AB



Model 170, 202, 203, 208, 209, 210

AP15.10-
P-1580A



Model 129

AP15.10-
P-
1580AC



Model Series 163

AP15.10-
P-
1580GH


3

Position





2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



piston of
relevant
cylinder
to 20° -
30°
before
TDC

 Inlet valve and exhaust valve of the relevant cylinder must be closed.

4

Remove
cylinder
head

 Model 230.474 with Engine 113.992 replace cylinder head if spark plug

thread is faulty.

 It is then only necessary to remove the cylinder head if it is not possible to

insert the thread tap unit into the spark plug thread for space reasons!



Model
463.206 /209 /232 /233 /240 /241 /243 /244 /245 /246 /247 /248 /249 /250 /254.

AR01.30-
P-
5800GV

Model 202, 208, 210 with Engine 113 and Model 129 with Engine 112, 113

AR01.30-
P-5800B

Model 220 with Engine 112, 113 and Model 210, 170, 202, 208 with Engine
112, 230.474/475

AR01.30-
P-
5800BA

Model 203, 209, 211.061/065 /070

AR01.30-
P-
5800PV

Model Series 163

AR01.30-
P-
5800MV

5

Tap
thread in
spark
plug
hole and
screw in
threaded
insert

 Pack the swarf grooves of the combination thread tap with grease for

bonding the swarf. Blow out cylinder and spark plug thread with compressed
air before screwing in the threaded insert.

AR01.30-
P-5440-
01B



Fig. 62

6

Crank
engine
with
starter.

 If the cylinder head was not removed, the engine must be cranked several

times with the starter.
All Models except Model 203, 209 Model 203, 209

AR01.10-
P-0110V
AR01.10-
P-
0110PV

7

Caulk
threaded
insert



AR01.30-
P-5440-
02B

8

Install in
the
reverse
order







2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



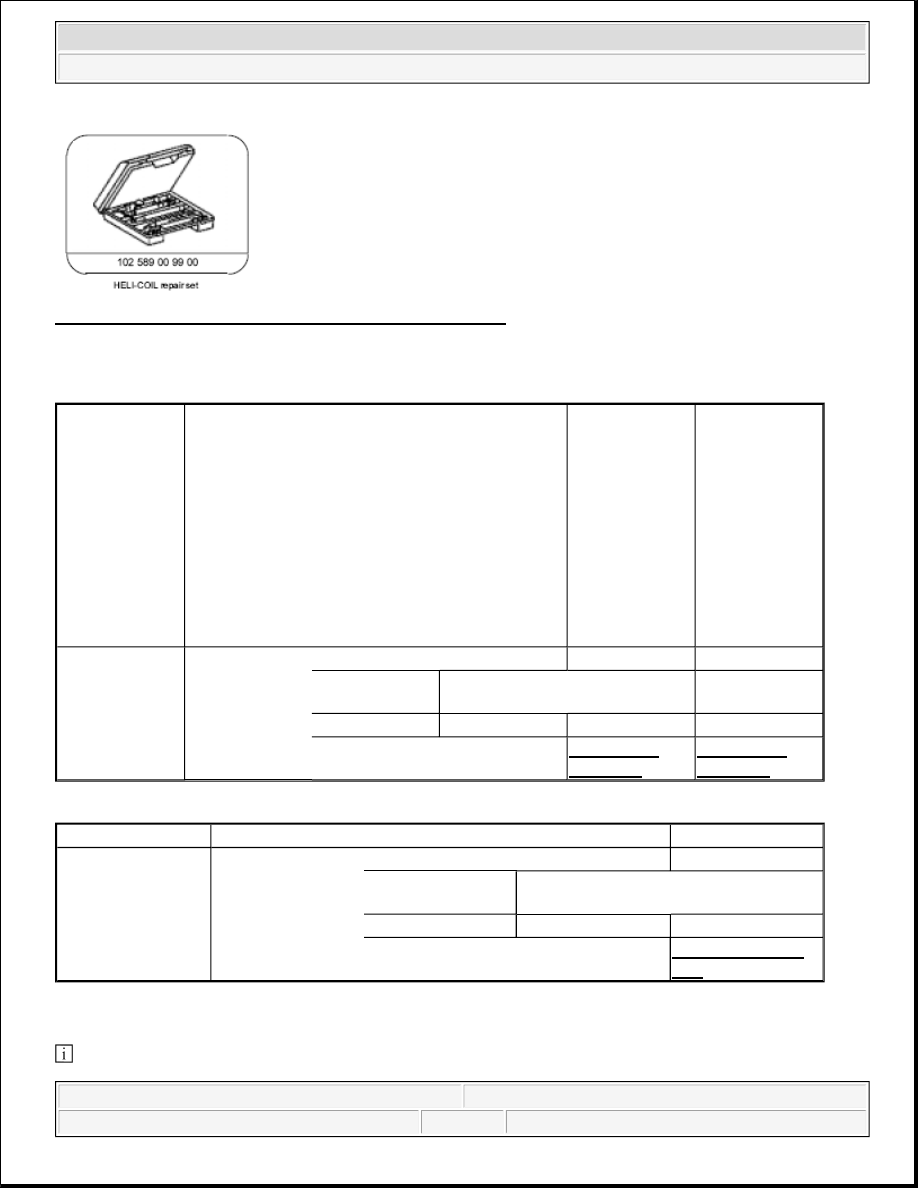

Fig. 70: Identifying Heli-Coil Repair Set (102 589 00 99 00)

CHECKING CYLINDER HEAD BOLTS - AR01.30-P-5800-03B

Cylinder head/Cylinder head bolts

Cylinder head/cylinder head bolts

1. Measure length (L) of cylinder head bolts.

 If the length (L) exceeds the maximum permissible dimension then the cylinder head bolts must be replaced.

Number

Designation

Engines
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975/976

Engines
113.940/941/
942/943/944/
945/946/948/
960/961/962/
963/964/965/
966/967/968/
969/971/980/
981/982/984/
986/987/988/
990/991/992/
993/995

BE01.30-P-
1001-04B

Cylinder head
bolt

Thread diameter

M 11

11

Length (L) when
new

mm 141.5

141.5

Length (L)

mm < or = 144.5

< or = 144.5

See picture

AR01.30-P-
5800-03B

AR01.30-P-
5800-03B

Number

Designation

Engine 113.989

BE01.30-P-1001-
04B

Cylinder head bolt

Thread diameter

M 11

Length (L) when
new

mm 141.5

Length (L)

mm < or = 144.5

See picture

AR01.30-P-5800-
03B



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



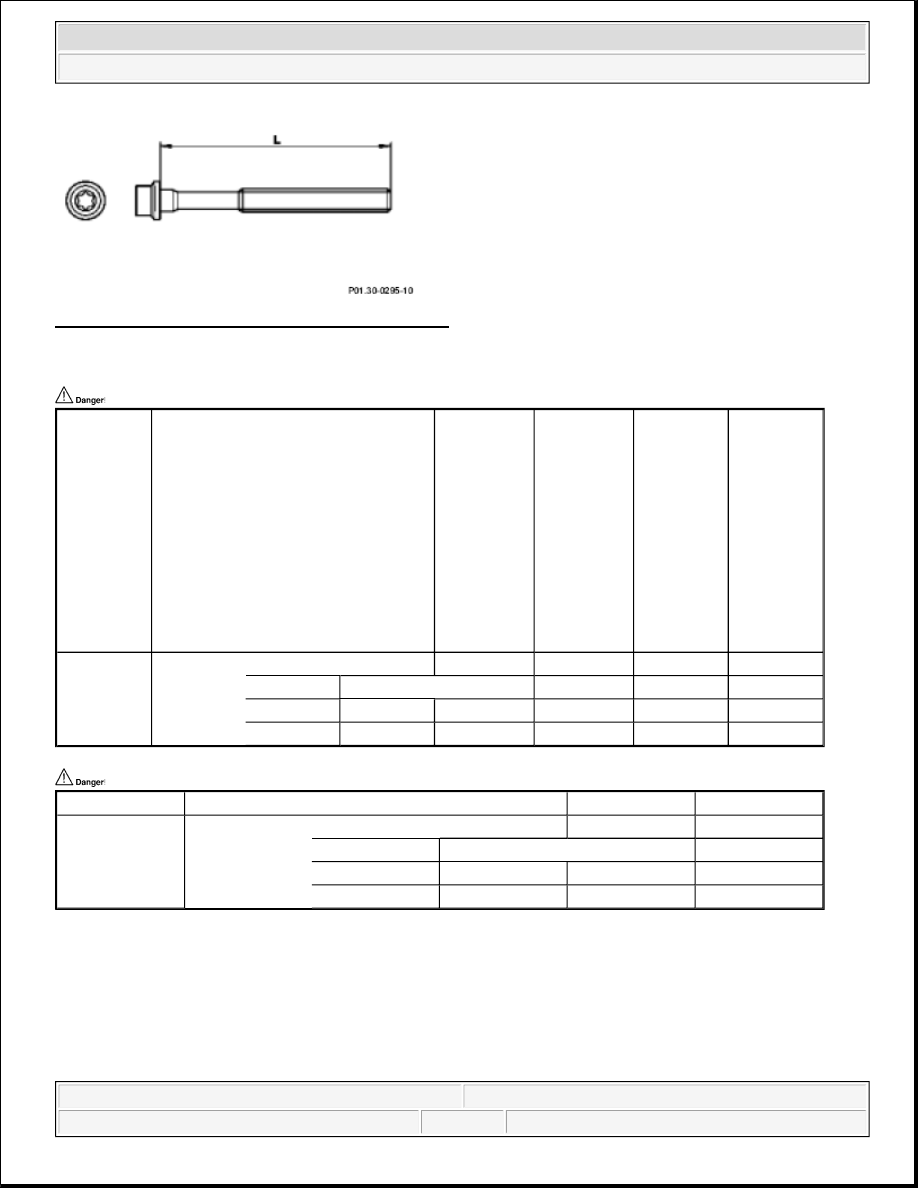

Fig. 71: Identifying Length Of Cylinder Head Bolts

TIGHTENING INSTRUCTIONS FOR CYLINDER HEAD BOLTS - AR01.30-P-5800-07B

 Cylinder head

 Cylinder head

Number

Designation

Engines
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975/976

Engines
113.940/941/
942/943/944/
948/960/961/
962/963/965/
966/967/968/
969/971/980/
981/982/984/
986

Engine
113.987/
988

Engine
113.987/
991/992/
993/995

BA01.30-P-
1001-01D

Bolt,
cylinder
head to
crankcase

Stage 1

Nm

10

10

10

10

Stage 2

Nm

30

30

30

30

Stage 3

Angle °

90

90

90

90

Stage 4

Angle °

90

90

90

90

Number

Designation

Engine 113.989 Engine 113.964

BA01.30-P-
1001-01D

Bolt, cylinder
head to
crankcase

Stage 1

Nm

10

10

Stage 2

Nm

30

30

Stage 3

Angle °

90

90

Stage 4

Angle °

90

90



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me
