ENGINE 275 in MODELS 215, 220, 230

Shows model 202

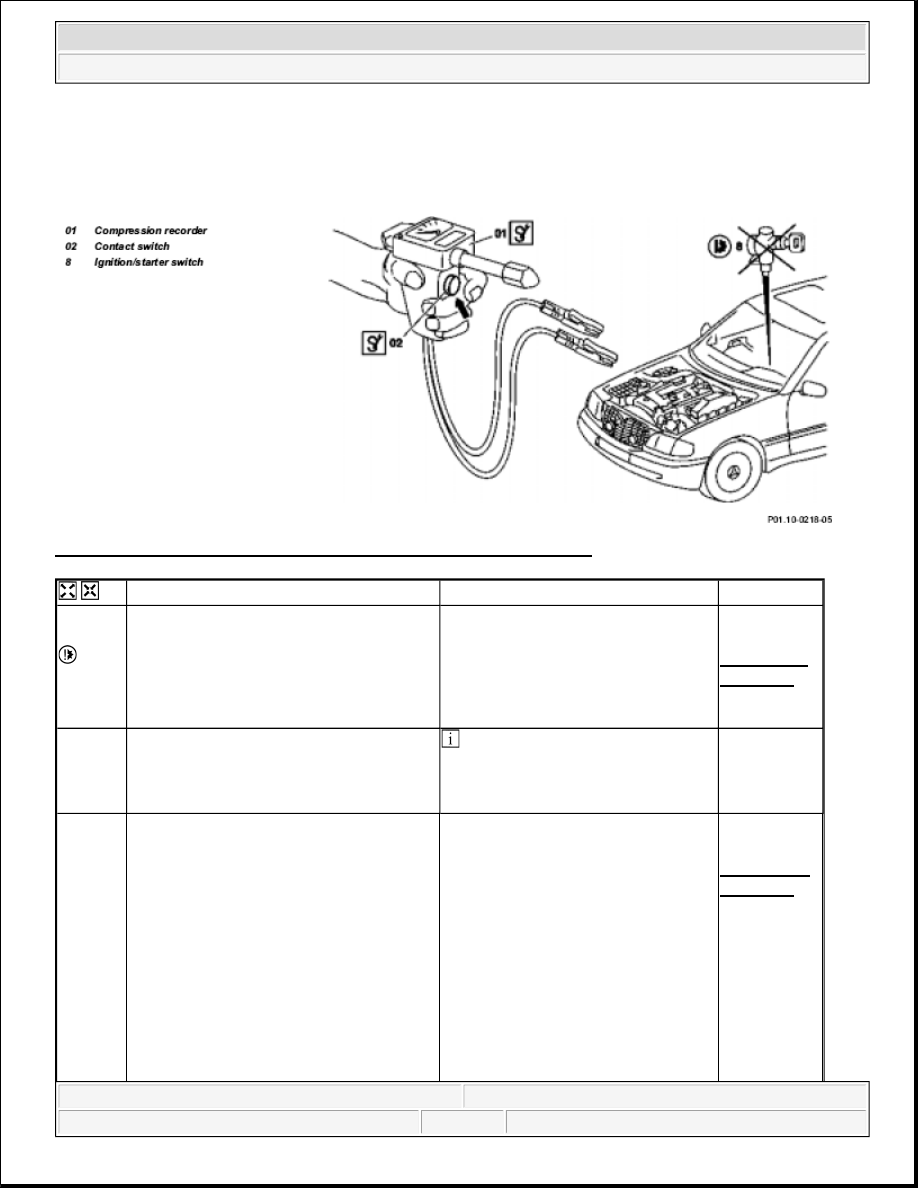

Fig. 39: Identifying Cranking Engine With Starter - Shows Model 202





Remove/install







Danger!

Risk of accident caused by vehicle
starting off by itself when engine is
running. Risk of injury caused by
contusions and burns during starting
procedure or when working near the
running engine

Secure vehicle to prevent it from
moving by itself.
Wear closed and snug-fitting work
clothes.
Do not grasp hot or rotating parts.

AS00.00-Z-
0005-01A


1

Switch off ignition

 Vehicles with Keyless-Go Code

889: press Start/Stop button
repeatedly until ignition is switched
off.



Model 129

AR01.10-P-
0010-01AV

Model 163.1

AR01.10-P-
0010-01V

Model 170

AR01.10-P-
0010-01CA

Model 210 with engine 112 up to
production date 1.3.1997

AR01.10-P-
0010-01B

Model 210 with engine 112 from
production date 2.3.1997,

AR01.10-P-
0010-01E

Models 202, 208 with engine 112,
Models 210, 202, 208 with engine





2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



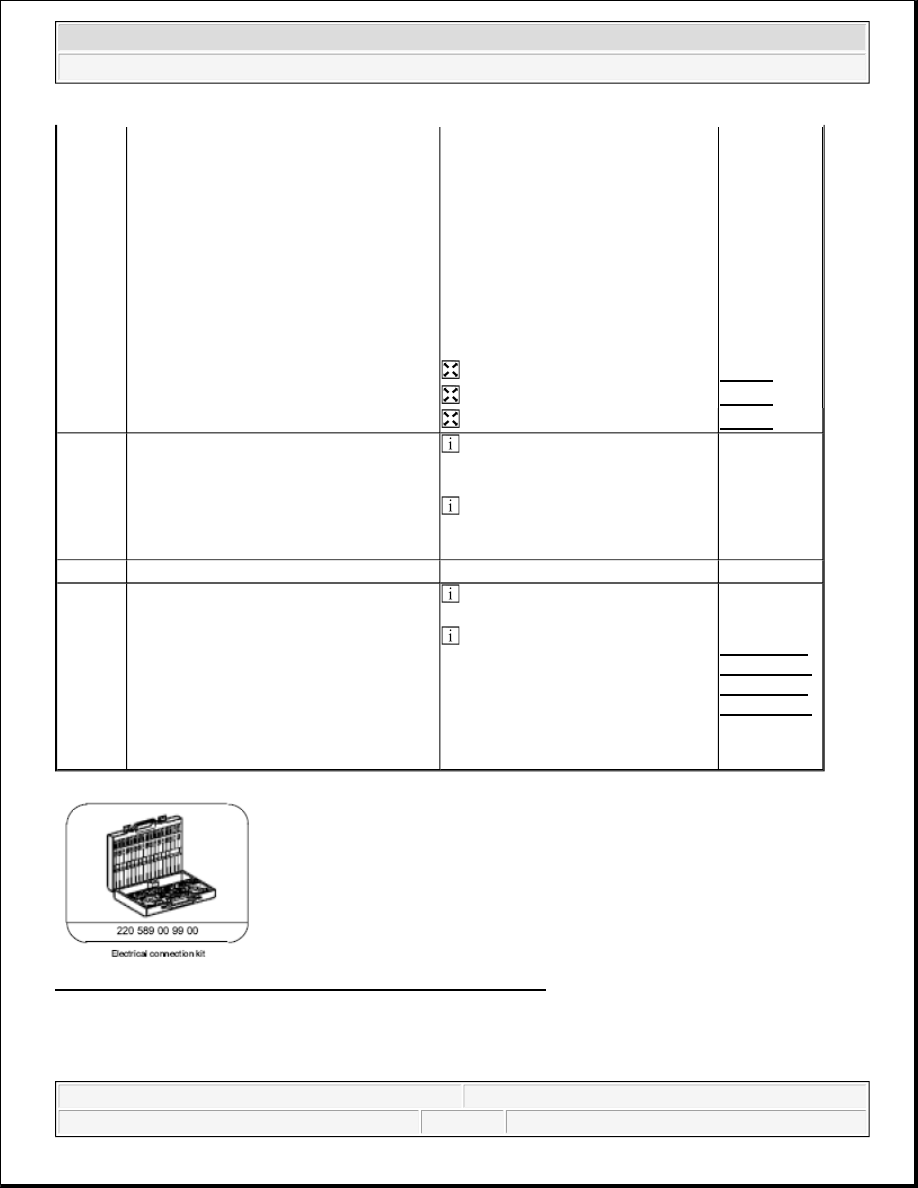

Fig. 40: Identifying Electrical Connection Kit (220 589 00 99 00)

2

Connect compression recorder (01)

113

Model 211

AR01.10-P-
0010-01T

Model 215, model 220

AR01.10-P-
0010-01L

Model 230

AR01.10-P-
0010-01R

Model 240

AR01.10-P-
0010-01H

Model 463.2

AR01.10-P-
0010-01GV

 Compression recorder

Fig. 21

 Electrical connection set

Fig. 40

 Adapter cable

Fig. 42

3

Crank engine

 Press contact switch (02) on

compression recorder (01) for this
step.

 Do not crank engine via

ignition/starter switch (8), EIS [EZS]
control unit or Start-Stop button.



4

Install in the reverse order





5

Read out fault memory and erase if
necessary

 If the ignition was switched on

during the process: ?

Stored faults which may be caused

by removal and installation or test
operations, must be erased from the
diagnostic trouble code memories
after completing the work.
STAR DIAGNOSIS diagnosis system
Handheld tester (HHT)

*WH58.30-
Z-1048-13A
*WH58.30-
Z-1036-13A



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



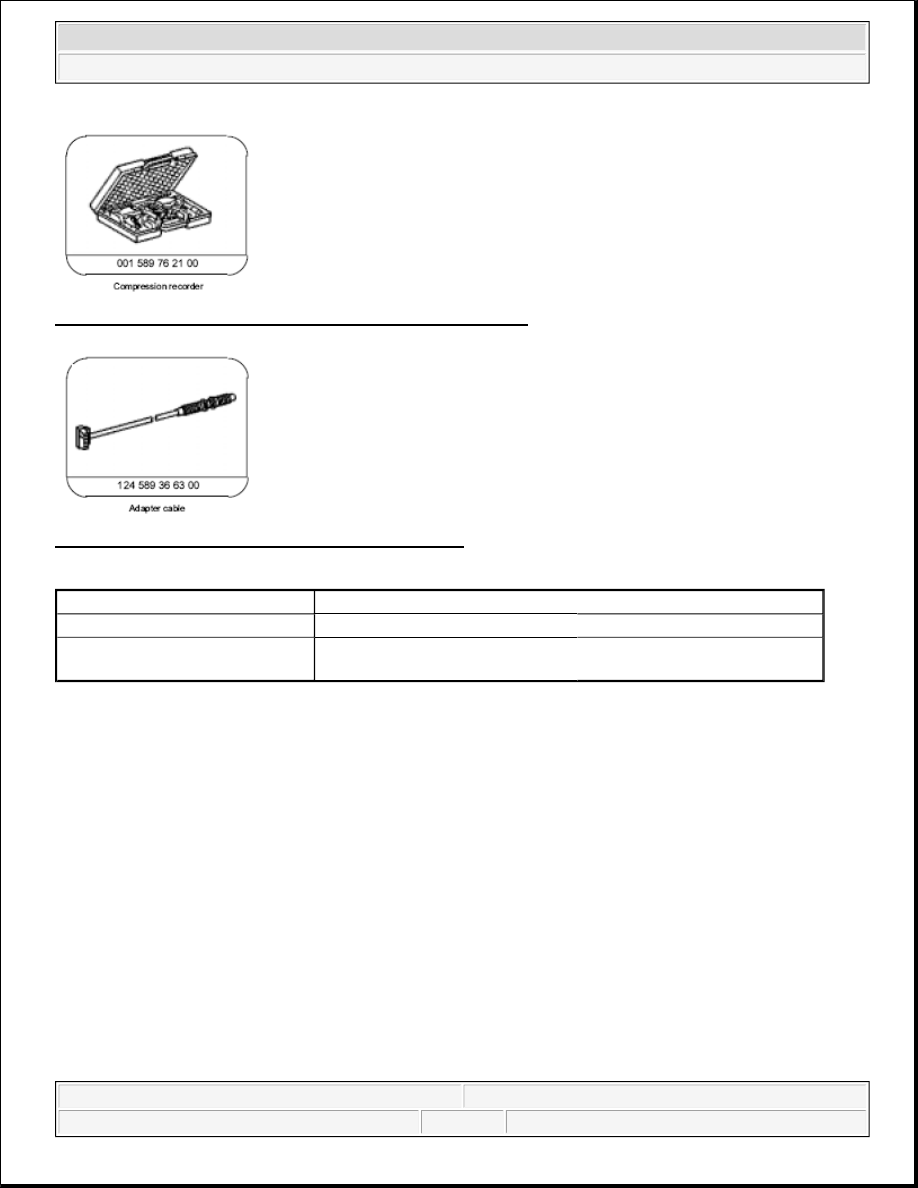

Fig. 41: Identifying Compression Recorder (001 589 76 21 00)

Fig. 42: Identifying Adapter Cable (124 589 36 63 00)

Commercially available tools

REMOVE/INSTALL ENGINE - AR01.10-P-2400CA

ENGINE 112.942 in MODEL 163.154

ENGINE 112.970 in MODEL 163.157

ENGINE 113.942 in MODEL 163.172

ENGINE 113.981 in MODEL 163.174

ENGINE 113.965 in MODEL 163.175

Illustrated on model 112.942

Number

Designation



WH58.30-Z-1036-13A

Handheld tester (HHT)

651 100 01 99

WH58.30-Z-1048-13A

STAR DIAGNOSIS diagnosis
system, Compact Passenger Car

6511 1801 00



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me

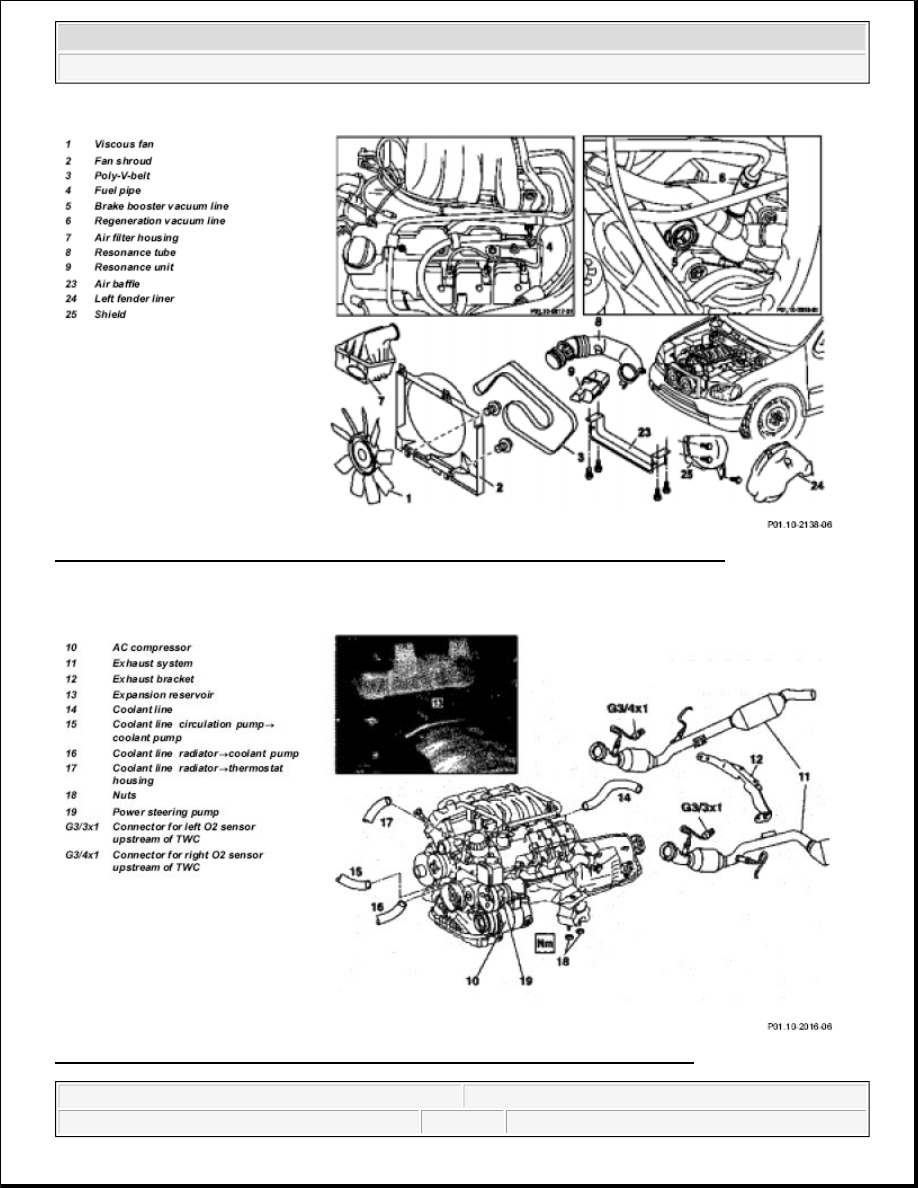

Fig. 43: Identifying Engine Remove/Install Components - Illustrated On Model 112.942

Shown on engine 112.942

Fig. 44: Identifying Engine Remove/Install Component - Shown On Engine 112.942



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis
