Mercedes-Benz ML320. Service manual - part 442





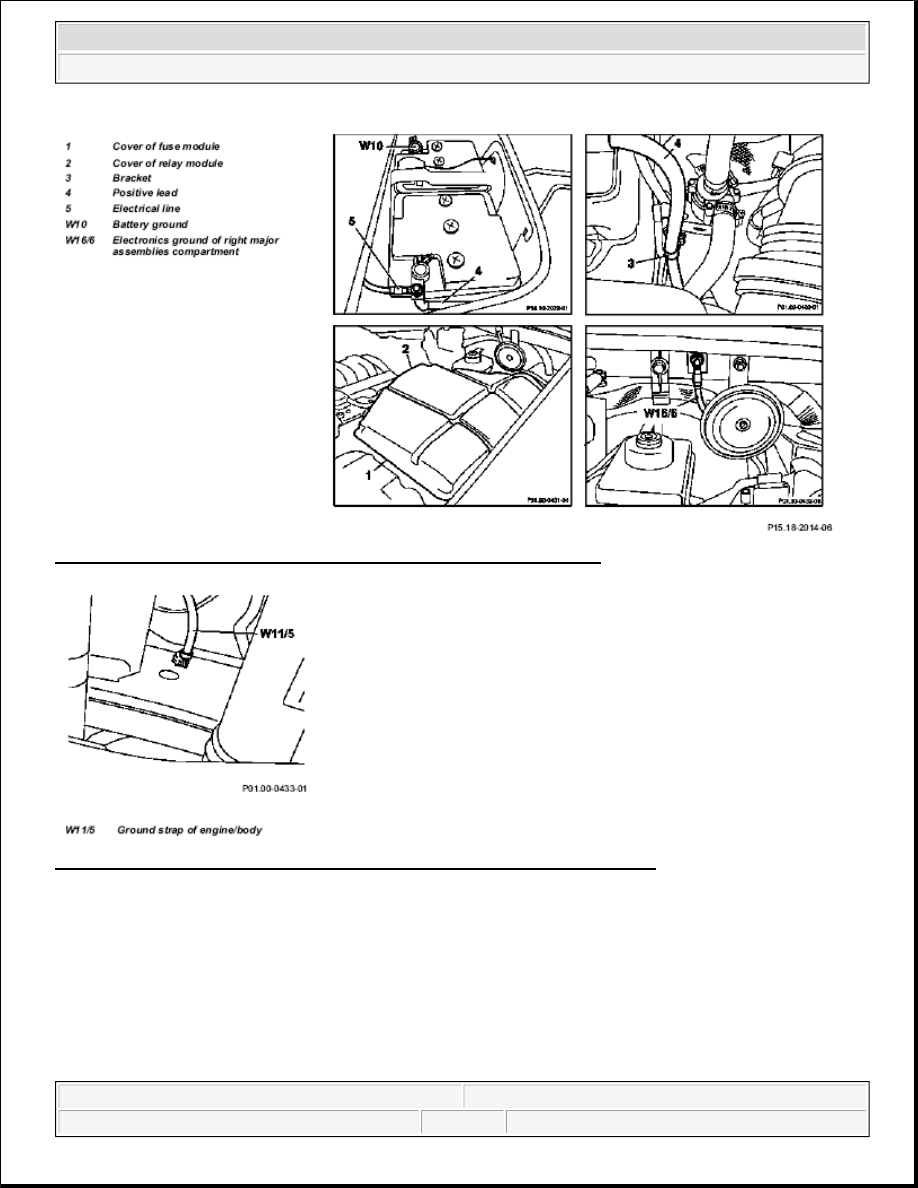

Fig. 32: Identifying Engine Wiring Harness - Shown On Model 163.154

Fig. 33: Identifying Ground Strap Of Engine/Body - Shown On Model 163.154

Shown on Model 163.154



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



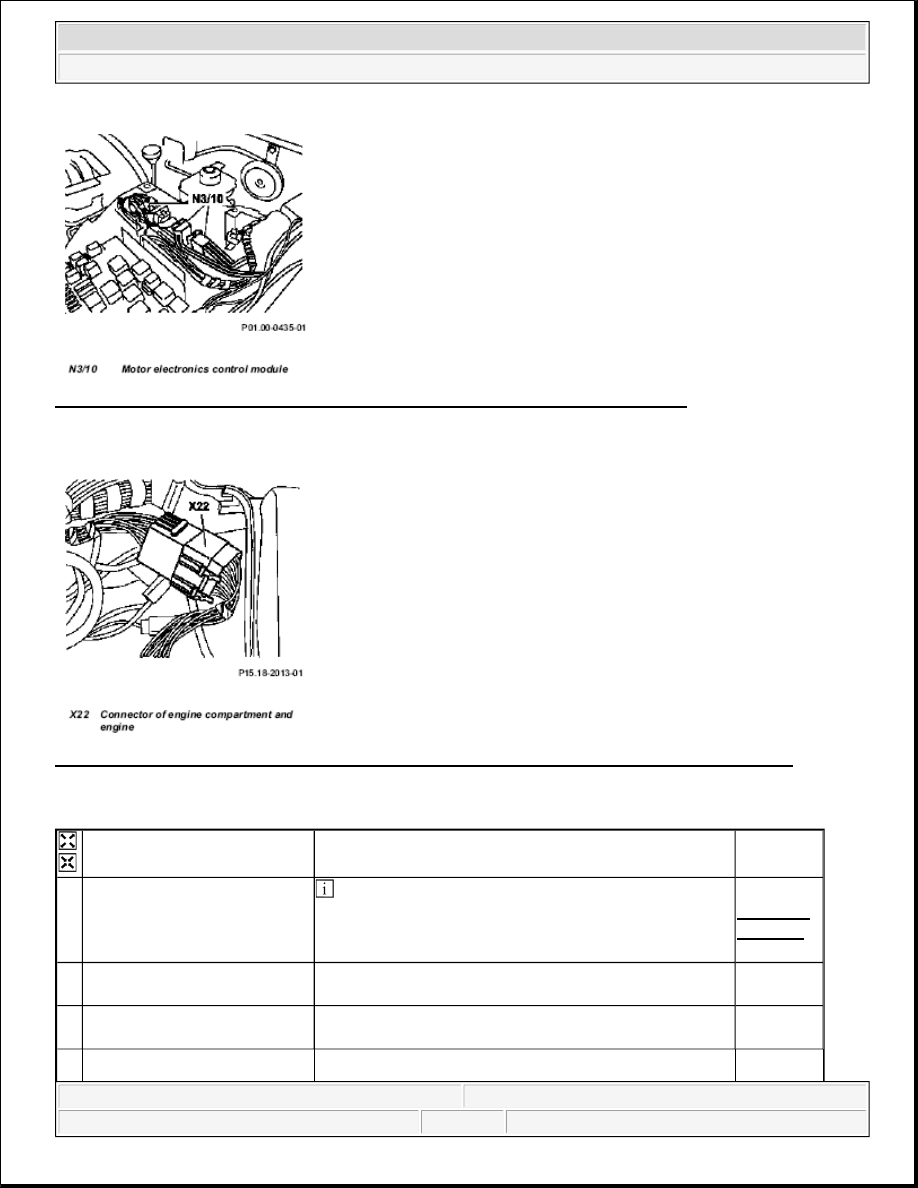

Fig. 34: Identifying Motor Electronics Control Module - Shown On Model 163.154

Shown on Model 163.154

Fig. 35: Identifying Connector Of Engine Compartment And Engine - Shown On Model 163.154

Shown on Model 163.154




Remove/Install





1

Disconnect ground of battery
(W10)

 Installation: After connecting, read out fault memory,

encode radio and normalize power windows.
Vehicles with stationary heater: adjust time display on
stationary heater.

AR54.10-
P-0003A


2

Remove cover of fuse module
(1)





3

Remove cover of relay module
(2)





Remove electronics ground of



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



CONNECT COMPRESSION TESTER INFORMATION ON PREVENTING DAMAGE TO ELECTRONIC COMPONENTS
DUE TO ELECTROSTATIC DISCHARGE - AR01.10-P-0010-01V

Fig. 36: Identifying Compression Recorder (001 589 76 21 00)

4

right major assemblies
compartment (W16/6) of
engine wiring harness





5

Remove electrical line (5) at
positive lead (4)





6

Disconnect positive cable (4) at
battery





7

Take off bracket (3) of positive
cable (4)

 Bracket next to coolant circulation pump.



8

Separate connector of engine
compartment and engine (X22)
in fuse and relay module





9

Separate connectors of motor
electronics control module
(n3/10)

 Release locking arm, separate plug connection



10

Unscrew ground strap of
engine/body (W11/5) to
vehicle frame





11 Install in the reverse order





12

Read out and erase diagnostic
trouble code memory with
HHT or STAR DIAGNOSIS

 After completion of the work, it is necessary to

process and erase the DTCs stored in the DTC memory
during assembly and testing work due to disconnected
lines and simulation. Diagnosis Manual Volume 2 Index
0: Connecting and using test equipment





2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



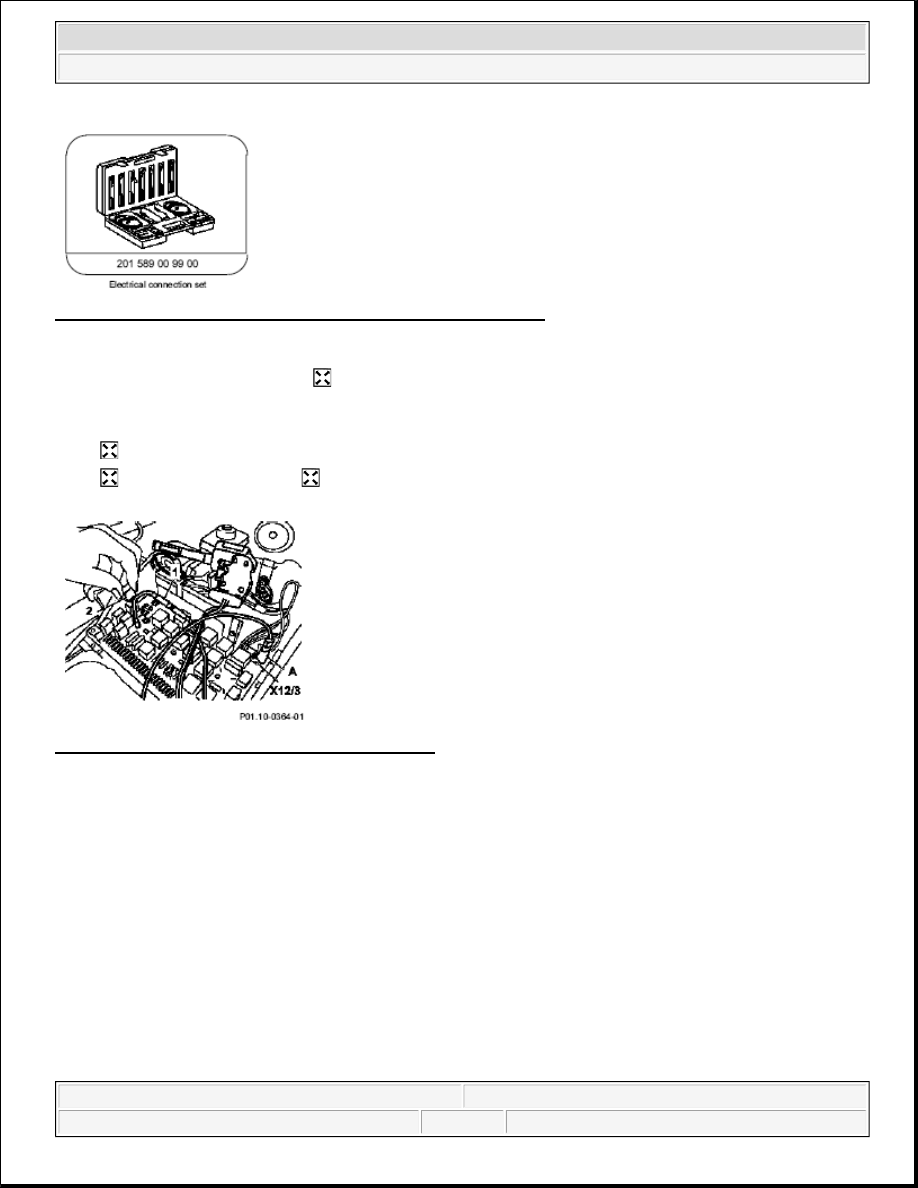

Fig. 37: Identifying Electrical Connection Set (201 589 00 99 00)

1. Remove cover on fuse and relay module.

2. Clip connection terminal (A)

 of compression tester onto circuit 30, 15, 61 terminal block (3-pin)

(X12/3).

3. Pull starter relay (2) out of the fuse module (relay place 8).

4.

 Connect adapter line (1)with terminal 87 in relay place 8 of the fuse module.

5.

 Connect adapter line (1)

 to the cable of the compression tester.

Fig. 38: Identifying Starter Relay & Fuse Module

CRANKING ENGINE WITH STARTER. - AR01.10-P-0110V

ENGINE 112 in MODELS 129, 163, 170, 202, 208, 210, 211, 220, 230

ENGINE 113 in MODELS 129, 163, 202, 208, 210, 211, 215, 220, 230

ENGINE 112.945 in MODELS 463.209 /232 /233 /244 /245 /250

ENGINE 137 in MODELS 215, 220

ENGINE 285 in MODEL 240

ENGINE 113.962 in MODELS 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in MODELS 463.243 /246



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me
