Mercedes-Benz ML320. Service manual - part 438





Model 220 with engine
112, 113
Model 230 with engine
112, 113
Model 240 with engine
285

AP15.10-P-1580H

Model 463 with Engine
112, 113

AP15.10-P-1580GA

2.1

Remove bottom engine
compartment paneling

Model 240

AR61.20-P-1105H

3

Position piston of cylinder
to be inspected to BDC

To do this, crank the
engine at the central bolt of
the crankshaft in the
direction of rotation of the
engine: ?
Firing order

AR01.00-P-1300-03HA

4

Connect cylinder
inspection lamp (05) and
insert the flexible test
probe for the inspection
lamp via the spark plug
bore into the respective
cylinder

 Cylinder inspection

equipment

*WH58.30-Z-1014-05A

 Flexible inspection light *WH58.30-Z-1006-05A

 Flexible inspection light *WH58.30-Z-1007-05A



Check





5

Inspect cylinder walls

 Normal condition:

Mat-grey surface, no
honing pattern.
If the condition of the
cylinder wall is not clearly
recognizable: ?



Model 129, 163, 170, 202,
203, 208, 209, 210,
215,220,230,463



Remove cylinder head



Model 129 with engine
112, 113

AR01.30-P-5800B

Model 202, 208, 210 with
engine 113



Model 163 with engine
112, 113

AR01.30-P-5800MV

Model 170, 202, 208, 210
with engine 112

AR01.30-P-5800BA

Model 220 with engine
112, 113
Model 230 with engine





2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



Commercially available tools

TESTING COMPRESSION PRESSURE - AR01.00-P-1200B

ENGINE 112

Air filter positioned at vehicle side.

ENGINE 113

Air filter positioned at vehicle side.

113
Model 203 with engine
112, 113 except 203.764

AR01.30-P-5800PV

Model 209 with engine
112, 113



Type 203.764
Model 215, 220 with
engine 137

AR01.30-P-5800L

Model 215, 220 with
engines 275.950/ 980

AR01.30-P-5800M

Model 230 with engine
275.951



Model 463 with Engine
112, 113

AR01.30-P-5800GV

Model 240

AR01.10-P-2400H

Remove engine





General information on
inspecting cylinder walls

Engine 112, 113, 134, 135,
137, 166, 275, 285, 611,
612, 613, 628, 639, 646,
647, 648

AH01.00-P-0300-01A

6

Inspect the remaining
cylinders following the
same procedure





7

Install in the reverse order



Number

Designation

WH58.30-Z-
1006-05A

Flexible endoscope, package contents 1 (complete unit), Firma Richard Wolf GmbH D-
75438 Knittlingen Firma Karl Storz GmbH D-78532 Tuttlingen

WH58.30-Z-
1007-05A

Flexible endoscope package contents 2 (for workshops which already have an approved
endoscope from the Wolf or Storz company), Firma Richard Wolf GmbH D-75438
Knittlingen Firma Karl Storz GmbH D-78532 Tuttlingen

WH58.30-Z-
1014-05A

Cylinder inspection equipment



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



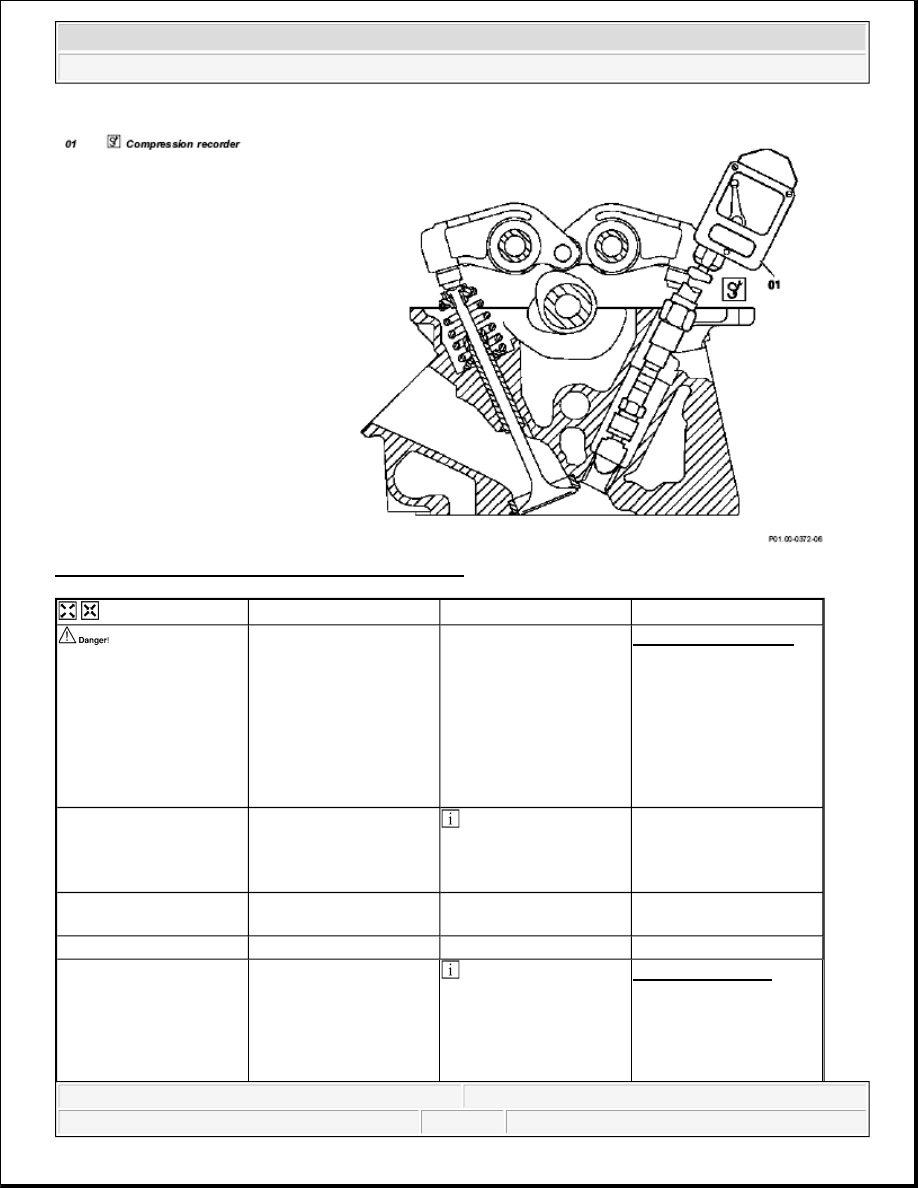

Fig. 18: Identifying Compression Recorder Assembly





Remove/install







Risk of accident caused
by vehicle starting off by
itself when engine is
running. Risk of injury
caused by contusions and
burns during starting
procedure or when
working near the running
engine

Secure vehicle to prevent
it from moving by itself.
Wear closed and snug-
fitting work clothes.
Do not grasp hot or
rotating parts.

AS00.00-Z-0005-01A

1

Bring engine to operating
temperature (approx. 80°
C)



Only test compression
when engine is at
operating temperature.



2

Remove engine trim
panel





3

Remove air filter housing



4

Remove resonance pipe
with resonance body



All except model 163
with engine 113.942/981.

Disconnect plug

AR07.07-P-1454A



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



connection for hot
film mass air flow
sensor (HFM-SFI)
for this step and

unbolt resonance
pipe at cylinder
head cover.





The resonance pipe is
attached to the rear of the
intake manifold with a
plastic bracket.



Do not damage plastic
plate.

5

Remove spark plugs

Remove only one spark
plug at each cylinder: ?







Models 210, 208, 202
with engine 112
Model 210 with engine
113

AP15.10-P-1580A





Model 163 with engines
112, 113

AP15.10-P-1580GH

6

Crank engine with starter.

Do not crank engine at

steering lock but use
contact switch of the
compression recorder.

 Crank engine several

times with the starter in
order to eliminate
combustion residues in
the cylinder.

AR01.10-P-0110V



Checking





7

Insert compression tester
into spark plug bore



Fig. 21

8

Open throttle valve





9

Crank engine with starter

Do not crank engine at

steering lock but use
contact switch of the
compression recorder.

 To check the

compression pressure,
crank the engine by at

AR01.10-P-0110V



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me
