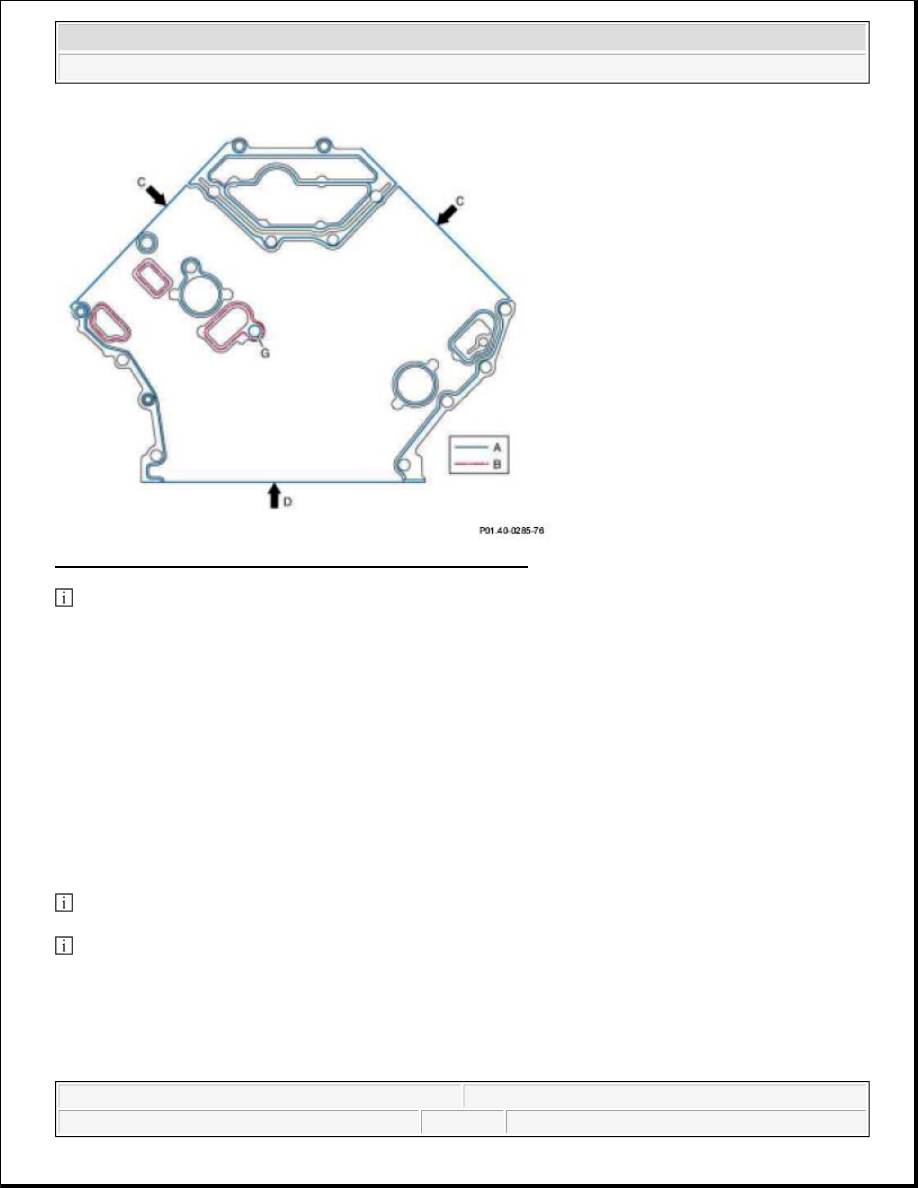

Fig. 9: Identifying Application Of Sealant Timing Case Cover

 Clean sealing surfaces

Apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.

The sealant must be applied within 10 minutes!

The silicone bead must not be spread. Only the silicone sealant listed in the section Repair products may be
used.

NOTES APPLICATION OF SEALANT TO END COVER WITH RADIAL SHAFT SEAL - AH01.40-P-1000-06A

Engine 112, 113

Application of sealant to end cover

 The lines drawn G, E and the arrow D mark the application of sealant.

 Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.

The sealant must be applied within 10 minutes!

The silicone bead must not be spread. Only the silicone sealant listed in the section Repair products may be
used.



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



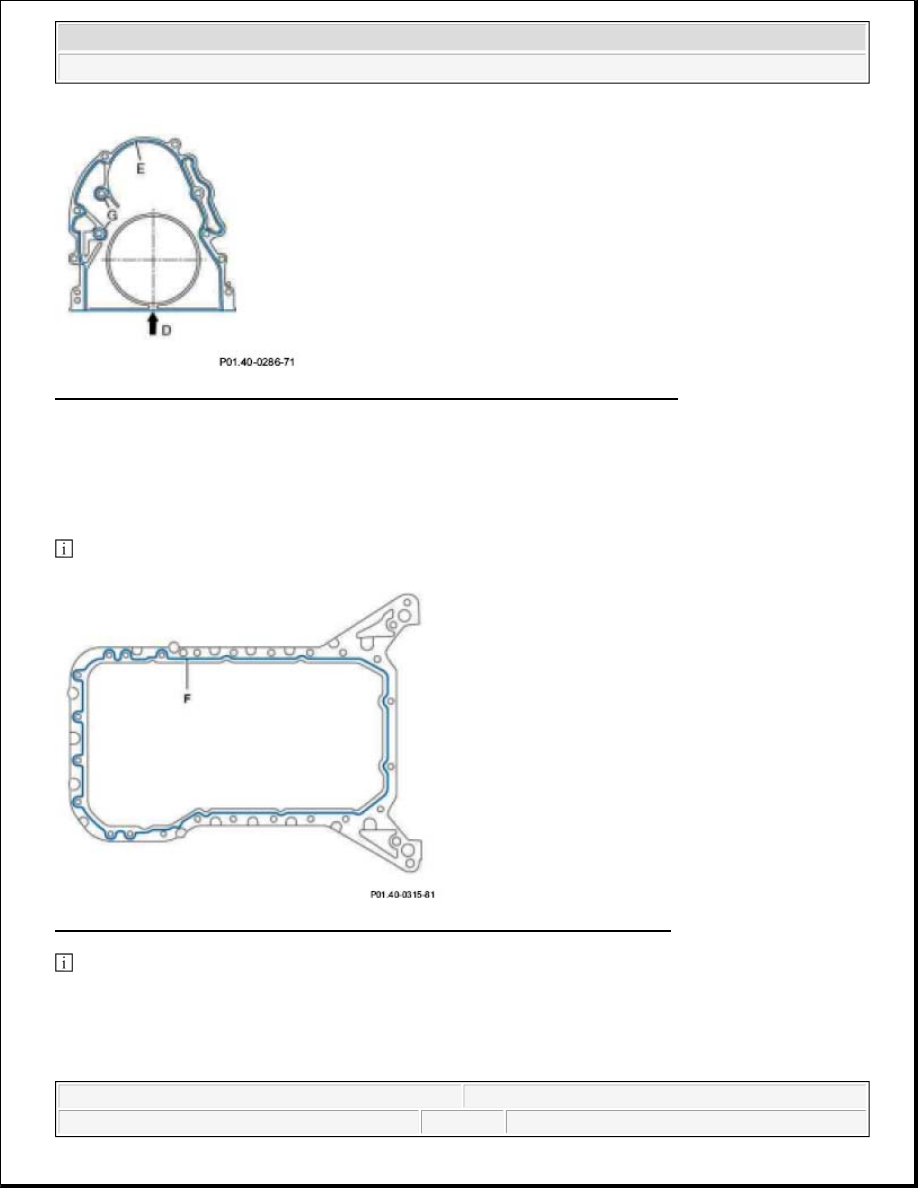

Fig. 10: Identifying Application Of Sealant To End Cover With Radial Shaft Seal

NOTES ON APPLICATION OF SEALANT OIL PAN - AH01.45-P-0001-01C

Engine 112

Application of sealant to top part of oil pan

 The line drawn F marks the application of sealant.

Fig. 11: Identifying Application Of Sealant To Top Part Of Oil Pan - Engine 112

 Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.

The sealant must be applied within 10 minutes!

The silicone bead must not be spread. Only the silicone sealant listed in the section Repair products may be
used.



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



Application of sealant to bottom part of oil pan

 The line drawn F marks the application of sealant.

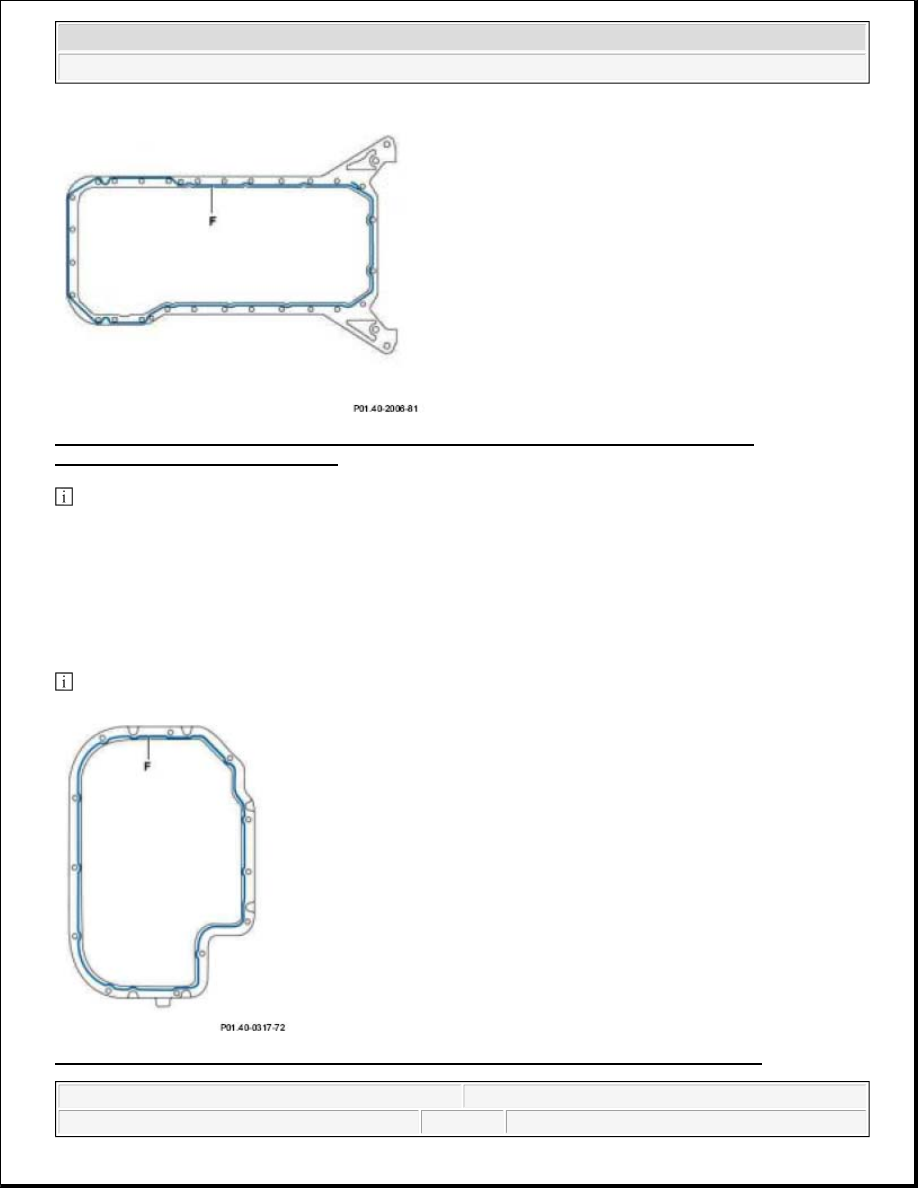

Fig. 12: Identifying Application Of Sealant To Bottom Part Of Oil Pan - Engine 112

 Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.

The sealant must be applied within 10 minutes!

The silicone bead must not be spread. Only the silicone sealant listed in the section Repair products may be
used.

NOTES ON APPLICATION OF SEALING COMPOUND TO OIL PAN - AH01.45-P-0001-01E

Engines 113.941/942/960/962/965/981/982/993

Application of sealing compound to upper part of oil pan

 The line drawn in (F) identifies the course of the sealing compound.



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



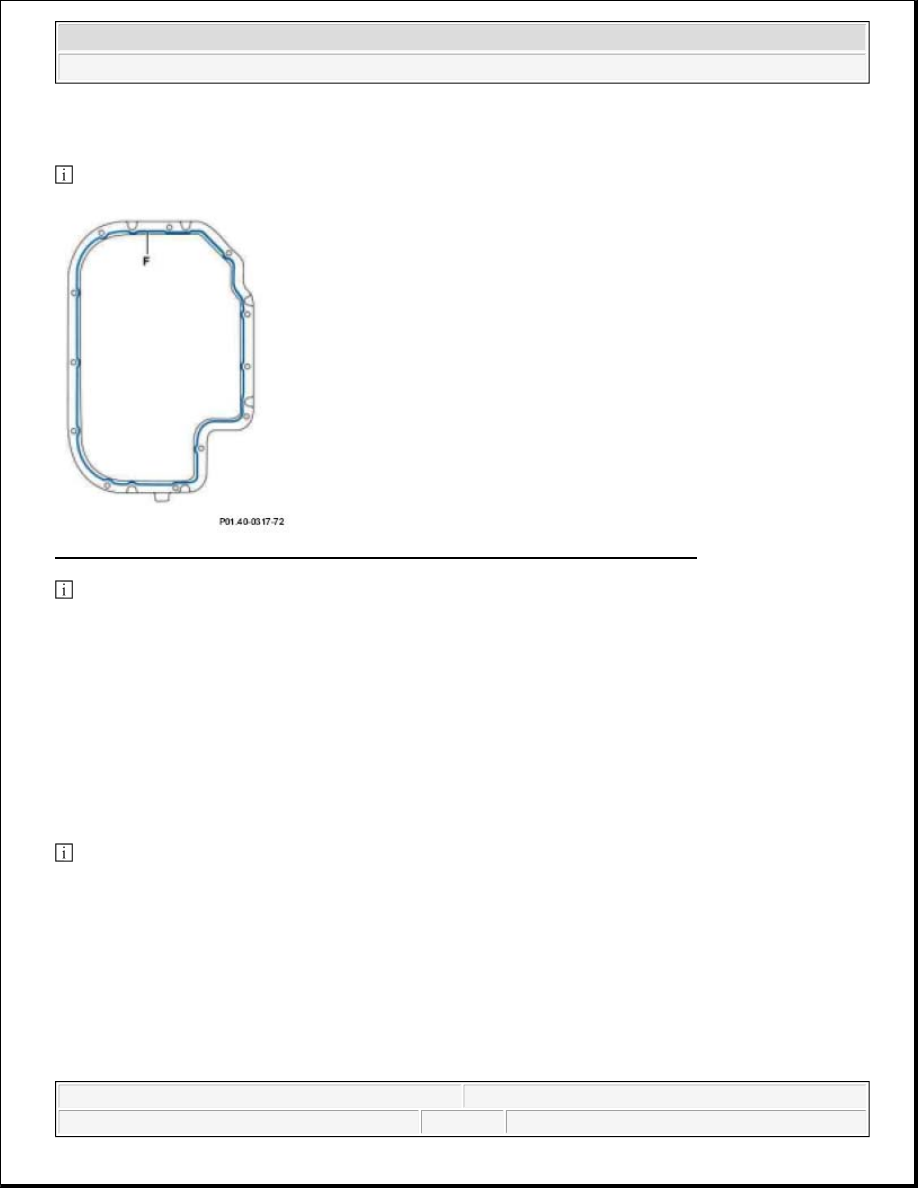

Fig. 13: Identifying Application Of Sealing Compound To Upper Part Of Oil Pan - Engines
113.941/942/960/962/965/981/982/993

 The sealing compound must be only applied to the specified

surfaces in the form of a bead of 2.0 mm ± 0.5 mm in diameter.

The sealing compound must be processed within 10 min. The sealing compound bead must not be spread. Only
the sealing compound listed in the section "Repair products" may be used.

Application of sealing compound to bottom part of oil pan

 The line drawn in (F) identifies the course of sealing compound.

Fig. 14: Identifying Application Of Sealing Compound To Bottom Part Of Oil Pan - Engines
113.941/942/960/962/965/981/982/993
