Mercedes-Benz ML320. Service manual - part 403





GENERAL NOTES ON TIMING, MARKINGS - AH05.10-P-1000-01A

Engine 112, 113

Shown on engine 112

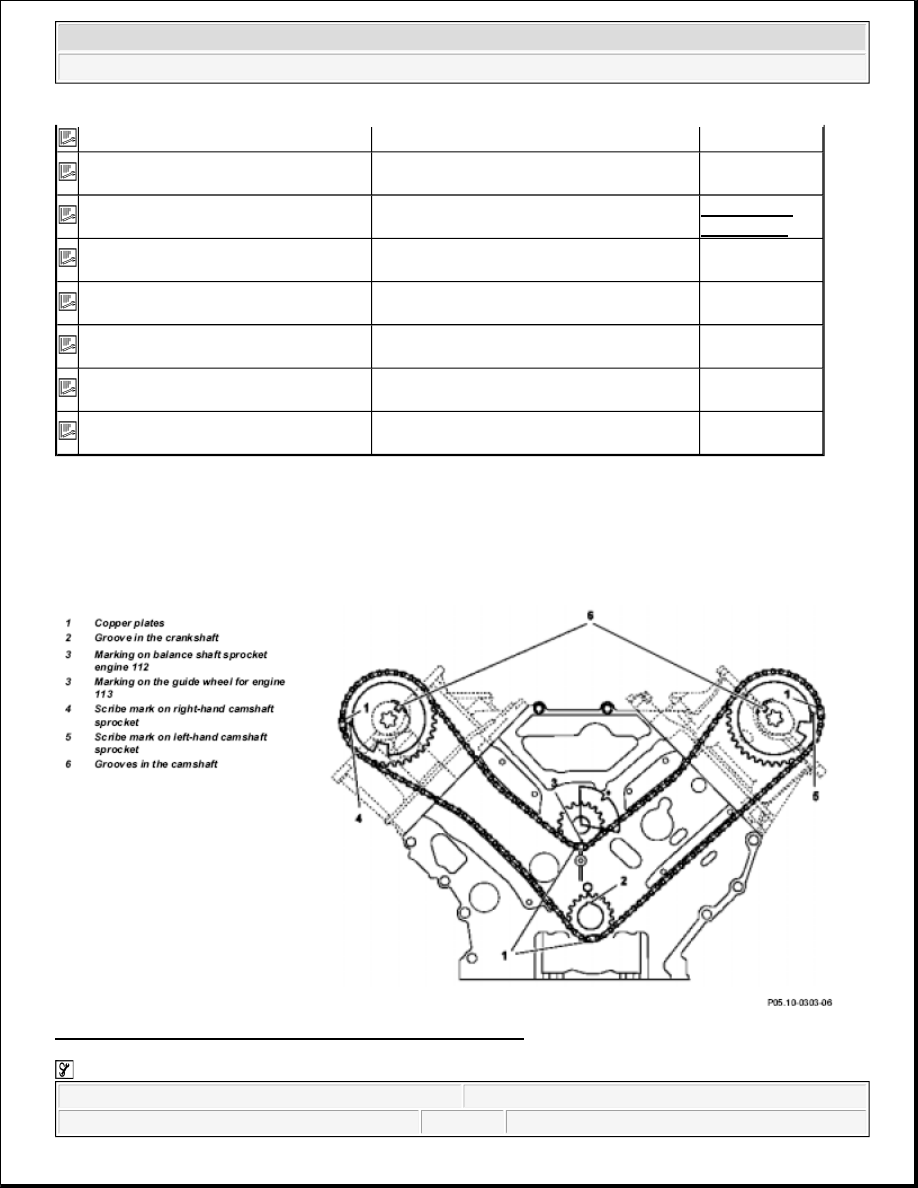

Fig. 1: Identifying Timing, Markings - Shown On Engine 112

 The four copper plates for the timing chain facilitate assembly when putting on timing chain. Every copper

 camshaft bearing caps

602.980 /983 /981 /984 /985, 601.942 /970

0300-01B

 Identification of camshaft bearing caps ENGINE 111 /948 /978

AH05.20-N-
6992-01A



Notes on installing camshaft bearing
bridge

ENGINE 112, 113...

AH05.20-P-
2000-01AV



Notes on installing camshaft bearing
bridge

ENGINE 113.960 with CODE (479)
Cylinder shutoff

AH05.20-P-
2000-01BV

 Notes on coupling rocker arm

ENGINE 113.960 with CODE (479)
Cylinder shutoff

AH05.20-P-
3000-01AV

 Marking of camshaft bearing caps

ENGINE 166

AH05.20-P-
6992-01GF

 Marking of camshaft bearing caps

ENGINE 612 /965 /966, 647.961

AH05.20-P-
6992-04HC

 Marking of camshaft bearing caps

ENGINE 628, 629 ...

AH05.20-P-
6992-04HE



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me



plate (1) must coincide with one of the markings.

 Due to unequal length of timing chain paths, the engine must be cranked up to 14 times until the copper

plates are matched again with the markings.

CAMSHAFT CODE NUMBER AND ASSIGNMENT - AH05.20-N-0100-01A

Engine 111, 112, 113

Inspection data of camshaft code numbers

Inspection data for camshaft code numbers

Inspection data for camshaft code numbers

Engine 112, 113

 The camshaft code number is located at the flange for the camshaft sprockets (arrow).

Shown on camshaft for engine 112.

Number

Designation

Engine 111.948

Engine 111.978

BE05.20-N-1001-
01A

Camshaft code
numbers

Intake

16

16

Exhaust

24

17

BE05.20-N-1002-
01A

Camshaft code
numbers repair
camshaft

Intake

19

19

Exhaust

25

20

Number

Designation

Engines
113.940//
941/942943

Engine
113.944

Engine
113.960 with
code 479

Engine 113.960
without Code 479

BE05.20-P-
1001-01G

Left camshaft
code number

04/28/34/52

41

32

06/10/29/36/54

BE05.20-P-
1002-01G

Right camshaft
code number

05/30/35/53

40

33

07/11/31/37/55

Number

Designation

Engines
113.961/962/963

Engines
113.980/981/984

Engine
113.987/988/98
9/990/991

BE05.20-P-1001-
01G

Left camshaft code
number

06/10/29/36/54

39

61

BE05.20-P-1002-
01G

Right camshaft
code number

07/11/31/37/55

38

60



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me

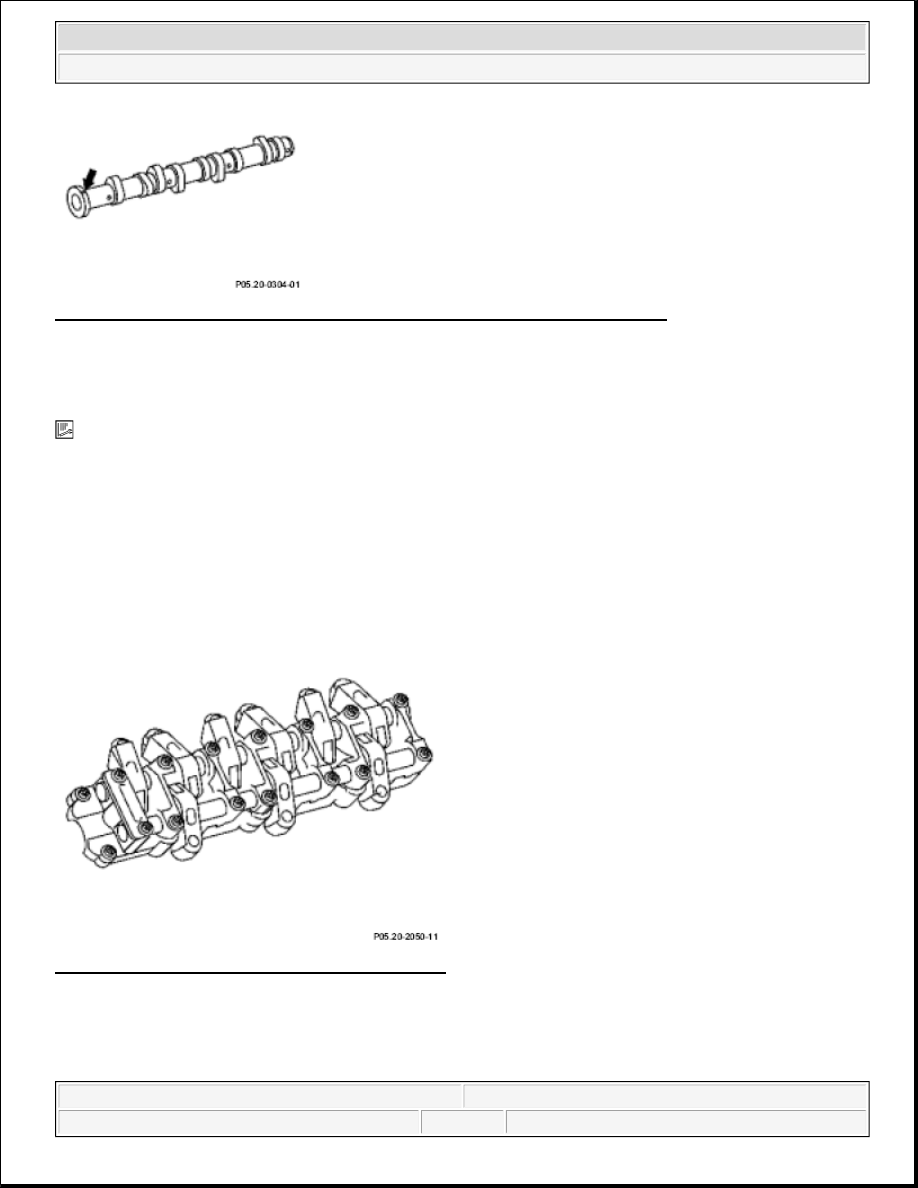

Fig. 2: Locating Camshaft Code Number - Shown On Camshaft For Engine 112

NOTES ON INSTALLING CAMSHAFT BEARING BRIDGE - AH05.20-P-2000-01AV

Engines 112, 113 except 113.960, 113.960 except cylinder shutoff codes 479, 113.962/982/993, 112.951/976

 Pay attention to the following notes before installing the camshaft bearing bridges:

Lubricate the camshaft bearings.

Due to tolerance reasons, the camshafts must not be replaced individually.

If the camshaft bearing bridge is damaged, replace the cylinder head complete with the camshaft bearing
bridge.

It not permitted to reuse the bolts M7X84; these must always be replaced.

Pay attention to tightening torque, slackening diagram and tightening diagram of the bolts M7x84.

Shown on engine 112

Fig. 3: Identifying Camshaft Bearings Bridge Bolts

BASIC KNOWLEDGE

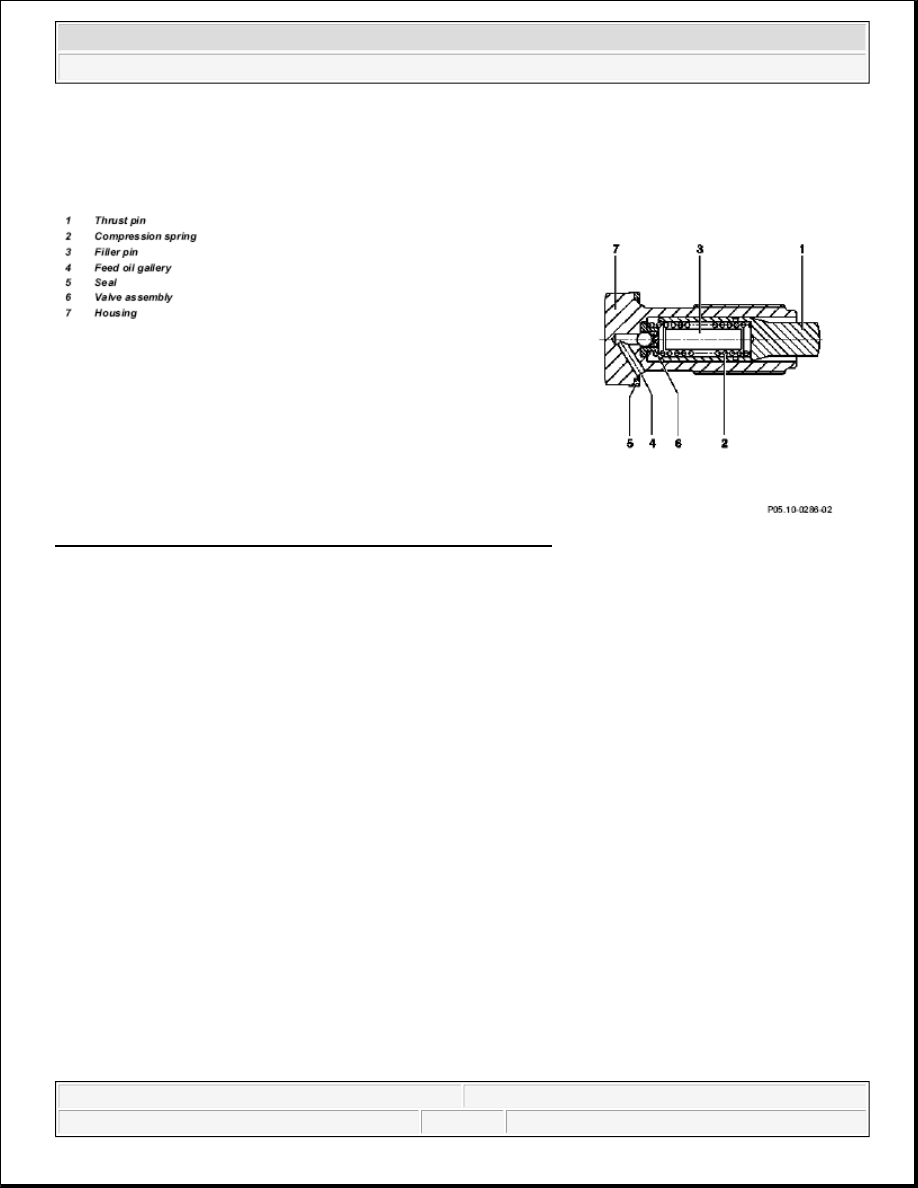

DESIGN OF CHAIN TENSIONER - GF05.10-P-7801-01A



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me



Engines 112, 113

Shown on engine 112

Fig. 4: Identifying Design Of Chain Tensioner - Engines 112, 113

TIMING CHAIN DRIVE, GENERAL - GF05.10-P-9611-01C

Engine 112, 113

Shown on engine 112



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me
