Mercedes-Benz ML320. Service manual - part 362





9

Install inner cover (E) at 60 % bench

 Insert cover past the springs from the rear

and rotate into position in a clockwise
direction. Insert locating tabs (19). Press the
front cover down and reset so that locating
tabs (20) engage. Press rear cover down until
locating tabs (18) engage.

10

Install outer cover (D) at 60 % bench

 Guide the cover past the lateral curtain.

Insert locating tab (17), push front cover down
and reset so that locating tabs (16) engage.
Press the outer edge of the cover down and
insert lateral locating tabs (15). Raise rear
cover on the inside, press down until locating
tab (14) and rear locating tab (13) engage.

11

Install curtain at front 60 % bench

12

Install inner cover (C) at 40 % bench

 Insert cover from the front and insert

locating tabs (11). Press the front cover down
and reset so that locating tabs (12) engage.

13

Install outer cover (B) at 40 % bench

 Guide the cover past the lateral curtain.

Insert locating tab (10), push front cover down
and reset so that locating tab (9) engages.
Press the outer edge of the cover down and
insert lateral locating tabs (8). Insert locating
tab (7), push cover down at locating tab (6)
and engage.

14

Install curtain at front 40 % bench

15

Install rear cover (A)

 Insert cover from the rear and press down

and forwards so that locating tabs (5) engage.
Press front ends of the cover down, so that
locating tabs (2, 3, 4) engage. Insert locating
tabs (1) into covers (C, E).

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

Crankshaft Position Sensor DIY





hopefully this will help others with what appears to be a common stalling issue in the ML series.

Location:

--------
It's on the rear of the engine where the engine mates with the tranny on the driver's side. There are 2

types. Be sure to get the correct one

Here it is:

1) Get

CPS

 at dealer, its a VIN specific part. $125 from my local stealer.

2) Tools needed: Socket screwdriver, Good lighting (portable) shop lights, size 8 outside torx socket,
maybe a ratchet and extentions depending on your flexibility, magnetic part retrieval tool (skip this at

your peril), bath towel, and long sleeve shirt, step stool, blue thread locker (optional)

3) Open hood and remove engine cover, it just pulls off and on

4) Set work light(s) toward back of engine, lighting behind drivers cylinder head

5) Set bath towel on front of ML to kneel on of your knees will die, wearing long sleeve shirt or your

wrists will be cut.

6) Climb up on towel and look behind engine from above and right (see .jpg), finding torx attachment

holding your

CPS

.

7) Remove torx screw and pull out

CPS

, disconnect one way connector (wiring)

8) Replace with new (leaving wire detached for now)

9) This is the hardest step by far, and requires patience and flexibility. Apply some thread locker and

insert screw and start the threads. Tighten with torx on socket screwdriver. This step took about 1/2

hour and numerous dropped screws and retrievals with mag tool.

10) Attach wiring to

CPS



11) Reinstall engine cover

12) Clean up tools, towel and lights and everything

13) Drink beer and toast yourself for saving yourself at least $100 and a day of your time dropping off

and picking up cars at shop

Hope this helps someone in the community.

Dickie

00 ML 320

AR15.12-P-2133A

Remove/install crankshaft position sensor

5.7.96

ENGINE

112.910 in MODEL 202.026 /086

ENGINE

112.920 in MODEL 202.029 /089

ENGINE

112.921 in MODEL 210.063 /081 /263 /281

ENGINE

112.922 in MODEL 220.063

ENGINE

112.923 in MODEL 129.059

ENGINE

112.940 in MODEL 208.365 /465

ENGINE

112.941 in MODEL 210.065 /082 /265 /282

ENGINE

112.942 in MODEL 163.154

ENGINE

112.943 in MODEL 129.064

ENGINE

112.944 in MODEL 220.065 /165

ENGINE

113.940 in MODEL 210.070 /270

ENGINE

113.941 in MODEL 220.070 /170

ENGINE

113.960 in MODEL 215.375, 220.075 /175

ENGINE

113.961 in MODEL 129.068

ENGINE

112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE

113.944 in MODEL 202.033 /093

ENGINE

113.980 in MODEL 210.074 /274

ENGINE

113.943 in MODEL 208.370 /470

ENGINE

113.984 in MODEL 208.374

ENGINE

113.981 in MODEL 163.174

ENGINE

112.912 in MODEL 203.061 /261, 209.361 /461

ENGINE

112.946 in MODEL 203.064 /264

ENGINE

112.947 in MODEL 170.465

ENGINE

112.960 in MODEL 170.466

ENGINE

113.942 in MODEL 163.172

ENGINE

112.961 in MODEL 203.065 /265

ENGINE

113.965 in MODEL 163.175

ENGINE

113.963 in MODEL 230.475

ENGINE

112.913 in MODEL 211.061

ENGINE

112.949 in MODEL 211.065

ENGINE

113.967 in MODEL 211.070

ENGINE

113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE

113.982 in MODEL 463.243 /246

ENGINE

112.955 in MODEL 209.365 /465

ENGINE

112.916 in MODEL 203.081 /281

ENGINE

112.953 in MODEL 203.084 /284

ENGINE

112.973 in MODEL 230.467

ENGINE

112.972 in MODEL 220.067 /167

ENGINE

112.970 in MODEL 163.157

ENGINE

112.975 in MODEL 220.087 /187

ENGINE

113.948 in MODEL 220.083 /183

ENGINE

113.966 in MODEL 220.084 /184

ENGINE

112.917 in MODEL 211.080 /280

ENGINE

112.954 in MODEL 211.082 /282

ENGINE

113.969 in MODEL 211.083 /283

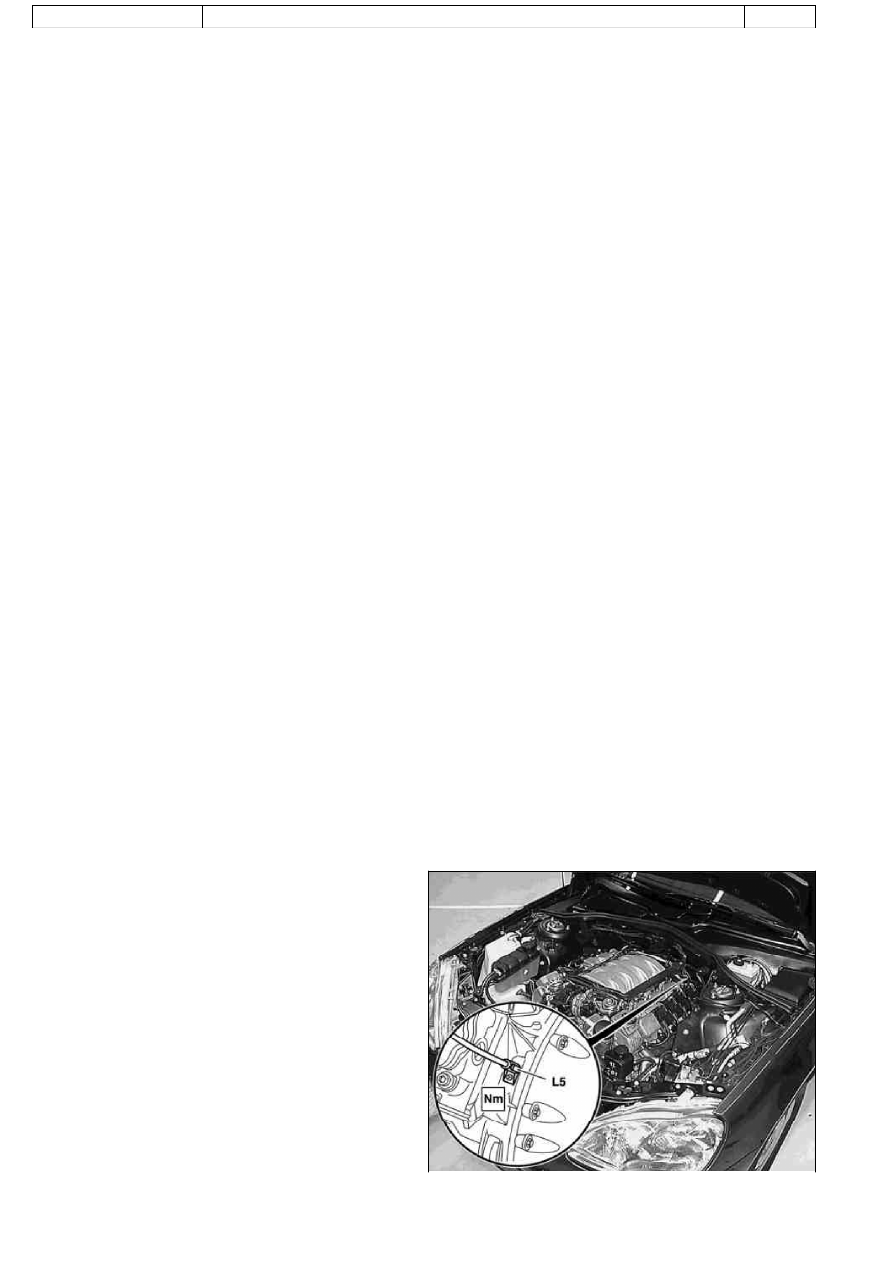

P15.12-0275-11

Shown on Engine 113 in Model 220

L5

Crankshaft position sensor

Copyright DaimlerChrysler AG  29.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1



Remove/Install

1.1

Remove engine compartment cover with
integrated air cleaner

All except Engine 112.960 in Model 170.466,
Engine 112.961 in Model 203.065/ 265

 Remove air cleaner by lifting vertically up

and away from the cylinder head covers.



Installation: With sliding compound,

slightly moisten the rubber retainers on the
cylinder head covers and the sealing ring of
the hot film mass air flow sensor in the air
cleaner housing.

1.2

Remove air cleaner housing

Engine 112.960 in Model 170.466

Engine 112.961 in Model 203.065/265

AR09.10-P-1150SVK

2

Remove crankshaft position sensor (L5)



*BA15.10-P-1001-03A

3

Install in the reverse order

4.1

Reinitialize crankshaft position sensor (L5)
using STAR DIAGNOSIS

 If the crankshaft position sensor (L5) was

replaced, a re-initialization must be carried
out with STAR DIAGNOSIS in the "Control
unit adaptations" menu item.

Diagnosis system STAR DIAGNOSIS

*WE58.40-Z-1013-06A



Position sensor

Number

Designation

Engine
112.910/911/912/
913/914/915/
916/917/920/
921/922/923/
940/941/942/
943/944/945/
946/947/949/
951/953/954/
955/960/961/
970/972/973/975

Engine
113.940/941/
942/943/944/
948/960/961/
962/963/965/
966/967/968/
969/980/981/
982/984/986/
992/993

BA15.10-P-1001-03A

Crankshaft position sensor to engine block

Nm

8

8

Workshop equipment/MB testers (see Workshop Equipment Manual)

WE58.40-Z-1013-06A

Compact STAR DIAGNOSIS system for passenger cars, order number 6511 1801 00

Copyright DaimlerChrysler AG  29.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
