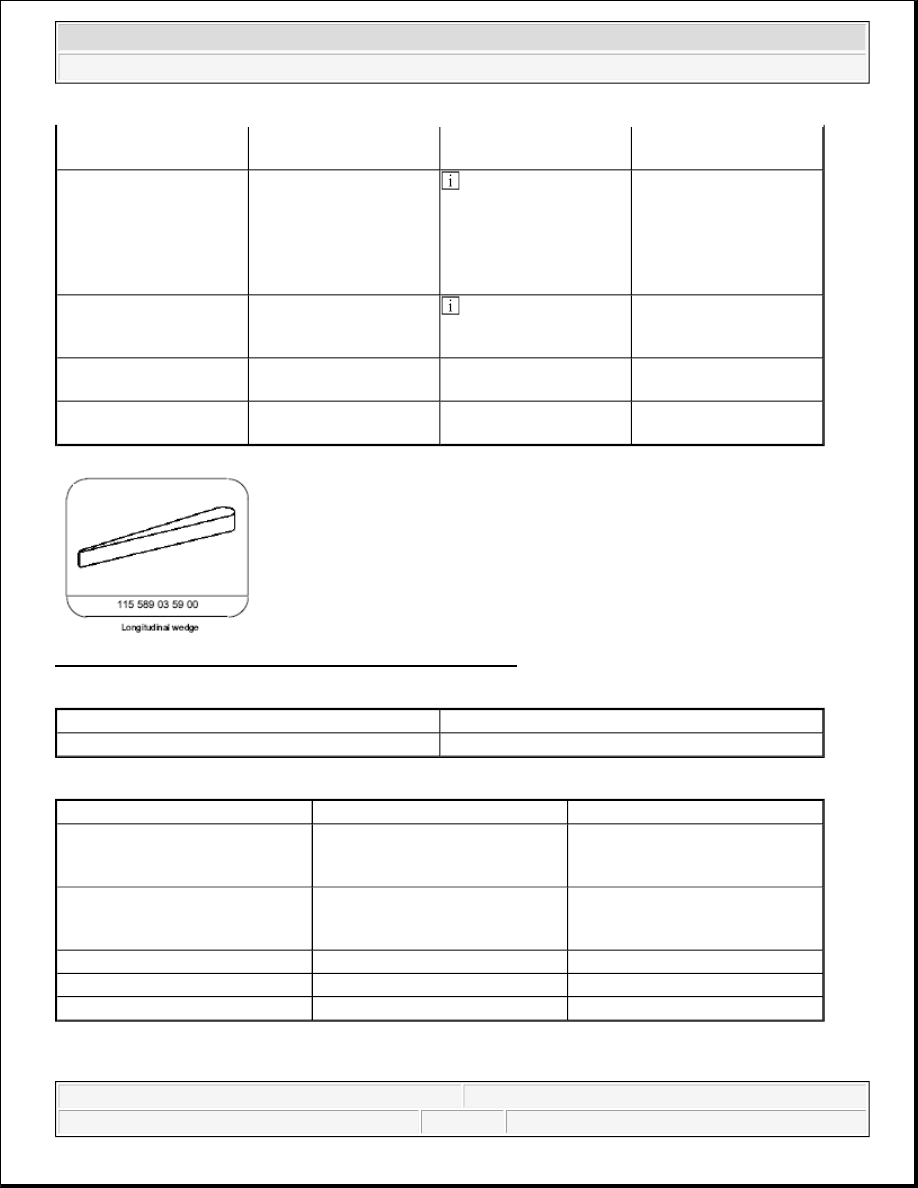

Fig. 256: Identifying Longitudinal Wedge (115 589 03 59 00)

Commercially available tools

Parts ordering notes

RETROFIT CENTRAL INTERFACE MODULE - AZ82.60-P-0004-01A

sill molding to coupling
(5) of wiring harness (1)

15

Clip illuminated door sill
moldings into door sill
trim

 Ensure that the door

sill moldings are not
installed on the wrong
sides and that the wiring
harness is not pinched by
the door sill molding.



16

Stick rear door sill
moldings onto standard
moldings

 Only in the case of 4-

part "AMG" parts kit.



17

Carry out operational
check





18

Assemble in reverse
order





Number

Designation

WH58.30-Z-1012-09A

Quiescent current retention unit

Part no.

Designation

Quantity

B6 689 00 31

Illuminated door sill moldings
with wiring harness (2-part with
"Mercedes-Benz" logo)

1

B6 602 10 18

Illuminated door sill moldings
with wiring harness (4-part with
"AMG" logo)

1

B6 689 00 16

Lighting film, blue

1

B6 689 00 17

Lighting film, green

1

B6 689 00 18

Lighting film, yellow

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Models 163.136/154/172 1A as of 145273, Models 163.136/154/172 1X as of 708319, Models
163.113/128 /157 /174 /175 1#

1. Place central interface module (1) on workbench.

 For LHS installation, note label on interface module (1).

2. Insert both plugs of the video/DVD player wiring harness (2) into interface module (1).

 Color marks on the plugs must match the inputs on the interface module marked with the same color.

3. Insert both plugs of video monitor wiring harness (3) into interface module (1).

4. Secure FM modulator (4) on interface module with Velcro strip provided.

 Attachment position marked on interface module.

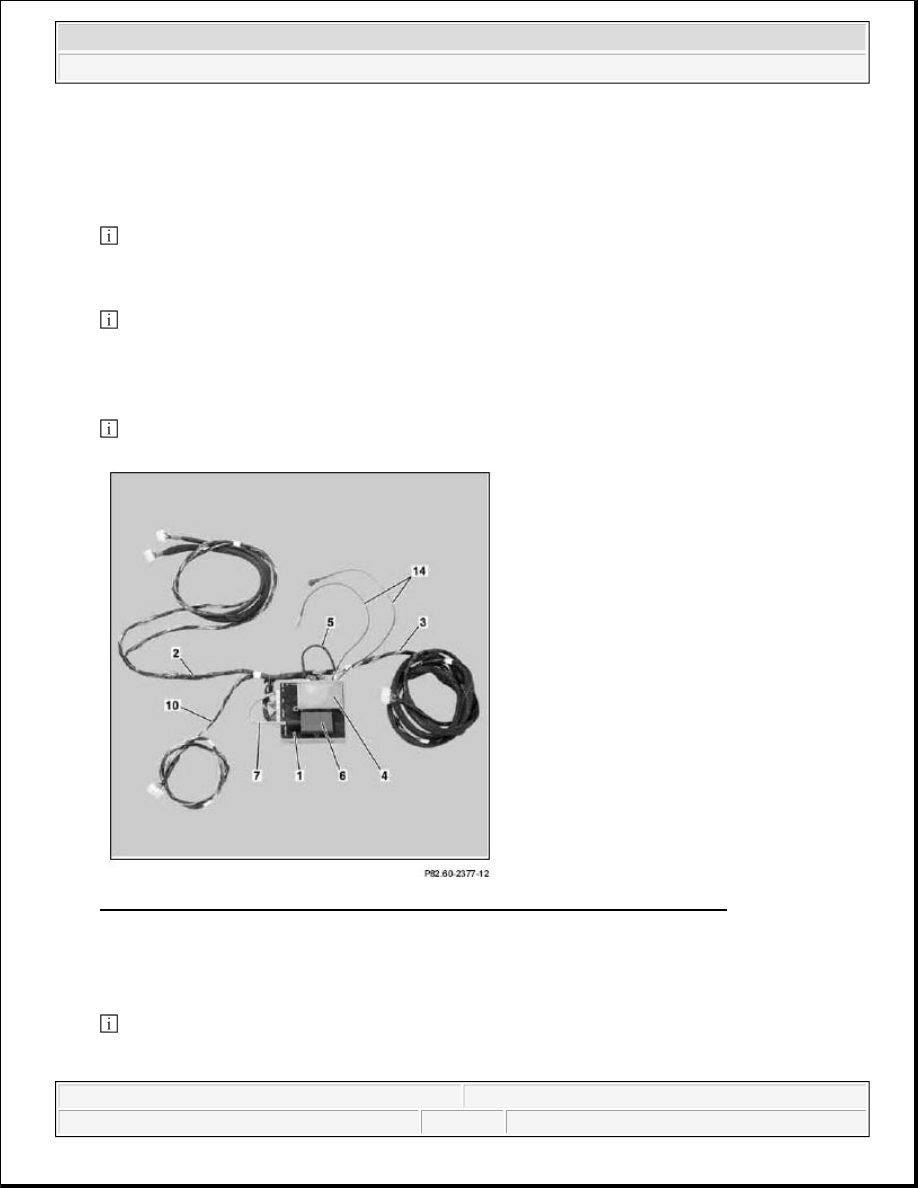

Fig. 257: Identifying FM Modulator, Interface Module And Wireless Headphones

5. Insert FM modulator wiring harness (5) into interface module and FM modulator.

6.1 Secure RF module for wireless headphones (6) on interface module with Velcro strip provided.

 Only if provided. Attachment position marked on interface module.

7.1 Insert RF module wiring harness (7) into interface module and RF module.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



 If fitted.

8 Fold foam strips supplied (8) on the right-hand side around the lower edge of the instrument panel
carrier (9) in the glove compartment opening.

9 Route additional interface module wiring harness (10) and video/DVD player wiring harness (2) into
the glove compartment opening below the left-hand bracket for instrument panel (11).

 Route wiring harness before the interior wiring harness (12).

10 Route additional interface module wiring harness (10) and video/DVD player wiring harness (2)
within the instrument panel (11) downwards, to the opening in the middle of the instrument panel above
the transmission tunnel.

11 Secure the magnetic ring to the underside of the instrument panel carrier (11) with tie straps.

12 Route wiring harnesses on the right-hand side along the transmission tunnel.

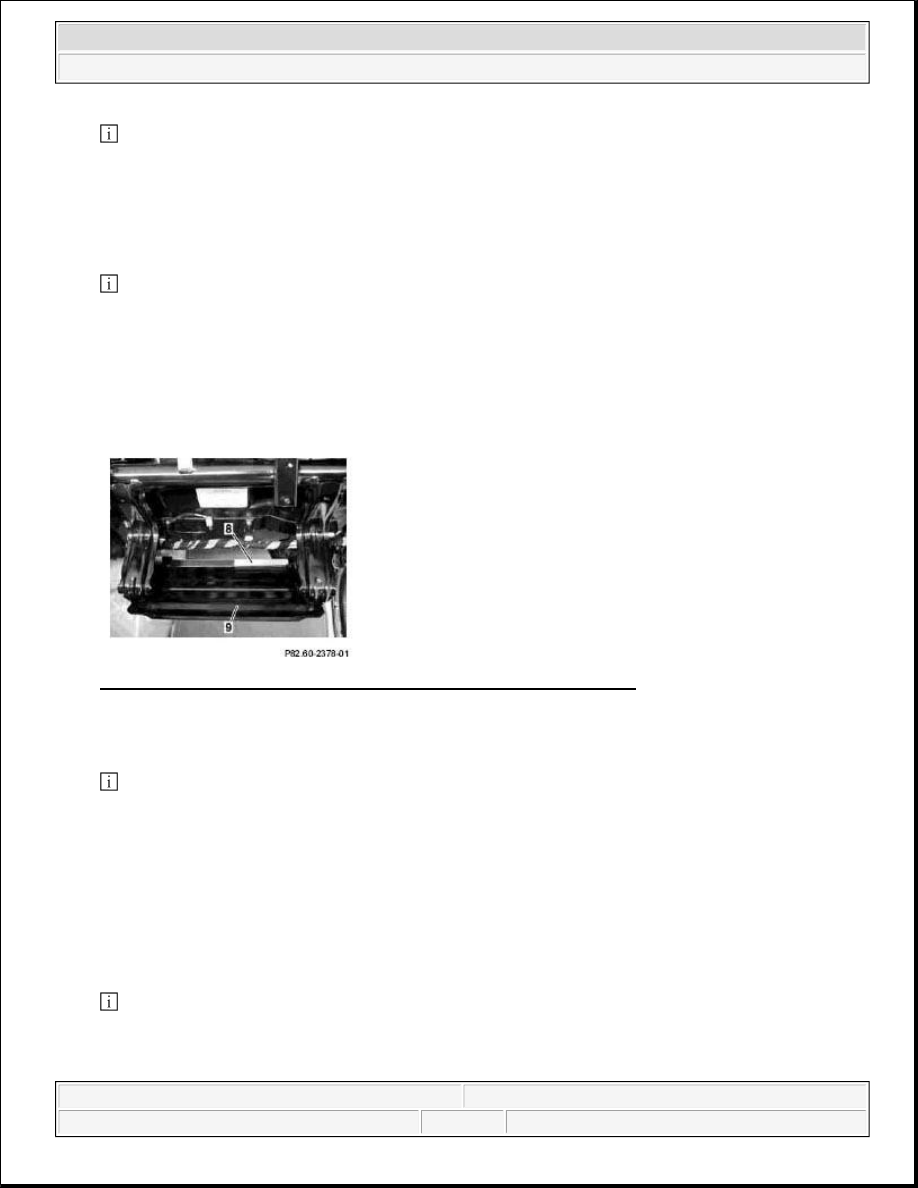

Fig. 258: Identifying Instrument Panel Carrier And Fold Foam Strips

13 Route video monitor wiring harness (3) through the glove compartment, below the right-hand bracket
for the instrument panel (13) upwards to the A-pillar.

 Route wiring harness before the interior wiring harness (12). Ensure that the wiring harness passes

behind the vent duct for the right lateral nozzle.

14 Lay down wiring harness carefully on instrument panel.

15 Clean upper edge of instrument panel carrier (9) in upper area where the interface module is secured in
order to ensure maximum adhesion.

16 Detach protective foil from strips of adhesive tape at bottom of interface module.

17 Guide interface module into glove compartment opening and adhere to the upper edge of the
instrument panel carrier (9).

 Align interface module in the center between the left and right-hand brackets at the upper edge of the

bracket for the instrument panel (9).



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



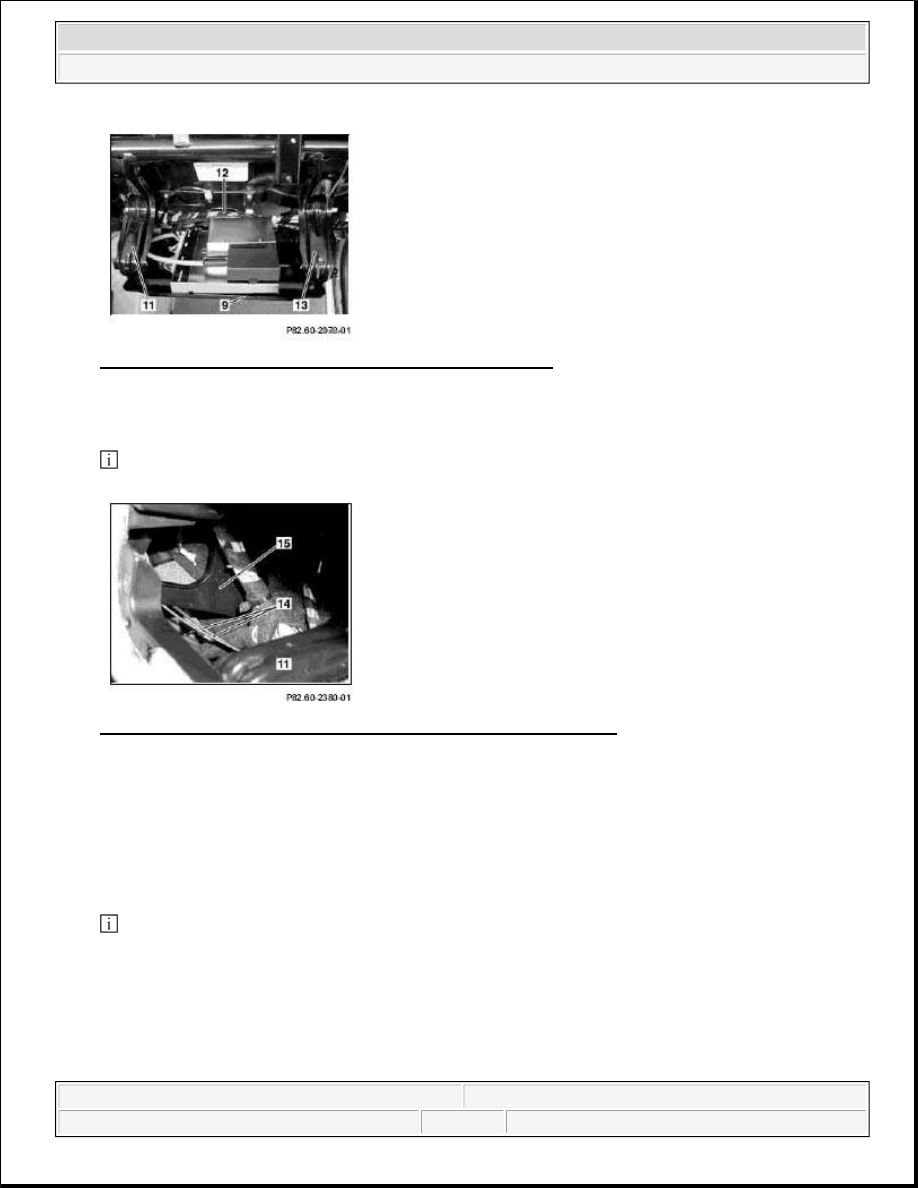

Fig. 259: Identifying Interior Wiring Harness And Bracket

18 Route antenna cable (14) of interface module below brackets of instrument panel at left to the radio
installation slot.

 If fitted, guide through wiring harness under the telephone module.

Fig. 260: Identifying Antenna Cable And Instrument Panel Carrier

RETROFIT VIDEO SYSTEM MONITOR - AZ82.60-P-0004-02A

Models 163.136/154/172 1A as of 145273, Models 163.136 /154 /172 1X as of 708319, Models
163.113/128 /157 /174 /175 1#, with power tilting/sliding roof in glass version, code 414a

1. Measure from the corner (1) of the tilting/ sliding roof frame (2) the dimension (a=410 mm) to the middle

of the tilting/ sliding roof frame and mark the frame.

 Do NOT mark the headliner. By cross-measuring from the other corner check whether the mark is in

the center.
