Mercedes-Benz ML320. Service manual - part 274





COUPLING ASSIGNMENT ON RADIO FOR LOUDSPEAKER SYSTEM (LS) - AD82.62-P-2001-02A

All MB radios

Coupling B

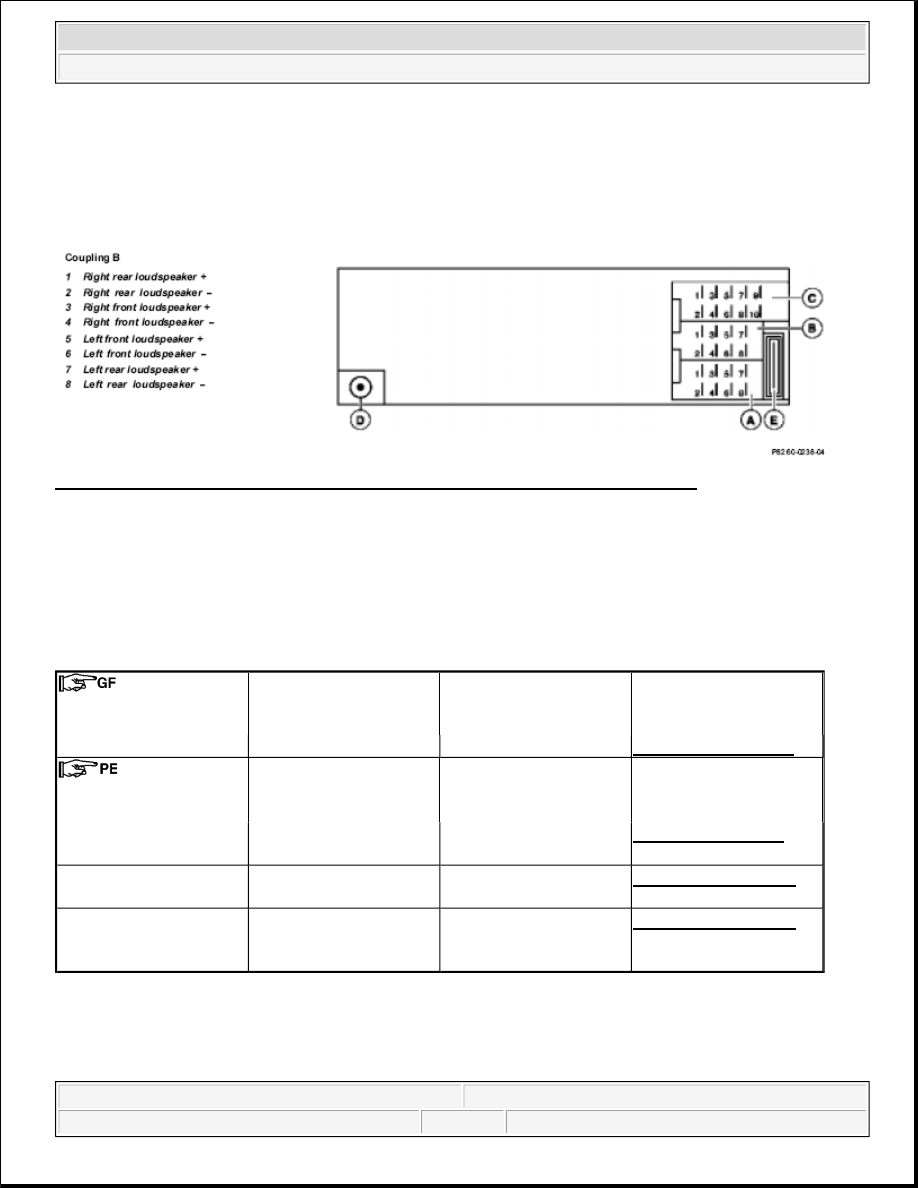

Fig. 135: Identifying Coupling Assignment On Radio For Loudspeaker System (LS)

LOUDSPEAKER SYSTEM (LS) DIAGNOSIS, ADVANCED INFORMATION - AD82.62-P-2001A

MODEL 163 with CODE (491) U.S. version with CODE (259) Radio Premium with Bose sound system

MODEL 163 with CODE (259a) Radio ML 10 with sound system except CODE (491) U.S. version

MODEL 208 with CODE (810) Sound system with MB radio

LOUDSPEAKER SYSTEM (LS) DIAGNOSIS, ADVANCED INFORMATION - AD82.62-P-2001B

MODEL 163 with CODE (491) U.S. version with CODE (257) Radio Hi-Line



Loudspeaker system
(LS), location of
components

Model 208

GF82.62-P-0002-01A





Model 163

GF82.62-P-0002-01E



Electric wiring diagram,
radio with sound system

Model 208

PE82.00-P-1100D





Model 163

PE82.00-P-1100E



Connection and use of
test equipment



AD00.00-P-1000AZ



Diagnostic tools,
loudspeaker system (LS)



AD82.62-P-2001-01A



Coupling assignment on
radio for loudspeaker
system (LS)



AD82.62-P-2001-02A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



MODEL 163 with CODE (257a) Radio ML 5 except CODE (491) U.S. version

MODEL 168, 208 with MB radio

AM AND FM WAVE BANDS, DIAGNOSIS, FUNCTION CHECK, AS - AD82.62-P-3000-01A

Function check

Set radio as follows: Set station with poor reception (music) and fader, bass, treble and balance in
position 0 (shown in display).

Check AM and FM wave bands by driving in a circle in a yard (open-air grounds) to establish the
reception quality.

Possibly repeat the test with an identical vehicle for comparison.

It is absolutely essential to perform the comparison measurement at the same location and with the same
station setting
 .

Repeat the test after replacing a component.

ANTENNA SYSTEM (AS) DIAGNOSIS, FUNCTION CHECK - AD82.62-P-3000A

MODELS 163, 168, 202.078 /080 /083 /182 /188, 208 (except, 208.4), 202.01 /02/12 as of 1.1.97, 210.0 /2



Loudspeaker system
(LS), location of
components

Model 208

GF82.62-P-0002-01B





Model 168 Model

GF82.62-P-0002-01C





163

GF82.62-P-0002-01D



Electric wiring diagrams Model 208

PE82.00-P-1100D





Model 168

PE82.00-P-1100GC





Model 163

PE82.00-P-1100E



Connection and use of
test equipment



AD00.00-P-1000AZ



Diagnostic tools,
loudspeaker system (LS)



AD82.62-P-2001-01A



Coupling assignment on
radio for loudspeaker
system (LS)



AD82.62-P-2001-02A



Antenna system (AS)
diagnosis, previous
knowledge



AD82.62-P-2000A



Operational check





Test of

Operation /
Requirement


Specified value

possible cause/ Remedy



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



LOUDSPEAKER SYSTEM (LS) DIAGNOSIS, FUNCTION CHECK - AD82.62-P-3001A

MODEL all with MB radio

SPEAKER SYSTEM (LSA) DIAGNOSIS TROUBLESHOOTING - AD82.62-P-5001D

MODEL 163 with CODE (491) U.S. version with CODE (257) Radio Hi-Line

MODEL 163 with CODE (257a) Radio ML 5 except CODE (491) U.S. version

SPEAKER SYSTEM (LSA) DIAGNOSIS TROUBLESHOOTING - AD82.62-P-5001E

1

AM and FM wavebands
diagnosis, AS function
check



AD82.62-P-3000-01A



Set station with good
reception (music) or play
music cassette or CD

Fader, bass, treble and balance
in position 0 (shown in
display).







Function check





Scope of test

Operation/Requirement

Specified value

Possible
cause/Remedy


1 Loudspeaker

Listen to each loudspeaker
individually in the respective
installed position.







Loudspeaker system (LS),
diagnosis, advanced
information



AD82.62-P-2001B



Loudspeaker system (LS),
location of components



GF82.62-P-0002-01D



Troubleshooting





Complaint

Cause

Note

Remedy

Left front door speaker
(H4/5) inoperative

Loudspeaker (H4/5)
Radio (A2)



AD82.62-P-6001-02M

Left rear door speaker
(H4/3) inoperative

Loudspeaker (H4/3)
Radio (A2)



AD82.62-P-6001-02O

Right front door speaker
(H4/6) inoperative

Loudspeaker (H4/6)
Radio (A2)



AD82.62-P-6001-02P

Right rear door speaker
(H4/4) inoperative

Loudspeaker (H4/4)
Radio (A2)



AD82.62-P-6001-02R



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



MODEL 163 with CODE (491) U.S. version with CODE (259) Radio Premium with Bose sound system

MODEL 163 with CODE (259a) Radio ML 10 with sound system except CODE (491) U.S. version

RADIO FREQUENCY CONNECTING LINE, ANTENNA SYSTEM (AS) ELECTRICAL SYSTEM TEST - AD82.62-P-6000-02A



Loudspeaker system (LS)
diagnosis, previous
knowledge



AD82.62-P-2001A



LS, location of components

GF82.62-P-0002-01E



Troubleshooting





Complaint

Cause

Note

Remedy

Loudspeaker system
inoperative

Amplifier control module
(N40/6)
Radio (A2)



AD82.62-P-6001-01C

Left rear door speaker
(H4/3) inoperative

Left rear door speaker
(H4/3)



AD82.62-P-6001-02S



Amplifier control module
(N40/6)



AD82.62-P-6001-01C



Radio (A2)





Right rear door speaker
(H4/4) inoperative

Loudspeaker group (H4/4)



AD82.62-P-6001-02T



Amplifier control module
(N40/6)



AD82.62-P-6001-01C



Radio (A2)





Left front door speaker
(H4/5) inoperative

Loudspeaker group (H4/5)



AD82.62-P-6001-02U



Amplifier control module
(N40/6)



AD82.62-P-6001-01C



Radio (A2)





Right front door speaker
(H4/6) inoperative

Loudspeaker (H4/6)



AD82.62-P-6001-02V



Amplifier control module
(N40/6)



AD82.62-P-6001-01C



Radio (A2)





Acoustimass (R) bass
module (H4/17)
inoperative

Loudspeaker (H4/17)



AD82.62-P-6001-04A



Amplifier control module
(N40/6)



AD82.62-P-6001-01C



Radio (A2)







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
