CDS AND DVDS ARE NOT EJECTED - AF82.60-P-6061A

MODEL 129, 140, 163, 168, 170, 171, 202, 203, 208, 209, 210, 211, 215, 220, 230, 414, 463

Modification notes





5 Reinstall antenna
splitter

AR82.70-P-8953GH





6 Reinstall AM/FM
amplifier

AR82.62-P-8347GH

17.5.04

Cause/remedy 3 added





Damage code

Cause

Remedy







 The causes listed in

this document are not a
malfunction of the CD
drive. Operations in
this context are not
covered by warranty or
goodwill
 .





Cause 1:

Remedy 1:





CD thickness is not within
tolerance, e.g. DVDs with
recordings on both sides
(side 1: video data, side 2
audio data).

1 Inform customer that
CDs should correspond
to specifications.





 CD occasionally not

pulled in, light pressure
required in addition. Then,
CD is not ejected.

 Drives fulfill

specifications.





 CD does not satisfy

specifications. According to
CD standards, the thickness
must be within the tolerance
range of 1.1 mm -1.5 mm.
Previously measured CDs
had a thickness of > or = 1.6
mm.





None

Cause 2:

Remedy 2:





Self-made CDs/DVDs used
with self-adhesive labels.

1 Advise customers not
to use CDs/DVDs with
self-adhesive labels.





 Due to the various

materials used, the length
expansion differs at higher

 Please also advise

your coworkers in Sales.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



temperatures causing the
label to become wavy (see
arrows) or the CD/DVD to
deform.
In both cases, the
CDs/DVDs can get stuck
and damage to the drive
mechanism is possible.

CDs/DVDs are not
ejected.

CDs/DVDs are not
completely ejected.


All head units with
CD/DVD drive, all CD
changers as well as
navigation processors with
single-slot drive are
affected.

None

Cause 3:

Remedy 3:





CDs with a diameter of 8 cm
are used (with and without
adapter).

1 Please inform the
customer that 8 cm CDs
are not to be used (even
with an adapter).





 The pull in/eject

mechanism of the drive is
Drives not designed for 8
cm CDs.

 Drives fulfill

specifications.





 If an adapter is used for 8

cm CDs, the thickness of the
CD increases which leads to
problems when inserting
and ejecting CDs.
Furthermore, there is the
danger that the 8 cm CD
will be pushed out of the
adapter while being pulled
in/ejected and thereby block
the mechanism.







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



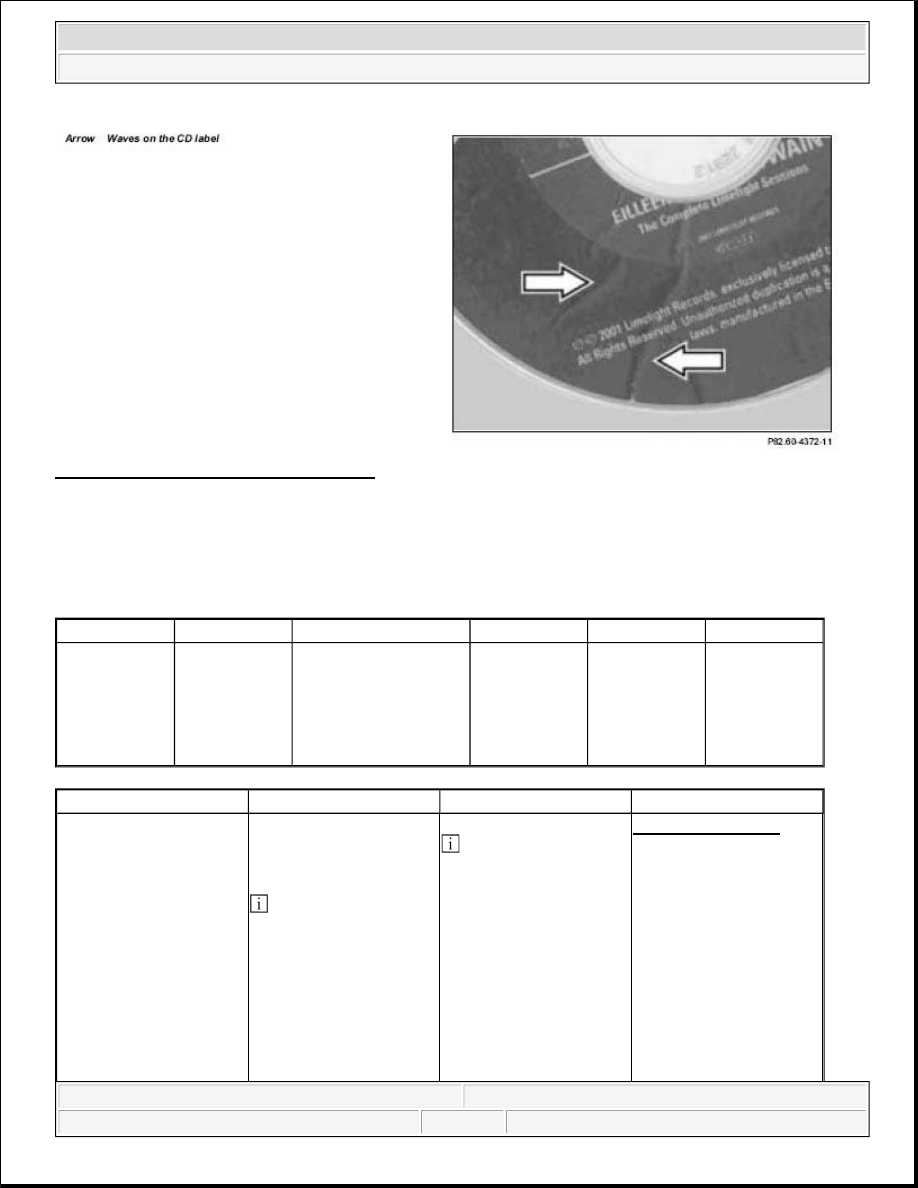

Fig. 101: Identifying Waves On CD Label

GLOBAL POSITIONING SYSTEM (GPS) MALFUNCTION - AF82.61-P-6010A

MODEL 163.113 /136 /154 /172 /174 #A as of 145273 up to 289564, 163.113 /154 #X as of 708319 up to
754619 with CODE (353) Audio 30 APS


Operation no. of operation texts or standard texts and flat rates

Sector

Op. no.

Operation text

Time

Acc. no.

Code

P

023578

REPLACE REAR
ANTENNA FOR
GLOBAL
POSITIONING
SYSTEM (GPS)
(AFTER TESTING)

003 AW/0,3 h 82 858 52

-

Damage code

Cause

Remedy





Inadequate seal between
antenna base and vehicle
roof causes antenna
connector to corrode.

 The parts kit for the

Global Positioning
System (GPS) antenna
was updated. Instead of a
foam seal (4), a grommet
(5) is now used to seal the
antenna base to the
vehicle roof. The new
163 820 18 75 part

1 Replace GPS antenna.

 Use new parts kit

only.

AR82.61-P-7474GI



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



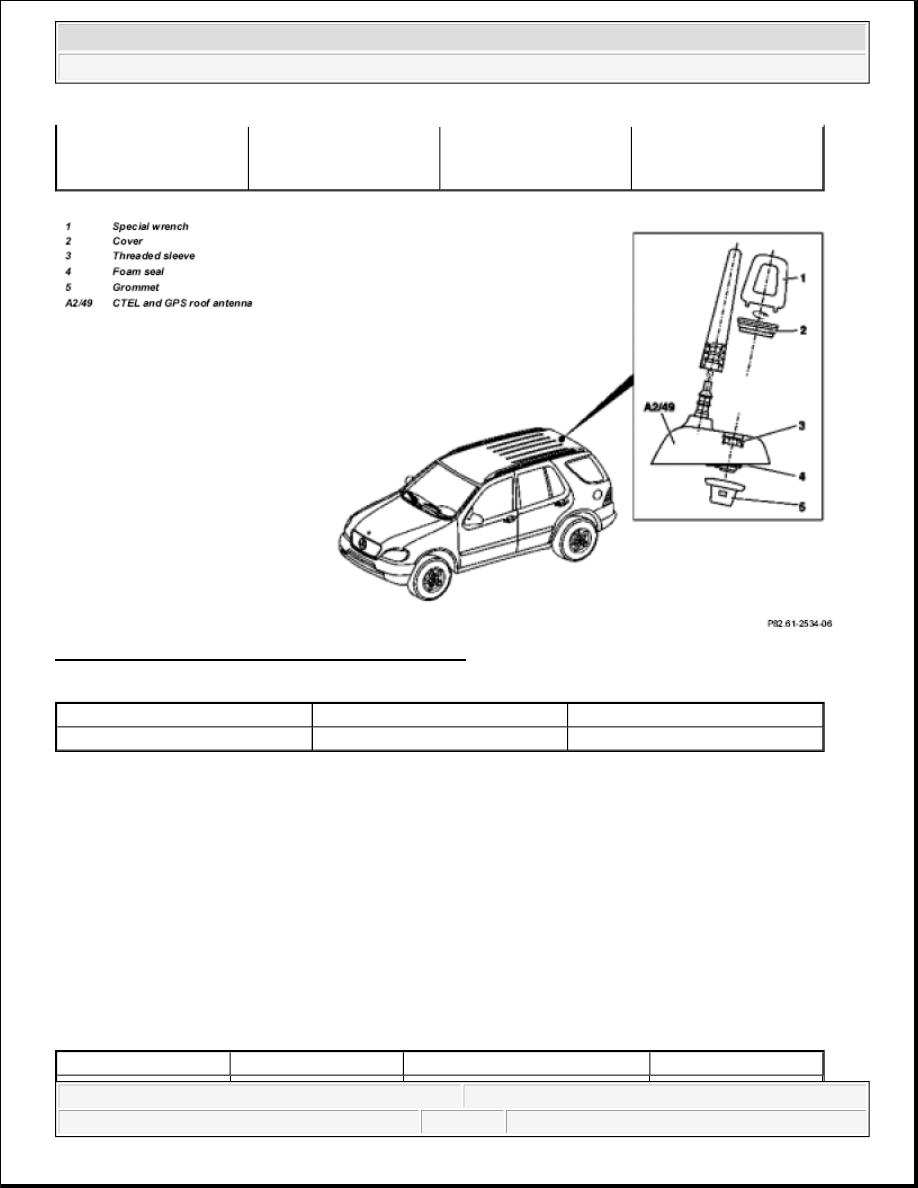

Fig. 102: Identifying GPS Rear Antenna Components

Parts ordering notes

TELEPHONE CALL INTERRUPTED - AF82.70-P-1009A

MODEL 129, 163, 168, 170, 171, 202, 203, 208, 209, 210, 211, 215, 220, 230, 460, 461, 463 with CODE
(312) GSM portable cellular telephone with CODE (316) MB GSM cellular telephone (D2B) with CODE
(317) GSM portable cellular telephone (D2B) with CODE (347) TELE AID emergency call system (D2B)
with CODE (380) Preinstallation for MB phone "CTEL", complete with CODE (381) MB phone
"Standard" in console on right side of dome with CODE (382) MB phone "CTEL" in console on right
side of dome with CODE (383) With telephone "Standard" in console on right side of dome with
integrated TELEAID emergency call system, hands-free system and antenna with CODE (386)
Preinstallation for "portable CTEL" UPCI telephone system with CODE (388) "Portable CTEL" UPCI
telephone system with CODE (852) CTEL preinstallation assembly at dome with CODE (853) MB
standard cellular telephone with CODE (854) MB portable cellular telephone with CODE (855) TELE
AID


number replaces the
former 163 820 06 75
part number.

Part no.

Designation

Quantity

163 820 18 75

Antenna

1

Damage code

Cause

Remedy





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
