Mercedes-Benz ML320. Service manual - part 247

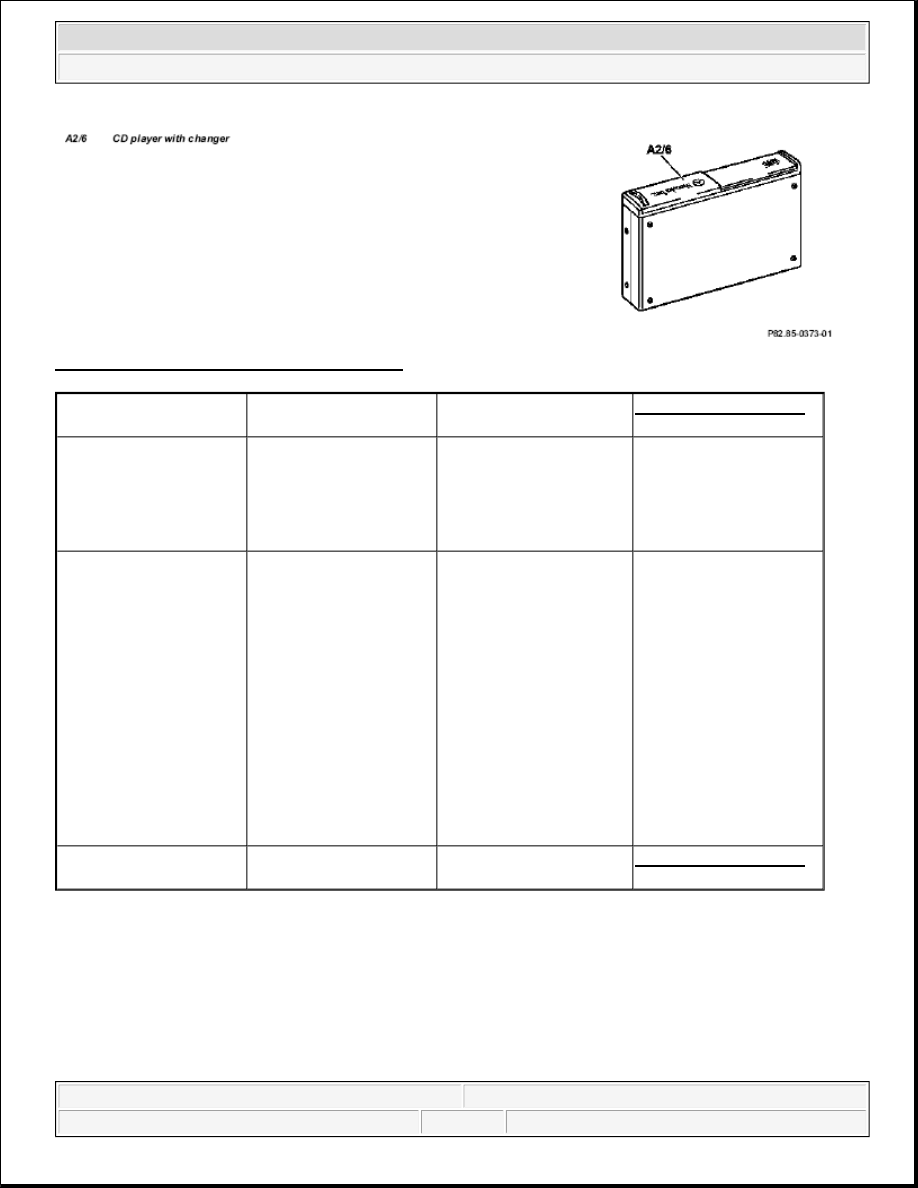

Fig. 75: Identifying CD Player With Changer

GPS/CTEL ROOF ANTENNA, LOCATION - GF82.70-P-4111-01GH

Model 163

Location, illustration valid up to 31.08.01:

The CTEL and GPS roof antenna (A2/49) is mounted on the rear of the roof in the middle of the vehicle.



CD player with changer,
location



GF82.64-P-3113-01GI



CD player with changer,
purpose



Playing audio
compact discs (CD).



Changing CD's
contained in the
magazine





CD player with changer,
design



CD changer
magazine for 6 CD's



Digital data bus
(D2B) interface


The installation position
of the CD changer
predefined by the factory
is vertical, however
another installation
location is also possible
by adapting the spring
location





CD player with changer,
function



GF82.64-P-3113-02GI



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

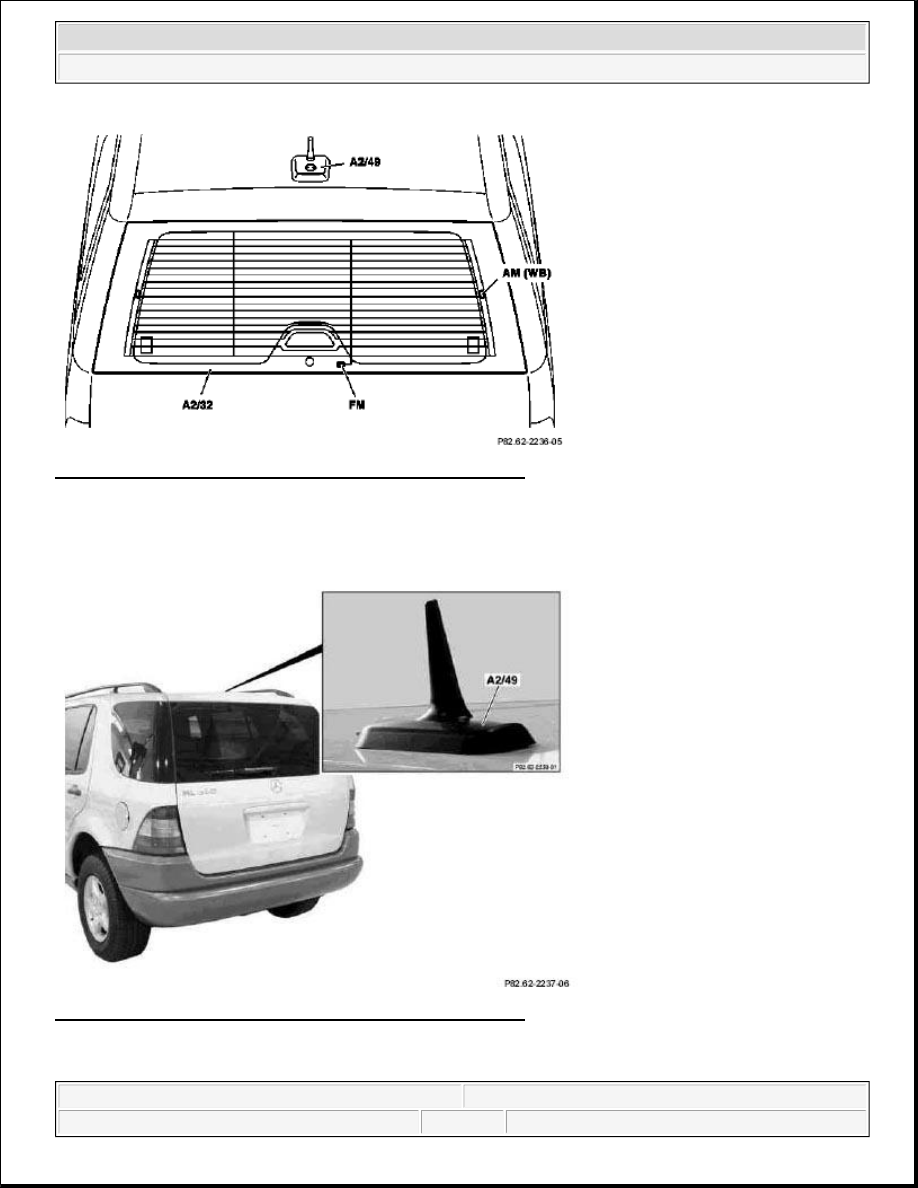

Fig. 76: Identifying CTEL And GPS Roof Antenna (31.08.01)

Location, illustration valid as of 01.09.01:

The CTEL and GPS roof antenna (A2/49) is mounted in the rear area of the vehicle roof.

Fig. 77: Identifying CTEL And GPS Roof Antenna (01.09.01)

Illustration shows model 163 up to 31.8.01 :



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

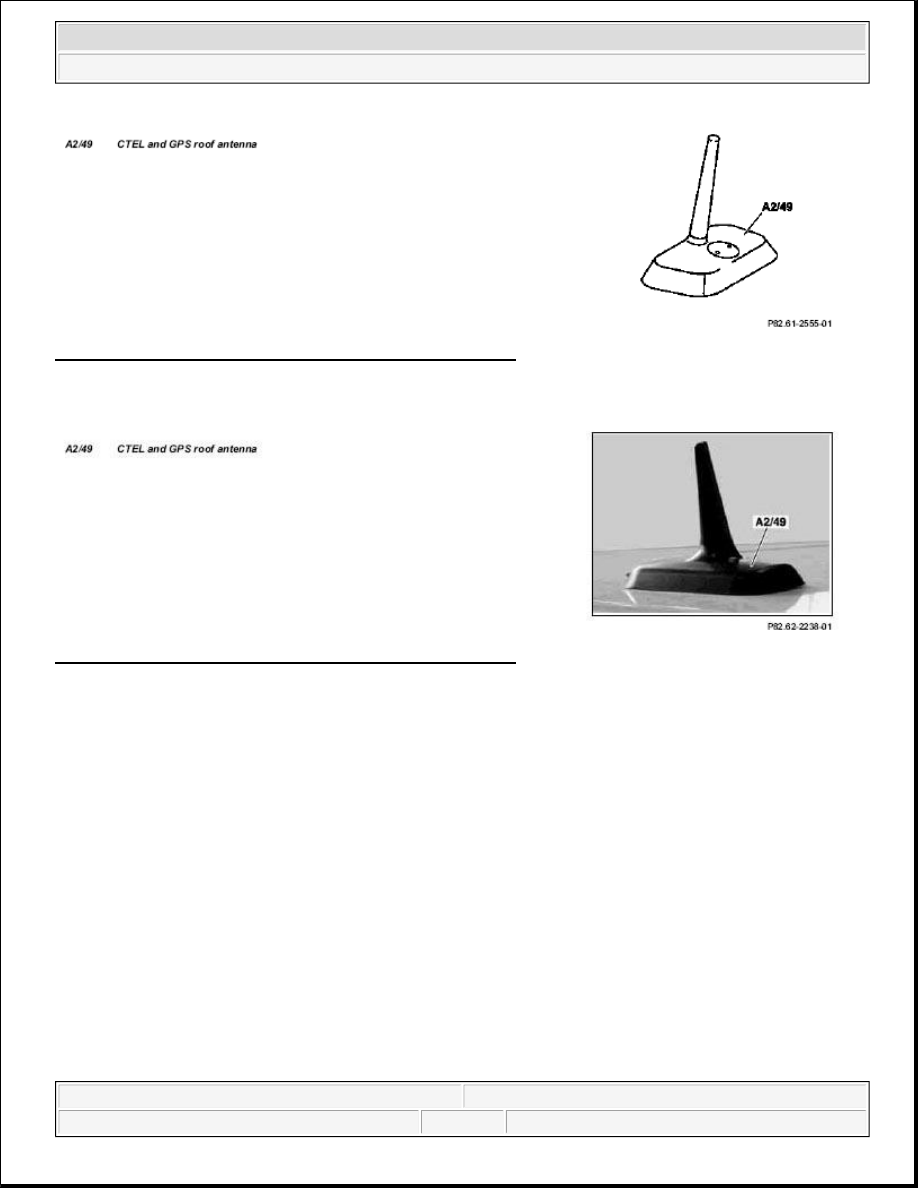

Fig. 78: Identifying CTEL And GPS Roof Antenna (31.8.01)

Illustration shows model 163 as of 01.9.01 :

Fig. 79: Identifying CTEL And GPS Roof Antenna (01.9.01)

GPS/CTEL ROOF ANTENNA, DESIGN - GF82.70-P-4111-03GH

Model 163 as of 01.9.01



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

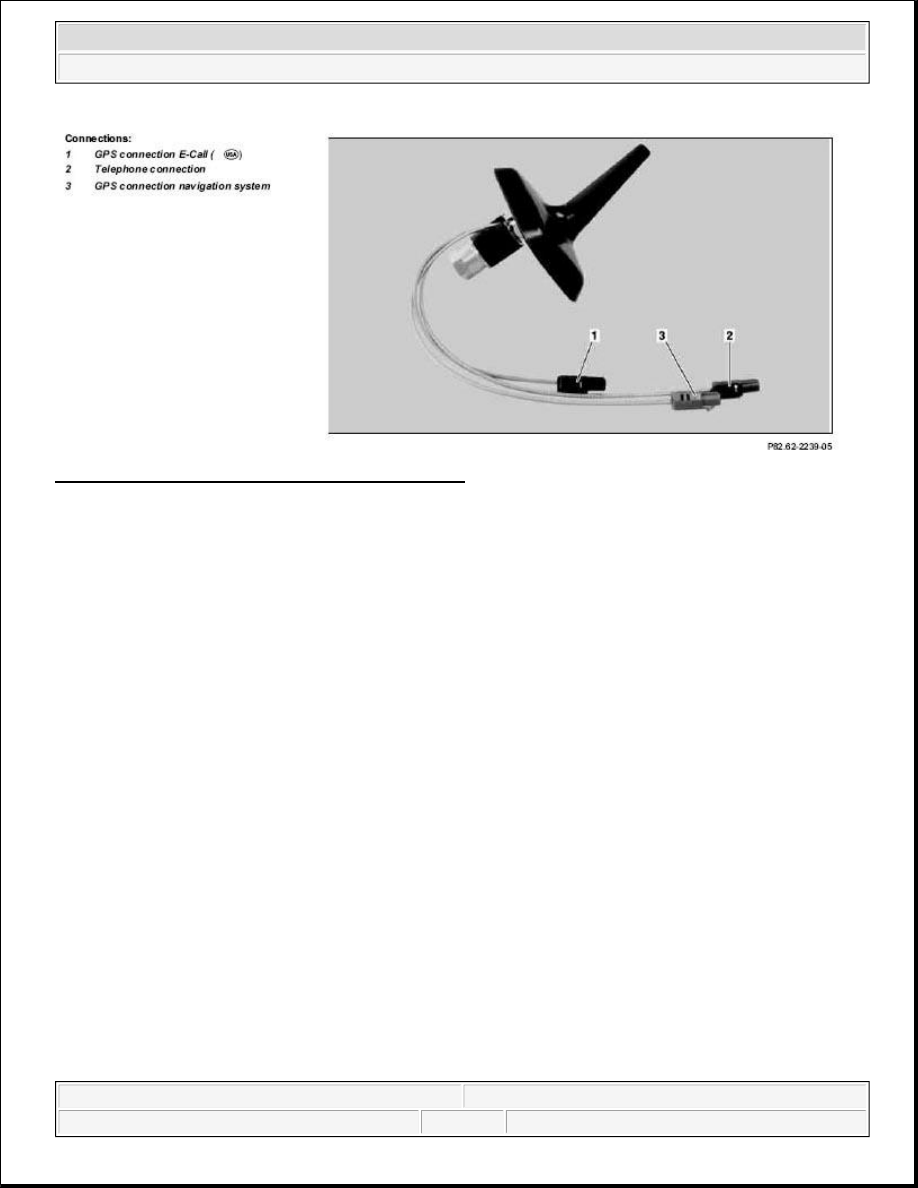

Fig. 80: Identifying GPS/CTEL Roof Antenna Design

GPS/CTEL ROOF ANTENNA, FUNCTION - GF82.70-P-4111-04D

Model 163 with code 353

CTEL and GPS roof antenna (A2/49)

The CTEL and GPS roof antenna (A2/49) is a combination antenna for the telephone and GPS.

The integrated GPS antenna (A2/49a2) receives the GPS satellite signals. This antenna does not transmit
signals.

The integrated CTEL antenna (A2/49a1) receives and transmits GSM radio signals.

The CTEL and GPS radio signals are transmitted to an antenna socket used by both. For this reason only one
antenna cable is required.

The CTEL and GPS roof antenna (A2/49) is an active antenna. It is supplied with DC power via the antenna
cable (phantom feed). The electronic circuitry in the antenna must ensure that



the telephone transmitter signals are only transmitted to the CTEL antenna (A2/49a1) .



the signals received by both antennas are available at an antenna output.

The antenna is connected to the CTEL and GPS antenna splitter (A2/57) by a coaxial cable.

GPS/CTEL ROOF ANTENNA, FUNCTION - GF82.70-P-4111-04GH

Model 163
