Mercedes-Benz ML320. Service manual - part 245

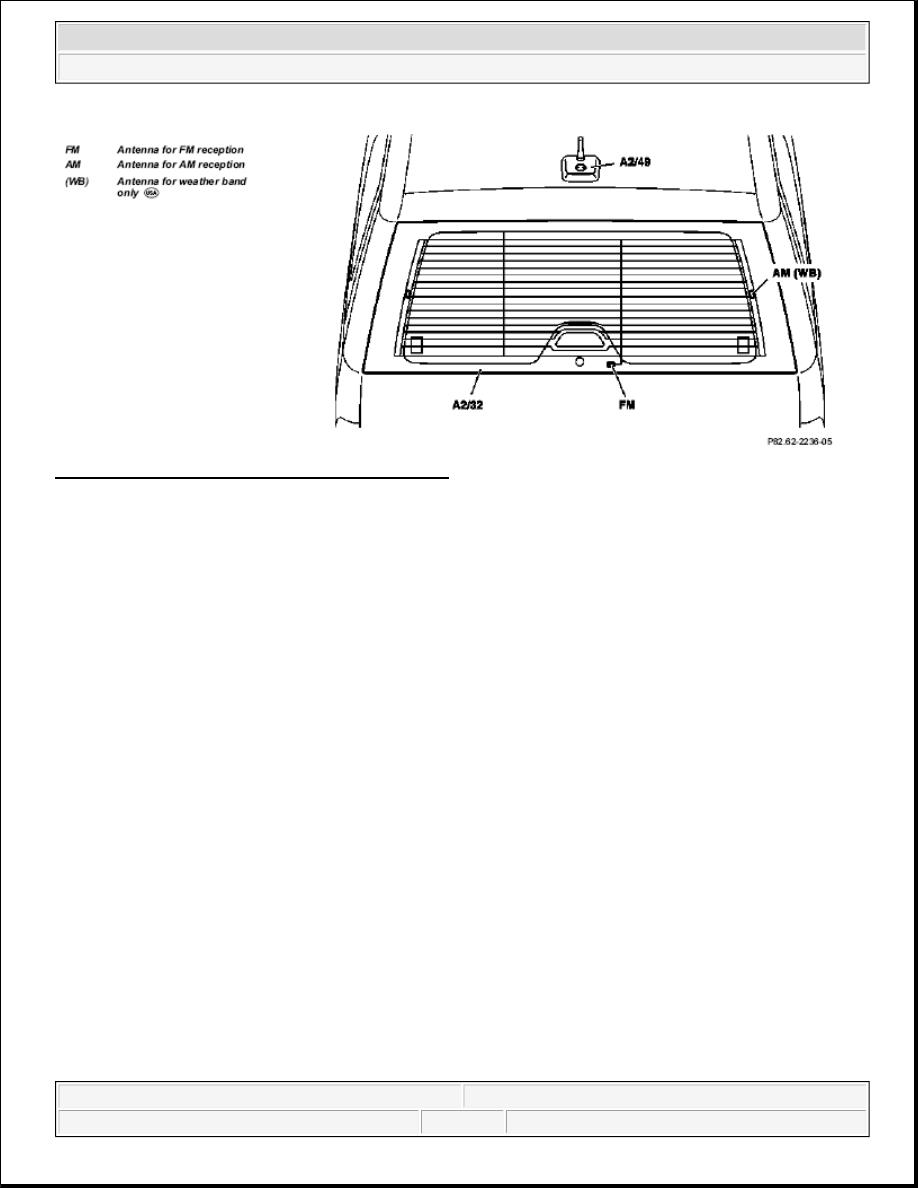

Fig. 68: Identifying Rear Window Antennas Design

The individual antennas are attached to the inner side of the rear window.

The AM antenna in some cases is part of the heating elements of the rear window defroster. The AM signals
are decoupled by the radio antenna splitter (A2/5) .

All the antennas are matched in terms of their length and shape to the particular frequency band which they
receive.

REAR WINDOW ANTENNAS, FUNCTION - GF82.62-P-3106-04GH

Model 163

Function:

The radio signals are received by the rear window antenna (A2/32) (AM, FM ). The high-frequency
oscillations (RF) of the electrical field in the air are converted into an electrical alternating voltage .

A standing electrical wave is formed in the antenna as a result of the correct matching of the length of the
antenna to the wavelength of the frequency to be received.

In this case, the amplitude of the RF signal has a constant value at a random point of the antenna. The RF
signal level
 is at the maximum at the connection point. A variation of the length of the antenna from its
optimum length results in a reduction in the RF signal level at the antenna output. If the variation is too large,
no further signal is received (for example if the antennas are incorrectly connected to the antenna amplifier).

REAR WINDOW ANTENNA, LOCATION/PURPOSE /DESIGN/FUNCTION - GF82.62-P-3106GH

MODEL 163



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



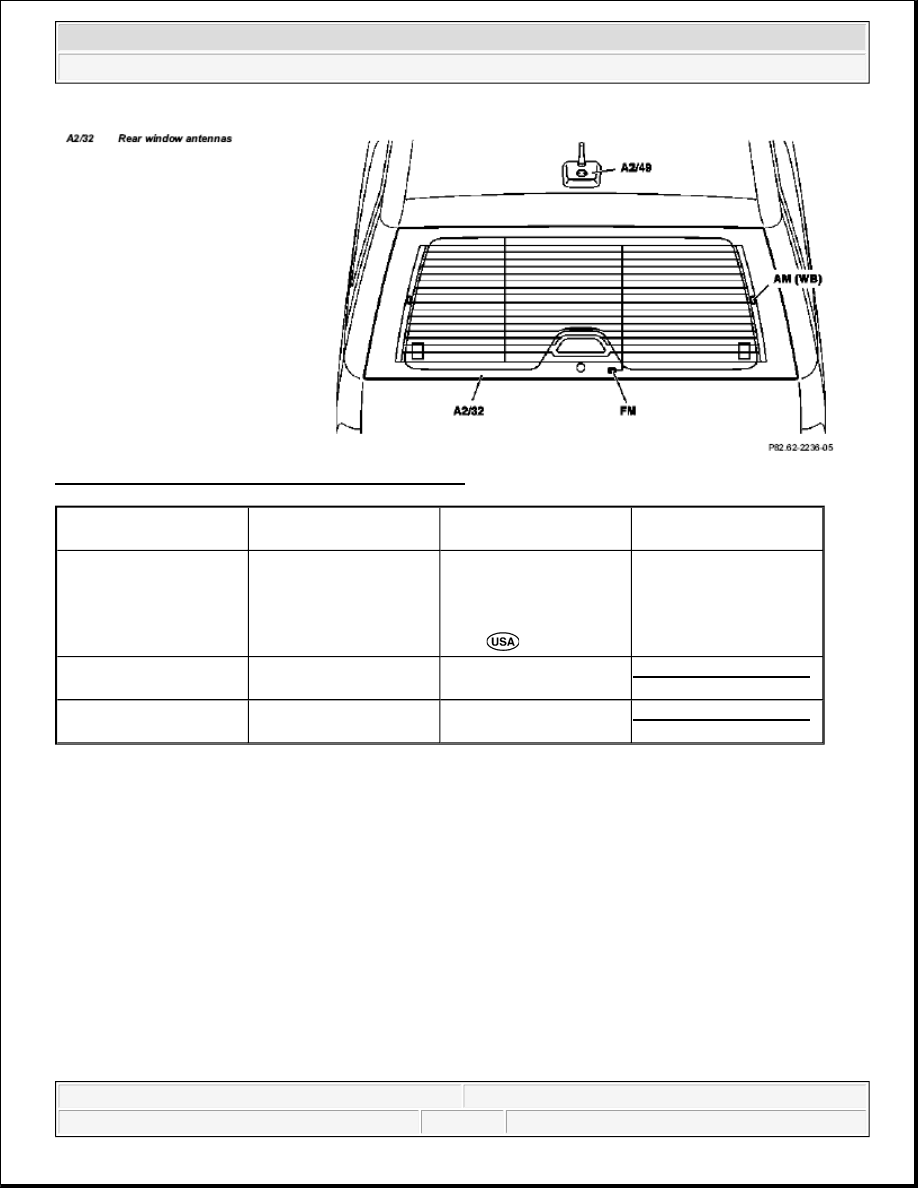

Fig. 69: Identifying Rear Window Antennas Location

FM/AM ANTENNA AMPLIFIER, LOCATION - GF82.62-P-4101-01GH

Model 163

Location:

the FM/AM amplifier (A2/18) is located in the tailgate.



Rear window antennas,
location

The antennas are located
in the rear window





Rear window antennas,
purpose

Reception of the
following radio signals:

AM, FM (WB only

 )





Rear window antennas,
design



GF82.62-P-3106-03GH



Rear window antennas,
function



GF82.62-P-3106-04GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



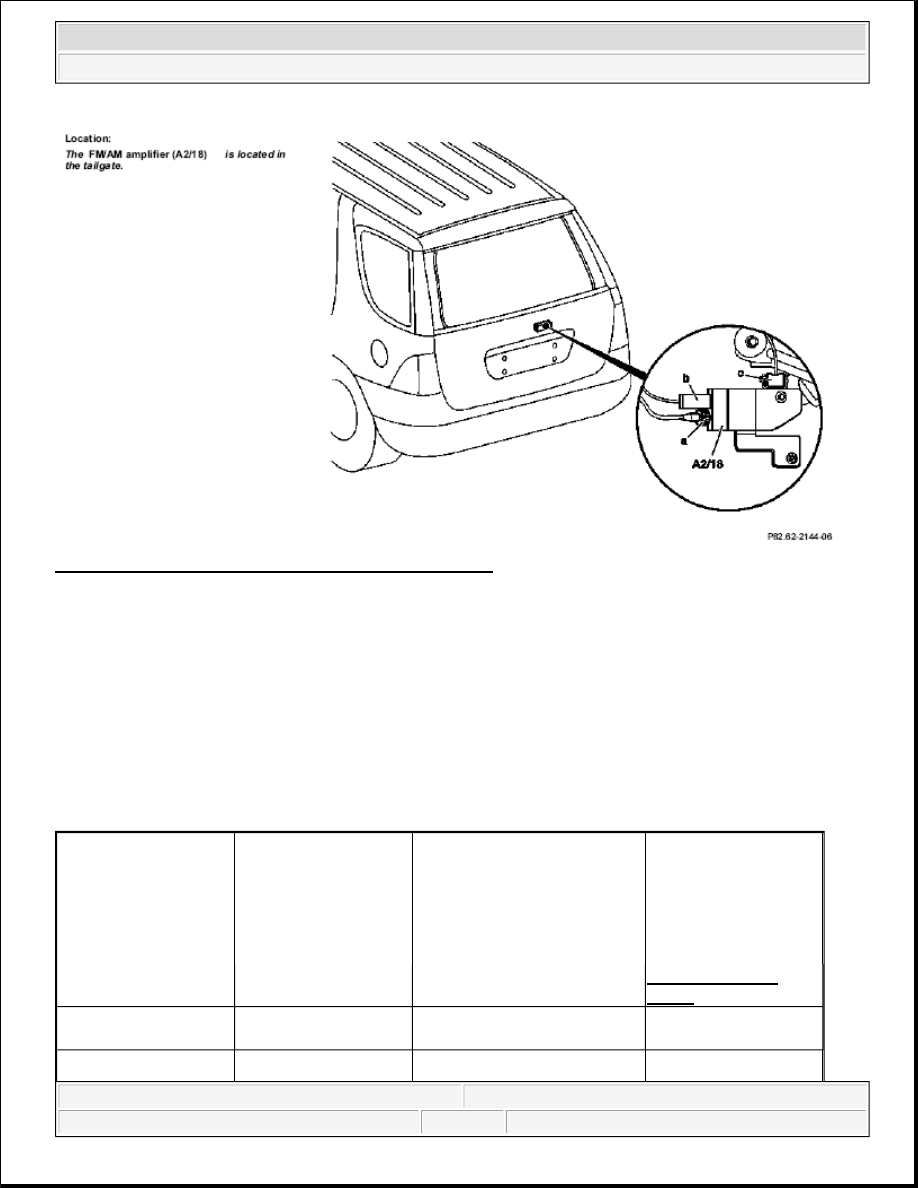

Fig. 70: Identifying FM/AM Antenna Amplifier Location

FM/AM ANTENNA AMPLIFIER, FUNCTION - GF82.62-P-4101-04GH

The radio signals are received by the rear window antenna (A2/32) and passed to the signal input of the
FM/AM amplifier (A2/18) . This amplifies the signals and passes them over a coaxial cable to the receiver of
the radio set of the audio unit.

FM/AM ANTENNA AMPLIFIER, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.62-P-4101A

MODEL 163, 168, 170, 208.4, 210.2

MODEL 208.3, 210 (except, 210.2) except CODE (352a) COMAND operating and display system



FM/AM antenna
amplifier, location

Model 168

GF82.62-P-4101-01A





Model 170

GF82.62-P-4101-01B





Model 208

GF82.62-P-4101-01D





Model 210 (except 210.2)

GF82.62-P-4101-01E





Model 210.2

GF82.62-P-4101-01C





Model 163

GF82.62-P-4101-
01GH



FM/AM antenna
amplifier, purpose

Amplification of the FM/AM
radio signals





FM/AM antenna

Coaxial connection for





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



TELEPHONE ANTENNA, LOCATION - GF82.62-P-4105-01E

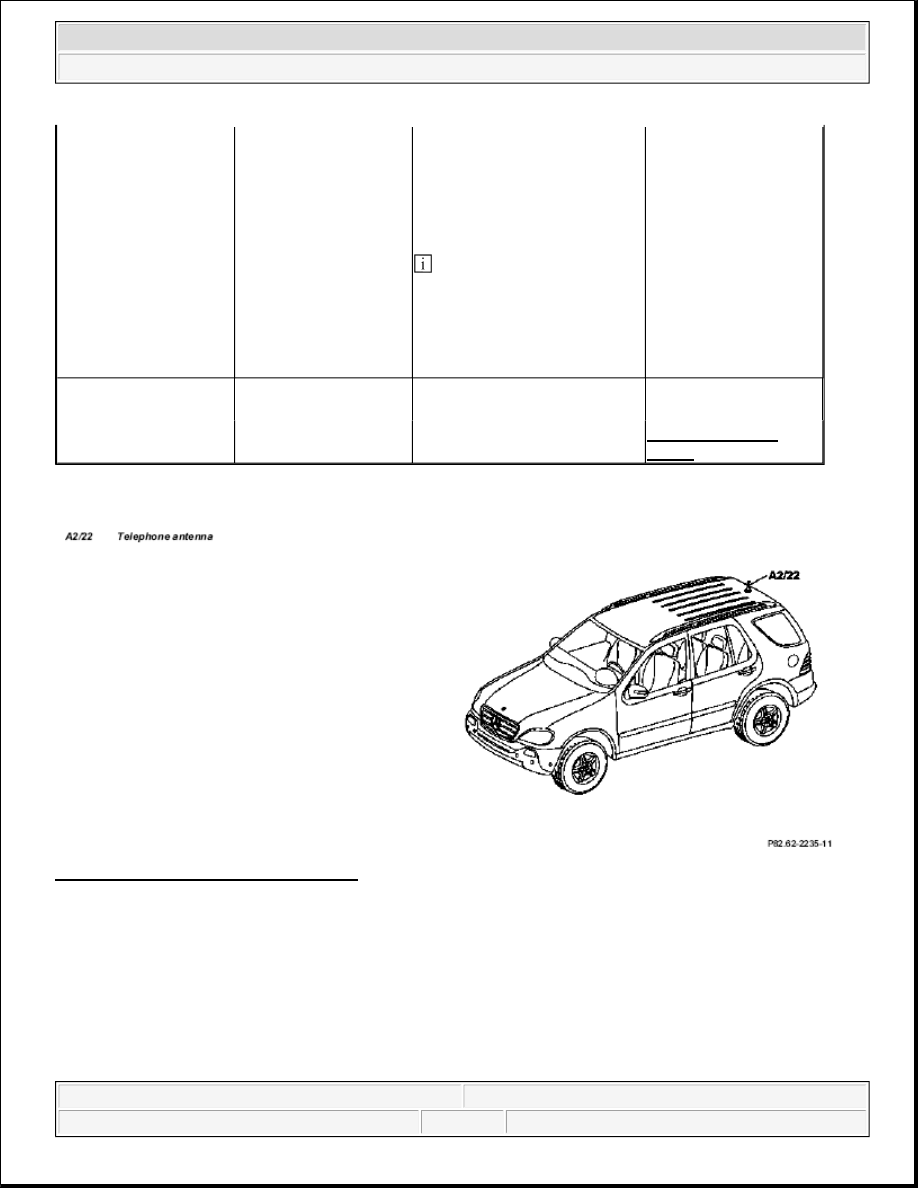

Fig. 71: Identifying Telephone Antenna

TELEPHONE ANTENNA, LOCATION/PURPOSE - GF82.62-P-4105GH

MODEL 163 with CODE (853) MB standard cellular telephone with CODE (854) MB portable cellular
telephone


amplifier, design

signal outputs

Connections for power
supply and signal
inputs/outputs



 If the voltage supply of the

FM/AM amplifier (A2/18)
fails, the AM signal path is
interrupted. FM reception is
possible with reduced reception
quality.



FM/AM antenna
amplifier, function



GF82.62-P-4101-04A



FM/AM antenna
amplifier, function

Model 163

GF82.62-P-4101-
04GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
