Mercedes-Benz ML320. Service manual - part 232





CD-PLAYER MODE, FUNCTION - GF82.60-P-2002GI

MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version


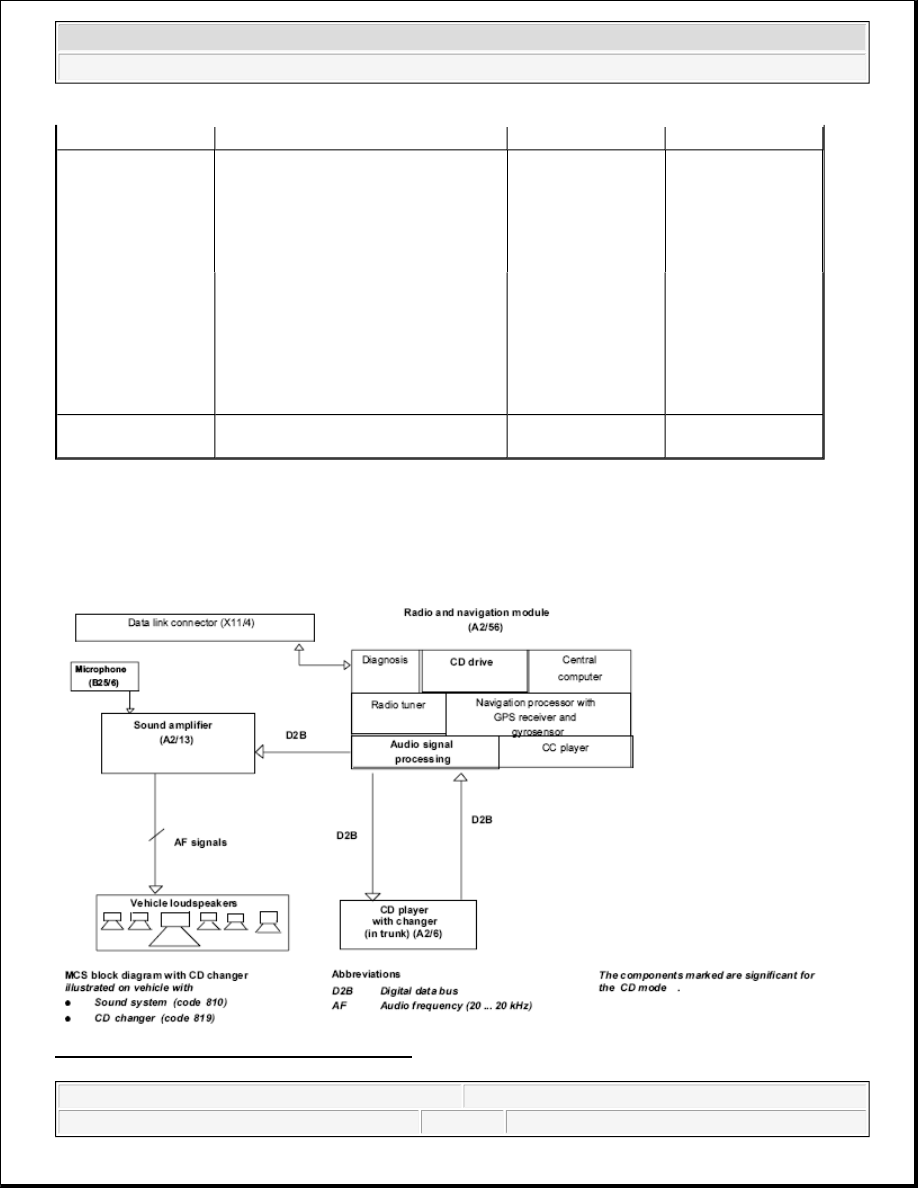

Fig. 38: Identifying CD-Player Mode Function

CD changer 6-disc



Sound amplifier,
location/task/design/function

Models 209.3/4 with
code (810) sound
system
Models 203.0/2/7 up
to 23.4.04 with code
(810) Sound system

GF82.62-P-3100Q





Models 203.0/2/7 as
from 24.4.04 with
code (810) sound
system, except code
(498) Japan version,
except code (494a)
USA version

GF82.62-P-3100PM



Additional fan for radio/navigation unit
location/ task

Models 203.0/2/7 as
of 1.6.03

GF82.61-P-4110P



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



The radio and navigation module (A2/56) has various optional possibilities for the CD player mode.

CD mode with single CD drive (optional)

The radio and navigation module (A2/56) has an integrated CD drive as an option (code 818) intended for
playing audio CD's . If the radio and navigation module (A2/56) is equipped with a CD drive for navigation
(Code 357) as an option, it is also possible to play audio CD's . (However, during the navigation mode it is not
possible to play audio CD's Opening the operating and display module "(Open " button) allows access to the
CC slot and CD slot.

CD changer mode (with code 819)

The CD player with changer (A2/6) is actuated by the radio and navigation module (A2/56) .

The control signals and audio data from the CD player with changer (in trunk) (A2/6) are transmitted via the
digital data bus (D2B ). The changer is actuated by pressing the "CD" button twice . (When single CD drive is
installed).

 Insert only 12 cm CD's into the CD player with changer (in trunk) (A2/6) , also do not use 8 cm CD

adapter .

On sound system (code 810) the sound amplifier (A2/13) takes over final amplification of the audio signals.

The signals between the radio and navigation module (A2/56) and sound amplifier (A2/13) are transmitted
via the digital data bus (D2B ).

The amplified signals are output by the vehicle loudspeaker system.

 If the vehicle is equipped with sound amplifier (A2/13) the radio and navigation module (A2/56) should

be coded correspondingly with STAR diagnosis, otherwise malfunctions can occur when reproducing audio
signals.

When a magazine is inserted in the CD changer it is checked and a table of contents is made up. When the test
is completed the system automatically switches over to the playback mode and starts with the first title or next
possible compact disc.

If the system switches over to the CD mode before the test is completed the system starts playback of the CD
which was presently being checked.

The radio and navigation module (A2/56) offers the following functions in combination with the CD player
with changer (in trunk) (A2/6)
 and/or single CD drive :

Scan function

When the multifunction " Scan " key is pressed each title on the current CD is played for approx. 8 s .
The function is terminated by pressing the multifunction " Scan " key again.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Title forward/backward

If the "joystick " is pressed to right the next CD title is skipped. Pressing to left within the first 10 s of
playback causes jumping to the previous title, otherwise to the beginning of the title presently being
played. If the" joystick " is held to left or right the changer jumps from one title to the next within short
time intervals without playing them.

Fast forward/rewind (music search)

If the "joystick " is pressed up or down the titles are played quickly. This allows specific parts of a title to
be played or skipped. When the start or end of the CD is reached the search is interrupted.

Title repetition and random playback

Random playback can be activated/deactivated with the multifunction " RDM " key. When activated this
function is indicated on the display and random playback can then be selected. The random playback
feature affects only the CD presently being played back. Title repetition can be activated/ deactivated
with the multifunction " RPT key. The title presently selected is repeated until the function is deactivated.

 The random playback and title repetition remain active, even when the radio and navigation module

(A2/56) is switched off and switched back on again. Actuating these two functions simultaneously is not
possible.

Pause

The multifunction key" II "(Pause ) interrupts the title presently being played. Pressing again continues
playback.

Direct title selection

Pressing the " *" button followed by entry of the desired title via the number block allows direct selection
of the title.

Multifunction key Time

By pressing the multifunction key" Time " it is possible to change between 2 different display modes:

Display of title number and previous playback time of title (standard setting)

Number of titles and entire playback time of CD ("Time appears on display).

CD title assignment, function

Each CD has a permanently stored, so-called T able of C ontents (TOC ) entry. The radio and navigation
module (A2/56)
 recognizes the CD clearly on the basis of this entry and can automatically designate it (even
when the CD is then inserted into another CD magazine) after the title has been assigned once by the user.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Moreover, the TOC entry includes information about the number of titles on a CD and the entire playing time
of the CD .

VOLUME/TONE ADJUSTMENTS, FUNCTION - GF82.60-P-2003B

MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS

Basic features

The balance and fader settings apply for all signal sources (radio, CD, voice output).

The base and treble settings can be stored separately for the following signal sources:

Radio

Traffic announcements

Navigation voice output

Integrated CD player

Optional CD changer

Volume and tone settings for traffic announcements

The volume for traffic announcements can be changed during a traffic announcement (procedure analog to
adjusting navigation system voice output).

Volume and tone settings for navigation system voice output

The volume is automatically increased by a defined level during voice output. The volume level increase can be
set in stages directly at the radio (A2). The radio is preset to 6 dB.

During voice output, the volume can be changed with the left knob. The base/treble settings can be changed
with the right knob after pressing the "tone" button (during voice output). The settings can be continued after
conclusion of the voice output; the setting mode is terminated 8s after actuating the last button.

VOLUME/TONE ADJUSTMENTS, FUNCTION - GF82.60-P-2003GI

MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)



Volume/tone adjustments,
function



GF82.60-P-2003GI



Radio/navigation module,
location/purpose/
design/function



GF82.61-P-4109GI



Switch on/off behavior,
function



GF82.85-P-2006B



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
