Mercedes-Benz ML320. Service manual - part 230





REAR WINDOW WASHER PUMP, FUNCTION - GF82.35-P-4103-02GH

The motor for the rear window washer pump (M5/3) is switched on and off by the rear window
wiper/washer switch (S78)
 .

The pump pumps water from the washer water reservoir to the rear window washer.

REAR WINDOW WASHER PUMP, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.35-P-4103GH

MODEL 163

RADIO (RD), LOCATION OF CONTROLS - GF82.60-P-0001-02I

MB Hi-line radio



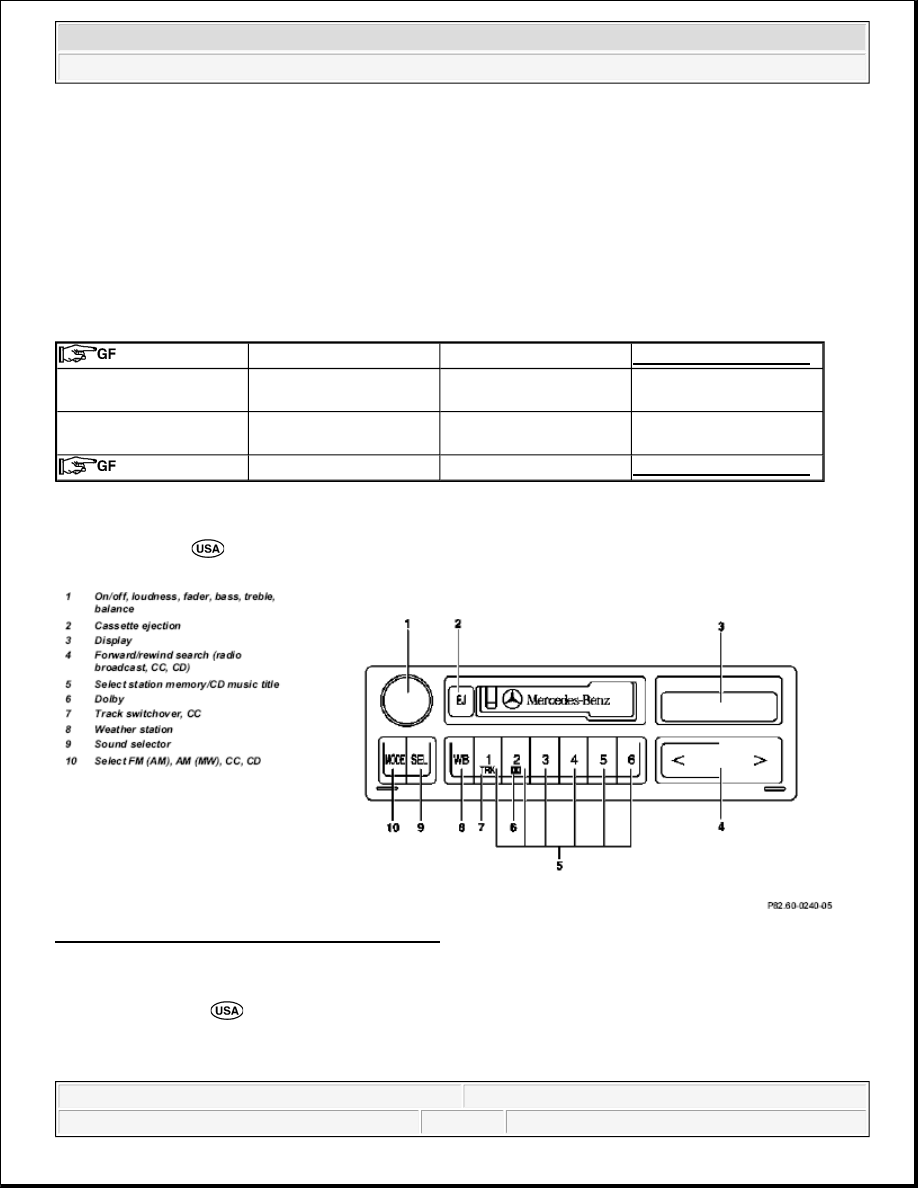

Fig. 33: Identifying Radio (RD) Controls Location

RADIO (RD), LOCATION OF CONTROLS - GF82.60-P-0001-02J

MB Premium radio





Location



GF82.35-P-4103-01GH



Purpose

Pumping water for
washing rear window.





Design

The washer pump is
driven by a DC motor





Function



GF82.35-P-4103-02GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



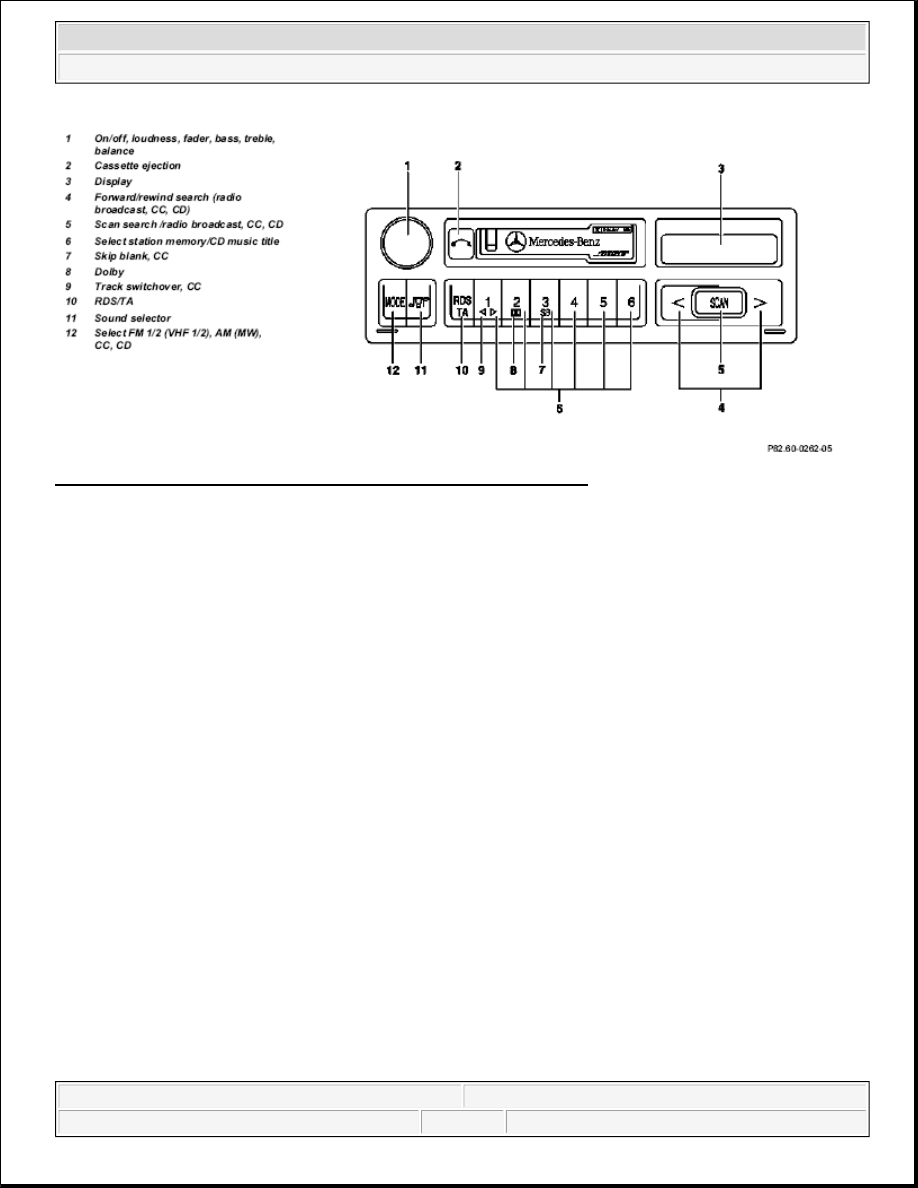

Fig. 34: Identifying Radio (RD) Controls Location

RADIO (RD) ARRANGEMENT OF OPERATING ELEMENTS - GF82.60-P-0001-02K

MB radio ML 5

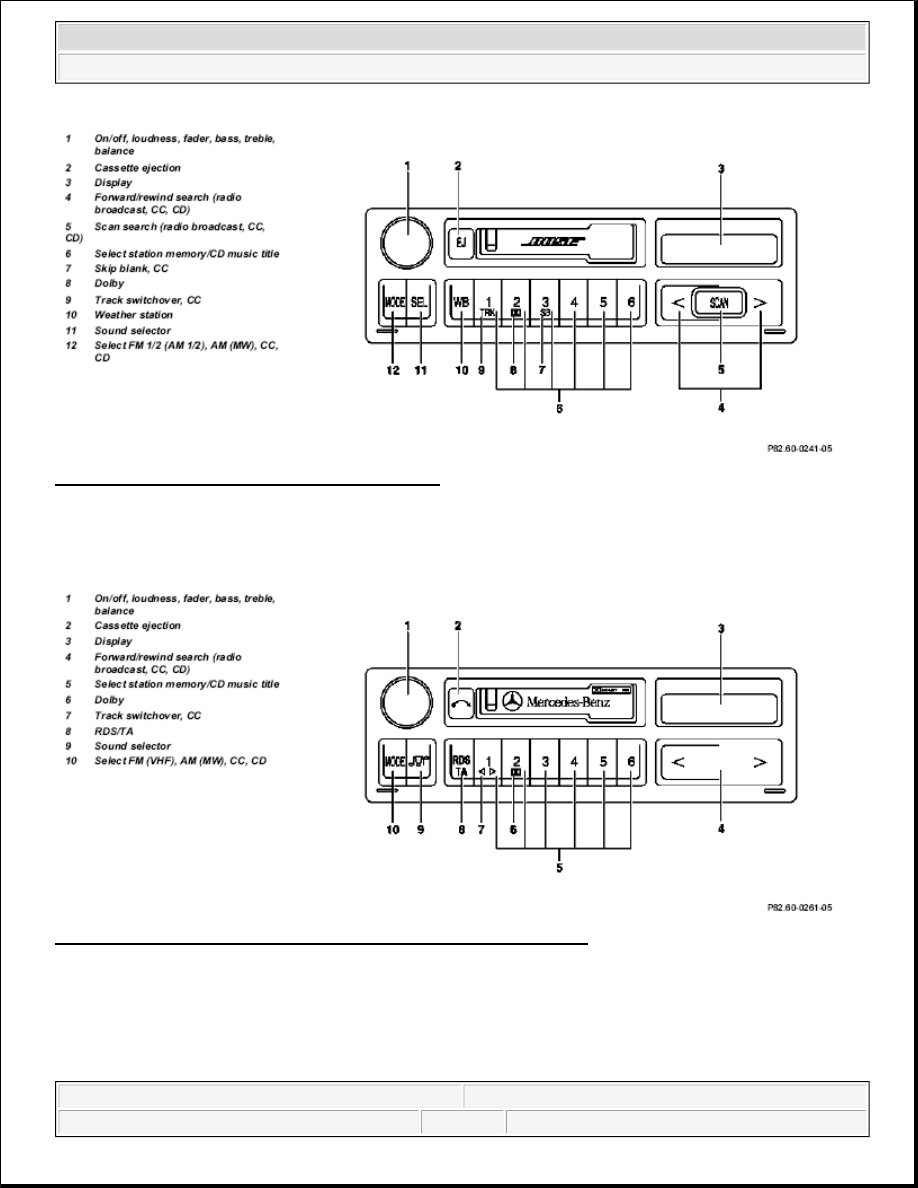

Fig. 35: Identifying Radio (RD) Arrangement Of Operating Elements

RADIO (RD) ARRANGEMENT OF OPERATING ELEMENTS - GF82.60-P-0001-02L

MB ML 10 radio



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Fig. 36: Identifying Radio (RD) Arrangement Of Operating Elements

RADIO MODE, FUNCTION - GF82.60-P-2001B

MODELS 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS

The ultra-short wave (FM), medium wave (MW) and long wave (LW) high-frequency signals are received from
the radio antenna mounted on the vehicle. The music, voice and/or data signals are modulated upon the high-
frequency signals received. The high-frequency signals are forwarded by the radio antenna over a coaxial cable
to the radio receiver in the radio and navigation unit (A2/56). The radio receiver demodulates the high-
frequency signals, i.e. it separates the useful information from the high-frequency carrier signal. The
demodulated audio signals are amplified and converted to sound signals by the vehicle speakers. Possibilities
for radio station selection:

Direct frequency input

Manual station search

Automatic station search (the stations on a waveband are played for approx. 8 s)

Station selection from the memory (6 stations for each frequency range)

Radio Data System (RDS), function

Many radio stations, e.g. (FM) transmit in addition to the program additional information such as the station
name, type of program (e.g. pop, culture, etc.), traffic station identification and alarm messages. This
information is evaluated and shown on the radio and navigation unit (A2/56) display, provided that:

the "RDS" function is switched on

an RDS station is set and received.

When an RDS station is received with a traffic broadcast in the background the abbreviation "TP" (Traffic



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Program) appears on the radio and navigation unit display (A2/56).

Even when the RDS function is deactivated, the traffic station recognition and station following function remain
in operation (if activated). RDS alarm messages are still issued. In this case, CD playback or radio reception is
automatically interrupted.

2-tuner technology function

If interference occurs to reception while driving, the system attempts to receive the selected station on an
alternative frequency with the aid of the second (integrated) receiver and switch over when reception is better.
Moreover, the second radio receiver automatically generates a list of the receivable FM stations after switch-on,
and this list is continuously updated during operation. The stations contained in the list can be called up sorted
in alphabetical order with the station search buttons.

 The station list is only available when the "RDS" function is activated.

At certain times, some radio channel programs are subdivided into regional programs.

Since the system automatically switches to an alternative frequency in the event of reception interference, this
can lead to a change in the regional program (not the radio network). If this is not desired, the regional program
function can be activated in the menu "REG". Switchover to an alternative frequency is then accomplished only
within the regional program.

FM antenna diversity function (models 209.3/4)

The antenna diversity function undertakes a reception-specific switchover between the FM antennas on the rear
window for model 209.3 (FM antennas of windshield for model 209.4). The function runs automatically and is
executed by the window antenna amplifier module 1 (A2/71) for model 209.3 (left antenna amplifier module
(A2/64) for model 209.4).

The radio tuner of the radio and navigation unit (A2/56) only generates the intermediate frequency (ZF) signal,
which serves as a reference to change the FM antenna for the window antenna amplifier module 1 (A2/71) on
model 209.3 (for model 209.4 left antenna amplifier module (A2/64)).

RDS Diversity/2-receiver technology function

The system consists of 2 FM receivers, a radio receiver and a search receiver. After turning on the radio system,
the search receiver automatically generates a list of FM stations received, which is continually updated during
operation.

Data such as reception quality, programs and alternative frequencies are stored. The audio receiver can therefore
switch over inaudibly to an alternative frequency. The list appears in alphabetical order when the "FM station
list" is called up. The stations which are displayed can be activated by selecting and confirming.



FM/AM antenna amplifier,
location/task/design/ function

Models 163, 168,
170, 208.4, 210.2
Models 208.3, 210

GF82.62-P-4101A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
