Mercedes-Benz ML320. Service manual - part 229





REAR WINDOW WIPER MOTOR, FUNCTION - GF82.30-P-4106-01GH

The rear window wiper motor (M6/4) is controlled by the all-activity module (AAM) (N10) Wiper
operation
 :

The rear window wiper is in the non-actuated position and the cam switch is therefore actuated. The relay is
actuated by the AAM. The rear window wiper motor (M6/4) starts running . The cam switch is released. The
motor then continues to run even when the relay is no longer actuated. Upon reaching the park position the cam
switch is actuated. If the relay is no longer actuated the motor is stopped by short circuiting through a coil.

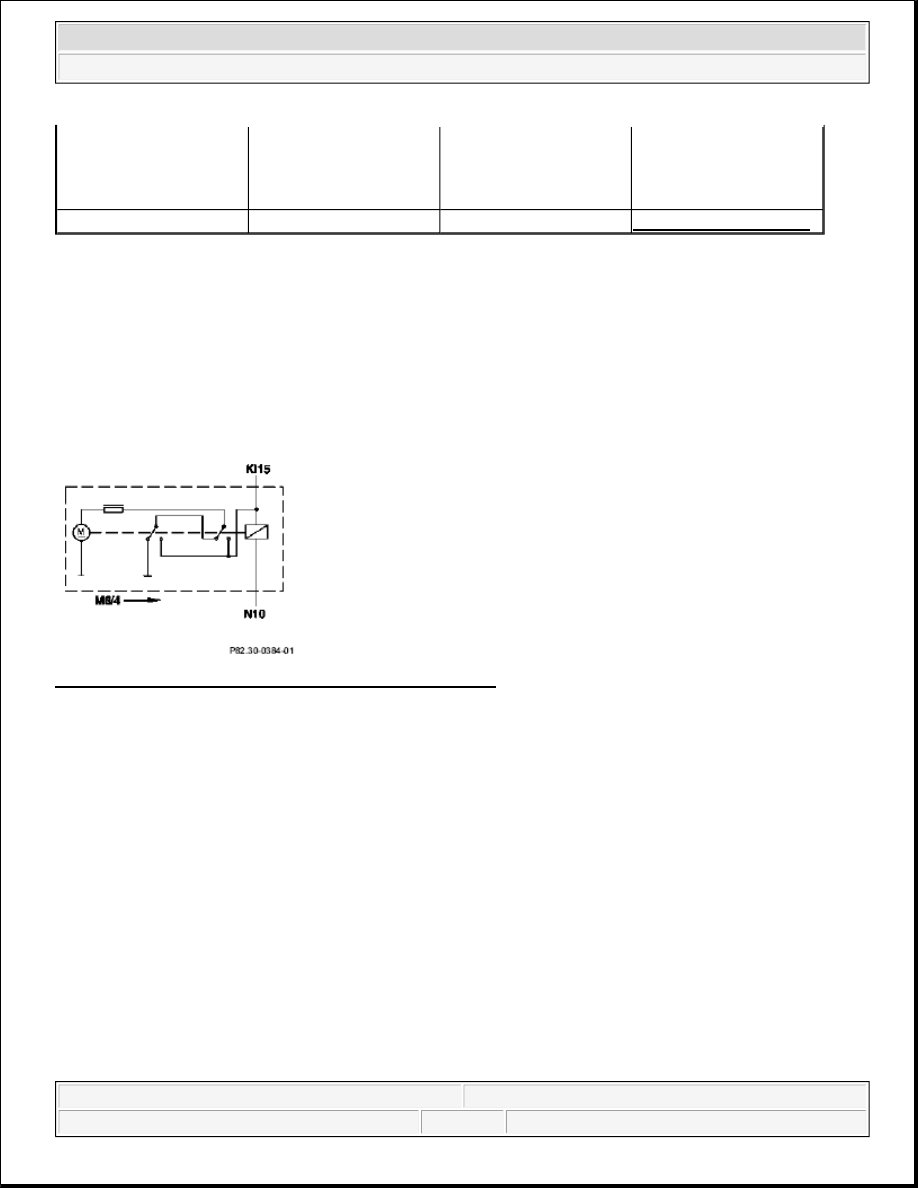

Fig. 30: Identifying Rear Window Wiper Motor Function

REAR WINDOW WIPER MOTOR, DESIGN - GF82.30-P-4106-02GH

The rear window wiper is driven by the rear window wiper motor (M6/4) with a cam switch (1) on the output
shaft. A temperature switch serves for overload protection.

with two normally open
contacts.
An LED indicator will be
added starting 1.9.2000.



Function



GF82.30-P-4105-01GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



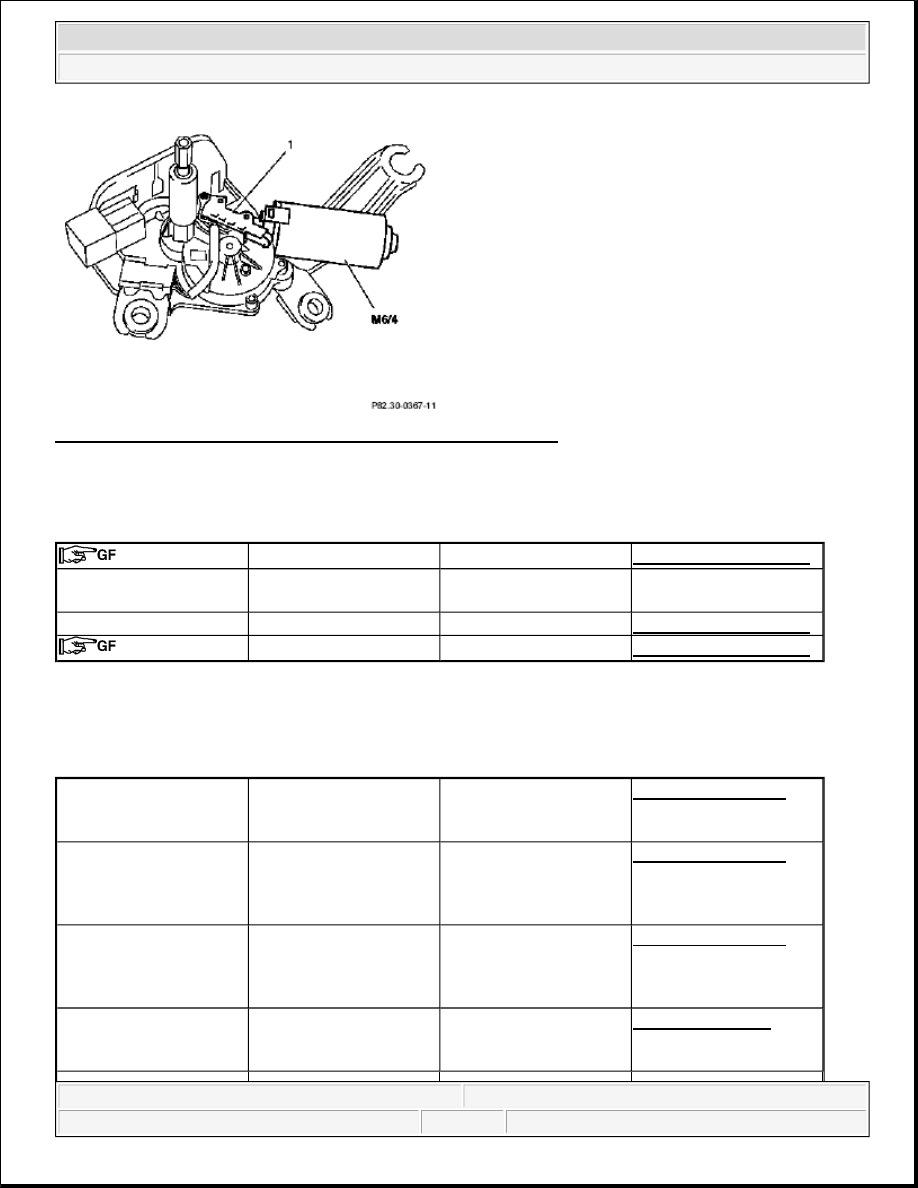

Fig. 31: Identifying Rear Window Wiper Motor And Cam Switch

REAR WINDOW WIPER MOTOR, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.30-P-4106GH

MODEL 163

SURVEY OF SYSTEM COMPONENTS WIPER SYSTEM (WS), LOCATION/ PURPOSE/DESIGN/FUNCTION - GF82.30-P-
9998GH

MODEL 163



Location



GF82.30-P-0004-01GH



Purpose

Driving rear window
wiper.





Design



GF82.30-P-4106-02GH



Function



GF82.30-P-4106-01GH



Wiper motor, location /
purpose / design /
function



GF82.30-P-4104GH



Rear window wiper /
washer switch, location /
purpose / design /
function



GF82.30-P-4105GH



Rear window wiper
motor, location /
purpose / design /
function



GF82.30-P-4106GH



Washer pump, location /
purpose / design /
function



GF82.35-P-4101A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REAR WASH - FUNCTION - GF82.35-P-3001GH

MODEL 163

The rear wash function is activated by placing the rear wiper/ washer switch (S78) in the down position. The
switch contact connects the tailgate washer pump (M5/3) to terminal 15. The All Activity Module (AAM)
(N10)
 detects the activation of the switch via the second switch contact and actuates the tailgate washer motor
(M6/4)
 and the tailgate washer fluid pump (M5/3) for as long as the switch is on.

The activation time for the tailgate washer fluid pump (M5/3) is limited to 15 sec. To reactivate the pump, the
button must be pressed again.

To wipe window dry, the tailgate wiper motor (M6/4) remains activated for five seconds after the switch is
released.



As described for the rear wiper function, a relay circuit in the wiper motor stops the wiper in the park position .

WINDSHIELD WASH - FUNCTION - GF82.35-P-3002GH

MODEL 163

The windshield wash function is activated by pulling the combination switch, washer switch (S4s4) towards
the steering column. The switch contact connects the washer pump (M5/1) to terminal 15R. The All Activity
Module (AAM) (N10)
 detects switch activation via an input that measures power supply to the washer pump
(M5/1).

If the combination switch (S4) is in the Wiper Off or Intermittent position, the AAM activates the wiper
motor (M6/1)
 via relay F1k17 . To wipe windshield dry, the motor continues to operate after the switch has



Rear window washer
pump, location /
purpose / design /
function



GF82.35-P-4103GH



Table of contents,
function description,
wiper system (WS)



GF82.30-P-0998GH



Rear Wipe



GF82.30-P-3004GH



Rear Wiper/Washer
Switch



GF82.30-P-4105GH



Tailgate Wiper Motor



GF82.30-P-4106GH



Tailgate Washer Pump



GF82.35-P-4103GH



All Activity Module

To 30.11.99

GF54.21-P-4100GH





As of 1.12.99

GF54.21-P-4100GK



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



been released until the AAM detects three operations of the cam-operated switch.

WASHER PUMP, FUNCTION - GF82.35-P-4101-01GH

The motor for the washer pump (M5/1) is switched on and off by the single wipe/wash switch (S4s4) in the
combination switch.

The pump pumps water from the washer water reservoir to the windshield washer.

WINDSHIELD WASHER PUMP, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.35-P-4101A

MODEL 202 as of 1.6.97, 208, 163, 210.081, 210 (except 210.2 /081) as of 1.3.97

REAR WINDOW WASHER PUMP, LOCATION - GF82.35-P-4103-01GH

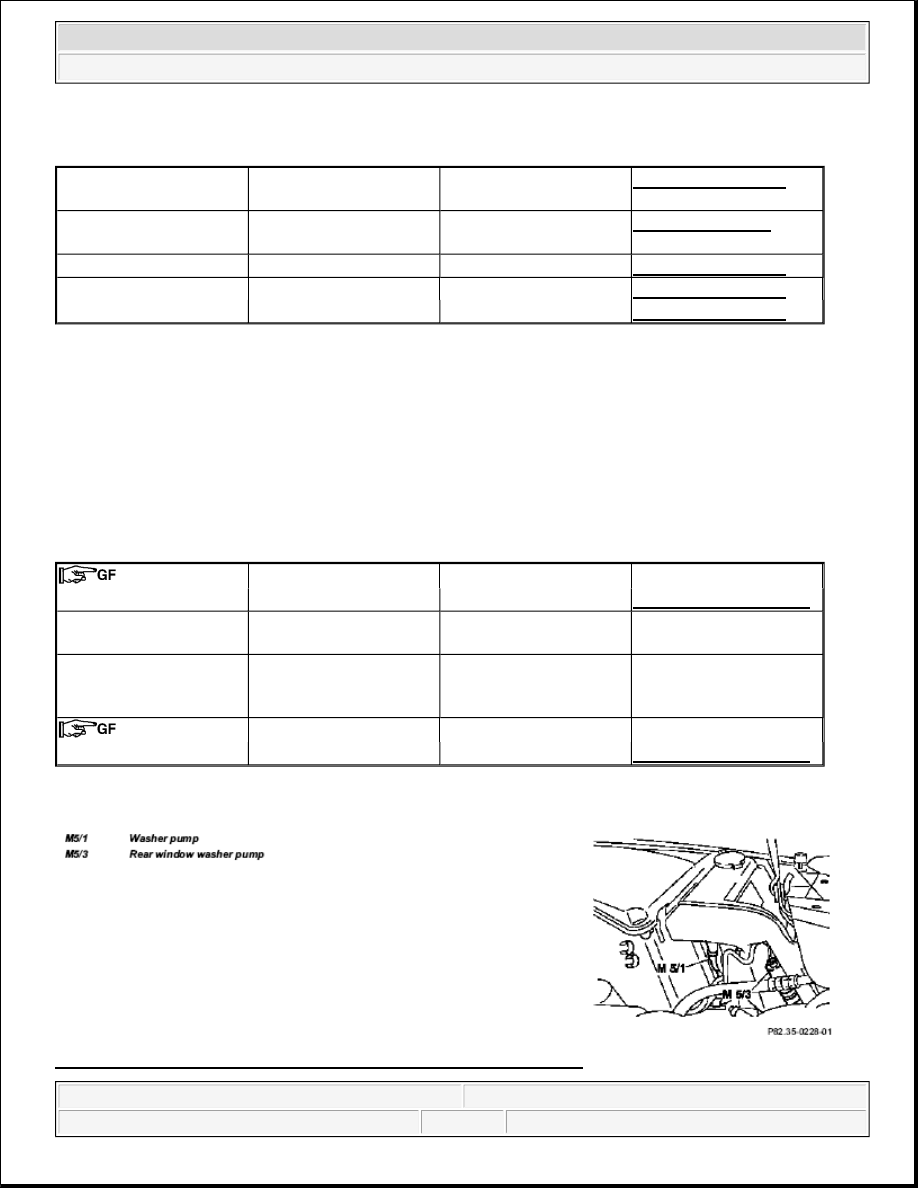

Fig. 32: Identifying Washer Pump And Rear Window Washer Pump



Windshield Intermittent
Wipe - Function



GF82.30-P-3003GH



Windshield Washer
Pump



GF82.35-P-4101A



Wiper Motor



GF82.30-P-4104GH



All Activity Module

To 30.11.99

GF54.21-P-4100GH





As of 1.12.99

GF54.21-P-4100GK



Location

Models 202, 208, 210

GF82.30-P-0005-01A





Model 163

GF82.35-P-4103-01GH



Purpose

Pumping water for
washing windshield





Design

The windshield washer
pump is driven by a DC
motor





Function

Models 202, 208, 210

GF82.35-P-4101-01A





Model 163

GF82.35-P-4101-01GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
