ignition key position Ignition "ON" when the brake pedal is depressed and therefore when the brake lamp
switch (S9/1) is actuated and when selector lever position "P" is recognized.

The R/P locking magnet (89) releases the selector lever thus allowing the selector lever to be moved away from
position "P".

Parking Lock, Location/Task/Design/Function - See PARK PAWL,
LOCATION/TASK/DESIGN/FUNCTION.

Ignition Lock Interlock

Operation



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

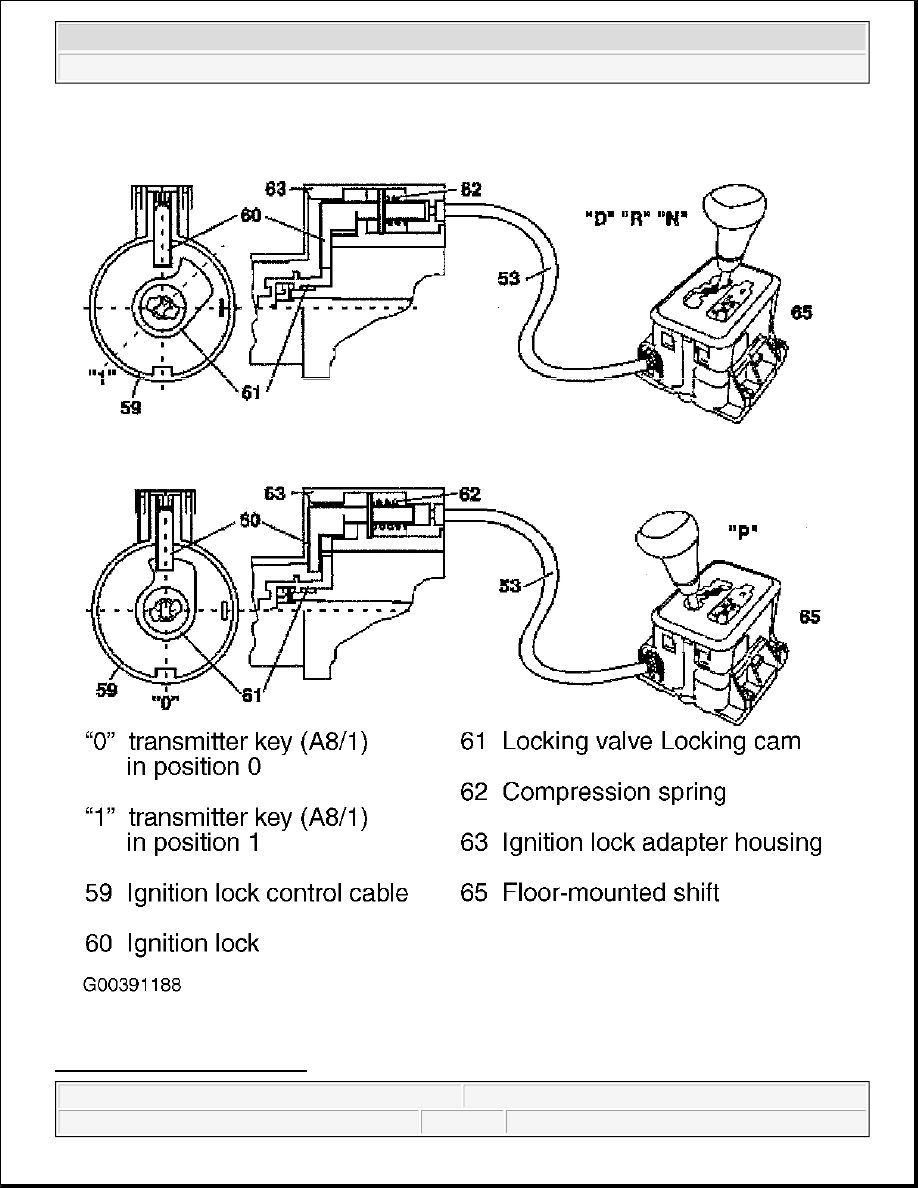

Fig. 163: Ignition Lock Interlock



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The mechanism of the ignition lock interlock connects the selector lever of the floor shift with the ETC control
module (N73). See Fig. 163. It prevents the transmitter key (A8/1) from being withdrawn when the selector
lever is not at position "P".

When the parking lock is not engaged (selector lever position "D", "R", "N"), the locking valve (60) locks the
locking cam (61). The compression spring (62) only pulls the locking valve (60) away from the locking cam
(61) in selector lever position "P". The transmitter key (A8/1) can now be turned to position "0" and removed
from the ignition.

Parking Lock, Location/Task/Design/Function

See PARK PAWL, LOCATION/TASK/DESIGN/FUNCTION.

Function Of Shift lock Override

Transmission with touch shift 722.6 in MODEL 163

Operation



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

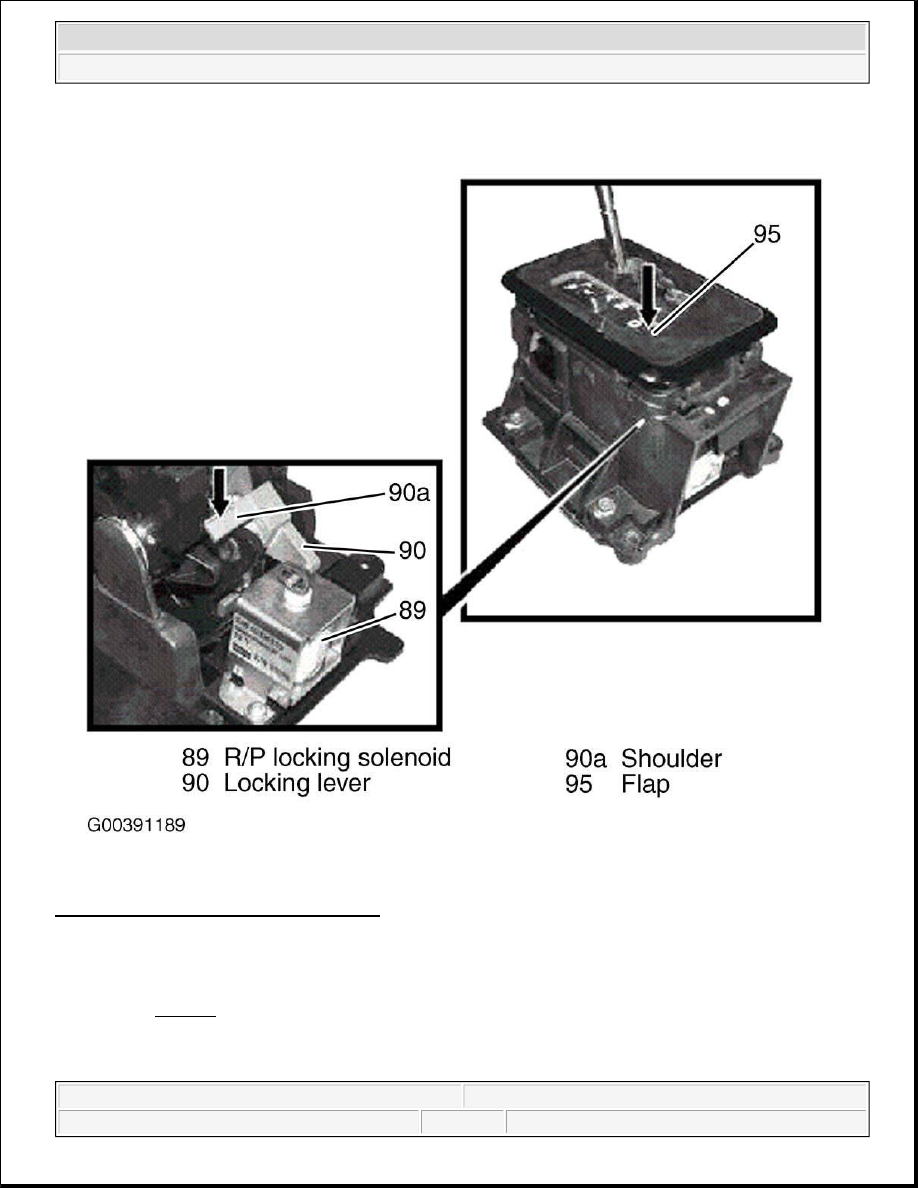

Fig. 164: Function Of Shift Lock Override
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

If it is not possible to engage a drive position from selector lever position "P" due to a mechanical or
electrical/electronic fault, the selector lever position "P" lock can be released using the shift lock override
function. See Fig. 164.

To do this a suitable tool must be guided through the flap (95) onto the web (90a) and the web pressed gently
downwards (arrow). The lock lever (90) releases the selector lever. The selector lever can be moved from
