Mercedes-Benz ML320. Service manual - part 184





Automatic Transmission, Driver Information (With Touch Shift)

NOTE:

If the shift range is restricted, upshifts occur close to the engine cutoff speed.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

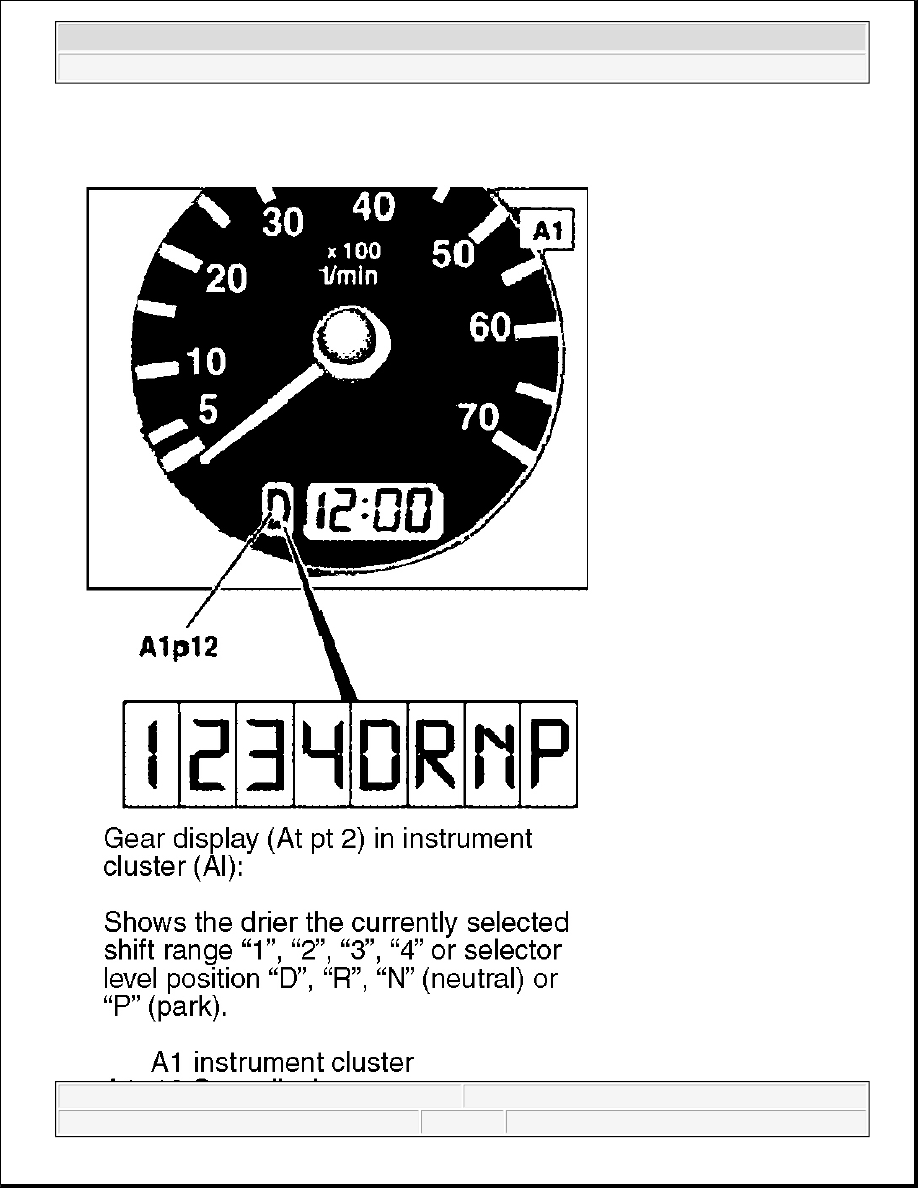

Fig. 115: Automatic Transmission, Driver Information
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.


Automatic Transmission, Gear Ratios

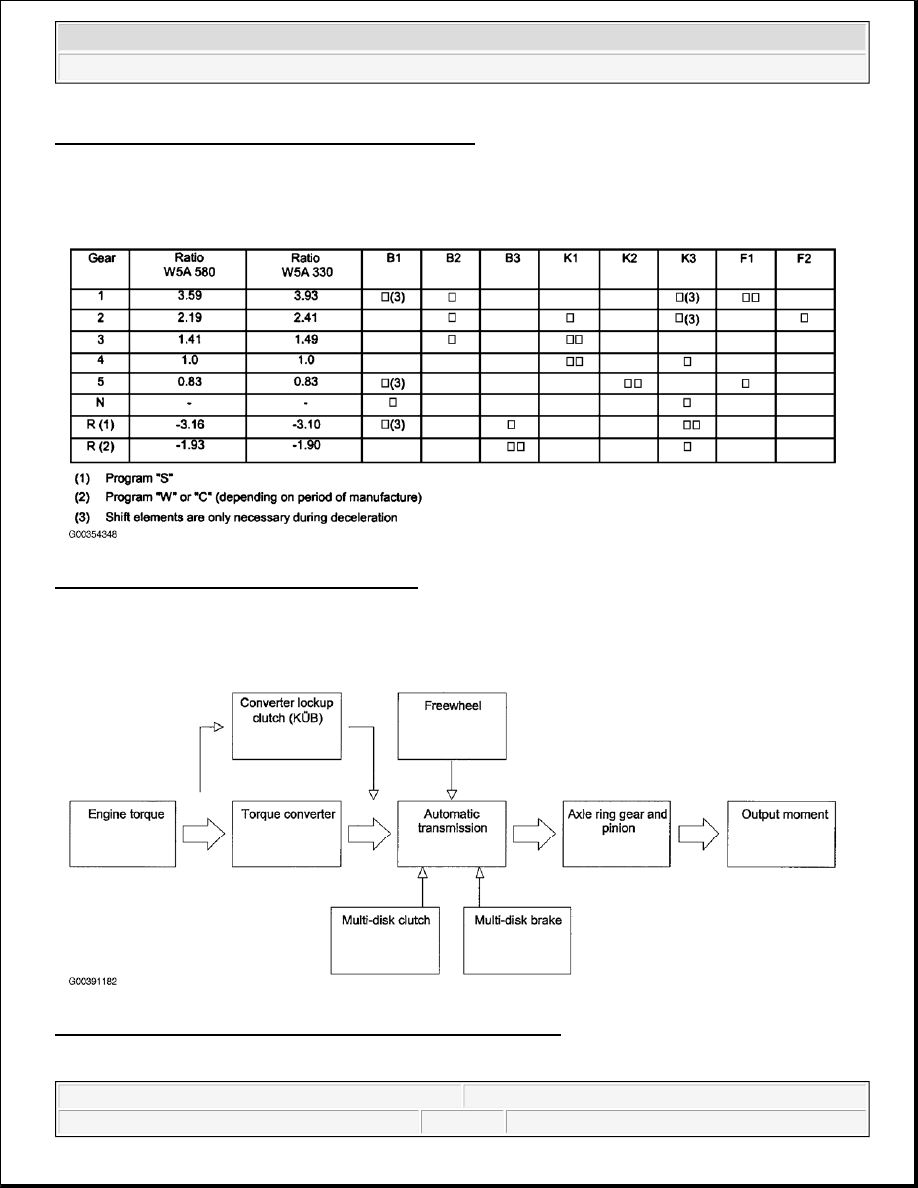

Fig. 116: Automatic Transmission, Gear Ratios
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Power Transmission, Function (Without Touch Shift)

Fig. 117: Automatic Transmission, Power Transmission, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Operation

The term power transmission refers to the transmission of propulsion power and engine torques. Via the
mechanical/hydraulic connection between the engine, torque converter and the downstream automatic
transmission the engine torques are transmitted to the driving wheels and are converted in the transmission via
several planetary gear sets.

Power is transferred in the torque converter via the driven impeller by diverting hydraulic fluid to the turbine
wheel, which is connected to the input shaft. See Fig. 117

When the torque converter lockup clutch is engaged, power is transmitted via this mechanical connection. Via
the gear wheels of the individual planetary gear sets the torques coming from the converter are passed on to the
output shaft with the aid of freewheels, multi-disk clutches and brakes, depending on the ratio and shift element
operated.

A reduction of the output speed in the low gears provides lower vehicle speeds with high tractive forces and
drive torques at the drive wheels.

Power Flow In 1st Gear, Function

See POWER FLOW IN 1ST GEAR, FUNCTION

Power Flow In 2nd Gear, Function

See POWER FLOW IN 2ND GEAR FUNCTION

Power Flow In 3rd Gear, Function

See POWER FLOW IN 3RD GEAR FUNCTION

Power Flow In 4th Gear, Function

See POWER FLOW IN 4TH GEAR FUNCTION

Power Flow In 5th Gear, Function

See POWER FLOW IN 5TH GEAR FUNCTION

Power Flow In Reverse, Function

See POWER FLOW IN REVERSE, FUNCTION

Function Of Torque Converter Lock-Up Clutch Control

See FUNCTION OF TORQUE CONVERTER LOCKUP CLUTCH CONTROL.

Power Flow In 1st Gear, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
