Mercedes-Benz ML320. Service manual - part 174







2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Fig. 92: Shift Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

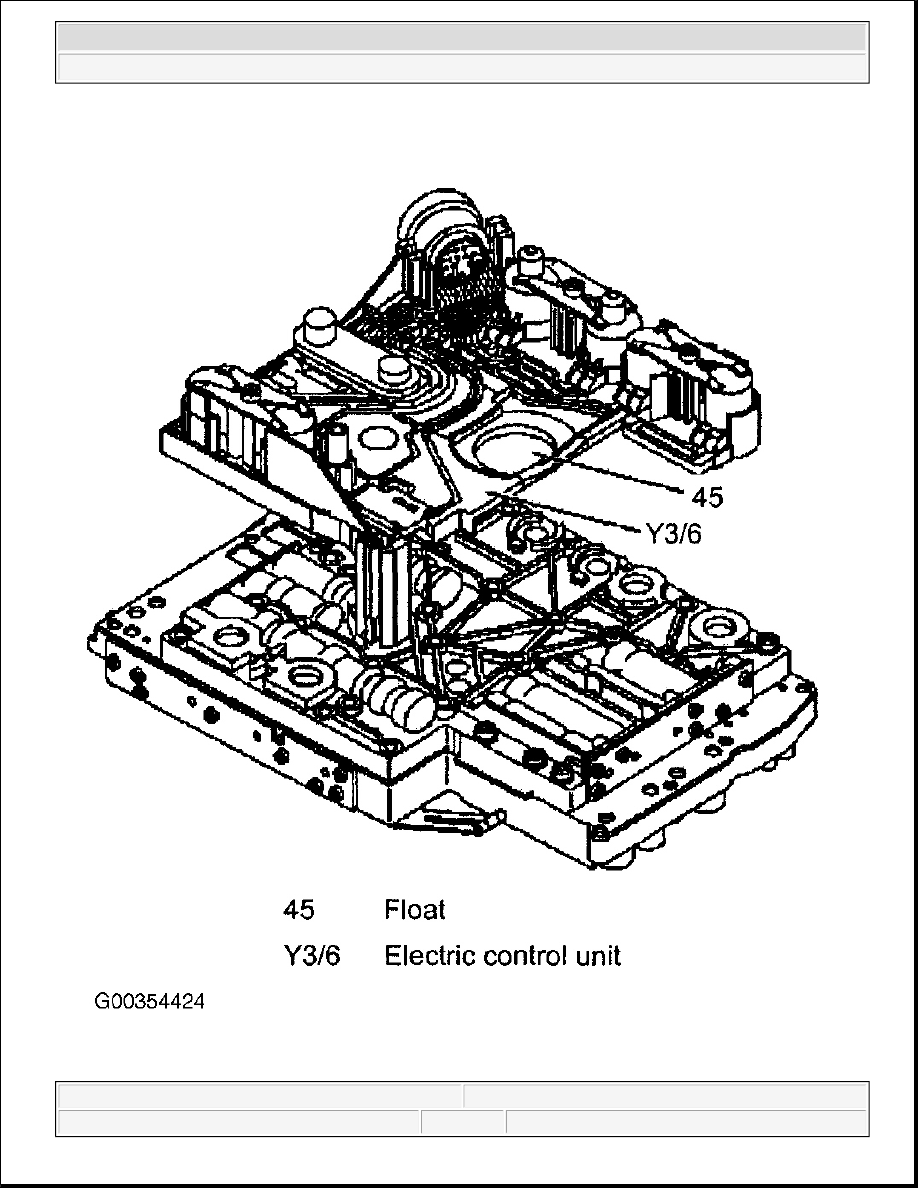

Float, Location

In the electrical control unit (Y3/6). See Fig. 92

Float, Function

See FLOAT, FUNCTION.

Float, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

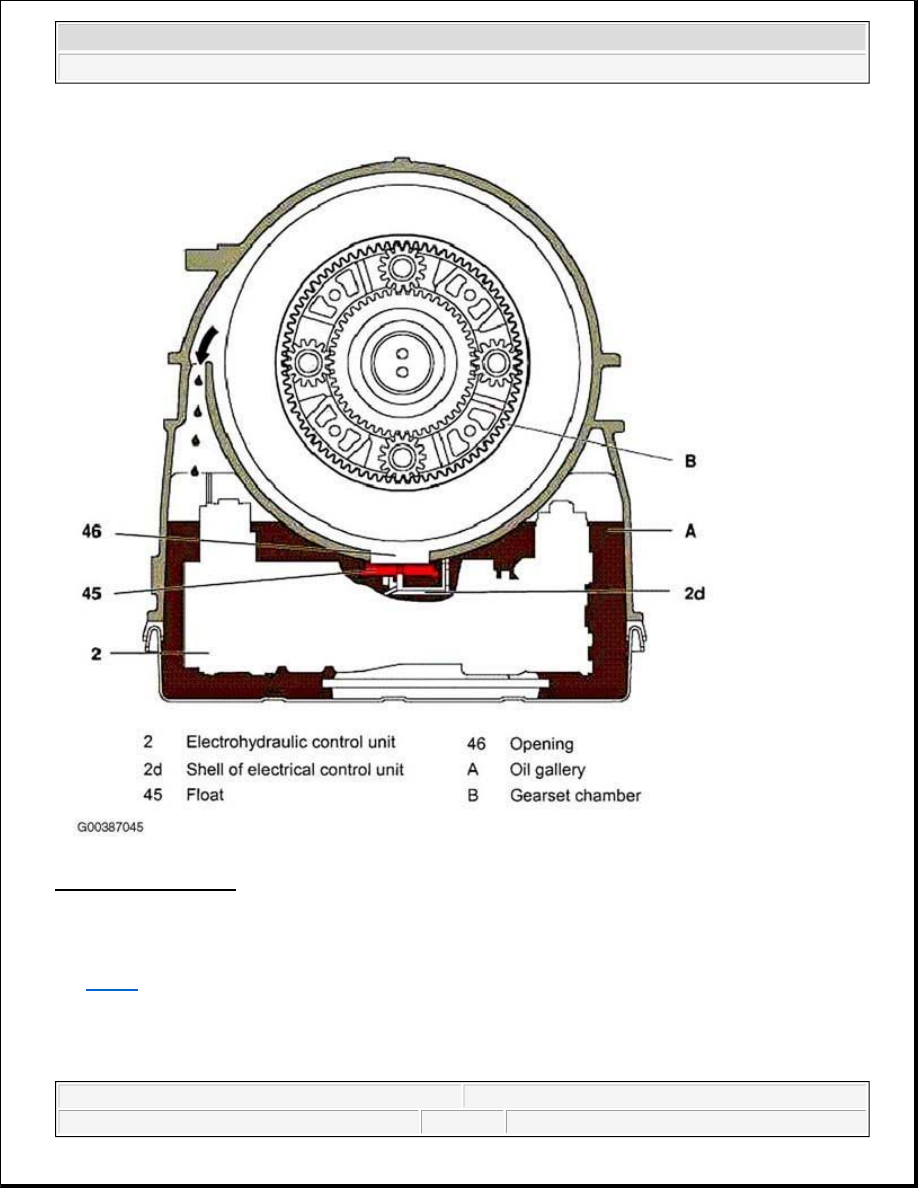

Fig. 93: Float, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function - With low oil levels, the lubrication oil which flows constantly out of the gearset, flows back to the
oil gallery (A) through the opening (46). If the oil level rises, the oil presses the float (45) against the housing.
See

Fig. 93

The float (45) therefore separate the oil gallery (A) from the gearset chamber (B). The lubricating oil which
continues to flow out of the gearsets is thrown against the housing wall, incorporated by the rotating parts and
flows back into the oil gallery (A) through the upper opening (arrow).



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



ETC Control Unit, Location/Task

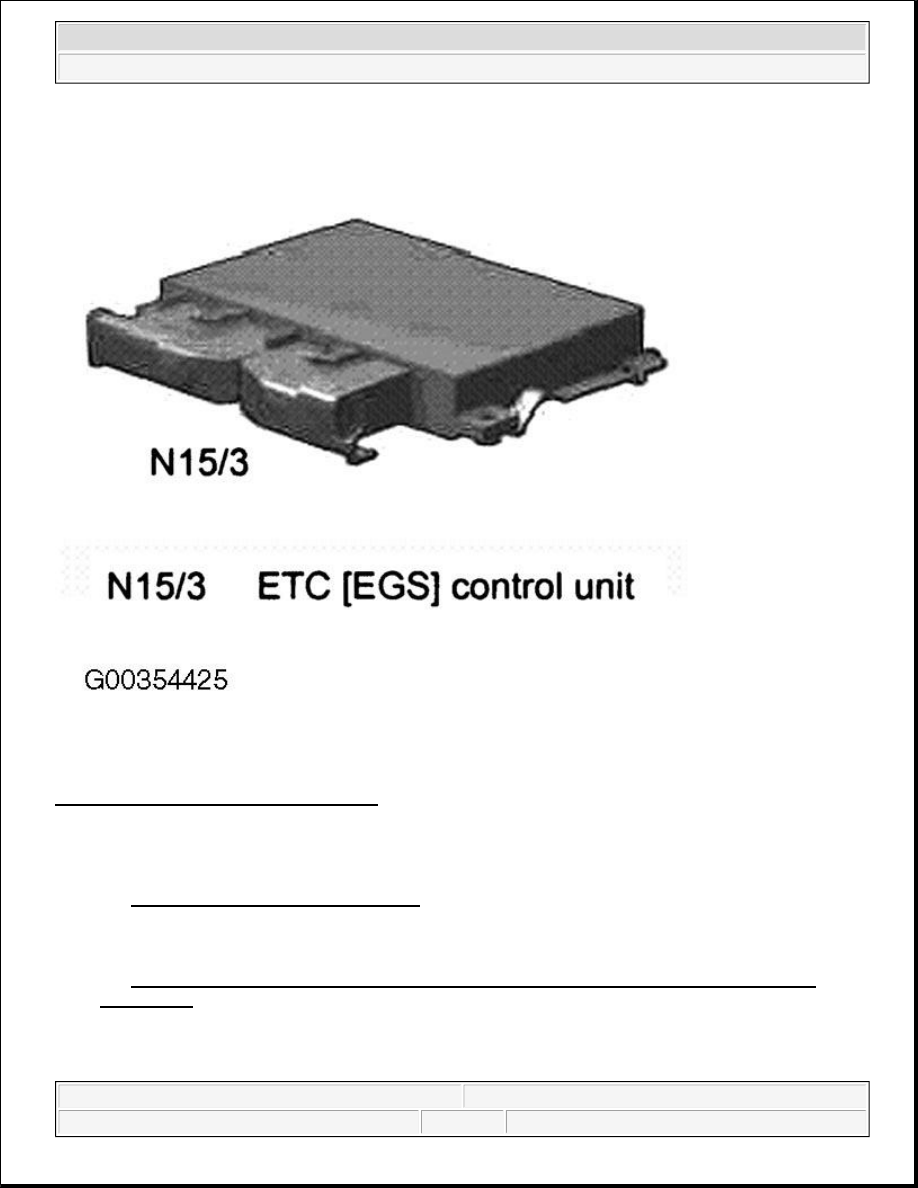

Fig. 94: ETC Control Unit, Location/Task
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

ETC Control Unit, Location

See ETC CONTROL UNIT, LOCATION

ETC Control Unit, Task

See ETC CONTROL UNIT, TASK (EXCEPT CODE (428A) STEERING WHEEL SWITCH
BUTTONS)
.

ETC Control Unit, Location



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
