Mercedes-Benz ML320. Service manual - part 172






See SHIFT DETENT, DESIGN

Shift Detent, Function

See SHIFT DETENT, FUNCTION.

Shift Detent, Design

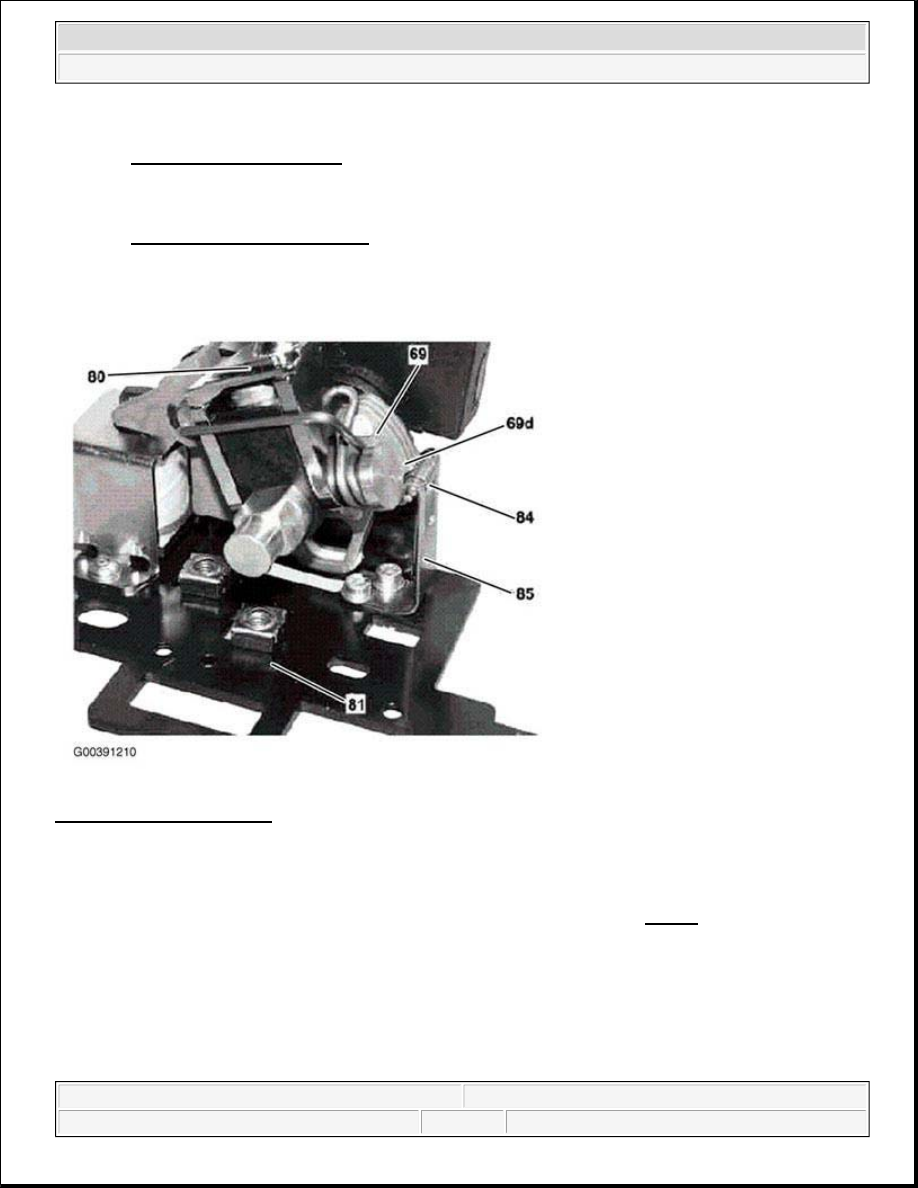

Fig. 86: Shift Detent, Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Structure - The shift detent consists of:

The Locking Disc (69) Rigidly Connected To The Selector Lever (80). See Fig. 86

The Cam With Recess (69D)

A Leaf Spring (85) Bolted Onto The Body (81)

A Metal Roller (84) Inserted Into The Leaf Spring (85)

Shift Detent, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

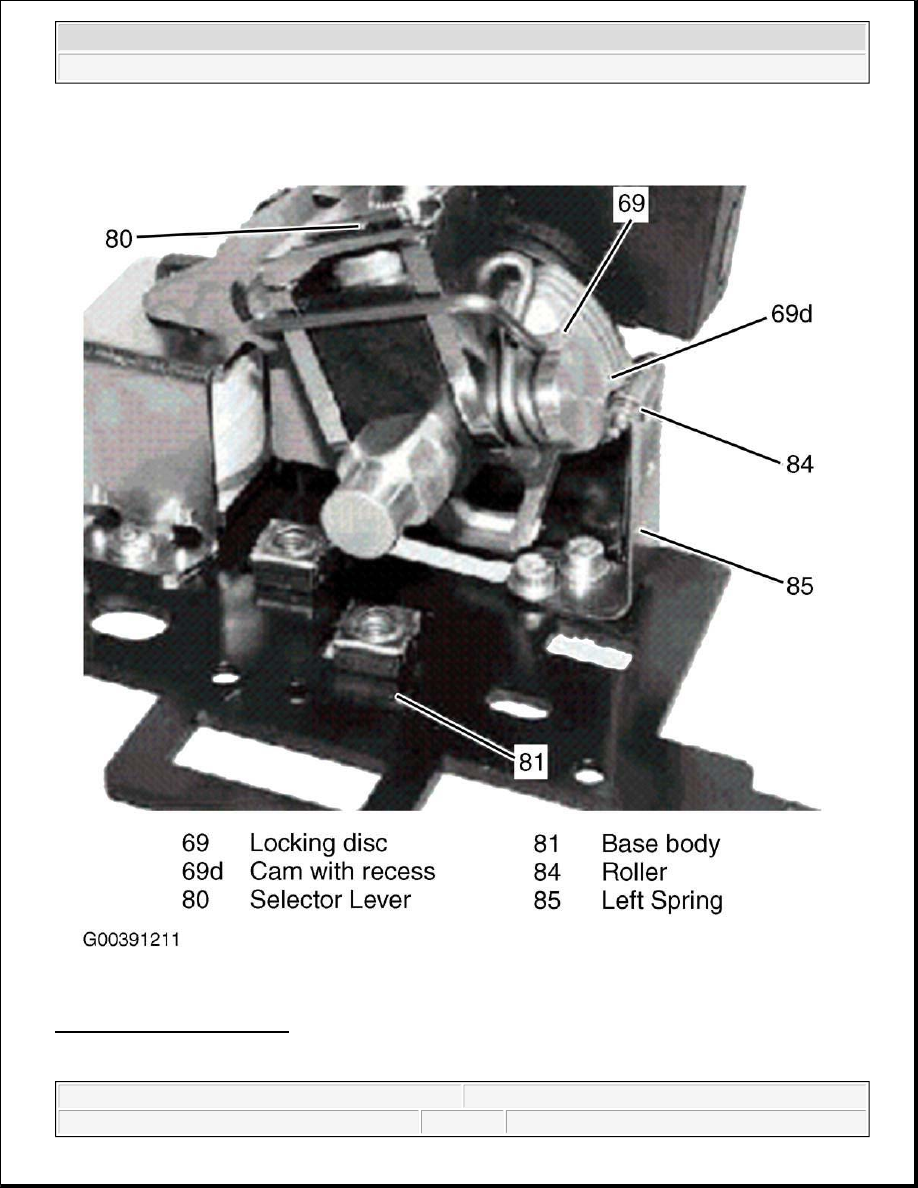

Fig. 87: Shift Detent, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Operation - When the selector lever (80) is moved away from position "N" to position "D", the roller (84)
locks in position engages in the recess (69d) in the locking disc via the cam (69). See Fig. 87. The selector lever
(80) is locked to prevent longitudinal movement. Now it can only be shifted out of selector lever position "D"
against the force of the leaf spring (85). It is still possible to move the selector lever (80) sideways (touch shift
in the "+" and "-" direction).

Holding Pressure Shift Valve, Location/Task/Function

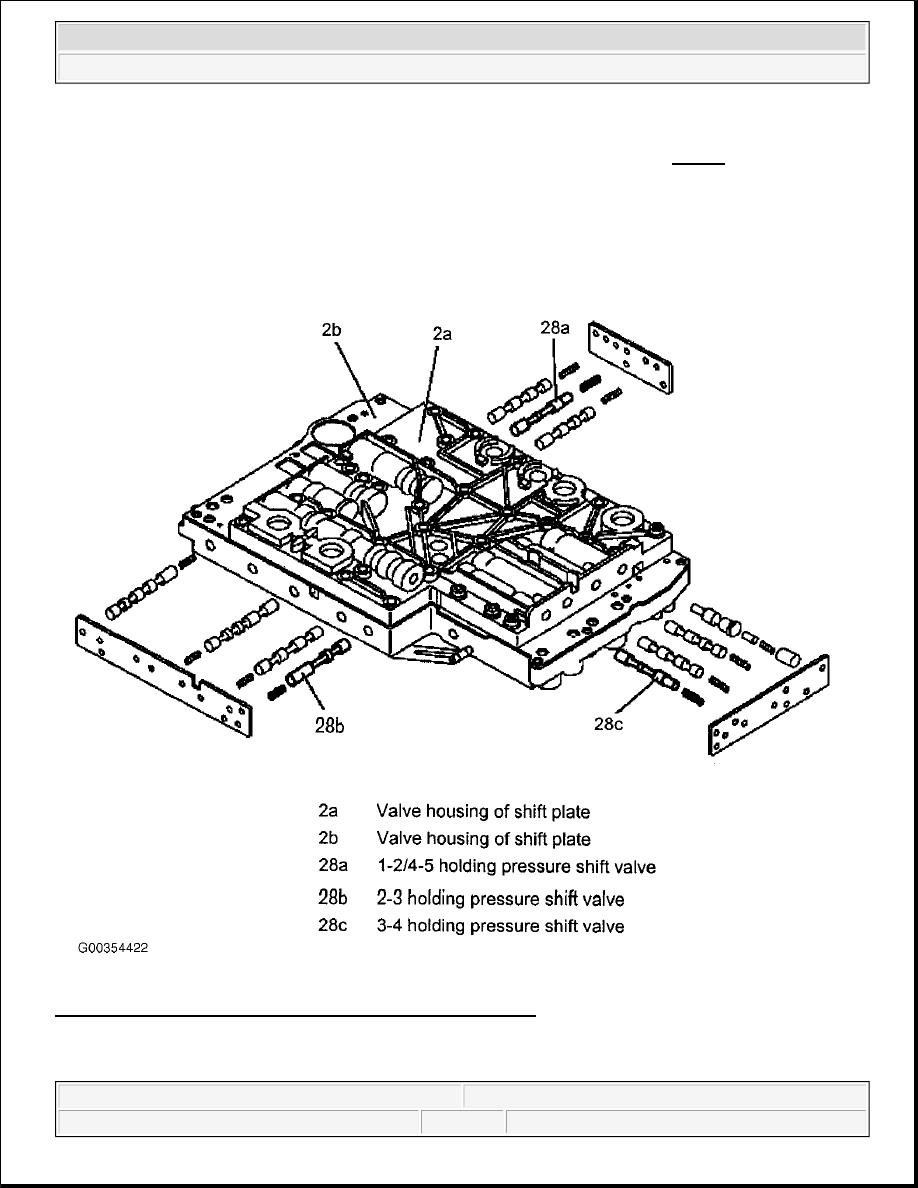

Fig. 88: Holding Pressure Shift Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Holding Pressure Shift Valve, Location



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me




Each shift group is assigned a holding pressure shift valve (28a, 28b, 28c). See Fig. 88. The holding
pressure shift valves 1-2/4-5 (28a) and 2-3 (28b) are installed in the valve housing (2b), the 3-4 holding
pressure shift valve (28c) is installed in the valve housing of the shift plate (2a).

Holding Pressure Shift Valve, Task

Allocates the working pressure to one actuator of a shift group.

Holding Pressure Shift Valve, Function

See HOLDING PRESSURE SHIFT VALVE, FUNCTION.

Holding Pressure Shift Valve, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
