2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

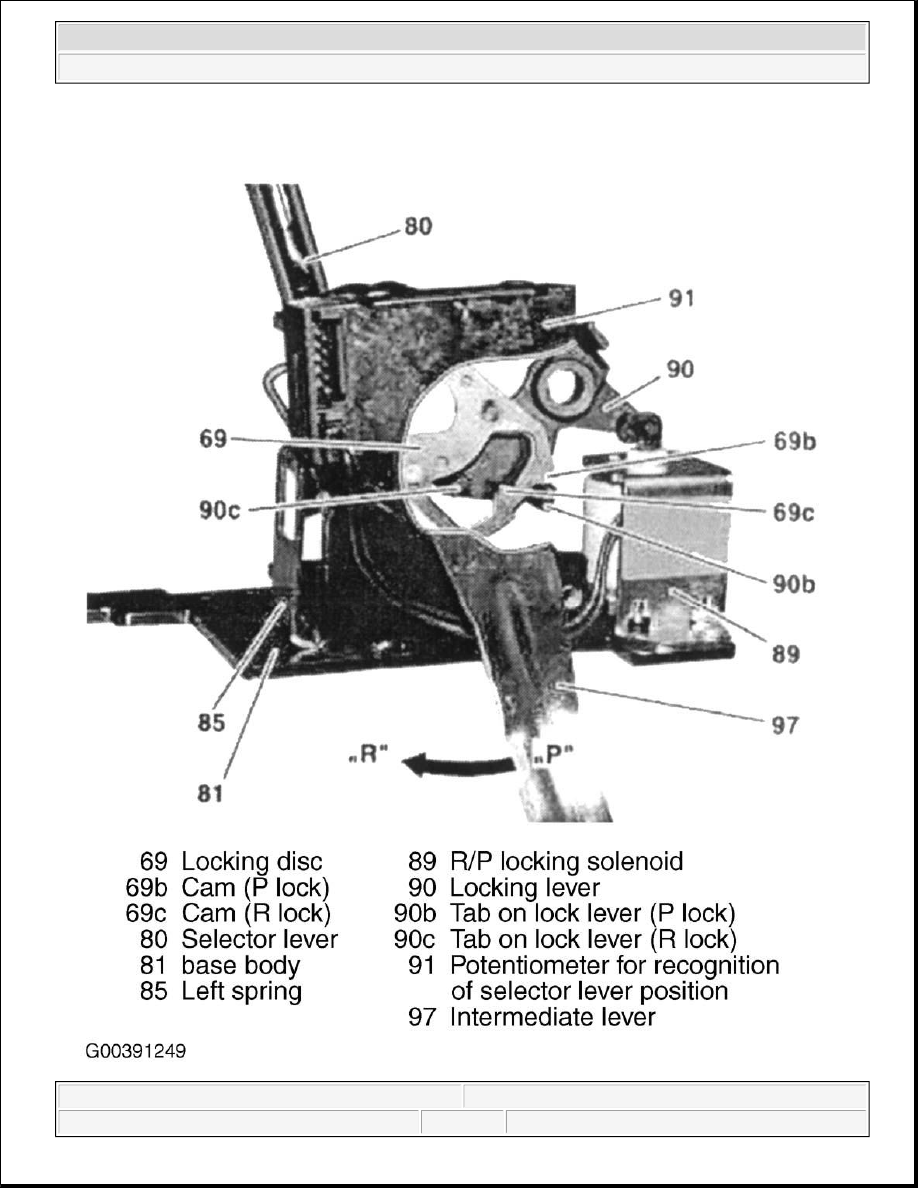

Fig. 83: R/P-Lock, Function (Locking Position)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function Of R/P Lock - The selector lever position "P" is locked whenever the R/P locking solenoid (89) is not
actuated by the electronic selector lever module control module (N15/5). See Fig. 83. The prerequisites for this
are as follows:



No voltage supply to the electronic selector lever module control module (N15/5).



Brake pedal not depressed.

Under these conditions the locking lever (90) is in the locking position (P-lock).

The web on the locking lever (P-lock) (90b) locks the locking disc (69). It is not possible to shift the selector
lever (80) out of selector lever position "P".

Shift Detent Mechanism, Location/Task/Design/Function (Without Touch Shift)



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

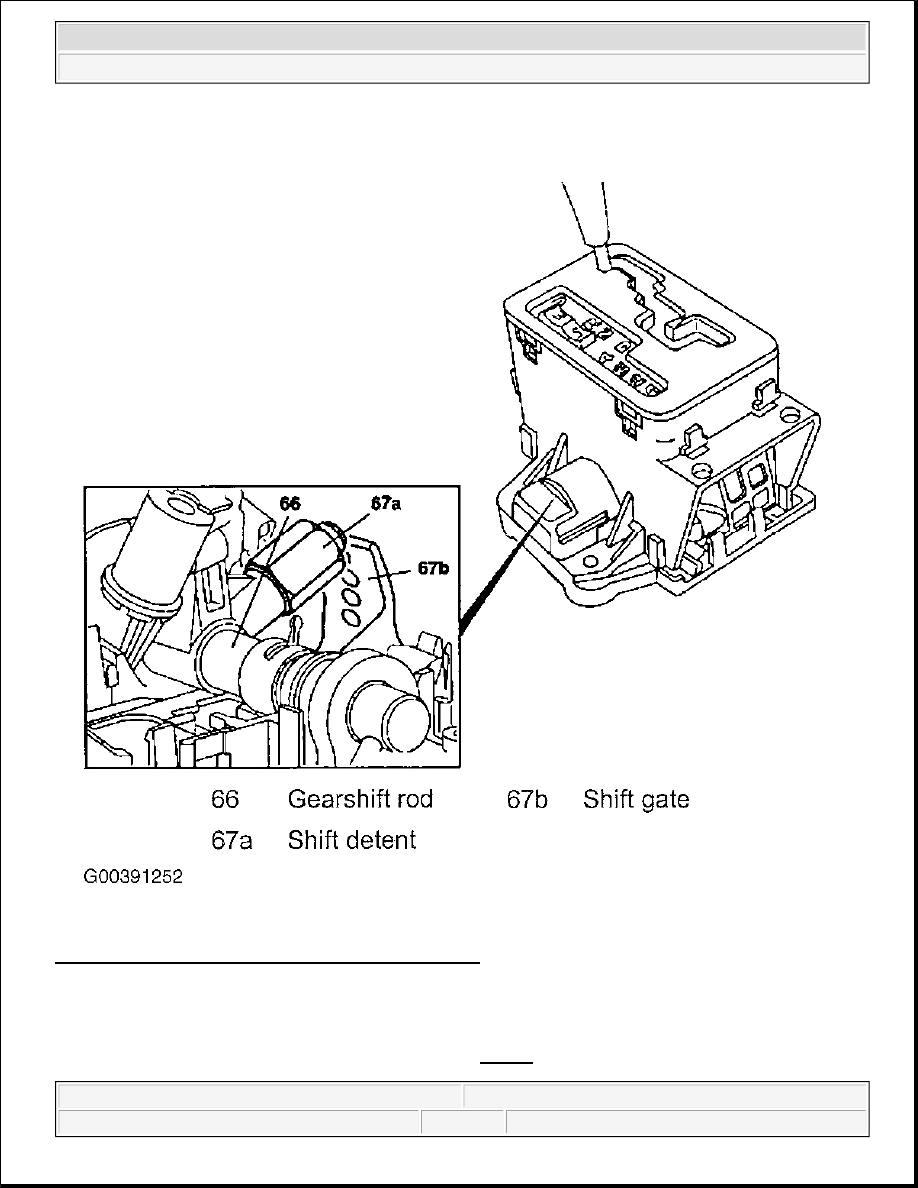

Fig. 84: Shift Detent Mechanism (Without Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shift Detent, Location

The shift detent is integrated into the floor shift. See Fig. 84.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Shift Detent, Task

Fixing the selector lever positions "4", "3", "2", "1".

Shift Detent, Design

The shift detent consists of a detent (67a) containing a spring-loaded ball and the shift gate (67b) with
recesses arranged one under another.

Shift Detent, Function

When the selector lever is moved between the selector lever positions "4", "3", "2", "1" the shift detent
(67a) locks in position in one of the four recesses in the shift gate (67b).

Shift Detent Mechanism, Location/Task/Design/Function (With Touch Shift)

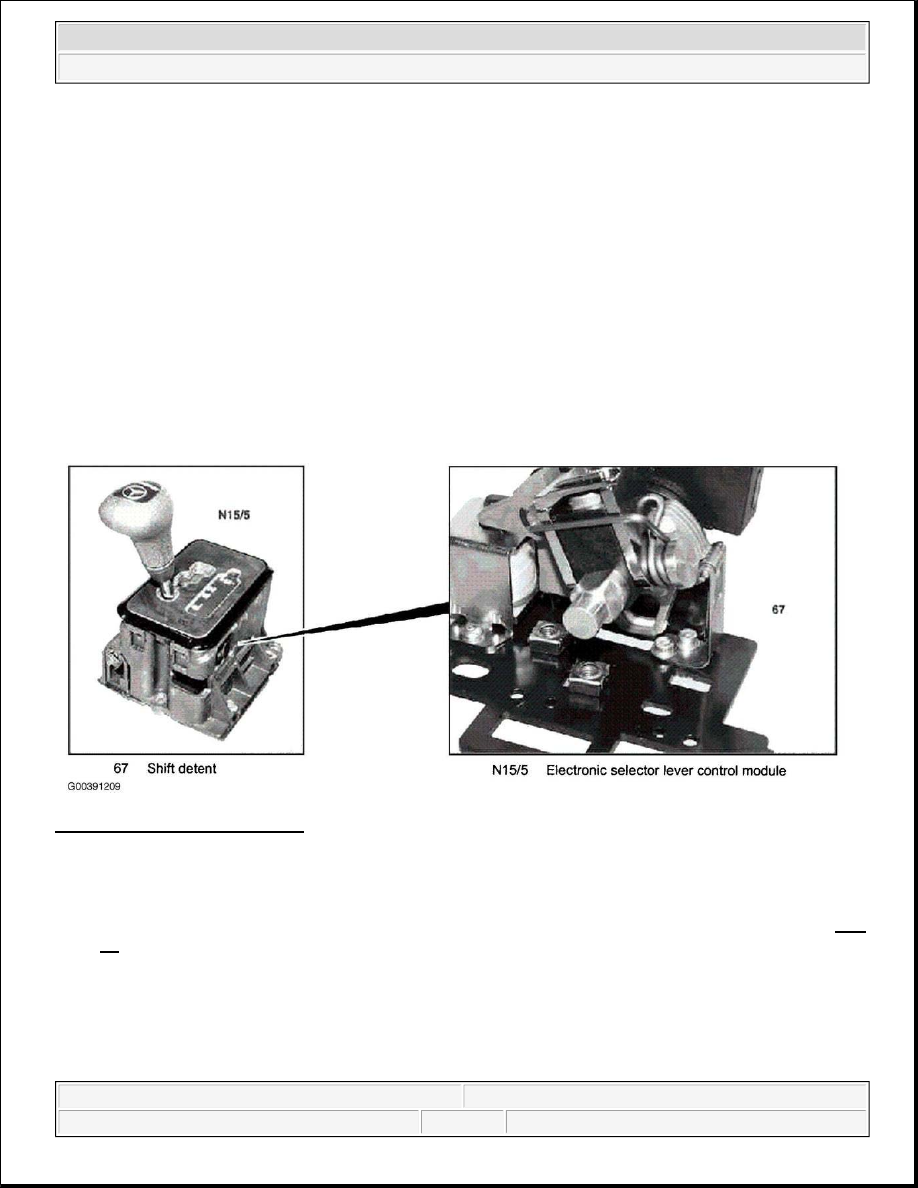

Fig. 85: Shift Detent Mechanism
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shift Detent, Location

The shift detent (67) is integrated in the electronic selector lever module control module (N15/5). See Fig.
85.

Shift Detent, Task

Fixes selector lever position "D".

Shift Detent, Design



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
