Mercedes-Benz ML320. Service manual - part 138





Fig. 13: Disconnecting Ground Lead From Battery
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1.1 - Open engine hood.

2 - Disconnect ground cable of battery. See Fig. 13

NOTE:

Model Series 163.

NOTE:

To protect against unwanted contact of the disconnected ground line (1)
W16/4 insulate cable lug of the ground line.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Connect ground cable.

4 - Code radio.

5 - Set time at instrument cluster

6.1 - Activate steering angle sensor.

7.1 - Synchronize tilt/slide sunroof.

8.1 - Synchronize lamella (thin plate) sliding roof.

9.1 - Synchronize power windows.

Torque Specification; Nut Of Ground Cable To Body

NOTE:

After opening the vehicle wait for at least 4 minutes before disconnecting
the battery otherwise the alarm will be triggered.

NOTE:

Model 163: Tighten the nut (5) of the ground line (1) to the specified
torque. Perform work described below only when quiescent current
retention unit was not connected. Model Series 163 see Torque
Specification; Nut Of Ground Cable To Body.

NOTE:

MB (models 163).

Hi-Line, premium with Bose (model 163).

NOTE:

If necessary set time at stationary heater timer.

NOTE:

Model 163 with Code 414.

Open tilt/slide sunroof and hold down switch. Sliding/pop-up roof
mechanism moves to end position, pulls back 1/4 turn and stops.

NOTE:

Open tilt/slide sunroof and hold down switch. Sliding/pop-up roof
mechanism moves to end position, pulls back 1/4 turn and stops.

NOTE:

Model 163 as of VIN A289565, X754620.

Press power windows switch up to the 1st pressure point and, after
reaching the upper end position of the window, keep pressed for further 5
seconds.

Number

Designation

Model Series 163

BA54.10--P-1001--01A

Nut of ground cable to body

NM

18



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

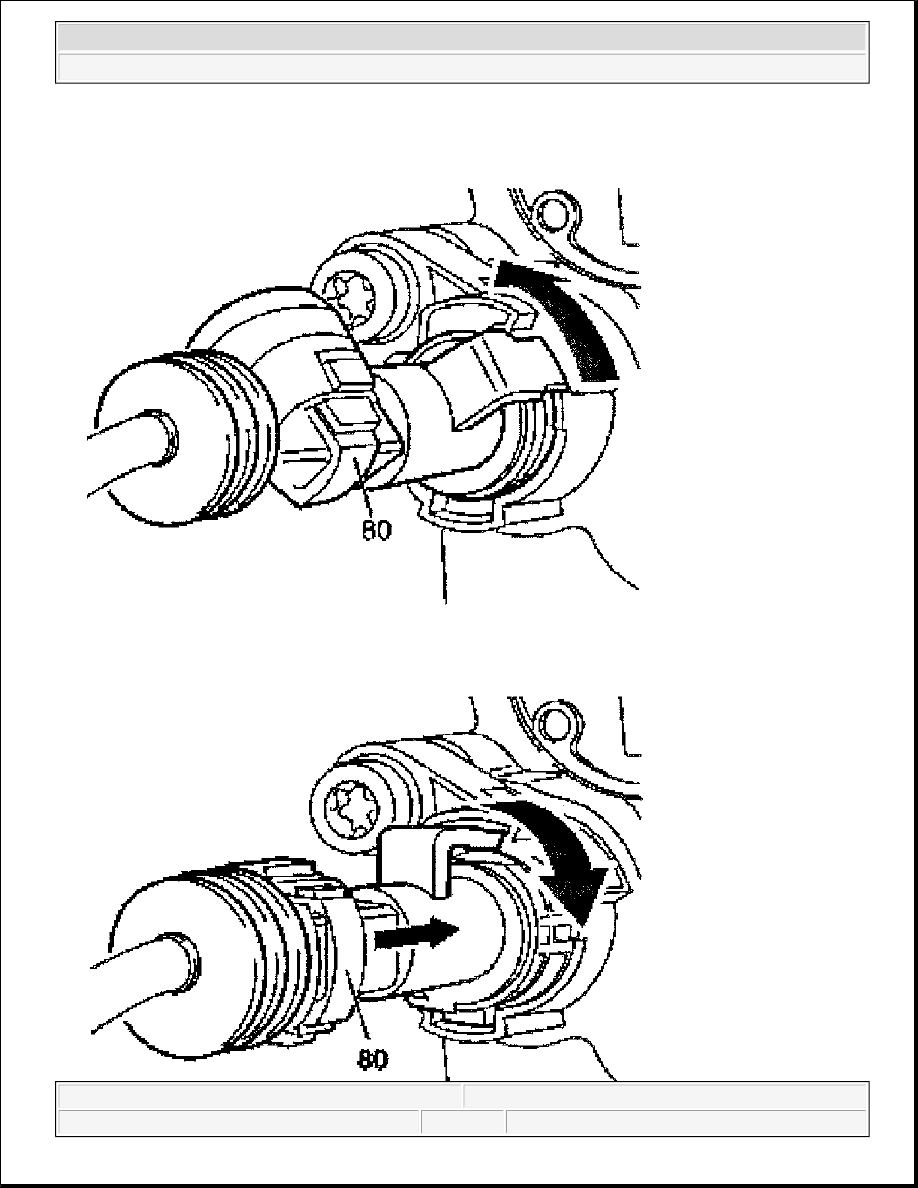

Removing & Installing Wire Cable/Transmission For Parking Shift Lock On Transmission



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
