Mercedes-Benz ML320. Service manual - part 79





143

Controls in detail

Automatic climate control

Center air vents

Opening

Turn thumbwheel for center air vent 1
(

page 135) upward to position

h.

Closing

Turn thumbwheel for center air vent 1
downward to position

M.

Use the left thumbwheel to adjust the cen-
ter air vents on the left and in the center.
Use the right thumbwheel to adjust the
right center air vent.

Rear passenger compartment air vents

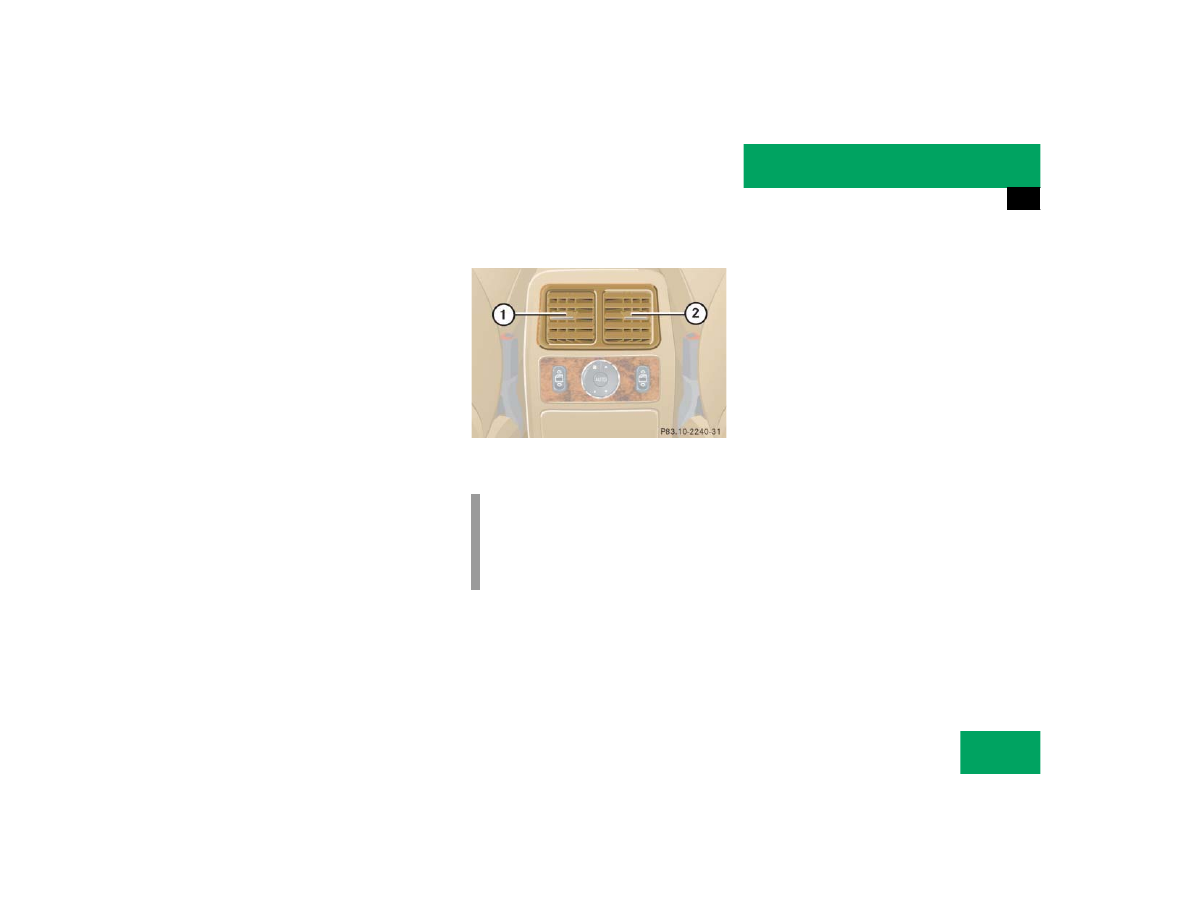

1 Left center air vent, adjustable
2  Right center air vent, adjustable

i

The temperature at the air vents for the
rear passenger compartment is the
same as at the dashboard center air
vents.

144

Controls in detail

Power windows

Power windows

Opening and closing the side windows

The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switches for the respective windows are
on the passenger door and on the rear cen-
ter console.

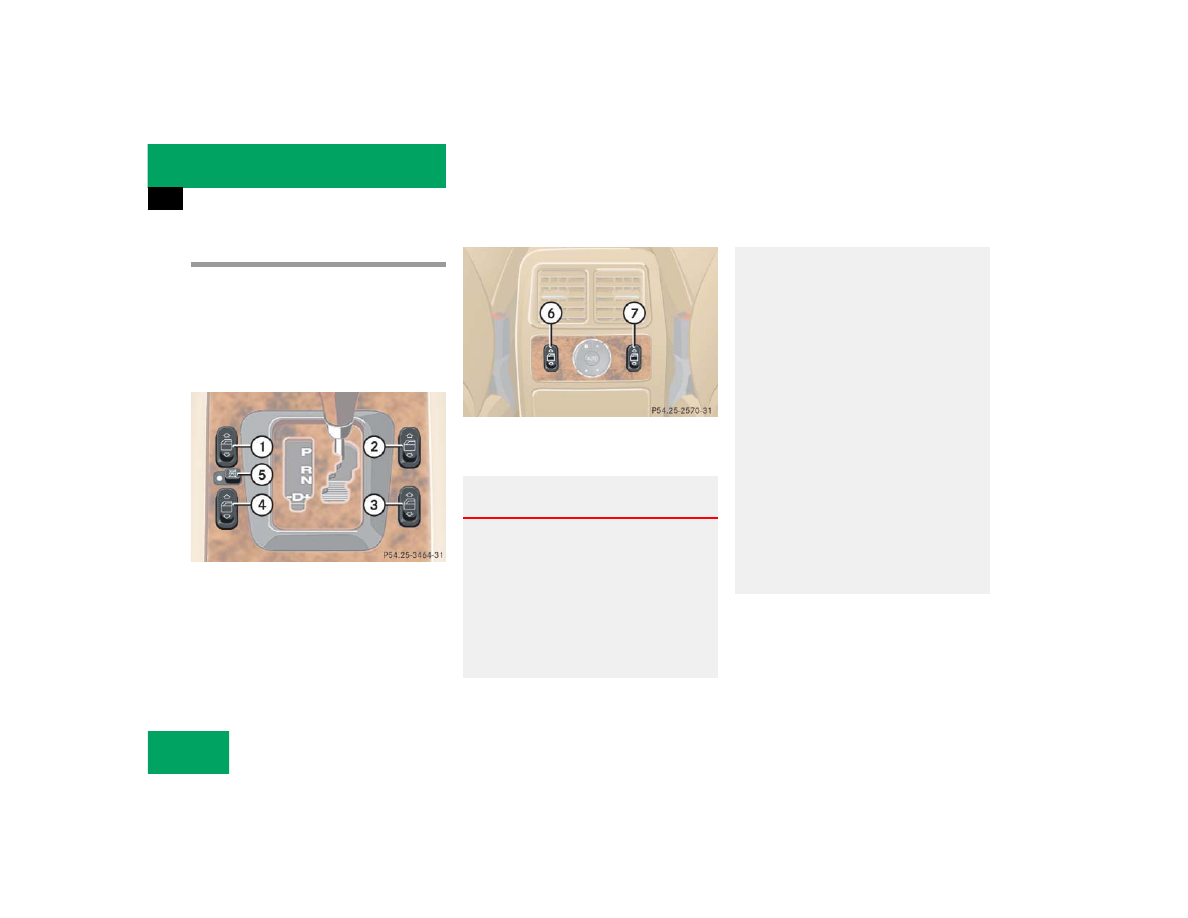

1 Left front window
2 Right front window
3 Right rear window
4 Left rear window
5 Rear window override switch

(

page 73).

Additional switches for the rear windows
are located on the rear center console.

6 Left rear window
7 Right rear window

Turn key in the steering lock to
position 1 or 2.

Warning!

G

When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.

The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pressed past the resistance
point and released, by pressing the respec-
tive switch.

If the window encounters an obstruction
that blocks its path in a circumstance where
you pressed the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.

If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing the
switch and holding it there, the automatic
reversal function will not operate.

When leaving the vehicle, always remove the
key from the steering lock, and lock your ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment can cause an accident and/or serious
personal injury.

145

Controls in detail

Power windows

Opening the windows

Press switch 1 to 4 at the
symbol

k to the resistance point.

The corresponding window will move
downwards until you release the
switch.

Closing the windows

Press switch 1 to 4 at the
symbol

j to the resistance point.

The corresponding window will move
upwards until you release the switch.

Fully opening the windows
(Express-open)

Press switch 1 to 4 at the
symbol

k past the resistance point

and release.

The corresponding window opens com-
pletely.

Fully closing the windows
(Express-close)

Press switch 1 to 4 at symbol j
past the resistance point and release.

The corresponding window closes com-
pletely.

Stopping windows

Press respective switch again.

Warning

G

If you pull and hold the switch up when clos-
ing the window, and upward movement of
the window is blocked by some obstruction
including but not limited to arms, hands, fin-
gers, etc., the automatic reversal will not op-
erate.

!

If the upward movement of the window
is blocked during the closing proce-
dure, the window will stop and open
slightly.

Remove the obstruction, press the
switch

j again past the resistance

point and release.

If the window still does not close when
there is no obstruction, then hold the
switch

j down. The side window

will then close without the obstruction
sensor function.

Warning!

G

Driver’s door only:
If within five seconds switch

j is again

pressed past the resistance point and
released, the automatic reversal will not
operate.

146

Controls in detail

Power windows

Synchronizing power windows

The power window must be resynchroni-
zed each time

after the battery has been discon-
nected.

if the power windows cannot be fully
opened (Express-open) or closed (Ex-
press-close).

Synchronizing the power windows

Switch on ignition.

Press the power window switches at
the symbol

j until the side win-

dows are closed.

Hold the switches for approximately
one second.

The power window are synchronized.

Rear quarter windows*

The switches are on the upper part of the
center console.

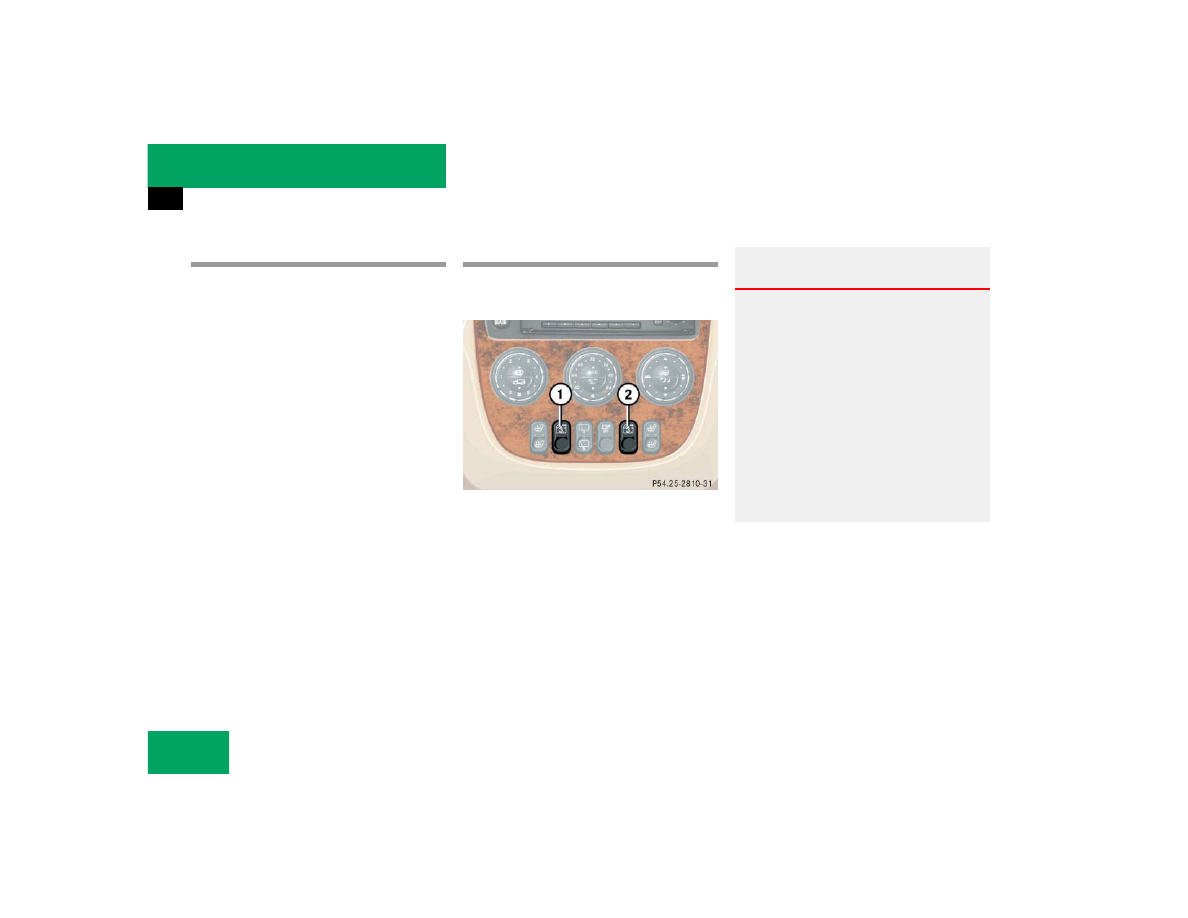

1 Left side
2 Right side

Turn key in the steering lock to
position 1 or 2.

Opening the windows

Press and hold the upper part of
switches 1 or 2.

The corresponding window will move
downwards until you release the
switch.

Warning!

G

When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure. The closing of the
windows can be immediately halted by
releasing the switch.

When leaving the vehicle, always remove the
key from the steering lock, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or seri-
ous personal injury.
