Controls in detail

Seats

Attach belt at hook and loop velcro
strip 4 (

page 102) on underside of

seat.

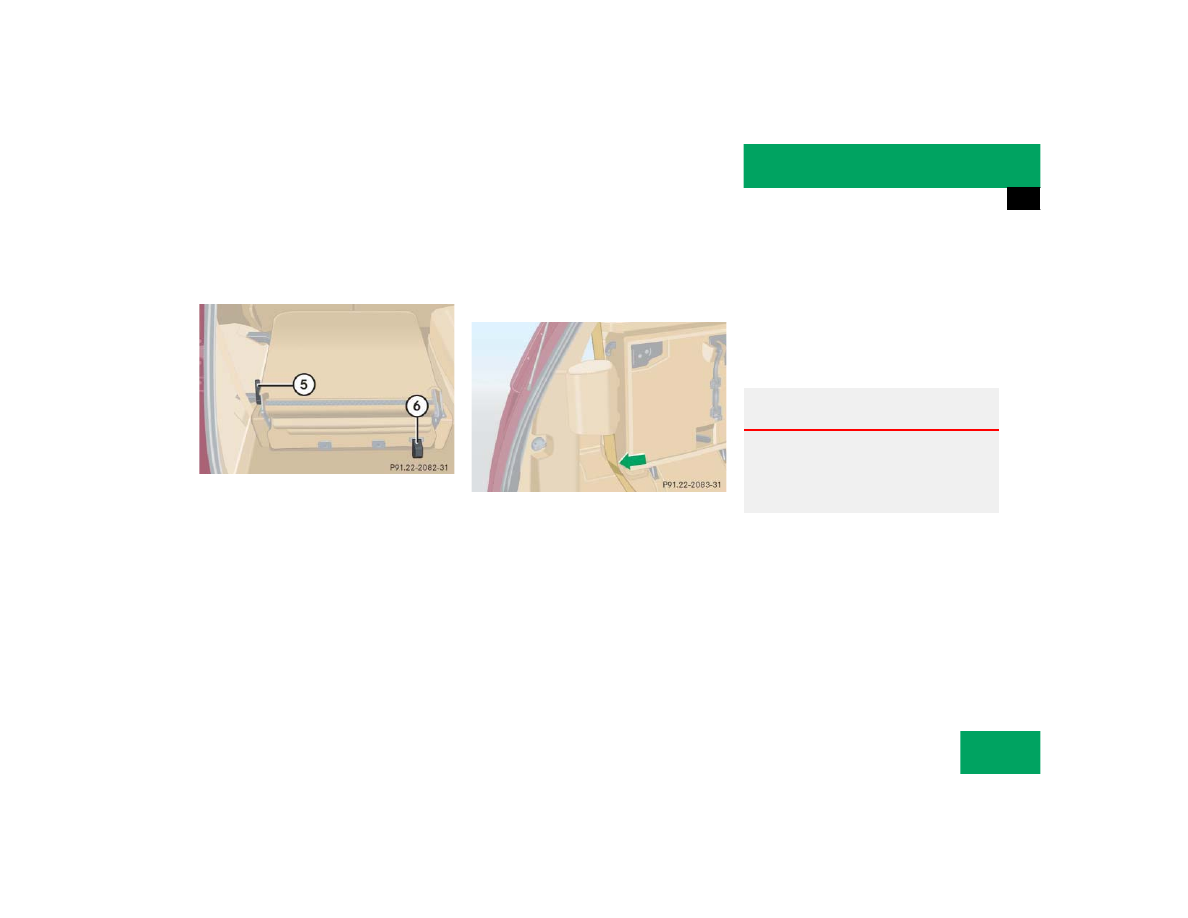

5 Backrest release
6 Seat release

Fold seat down until it locks securely in
place.

The red marking on the seat release 6
should not be visible.

Store cargo floor plates inside the
backrest (

page 162).

Pull backrest release 5 and unfold
backrest until it locks securely in place.

Install head restraint 1 in backrest
(

page 102).

Storing single seat

Remove head restraint from backrest
(

page 102).

Pull backrest release 5 and fold back-
rest forward until it locks securely in
place.

Remove cargo floor plates from the
backrest.

Pull seat release 6 (

page 103) and

fold seat up.

Disengage belt and engage hook 2
(

page 102) in ceiling mount.

Pull on free end of belt until tight.

Install head restraint in openings
provided in seat cushion.

Install cargo floor plates (

page 162).

Warning!

G

After folding the seats up, manually place
the lap belt portion of the seat belt behind
the seat (arrow). Otherwise, the lap belt may
be subject to damage and could rip.

104

Controls in detail

Seats

Removing single seat

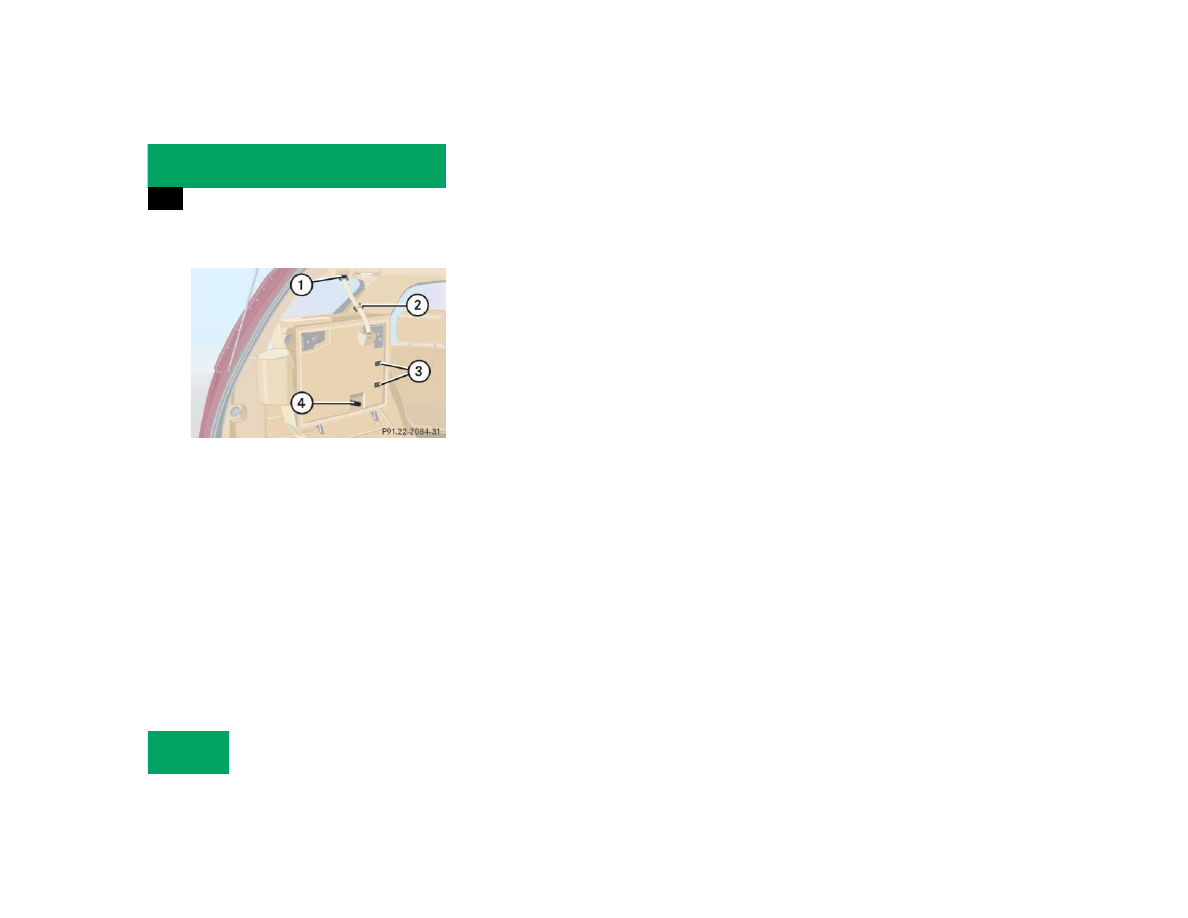

1 Hook
2 Tensioner
3 Hook and loop velcro strip
4 Release lever

Lift tensioner 2 upward to a horizon-
tal position to release tension of the
belt.

Disengage hook 1 while holding onto
the seat firmly with one hand.

Attach belt at hook and loop strip 3
on underside of seat.

Move release lever 4 upward and re-
move seat.

Installing single seat

Place seat into the mounting clamps
and click the seat into place.

105

Controls in detail

Memory function*

Memory function*

With the memory button you can store up
to three different settings for the driver-
and passenger seat.

Together with the driver’s seat you can
store the exterior rear view mirrors.

For the front passenger seat you can store
the seat position.

Storing exterior rear view mirror
parking position

For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gear R.

For information on activating the parking
position feature, see “Activating exterior
rear view mirror parking position”
(

page 127).

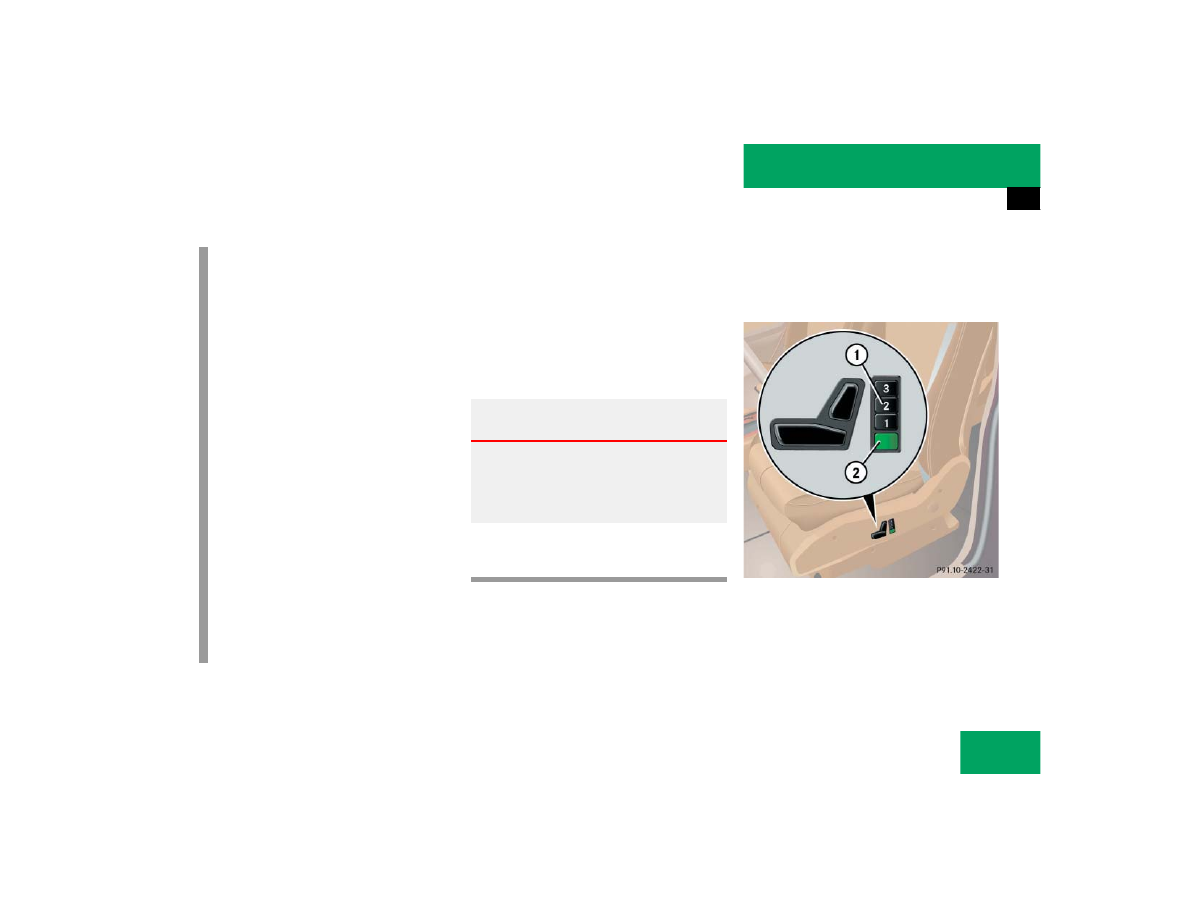

1 Position buttons
2 Memory button

!

Prior to operating the vehicle the driver
should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. See also the
section on airbags (

page 59) for

proper seat positioning.

In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.

Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standard 213 and 225 and Canadian
Motor Vehicle Safety Standard 213 and
210.2.

Warning!

G

Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

106

Controls in detail

Memory function*

Storing parking position

Stop the vehicle.

Switch on ignition (if not already on).

Press button 2.

The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button 3 so that you see the rear
wheel and the road curb.

Press memory button 2 (

page 105).

Within three seconds, press bottom of
adjustment button 3.

The parking position is stored if the
mirror does not move.

Storing positions in memory

Adjust the seat (

page 37) and exteri-

or rear view mirrors (

page 40) to the

desired position.

Push memory button 2 (

page 105).

Release memory button and press one
of the position buttons 1 within three
seconds.

All the settings are stored at the select-
ed position.

Recalling positions from memory

Press and hold one of the position
buttons 1 until seat and rear view mir-
rors have fully moved to the stored po-
sitions.

i

If the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.

The selected position will be stored rel-
ative to the position button 1
(

page 105) pressed.

!

Do not operate the power seats using
the memory button if the seat backrest
is in an excessively reclined position.
Doing so could cause damage to front
or rear seats.

i

Releasing the button immediately
stops movement to the stored posi-
tions.
