The surroundings are dark such as during the night, early evening, or early morning, or
in a tunnel or indoor parking lot.



The illumination brightness of the headlights is reduced or the headlight illumination is
weakened due to dirt or a deviated optical axis.



The target object enters the blind spot of the Forward Sensing Camera (FSC).



A person or object bursts onto the road from the shoulder or cuts right in front of you.



You change lanes and approach a vehicle ahead.



When driving extremely close to the target object.



Tire chains or a temporary spare tire is installed.



The vehicle ahead has a special shape. For example, a vehicle towing a trailer house or
a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.



If the Forward Sensing Camera (FSC) cannot operate normally due to backlight or fog,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction.



High Beam Control System (HBC) warning light (amber)



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication



Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication



Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)



If the Forward Sensing Camera (FSC) cannot operate normally due to high temperatures,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction. Cool down the area around the Forward Sensing Camera (FSC) such as by
turning on the air conditioner.



High Beam Control System (HBC) warning light (amber)



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication



Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication



Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)

When Driving

i-ACTIVSENSE

4-206

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



If the Forward Sensing Camera (FSC) detects that the windshield is dirty or foggy, the
system functions related to the Forward Sensing Camera (FSC) are temporarily stopped
and the following warning lights turn on. However, this does not indicate a problem.
Remove the dirt from the windshield or press the defroster switch and defog the
windshield.



High Beam Control System (HBC) warning light (amber)



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication



Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication



Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)



If there are recognizable cracks or damage caused by flying gravel or debris on the
windshield, always have the windshield replaced. Consult an Authorized Mazda Dealer
for replacement.



(With Advanced Smart City Brake Support (Advanced SCBS))



The Forward Sensing Camera (FSC) recognizes pedestrians when all of the following
conditions are met:



The height of a pedestrian is about 1 to 2 meters.



An outline such as the head, both shoulders, or the legs can be determined.



In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly:



Multiple pedestrians are walking, or there are groups of people.



A pedestrian is close to a separate object.



A pedestrian is crouching, lying, or slouching.



A pedestrian suddenly jumps into the road right in front of the vehicle.



A pedestrian opens an umbrella, or is carrying large baggage or articles.



A pedestrian is in a dark location such as during the night, or blends into the
background by wearing clothes matching the background color.

When Driving

i-ACTIVSENSE

4-207

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

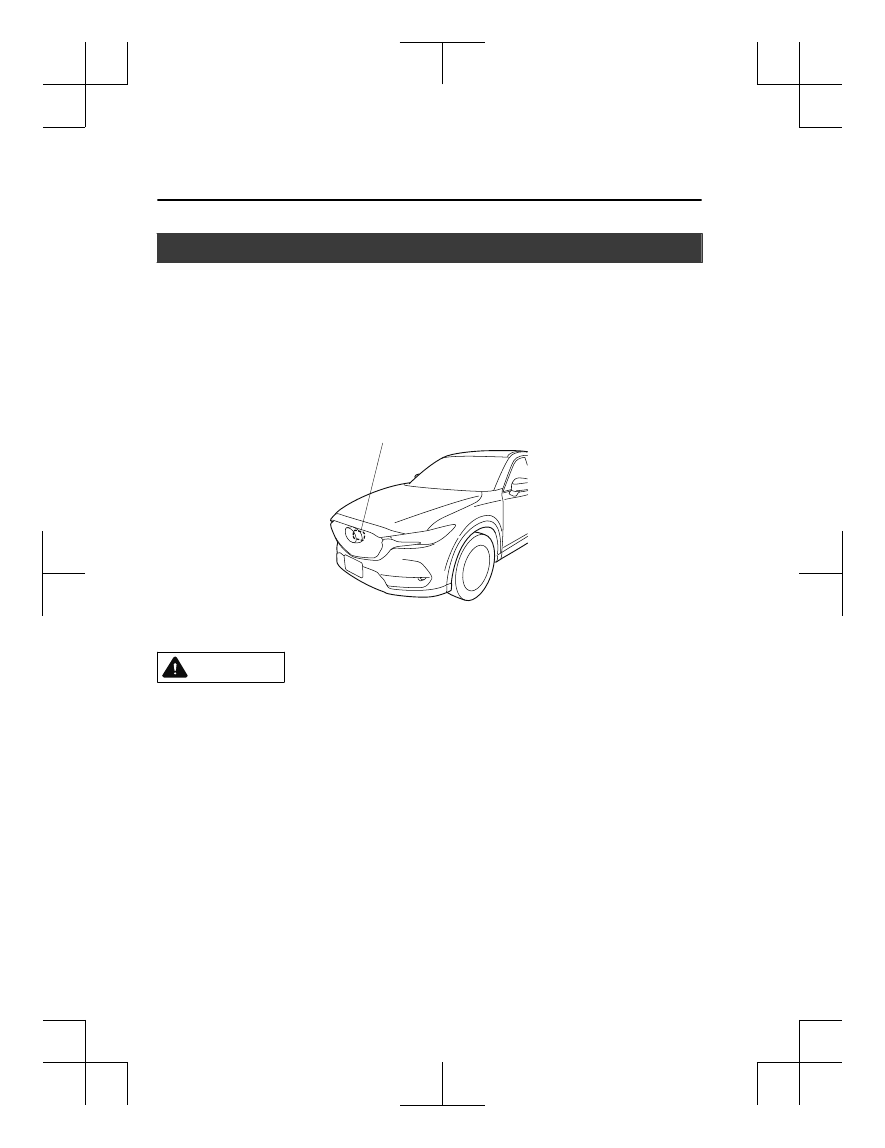

Radar Sensor (Front)

Your vehicle is equipped with a radar sensor (front).
The following systems also use the radar sensor (front).



Distance Recognition Support System (DRSS)



Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)



Smart Brake Support (SBS)

The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
or an obstruction sent from the radar sensor.
The radar sensor (front) is mounted behind the front emblem.

Radar sensor (front)

If “Front Radar Sensor Blocked” is displayed in the multi-information display of the
instrument cluster, clean the area around the radar sensor (front).

CAUTION

Heed the following precautions to assure correct operation of each system.

Do not adhere stickers (including transparent stickers) to the surface of the radiator grille

and front emblem in and around the radar sensor (front), and do not replace the radiator
grille and front emblem with any product that is not a genuine product designed for use
with the radar sensor (front).

The radar sensor (front) includes a function for detecting soiling of the radar sensor's front

surface and informing the driver, however, depending on the conditions, it may require
time to detect or it may not detect plastic shopping bags, ice or snow. If this occurs, the
system may not operate correctly, therefore always keep the radar sensor (front) clean.

Do not install a grille guard.
If the front part of the vehicle has been damaged in a vehicle accident, the position of the

radar sensor (front) may have moved. Stop the system immediately and always have the
vehicle inspected at an Authorized Mazda Dealer.

When Driving

i-ACTIVSENSE

4-208

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Do not use the front bumper to push other vehicles or obstructions such as when pulling

out of a parking space. Otherwise, the radar sensor (front) could be hit and its position
deviated.

Do not remove, disassemble, or modify the radar sensor (front).
For repairs, replacement or paint work around the radar sensor (front), consult an

Authorized Mazda Dealer.

Do not modify the suspension. If the suspension are modified, the vehicle's posture could

change and the radar sensor (front) may not be able to correctly detect a vehicle ahead or
an obstruction.

NOTE



Under the following conditions, the radar sensor (front) may not be able to detect vehicles
ahead or obstructions correctly and each system may not operate normally.



The rear surface of a vehicle ahead does not reflect radio waves effectively, such as an
unloaded trailer or an automobile with a loading platform covered by a soft top,
vehicles with a hard plastic tailgate, and round-shaped vehicles.



Vehicles ahead with low vehicle height and thus less area for reflecting radio waves.



Visibility is reduced due to a vehicle ahead casting off water, snow, or sand from its tires
and onto your windshield.



The luggage compartment is loaded with heavy objects or the rear passenger seats are
occupied.



Ice, snow, or soiling is on the front surface of the front emblem.



During inclement weather such as rain, snow, or sand storms.



When driving near facilities or objects emitting strong radio waves.



Under the following conditions, the radar sensor (front) may not be able to detect vehicles
ahead or obstructions.



The beginning and end of a curve.



Roads with continuous curves.



Narrow lane roads due to road construction or lane closures.



The vehicle ahead enters the radar sensor's blind spot.



The vehicle ahead is running abnormally due to accident or vehicle damage.



Roads with repeated up and down slopes



Driving on poor roads or unpaved roads.



The distance between your vehicle and the vehicle ahead is extremely short.



A vehicle suddenly comes close such as by cutting into the lane.



To prevent incorrect operation of the system, use tires of the same specified size,
manufacturer, brand, and tread pattern on all four wheels. In addition, do not use tires
with significantly different wear patterns or tire pressures on the same vehicle (Including
the temporary spare tire).



If the battery power is weak, the system may not operate correctly.

When Driving

i-ACTIVSENSE

4-209

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

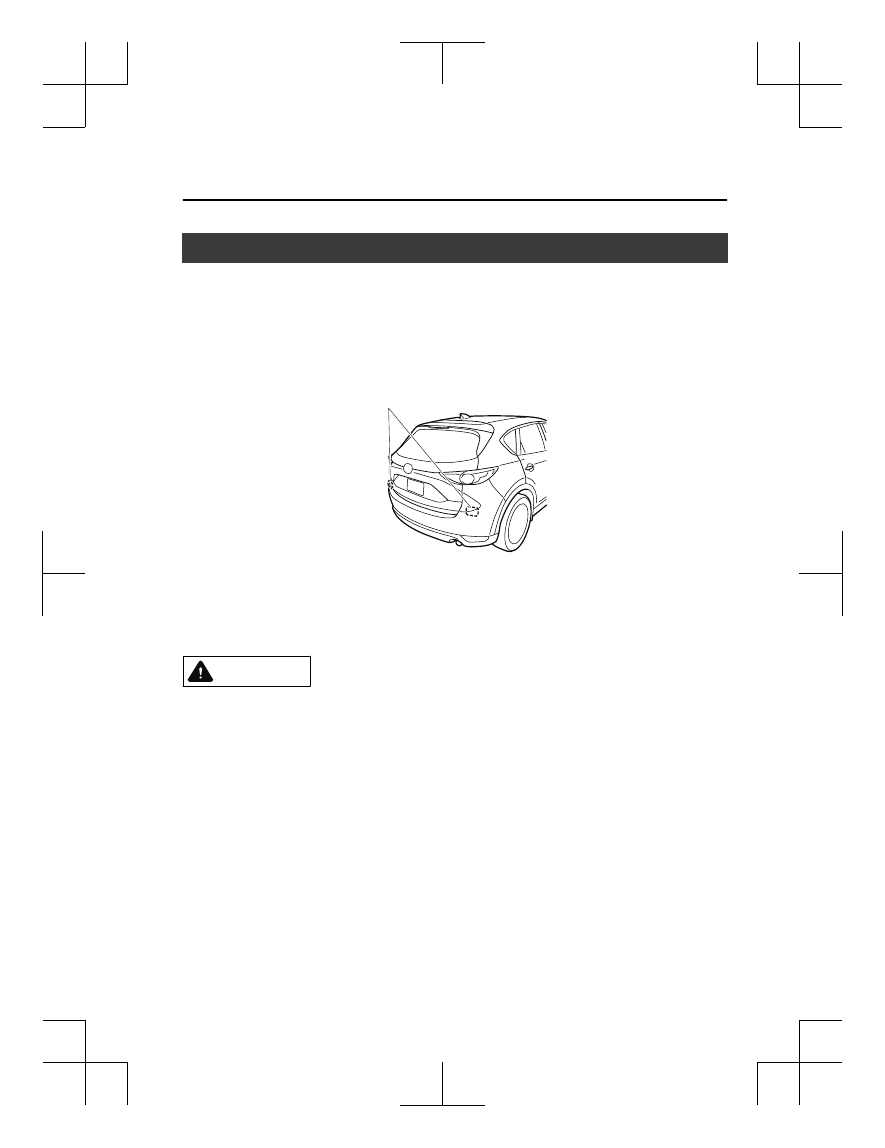

Radar Sensors (Rear)

Your vehicle is equipped with radar sensors (rear). The following systems also use the radar
sensors (rear).



Blind Spot Monitoring system (BSM)



Rear Cross Traffic Alert (RCTA)

The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensor.

Radar sensors (rear)

The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Always keep the surface of the rear bumper near the radar sensors (rear) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
Refer to Exterior Care on page 6-58.

CAUTION

If the rear bumper receives a severe impact, the system may no longer operate normally. Stop
the system immediately and have the vehicle inspected at an Authorized Mazda Dealer.

NOTE



The detection ability of the radar sensors (rear) has limitations. In the following cases,
the detection ability may lower and the system may not operate normally.



The rear bumper near the radar sensors (rear) has become deformed.



Snow, ice or mud adheres to the radar sensors (rear) on the rear bumper.



Under bad weather conditions such as rain, snow and fog.



Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.



Stationary objects on a road or a road side such as small, two-wheeled vehicles,
bicycles, pedestrians, animals, and shopping carts.

When Driving

i-ACTIVSENSE

*Some models.

4-211

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



Vehicle shapes which do not reflect radar waves well such as empty trailers with a low
vehicle height and sports cars.



Vehicles are shipped with the direction of the radar sensors (rear) adjusted for each
vehicle to a loaded vehicle condition so that the radar sensors (rear) detect approaching
vehicles correctly. If the direction of the radar sensors (rear) has deviated for some
reason, have the vehicle inspected at an Authorized Mazda Dealer.



For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork, and
replacement near the radar sensors, consult an Authorized Mazda Dealer.



Turn off the system while pulling a trailer or while an accessory such as a bicycle carrier
is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the radar will
be blocked causing the system to not operate normally.



The radar sensors are regulated by the relevant radio wave laws of the country in which
the vehicle is driven. If the vehicle is driven abroad, authorization from the country in
which the vehicle is driven may be required.

When Driving

i-ACTIVSENSE

4-212

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

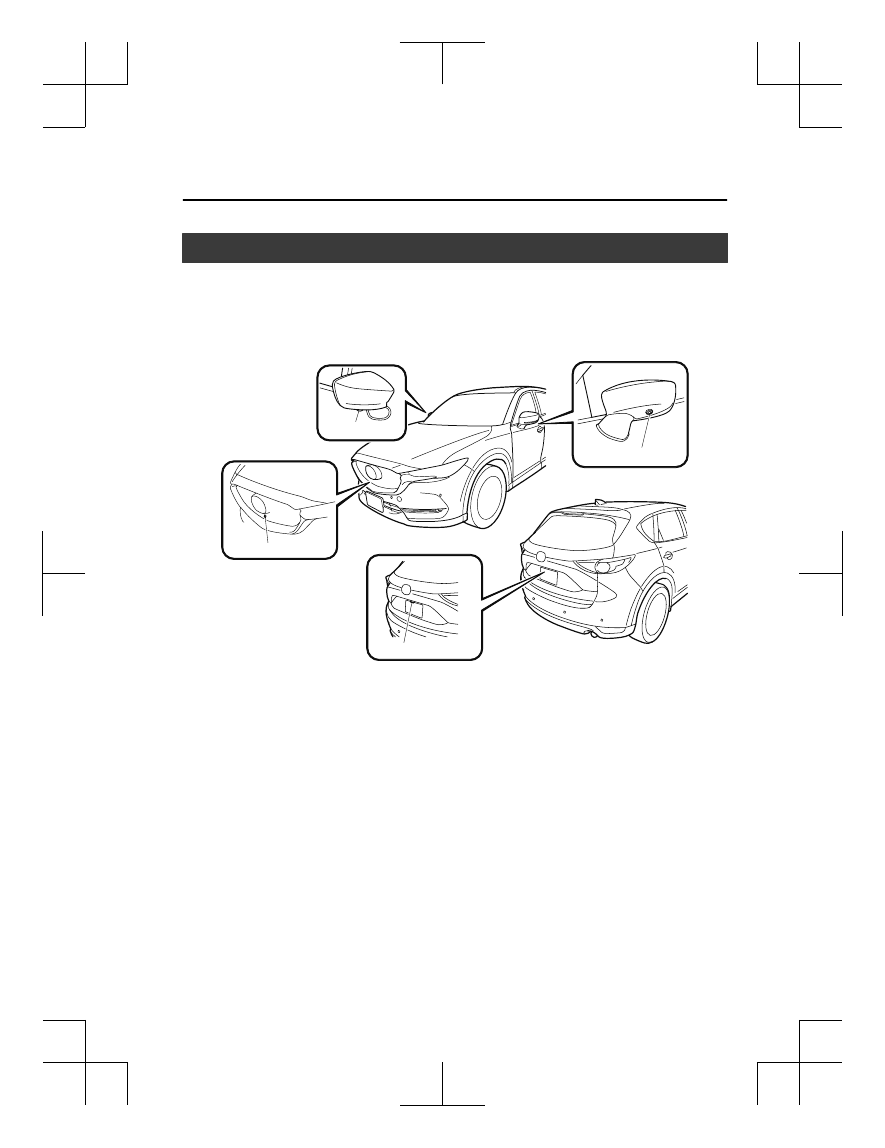

Front Camera/Side Cameras/Rear Camera

Your vehicle is equipped with a front camera, side cameras, and a rear camera. The 360°
View Monitor uses each camera.
The front camera, side cameras, and rear camera shoot images of the area surrounding the
vehicle.
Each camera is installed to the following positions.

Rear camera

Side camera

Front camera

When Driving

i-ACTIVSENSE

*Some models.

4-213

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

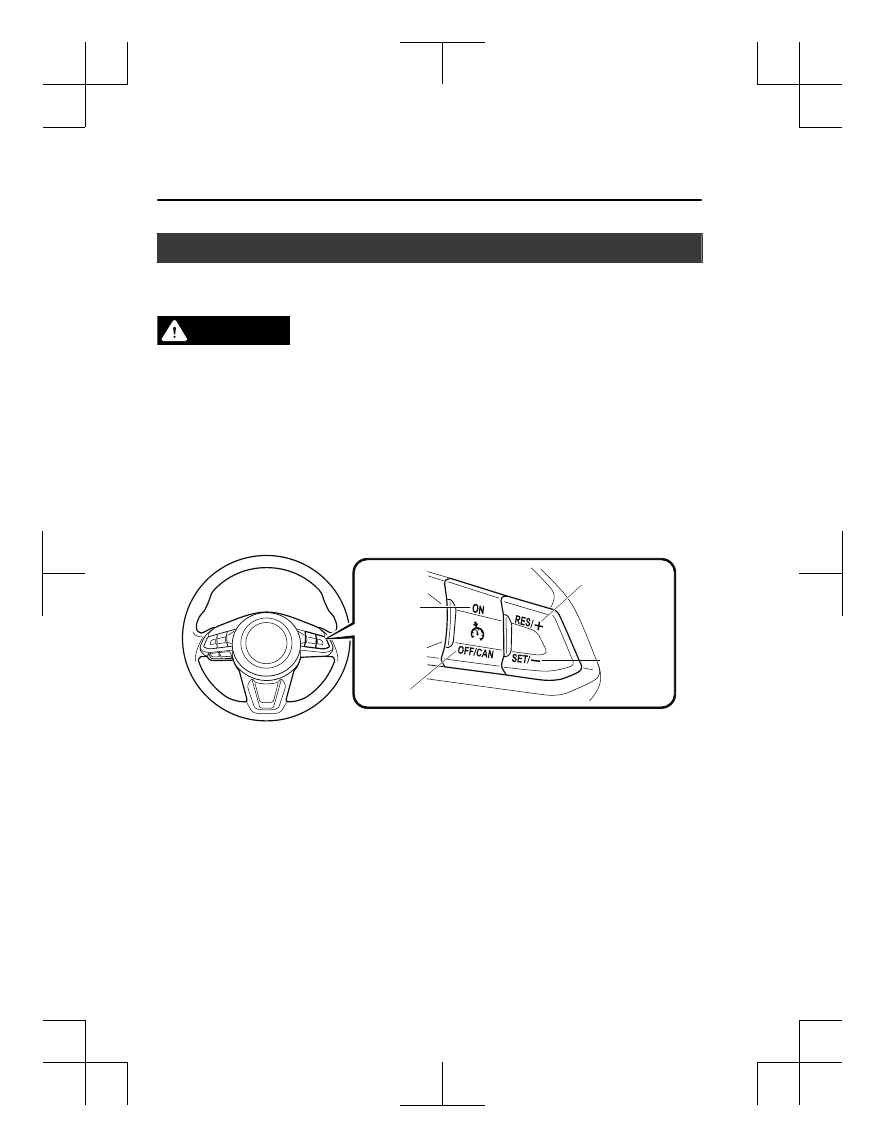

Cruise Control

With cruise control, you can set and automatically maintain any speed of more than about
25 km/h (16 mph).

WARNING

Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result in loss
of vehicle control.

Hilly terrain
Steep inclines
Heavy or unsteady traffic
Slippery or winding roads
Similar restrictions that require inconsistent speed

▼ Cruise Control Switch

ON switch

RESUME/+ switch

SET/- switch

OFF/CANCEL switch

NOTE
If your Mazda has the following steering switch, your Mazda is equipped with the Mazda
Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) system.

When Driving

Cruise Control

4-214

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

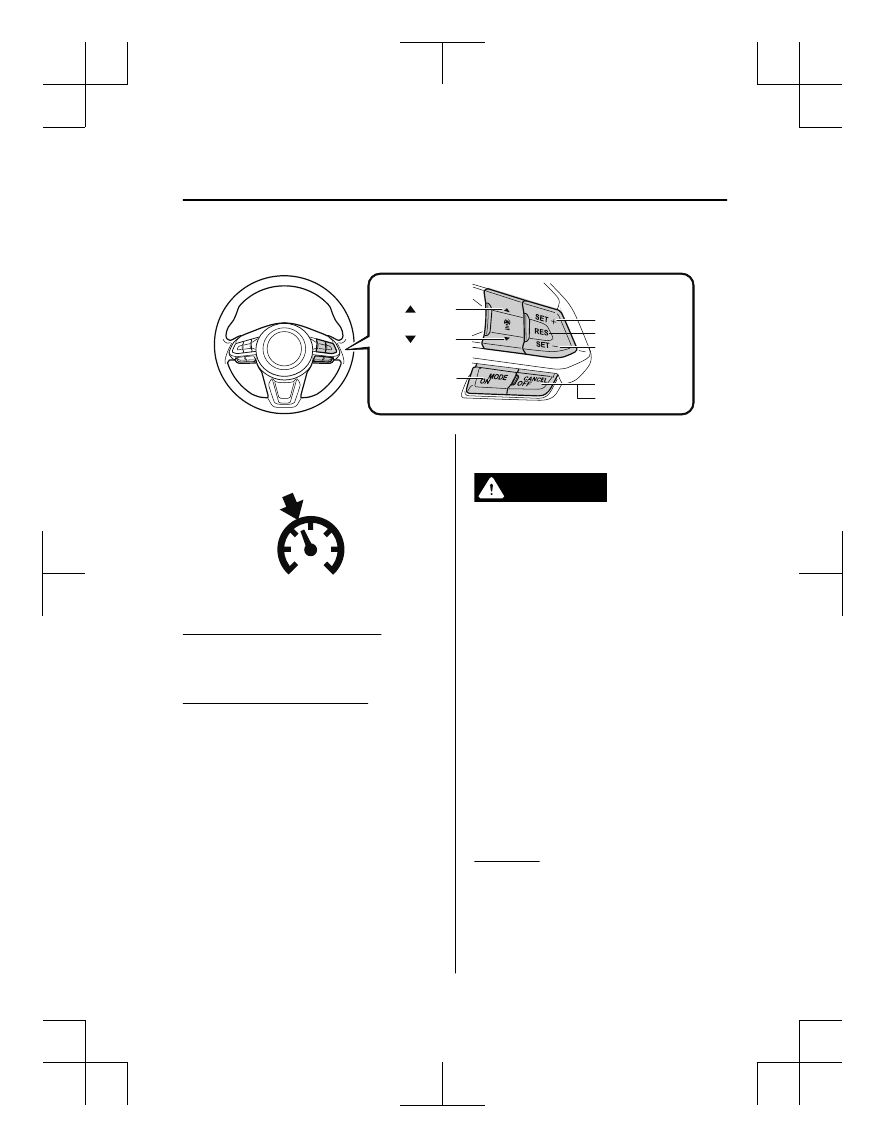

Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) on page 4-142.

CANCEL switch

RES switch

OFF switch

switch

MODE switch

SET- switch

SET+ switch

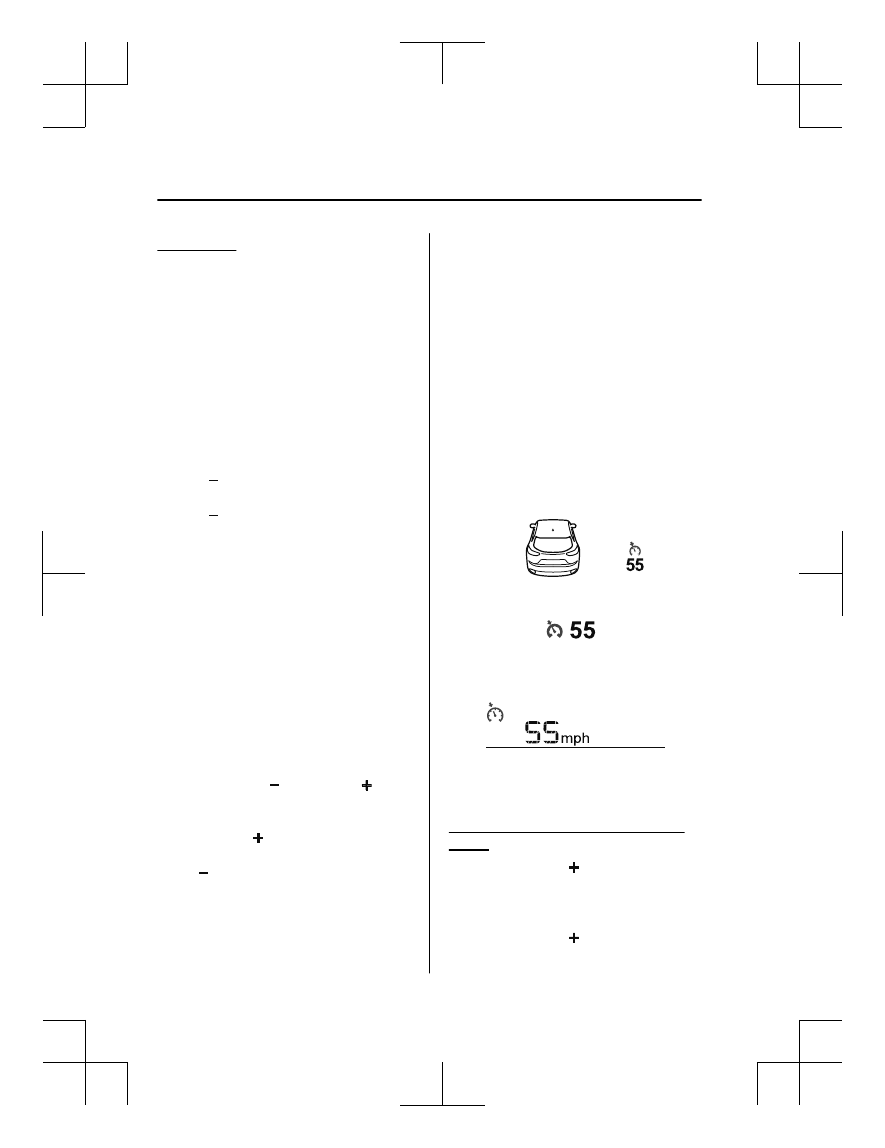

▼ Cruise Main Indication (White)/

Cruise Set Indication (Green)

The indication has 2 colors.

Cruise Main Indication (White)

The indication turns on (white) when the
cruise control system is activated.

Cruise Set Indication (Green)

The indication turns on (green) when a
cruising speed has been set.

▼ Activation/Deactivation

WARNING

Always turn off the cruise control system
when it is not in use:
Leaving the cruise control system in an
activation-ready state while the cruise
control is not in use is dangerous as the
cruise control could unexpectedly activate
if the activation button is accidentally
pressed, and result in loss of vehicle control
and an accident.

NOTE
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition is
switched OFF with the cruise control
system operable, the system will be
operable when the ignition is switched ON
the next time.

Activation

To activate the system, press the ON
switch. The cruise main indication (white)
turns on.

When Driving

Cruise Control

4-215

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Deactivation

To deactivate the system, press the OFF/
CANCEL switch.
The cruise main indication (white) turns
off.

▼ To Set Speed

1. Activate the cruise control system by

pressing the ON switch. The cruise
main indication (white) turns on.

2. Accelerate to the desired speed, which

must be more than 25 km/h (16 mph).

3. Set the cruise control by pressing the

SET/ switch at the desired speed. The
cruise control is set at the moment the
SET/ switch is pressed. Release the
accelerator pedal simultaneously. The
cruise set indication (green) turns on.

NOTE



The cruise control speed setting cannot
be performed under the following
conditions:



(Automatic transaxle)
The selector lever is in the P or N
position.



(Manual transaxle)
The shift lever is in the neutral
position.



The parking brake is applied.



Release the SET/  or RESUME/
switch at the desired speed, otherwise
the speed will continue increasing while
the RESUME/  switch is pressed and
held, and continue decreasing while the
SET/  switch is pressed and held
(except when the accelerator pedal is
depressed).



On a steep grade, the vehicle may
momentarily slow down while ascending
or speed up while descending.



The cruise control will cancel if the
vehicle speed decreases below 21 km/h
(13 mph) when the cruise control is
activated, such as when climbing a steep
grade.



The cruise control may cancel at about
15 km/h (9 mph) below the preset speed,
such as when climbing a long, steep
grade.

The vehicle speed preset using the cruise
control is displayed in the instrument
cluster and the active driving display
(vehicles with active driving display).

Type B Instrument Cluster

Type C Instrument Cluster

Multi-information Display

Active Driving Display

▼ To Increase Cruising Speed

Follow either of these procedures.

To increase speed using cruise control
switch

Press the RESUME/ switch and hold it.
Your vehicle will accelerate. Release the
switch at the desired speed.

Press the RESUME/ switch and release
it immediately to adjust the preset speed.

When Driving

Cruise Control

4-216

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Multiple operations will increase the
preset speed according to the number of
times it is operated.

Increasing speed with a single
RESUME/ switch operation

Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Instrument cluster display for vehicle
speed indicated in mph: 1 mph (1.6 km/h)

To increase speed using accelerator
pedal

Depress the accelerator pedal to accelerate
to the desired speed. Press the SET/
switch and release it immediately.

NOTE
Accelerate if you want to speed up
temporarily when the cruise control is on.
Greater speed will not interfere with or
change the set speed. Take your foot off
the accelerator to return to the set speed.

▼ To Decrease Cruising Speed

Press the SET/ switch and hold it. The
vehicle will gradually slow.
Release the switch at the desired speed.

Press the SET/ switch and release it
immediately to adjust the preset speed.
Multiple operations will decrease the
preset speed according to the number of
times it is operated.

Decreasing speed with a single SET/
switch operation

Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Instrument cluster display for vehicle
speed indicated in mph: 1 mph (1.6 km/h)

▼ To Resume Cruising Speed at More

Than 25 km/h (16 mph)

If the cruise control system temporarily
canceled (such as by applying the brake
pedal) and the system is still activated, the
most recent set speed will automatically
resume when the RESUME/ switch is
pressed.
If vehicle speed is below 25 km/h (16
mph), increase the vehicle speed up to 25
km/h (16 mph) or more and press the
RESUME/ switch.

▼ To Temporarily Cancel

To temporarily cancel the system, use one
of these methods:



Slightly depress the brake pedal.



(Manual transaxle)
Depress the clutch pedal.



Press the OFF/CANCEL switch.

If the RESUME/ switch is pressed when
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
set speed.

NOTE



If any of the following conditions occur,
the cruise control system is temporarily
canceled.



The parking brake is applied.



(Automatic transaxle)
The selector lever is in the P or N
position.



(Manual transaxle)
The shift lever is in the neutral
position.



When the cruise control system is
temporarily canceled by even one of the
applicable cancel conditions, the speed
cannot be re-set.

When Driving

Cruise Control

4-217

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



(Automatic transaxle)
The cruise control cannot be cancelled
while driving in manual mode (selector
lever shifted from D to M position).
Therefore, engine braking will not be
applied even if the transaxle is shifted
down to a lower gear. If deceleration is
required, lower the set speed or depress
the brake pedal.

▼ To Deactivate

When a cruising speed has been set
(cruise set indication (green) turns on)

Long-press the OFF/CANCEL switch or
press the OFF/CANCEL switch 2 times.

When a cruising speed has not been set
(cruise main indication (white) turns
on)

Press the OFF/CANCEL switch.

When Driving

Cruise Control

4-218

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

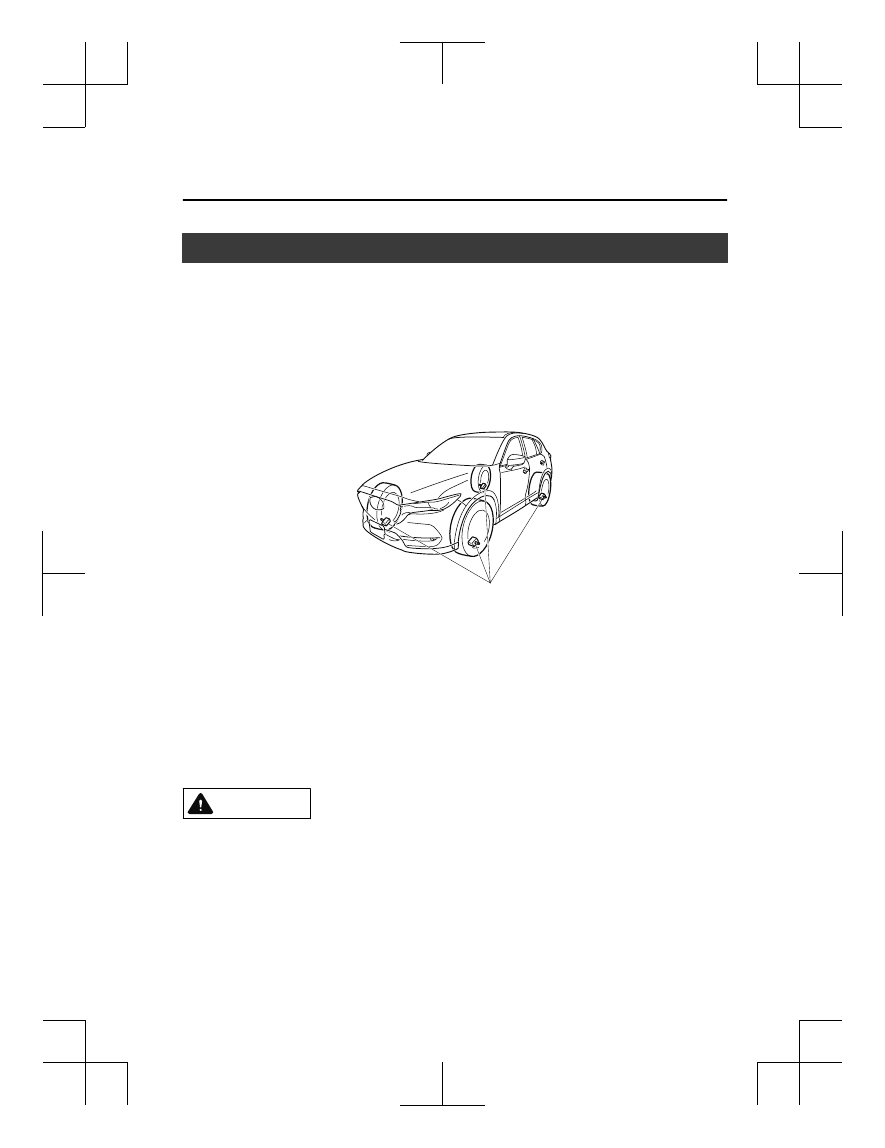

Tire Pressure Monitoring System

The Tire Pressure Monitoring System (TPMS) monitors the pressure for each tire.
If tire pressure is too low in one or more tires, the system will inform the driver via the
warning light in the instrument cluster and by the warning beep sound.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-26.
Refer to Taking Action on page 7-32.
Refer to Tire Inflation Pressure Warning Beep on page 7-45.

The tire pressure sensors installed on each wheel send tire pressure data by radio signal to
the receiver unit in the vehicle.

Tire pressure sensors

NOTE
When the ambient temperature is low due to seasonal changes, tire temperatures are also
lower. When the tire temperature decreases, the air pressure decreases as well. The TPMS
warning light may illuminate more frequently. Visually inspect the tires daily before driving,
and check tire pressures monthly with a tire pressure gauge. When checking tire pressures,
use of a digital tire pressure gauge is recommended.

TPMS does not alleviate your need to check the pressure and condition of all four tires
regularly.

CAUTION

Each tire, including the spare (if provided), should be checked monthly when cold and

inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire inflation pressure label, you should determine
the proper tire inflation pressure for those tires.)

When Driving

Tire Pressure Monitoring System

*Some models.

4-219

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate them to the proper
pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can
lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the
driver's responsibility to maintain correct tire pressure, even if under-inflation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when
the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for approximately one minute and then
remain continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to
continue to function properly.

To avoid false readings, the system samples for a little while before indicating a problem. As

a result it will not instantaneously register a rapid tire deflation or blow out.

▼ System Error Activation

When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
A system error activation may occur in the
following cases:



When there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.



When a metallic device such as a
non-genuine navigation system is
equipped near the center of the
dashboard, which may block radio
signals from the tire pressure sensor to
the receiver unit.



When using the following devices in the
vehicle that may cause radio
interference with the receiver unit.



A digital device such as a personal
computer.



A current converter device such as a
DC-AC converter.



When excess snow or ice adheres to the
vehicle, especially around the wheels.



When the tire pressure sensor batteries
are exhausted.



When using a wheel with no tire
pressure sensor installed.



When using tires with steel wire
reinforcement in the sidewalls.



When using tire chains.

When Driving

Tire Pressure Monitoring System

4-220

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Tires and Wheels

CAUTION

When inspecting or adjusting the tire air
pressures, do not apply excessive force to
the stem part of the wheel unit. The stem
part could be damaged.

Changing tires and wheels

The following procedure allows the TPMS
to recognize a tire pressure sensor's unique
ID signal code whenever tires or wheels
are changed, such as changing to and from
winter tires.

NOTE
Each tire pressure sensor has a unique ID
signal code. The signal code must be
registered with the TPMS before it can
work. The easiest way to do it is to have
an Authorized Mazda Dealer change your
tire and complete ID signal code
registration.

When having tires changed at an
Authorized Mazda Dealer

When an Authorized Mazda Dealer
changes your vehicle's tires, they will
complete the tire pressure sensor ID signal
code registration.

When changing tires yourself

If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
1. After tires have been changed, switch

the ignition ON, then back to ACC or
OFF.

2. Wait for about 15 minutes.

3. After about 15 minutes, drive the

vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
pressure sensor ID signal code will be
registered automatically.

NOTE
If the vehicle is driven within about 15
minutes of changing tires, the tire pressure
monitoring system warning light will flash
because the sensor ID signal code would
not have been registered. If this happens,
park the vehicle for about 15 minutes,
after which the sensor ID signal code will
register upon driving the vehicle for 10
minutes.

Replacing tires and wheels

CAUTION

When replacing/repairing the tires or

wheels or both, have the work done by
an Authorized Mazda Dealer, or the tire
pressure sensors may be damaged.

The wheels equipped on your Mazda are

specially designed for installation of the
tire pressure sensors. Do not use
non-genuine wheels, otherwise it may
not be possible to install the tire pressure
sensors.

Be sure to have the tire pressure sensors
installed whenever tires or wheels are
replaced.
When having a tire or wheel or both
replaced, the following types of tire
pressure sensor installations are possible.



The tire pressure sensor is removed
from the old wheel and installed to the
new one.

When Driving

Tire Pressure Monitoring System

4-221

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Mazda CX-5 (2019 year). Manual - part 23
