CAUTION

In the following cases, turn the system off
to prevent a mis-operation:

The vehicle is being towed or when

towing another vehicle.

The vehicle is on a chassis roller.
When driving on rough roads such as in

areas of dense grass or off-road.

NOTE



The SBS system operates when all of the
following conditions are met:



The ignition is switched ON.



The SBS system is on.



The vehicle speed is about 15 km/h or
faster (10 mph or faster).



The relative speed between your
vehicle and the vehicle ahead is about
15 km/h or faster (10 mph or faster).



The Dynamic Stability Control (DSC)
is not operating.



The SBS system may not operate under
the following conditions:



If the vehicle is accelerated rapidly
and it comes close to a vehicle ahead.



The vehicle is driven at the same
speed as the vehicle ahead.



The accelerator pedal is depressed.



The brake pedal is depressed.



The steering wheel is being operated.



The selector lever is being operated.



The turn signal is being used.



When the vehicle ahead is not
equipped with taillights or the
taillights are turned off.



When warnings and messages, such
as a dirty windshield, related to the
Forward Sensing Camera (FSC) are
being displayed in the
multi-information display.



Although the objects which activate the
system are four-wheeled vehicles, the
radar sensor (front) could detect the
following objects, determine them to be
an obstruction, and operate the SBS
system.



Objects on the road at the entrance to
a curve (including guardrails and
snow banks).



A vehicle appears in the opposite lane
while cornering or rounding a curve.



When crossing a narrow bridge.



When passing under a low gate or
through a tunnel or narrow gate.



When entering an underground
parking area.



Metal objects, bumps, or protruding
objects on the road.



If you suddenly come close to a
vehicle ahead.



When driving in areas where there is
high grass or forage.



Two-wheeled vehicles such as
motorbikes or bicycles.



Pedestrians or non-metallic objects
such as standing trees.



When the system operates, the user is
notified by the multi-information
display.



The SBS warning indication (amber)
turns on when the system has a
malfunction.
Refer to Taking Action on page 7-32.

When Driving

i-ACTIVSENSE

4-174

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Collision Warning

If there is the possibility of a collision with
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display and the
active driving display.

▼ Stopping The Smart Brake Support

(SBS) System Operation

The SBS system can be temporarily
deactivated.
Refer to Personalization Features on page
9-12.
When the SBS system is turned off, the
SBS OFF indicator light turns on.

When the engine is restarted, the system
becomes operational.

NOTE
If the SBS system operation is turned off,
the Smart City Brake Support (SCBS)
system operation is turned off
simultaneously.

When Driving

i-ACTIVSENSE

4-175

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

360° View Monitor

*

The 360° View Monitor consists of the following functions which assist the driver in
checking the area surrounding the vehicle using various indications in the center display and
a warning sound while the vehicle is being driven at low speeds or while parking.



Top view
The top view displays an image of the vehicle from directly above on the center display
by combining the images taken from the 4 cameras set on all sides of the vehicle. The top
view displays on the right side of the screen when the front view or rear view screen is
being displayed. The top view assists the driver in checking the area surrounding the
vehicle when the vehicle is moving forward or in reverse.



Front view/front wide view
The image from the front of the vehicle is displayed on the center display.
The view from the front assists the driver in checking the front of the vehicle by
displaying guide lines on the displayed image taken from the front of the vehicle.



Side view
The images taken from the front left and right sides of the vehicle are displayed on the
center display.
The side view assists the driver in checking the front sides of the vehicle by displaying
guide lines on the displayed image taken from the front left and right sides of the vehicle.



Rear view/rear wide view
The image from the rear of the vehicle is displayed on the center display.
The image from the rear assists the driver in checking the rear of the vehicle by displaying
guide lines on the displayed image taken from the rear of the vehicle.



Parking sensor
If there are any obstructions near the vehicle while the top view/side view is displayed, an
obstruction detection indication turns on around the bumper in the center display.
The parking sensors use ultrasonic sensors to detect obstructions around the vehicle when
the vehicle is driven at low speeds, such as during garage or parallel parking, and notifies
the driver of the approximate distance from the vehicle to the surrounding obstruction
using sound and an obstruction detection indication.
Refer to Parking Sensor System on page 4-231.



Rear Cross Traffic Alert (RCTA)
If there is the possibility of a collision with an approaching vehicle while the rear view/
rear wide view is displayed, a warning is displayed on the center display.
The Rear Cross Traffic Alert (RCTA) uses radar sensors (rear) to detect vehicles
approaching from the rear left and right sides of the vehicle, and it assists the driver in
checking the rear of the vehicle while reversing by flashing the Blind Spot Monitoring
(BSM) warning lights and activating the warning sound.
Refer to Rear Cross Traffic Alert (RCTA) on page 4-138.

When Driving

i-ACTIVSENSE

4-176

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

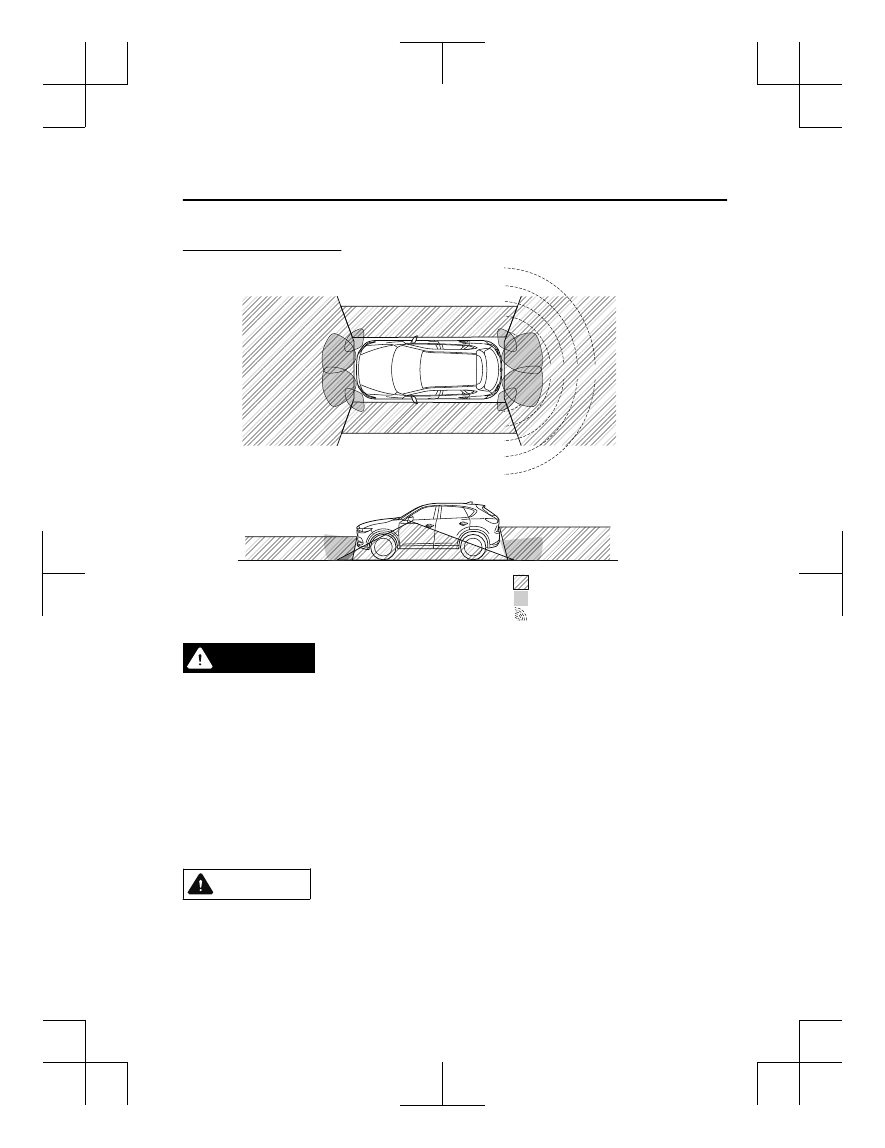

360°View Monitor Range

: Cameras
: Ultrasonic sensors
: Radar sensors (rear)

WARNING

Always confirm the safety of the area around the vehicle with the mirrors and directly with
your eyes when driving.
The 360°View Monitor is an auxiliary device which assists the driver in checking the safety of
the area around the vehicle.
The shooting range of the cameras and detection range of the sensors are limited. For
example, the areas in black at the front and rear of the vehicle image and the seams where
each of the camera images merge are blind spots where an obstruction may not be visible. In
addition, the extended vehicle width lines and projected vehicle path lines are only to be used
as references, and the images on the screen may differ from the actual conditions.

CAUTION

Do not use the 360°View Monitor under any of the following conditions.

Icy or snow-covered roads.
Tire chains or a temporary spare tire is installed.

When Driving

i-ACTIVSENSE

4-177

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

The front doors or the liftgate is not fully closed.
The vehicle is on a road incline.
The door mirrors are retracted.

Do not hit the front/rear camera, front bumper, and door mirrors forcefully. The camera

position or installation angle may shift.

The cameras are of a waterproof structure. Do not disassemble, modify, or remove a

camera.

The camera cover is made of hard plastic, therefore do not apply oil film remover, organic

solvents, wax, or coating agents. If any such agent gets on the camera cover, wipe it off
using a soft cloth immediately.

Do not rub the camera lens forcefully, or clean it with an abrasive or hard brush. Otherwise,

it could scratch the camera lens and negatively affect the images.

Consult an Authorized Mazda Dealer for repair, painting, or replacement of the front/rear

camera, front bumper and door mirrors.

Heed the following cautions to assure that the 360°View Monitor operates normally.

Do not modify the vehicle suspensions or lower/raise the vehicle body, or both.
Always use wheels of the specified type and size for the front and rear wheels. Consult an

Authorized Mazda Dealer for tire replacement.

When the display is cold, images may leave trails or the screen might be darker than usual,

making it difficult to check the vehicle surroundings. Always confirm the safety at the front
and around the vehicle visually when driving.

The method for parking/stopping the vehicle using the 360°View Monitor differs depending

on the road circumstances/conditions and the vehicle conditions. When and how much you
turn the steering wheel will differ depending on the situation, , therefore always check the
vehicle surroundings directly with your eyes while using the system.
Also, before using the system, always make sure that the vehicle can be parked/stopped in
the parking/stopping space.

NOTE



If there are water droplets, snow, or mud on the camera lens, wipe it off using a soft cloth.
If the camera lens is especially dirty, wash it off with mild detergent.



If the area where the camera is installed, such as the liftgate or door mirrors, has been
damaged in a vehicle accident, the camera (position, installation angle) may have shifted.
Always consult an Authorized Mazda Dealer to have the vehicle inspected.



If the camera is subjected to excessive changes in temperature such as by pouring hot
water on the camera during cold weather, the 360°View Monitor may not operate
normally.



If the battery voltage is low, the screen might be temporarily difficult to view, however,
this does not indicate a problem.

When Driving

i-ACTIVSENSE

4-178

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



The 360°View Monitor has limitations. Objects under the bumper or near both ends of the
bumper cannot be displayed.



Obstructions above the upper image range of the camera are not displayed.



Under the following conditions, the screen might be difficult to view, however this does
not indicate a problem.



The temperature near the lens is high/low.



Rainy conditions, water droplets on the camera, or high humidity.



Mud or foreign matter near the camera.



Extremely bright light such as sunlight or headlights hitting the camera lens directly.



Because the 360°View Monitor camera uses a special lens, the distance displayed on the
screen differs from the actual distance.



Obstructions displayed on the screen may appear differently than in actuality.
(Obstructions may appear fallen, larger, or longer than they actually are.)



Do not apply stickers to a camera or the area around it. In addition, do not install
accessories or an illuminated number/character license plate to the area around a
camera. Otherwise, the camera may not correctly display the surrounding conditions.

When Driving

i-ACTIVSENSE

4-179

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

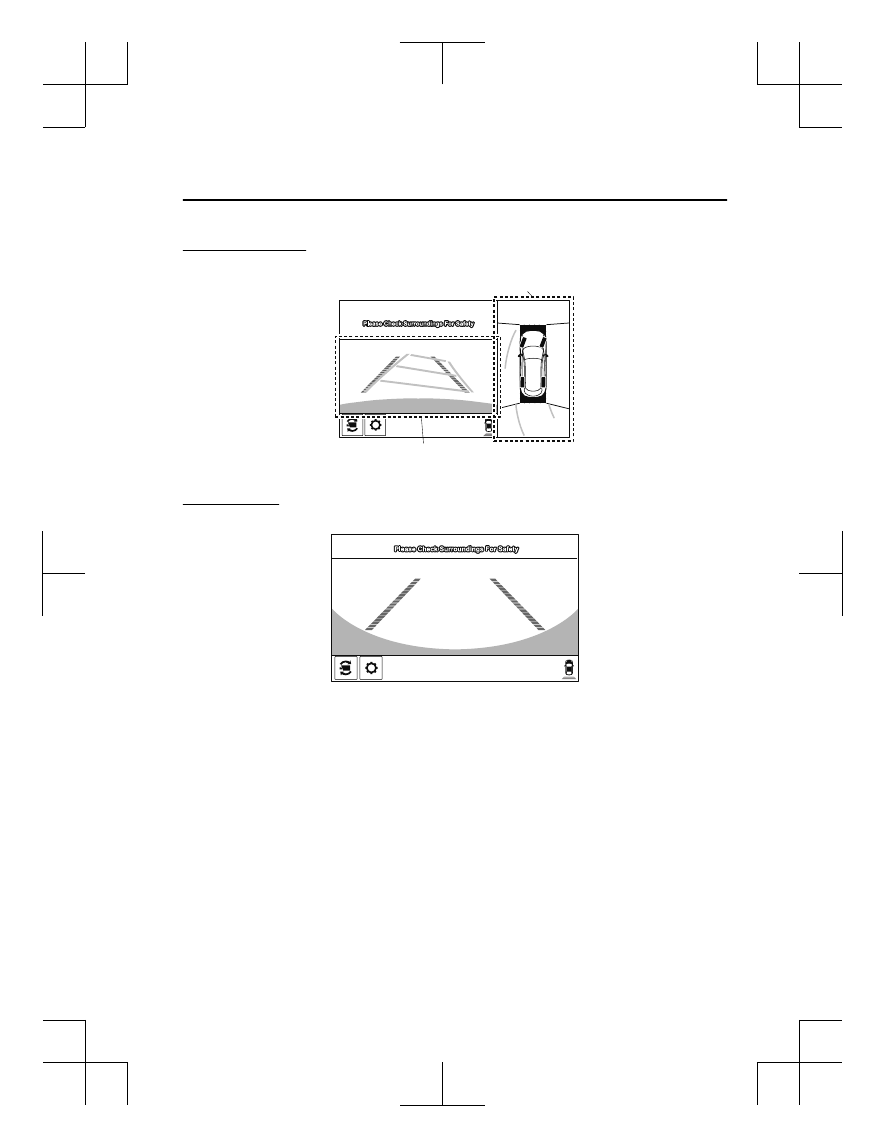

▼ Types of Images Displayed on the Screen

Top view/Front view

Displays the image of the area around the vehicle and the vehicle front.

Front view screen

Top view screen



Front wide view

Displays the image of the front of the vehicle (wide-area).



Side view

Displays the image of the left and right sides of the vehicle.



When Driving

i-ACTIVSENSE

4-180

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

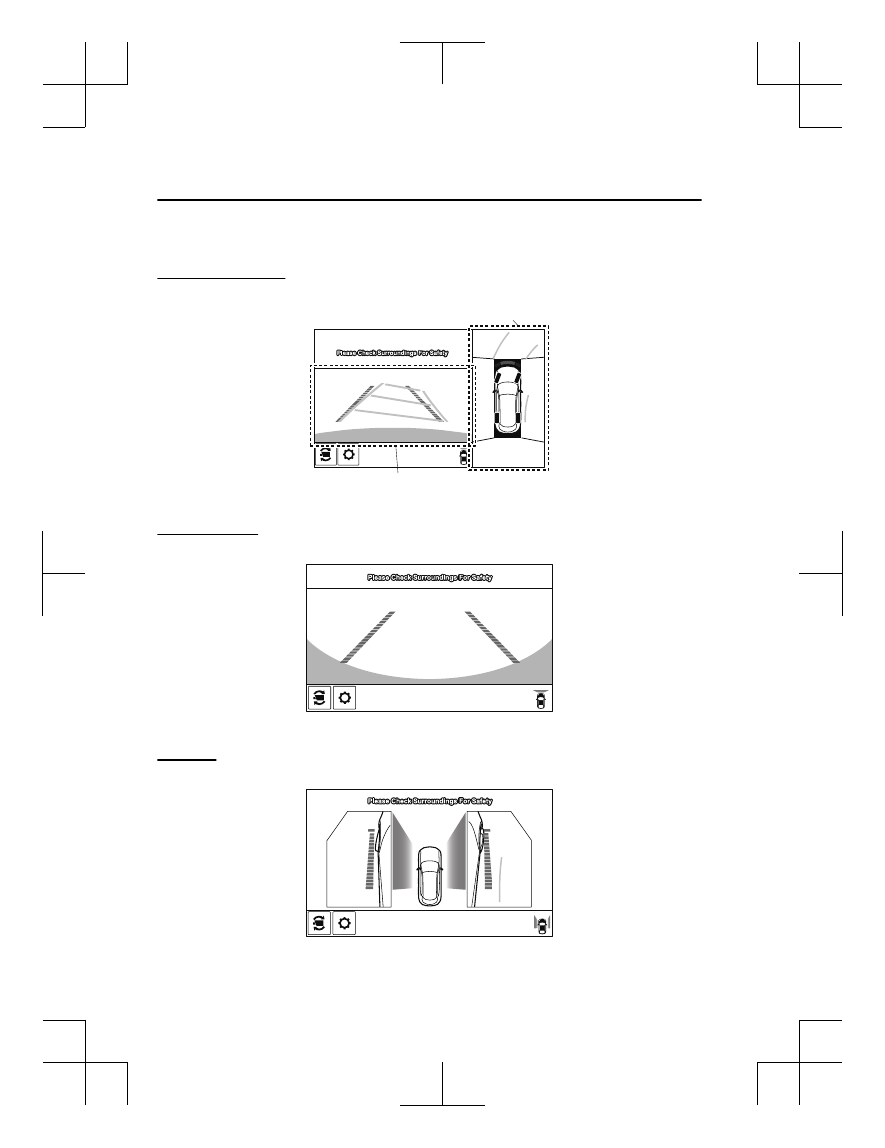

Top view/Rear view

Displays the image of the area around the vehicle and the rear of the vehicle.

Rear view screen

Top view screen



Rear wide view

Displays the image of the rear of the vehicle (wide-area).

When Driving

i-ACTIVSENSE

4-181

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ How to Use the System

Top view/Front view, Front wide view, Side view

Indication

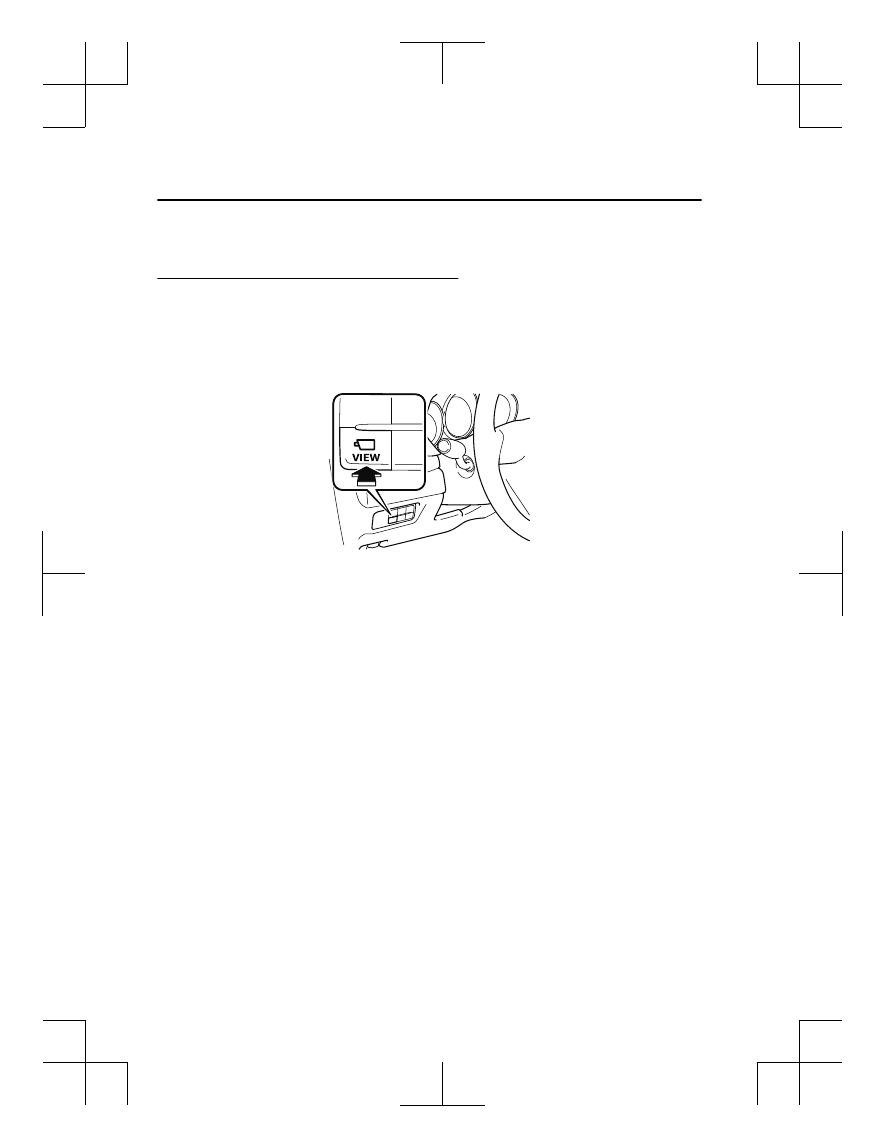

Images are displayed on the screen when the 360°View Monitor switch is pressed with all of
the following conditions met.



The ignition is switched ON.



The selector lever is in a position other than R.



When Driving

i-ACTIVSENSE

4-182

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

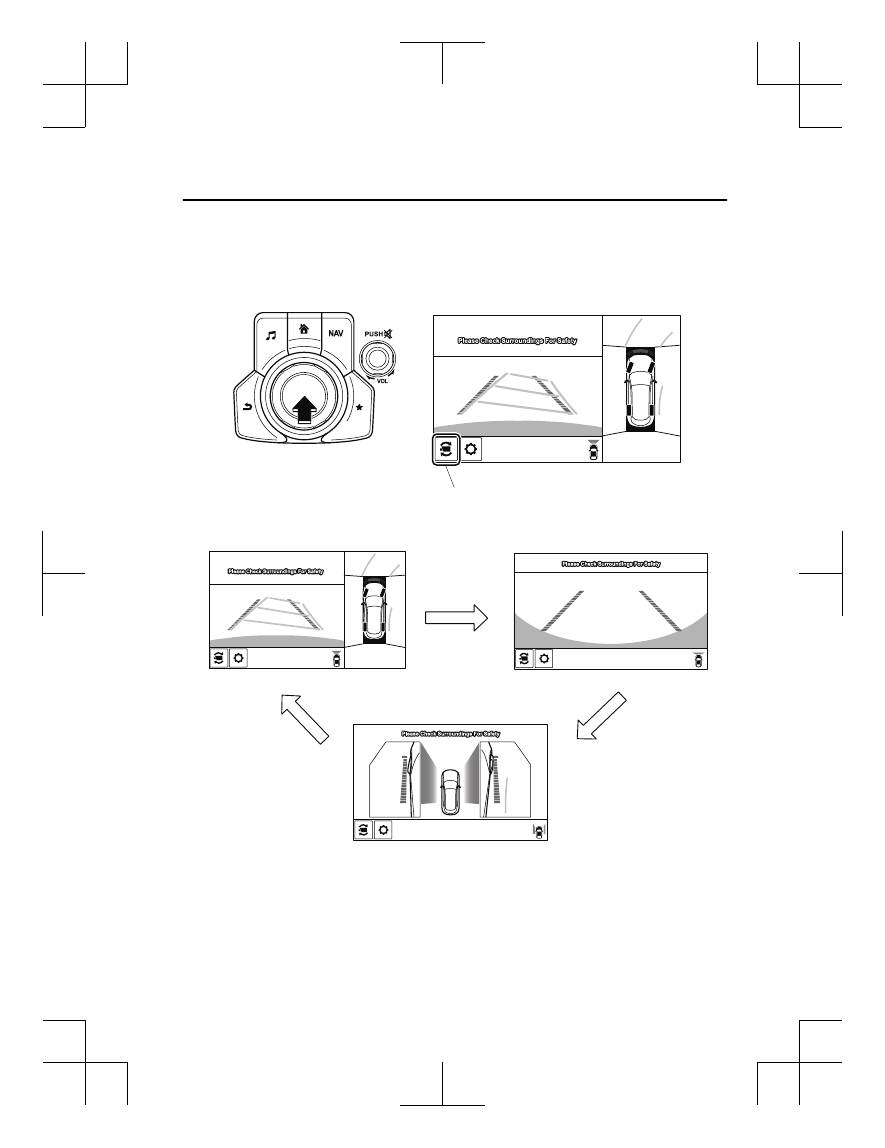

Display switching
You can change the displayed screen by pressing the commander knob or by touching the
switch camera icon on the screen while the top view/front view, front wide view, or the side
view is displayed.

Top view/Front view

Front wide view

Side view

Switch camera icon

NOTE



When the selector lever is in R position, the displayed screen does not switch to the top
view/front view, front wide view, or the side view.



Display of the top view/front view, front wide view, or the side view stops even with the
display conditions met if any of the following conditions occurs.

When Driving

i-ACTIVSENSE

4-183

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



When a switch around the commander knob is pressed.



The selector lever is shifted to P position (displayed when the selector lever is in a
position other than P).



(Displayed when vehicle speed is less than 15 km/h (9.3 mph))



4 minutes and 30 seconds have passed.



The vehicle speed is about 15 km/h (9.3 mph) or faster.



(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)



The vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have passed
since pressing the 360°View Monitor switch.



Four minutes and 22 seconds have passed from the point when the vehicle speed was
less than 15 km/h (9.3 mph) after 8 seconds have passed since pressing the 360° View
Monitor switch.



The 360°View Monitor displays the previously displayed screen.



The 360° View Monitor settings can be changed as follows.
Refer to Personalization Features on page 9-12.



Automatic display of the 360°View Monitor when the ultrasonic senor detects an
obstruction.



Automatic display of the 360°View Monitor when the ignition is switched ON.

Top view/Rear view, Rear wide view

The top view/rear view, rear wide view displays when all of the following conditions are
met.



The ignition is switched ON.



Selector lever is in R position.

When Driving

i-ACTIVSENSE

4-184

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

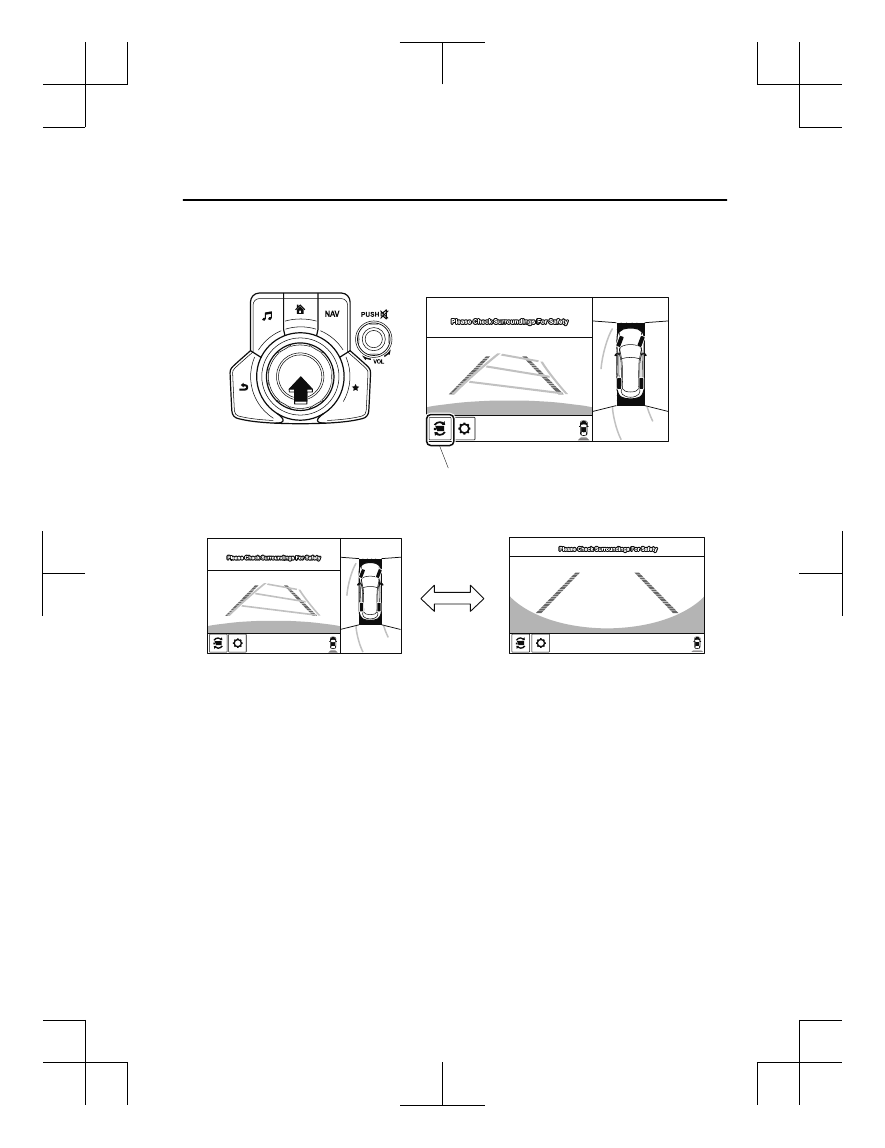

Display switching
The displayed screen can be switched by pressing the commander knob or by touching the
switch camera icon on the screen while the top view/rear view, rear wide view is displayed.

Top view/Rear view

Rear wide view

Switch camera icon

NOTE



The top view/rear view and rear wide view automatically display whether or not the 360°
View Monitor switch is turned on or off when shifting the selector lever to R position.



The setting can be changed to display the top view/front view when shifting from reverse
to a forward gear without operating the 360°View Monitor switch to check the front of the
vehicle while parallel parking.
Refer to Personalization Features on page 9-12.

When Driving

i-ACTIVSENSE

4-185

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

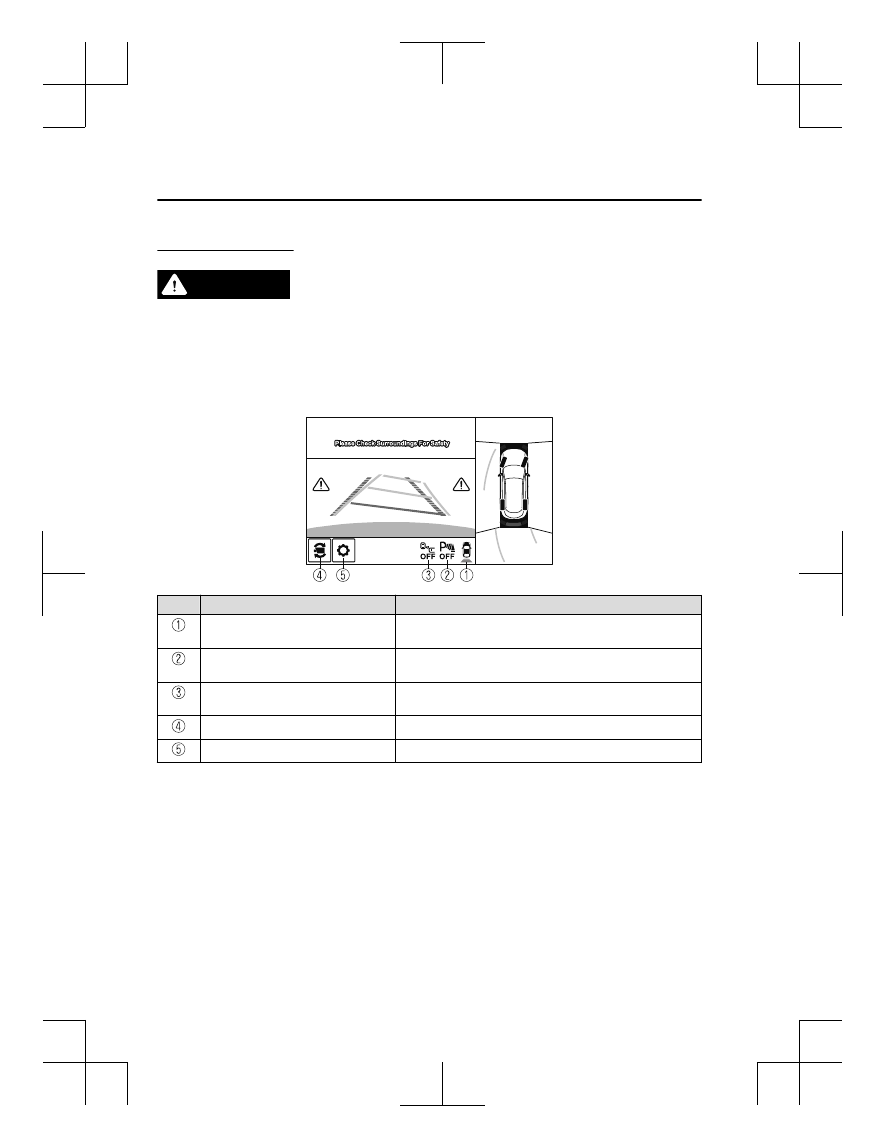

Screen operation/icon

WARNING

Always stop the vehicle when adjusting the 360°View Monitor image quality.
Do not adjust the 360°View Monitor image quality while driving. If you adjust the 360° View
Monitor image quality (such as brightness, contrast, tone, and color density) while driving, it
could lead to an unexpected accident.

(Display example)

Display/Icon

Content

View status icon

Indicates which image is displayed among the front view/front
wide view/side view/rear view/rear wide view.

Parking sensor status icon

Indicates that the parking sensor has a problem or it is switch‐
ed off.

Rear Cross Traffic Alert (RCTA) status
icon

Indicates that the radar sensor (rear) has a problem or it is
turned off.

Switch camera icon

Each time the screen is touched, the display screen switches.

Setting icon

The image quality for the 360°View Monitor can be adjusted.

When Driving

i-ACTIVSENSE

4-186

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

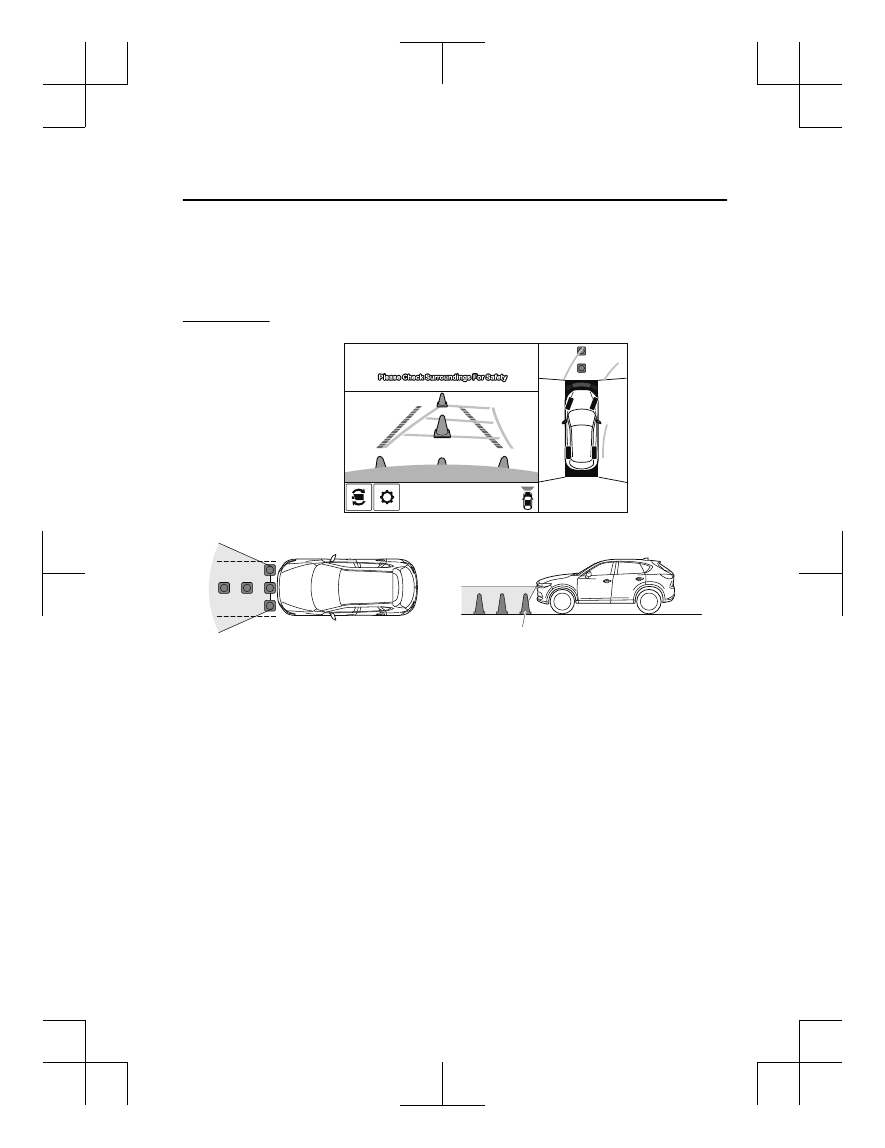

▼ Top View/Front View

Use the top view/front view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.

Display range

(Actual condition)

(Screen display)

Target object

NOTE



In the top view screen, the areas in black at the front and rear of the vehicle image and the
seams where each of the camera images merge are blind spots.



Because images displayed in the top view screen are processed from each camera, the top
view screen may display in the following ways.



If an image containing an object with a conspicuous color is picked up by any of the
cameras, the whole screen may be affected and it may display in that color.



Obstructions displayed in the front view may not display on the top view screen.



If the position or angle of each camera changes due to tilting of the vehicle, the image
may appear distorted.



Lines on the road may appear distorted at the seams where each of the camera images
merge.



The entire screen may appear bright/dark depending on the illumination level around
any of the cameras.

When Driving

i-ACTIVSENSE

4-187

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

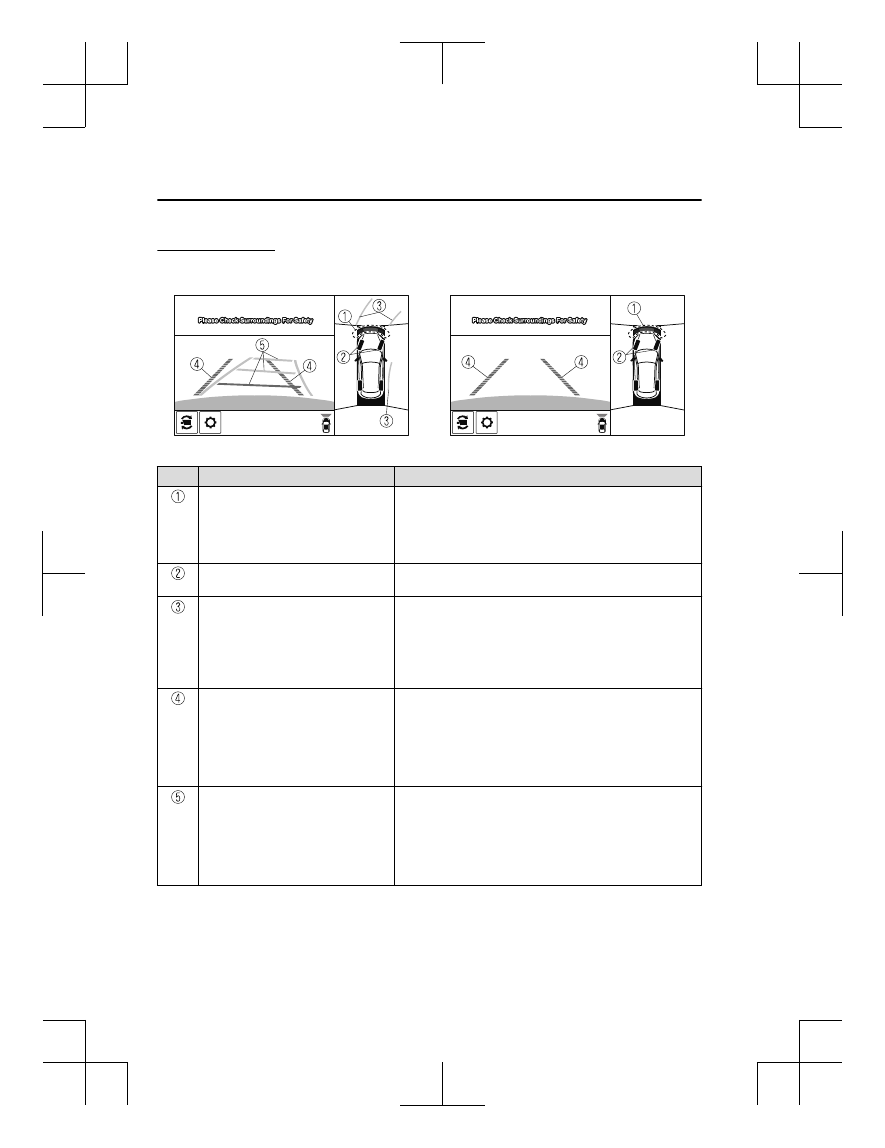

Viewing the screen

-b

-a

(When the projected vehicle
path line display is on)

(When the projected vehicle
path line display is off)



Display/Icon

Content

Parking sensor view

Displays the parking sensor detection condition when the
parking sensor is activated.
For details, refer to the parking sensor obstruction detection
indication and warning sound.
Refer to Parking Sensor System on page 4-231.

Tire icon

Indicates the tire direction. Moves in conjunction with the
steering wheel operation.

Projected vehicle path lines (amber)

Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the front bumper is ex‐
pected to travel.
b) Indicates the path where the inner side of the vehicle is ex‐
pected to travel.

Extended vehicle width lines and dis‐
tance guide lines (red/blue)

Indicates the approximate width of the vehicle and the dis‐
tance (from front end of bumper) in front of the vehicle.



The red lines indicate the points up to about 0.5 m (20 in)
from the front end of the bumper.



The blue lines indicate the points from about 0.5 m (20 in)
and up to 2 m (79 in) from the front end of the bumper.

Projected vehicle path distance guide
lines (red/amber)

Indicates the distance (from front end of bumper) in front of
the vehicle.



The red line indicates the point about 0.5 m (20 in) from the
front end of the bumper.



The amber lines indicate the points about 1 m (39 in) and 2
m (79 in) from the front end of the bumper.

When Driving

i-ACTIVSENSE

4-188

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

CAUTION

The parking sensor detection range has limitations. For example, obstructions closing in from
the side and objects short in height may not be detected. Always confirm the safety around
the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-231.

NOTE
The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to Personalization Features on page 9-12.

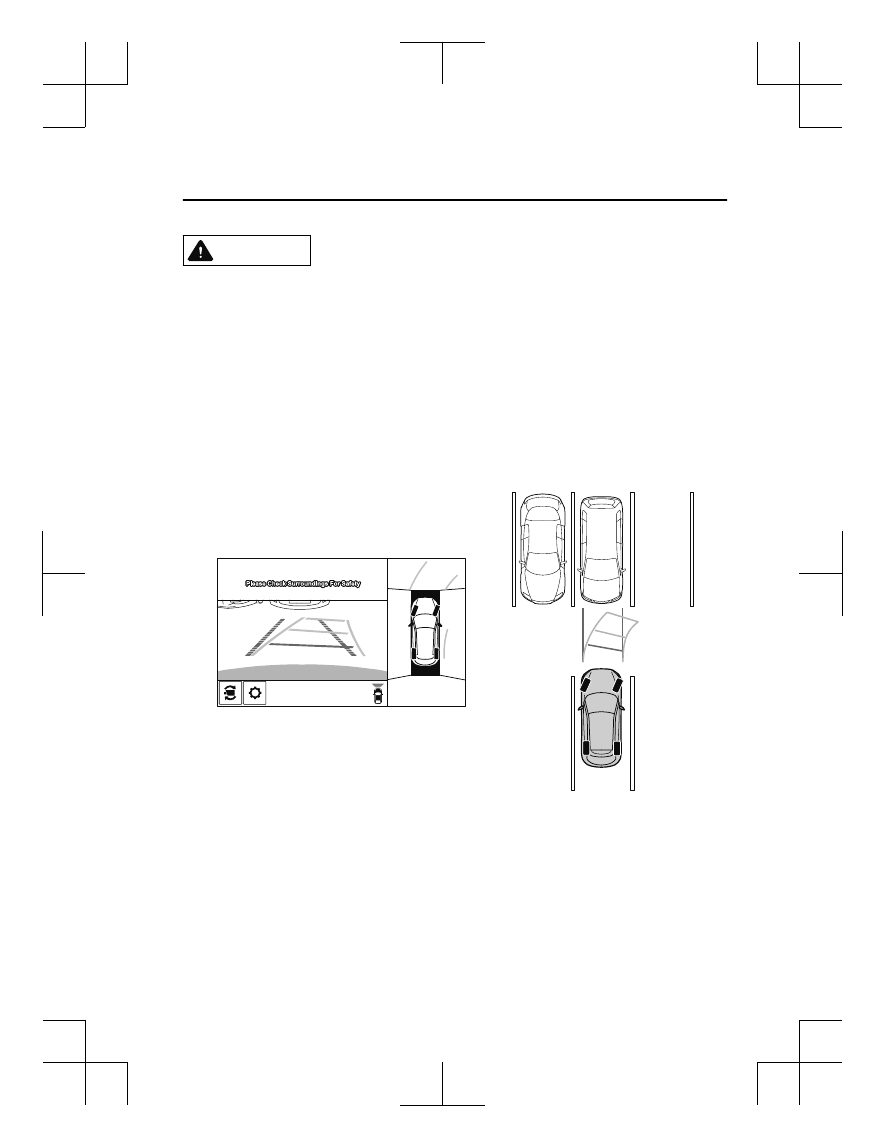

How to use the projected vehicle path line function

(Actual condition)

(Screen display)

Make sure that there are no obstructions within the projected vehicle path lines.
Drive the vehicle forward while turning the steering wheel so that no obstructions come
within the projected vehicle path lines.

When Driving

i-ACTIVSENSE

4-189

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47
