Parking

Always make sure the tires of the trailer and the tow vehicle are blocked while parked.
Apply the parking brake firmly and put the transaxle in P.

Avoid parking on an incline, but if you must, follow these instructions:

1. Depress and hold down the brake pedal.
2. Have a helper put wheel blocks against the downhill side of all vehicle and trailer tires.
3. Then release the brake pedal slowly until the blocks bear the load.



If the grade is downhill, turn the steering wheel so that the front of the front tires face
the curb.



If it is uphill, face the rear of the front tires against the curb.

4. Firmly apply the parking brake.
5. Shift the transaxle into P, and stop the engine.

To restart after parking on an incline:

1. With the transaxle in P, start the engine. (Be sure to depress and hold the brake pedal.)
2. Shift into gear.
3. Release the parking brake (also the foot brake) and pull away from the wheel blocks.

Stop; apply the parking brake and shift into P.

4. Have a helper retrieve the wheel blocks.

Fuel consumption

Trailer towing causes higher fuel consumption.

Maintenance

If you tow a trailer frequently, have your vehicle serviced as shown in Scheduled
Maintenance (page 6-4).

Before Driving

Towing

3-62

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

When Driving

Information concerning safe driving and stopping.

Start/Stop Engine.............................. 4-4

Ignition Switch............................. 4-4
Starting the Engine....................... 4-5
Turning the Engine Off...............4-10

Instrument Cluster and Display............
...........................................................4-12

Instrument Cluster and
Display........................................4-12
Instrument Cluster (Type A).......4-13
Instrument Cluster (Type B).......4-29
Instrument Cluster (Type C).......4-44
Active Driving Display

.............4-56

Manual Transaxle Operation......... 4-59

Manual Transaxle Shift
Pattern.........................................4-59

Automatic Transaxle....................... 4-62

Automatic Transaxle
Controls...................................... 4-62
Shift-Lock System...................... 4-63
Transaxle Ranges........................4-63
Manual Shift Mode.....................4-65
Driving Tips................................4-70

Switches and Controls.....................4-71

Lighting Control......................... 4-71
Fog Lights

................................. 4-76

Turn and Lane-Change
Signals........................................ 4-77
Windshield Wipers and
Washer........................................ 4-78
Rear Window Wiper and
Washer........................................ 4-81
Rear Window Defogger..............4-82
Horn............................................4-84
Hazard Warning Flasher............. 4-84
HomeLink Wireless Control System
(Type A)

.................................... 4-85

HomeLink Wireless Control System
(Type B)

.................................... 4-88

Brake................................................ 4-93

Brake System..............................4-93
AUTOHOLD..............................4-98
Hill Launch Assist (HLA)........4-102

ABS/TCS/DSC............................... 4-104

Antilock Brake System
(ABS)........................................4-104
Traction Control System
(TCS)........................................ 4-105
Dynamic Stability Control
(DSC)........................................4-107

Fuel Economy Monitor.................4-108

Fuel Economy Monitor

...........4-108

*Some models.

4-1

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Drive Selection............................... 4-111

Drive Selection

........................4-111

i-ACTIV AWD............................... 4-113

i-ACTIV AWD Operation

.......4-113

Power Steering............................... 4-115

Power Steering..........................4-115

i-ACTIVSENSE............................. 4-116

i-ACTIVSENSE

......................4-116

Adaptive Front Lighting System
(AFS)

.......................................4-119

High Beam Control System
(HBC)

......................................4-120

Blind Spot Monitoring (BSM)

.........

.................................................. 4-123
Traffic Sign Recognition System
(TSR)

...................................... 4-128

Distance Recognition Support
System (DRSS)

.......................4-134

Rear Cross Traffic Alert (RCTA)

.....

.................................................. 4-138
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)

...............4-142

Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)

.................................. 4-156

Advanced Smart City Brake Support
(Advanced SCBS)

...................4-167

Smart City Brake Support
(SCBS)

.................................... 4-170

Smart Brake Support (SBS)

....4-173

360° View Monitor

.................4-176

Forward Sensing Camera (FSC)

......

.................................................. 4-203
Radar Sensor (Front)

.............. 4-208

Radar Sensors (Rear)

.............. 4-211

Front Camera/Side Cameras/Rear
Camera

.................................... 4-213

Cruise Control............................... 4-214

Cruise Control

.........................4-214

4-2

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Tire Pressure Monitoring
System.............................................4-219

Tire Pressure Monitoring System

.....

.................................................. 4-219

Rear View Monitor....................... 4-223

Rear View Monitor

................. 4-223

Parking Sensor System................. 4-231

Parking Sensor System

........... 4-231

*Some models.

4-3

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

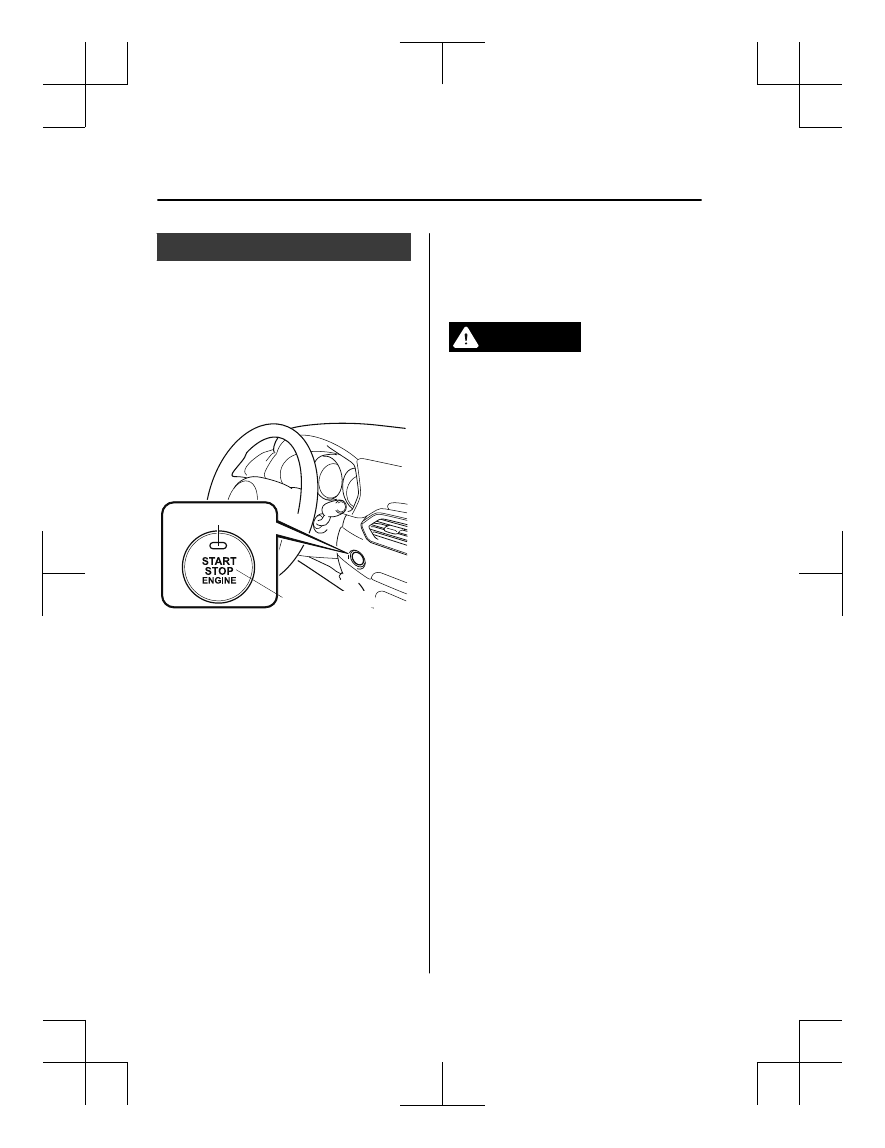

Ignition Switch

▼ Push Button Start Positions

The system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.

Indicator light

Push button start

NOTE



The engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch
the ignition position, press the push
button start without depressing the
pedal.



Do not leave the ignition switched ON
while the engine is not running. Doing
so could result in the battery going
dead. If the ignition is left in ACC (For
automatic transaxle, the selector lever is
in the P position, and the ignition is in
ACC), the ignition switches off
automatically after about 25 minutes.

Off

The power supply to electrical devices
turns off and the push button start
indicator light (amber) also turns off.

WARNING

Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the selector lever is in
P (automatic transaxle) position or in 1st
gear or R (manual transaxle):
Leaving the driver's seat without switching
the ignition off, setting the parking brake,
and shifting the selector lever to P
(automatic transaxle) position or to 1st
gear or R (manual transaxle) is dangerous.
Unexpected vehicle movement could occur
which could result in an accident.
In addition, if your intention is to leave the
vehicle for even a short period, it is
important to switch the ignition off, as
leaving it in another position will disable
some of the vehicle's security systems and
run the battery down.

ACC (Accessory)

Some electrical accessories will operate
and the indicator light (amber) illuminates.

NOTE
The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.

When Driving

Start/Stop Engine

4-4

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-12).

NOTE
When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
This does not indicate an abnormality.

Starting the Engine

WARNING

Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key will affect the device.

NOTE



The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.



The engine can be started when the push
button start is pressed from off, ACC, or
ON.



The push button start system functions
(function which can start the engine by
only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.



After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.

When Driving

Start/Stop Engine

4-5

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

This is for improved exhaust gas
purification and does not indicate any
parts defect.



1. Make sure you are carrying the key.
2. Occupants should fasten their seat

belts.

3. Make sure the parking brake is on.
4. Continue to press the brake pedal

firmly until the engine has completely
started.

5. (Manual transaxle)

Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).

NOTE



(Manual transaxle)
The starter will not operate if the
clutch pedal is not depressed
sufficiently.



(Automatic transaxle)
The starter will not operate if the
selector lever is not in P or N
position and the brake pedal is not
depressed sufficiently.

6. Verify that the KEY indicator light

(green) (if equipped) in the instrument
cluster and the push button start
indicator light (green) illuminate.

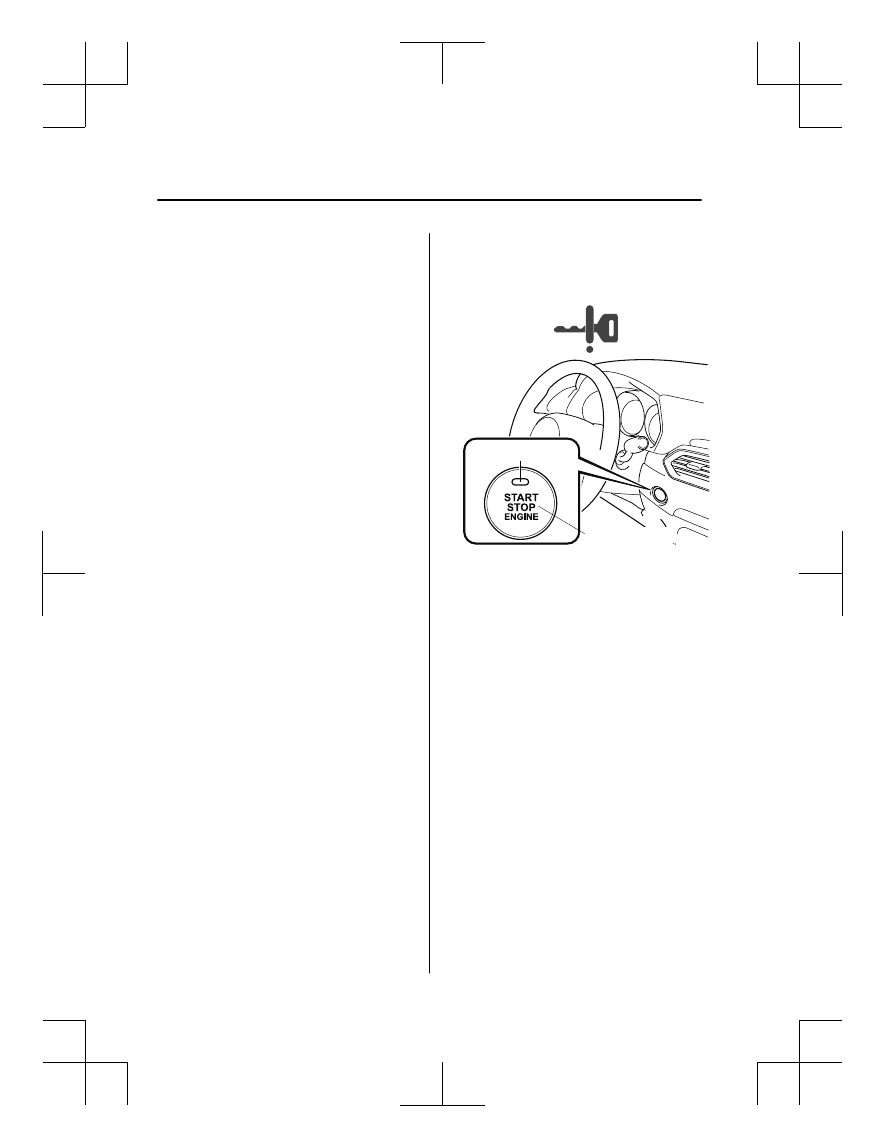

Indicator light

Push button start

NOTE



If the push button start indicator
light (green) flashes, make sure that
the key is being carried (for vehicles
with a type A/type B instrument
cluster (page 7-23), messages are
displayed in the instrument cluster).



If the push button start indicator
light (green) flashes with the key
being carried, touch the key to the
push button start and start the
engine (for vehicles with a type A/
type B instrument cluster (page
7-23), messages are displayed in
the instrument cluster). Refer to
Engine Start Function When Key
Battery is Dead on page 4-8.

When Driving

Start/Stop Engine

4-6

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

CAUTION

If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON (for vehicles with a type A/type B
instrument cluster (page 7-23),
messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda
Dealer as soon as possible.

NOTE



Under the following conditions, the
KEY warning light (red) flashes after
the push button start is pressed. This
informs the driver that the push
button start will not switch to ACC,
even if it is pressed from off (for
vehicles with a type A/type B
instrument cluster (page 7-23),
messages are displayed in the
instrument cluster).



The key battery is dead.



The key is out of operational
range.



The key is placed in areas where it
is difficult for the system to detect
the signal (page 3-8).



A key from another manufacturer
similar to the key is in the
operational range.



(Forced engine starting method)
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may
not start using the usual starting
method (for vehicles with a type A/
type B instrument cluster (page
7-23), messages are displayed in
the instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible. If
this occurs, the engine can be
force-started. Press and hold the
push button start until the engine
starts. Other procedures necessary
for starting the engine, such as
having the key in the cabin, and
depressing the clutch pedal (manual
transaxle) or the brake pedal
(automatic transaxle) are required.



When the engine is force-started, the
KEY warning light (red) (if
equipped)remains illuminated and
the push button start indicator light
(amber) remains flashing.



(Automatic transaxle)
When the selector lever is in the
neutral (N) position, the KEY
indicator light (green) (if
equipped)and the push button start
indicator light (green) do not
illuminate.

7. Press the push button start after both

the KEY indicator light (green) (if
equipped)in the instrument cluster and
the push button start indicator light
(green) illuminate.

When Driving

Start/Stop Engine

4-7

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

NOTE



After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to
the ON position.



After pressing the push button start
and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not
indicate a malfunction.

8. After starting the engine, let it idle for

about 10 seconds.

NOTE



Whether the engine is cold or warm,
it should be started without the use
of the accelerator.



If the engine does not start the first
time, refer to Starting a Flooded
Engine under Emergency Starting. If
the engine still does not start, have
your vehicle inspected by an
Authorized Mazda Dealer (page
7-17).

▼ Engine Start Function When Key

Battery is Dead

CAUTION

When starting the engine by holding the
transmitter over the push button start due
to a dead key battery or a malfunctioning
key, be careful not to allow the following,
otherwise the signal from the key will not
be received correctly and the engine may
not start.

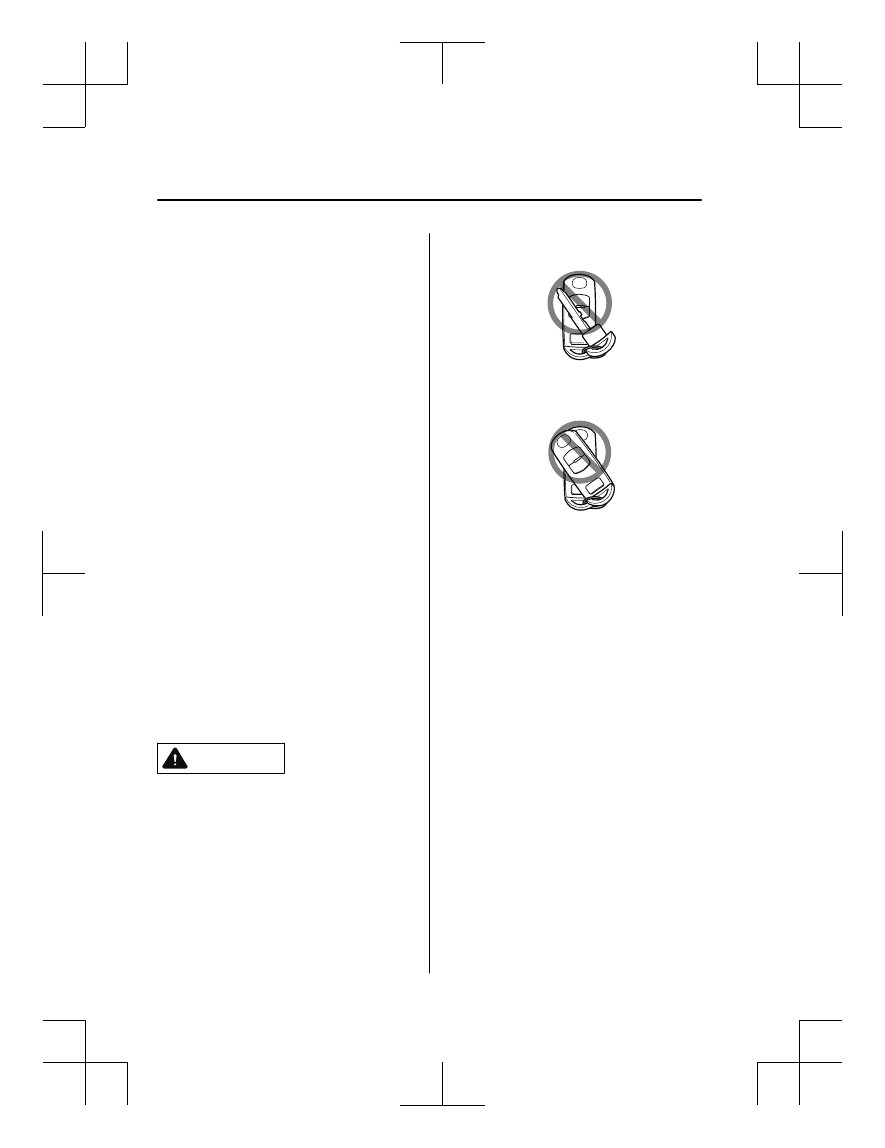

Metal parts of other keys or metal objects

touch the key.

Spare keys or keys for other vehicles

equipped with an immobilizer system
touch or come near the key.

Devices for electronic purchases, or

security passage touch or come near the
key.

If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Continue to depress the brake pedal

firmly until the engine has completely
started.

2. (Manual transaxle)

Continue to depress the clutch pedal
firmly until the engine has completely
started.

3. Make sure that the push button start

indication light (green) flashes.

When Driving

Start/Stop Engine

4-8

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

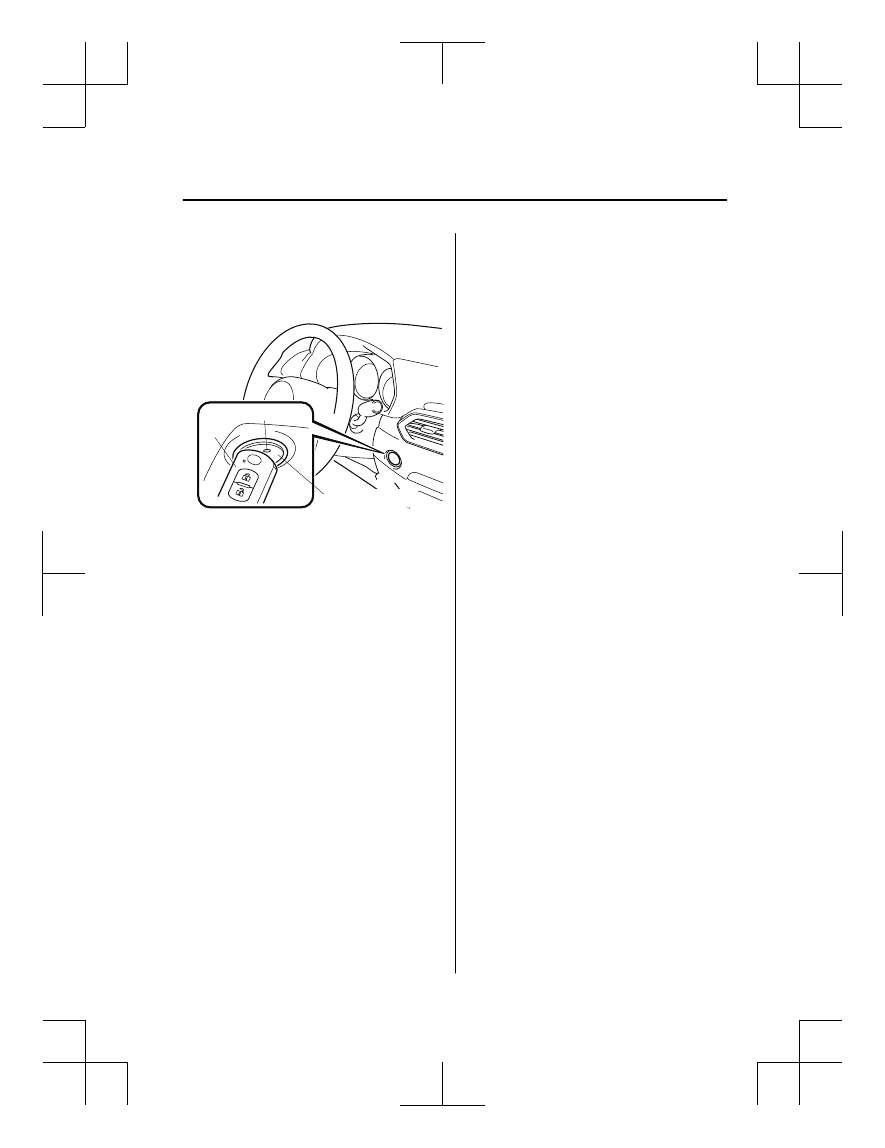

4. Touch the push button start using the

backside of the key (as shown) while
the push button start indicator light
(green) flashes.

Push button start

Indicator light

Key

NOTE
When touching the push button start
using the backside of the key as shown
in the illustration, touch the push
button start with the lock switch side of
the key facing up.

5. Make sure that the push button start

indicator light (green) turns on.

6. Press the push button start to start the

engine.

NOTE



The engine cannot be started unless
the clutch pedal is fully depressed
(manual transaxle) or the brake
pedal is fully depressed (automatic
transaxle).



If there is a malfunction with the
push button start function, the push
button start indicator light (amber)
flashes. In this case, the engine may
start, however, have the vehicle
checked at an Authorized Mazda
Dealer as soon as possible.



If the push button start indicator
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.



To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the clutch pedal (manual

transaxle) or brake pedal
(automatic transaxle).

2. Press the push button start to

switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position
again, perform the operation
from the beginning.

When Driving

Start/Stop Engine

4-9

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Emergency Operation for Starting

the Engine

If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that
the engine may not start using the usual
starting method (for vehicles with a type
A/type B instrument cluster (page 7-23),
messages are displayed in the instrument
cluster). Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can be
force-started. Press and hold the push
button start until the engine starts. Other
procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.

Turning the Engine Off

WARNING

Do not stop the engine while the vehicle is
moving:
Stopping the engine while the vehicle is
moving for any reason other than in an
emergency is dangerous. Stopping the
engine while the vehicle is moving will
result in reduced braking ability due to the
loss of power braking, which could cause
an accident and serious injury.

1. Stop the vehicle completely.
2. (Manual transaxle)

Shift into neutral and set the parking
brake.
(Automatic transaxle)
Shift the selector lever to the P
position and set the parking brake.

3. Press the push button start to turn off

the engine. The ignition position is off.

CAUTION

When leaving the vehicle, make sure the

push button start is off.

NOTE



(SKYACTIV-G 2.0, SKYACTIV-G 2.5)
The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the A/C
is on or off, to cool the engine
compartment quickly.

When Driving

Start/Stop Engine

4-10

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-38.
(Vehicle equipped with Type A/B
instrument cluster)
A message is indicated in the display of
the instrument cluster.
(Vehicle equipped with Type C
instrument cluster)
The KEY indicator light (green) flashes
for approximately 30 seconds.
Refer to Taking Action on page 7-32.



(Automatic transaxle)
If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.

▼ Emergency Engine Stop

Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.

When Driving

Start/Stop Engine

4-11

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

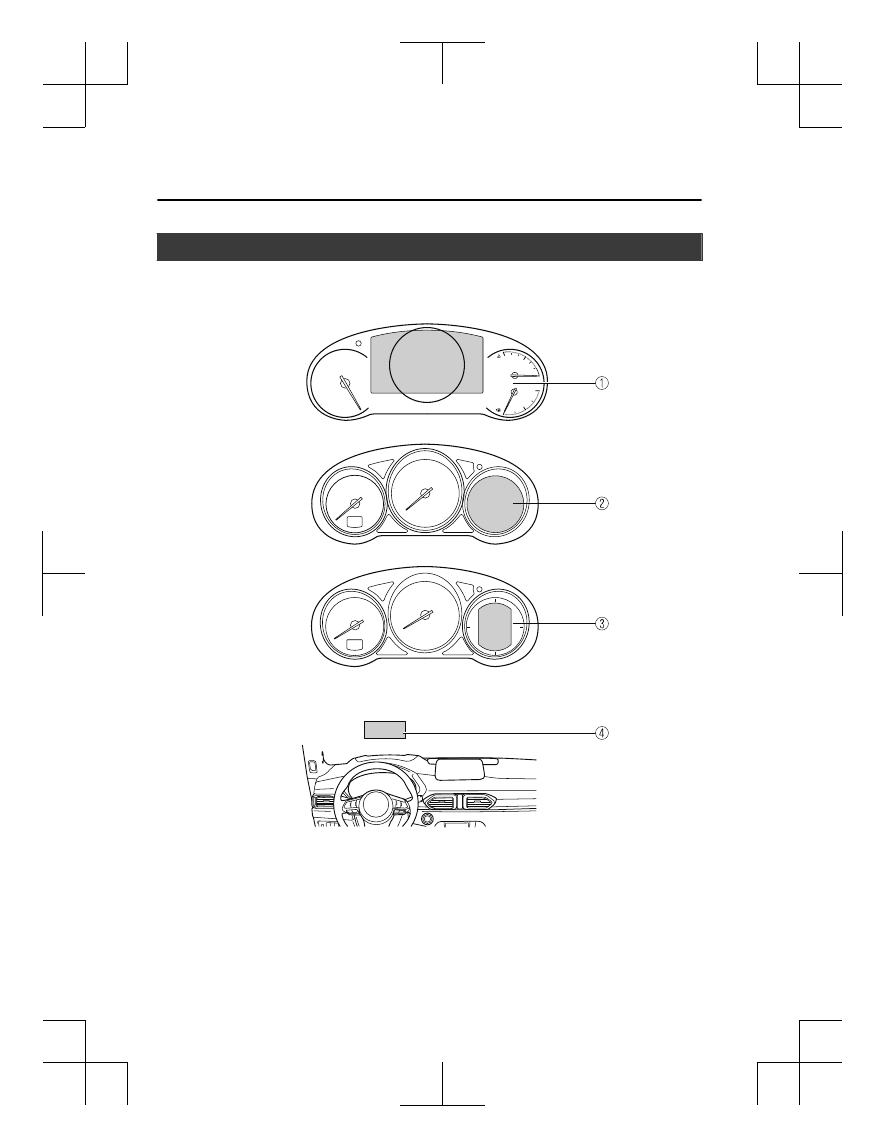

Instrument Cluster and Display

Instrument Cluster

Type A

Type B

Type C

Active Driving Display

①

Instrument Cluster (Type A)................................................................................. page 4-13

②

Instrument Cluster (Type B)..................................................................................page 4-29

③

Instrument Cluster (Type C)..................................................................................page 4-44

④

Active Driving Display......................................................................................... page 4-56

When Driving

Instrument Cluster and Display

4-12

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

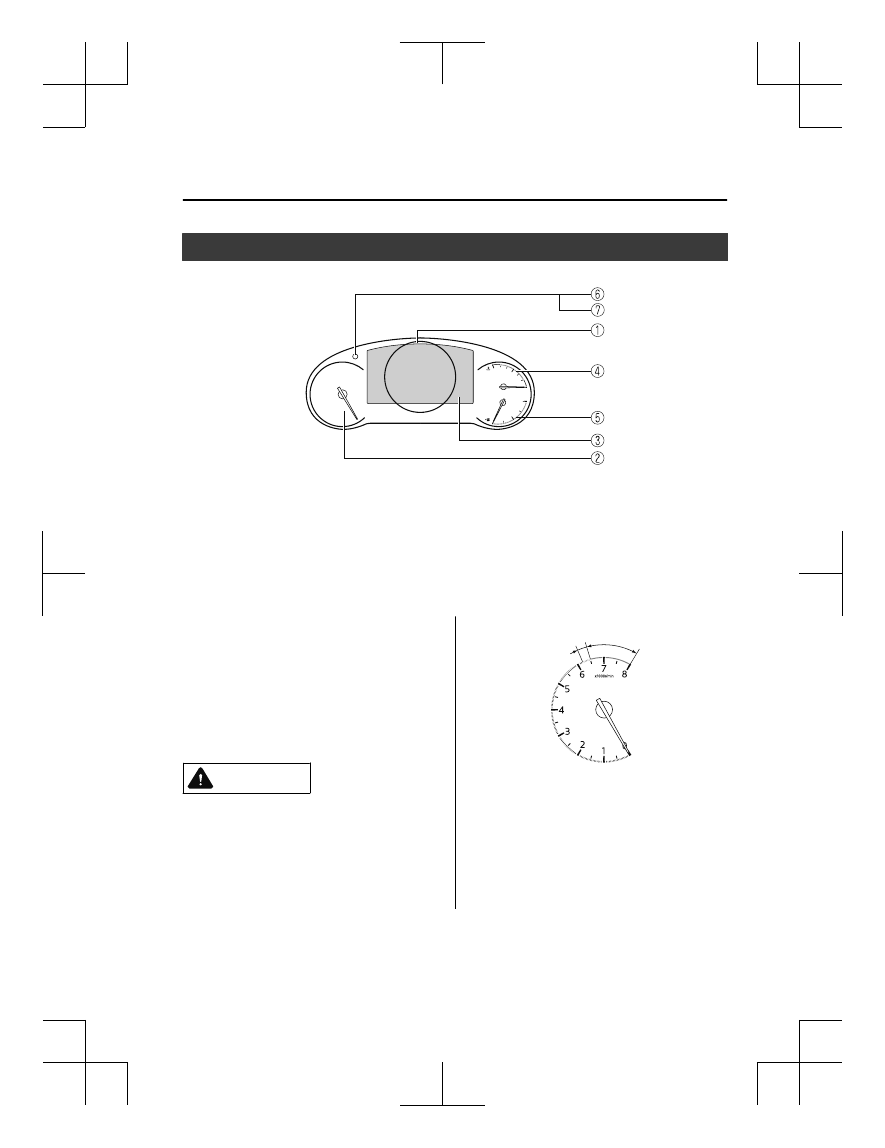

Instrument Cluster (Type A)

①

Speedometer..........................................................................................................page 4-13

②

Tachometer............................................................................................................ page 4-13

③

Multi-information Display (Type A).....................................................................page 4-14

④

Engine Coolant Temperature Gauge..................................................................... page 4-17

⑤

Fuel Gauge............................................................................................................ page 4-18

⑥

Dashboard Illumination.........................................................................................page 4-19

⑦

Speed Unit Selector...............................................................................................page 4-19

▼ Speedometer

The speedometer indicates the speed of the
vehicle.

▼ Tachometer

The tachometer shows engine speed in
thousands of revolutions per minute (rpm).

CAUTION

Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

STRIPED ZONE

RED ZONE

The range varies depending on the type
of gauge.

NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

When Driving

Instrument Cluster and Display

4-13

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Mazda CX-5 (2019 year). Manual - part 10
