Mazda CX-3 (2019 year). Manual

Vehicle Information

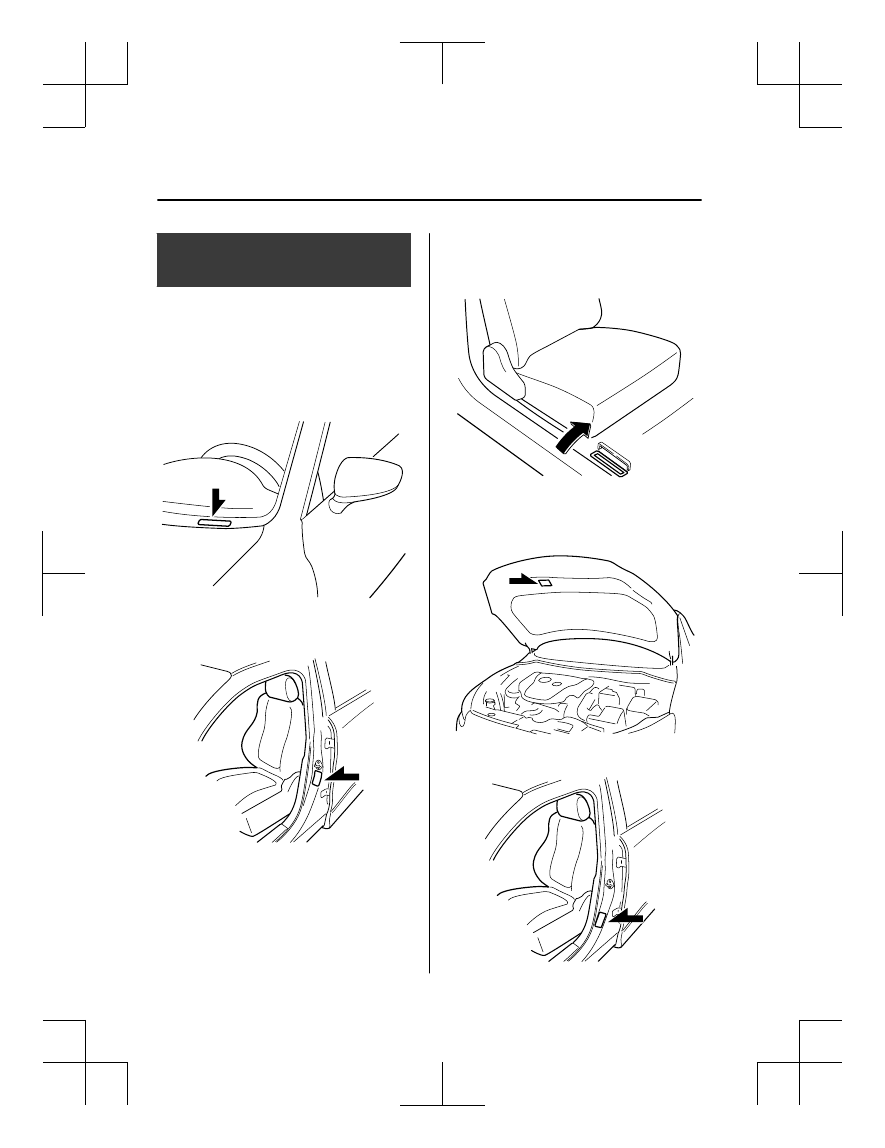

Labels

▼ Vehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.

▼ Motor Vehicle Safety Standard

Label (U.S.A. and Canada)

▼ Chassis Number

Open the cover shown in the figure to
check the chassis number.

▼ Vehicle Emission Control

Information Label (U.S.A. and
Canada)

▼ Tire Pressure Label

Specifications

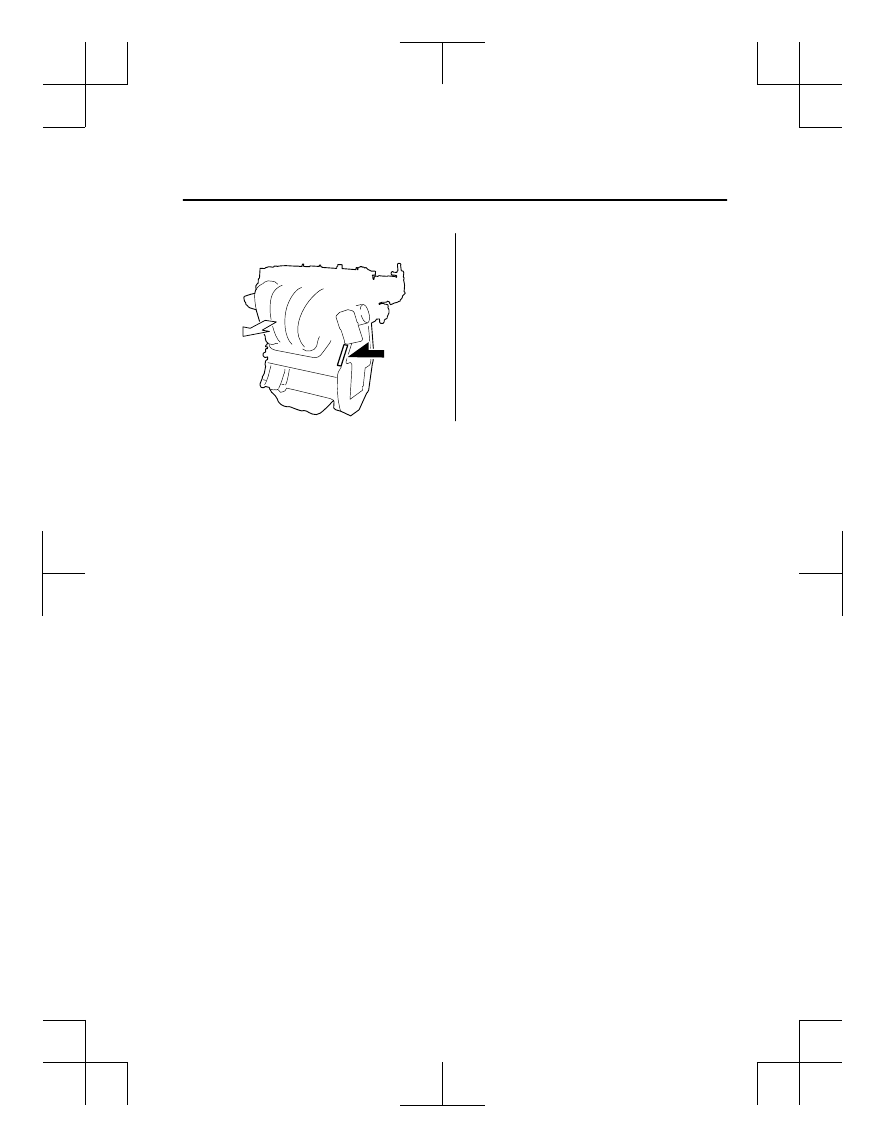

Identification Numbers

9-2

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Specifications

▼ Engine

Item

Specification

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

83.5 × 91.2 mm (3.29 × 3.59 in)

Displacement

1,997.6 ml (1,997.6 cc)

Compression ratio

13.0

▼ Electrical System

Item

Specification

Battery

Canada

12V-65Ah/20HR

Except Canada

12V-60Ah/20HR or 12V-65Ah/20HR

Spark-plug number

Mazda Genuine spark
plug

PE5R-18-110 or PE5S-18-110

1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer

for details.

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.

▼ Lubricant Quality

Lubricant

Specification

Engine oil

Refer to Recommended Oil on page 6-22.

Coolant

FL-22 type

Manual transaxle oil

API Service

GL-4

SAE

75W-80

Automatic transaxle fluid

Mazda Genuine ATF-FZ

Transfer case oil

Mazda Long Life Hypoid Gear Oil SG1

Rear differential oil

Mazda Long Life Hypoid Gear Oil SG1

Brake/Clutch fluid

SAE J1703 or FMVSS116 DOT-3

NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.

Specifications

9-4

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Capacities

(Approximate Quantities)

Item

Capacity

Engine oil

With oil filter replacement

4.2 L (4.4 US qt, 3.7 Imp qt)

Without oil filter replacement

4.0 L (4.2 US qt, 3.5 Imp qt)

Coolant

Manual transaxle

5.6 L (5.9 US qt, 4.9 Imp qt)

Automatic transaxle

U.S.A. and Canada

5.9 L (6.2 US qt, 5.2 Imp qt)

Mexico

6.1 L (6.4 US qt, 5.4 Imp qt)

Manual transaxle fluid

1.70 L (1.80 US qt, 1.50 Imp qt)

Automatic transaxle fluid

7.8 L (8.2 US qt, 6.9 Imp qt)

Transfer case oil

0.40 L (0.42 US qt, 0.35 Imp qt)

Rear differential oil

0.35 L (0.37 US qt, 0.31 Imp qt)

Fuel tank

2WD

48.0 L (12.7 US gal, 10.6 Imp gal)

AWD

45.0 L (11.9 US gal, 9.90 Imp gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

▼ Dimensions

U.S.A. and Canada

Item

Vehicle specification

Overall length

4,275 mm (168.3 in)

Overall width

1,765 mm (69.5 in)

Overall height

1,550 mm (61.0 in)

Front tread

1,525 mm (60.0 in)

Rear tread

1,520 mm (59.8 in)

Wheelbase

2,570 mm (101.2 in)

Mexico

Item

Vehicle specification

Overall length

4,275 mm (168.3 in)

Overall width

1,765 mm (69.5 in)

Overall height

1,545 mm (60.8 in)

Front tread

1,525 mm (60.0 in)

Rear tread

1,520 mm (59.8 in)

Wheelbase

2,570 mm (101.2 in)

Specifications

9-5

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Weights

U.S.A. and Canada

Item

Weight

2WD

AWD

Automatic transaxle

Manual transaxle

GVWR (Gross Vehicle Weight
Rating)

1,742 kg (3,840 lbs)

1,700 kg (3,748 lbs)

1,810 kg (3,990 lbs)

GAWR (Gross Axle
Weight Rating)

Front

933 kg (2,057 lbs)

900 kg (1,984 lbs)

958 kg (2,112 lbs)

Rear

812 kg (1,790 lbs)

808 kg (1,781 lbs)

860 kg (1,896 lbs)

Mexico

Item

Weight

With moonroof

Without moonroof

GVW (Gross Vehi-
cle Weight)

Total

1,762 kg (3,885 lbs)

1,751 kg (3,860 lbs)

Front

924 kg (2,037 lbs)

918 kg (2,024 lbs)

Rear

838 kg (1,847 lbs)

833 kg (1,836 lbs)

GAW (Permissible
axle load)

Front

939 kg (2,070 lbs)

933 kg (2,057 lbs)

Rear

887 kg (1,955 lbs)

▼ Air Conditioner

The type of refrigerant used is indicated on a label attached to the inside of the engine com-
partment. Check the label before recharging the refrigerant. Refer to Climate Control Sys-
tem on page 5-4.

Item

Specification

Refrigerant Type

HFC134a (R-134a)

▼ Light Bulbs

Exterior light

Light bulb

Category

Wattage

UNECE

(SAE)

Headlights

Halogen head-
lights

High beam/Daytime run-
ning lights

HB3 (9005)

Low beam

H11 (H11)

LED headlights

High beam

LED

― (―)

Low beam

LED

― (―)

Specifications

9-6

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Light bulb

Category

Wattage

UNECE

(SAE)

Parking lights/Front side-marker
lights

With halogen headlights

W5W (―)

Parking lights/Daytime running
lights

With LED headlights

LED

― (―)

Front side-marker lights

With LED headlights

LED

― (―)

Front turn signal lights

― (1156NA)

Fog lights

LED

― (―)

Side turn signal lights

LED

― (―)

High-mount brake light

LED

― (―)

Rear turn signal lights

WY21W (7443NA)

Rear side-marker lights

Bulb type

W5W (―)

LED type

LED

― (―)

Brake lights/Taillights

Bulb type

21/5

W21/5W (7443)

LED type

LED

― (―)

Reverse lights

Bulb type

W16W (921)

LED type

LED

― (―)

Taillights

LED type

LED

― (―)

License plate lights

W5W (―)

1 UNECE stands for United Nations Economic Commission for Europe.

2 LED is the abbreviation for Light Emitting Diode.

Interior light

Light bulb

Category

Wattage

UNECE

Overhead light (Front)/Map lights

―

Overhead light (Rear)

―

Luggage compartment light

―

1 UNECE stands for United Nations Economic Commission for Europe.

▼ Tires

NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 6-36.

Specifications

*Some models.

9-7

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Standard tire

(U.S.A. and Canada)

Tire size

Inflation pressure

Front

Rear

P215/60R16 94H

250 kPa (36 psi)

240 kPa (35 psi)

P215/50R18 92V

250 kPa (36 psi)

240 kPa (35 psi)

(Mexico)

Tire size

Inflation pressure

Up to 3 persons

―Full load

215/60R16 95V

Front

230 kPa (2.3 bar, 33 psi)

260 kPa (2.6 bar, 38 psi)

Rear

210 kPa (2.1 bar, 30 psi)

330 kPa (3.3 bar, 48 psi)

215/50R18 92V

Front

230 kPa (2.3 bar, 33 psi)

260 kPa (2.6 bar, 38 psi)

Rear

210 kPa (2.1 bar, 30 psi)

330 kPa (3.3 bar, 48 psi)

1 person's weight: About 75 kg

Temporary spare tire

(U.S.A. and Canada)

Tire size

Inflation pressure

T125/90D16 98M

420 kPa (60 psi)

(Mexico)

Tire size

Inflation pressure

185/60R16 86M

300 kPa (3.0 bar, 44 psi)

Lug nut tightening torque

When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)

▼ Fuses

Refer to Fuses on page 6-48.

Specifications

9-8

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Personalization Features

The following personalization features can be set or changed by an Authorized Mazda Deal-
er. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer depend-
ing on the feature.
Personalization features and settings which can be changed differ depending on the market
and specification.

Settings Change Method

Settings can be changed by operating the center display screen.

A: Refer to Settings on page 5-112.
B: Refer to Fuel Economy Monitor on page 4-71.
C: Refer to Active driving display on page 4-21.

Settings can be changed by operating the vehicle switches.

D: Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-126.
E: Refer to Auto Lock/Unlock Function on page 3-16.
F: Refer to Transmitter on page 3-4.
G: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function)
on page 3-13.

Settings can be changed by an Authorized Mazda Dealer.

Item

Feature

Factory Set-

ting

Available Settings

Settings

Change
Method

Safety

Smart City Brake Support
(SCBS) (page 4-123)

The system can be changed so
that Smart City Brake Support
(SCBS) does not operate.

On/Off

A D ―

Advanced Smart City
Brake Support (Advanced
SCBS) (page 4-119)
Smart Brake Support (SBS)
(page 4-127)

The system can be changed so
that Smart City Brake Support
(Advanced SCBS)/Smart Brake
Support (SBS) does not oper-
ate.

On/Off

A ―

The distance at which the colli-
sion warning activates can be
changed.

Med.

Near/Med./Far

A ―

The volume of the collision
warning can be changed.

High

High/Low/Off

A ―

Specifications

Personalization Features

9-9

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Item

Feature

Factory Set-

ting

Available Settings

Settings

Change
Method

Lane Departure Warning
System (LDWS) (page
4-84)

The warning timing in which
the Lane Departure Warning
System (LDWS) determines
that the vehicle may be deviat-
ing from its lane can be
changed.

At/Before

A ―

The sensitivity of the warning
for the Lane Departure Warning
System (LDWS) can be
changed.

Low

High/Low

A ―

Warning beep sound

Beep

Beep/Rumbl.

A ―

Warning beep volume

Rumbl.

Low

High/Mid/Low

A ―

Beep

Low

High/Low

A ―

Blind Spot Monitoring
(BSM) (page 4-90)

The system can be changed so
that Blind Spot Monitoring
(BSM) does not operate.

On/Off

A ―

Warning beep volume

High

High/

Low/

Off

A ―

Traffic Sign Recognition
System (TSR)

(page 4-

96)

The Traffic Sign Recognition
System (TSR) can be set to in-
operable.

On/Off

A ―

The warning pattern of the ex-
cessive speed warning can be
changed.

Off

Off/

Visual/

Audio & Visual

A ―

The activation timing for the
excessive speed warning can be
changed.

0/ 5/ 10

A ―

Distance Recognition Sup-
port System (DRSS) (page
4-102)

The system can be changed so
that Distance Recognition Sup-
port System (DRSS) does not
operate.

On/Off

A ―

The distance at which the vehi-
cle ahead and your vehicle indi-
cated in the display flashes in
white can be changed.

Near

Far/Med./Near

A ―

Specifications

Personalization Features

9-10

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Item

Feature

Factory Set-

ting

Available Settings

Settings

Change
Method

Vehicle

Door locks (page 3-16)

Operation condition of auto
lock/unlock function

Lock: When
Driving Un-

lock: IGN Off

Lock: Out of Park

Unlock: In Park/

Lock: Shifting Out of

Park/

Lock: When Driving

Unlock: In Park/

Lock: When Driving

Unlock: IGN Off/

Lock: When Driving/

Off

A E

Keyless entry system (page
3-3)

The method for unlocking the
doors using the transmitter can
be changed.

Driver's: Once,

All Doors:

Twice

All Doors: Once/

Driver's: Once, All

Doors: Twice

A F

The time required for the doors
to relock automatically after
unlocking with the transmitter
can be changed.

60 seconds

90 seconds/
60 seconds/

30 seconds

A ―

Advanced keyless entry
system (page 3-9)

The method for unlocking the
doors using the request switch/
transmitter can be changed.

Driver's: Once,

All Doors:

Twice

All Doors: Once/

Driver's: Once, All

Doors: Twice

F,
G

The volume of the answer-back
beep during advanced keyless
entry system operation can be
changed.

Medium

High/

Medium/

Low/

Off

A G

The function to automatically
lock the doors when leaving the
vehicle while carrying the key
can be changed.

Off

On/Off

A ―

The time required for the doors
to relock automatically after
unlocking with the request
switch/transmitter can be
changed.

60 seconds

90 seconds/
60 seconds/

30 seconds

A ―

Illuminated entry system
(page 5-127)

Time until interior lights turn
off after closing door

15 seconds

60 seconds/
30 seconds/
15 seconds/
7.5 seconds

A ―

Time until interior lights turn
off automatically when any
door is not closed completely

30 minutes

60 minutes/
30 minutes/

10 minutes

A ―

Specifications

Personalization Features

9-11

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Item

Feature

Factory Set-

ting

Available Settings

Settings

Change
Method

Auto-wiper control (page
4-49)

Operational/non-operational

On/Off

A ―

Daytime running lights
(page 4-47)

Operational/non-operational

On/Off

A ―

Auto headlight off

(page

4-43)

Time until headlights turn off

30 seconds

120 seconds/

90 seconds/
60 seconds/
30 seconds/

Off

A ―

Auto-light control (page
4-43)

Timing by which lights turn on

Medium

High/

Med.High/

Medium/

Med.Low/

Low

A ―

High Beam Control System
(HBC) (page 4-81)

Operational/non-operational

On/Off

A ―

Adaptive Front Lighting
System (AFS) (page 4-80)

Operational/non-operational

On/Off

A ―

Lights-on reminder

(page

7-43)

Warning beep volume

High

High/Low/Off

A ―

Coming home light (page
4-46)

Time until headlights turn off

30 seconds

120 seconds/

90 seconds/
60 seconds/
30 seconds/

Off

A ―

Leaving home light (page
4-47)

Operational/non-operational

On/Off

A ―

Turn indicator (page 4-48) Beep volume

High

High/Low

A ―

Three-flash turn signal
(page 4-49)

Operational/non-operational

On/Off

A ―

Rear window defogger
(page 4-53)

The operation time for the rear
window defogger can be
changed.

15 minutes

15 minutes/

Continuous

― ―

Specifications

Personalization Features

9-12

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Item

Feature

Factory Set-

ting

Available Settings

Settings

Change
Method

System

Language

Language indicated in display

US English

Depends on mar-

ket

*10

A ―

Temperature

Temperature unit indicated in
display

°F

°F/°C

A ―

Distance

Distance unit indicated in dis-
play

mi/km

A ―

Fuel Economy Monitor (page 4-71)

Ending display

Display/non-display

Off

On/Off

B ―

Fuel economy resetting
procedure

Linkage/non-linkage with fuel
economy reset and trip meter
reset

Off

On/Off

B ―

Active Driving Display (page 4-21)

Display

Setting can be changed so that
the Active Driving Display is
not displayed.

On/Off

C ―

The display height (up/down
position) can be changed.

13 steps up/down

from initial setting

(total: 27 steps)

C ―

The method for adjusting the
display brightness (automatical-
ly/manually) can be changed.

Auto

Auto/Man.

C ―

The standard brightness while
automatic adjustment is select-
ed can be changed using the
brightness adjustment.

2 steps up/down from
initial setting (total: 5

steps)

C ―

The standard brightness while
manual adjustment is selected
can be changed using the
brightness adjustment.

20 steps up/down

from initial setting

(total: 41 steps)

C ―

Navigation guidance

Display/non-display

On/Off

C ―

1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda

recommends that these systems remain On.

2 For vehicles with an audio system other than the on-screen function type, the warning sound cannot be

changed. The warning sound is only a beep.

3 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The

volume of the warning beep during Rear Cross Traffic Alert (RCTA) operation cannot be changed.

4 This system functions only when the navigation system is functioning.

5 If the auto-wiper control is set to Off, the wiper lever

position is set to intermittent operation.

Specifications

Personalization Features

9-13

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

6 If the setting is changed to Off, the following operation is performed according to the headlight switch

position:

•

position: Headlights turn off immediately after the ignition is switched off.

•

At any position other than

: Headlights do not turn off after the ignition is switched off.

7 When set to Off, the lights-on reminder is operable.

8 The setting of the lights-on reminder can be changed with the time setting of auto headlight off function set to

Off.
Refer to Lights-On Reminder on page 7-43.

9 The operation may stop in 15 minutes due to the effect of the outside temperature even if the operation time of

the rear window defogger has been changed to Continuous.

10 Available only in display from the center display.

Specifications

Personalization Features

9-14

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Index

Accessory Socket............................ 5-128
Active Driving Display.....................4-21
Adaptive Front Lighting System
(AFS).................................................4-80
Add-On Non-Genuine Parts and
Accessories........................................8-19
Advanced Key

Advanced keyless entry system.....3-9
Operational range........................ 3-10

Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-119

Collision warning...................... 4-121
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-121
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................4-121

Air Bag Systems............................... 2-45
Air Bag/Front Seat Belt Pretensioner
System Warning Beep.......................7-43
Ambient Temperature Display.......... 4-18
Antilock Brake System (ABS)..........4-67
Audio Control Switch

Adjusting the Volume..................5-16
Seek Switch................................. 5-16

Audio Set [Type A (non-touchscreen)]

AUX.............................................5-24
Bluetooth®.................................. 5-31
Clock............................................5-22
Error Indications..........................5-30
iPod mode....................................5-28
Power/Volume/Sound Controls... 5-20
Radio............................................5-23
Troubleshooting...........................5-60
USB............................................. 5-25
Voice Recognition....................... 5-56

Audio Set [Type B (touchscreen)]

Applications............................... 5-114
AUX.............................................5-78

Bluetooth®.................................. 5-84
Radio............................................5-71
Satellite Radio............................. 5-75
Settings...................................... 5-112
Troubleshooting......................... 5-115
USB............................................. 5-79
Voice Recognition......................5-110
Volume/Display/Sound
Controls....................................... 5-69

Audio System

Antenna........................................5-19
Appendix................................... 5-120
Audio Control Switch................. 5-16
Audio Set [Type A (non-
touchscreen)]............................... 5-20
Audio Set [Type B
(touchscreen)].............................. 5-64
AUX/USB mode..........................5-17
Before Using the Audio
System......................................... 5-16

AUTOHOLD.....................................4-61
AUTOHOLD Warning Beep.............7-46
Automatic Transaxle

Active Adaptive Shift (AAS)...... 4-34
Automatic transaxle controls.......4-32
Direct mode................................. 4-41
Driving tips..................................4-42
Manual shift mode.......................4-35
Shift-lock system.........................4-33
Transaxle ranges..........................4-33

Battery............................................... 6-32

Maintenance.................................6-34
Replacement................................ 6-34
Specifications.................................9-4

Battery runs out.................................7-18

Jump-Starting...............................7-18

Beep Sounds

10-2

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Index

Electric parking brake (EPB)
warning........................................ 7-45

Blind Spot Monitoring (BSM).......... 4-90

Canceling operation of Blind Spot
Monitoring (BSM).......................4-95

Blind Spot Monitoring (BSM) Warning
Beep...................................................7-46
Bluetooth® [Type A (non-touchscreen)]

Bluetooth® Audio....................... 5-46
Bluetooth® Hands-Free...............5-48
Bluetooth® Preparation...............5-34

Bluetooth® [Type B (touchscreen)]

Bluetooth® Audio....................... 5-90
Bluetooth® Hands-Free.............5-100
Bluetooth® Preparation...............5-87

Body Lubrication.............................. 6-28
Bottle Holder...................................5-131
Brakes

Brakes assist................................ 4-60
Electric Parking Brake (EPB)......4-57
Foot brake....................................4-56
Pad wear indicator.......................4-59
Parking brake...............................4-57
Warning light...............................4-59

Break-In Period................................. 3-43

Capacities............................................ 9-5
Carbon Monoxide............................. 3-26
Cell Phones....................................... 8-20
Center Console................................5-132
Child Restraint

Categories of child-restraint
systems.........................................2-28
Child-restraint precautions.......... 2-23
Child-restraint system
installation................................... 2-28
Child-restraint system suitability for
various seat positions table..........2-30

Installing child-restraint
systems.........................................2-33
LATCH child-restraint systems... 2-41

Child Safety Locks for Rear Doors... 3-19
Climate Control System......................5-4

Fully Automatic Type..................5-12
Gas specifications..........................9-6
Manual Type..................................5-7
Operating Tips............................... 5-4
Vent Operation...............................5-5

Collision warning..............................7-47
Coming Home Light......................... 4-46
Cruise Control................................. 4-140

Cruise Control Switch............... 4-140
Cruise main indication
(white)........................................4-141
Cruise set indication (white)/indicator
light (green)............................... 4-141

Cruise Control Set Vehicle Speed
Display.............................................. 4-18
Cup Holder......................................5-129
Customer Assistance........................... 8-2

Dashboard Illumination.....................4-17
Daytime Running Lights...................4-47
Defogger

Mirror...........................................4-54
Rear window............................... 4-53

Dimensions..........................................9-5
Distance Recognition Support System
(DRSS)............................................ 4-102
Door Locks........................................3-11
Drive selection.................................. 4-73
Driving In Flooded Area...................3-47
Driving on Uneven Road.................. 3-49
Driving Tips

Automatic transaxle.....................4-42
Break-in period............................3-43
Driving in flooded area............... 3-47

10-3

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Mazda CX-3 (2019 year). Manual - part 37
