Mazda CX-3 (2019 year). Manual - part 36





Vehicle Loading

WARNING

Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow a
trailer and doing so will affect the drive system which could result in vehicle damage.

This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will provide
maximum return of vehicle design performance. Before loading your vehicle, familiarize
yourself with the following terms for determining your vehicle's weight ratings, from the
vehicle's Safety Certification Label and Tire and Load Information Label:

WARNING

Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious consequences
in terms of passenger safety. Too much weight on a vehicle's suspension system can cause
spring or shock absorber failure, brake failure, handling or steering problems, irregular tire
wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely, particularly
on steep grades. The load a tire will carry safely is a combination of the size of the tire, its load
range, and corresponding inflation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the vehicle's
Safety Certification and Tire and Load Information labels.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-36

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Base Curb Weight is the weight of the vehicle including a full tank of fuel and all
standard equipment. It does not include passengers, cargo, or optional equipment.

Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.


PAYLOAD

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-37

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

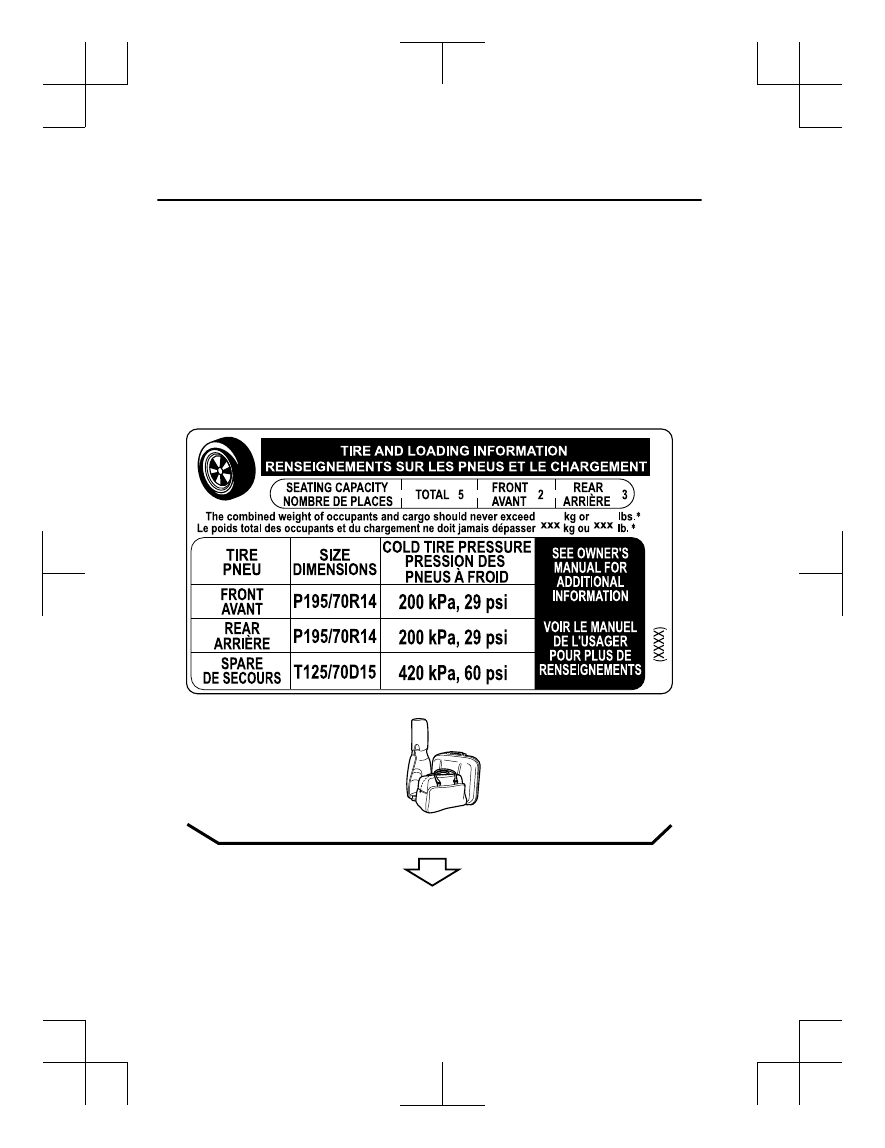

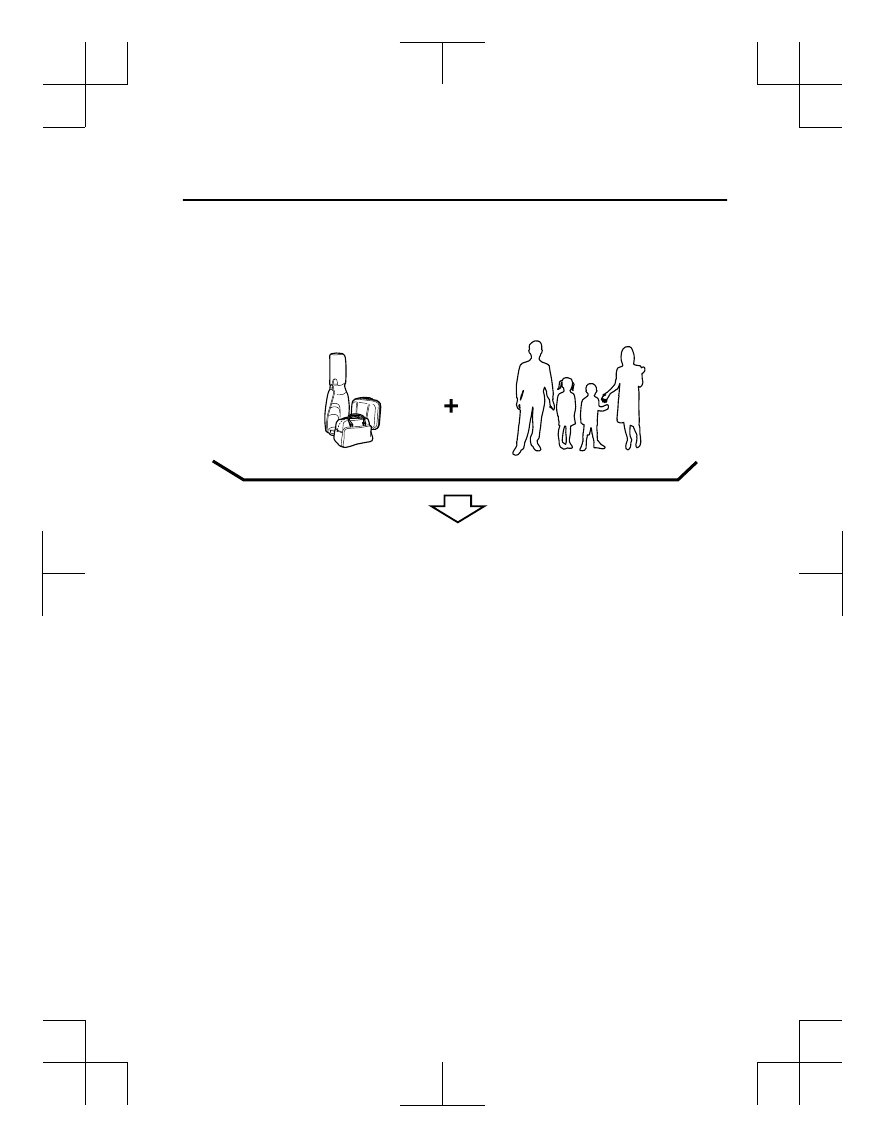

Payload is the combination weight of cargo and passengers that the vehicle is designed to
carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for “THE COMBINATION
WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER EXCEED XXX kg or XXX
lbs” for your maximum payload. The payload listed on the tire label is the maximum
payload for the vehicle as built by the assembly plant. If any aftermarket or dealer installed
equipment has been installed on the vehicle, the weight of the equipment must be subtracted
from the payload listed on the tire label in order to be accurate.

SAMPLE




CARGO

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-38

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Cargo Weight includes all weight added to the Base Curb Weight, including cargo and
optional equipment.

The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed” value on the tire
label.

Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg (849
lbs) for the “combination weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg (849 lbs) － 68 kg (150 lbs) = 317 kg
(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs) － (68 × 2) kg ( (150 × 2)
lbs) = 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.

GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.

GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certification Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.


GVW

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-39

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

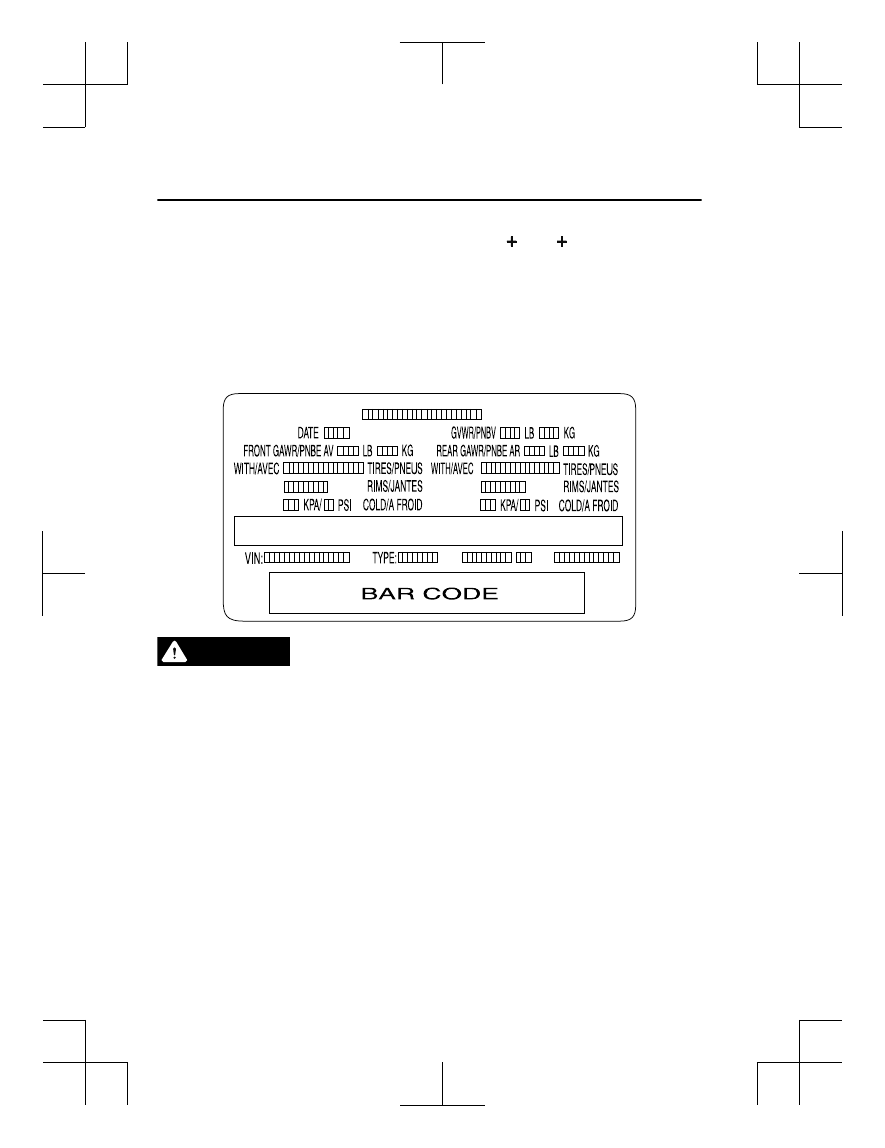

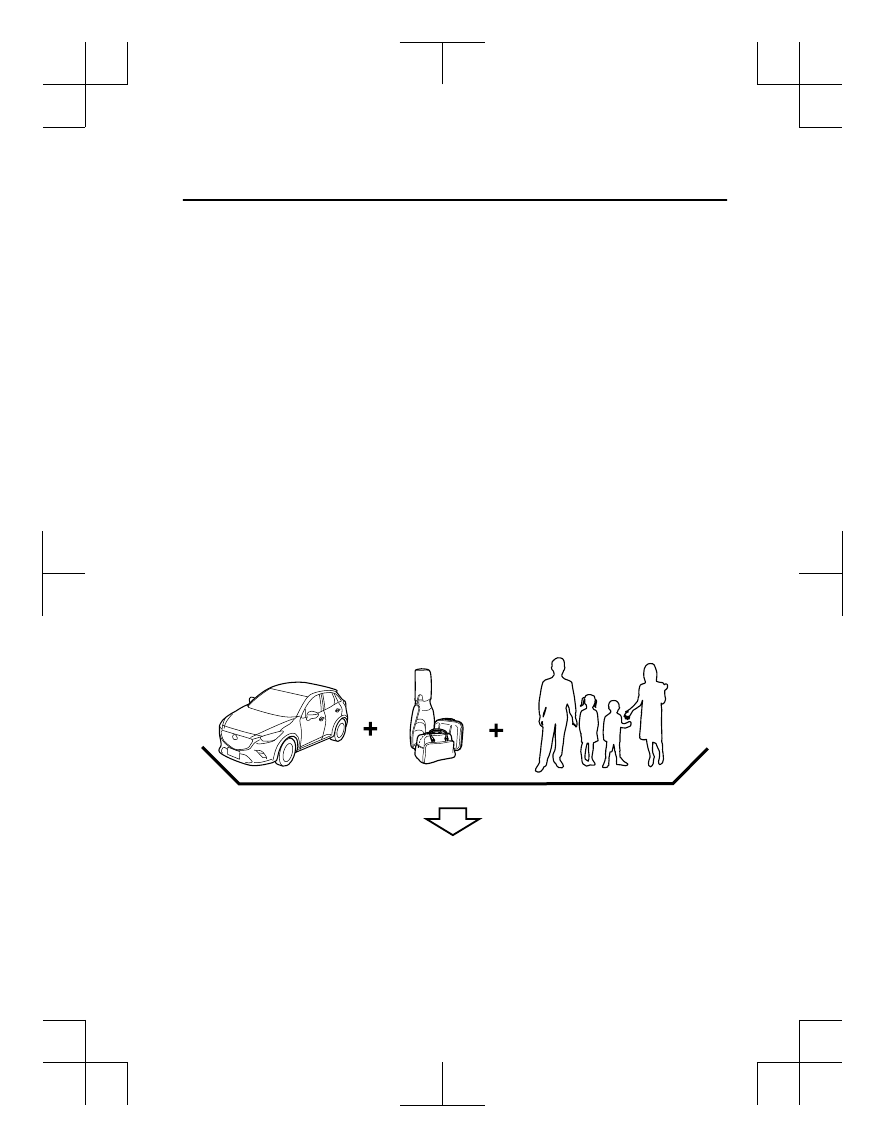

GVW (Gross Vehicle Weight) is the Vehicle Curb Weight   cargo   passengers.

GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.

SAMPLE


WARNING

Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage, serious damage to the vehicle, or loss of
control.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-40

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Always keep the vehicle within the axle weight rating limits.



GCW

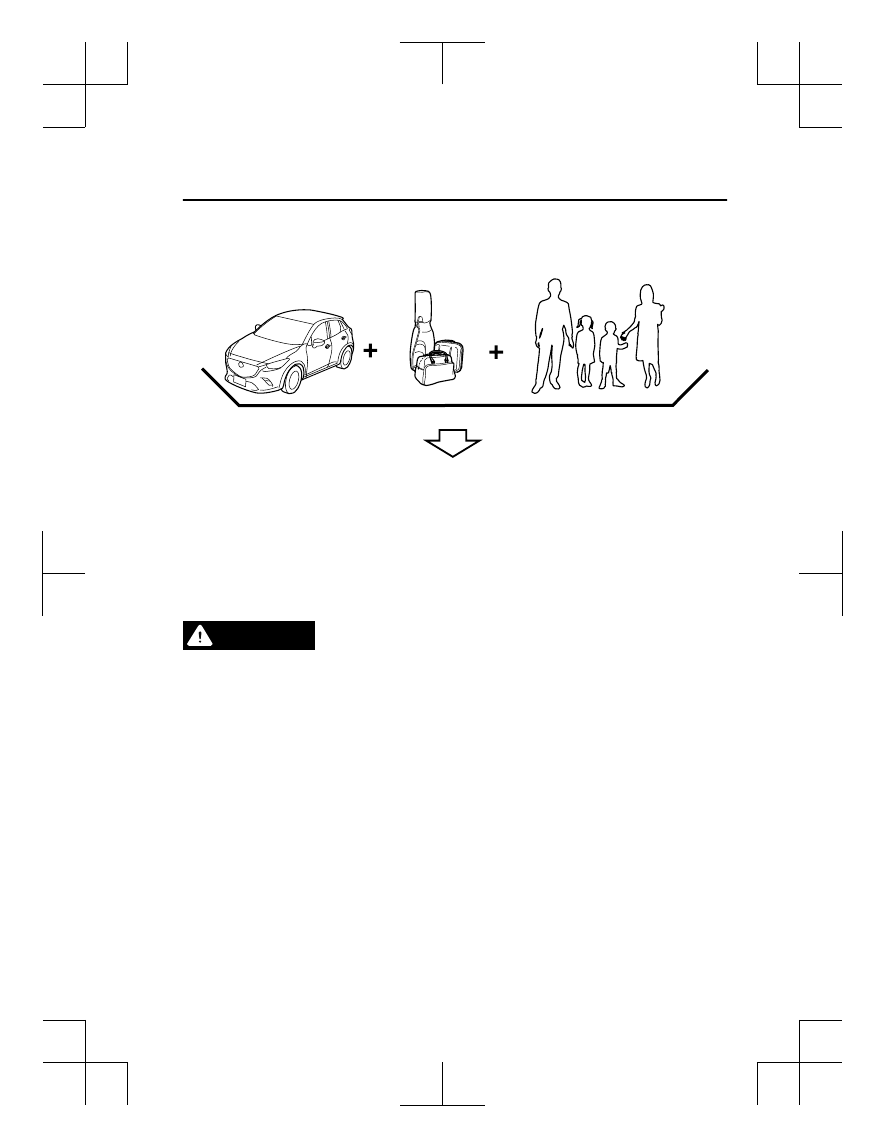

GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).

GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.


WARNING

Never Exceed GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous. Exceeding
any vehicle rating limitation could result in a serious accident, injury, or damage to the
vehicle.
Do not use replacement tires with lower load carrying capacities than the originals because
they may lower the vehicle's GVWR and GAWR limitations. Replacement tires with a higher
limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specified on the certification label.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-41

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Steps for Determining the Correct Load Limit

Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never

exceed XXX kg or XXX lbs.” on your vehicle's placard.

(2) Determine the combined weight of the driver and passengers that will be riding in your

vehicle.

(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity. For

example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400 － 750 (5 × 150) = 650 lbs.)

(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That

weight may not safely exceed the available cargo and luggage load capacity calculated
in Step 4.

(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your

vehicle. Consult this manual to determine how this reduces the available cargo and
luggage load capacity of your vehicle.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-42

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Declaration of Conformity

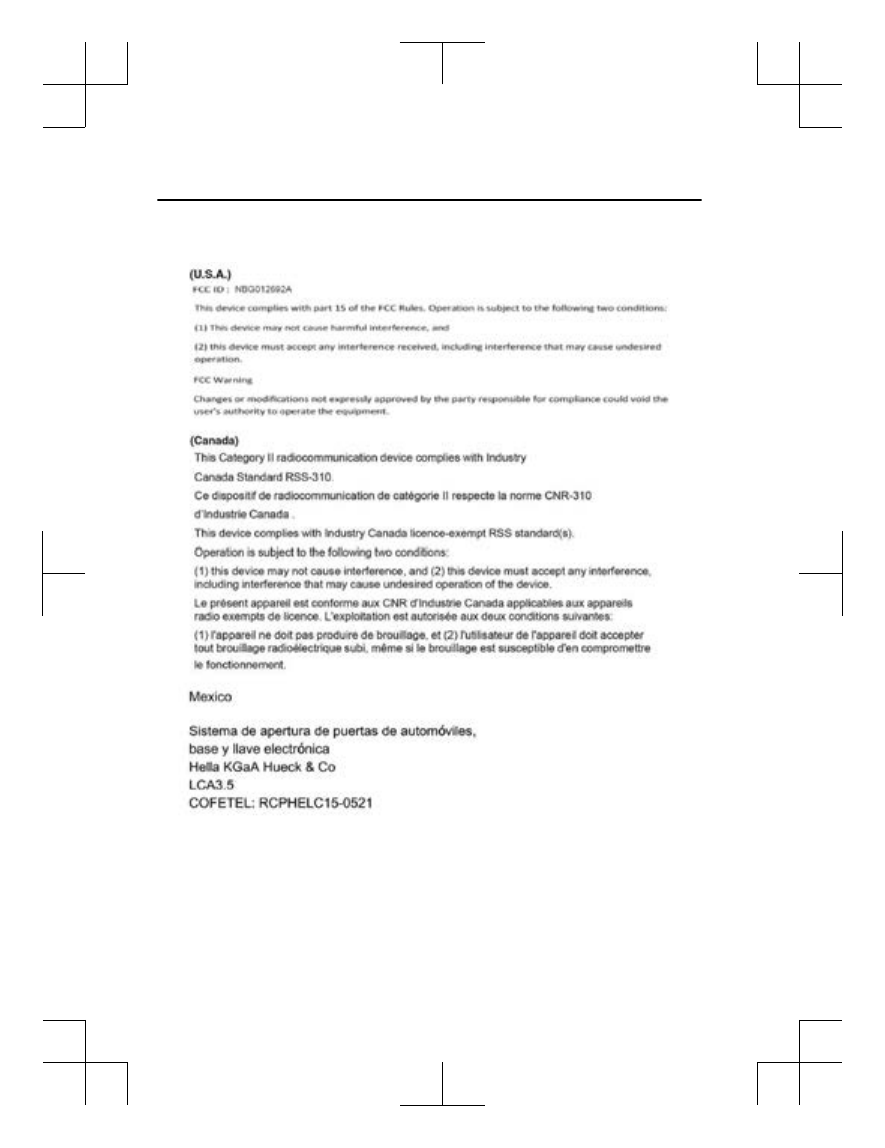

▼ Keyless Entry System/Immobilizer System

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-43

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

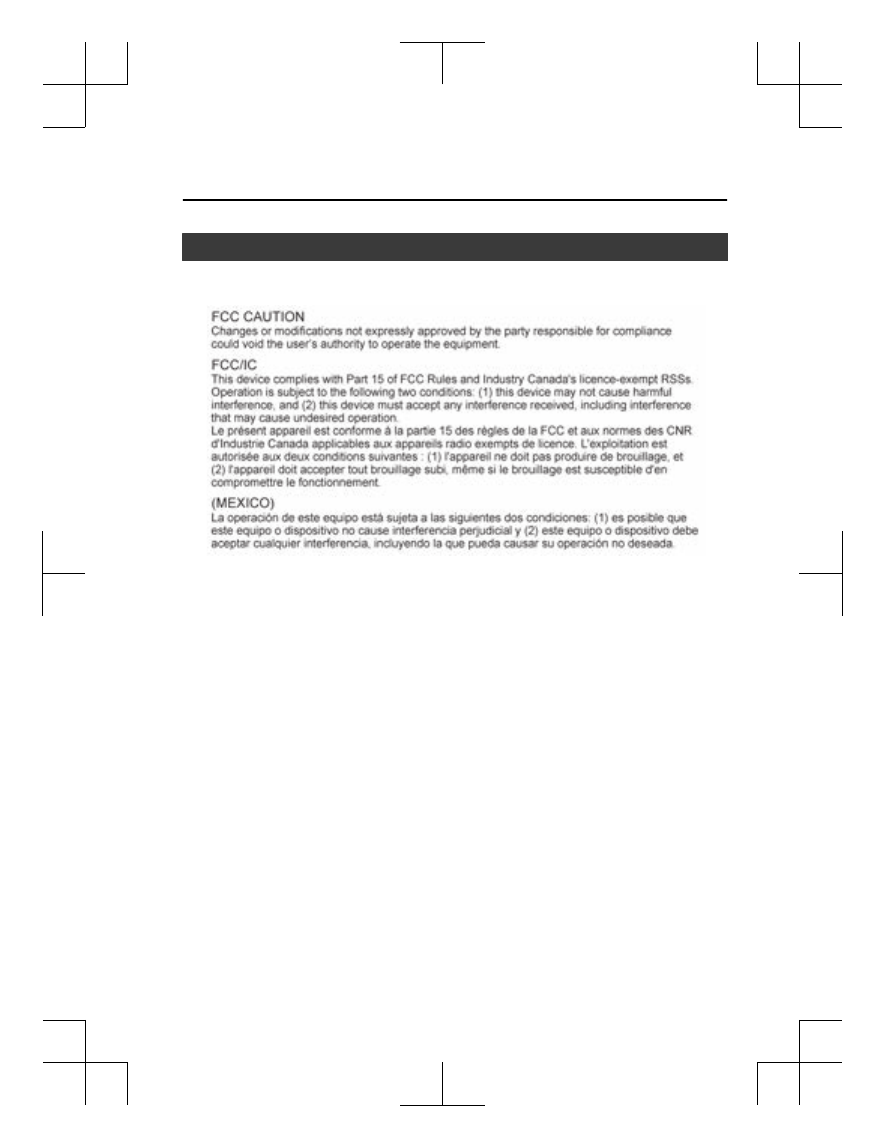

▼ Blind Spot Monitoring (BSM) System

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-44

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Tire Pressure Monitoring System

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-45

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Bluetooth

®

 Hands-Free

Type A

U.S.A. and Canada

FCC ID: NT8MBLUEC09 IC:3043A-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may

cause undesired operation.

WARNING

Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

The term “IC: ” before the radio certification number only signifies that Industry Canada
technical specifications were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Mazda Bluetooth

®

 Hands-Free Customer Service

•

U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.mazdausa.com/mazdaconnect

•

Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-46

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Mexico

•

Brief description: Bluetooth module for Hands-free telephone and streaming audio

•

Name and address of the importer: Refer to "MEXICO" (page 8-13) in Importer/
Distributor section.

•

Brand name of the product: Visteon Corporation.

•

Model name of the product: MAZ

•

Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-13) in Importer/Distributor section.

•

Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-13) in Importer/Distributor section.

•

Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet for detailed warranty information.

•

Warranty procedure:
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx

•

Electrical specifications:
Voltage: 9-16V, Frequency: 2.4Ghz, Current: 270mA(Typ)

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-47

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

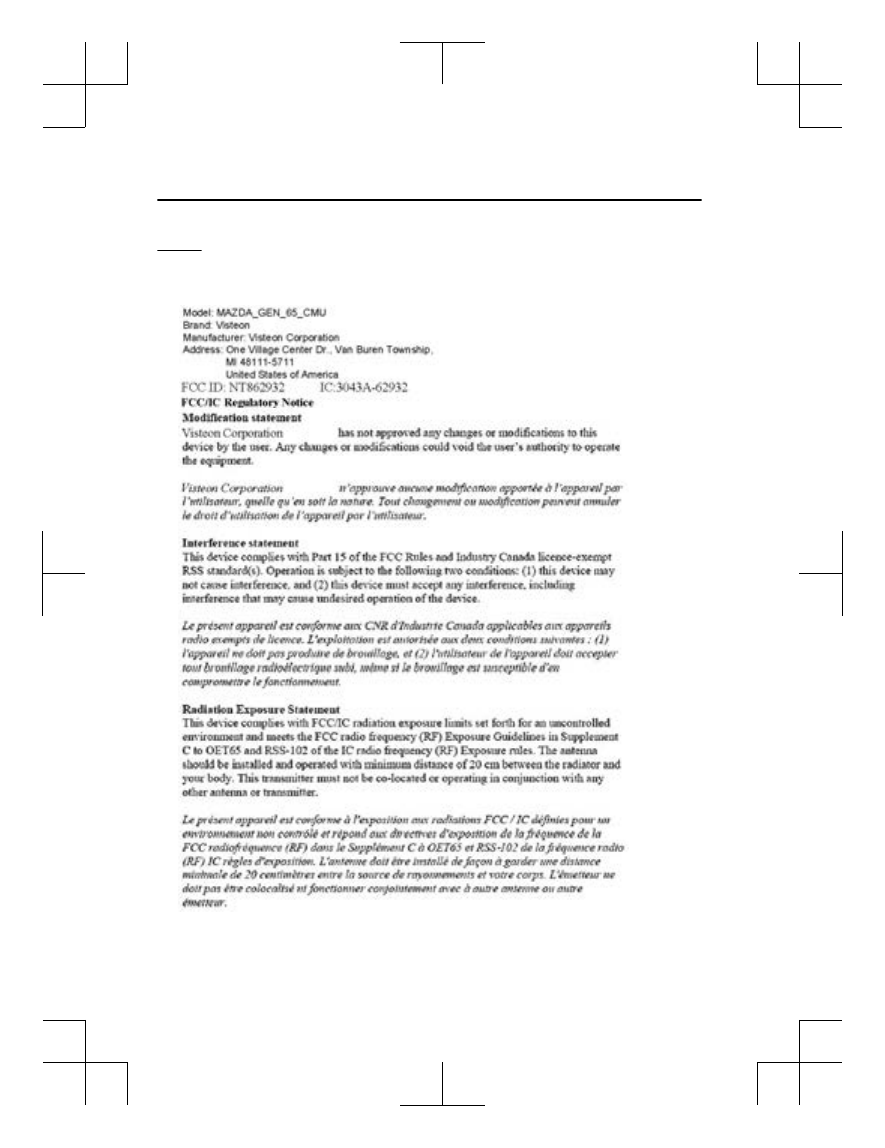

Type B

U.S.A. and Canada

Type B

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-48

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

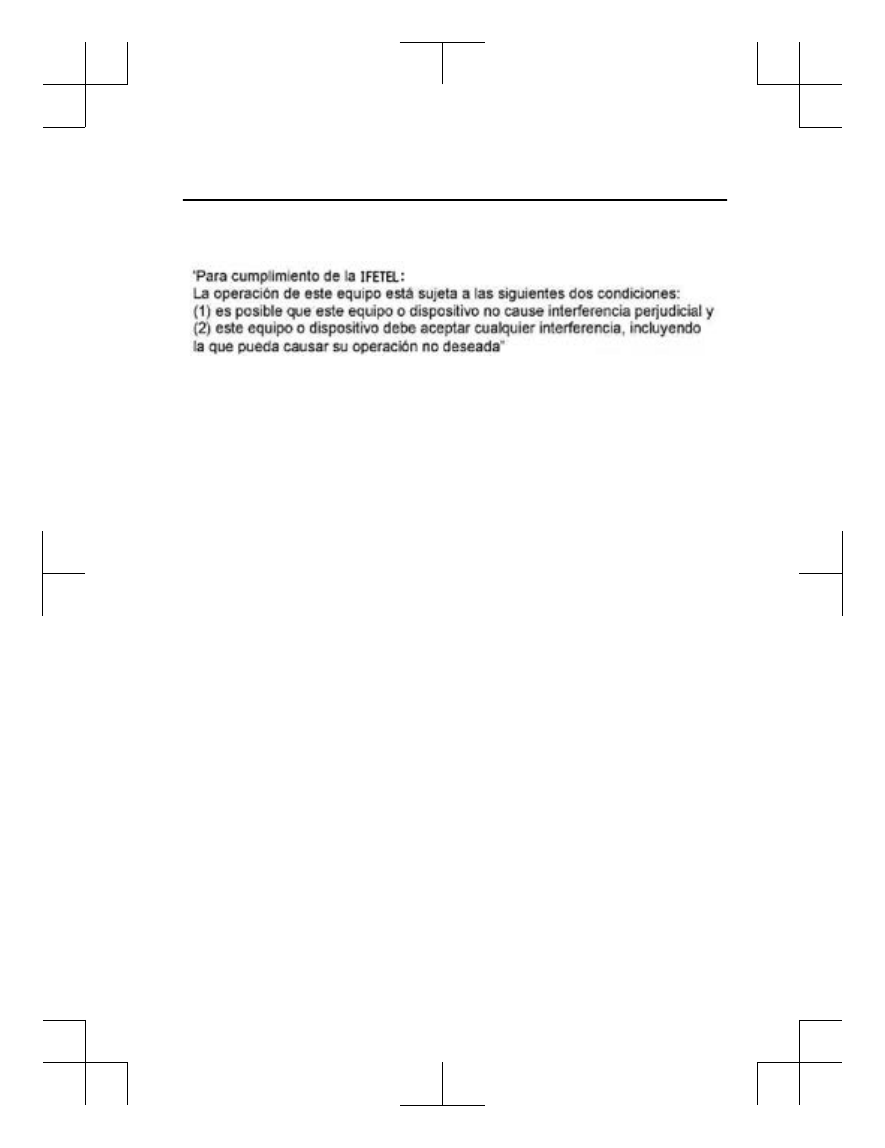

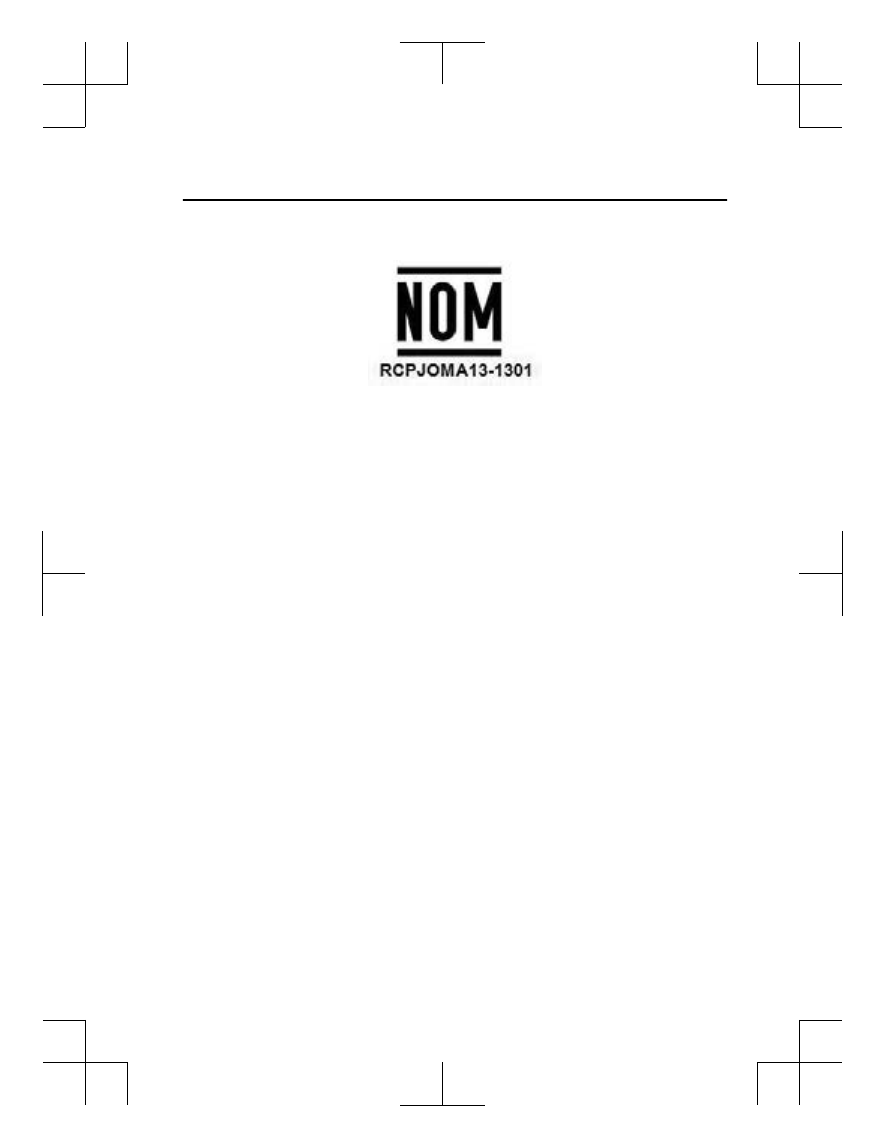

Mexico

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-49

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

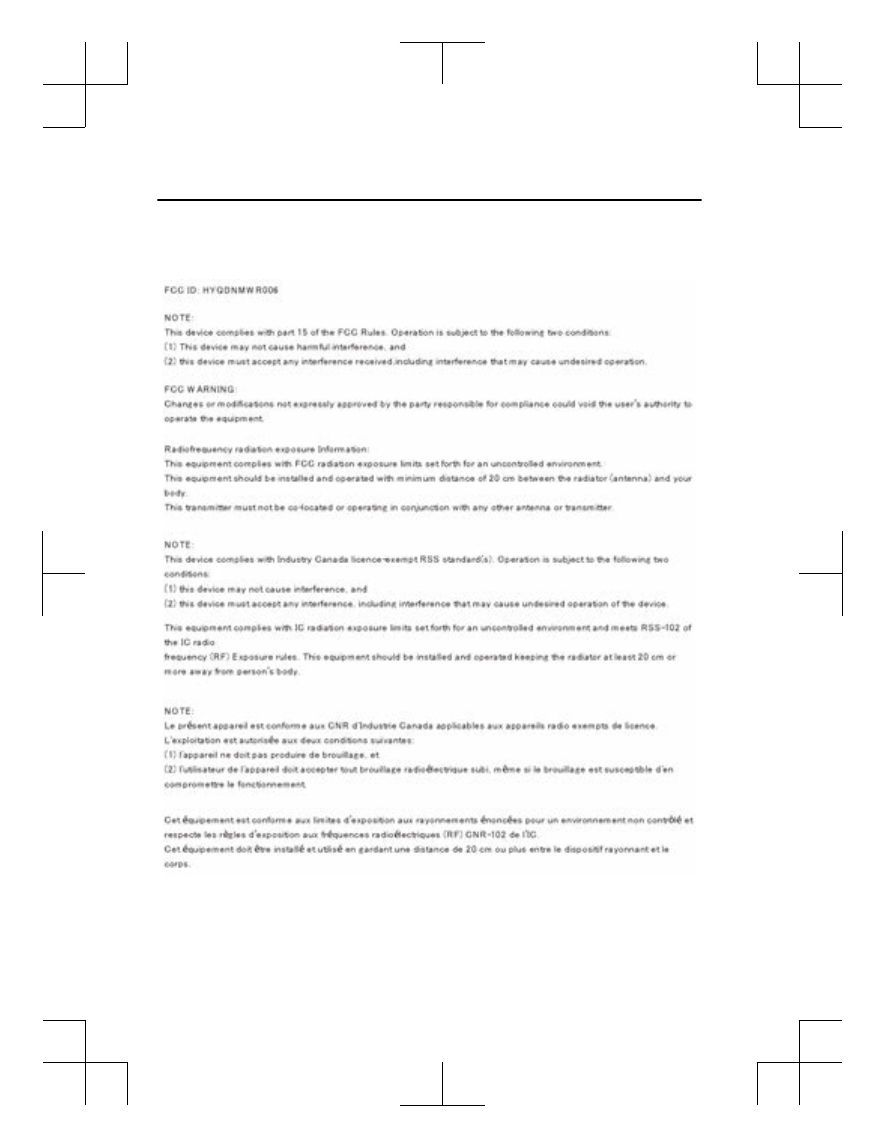

▼ Smart Brake Support (SBS)/Mazda Radar Cruise Control (MRCC)/Distance

Recognition Support System (DRSS)

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-50

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

9

Specifications

Technical information about your Mazda.

Identification Numbers..................... 9-2

Vehicle Information Labels.......... 9-2

Specifications..................................... 9-4

Specifications............................... 9-4

Personalization Features...................9-9

Personalization Features...............9-9

9-1

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14
