Mazda 3 Hatchback (2018 year). Manual - part 21





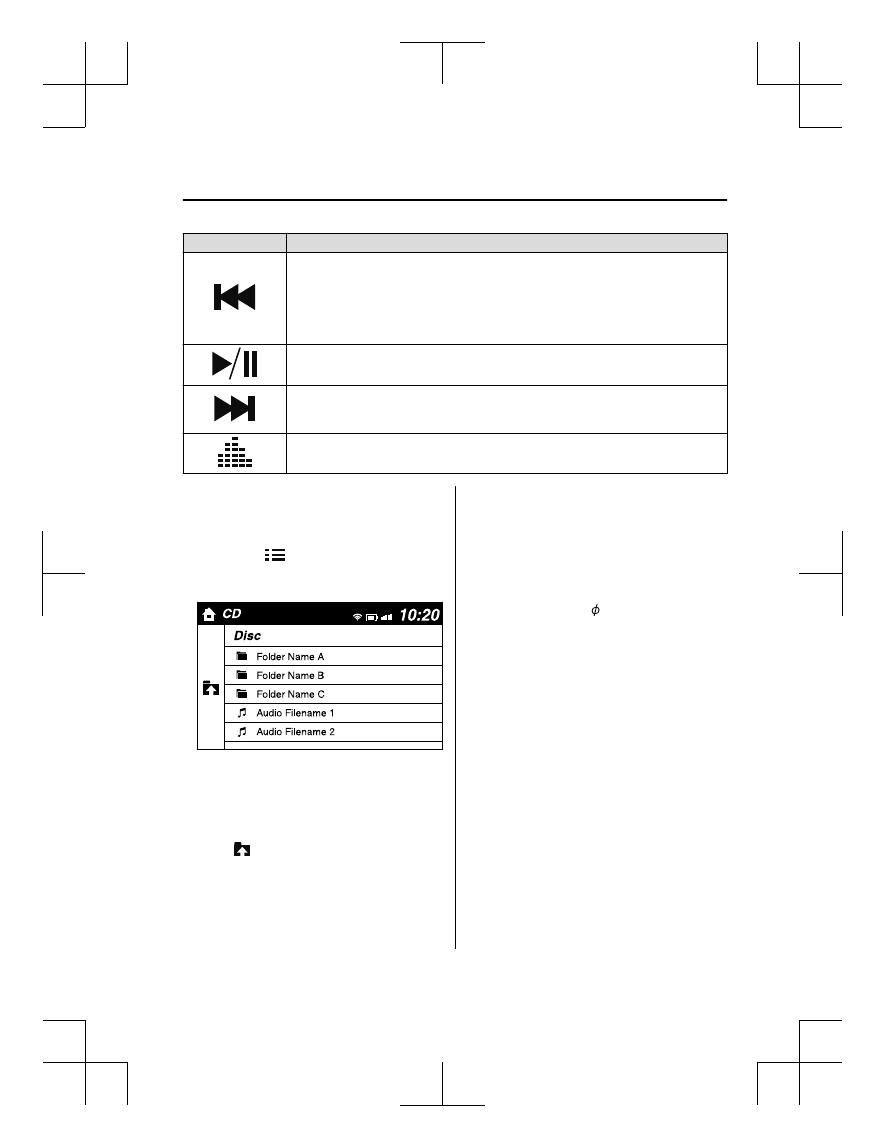

Icon

Function

If selected within a few seconds of a song which has started to play, the previous song is
selected.
If more than a few seconds have elapsed after a song has begun to play, the song currently
being played is replayed from the beginning.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.

Plays a CD. When selected again, playback is temporarily stopped.

Advances to the beginning of the next song.
Long-press to fast forward. It stops when you remove your hand from the icon or the
commander knob.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-37.

Example of use (When searching for a
song from the top level of an
MP3/WMA/AAC CD)

1. Select the

 icon to display the

folder/file list at the top level.


2. When the folder is selected, folders/file

lists in the folder are displayed.

3. Select the desired song.

NOTE

Select   to move to a folder one level
higher.

The appearance of the repeat and
shuffle icons changes depending on the
type of operation in which the function
is used.

▼ How to use Auxiliary jack/USB port

Audio can be heard from the vehicle's
speakers by connecting a
commercially-available portable audio
unit to the auxiliary jack.
Use a commercially-available,
non-impedance (3.5 ) stereo mini plug
cable.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
Refer to AUX/USB mode on page 5-54.

Interior Features

Audio System

5-49

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ Settings

NOTE
Depending on the grade and specification, the screen display may differ.

Select the

 icon on the home screen and display the Settings screen.

Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:

Tab

Item

Function

AD-Disp

Height
Brightness Control
Other

Refer to Active Driving Display on page 4-20.

Display

Refer to Volume/Display/Sound Controls on page 5-37.

Safety

Distance Recognition Support System
SBS/SCBS
Other

Refer to Personalization Features on page 9-
12.

Sound

Refer to Volume/Display/Sound Controls on page 5-37.

Clock

Adjust Time

Displays the currently set time is displayed.
Press   to advance the hour/minute, and select

 to move the hour/minute back.

AM/PM can only be selected with the 12-hour
clock display.

GPS Sync

Synchronizes with GPS when turned on.
When turned off, the time can be changed
from “Adjust Time”.

Time Format

Changes the display between 12 and 24-hour
clock time.

Time Zone Select

When it's not synchronized with GPS, select
the region you want to specify.

Daylight Savings Time

Turns the daylight saving time setting on/off.
When ON, the time advances 1 hour. When
OFF, it returns to normal time.

Vehicle

Rain Sensing Wiper
Door Locks
Other

Refer to Personalization Features on page 9-
12.

Devices

Bluetooth

®

Refer to Bluetooth

®

 Preparation (Type B) on

page 5-87.

Interior Features

Audio System

5-50

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Tab

Item

Function

System

Tool Tips

Turns button explanations ON/OFF.

Language

Changes the language.

Temperature

Changes the setting between Fahrenheit and
Celsius.

Distance

Changes the setting between miles and kilome-
ters.

Music Database Update

Used to update Gracenote

®

. Gracenote is used

with USB Audio, and provides:
1. Supplemental music information (Such as

song name, artist name)

2. Voice recognition assistance for Play Ar-

tist and Play Album

Gracenote can be downloaded from the Mazda
Handsfree Website.
Refer to Gracenote Database (Type B) on page
5-67.

Restore All Factory Settings

Memory and settings are initialized to the fac-
tory settings.
The initialization launches by selecting the

 button.

About

Agreements and
Disclaimers

Verify the disclaimer and agree.

Version Information

Can verify the current audio unit OS version
and Gracenote Database version.

Interior Features

Audio System

5-51

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ Applications

NOTE
Depending on the grade and specification, the screen display may differ.

Select the   icon on the home screen to display the Applications screen. The following
information can be verified.

Top screen

Item

Function

HD Radio™ Traffic Map

―

―

Fuel Economy Monitor

Fuel Consumption
Control Status (Vehicles with
i-ELOOP)
Settings

Refer to Fuel Economy Monitor
on page 4-72.

Vehicle Status Moni-
tor

Warning Guidance

Warnings currently active can be
verified.

Refer to If a Warning Light
Turns On or Flashes on page 7-
25.

Maintenance

Scheduled Maintenance
Tire Rotation
Oil Change

Refer to Maintenance Monitor
(Type B audio) on page 6-16.

Interior Features

Audio System

5-52

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

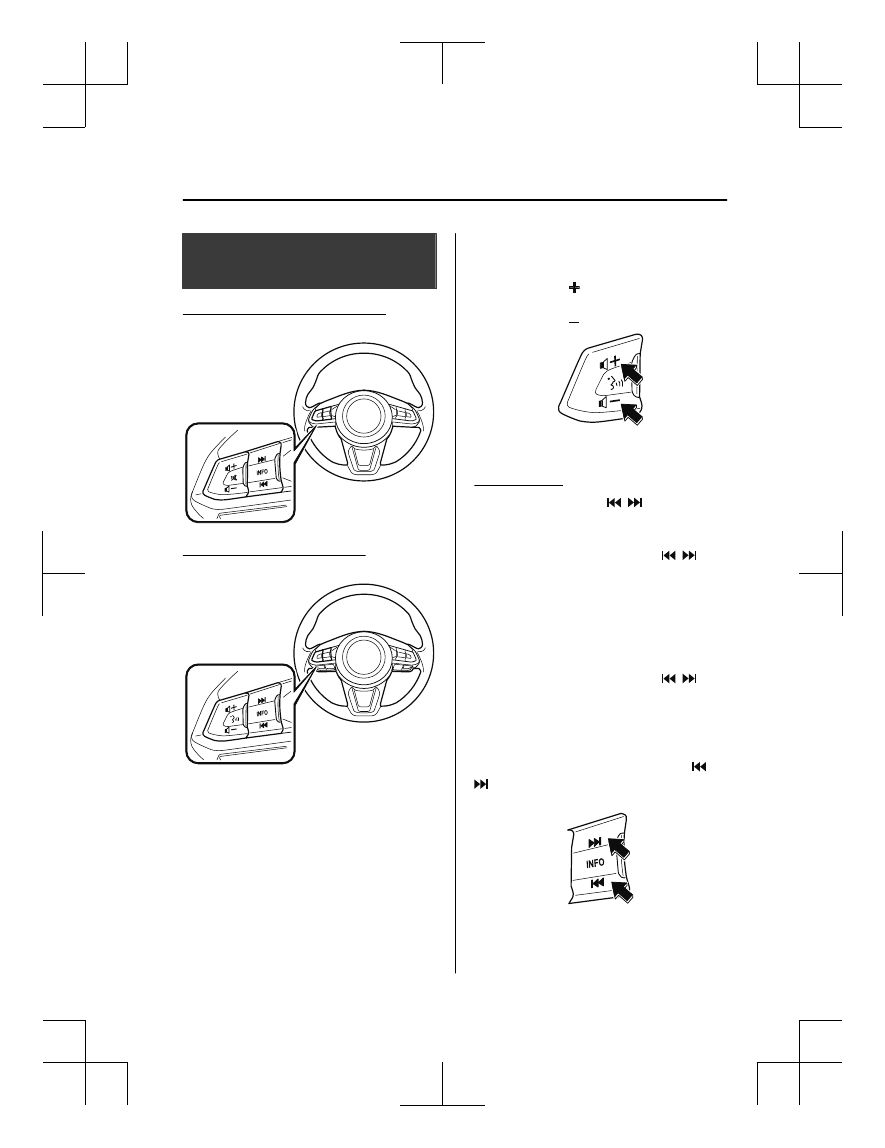

Audio Control Switch

Operation

*

Without Bluetooth

®

 Hands-Free



With Bluetooth

®

 Hands-Free



▼ Adjusting the Volume

To increase the volume, press up the
volume switch ( ).
To decrease the volume, press down the
volume switch ( ).

▼ Seek Switch

AM/FM radio

Press the seek switch ( ,  ). The radio
switches to the next/previous stored
station in the order that it was stored.
Press and hold the seek switch ( ,  ) to
seek all usable stations at a higher or lower
frequency whether programmed or not.

Radio stations which have been previously
stored in the auto memory tuning (Type
A)/favorite radio (Type B) can be called
up by pressing the seek switch ( ,  )
while any radio station stored in the auto
memory tuning (Type A)/favorite radio
(Type B) is being received. Radio stations
can be called up in the order they were
stored with each press of the switch ( ,

).



Interior Features

Audio System

*Some models.

5-53

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

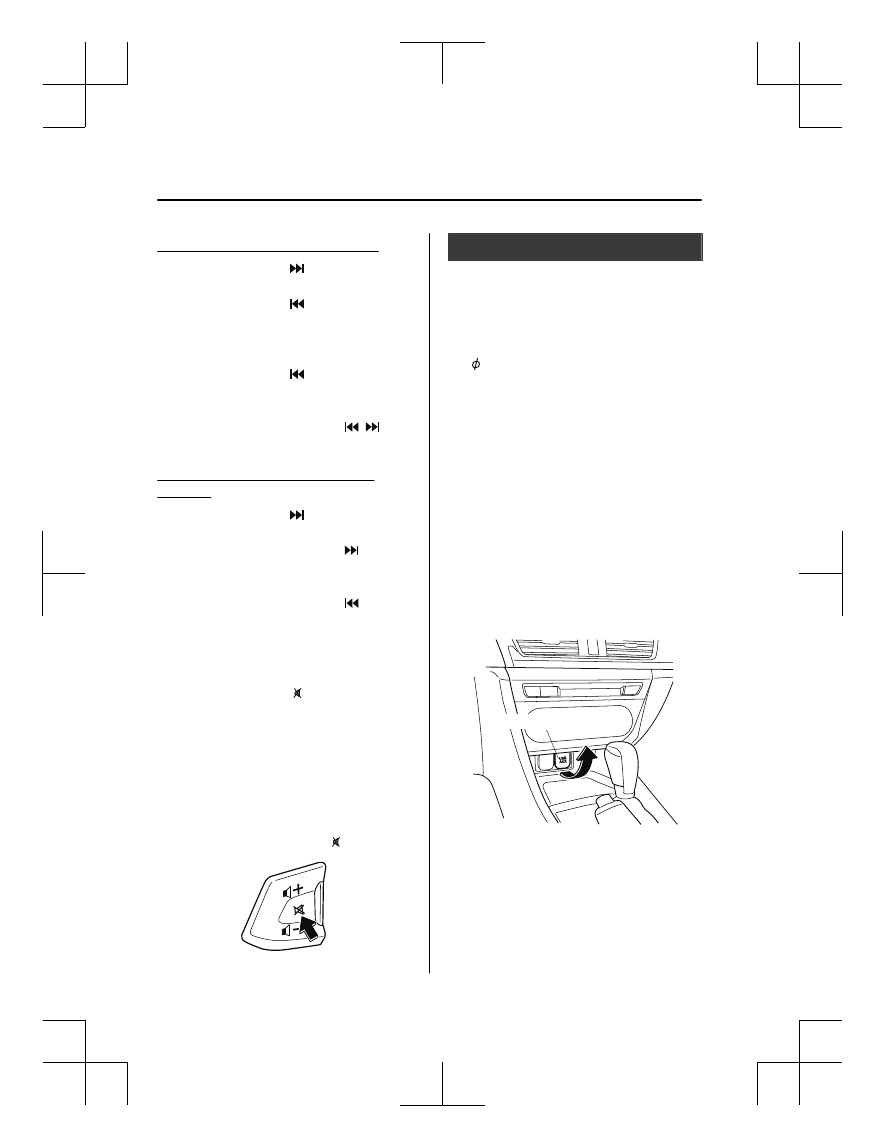

USB Audio/Bluetooth

®

 Audio /CD

*

Press the seek switch ( ) to skip forward
to the beginning of the next track.
Press the seek switch ( ) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
Press the seek switch ( ) after a few
seconds have elapsed to start playback
from the beginning of the current track.
Press and hold the seek switch ( ,  ) to
continuously switch the tracks up or down.

Pandora

®

/Aha™/Stitcher™ Radio

(Type B)

Press the seek switch ( ) to skip forward
to the beginning of the next track.
Press and hold the seek switch ( ) to
evaluate the playback of the current song
as “Like”.
Press and hold the seek switch ( ) to
evaluate the playback of the current song
as “Dislike”.

▼ Mute Switch

*

Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.

NOTE
If the ignition is switched off with the
audio muted, the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the audio
again, press the mute switch ( ).

AUX/USB mode

Audio can be heard from the vehicle's
speakers by connecting a
commercially-available portable audio
unit to the auxiliary jack.
A commercially-available, non-impedance
(3.5 ) stereo mini plug cable is required.
Contact an Authorized Mazda Dealer for
details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.

NOTE
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine) with
stored map data is inserted into the SD
card slot and used.

Type A


Auxiliary jack/USB port

Interior Features

Audio System

5-54

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

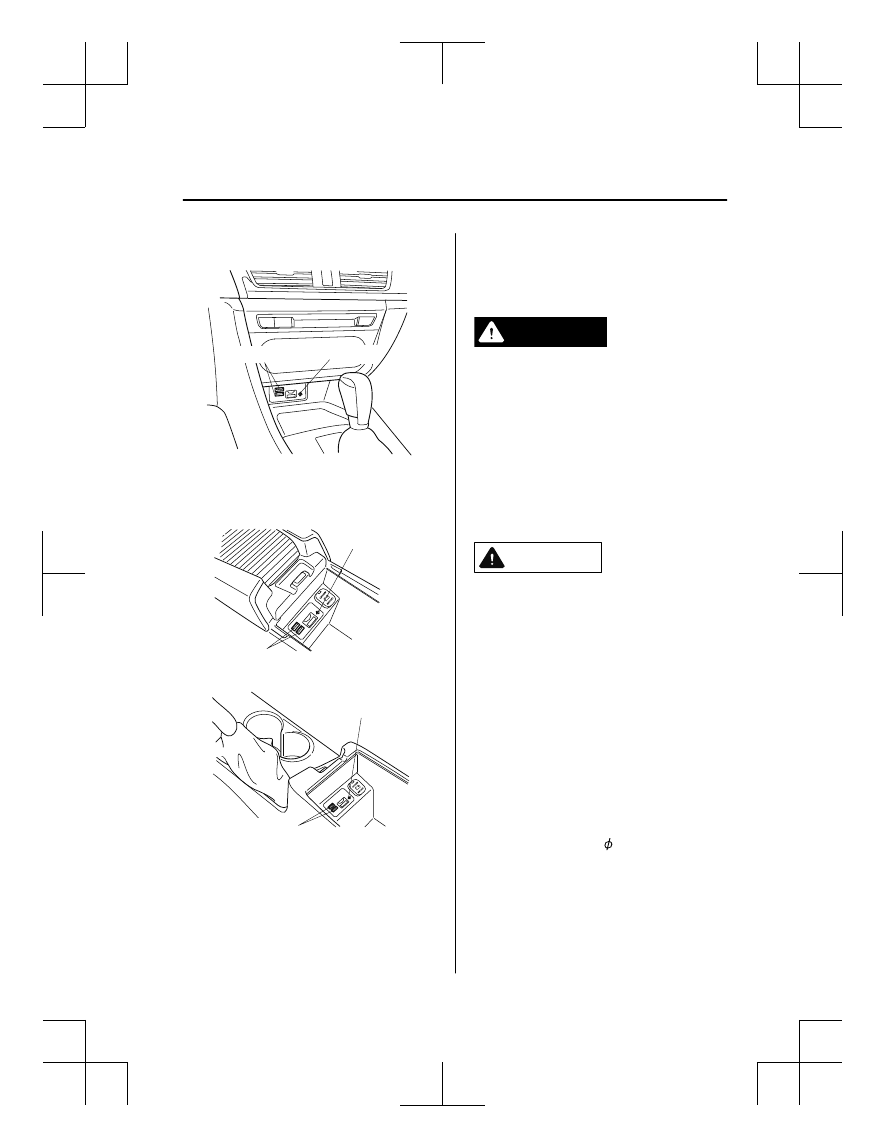

Type B (Without CD player)


Auxiliary jack

USB port

Type B (With CD player)


With Electric
Parking Brake (EPB)

Without Electric
Parking Brake (EPB)

Auxiliary jack

USB port

Auxiliary jack

USB port

①

How to use AUX mode (Type A)
............................................... page 5-57

②

How to use USB mode (Type A)
............................................... page 5-58

③

How to use iPod mode (Type A)
............................................... page 5-61

④

How to use AUX mode (Type B)
............................................... page 5-64

⑤

How to use USB mode (Type B)
............................................... page 5-64

WARNING

Do not adjust the portable audio unit or a
similar product while driving the vehicle:
Adjusting the portable audio unit or a
similar product while driving the vehicle is
dangerous as it could distract your
attention from the vehicle operation which
could lead to a serious accident. Always
adjust the portable audio unit or a similar
product while the vehicle is stopped.

CAUTION

Depending on the portable audio device,

noise may occur when the device is
connected to the vehicle accessory
socket. (If noise occurs, do not use the
accessory socket.)

NOTE

This mode may not be usable depending
on the portable audio device to be
connected.

Before using the auxiliary jack/USB
port, refer to the instruction manual for
the portable audio device.

Use a commercially-available,
non-impedance (3.5 ) stereo mini plug
for connecting the portable audio unit to
the auxiliary jack. Before using the
auxiliary jack, read the manufacturer's
instructions for connecting a portable
audio unit to the auxiliary jack.

Interior Features

Audio System

5-55

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

To prevent discharging of the battery, do
not use the auxiliary input for long
periods with the engine off or idling.

When connecting a device to the
auxiliary jack or USB port, noise may
occur depending on the connected
device. If the device is connected to the
vehicle's accessory socket, the noise can
be reduced by unplugging it from the
accessory socket.

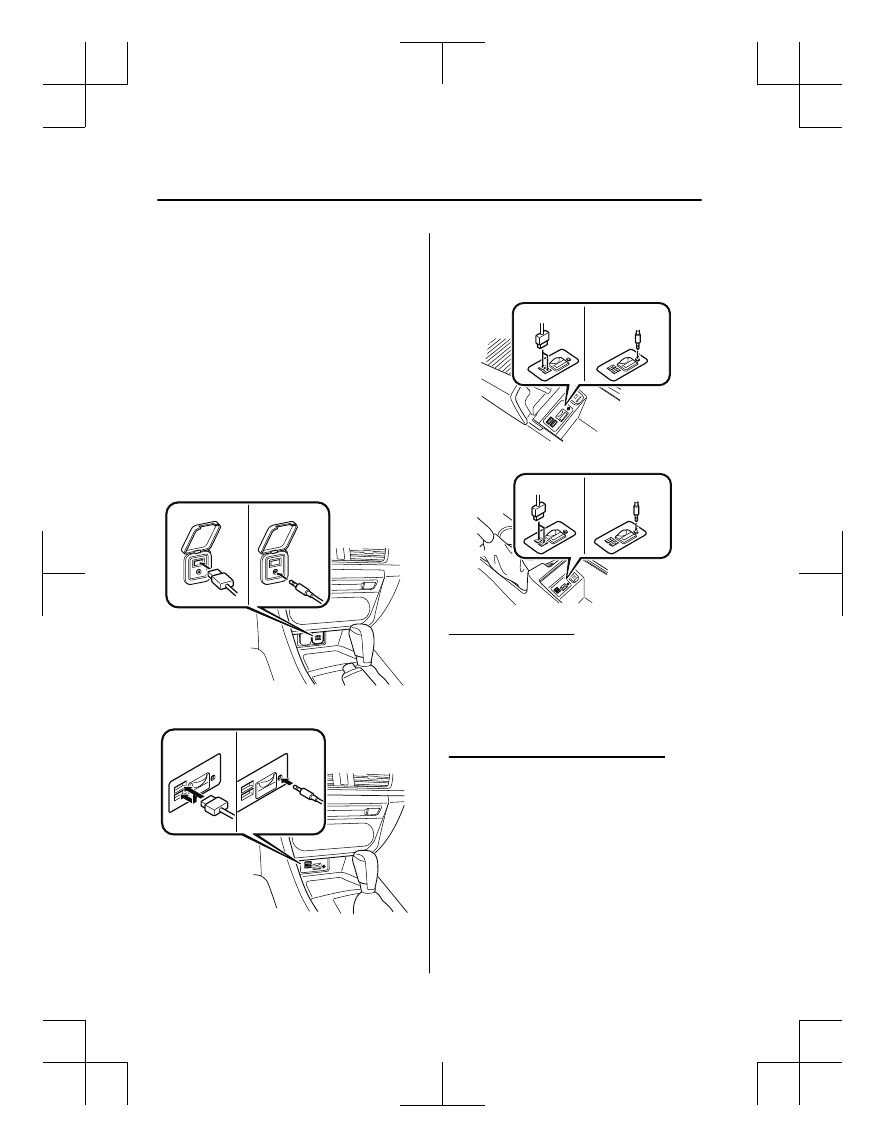

▼ How to connect USB port/Auxiliary

jack

Type A


Auxiliary jack

USB port

Type B (Without CD player)


Auxiliary jack

USB port

Type B (With CD player)


With Electric
Parking Brake (EPB)

Without Electric
Parking Brake (EPB)

USB port

Auxiliary jack

USB port

Auxiliary jack

Connecting a device

1. Open the console lid (with CD player).
2. If there is a cover on the AUX jack or

USB port, remove the cover.

3. Connect the connector on the device to

the USB port.

Connecting with a connector cable

1. Open the console lid (with CD player).
2. If there is a cover on the AUX jack or

USB port, remove the cover.

3. Connect the device plug/connector

cable to the auxiliary jack/USB port.
For vehicles with a CD player, pass the
device plug/connector cable through
the notch in the console and connect.

Interior Features

Audio System

5-56

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

WARNING

Do not allow the connection plug cord to
get tangled with the parking brake
(without electric parking brake (EPB)) or the
shift lever (manual transaxle) or the
selector lever (automatic transaxle):
Allowing the plug cord to become tangled
with the parking brake (without electric
parking brake (EPB)) or the shift lever
(manual transaxle) or the selector lever
(automatic transaxle) is dangerous as it
could interfere with driving, resulting in an
accident.

CAUTION

Do not place objects or apply force to the
auxiliary jack/USB port with the plug
connected.

NOTE

Insert the plug into the auxiliary
jack/USB port securely.

Insert or pull out the plug with the plug
perpendicular to the auxiliary jack/USB
port hole.

Insert or remove the plug by holding its
base.

▼ How to use AUX mode (Type A)

1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the

audio system on.

3. Press the media button (

) of the

audio unit to change to the AUX mode.

NOTE

When the device is not connected to the
auxiliary jack, the mode does not switch
to the AUX mode.

Adjust the audio volume using the
portable audio device or audio unit.

Audio adjustments other than audio
volume can only be done using the
portable audio device.

If the connection plug is pulled out from
the auxiliary jack while in AUX mode,
noise may occur.

Interior Features

Audio System

5-57

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

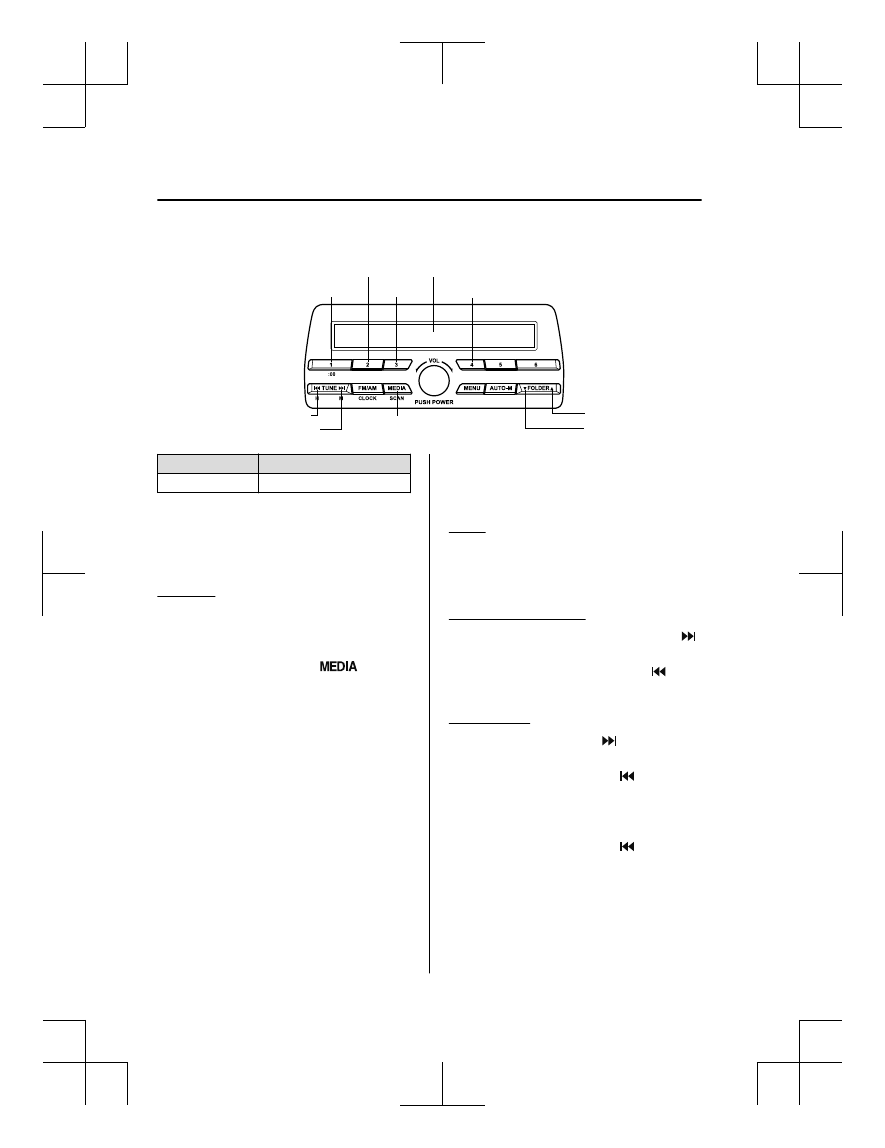

▼ How to use USB mode (Type A)

Media/Scan button

Folder down button

Folder up button

Play/Pause button

Random button

Repeat button

Audio display

Text button

Track down/Reverse button
Track up/Fast-forward button

Type

Playable data

USB mode

MP3/WMA/AAC file

This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.

Playback

1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the

audio system on.

3. Press the media button (

) to

switch to the USB mode and start
playback.

NOTE

Some devices such as smart phones may
require a setting change to allow
operation using a USB connection.

When the USB device is not connected,
the mode does not switch to USB mode.

When there is no playable data in the
USB device, “NO CONTENTS”is
flashed.

Playback of the USB device is in the
order of the folder numbers. Folders
which have no MP3/WMA/AAC files are
skipped.

Do not remove the USB device while in
the USB mode. The data may be
damaged.

Pause

To stop playback, press the play/pause
button (4).
Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button ( )
to advance through a track at high speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.

Track search

Press the track up button ( ) once to skip
forward to the beginning of the next track.
Press the track down button ( ) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
Press the track down button ( ) after a
few seconds have elapsed to start playback
from the beginning of the current track.

Interior Features

Audio System

5-58

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Folder search

To change to the previous folder, press the
folder down button ( ), or press the folder
up button ( ) to advance to the next
folder.

Music scan

This function scans the titles in a folder
currently being played and plays ten
seconds of each song to aid you in finding
a song you want to listen to.
Press and hold the scan button (

)

during playback to start the scan play
operation (the track number will flash).
Press and hold the scan button (

)

again to cancel scan playback.

NOTE
If the unit is left in scan, normal playback
will resume where scan was selected.

Repeat playback

Track repeat

1. Press the repeat button (1) during

playback to play the current track
repeatedly. “TRACK RPT” is
displayed (  is displayed next to RPT
at the bottom of the display area).

2. To cancel the repeat playback, press

the button again after 3 seconds.

Folder repeat

1. Press the repeat button (1) during

playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“FOLDER RPT” is displayed (  is
displayed next to RPT at the bottom of
the display area).

2. Press the button again to cancel the

repeat playback.

Random playback

Tracks are randomly selected and played.

Folder random

1. Press the random button (2) during

playback to play the tracks in the
folder randomly. “FOLDER RDM” is
displayed (  is displayed next to
RDM at the bottom of the display
area).

2. To cancel the random playback, press

the button again after 3 seconds.

All random

1. Press the random button (2) during

playback, and then press the button
again within 3 seconds to play the
tracks in the USB device randomly.
“ALL RDM” is displayed (  is
displayed next to RDM at the bottom
of the display area).

2. Press the button again to cancel the

random playback.

Switching the display

The information displayed on the audio
display changes as follows each time the
text button (3) is pressed during playback.

Button

Information displayed

on audio display

File number/Elapsed

time

Folder number/File num-

ber

File name

Folder name

Album name

Song name

Artist name

Interior Features

Audio System

5-59

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

NOTE

The information (artist name, music
name) is displayed only when the USB
device information in the USB device
has information which can be displayed
on the screen.

This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
( ).

Display scroll

Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button (3). The display scrolls the next 13
characters. Press and hold the text button
(3) again after the last 13 characters have
been displayed to return to the beginning
of the title.

NOTE
The number of characters which can be
displayed is restricted.

Error Messages

When the message “CHECK USB” is
displayed, it indicates that there is some
error in the USB device. Verify that the
content recorded in the USB device has
MP3/WMA/AAC files and re-connect
correctly. If the message reappears, have
the unit checked by an Authorized Mazda
Dealer.

Interior Features

Audio System

5-60

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

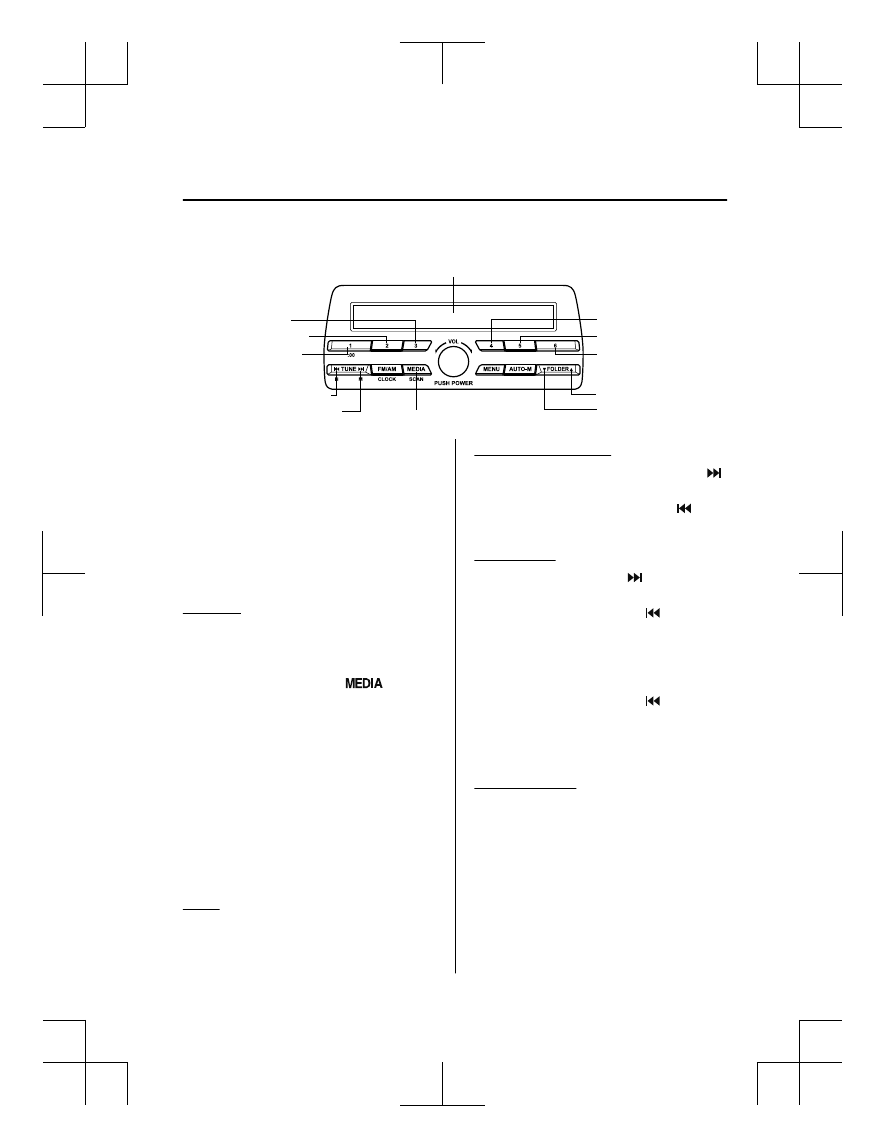

▼ How to use iPod mode (Type A)

Media/Scan button

List down button

List up button

Play/Pause button

Random button

Repeat button

Audio display

Text button

Track down/Reverse button
Track up/Fast-forward button

Category down button

Category up button

An iPod may not be compatible depending
on the model or OS version. In this case,
an error message is displayed.

NOTE
The iPod functions on the iPod cannot be
operated while it is connected to the unit
because the unit controls the iPod
functions.

Playback

1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the

audio system on.

3. Press the media button (

) to

switch to the iPod mode and start
playback.

NOTE

When an iPod is not connected, the
mode does not switch to the iPod mode.

When there is no playable data in the
iPod, “NO CONTENTS” is flashed.

Do not remove the iPod while in the
iPod mode. Otherwise, the data could be
damaged.

Pause

To stop playback, press the play/pause
button (4).
Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button ( )
to advance through a track at high speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.

Track search

Press the track up button ( ) once to skip
forward to the beginning of the next track.
Press the track down button ( ) within a
few seconds (depends on iPod software
version) after playback begins to track
down to the beginning of the previous
track.
Press the track down button ( ) after a
few seconds (depends on iPod software
version) have elapsed to start playback
from the beginning of the current track.

Category search

Press the category down button (5) to
select the previous category and press the
category up button (6) to select the next
category.

NOTE
The types of categories include Playlist,
Artist, Album, Song, Podcast, Genre,
Composer, and Audio book.

Interior Features

Audio System

5-61

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

List search

Press the list down button ( ) to select the
previous list and press the list up button
( ) to select the next list.

NOTE
When the selected category is Song or
Audio book, there is no list.

Music scan

This function scans the titles in a list
currently being played and plays 10
seconds of each song to aid you in finding
a song you want to listen to.
Press and hold the scan button (

)

during playback to start the scan play
operation (the track number will flash).
Press and hold the scan button (

)

again to cancel scan playback.

NOTE
If the unit is left in scan, normal playback
will resume where scan was selected.

Repeat playback

1. Press the repeat button (1) during

playback to play the current track
repeatedly. “TRACK RPT” is
displayed (  is displayed next to RPT
at the bottom of the display area).

2. Press the button again to cancel the

repeat playback.

Random playback

Tracks are randomly selected and played.

Song random

1. Press the random button (2) during

playback to play the tracks in the list
randomly. “SONG RDM” is displayed
(  is displayed next to RDM at the
bottom of the display area).

2. To cancel the random playback, press

the button again after 3 seconds.

Album random

1. Press the random button (2) during

playback, and then press the button
again within 3 seconds to play the
tracks in the iPod randomly. “ALBUM
RDM” is displayed (  is displayed
next to RDM at the bottom of the
display area).

2. Press the button again to cancel the

random playback.

NOTE
The track number being played randomly
is in the order of the iPod shuffle table.

Switching the display

The information displayed on the audio
display changes as follows each time the
text button (3) is pressed during playback.

Button

Information displayed

on audio display

File number/Elapsed

time

File number

Category name

Artist name

Album name

Song name

NOTE

The information (artist name, music
name) is displayed only when the iPod
has information which can be displayed.

This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
( ).

Interior Features

Audio System

5-62

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Display scroll

13 characters can be displayed at one time.
To display the rest of the characters of a
long title, press and hold the text button
(3). The display scrolls the next 13
characters. Press and hold the text button
(3) again after the last 13 characters have
been displayed to return to the beginning
of the title.

NOTE
The number of characters which can be
displayed is restricted.

Error Messages

If the message “CHECK iPod” is
displayed, it indicates that there is a
malfunction in the iPod. Verify that the
content recorded in the iPod has playable
files and connect correctly. If the message
reappears, have the unit checked by an
Authorized Mazda Dealer.

▼ Error Indications (Type A)

If you see an error indication on the
display, find the cause in the chart. If you
cannot clear the error indication, take the
vehicle to an Authorized Mazda Dealer.

Indication

Cause

Solution

CHECK
USB

USB device
malfunction

Verify that the content
recorded in the USB de-
vice has
MP3/WMA/AAC files
and re-connect correctly.
If the error indication
continues to display,
consult an Authorized
Mazda Dealer.

CHECK
iPod

iPod mal-
function

Verify that the content
recorded in the iPod has
playable files and
re-connect correctly.
If the error indication
continues to display,
consult an Authorized
Mazda Dealer.

Interior Features

Audio System

5-63

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ How to use AUX mode (Type B)

1. Select the   icon on the home screen to display the Entertainment screen.
2. Select

 to switch to the AUX mode. The following icons are displayed in the lower

part of the center display.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-37.

NOTE

If a device is not connected to the auxiliary jack, the mode does not switch to the AUX
mode.

Adjust the audio volume using the portable audio device, commander switch, or audio
control switch.

Audio adjustments can also be made using the portable audio device's volume setting.

If the connection plug is pulled out from the auxiliary jack while in AUX mode, noise may
occur.

▼ How to use USB mode (Type B)

Type

Playable data

USB mode

MP3/WMA/AAC/OGG file

This unit does not support a USB 3.0 device. In addition, other devices may not be
supported depending on the model or OS version.
The recommended capacity of the USB memory is 16 GB or less.
USB devices formatted to FAT32 are supported (USB devices formatted to other formats
such as NTFS are not supported).

Playback

1. Select the   icon on the home screen to display the Entertainment screen.
2. Select

 or

 to switch the USB mode. The following icons are displayed in the

lower part of the center display.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

Category list is displayed.

Interior Features

Audio System

5-64

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21















Content   ..  19  20  21  22   ..
