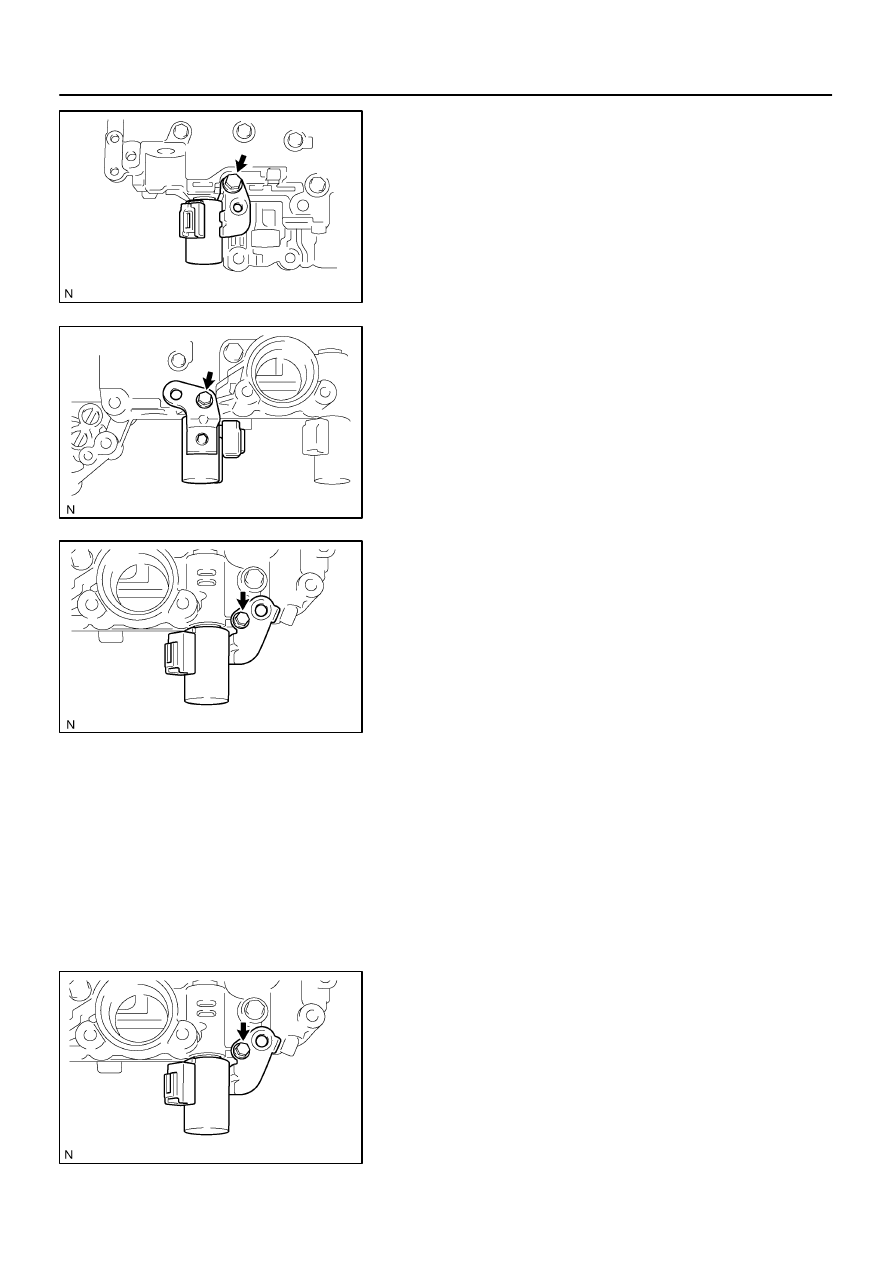

AUTOMATIC TRANSMISSION / TRANS

TRANSMISSION VALVE BODY ASSY (U150E)

40-99

121

U150E A/T REPAIR MANUAL   (RM913U)

5.

REMOVE SHIFT SOLENOID VALVE SL2

(a)

Remove the bolt and shift solenoid valve SL2 from the
valve body assy.

6.

REMOVE LINE PRESSURE CONTROL SOLENOID
ASSY

(a)

Remove the bolt and shift solenoid valve SLT from the
valve body assy.

7.

REMOVE SHIFT SOLENOID VALVE SL1

(a)

Remove the bolt and shift solenoid valve SL1 from the
valve body assy.

8.

REMOVE MANUAL VALVE

(a)

Remove the manual valve from the valve body assy.

9.

INSTALL MANUAL VALVE

(a)

Install the manual valve to the valve body assy.

10.

INSTALL SHIFT SOLENOID VALVE SL1

(a)

Install the shift solenoid valve SL1 to the valve body assy
with the bolt.
Torque: 6.6 N

⋅

m (67 kgf

⋅

cm, 58 in.

⋅

lbf)

D26440

D26444

D26443

D26438

D26442

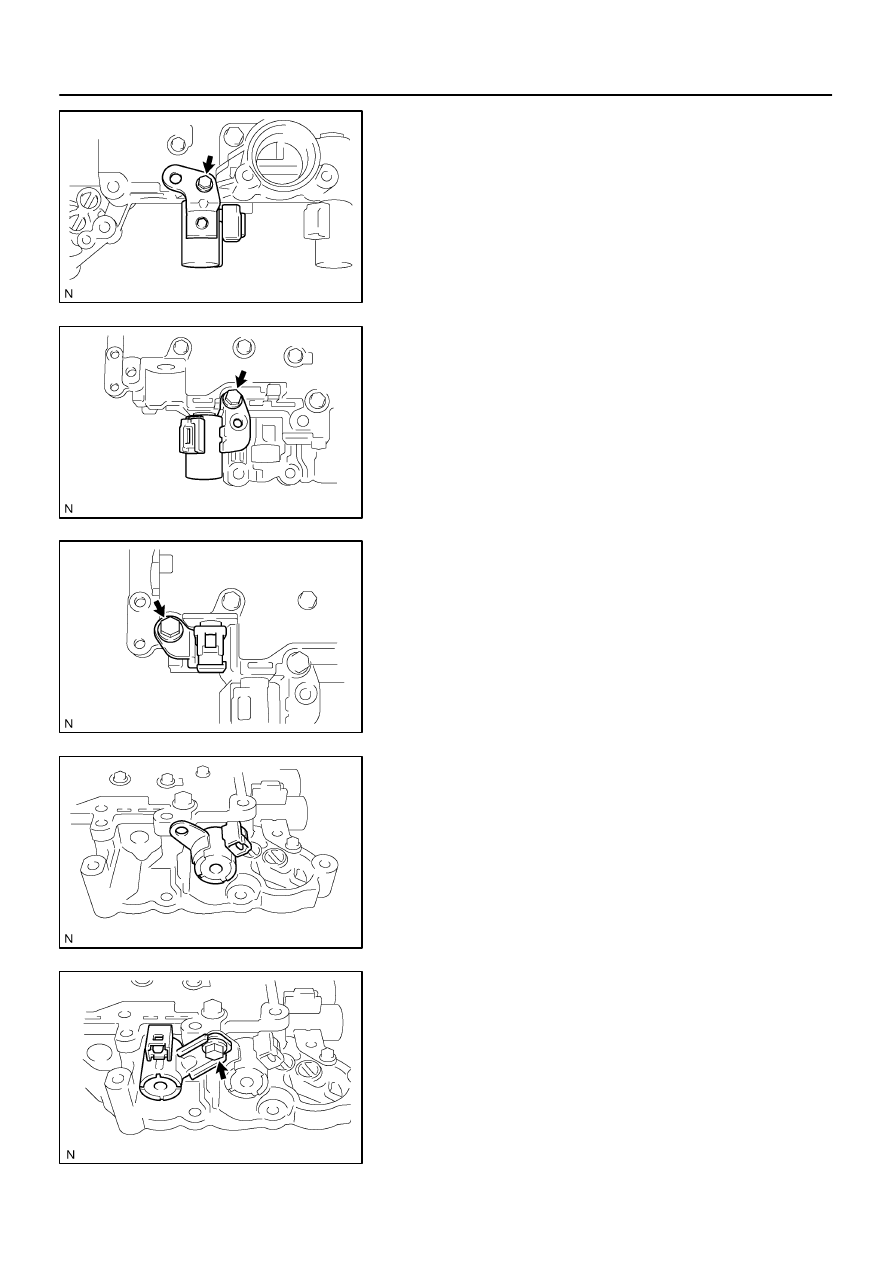

40-100

-

AUTOMATIC TRANSMISSION / TRANS

TRANSMISSION VALVE BODY ASSY (U150E)

122

U150E A/T REPAIR MANUAL   (RM913U)

11.

INSTALL LINE PRESSURE CONTROL SOLENOID
ASSY

(a)

Install the shift solenoid valve SLT to the valve body assy
with the bolt.
Torque: 6.6 N

⋅

m (67 kgf

⋅

cm, 58 in.

⋅

lbf)

12.

INSTALL SHIFT SOLENOID VALVE SL2

(a)

Install the shift solenoid valve SL2 to the valve body assy
with the bolt.
Torque: 10.8 N

⋅

m (110 kgf

⋅

cm, 8 ft

⋅

lbf)

13.

INSTALL SHIFT SOLENOID VALVE DSL

(a)

Install the shift solenoid valve DSL to the valve body assy
with the bolt.
Torque: 10.8 N

⋅

m (110 kgf

⋅

cm, 8 ft

⋅

lbf)

14.

INSTALL SHIFT SOLENOID VALVE SR

(a)

Install the shift solenoid valve SR to the valve body assy.

15.

INSTALL SHIFT SOLENOID VALVE S4

(a)

Install the shift solenoid valve S4 to the valve body assy
with the bolt.
Torque: 10.8 N

⋅

m (110 kgf

⋅

cm, 8 ft

⋅

lbf)

D26439

-

AUTOMATIC TRANSMISSION / TRANS

TRANSMISSION VALVE BODY ASSY (U150E)

40-101

123

U150E A/T REPAIR MANUAL   (RM913U)

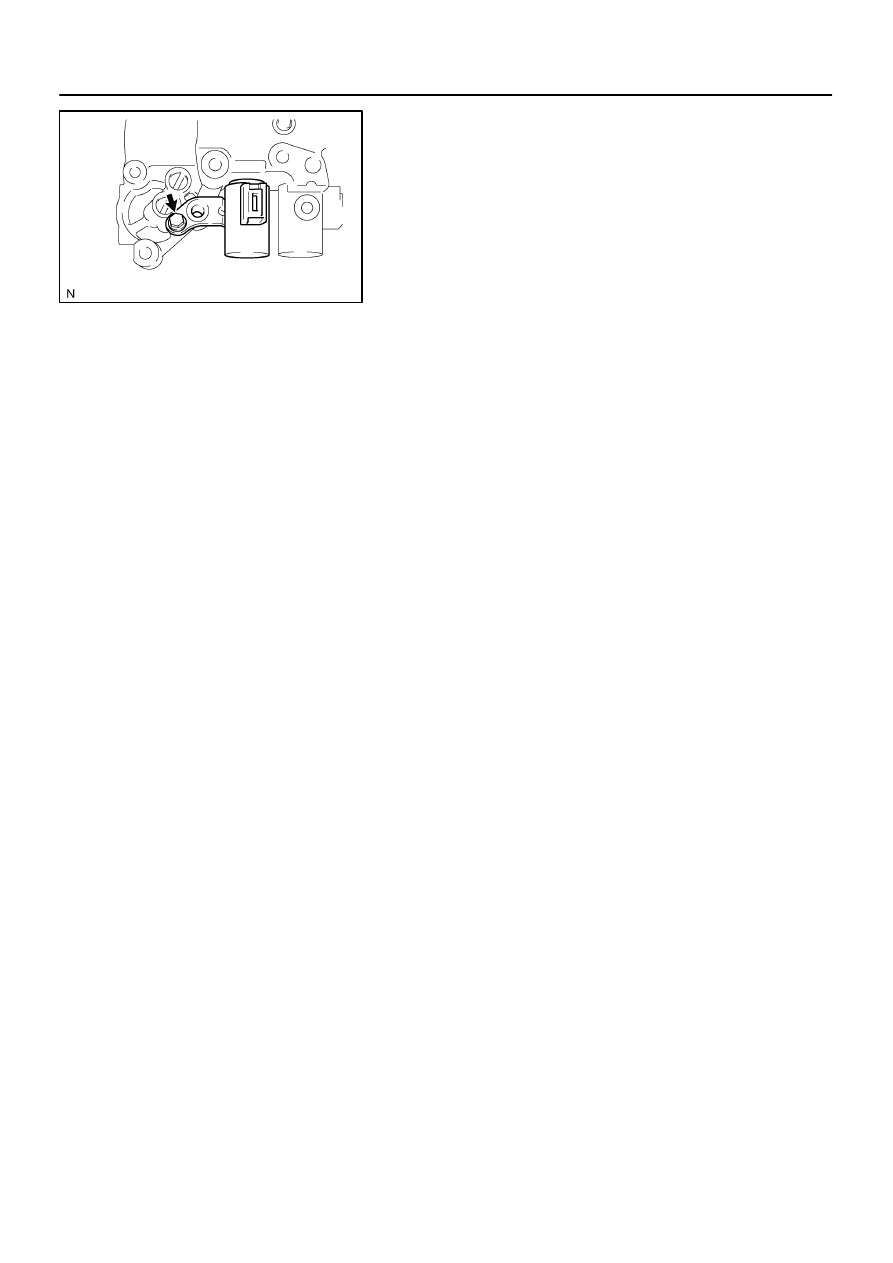

16.

INSTALL SHIFT SOLENOID VALVE SL3

(a)

Install the shift solenoid valve SL3 to the valve body assy
with the bolt.
Torque: 6.6 N

⋅

m (67 kgf

⋅

cm, 58 in.

⋅

lbf)
