Parking Assist



Where approved Jaguar towbar electrics
are fitted, the reverse parking assist is
automatically switched off if a trailer is
attached to the vehicle. The front parking
assist will remain active.

Rear fitted accessories

Particular care must be taken when
reversing with rear fitted accessories e.g.
towbar or bicycle carrier, as the rear park
assist will only indicate the distance from
the bumper to the obstacle.








• Before opening or closing the

sunroof check that all occupants
are clear.

• When leaving the vehicle take the

ignition key to prevent misuse of
the sunroof switch by remaining
occupants, especially children.

The sunroof switch is located in the
overhead console. The ignition switch
must be in position I or II for the sunroof
to operate.

To open the sunroof
• Push the rear of the switch gently

upwards to the first position and hold
until the sunroof is fully open. The
sunroof can be stopped at any open
position by releasing the switch.

• To fully open the sunroof with

one-touch operation, briefly push the
rear of the switch fully upwards to the
second position and then release. To
stop the sunroof opening, briefly
press the switch upwards, forwards or

To close the sunroof
• Push the front of the switch upwards

to the first position and hold until the
sunroof is closed. It can be stopped at
any position by releasing the switch.

• To close the sunroof with one-touch

operation, briefly push the front of the
switch upwards to the second
position and then release. To stop the
sunroof closing, press the switch
upwards, forwards or rearwards.

To tilt the sunroof open
• Push the front of the switch upwards

and hold until the required position is
reached, or until the tilt is fully open,
and then release the switch.

To tilt open with one-touch operation
• To tilt open with one-touch operation,

briefly push the switch upwards to the
second position.

To close the tilted sunroof
• Push and hold the rear of the switch

until the sunroof is closed. Briefly
push the rear of the switch upwards to
the second position to tilt close with
one-touch operation.

Sunshade operation

The sunshade can be manually opened
and closed using the handle.

When the sunroof is fully open the
sunshade is also fully open, the handle is
hidden, therefore, it cannot be manually
closed from this position.

Note: The sunroof will need to be fully
closed to gain access to the handle.

Wipers and Washers



Wipers and Washers


The windshield wipers and screen wash
functions are controlled by the right-hand
column lever switch and only operate with
the ignition in position II.

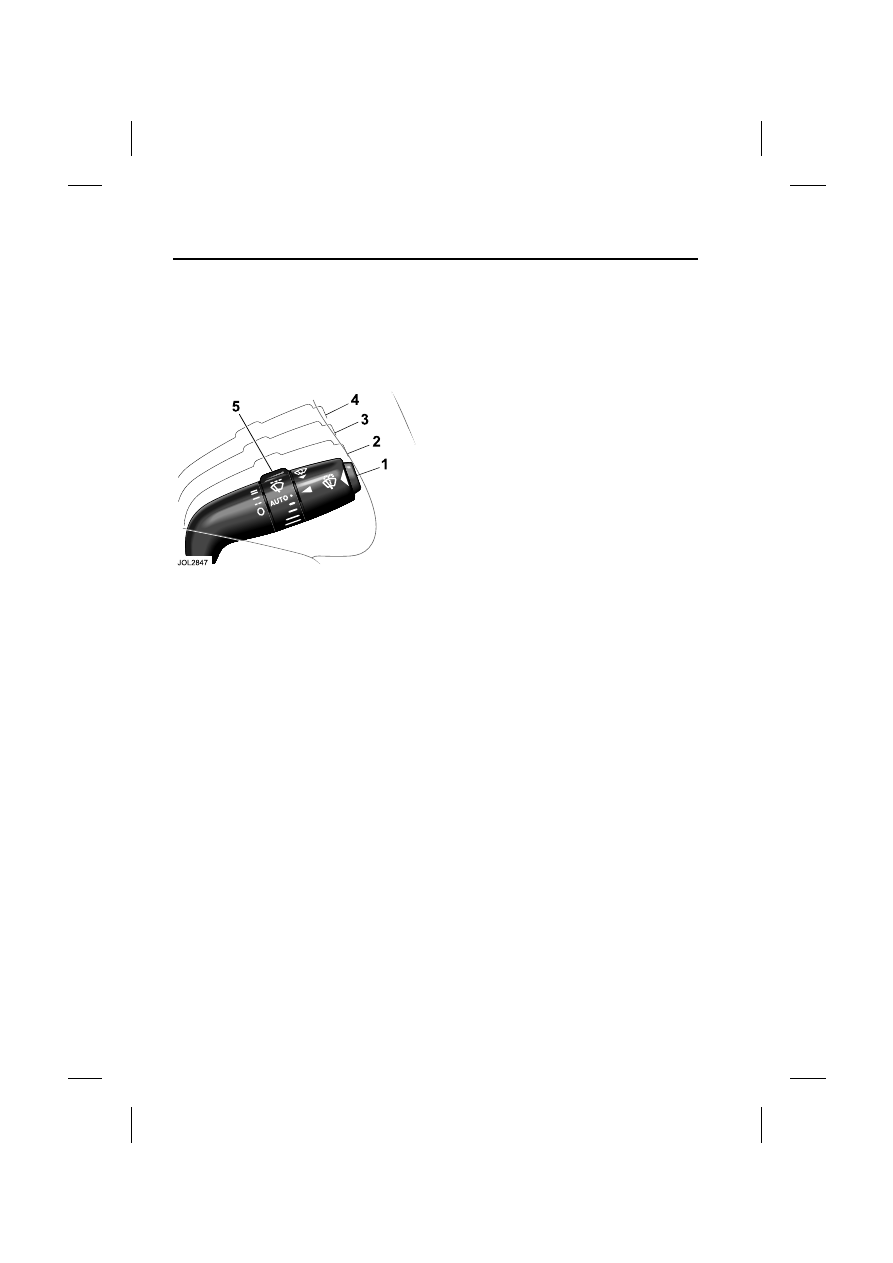

The lever functions are as follows:

1. Windshield wipers off and parked.

2. Intermittent wipe.

3. Slow wiper operation.

4. High speed wiper operation.

5. Rotary collar.

Intermittent wipe

When intermittent wipe is selected, the
delay between wipes can be varied. Turn
the collar (5) to vary the delay from three
seconds to 18 seconds.

Flick wipe

Pull the column switch towards the
steering column for a single wipe. Holding
the column switch in this position will
operate the wiper continuously at slow
speed until released.

Rain sensitive wiper control

When AUTO (turn the rotary collar (5) to
AUTO) and intermittent wipe (2) are
selected, the wipers will automatically
operate when rain falls on to the
windshield, or when moisture is present.

For the wipers to operate, the ignition
switch must be in position II.

Note: When starting a journey with a wet
windshield, the rain sensing wipers will
not operate immediately when the ignition
is turned on. Therefore, a flick wipe should
be used to clear the windshield of any

• Make sure that AUTO is not

selected when entering a car wash
as damage to the wiper blades and
arms can occur.

• During frosty conditions make sure

that AUTO is not selected before
operating the ignition switch, as
damage to the wiper blades can
occur when the windshield is

Wipers ON, Lights ON

Note: Some States require lights on when
the wipers are in use.

If the windshield wipers are switched on in
AUTO, slow or fast modes, for more than
20 seconds, then the exterior lamps will
be switched on if selected to autolamps
mode. The lamps will switch off two
minutes after the wipers are switched
OFF, or will go off straight away if
autolamps is de-selected, or the ignition
is turned OFF.


Wipers and Washers

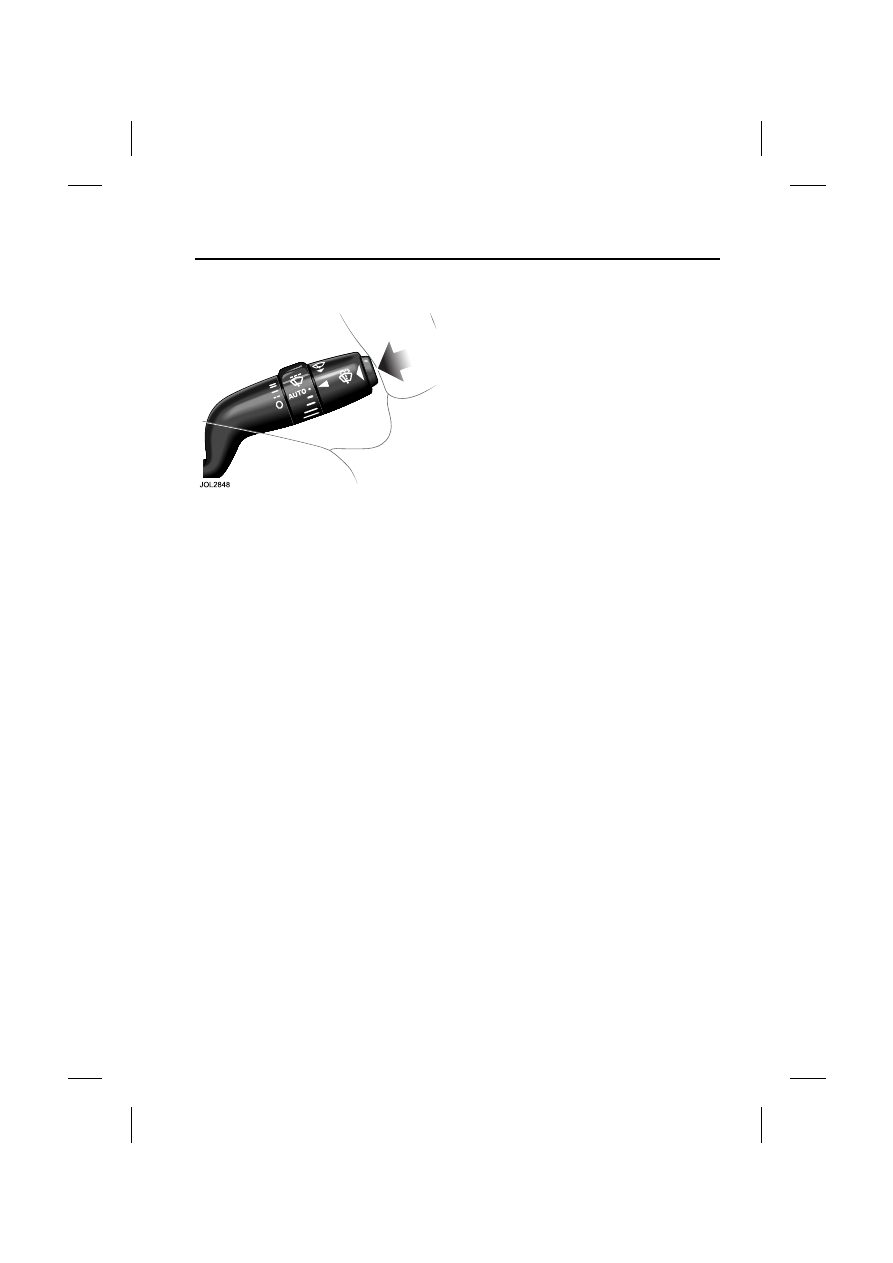

Push the button on the end of the switch
to obtain the wash and wipe programme.
If the wipers are selected off or
intermittent, the washers will operate at
slow speed during the washing action
when the button is pressed.

When the button is released, the wipers
will complete three further wipes.

If rain sensitive wipers are fitted and
selected, then the wipers will operate until
no moisture is detected.
