Jaguar S-Type. Service manual - part 1

7

Quick Overview

R

Quick Overview

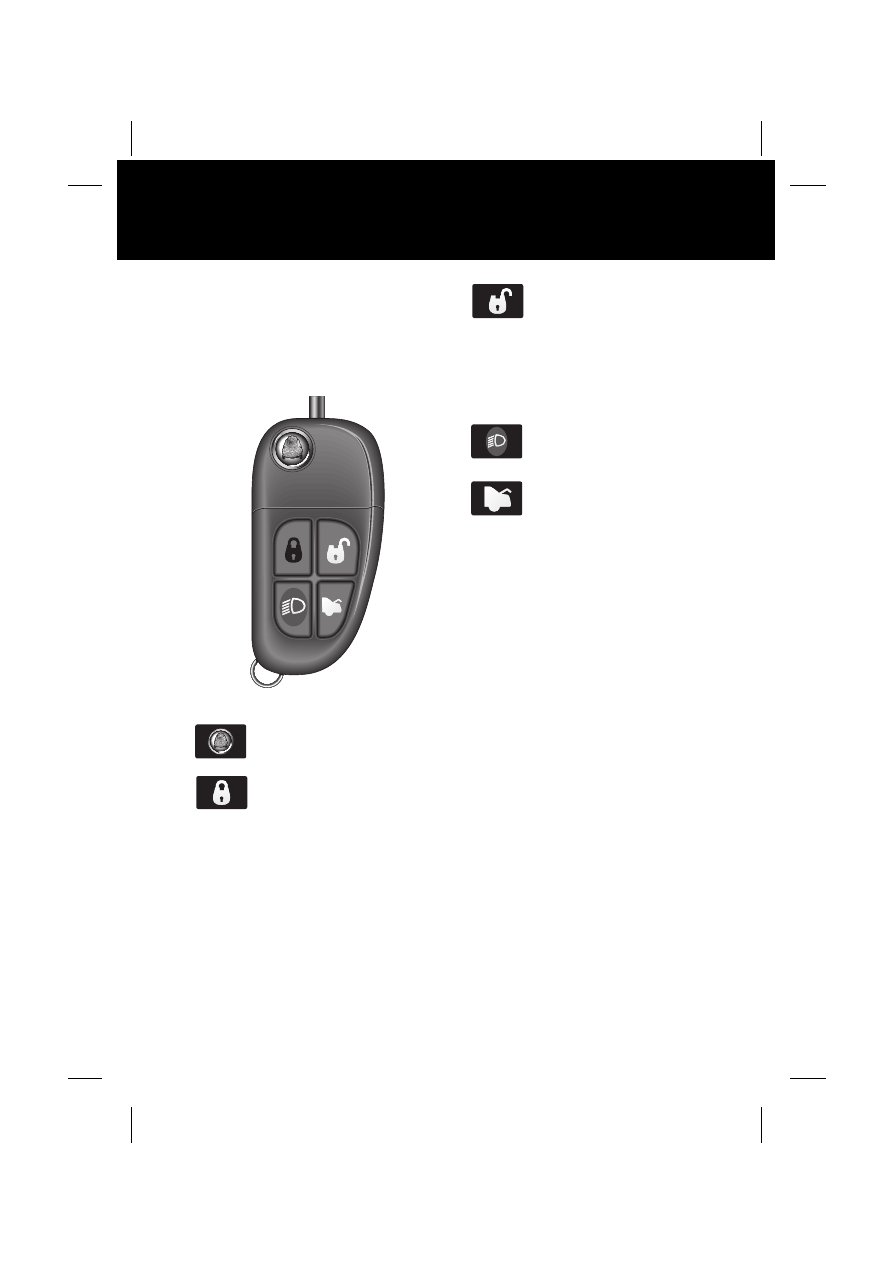

LOCKING AND UNLOCKING

Note: Dependent upon vehicle
configuration, the operation of the remote
handset may differ from the following:

Remote handset

Press to release door key.

Press once to lock the vehicle
and arm the alarm.

Press and hold to close the

sunroof and any open windows (Global
closing).

Press once to disarm the alarm,
unlock the driver’s door and
unlock the luggage

compartment.

Press again to unlock remaining doors.

Press and hold to open the sunroof and
windows (Global opening).

Press once to switch the
headlamps on for 25 seconds.

Press to unlock and open
luggage compartment.

Single and two stage unlocking may be
changed by pressing and holding the lock
and unlock buttons on the remote
handset simultaneously for four seconds.

Unlocking with the door key

If the vehicle is unlocked manually via the
door lock, the key must be inserted in the
ignition switch within 15 seconds to
prevent the alarm being activated.

JOL4689

8

Quick Overview

L

CENTRAL DOOR LOCKING

With the ignition switch in position I or II,
press the facia switch (arrowed in
illustration) to lock or unlock all the doors
and the luggage compartment.

To also close or open the windows and
sunroof, press and hold the switch.

Drive away door locking

The doors and luggage compartment will
automatically lock when the vehicle’s
forward speed exceeds 7 km/h (5 mph).

This feature can be disabled by your
Jaguar Dealer.

Fuel filler flap

The driver’s door must be unlocked, or
the key in the ignition switch, before
operating the fuel filler flap release button.
See page 28.

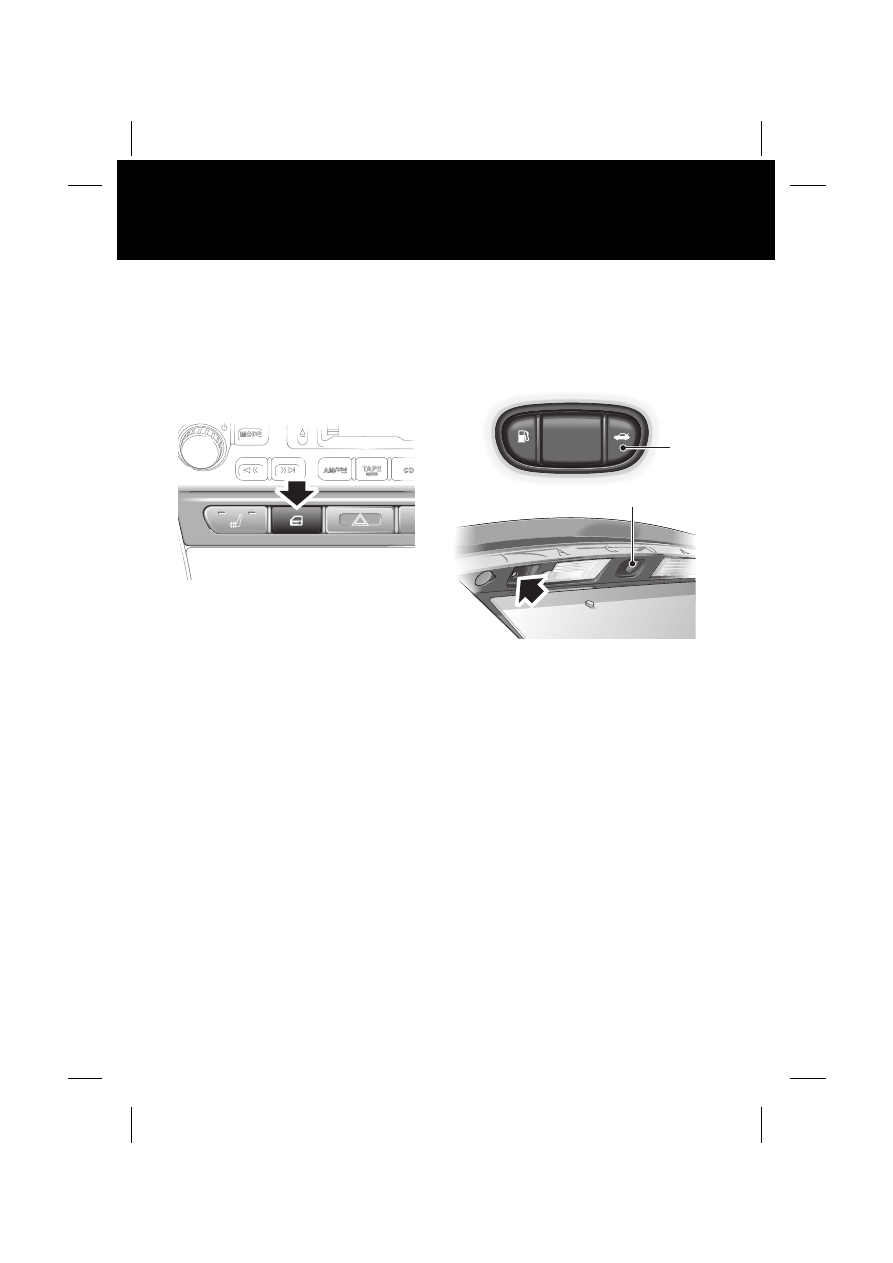

LUGGAGE COMPARTMENT

The luggage compartment is electrically
locked and unlocked in conjunction with
the driver’s door.

To open the luggage compartment with
the vehicle locked:
• Press the luggage compartment

button on the remote handset.

To open the luggage compartment with
the vehicle unlocked:
• Press the button on the facia 1.
• Press the release button on the

luggage compartment lid 2.

In the event of a flat battery, or other
problem opening the luggage
compartment, use the ignition key in the
luggage compartment lock (arrowed in
illustration).

Care Point
• Release buttons on the facia and

luggage compartment lid are disabled
when the vehicle is alarmed.

JOL4690

1

2

JOL4691

9

Quick Overview

R

CLOCK ADJUSTMENT

Touch-screen

1. Touch the time display for three

seconds to access clock setting
mode.

2. To adjust the clock, touch the up or

down arrow icons.

3. Touch the 12/24 icon to select

between twelve or twenty-four hour
display.

4.  Touch Set to confirm.

Non-touch-screen

1. Press and hold MODE until CLOCK

SET is displayed with the 12/24 hours
indicator flashing.

2. To set 12 or 24 hour display rotate the

volume control knob clockwise for 24
hour display; counter-clockwise for
12 hour display. AM or PM is,
subsequently, automatically
displayed.

3. Press MODE to select the hour

setting.

4. Rotate the volume control knob

clockwise to increase the hour;
counter-clockwise to decrease the
hour.

5. Press MODE to select the minute

setting. Rotate the volume control
knob clockwise to increase the
minute; counter-clockwise to
decrease the minute.

6. To exit, press and hold MODE until

the display reverts to audio mode.

12/24

Set

Cancel

PM

SET CLOCK

JOL4692

PM

TP  ST

JOL4693

10

Quick Overview

L

SEATS

Front seats

Note: Driving Position Memory provides
more information on automatic seat
movement, see page 12.

1. Seat forwards and rearwards, cushion

height and front tilt control switch.

2. Seat cushion extension switch.

3. Lumbar support switch.

4. Seat recline and head restraint height

adjustment switch.

Rear folding seat

To provide a larger luggage compartment
area, the backs of the rear seats can be
folded down.

Pull the respective handle, located in the
luggage compartment under the parcel
shelf, to release the back of the seat.

When returning the seat to the upright
position make sure seat belts are routed
correctly and the back is securely locked
in place.

1

2

3

4

JOL4730

JOL4695
