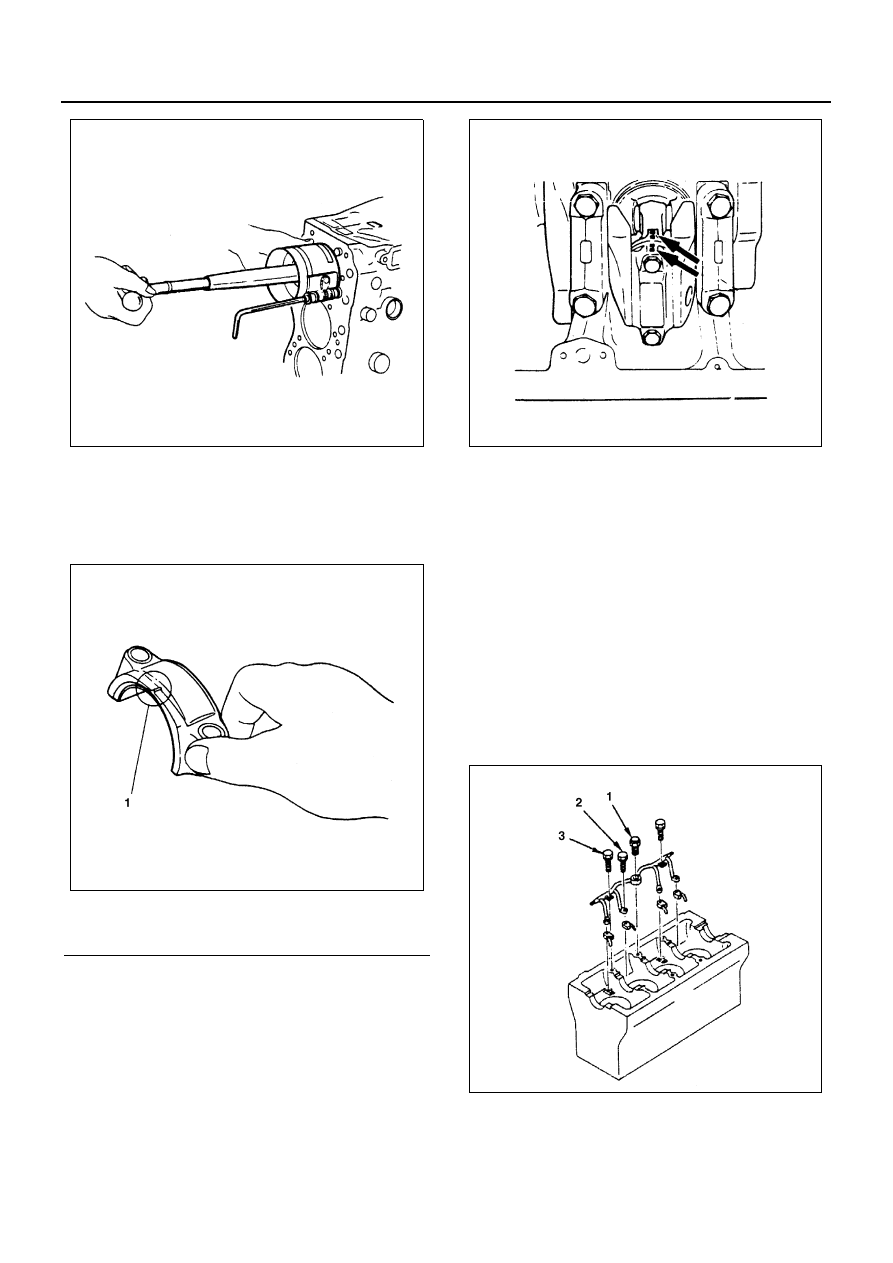

GENERAL ENGINE MECHANICAL 6A-65 16) Position the bearing cap front mark so that it is facing the front of the engine. 17) Install the connecting rod bearing caps. Align the bearing cap cylinder number marks 18) Apply a coat of engine oil to the threads and setting faces of each connecting rod cap bolt. 19) Tighten the connecting rod bearing cap bolts to the specified torque in two steps using the An- Tighten: • 4JB1-TC, 4JH1-TC 1st Step: 29 N ⋅m (3.0 kg⋅m/22 lb⋅ft) 2nd Step: 45 ° — 60° • 4JB1: 83 N ⋅m (8.5 kg⋅m/61 lb⋅ft) Notice: 10. Piston Cooling Oil Pipe 1) Fix the oil jet pipes with knock pins on the cylin- der block. 2) Install the oil pipe for piston cooling in the cylin- der block, tightening a relief valve (1) and four Tighten: • Oil pipe fixing bolts to M8: 19 N ⋅m (1.9 kg⋅m/14 lb⋅ft) M6: 8 N ⋅m (0.8 kg⋅m/69 lb⋅in) • Relief valve fixing bolt to 29 N ⋅m (3 kg⋅m/22 lb⋅ft) Caution: Legend 1. Front mark N6A3210E N6A3211E N6A3212E N6A3213E |
