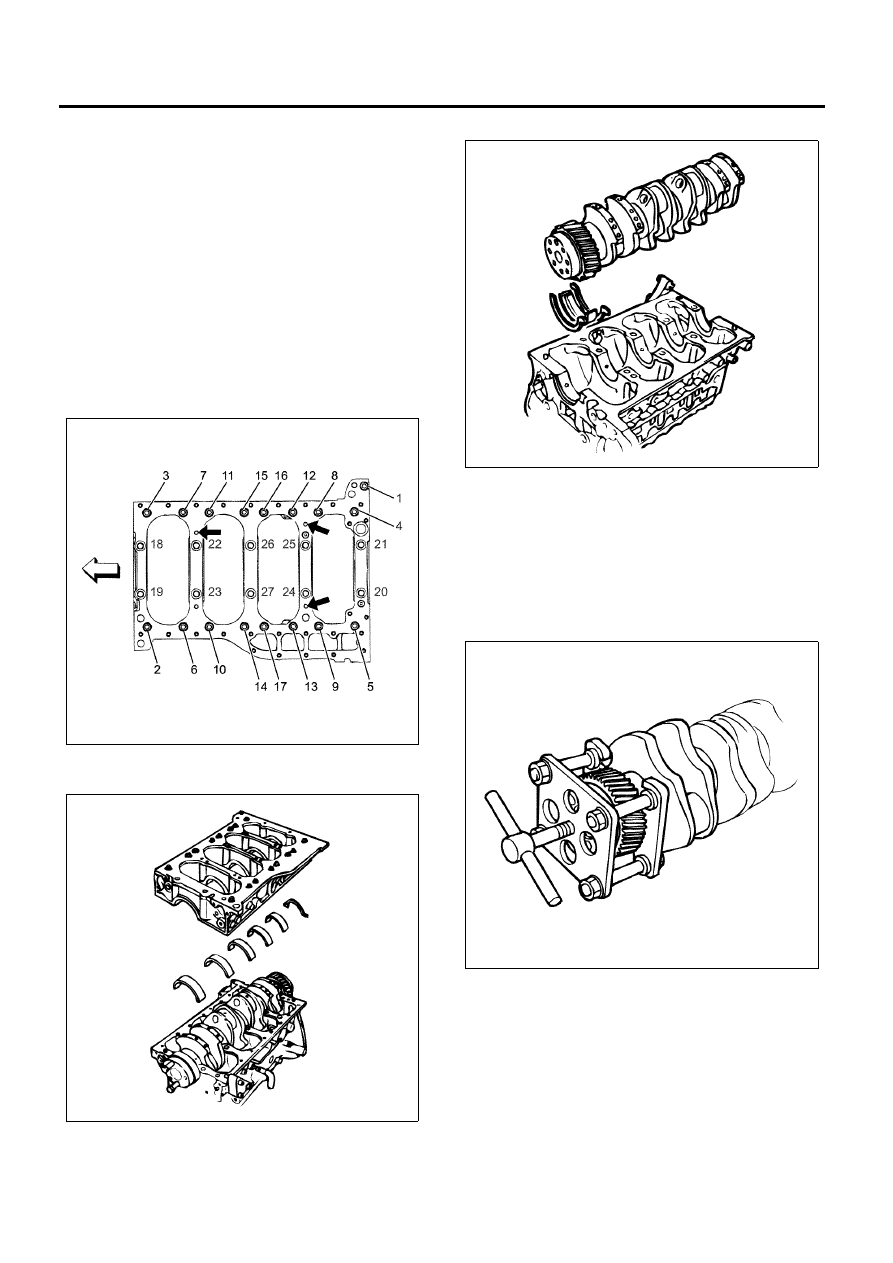

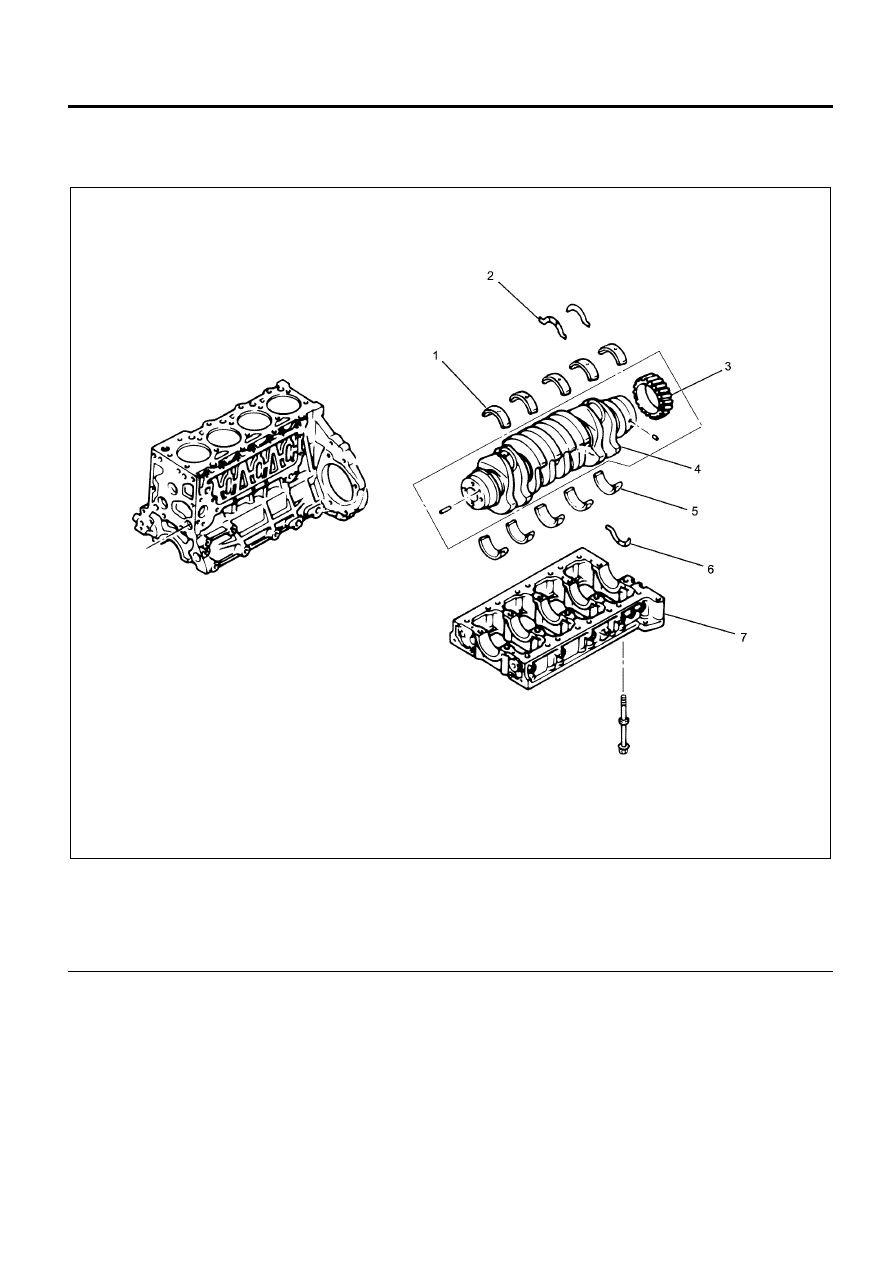

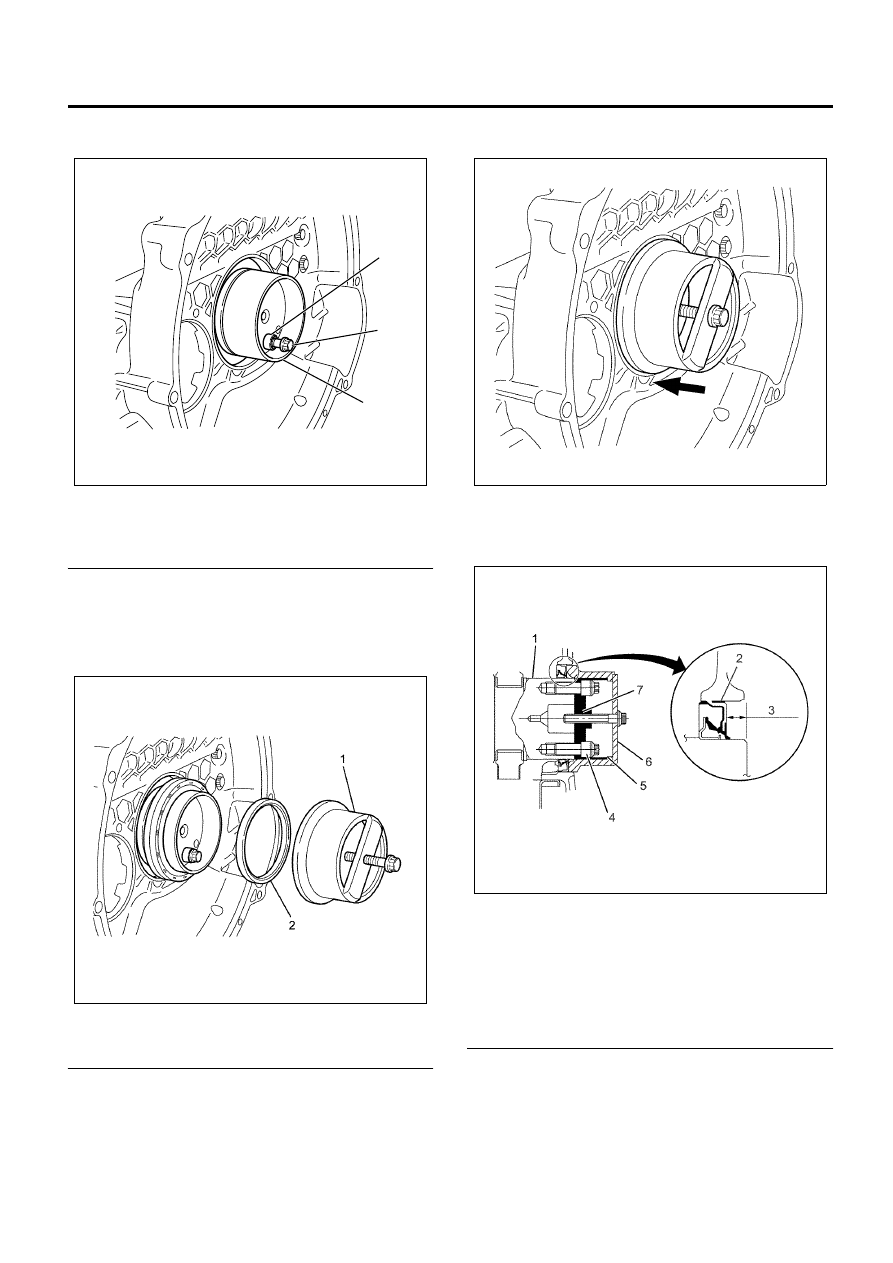

Engine Mechanical (4HK1-TC) 6A-133 • Put a collar on the fixing bolt and mount the adapter onto the crankshaft. Legend 1. Collar

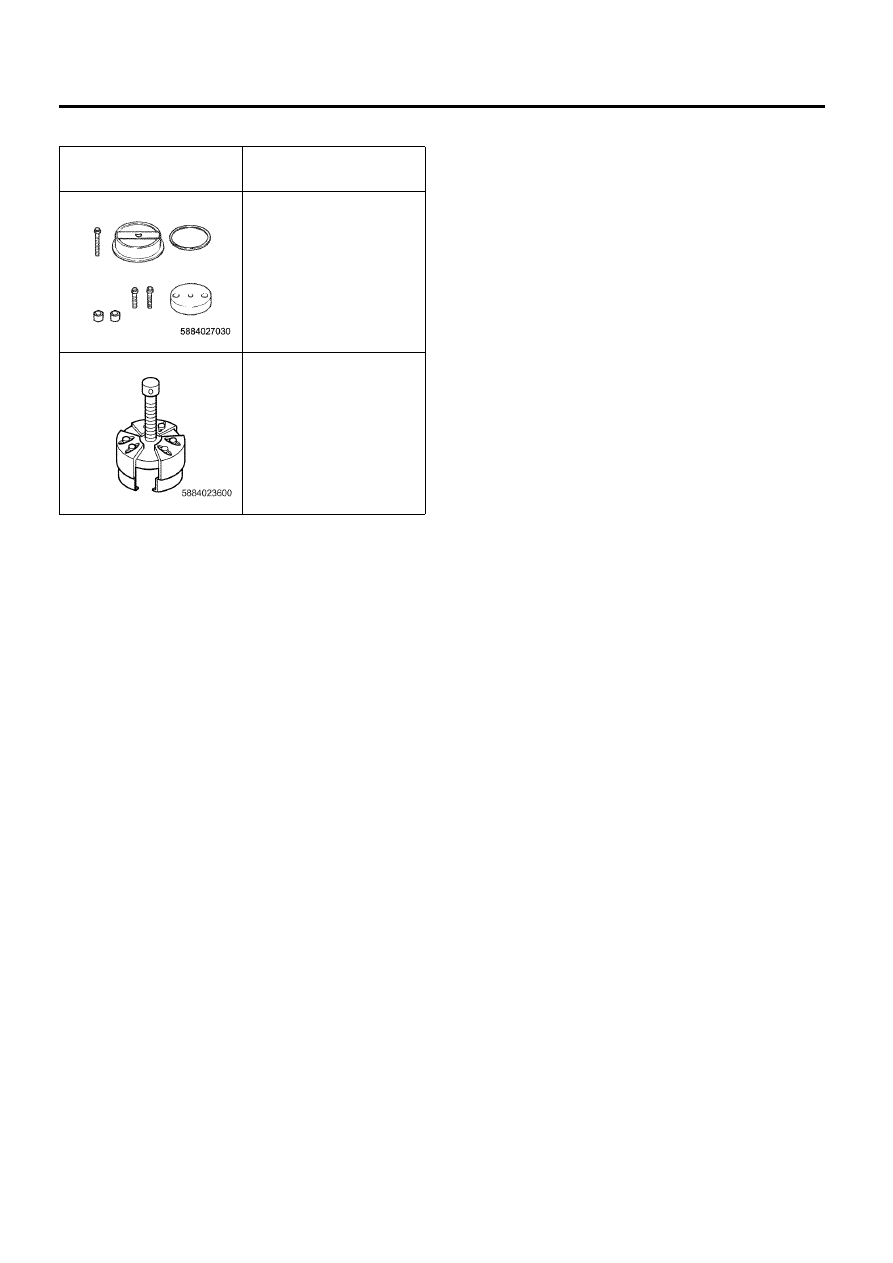

• Apply engine oil to the lip of the oil seal and place it in the rear side adapter. • Put the rear side adapter ring in the sleeve and put the sleeve on the adapter and fix with the Legend 1. Sleeve
• Tightening the center bolt until the sleeve touches the adapter to press fit the oil seal. • After you have pressed in the rear oil seal, confirm the measurement shown (depth from Legend 1. Rear Part of The Crankshaft ± 0.3 mm (0.31 ± 0.012 in) 4. Collar
3. Install the flywheel. Refer to “Flywheel”. 1 2 3 N6A6252E N6A6256E N6A6253E N6A6257E |
