To install the front license plate bracket to
your vehicle, it is recommended you contact
an INFINITI retailer.

WARNING

.

It is extremely dangerous to
ride in a cargo area inside the
vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed.

.

Do not allow people to ride in
any area of vehicle that is not
equipped with seats and seat
belts.

.

Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.

TERMS

It is important to familiarize yourself
with the following terms before load-
ing your vehicle:

.

Curb Weight (actual weight of

your vehicle) - vehicle weight in-
cluding: standard and optional
equipment, fluids, emergency
tools, and spare tire assembly. This
weight

does not

include passen-

gers and cargo.

.

GVW (Gross Vehicle Weight) -

curb weight plus the combined
weight of passengers and cargo.

.

GVWR (Gross Vehicle Weight Rat-

ing) - maximum total combined
weight of the unloaded vehicle,
passengers, luggage, hitch, trailer
tongue load and any other op-
tional equipment. This information
is located on the F.M.V.S.S./C.M.
V.S.S. label.

.

GAWR (Gross Axle Weight Rating)

- maximum weight (load) limit
specified for the front or rear axle.
This information is located on the
F.M.V.S.S./C.M.V.S.S. label.

.

GCWR (Gross Combined Weight

Rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer.

.

Vehicle Capacity Weight, Load

limit, Total load capacity - max-
imum total weight limit specified
of the load (passengers and cargo)
for the vehicle. This is the max-
imum combined weight of occu-

Technical and consumer information

10-15

INSTALLING FRONT LICENSE PLATE

VEHICLE LOADING INFORMATION

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-16

Technical and consumer information

pants and cargo that can be
loaded into the vehicle. If the
vehicle is used to tow a trailer,
the trailer tongue weight must be
included as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.

.

Cargo capacity - permissible

weight of cargo, the weight of
total occupants weight subtracted
from the load limit.

STI0445

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

VEHICLE LOAD CAPACITY

Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on
the Tire and Loading Information
label. Do not exceed the number of
occupants shown as “Seating Capa-
city” on the Tire and Loading Infor-
mation label.

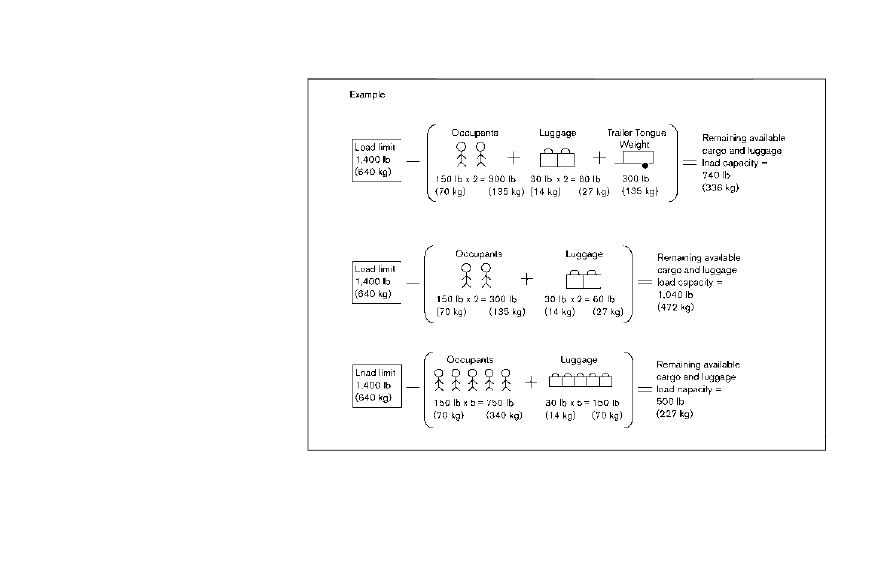

To get “the combined weight of
occupants and cargo”, add the weight
of all occupants, then add the total
luggage weight. Examples are shown
in the illustration.

Steps For Determining Correct
Load Limit

1.

Locate the statement “The com-
bined weight of occupants and
cargo should never exceed XXX
kg or XXX lbs” on your vehicle’s
placard.

2.

Determine the combined weight of
the driver and passengers that will
be riding in your vehicle.

3.

Subtract the combined weight of
the driver and passengers from

XXX kg or XXX lbs.

4.

The resulting figure equals the
available amount of cargo and
luggage load capacity. For exam-
ple, if the XXX amount equals
1400 lbs. and there will be five
150 lb. passengers in your vehicle,
the amount of available cargo and
luggage load capacity is 650 lbs.
(1400 − 750 (5 x 150) = 650 lbs)

5.

Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calcu-
lated in Step 4.

6.

If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity
of your vehicle.

Before driving a loaded vehicle, con-
firm that you do not exceed the Gross
Vehicle Weight Rating (GVWR) or the
Gross Axle Weight Rating (GAWR)

for your vehicle. (See “Measurement
of weights” (P.10-19).)
Also check tires for proper inflation
pressures. See the Tire and Loading
Information label.

Technical and consumer information

10-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-18

Technical and consumer information

SIC4446

SECURING THE LOAD

There are tie down hooks located in the
cargo area as shown. The tie down hooks
can be used to secure cargo with ropes or
other types of straps.

Do not apply a total load of more than 22 lb
(10 kg) to a single hook

or 7 lb (3 kg) to a

single hook

when securing cargo.

WARNING

.

Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place cargo
higher than the seatbacks. In a sud-

den stop or collision, unsecured cargo
could cause personal injury.

.

The child restraint top tether strap
may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed in a
collision if the top tether strap is
damaged.

.

Do not load your vehicle any heavier
than the GVWR or the maximum
front and rear GAWRs. If you do,
parts of your vehicle can break, tire
damage could occur, or it can change
the way your vehicle handles. This
could result in loss of control and
cause personal injury.

LOADING TIPS

.

The GVW must not exceed GVWR

or GAWR as specified on the F.M.
V.S.S./C.M.V.S.S. certification la-
bel.

.

Do not load the front and rear axle

to the GAWR. Doing so will exceed
the GVWR.

WARNING

.

Properly secure all cargo to help
prevent it from sliding or shift-
ing. Do not place cargo higher
than the seatbacks. In a sudden
stop or collision, unsecured car-
go could cause personal injury.

.

Do not load your vehicle any
heavier than the GVWR or the
m a x i m u m f r o n t a n d r e a r
GAWRs. If you do, parts of
your vehicle can break, tire
damage could occur, or it can
change the way your vehicle
handles. This could result in loss
of control and cause personal
injury.

.

Overloading not only can short-
en the life of your vehicle and
the tire, but can cause unsafe
vehicle handling and long brak-
ing distance. This may cause a
premature tire failure, which
could result in a serious acci-
dent and personal injury. Fail-

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ures caused by overloading are
not covered by the vehicle’s
warranty.

MEASUREMENT OF WEIGHTS

Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is
loaded, drive to a scale and weigh
the front and the rear wheels sepa-
rately to determine axle loads. Indivi-
dual axle loads should not exceed
either of the gross axle weight ratings
(GAWR). The total of the axle loads
should not exceed the gross vehicle
weight rating (GVWR). These ratings
are given on the vehicle certification
label. If weight ratings are exceeded,
move or remove items to bring all
weights below the ratings.

WARNING

Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.

CAUTION

.

Do not tow a trailer or haul a heavy
load for the first 500 miles (800 km).
Your engine, axle or other parts could
be damaged.

.

For the first 500 miles (800 km) that
you tow a trailer, do not drive over
50 MPH (80 km/h) and do not make
starts at full throttle. This helps the
engine and other parts of your vehicle
wear in at the heavier loads.

Your new vehicle was designed to be used
primarily to carry passengers and cargo.
Remember that towing a trailer places
additional loads on your vehicle’s engine,
drivetrain, steering, braking and other sys-
tems.
An INFINITI Towing Guide (U.S. only) is
available on the website at

www.InfinitiUSA.com. This guide includes
information on trailer towing capability and
the special equipment required for proper
towing.

MAXIMUM LOAD LIMITS

Maximum trailer loads

Never allow the total trailer load to exceed
the value specified in the “Towing load/
specification” (P.10-22). The total trailer
load equals trailer weight plus its cargo
weight.

.

When towing a trailer load of 3,500 lbs

(1,587 kg) or more, trailers with a brake
system MUST be used.

The maximum Gross Combined Weight
Rating (GCWR) should not exceed the value
specified in the following “Towing Load/
Specification” chart.

Technical and consumer information

10-19

TOWING A TRAILER

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-20

Technical and consumer information

STI0541

The GCWR equals the combined weight of
the towing vehicle (including passengers and
cargo) plus the total trailer load. Towing
loads greater than these or using improper
towing equipment could adversely affect
vehicle handling, braking and performance.
The ability of your vehicle to tow a trailer is
not only related to the maximum trailer
loads, but also the places you plan to tow.
Tow weights appropriate for level highway
driving may have to be reduced on very steep
grades or for low traction situations (for
example, on slippery boat ramps).
Temperature conditions can also affect
towing. For example, towing a heavy trailer
in high outside temperatures on graded

roads can affect engine performance and
cause overheating. The transmission high
fluid temperature and engine protection
mode, which helps reduce the chance of
transmission and engine damage, could
activate and automatically decrease engine
power. Vehicle speed may decrease under
high load. Plan your trip carefully to account
for trailer and vehicle load, weather and road
conditions.

WARNING

Overheating can result in reduced engine
power and vehicle speed. The reduced
speed may be lower than other traffic,
which could increase the chance of a
collision. Be especially careful when
driving. If the vehicle cannot maintain a
safe driving speed, pull to the side of the
road in a safe area. Allow the engine to
cool and return to normal operation. See
“If your vehicle overheats” (P.6-14).

CAUTION

Vehicle damage resulting from improper
towing procedures is not covered by
INFINITI warranties.

STI0542

Tongue load

When using a weight carrying or a weight
distributing hitch, keep the tongue load
between 10 to 15% of the total trailer load
or use the trailer tongue load specified by the
trailer manufacturer. The tongue load must
be within the maximum tongue load limits
shown in the following “Towing Load/
Specification” chart. If the tongue load
becomes excessive, rearrange cargo to allow
for proper tongue load.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TI1012M

MAXIMUM GROSS VEHICLE
WEIGHT (GVW)/MAXIMUM
GROSS AXLE WEIGHT (GAW)

The GVW of the towing vehicle must not
exceed the Gross Vehicle Weight Rating
(GVWR) shown on the F.M.V.S.S./C.M.V.S.
S. certification label. The GVW equals the
combined weight of the unloaded vehicle,
passengers, luggage, hitch, trailer tongue
load and any other optional equipment. In
addition, front or rear GAW must not exceed
the Gross Axle Weight Rating (GAWR)
shown on the F.M.V.S.S./C.M.V.S.S. certifi-
cation label.
Towing capacities are calculated assuming a

base vehicle with driver and any options
required to achieve the rating. Additional
passengers, cargo and/or optional equip-
ment, such as the trailer hitch, will add
weight to the vehicle and reduce your
vehicle’s maximum towing capacity and
trailer tongue load.
The vehicle and trailer need to be weighed to
confirm the vehicle is within the GVWR,
Front GAWR, Rear GAWR, Gross Combined
Weight Rating (GCWR) and Towing capa-
city.
All vehicle and trailer weights can be mea-
sured using platform type scales commonly
found at truck stops, highway weigh sta-
tions, building supply centers or salvage
yards.
To determine the available payload capacity
for tongue/king pin load, use the following
procedure.
1. Locate the GVWR on the F.M.V.S.S./C.

M.V.S.S. certification label.

2. Weigh your vehicle on the scale with all

of the passengers and cargo that are
normally in the vehicle when towing a
trailer.

3. Subtract the actual vehicle weight from

the GVWR. The remaining amount is the
available maximum tongue/king pin
load.

To determine the available towing capacity,
use the following procedure.
1. Find the GCWR for your vehicle on the

“Towing Load/Specification” chart
found later in this section.

2. Subtract the actual vehicle weight from

the GCWR. The remaining amount is the
available maximum towing capacity.

To determine the Gross Trailer Weight,
weigh your trailer on a scale with all
equipment and cargo, that are normally in
the trailer when it is towed. Make sure the
Gross trailer weight is not more than the
Gross Trailer Weight Rating shown on the
trailer and is not more than the calculated
available maximum towing capacity.
Also weigh the front and rear axles on the
scale to make sure the Front Gross Axle
Weight and Rear Gross Axle Weight are not
more than Front Gross Axle Weight and
Rear Gross Axle Weight on the F.M.V.S.S./
C.M.V.S.S. certification label. The cargo in
the trailer and vehicle may need to be moved
or removed to meet the specified ratings.
Example:

.

Gross Vehicle Weight (GVW) as weighed

on a scale - including passengers, cargo
and hitch - 6,450 lb. (2,926 kg).

.

Gross Vehicle Weight Rating (GVWR)

from F.M.V.S.S./C.M.V.S.S. certification
label - 7,300 lb. (3,311 kg).

Technical and consumer information

10-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-22

Technical and consumer information

.

Gross Combined Weight Rating (GCWR)

from “Towing Load/Specification” chart
- 14,550 lb. (6,600 kg).

.

Maximum Trailer towing capacity from

“Towing Load/Specification” chart -
8,500 lb. (3,856 kg).

7,300 lb. (3,311 kg)

GVWR

− 6,450 lb. (2,926 kg)

GVW

= 850 lb. (385 kg)

Available for tongue

weight

14,550 lb. (6,600

kg)

GCWR

− 6,450 lb. (2,926 kg)

GVW

= 8,100 lb. (3,674 kg)

Capacity available for

towing

850 lb. (385 kg) /

Available tongue weight

8,100 lb. (3,674 kg)

Available capacity

= 11 % tongue weight

The available towing capacity may be less
than the maximum towing capacity due to
the passenger and cargo load in the vehicle.
Remember to keep trailer tongue weight
between 10 - 15% of the trailer weight or
within the trailer tongue load specification
recommended by the trailer manufacturer. If
the tongue load becomes excessive, rear-
range the cargo to obtain the proper tongue
load. Do not exceed the maximum tongue

weight specification shown in the “Towing
load/specification” chart even if the calcu-
lated available tongue weight is greater than
15%. If the calculated tongue weight is less
than 10%, reduce the total trailer weight to
match the available tongue weight.
Always verify that available capacities are
within the required ratings.

TOWING LOAD/SPECIFICATION

WARNING

The towing capacities provided in this
manual are for general reference only.
The safe towing capacity of your vehicle
is affected by retailer and factory in-
stalled options and passenger and cargo
loads. You must weigh the vehicle and
trailer as described in this manual to
determine the actual vehicle towing
capacity. Do not exceed the published
maximum towing capacity, or the GCWR
or the GVWR shown on the F.M.V.S.S./
C.M.V.S.S. certification label. Doing so
can result in an accident causing serious
personal injury or property damage.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TOWING LOAD/SPECIFICATION CHART

Unit: lb (kg)

US

Canada

Two-Wheel Drive

(2WD) model

Four-Wheel Drive

(4WD) model

Four-Wheel Drive

(4WD) model

MAXIMUM TOWING CAPA-
CITY*1, *2

8,500 (3,856)

8,500 (3,856)

MAXIMUM TONGUE LOAD

850 (385)

850 (385)

GROSS COMBINED WEIGHT
RATING

14,550 (6,600)

14,790 (6,709)

14,710 (6,672)

1:

The towing capacity values are calculated assuming a base vehicle with driver and any
options required to achieve the rating. Additional passengers, cargo and/or optional
equipment will add weight to the vehicle and reduce your vehicle’s maximum towing
capacity.

2:

Use of a weight-distributing hitch system is recommended when towing over 5,000 lb
(2,267 kg).

TOWING SAFETY

Trailer hitch

Your vehicle is equipped with a trailer tow
package. The trailer tow package includes a
receiver-type frame mounted hitch. This
hitch is rated for the maximum towing
capacity of this vehicle when the proper
towing equipment is used. Choose a proper
ball mount and hitch ball that is rated for the
trailer to be towed. Genuine INFINITI ball
mounts and hitch balls are available from an
INFINITI retailer.

Technical and consumer information

10-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-24

Technical and consumer information

JVT0542X

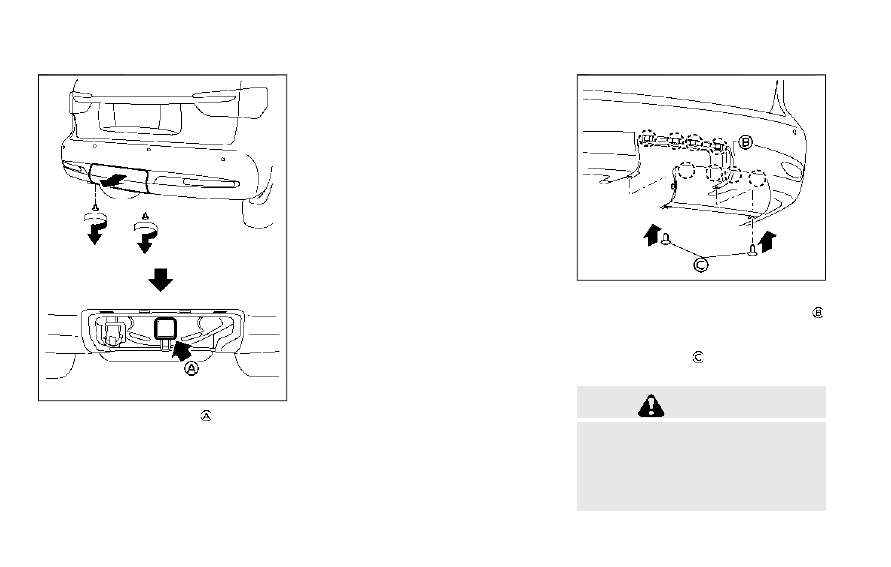

To access the trailer hitch

, remove the

trailer hitch cover located on the lower part
of the rear bumper.
To remove the trailer hitch cover:
1. Remove the 2 clips by turning them

counterclockwise.

2. Pull the bottom of the cover straight

backward to remove the inner side and
upper clips.

JVT0544X

To install the trailer hitch cover:
1. Insert the upper clips into the recesses

,

and then push the cover to its original
position.

2. Install the 2 clips

by pushing them in as

illustrated.

WARNING

Trailer hitch components have specific
weight ratings. Your vehicle may be
capable of towing a trailer heavier than
the weight rating of the hitch compo-
nents. Never exceed the weight rating of
the hitch components. Doing so can

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

cause serious personal injury or property
damage.

Hitch ball

Choose a hitch ball of the proper size and
weight rating for your trailer:

.

The required hitch ball size is stamped on

most trailer couplers. Most hitch balls
also have the size printed on top of the
ball.

.

Choose the proper class hitch ball based

on the trailer weight.

.

The diameter of the threaded shank of

the hitch ball must be matched to the ball
mount hole diameter. The hitch ball
shank should be no more than 1/16”
smaller than the hole in the ball mount.

.

The threaded shank of the hitch ball must

be long enough to be properly secured to
the ball mount. There should be at least 2
threads showing beyond the lock washer
and nut.

Ball mount

The hitch ball is attached to the ball mount
and the ball mount is inserted into the hitch
receiver. Choose a proper class ball mount
based on the trailer weight. Additionally, the
ball mount should be chosen to keep the
trailer tongue level with the ground.

Weight carrying hitches

A weight carrying or “dead weight” ball
mount is one that is designed to carry the
whole amount of tongue weight and gross
weight directly on the ball mount and on the
receiver.

Weight distribution hitch

This type of hitch is also called a “load-
leveling” or “equalizing” hitch. A set of bars
attach to the ball mount and to the trailer to
distribute the tongue weight (hitch weight)
of your trailer. Many vehicles cannot carry
the full tongue weight of a given trailer, and
need some of the tongue weight transferred
through the frame and pushing down on the
front wheels. This gives stability to the tow
vehicle.
A weight-distributing hitch system (Class IV)
is recommended if you plan to tow trailers
with a maximum weight over 5,000 lbs
(2,267 kg). Check with the trailer and towing
equipment manufacturers to determine if
they recommend the use of a weight-
distributing hitch system.

NOTE:

A weight-distributing hitch system may
affect the operation of trailer surge brakes.
If you are considering use of a weight-
distributing hitch system with a surge

brake-equipped trailer, check with the
surge brake, hitch or trailer manufacturer
to determine if and how this can be done.

Follow the instructions provided by the
manufacturer for installing and using the
weight-distributing hitch system.
General set-up instructions are as follows:
1. Park unloaded vehicle on a level surface.

With the ignition switch in the ON
position and the doors closed, allow the
vehicle to stand for several minutes so
that it can level.

2. Measure the height of a reference point

on the front and rear bumpers at the
center of the vehicle.

3. Attach the trailer to the vehicle and

adjust the hitch equalizers so that the
front bumper height is within 0 - .5
inches (0 - 13 mm) of the reference
height measured in step 2. The rear
bumper should be no higher than the
reference height measured in step 2.

WARNING

Properly adjust the weight distributing
hitch so the rear of the bumper is no
higher than the measured reference
height when the trailer is attached. If
the rear bumper is higher than the

Technical and consumer information

10-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-26

Technical and consumer information

measured reference height when loaded,
the vehicle may handle unpredictably
which could cause a loss of vehicle
control and cause serious personal injury
or property damage.

Sway control device

Sudden maneuvers, wind gusts and buffet-
ing caused by other vehicles can affect
trailer handling. Sway control devices may
be used to help control these affects. If you
choose to use one, contact a reputable
trailer hitch supplier to make sure the sway
control device will work with the vehicle,
hitch, trailer and the trailer’s brake system.
Follow the instructions provided by the
manufacturer for installing and using the
sway control device.

Class I hitch

Class I trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 2,000 lb
(907 kg).

Class II hitch

Class II trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 3,500 lb
(1,588 kg).

Class III hitch

Class III trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 5,000 lb
(2,267 kg).

Class IV hitch

Class IV trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 10,000 lb
(4,545 kg). A weight distributing hitch
should be used to tow trailers that weigh
over 5,000 lb (2,267 kg).
Your vehicle may be equipped with Class IV
trailer hitch equipment that has a 10,000 lb
(4,545 kg) maximum weight rating, but your
vehicle is only capable of towing the max-
imum trailer weights shown in the “Towing
Load/Specification” chart earlier in this
section.

CAUTION

.

Do not use axle-mounted hitches.

.

Do not modify the vehicle exhaust
system, brake system, etc.

.

Do not attach any additional hitches
to your vehicle because a hitch is
already mounted to your vehicle

frame.

Tire pressures

.

When towing a trailer, inflate the

vehicle tires to the recommended
cold tire pressure indicated on the
Tire and Loading Information la-
bel.

.

Trailer tire condition, size, load

rating and proper inflation pres-
sure should be in accordance with
the trailer and tire manufacturers’
specifications.

Safety chains

Always use a suitable chain between your
vehicle and the trailer. The safety chains
should be crossed and should be attached to
the hitch, not to the vehicle bumper or axle.
Be sure to leave enough slack in the chains to
permit turning corners.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STI0745

Trailer lights

Your vehicle is equipped with a towing
package, which also includes the 7-pin trailer
harness connector located under the trailer
hitch cover on the rear bumper.

CAUTION

.

When splicing into the vehicle elec-
trical system, a commercially avail-
able power-type module/converter
must be used to provide power for
all trailer lighting. This unit uses the
vehicle battery as a direct power
source for all trailer lights while using

the vehicle tail light, stoplight and
turn signal circuits as a signal source.
The module/converter must draw no
more than 15 milliamps from the stop
and tail lamp circuits. Using a mod-
ule/converter that exceeds these
power requirements may damage
the vehicle’s electrical system. See a
reputable trailer retailer to obtain the
proper equipment and to have it
installed.

.

Do not connect electrical devices that
draw more than 40 amps to the
vehicle. The fusible link may melt.

Trailer lights should comply with federal
and/or local regulations. For assistance in
hooking up trailer lights, contact an INFINITI
retailer or reputable trailer retailer.

Trailer brakes

When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake
system MUST be used.

However, most

states require a separate braking system on
trailers with a loaded weight above a
specific amount. Make sure the trailer meets
the local regulations and the regulations
where you plan to tow.
Several types of braking systems are avail-
able.

Surge Brakes -

The surge brake actuator is

mounted on the trailer tongue with a
hydraulic line running to each trailer wheel.
Surge brakes are activated by the trailer
pushing against the hitch ball when the tow
vehicle is braking. Hydraulic surge brakes are
common on rental trailers and some boat
trailers. In this type of system, there is no
hydraulic or electric connection for brake
operation between the tow vehicle and the
trailer.

Electric Trailer Brakes -

Electric braking

systems are activated by an electronic signal
sent from a trailer brake controller (special
brake sensing module).
Have a professional supplier of towing
equipment make sure the trailer brakes are
properly installed and demonstrate proper
brake function testing.

WARNING

Never connect a trailer brake system
directly to the vehicle brake system.

Pre-towing tips

.

Be certain your vehicle maintains a level

position when a loaded or unloaded
trailer is hitched. Do not drive the vehicle
if it has an abnormal nose-up or nose-

Technical and consumer information

10-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-28

Technical and consumer information

down condition; check for improper
tongue load, overload, worn suspension
or other possible causes of either condi-
tion.

.

Always secure items in the trailer to

prevent load shift while driving.

.

Keep the cargo load as low as possible in

the trailer to keep the trailer center of
gravity low.

.

Load the trailer so approximately 60% of

the trailer load is in the front half and
40% is in the back half. Also make sure
the load is balanced side to side.

.

Check your hitch, trailer tire pressure,

vehicle tire pressure, trailer light opera-
tion, and trailer wheel lug nuts every time
you attach a trailer to the vehicle.

.

Be certain your rearview mirrors conform

to all federal, state or local regulations. If
not, install any mirrors required for
towing before driving the vehicle.

.

Determine the overall height of the

vehicle and trailer so the required clear-
ance is known.

Trailer towing tips

In order to gain skill and an understanding of
the vehicle’s behavior, you should practice
turning, stopping and backing up in an area
which is free from traffic. Steering stability,
and braking performance will be somewhat

different than under normal driving condi-
tions.

.

Always secure items in the trailer to

prevent load shift while driving.

.

Lock the trailer hitch coupler with a pin or

lock to prevent the coupler from inad-
vertently becoming unlatched.

.

Avoid abrupt starts, acceleration or

stops.

.

Avoid sharp turns or lane changes.

.

Always drive your vehicle at a moderate

speed. Some states or provinces have
specific speed limits for vehicles that are
towing trailers. Obey the local speed
limits.

.

When backing up, hold the bottom of the

steering wheel with one hand. Move
your hand in the direction in which you
want the trailer to go. Make small
corrections and back up slowly. If possi-
ble, have someone guide you when you
are backing up.

Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is
not recommended; however, if you must do
so:

CAUTION

If you move the shift lever to the P
(Park) position before blocking the
wheels and applying the parking brake,
transmission damage could occur.

1. Apply and hold the brake pedal.
2. Have someone place blocks on the

downhill side of the vehicle and trailer
wheels.

3. After the wheel blocks are in place,

slowly release the brake pedal until the
blocks absorb the vehicle load.

4. Apply the parking brake.
5. Shift the transmission into P (Park).
6.

Four-Wheel Drive (4WD) models:

Make sure that the 4WD shift switch is
engaged in the AUTO, 4HI or 4LO
position and the Automatic Transmission
(AT) park warning light is turned off.

7. Turn off the engine.
To drive away:
1. Apply and hold the brake pedal.
2. Start the engine.
3. Shift the transmission into gear.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Release the parking brake.
5. Drive slowly until the vehicle and trailer

are clear from the blocks.

6. Apply and hold the brake pedal.
7. Have someone retrieve and store the

blocks.

.

While going downhill, the weight of the

trailer pushing on the tow vehicle may
decrease overall stability. Therefore, to
maintain adequate control, reduce your
speed and shift to a lower gear. Avoid
long or repeated use of the brakes when
descending a hill, as this reduces their
effectiveness and could cause overheat-
ing. Shifting to a lower gear instead
provides “engine braking” and reduces
the need to brake as frequently.

.

If the engine coolant temperature rises to

a high temperature, see “If your vehicle
overheats” (P.6-14).

.

Trailer towing requires more fuel than

normal circumstances.

.

Avoid towing a trailer for your vehicle’s

first 500 miles (800 km).

.

Have your vehicle serviced more often

than at intervals specified in the recom-
mended maintenance schedule shown in
the “9. Maintenance and schedules”
section.

.

When making a turn, your trailer wheels

will be closer to the inside of the turn
than your vehicle wheels. To compensate
for this, make a larger than normal
turning radius during the turn.

.

Crosswinds and rough roads will ad-

versely affect vehicle/trailer handling,
possibly causing vehicle sway. When
being passed by larger vehicles, be pre-
pared for possible changes in crosswinds
that could affect vehicle handling.

Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal

to allow the vehicle to coast and steer as
straight ahead as the road conditions
allow. This combination will help stabilize
the vehicle.

.

Do not correct trailer sway by steering

or applying the brakes.

2. When the trailer sway stops, gently

apply the brakes and pull to the side of
the road in a safe area.

3. Try to rearrange the trailer load so it is

balanced as described earlier in this
section.

.

Be careful when passing other vehicles.

Passing while towing a trailer requires
considerably more distance than normal
passing. Remember the length of the
trailer must also pass the other vehicle
before you can safely change lanes.

.

Use the TOW mode or downshift the

transmission to a lower gear for engine
braking when driving down steep or long
hills. This will help slow the vehicle
without applying the brakes.

.

Avoid holding the brake pedal down too

long or too frequently. This could cause
the brakes to overheat, resulting in
reduced braking efficiency.

.

Increase your following distance to allow

for greater stopping distances while
towing a trailer. Anticipate stops and
brake gradually.

.

INFINITI recommends that the cruise

control not be used while towing a
trailer.

.

While towing a trailer, do not use the

following systems (if so equipped):
— the Lane Departure Warning (LDW)

system
(See “How to enable/disable the
LDW system” (P.5-24).)

— the Lane Departure Prevention (LDP)

system
(See “How to enable/disable the LDP
system” (P.5-30).)

— the Blind Spot Warning (BSW) system

(See “How to enable/disable the
BSW system” (P.5-36).)

— the Blind Spot Intervention

®

(BSI)

system

Technical and consumer information

10-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-30

Technical and consumer information

(See “How to enable/disable the BSI
system” (P.5-45).)

— the Back-up Collision Intervention

(BCI) system
(See “How to enable/disable the BCI
system” (P.5-58).)

— the Intelligent Cruise Control (ICC)

system
(See “Intelligent Cruise Control (ICC)”
(P.5-64).)

— the Distance Control Assist (DCA)

system
(See “How to enable/disable the DCA
system” (P.5-90).)

.

Some states or provinces have specific

regulations and speed limits for vehicles
that are towing trailers. Obey the local
speed limits.

.

Check your hitch, trailer wiring harness

connections, and trailer wheel lug nuts
after 50 miles (80 km) of travel and at
every break.

.

When launching a boat, do not allow the

water level to go over the exhaust tail
pipe or rear bumper.

.

Make sure you disconnect the trailer

lights before backing the trailer into the
water or the trailer lights may burn out.

TOW mode

Using TOW mode is recommended when
pulling a heavy trailer or hauling a heavy
load. Push the TOW mode switch to activate
TOW mode. The TOW mode indicator light
in the meter illuminates when TOW mode is
selected. Push the TOW mode switch again
to turn TOW mode off. TOW mode is
automatically cancelled when the ignition
switch is placed in the OFF position.
TOW mode includes the following features:

.

Grade logic — Adjusts transmission shifts

when pulling a trailer or hauling a load up
a grade.

.

Downhill Speed Control (DSC) — auto-

matically downshifts when driving down
a grade with a trailer or heavy load to
help control vehicle speed.

Driving the vehicle in the TOW mode with no
trailer/load or light trailer/light load will not
cause any damage. However, fuel economy
may be reduced and the transmission/
engine driving characteristics may feel unu-
sual.

Trailer Sway Control

To minimize trailer sway, your vehicle may
apply braking to individual wheels based on
input from your vehicle sensors and vehicle
speed. Trailer Sway Control is a function of
the Vehicle Dynamic Control (VDC) system

and is active when the VDC function is
enabled.

CAUTION

If the VDC OFF switch is on (meaning
VDC system OFF), the Trailer Sway
Control is also disabled.

When Trailer Sway Control is in operation,
the VDC warning light blinks. When vehicle
control is regained, VDC warning light will
turn OFF.
For additional information about the VDC
system, see “Vehicle Dynamic Control (VDC)
system” (P.5-135).

If Trailer Sway Control activates:

1. Take your foot off the accelerator pedal

to allow the vehicle to coast and steer as
straight ahead as the road conditions
allow. This combination will help stabilize
the vehicle.

CAUTION

Do not try to correct trailer sway by
steering or applying the brakes.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. When the trailer sway stops, gently

apply the brakes and pull to the side of
the road in a safe area.

3. Try to rearrange the trailer load so it is

balanced.

NOTE:

Trailer Sway Control cannot reduce trailer
sway in all situations.

FLAT TOWING

Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.

CAUTION

.

Failure to follow these guidelines can
result in severe transmission damage.

.

Whenever flat towing your vehicle,
always tow forward, never back-
ward.

.

DO NOT tow any automatic trans-
mission vehicle with all four wheels
on the ground (flat towing). Doing so
WILL DAMAGE internal transmis-
sion parts due to lack of transmission
lubrication.

.

DO NOT tow a Four-Wheel Drive
(4WD) vehicle with any of the wheels
on the ground. Doing so may cause
serious and expensive damage to the
powertrain.

.

For emergency towing procedures
refer to “Towing recommended by
INFINITI” (P.6-16).

Automatic Transmission

Four-Wheel Drive (4WD) models:

Do not tow a 4WD vehicle with any of the
wheels on the ground.

Two-Wheel Drive (2WD) models:

To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly

MUST

be placed under the towed vehicle’s

drive wheels.

Always

follow the dolly man-

ufacturer’s recommendations when using
their product.

DOT (Department Of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where applic-
able on the tire sidewall between tread
shoulder and maximum section width. For
example:

Treadwear 200 Traction AA Temperature A

TREADWEAR

The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon actual conditions of their use, however,
and may depart significantly from the norm
due to variations in driving habits, service
practices and differences in road character-
istics and climate.

Technical and consumer information

10-31

UNIFORM TIRE QUALITY GRADING

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-32

Technical and consumer information

TRACTION AA, A, B AND C

The traction grades, from highest to lowest,
are AA, A, B and C. Those grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions on
specified government test surfaces of as-
phalt and concrete. A tire marked C may
have poor traction performance.

WARNING

The traction grade assigned to this tire is
based on straight-ahead braking trac-
tion tests, and does not include accel-
eration, cornering, hydroplaning, or peak
traction characteristics.

TEMPERATURE A, B AND C

The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive tempera-
ture can lead to sudden tire failure. The
grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle

Safety Standard No. 109. Grades B and A
represent higher levels of performance on
the laboratory test wheel than the minimum
required by law.

WARNING

The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combina-
tion, can cause heat build-up and possi-
ble tire failure.

Your INFINITI is covered by the following
emission warranties.

For USA:

.

Emission Defects Warranty

.

Emissions Performance Warranty

Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet that comes with
your INFINITI. If you did not receive a
Warranty Information Booklet, or it has
become lost, you may obtain a replacement
by writing to:

.

INFINITI Division

Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003

EMISSION CONTROL SYSTEM
WARRANTY

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For Canada:

Emission Control System Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty and Roadside Assistance Information
that comes with your INFINITI. If you did not
receive a Warranty and Roadside Assistance
Information, or it has become lost, you may
obtain a replacement by writing to:

.

Nissan Canada Inc.

5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5

For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to
notifying INFINITI.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your retailer, or INFINITI.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888- 327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.
gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW.,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from http://
www.safercar.gov.
You may notify INFINITI by contact-

ing our Consumer Affairs Depart-
ment, toll-free, at 1-800-662-6200.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Transport
Canada in addition to notifying
INFINITI.
If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
request that INFINITI conduct a recall
campaign. However, Transport Cana-
da cannot become involved in indivi-
dual problems between you, your
retailer, or INFINITI.
You may contact Transport Canada’s
Defect Investigations and Recalls Di-
vision toll free at 1-800-333-0510.
You may also report safety defects
online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/fc-cp.aspx?lan-
g=eng (English speakers) or https://

Technical and consumer information

10-33

REPORTING SAFETY DEFECTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-34

Technical and consumer information

wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/fc-cp.aspx?lang=fra
(French speakers).
Additional information concerning
motor vehicle safety may be obtained
from Transport Canada’s Road
Safety Information Centre at 1-
800-333-0371 or online at www.tc.
gc.ca/roadsafety (English speakers)
or www.tc.gc.ca/securiteroutiere
(French speakers).
To notify INFINITI of any safety
concerns please contact our Consu-
mer Information Centre toll free at 1-
800-361-4792.

WARNING

A vehicle equipped with Four-Wheel
Drive (4WD) should never be tested
using a two wheel dynamometer (such
as the dynamometers used by some
states for emissions testing), or similar
equipment. Make sure you inform test
facility personnel that your vehicle is
equipped with 4WD before it is placed
on a dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious vehicle
damage or personal injury.

Due to legal requirements in some states and
Canadian Provinces, your vehicle may be
required to be in what is called the “ready
condition” for an Inspection/Maintenance
(I/M) test of the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition” can
be obtained by ordinary usage of the vehicle.
If a powertrain system component is re-
paired or the battery is disconnected, the
vehicle may be reset to a “not ready condi-
tion”. Before taking the I/M test, check the
vehicle’s inspection/maintenance test readi-

ness condition. Place the ignition switch in
the ON position without starting the engine.
If the Malfunction Indicator Light (MIL)
comes on steady for 20 seconds and then
blinks for 10 seconds, the I/M test condition
is “not ready”. If the MIL does not blink after
20 seconds, the I/M test condition is
“ready”.
It is recommended you visit an INFINITI
retailer to set “ready condition” or to prepare
the vehicle for testing.

READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record
such data as:

.

How various systems in your vehicle were

operating;

.

Whether or not the driver and passenger

safety belts were buckled/fastened;

.

How far (if at all) the driver was depres-

sing the accelerator and/or brake pedal;
and,

.

How fast the vehicle was traveling.

.

Sounds are not recorded.

These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR
under normal driving conditions and no
personal data (e.g. name, gender, age and
crash location) are recorded. However, other
parties, such as law enforcement, could

combine the EDR data with the type of
personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI re-
tailer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only be
accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.

Genuine INFINITI Service Manual for this
model year and prior can be purchased. A
genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailers. Genuine
INFINITI Owner’s Manual can also be pur-
chased.

For USA:

For current pricing and availability of genu-
ine

INFINITI Service Manuals,

contact:

www.infiniti-techinfo.com

For current pricing and availability of genu-
ine

INFINITI Owner’s Manuals,

contact:

1-800-247-5321

For Canada:

To purchase a copy of a genuine INFINITI
Service Manual or Owner’s Manual for this
model year and prior, please contact an
INFINITI retailer. For the phone number
and location of an INFINITI retailer in your
area, call the INFINITI Satisfaction Center at
1-800-361-4792 and a bilingual INFINITI
representative will assist you.

Technical and consumer information

10-35

EVENT DATA RECORDERS (EDR)

OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     16      17      18
