Infiniti QX55 (2023 year). Manual in english - page 13





Parking brake break-in

Break in the parking brake shoes whenever
the stopping effect of the parking brake is
weakened or whenever the parking brake
shoes and/or rotors are replaced, in order to
assure the best brake performance.

This procedure is described in the INFINITI
Service Manual. It is recommended that you
visit an INFINITI retailer for this service.

ANTI-LOCK BRAKING SYSTEM
(ABS)

WARNING

The ABS is a sophisticated device, but it
cannot prevent accidents resulting from
careless or dangerous driving tech-
niques. It can help maintain vehicle con-
trol during braking on slippery surfaces.
Remember that stopping distances on
slippery surfaces will be longer than on
normal surfaces even with ABS. Stop-
ping distances may also be longer on
rough, gravel or snow covered roads, or
if you are using tire chains. Always main-
tain a safe distance from the vehicle in
front of you. Ultimately, the driver is re-
sponsible for safety.

Tire type and condition may also affect
braking effectiveness.

When replacing tires, install the

specified size of tires on all four
wheels.

When installing a spare tire, make

sure that it is the proper size and type
as specified on the Tire and Loading
Information label. For additional in-
formation, see “Tire and Loading In-
formation label” (P. 8-29).

For

additional

information,

see

“Wheels and tires” (P. 8-27).

The ABS controls the brakes so the wheels do
not lock during hard braking or when braking
on slippery surfaces. The system detects the
rotation speed at each wheel and varies the
brake fluid pressure to prevent each wheel
from locking and sliding. By preventing each
wheel from locking, the system helps the
driver maintain steering control and helps to
minimize swerving and spinning on slippery
surfaces.

Using the system

Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
Anti-lock Braking System will operate to pre-

vent the wheels from locking up. Steer the
vehicle to avoid obstacles.

WARNING

Do not pump the brake pedal. Doing so may
result in increased stopping distances.

Self-test feature

The Anti-lock Braking System (ABS) includes
electronic sensors, electric pumps, hydraulic
solenoids and a computer. The computer has
a built-in diagnostic feature that tests the
system each time you start the engine and
move the vehicle at a low speed in forward or
reverse. When the self-test occurs, you may
hear a “clunk” noise and/or feel a pulsation in
the brake pedal. This is normal and does not
indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then op-
erates

normally

but

without

anti-lock

assistance.

If the ABS warning light illuminates during
the self-test or while driving, have the vehicle
checked. It is recommended that you visit an
INFINITI retailer for this service.

5-140

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Normal operation

The Anti-lock Braking System (ABS) operates
at speeds above 3 - 6 mph (5 - 10 km/h). The
speed varies according to road conditions.

When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic pres-
sure. This action is similar to pumping the
brakes very quickly. You may feel a pulsation
in the brake pedal and hear a noise from
under the hood or feel a vibration from the
actuator when it is operating. This is normal
and indicates that the ABS is operating prop-
erly. However, the pulsation may indicate
that road conditions are hazardous and extra
care is required while driving.

BRAKE ASSIST

When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force
than a conventional brake booster even with
light pedal force.

WARNING

The Brake Assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the driv-
er’s responsibility to stay alert, drive safely
and be in control of the vehicle at all times.

The VDC system uses various sensors to
monitor driver inputs and vehicle motion. Un-
der certain driving conditions, the VDC sys-
tem helps to perform the following functions:
• Controls brake pressure to reduce wheel

slip on one slipping drive wheel so power is
transferred to a non-slipping drive wheel
on the same axle.

• Controls brake pressure and engine output

to reduce drive wheel slip based on vehicle
speed (traction control function).

• Controls

brake

pressure

at

individual

wheels and engine output to help the driver
maintain control of the vehicle in the fol-
lowing conditions:

Understeer (vehicle tends to not follow the
steered path despite increased steering input)
Oversteer (vehicle tends to spin due to certain
road or driving conditions)

The VDC system can help the driver to main-
tain control of the vehicle, but it cannot pre-
vent loss of vehicle control in all driving
situations.

When the VDC system operates, the
indicator light in the instrument panel flashes
to note the following:
• The road may be slippery or the system may

determine some action is required to help
keep the vehicle on the steered path.

VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM

Starting and driving

5-141

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• You may feel a pulsation in the brake pedal

and hear a noise or vibration from under the
hood. This is normal and indicates that the
VDC system is working properly.

• Adjust your speed and driving to the road

conditions.

For additional information, see “Slip indicator
light” (P. 2-17) and ”Vehicle Dynamic Control
(VDC) OFF indicator light” (P. 2-17).

If a malfunction occurs in the system, the

and

indicator lights come on in the

instrument panel. The VDC system automati-
cally turns off when these indicator lights are
on.

The lower display is used to turn off the VDC
system. When the VDC system is turned off,
the

indicator light, the RAB system

warning light, and the FEB with Pedestrian
Detection system warning light illuminate to
indicate the VDC, FEB with Pedestrian De-
tection, and RAB systems are off.

When the lower display is used to turn off the
system, the VDC system still operates to pre-
vent one drive wheel from slipping by trans-
ferring power to a non-slipping drive wheel.
The

indicator light flashes if this occurs.

All other VDC functions are off and the
indicator light will not flash.

The VDC system is automatically reset to on
when the ignition switch is placed in the OFF
position then back to the ON position.

The computer has a built-in diagnostic fea-
ture that tests the system each time you start
the engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a clunk noise and/or
feel a pulsation in the brake pedal. This is
normal and is not an indication of a
malfunction.

WARNING

The VDC system is designed to help the
driver maintain controllability but does
not prevent accidents due to abrupt
steering operation at high speeds or by
careless or dangerous driving tech-
niques. Reduce vehicle speed and be es-
pecially careful when driving and corner-
ing on slippery surfaces and always drive
carefully.

Do not modify the vehicle's suspension.
If suspension parts such as shock ab-
sorbers, struts, springs, stabilizer bars,
bushings and wheels are not INFINITI
recommended for your vehicle or are ex-
tremely deteriorated, the VDC system
may not operate properly. This could ad-
versely affect vehicle handling perfor-
mance, and the

indicator light may

flash or both the

and

indicator

lights may illuminate.

If brake related parts such as brake pads,
rotors and calipers are not INFINITI rec-
ommended or are extremely deterio-
rated, the VDC system may not operate
properly and both the

and the

indicator lights may illuminate.

If engine control related parts are not
INFINITI recommended or are extremely
deteriorated, both the

and

indicator lights may illuminate.

When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly
and the

indicator light may flash or

both the

and

indicator lights

may illuminate. Do not drive on these
types of roads.

5-142

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the

indicator light may flash

or both the

and

indicator

lights may illuminate. This is not a mal-
function. Restart the engine after driv-
ing onto a stable surface.

If wheels or tires other than the INFINITI
recommended ones are used, the VDC
system may not operate properly and
the

indicator light may flash or both

the

and

indicator lights may

illuminate.

The VDC system is not a substitute for
winter tires or tire chains on a snow cov-
ered road.

BRAKE FORCE DISTRIBUTION

During braking while driving through turns,
the system optimizes the distribution of force
to each of the four wheels depending on the
radius of the turn.

WARNING

The VDC system is designed to help the
driver maintain controllability but does
not prevent accidents due to abrupt
steering operation at high speeds or by
careless or dangerous driving tech-
niques. Reduce vehicle speed and be es-
pecially careful when driving and corner-
ing on slippery surfaces and always drive
carefully.

Do not modify the vehicle’s suspension.
If suspension parts such as shock ab-
sorbers, struts, springs, stabilizer bars,
bushings and wheels are not INFINITI
recommended for your vehicle or are ex-
tremely deteriorated, the VDC system
may not operate properly. This could ad-
versely affect vehicle handling perfor-
mance, and the

indicator light may

flash or both the

and

indicator

lights may illuminate.

If brake related parts such as brake pads,
rotors and calipers are not INFINITI rec-
ommended or are extremely deterio-
rated, the VDC system may not operate
properly and both the

and the

indicator lights may illuminate.

If engine control related parts are not
INFINITI recommended or are extremely
deteriorated, both the

and

indicator lights may illuminate.

When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly
and the

indicator light may flash or

both the

and

indicator lights

may illuminate. Do not drive on these
types of roads.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the

indicator light may flash

or both the

and

indicator

lights may illuminate. This is not a mal-
function. Restart the engine after driv-
ing onto a stable surface.

If wheels or tires other than the INFINITI
recommended ones are used, the VDC
system may not operate properly and
the

indicator light may flash or both

the

and

indicator lights may

illuminate.

The VDC system is not a substitute for
winter tires or tire chains on a snow cov-
ered road.

Starting and driving

5-143

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The chassis control is an electric control mod-
ule that includes the following functions:
• Active Trace Control
• Active Engine Brake
• Active Ride Control

ACTIVE TRACE CONTROL

The Active Trace Control senses driving
based

on

the

driver’s

steering

and

acceleration/braking patterns, and controls
brake pressure at individual wheels to aid
tracing at corners and help smooth vehicle
response.

When the lower display is used to turn off the
VDC system, the Active Trace Control sys-
tem is also turned off.

When the PERSONAL mode is selected, the
Active Trace Control can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, see “INFINITI Drive Mode Selector”
(P. 5-29).

When the Active Trace Control is operated
and the “Chassis Control” mode is selected in
the vehicle information display, the Active
Trace Control graphics are shown in the ve-
hicle information display. For additional in-
formation, see “Vehicle information display”
(P. 2-19).

If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Trace Control is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

WARNING

The Active Trace Control may not be effec-
tive depending on the driving condition. Al-
ways drive carefully and attentively.

When the Active Trace Control is operating,
you may feel a pulsation in the brake pedal
and hear a noise. This is normal and indicates
that the Active Trace Control is operating
properly.

You may also feel deceleration when the Ac-
tive Trace Control is operating. However, this
is not a malfunction.

LSD4774

CHASSIS CONTROL

5-144

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Even if the Active Trace Control is set to OFF,
some functions will remain on to assist the
driver (for example: avoidance scenes).

ACTIVE ENGINE BRAKE

The Active Engine Brake function adds subtle
deceleration by controlling Continuously
Variable Transmission (CVT) gear ratio, de-
pending on the cornering condition calcu-
lated from the driver's steering input and plu-
ral sensors. This benefit is for easier
traceability and less workload of adjusting
speed with braking at corners.

The Active Engine Brake also adds subtle
deceleration with gear ratio control accord-
ing to driver’s brake pedal operation.

When the PERSONAL mode is selected, the
Active Engine Brake can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, see “INFINITI Drive Mode Selector”
(P. 5-29).

When the lower display is used to turn off the
VDC system, the Active Engine Brake system
is also turned off.

When the Active Engine Brake is operated at
corners and the “Chassis Control” mode is
selected in the vehicle information display,
the Active Engine Brake graphics are shown
in the vehicle information display. For addi-
tional information, see “Vehicle information
display” (P. 2-19).

If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Engine Brake is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

WARNING

The Active Engine Brake may not be effec-
tive depending on the driving condition. Al-
ways drive carefully and attentively.

When the Active Engine Brake is operating,
the needle of the tachometer will rise up and
you may hear an engine noise. This is normal
and indicates that the Active Engine Brake is
operating properly.

You may also feel deceleration when the Ac-
tive Engine Brake is operating. However, this
is not a malfunction.

LSD4774

Starting and driving

5-145

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ACTIVE RIDE CONTROL

This system senses upper body motion
(based on wheel speed information) and con-
trols four wheel brake pressure. This will en-
hance ride comfort in effort to restrain un-
comfortable upper body movement when
passing over undulated road surfaces.

When the lower display is used to turn off the
VDC system, the Active Ride Control is also
turned off.

When the Active Ride Control is operated
and the “Chassis Control” mode is selected in
the vehicle information display, the Active
Ride Control graphics are shown in the ve-
hicle information display. For additional in-
formation, see “Vehicle information display”
(P. 2-19).

If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Ride Control is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

When the Active Ride Control is operating,
you may hear noise and sense slight decel-
eration. This is normal and indicates that the
Active Ride Control is operating properly.

WARNING

Never rely solely on the hill start assist
system to prevent the vehicle from mov-
ing backward on a hill. Always drive
carefully and attentively. Depress the
brake pedal when the vehicle is stopped
on a steep hill. Be especially careful when
stopped on a hill on frozen or muddy
roads. Failure to prevent the vehicle
from rolling backwards may result in a
loss of control of the vehicle and possible
serious injury or death.

The hill start assist system is not de-
signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill. Fail-
ure to do so may cause the vehicle to roll
backwards and may result in a collision or
serious personal injury.

The hill start assist system may not pre-
vent the vehicle from rolling backwards
on a hill under all load or road conditions.
Always be prepared to depress the brake
pedal to prevent the vehicle from rolling
backwards. Failure to do so may result in
a collision or serious personal injury.

LSD3922

HILL START ASSIST SYSTEM

5-146

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the vehicle is stopped on a hill, the hill
start assist system automatically keeps the
brakes applied to help prevent the vehicle
from rolling backward in the time it takes the
driver to release the brake pedal and apply
the accelerator.

The hill start assist system will operate auto-
matically under the following conditions:
• The transmission is shifted to a forward or

reverse gear.

• The vehicle is stopped completely on a hill

by applying the brake. The maximum hold-
ing time is 2 seconds. After 2 seconds the
vehicle will begin to roll back and the hill
start assist system will stop operating
completely.

The hill start assist system will not operate
when the shift lever is placed in the N (Neu-
tral), the Park button is pressed to place the
vehicle in the P (Park) position or on a flat and
level road.

The Hill Start Assist function status can be
checked in the “Chassis Control” mode in the
vehicle information display. For additional in-
formation, see “Vehicle information display”
(P. 2-19).

The sonar system sounds a tone to inform the
driver of obstacles near the bumper.

When the sonar system is turned on, the
sonar view will automatically appear in the
touch screen display when the camera is
activated.

WARNING

The sonar system is a convenience but it
is not a substitute for proper parking.

The driver is always responsible for
safety during parking and other maneu-
vers. Always look around and check that
it is safe to do so before parking.

LSD4775

LSD2993

FRONT AND REAR SONAR SYSTEM
(if so equipped)

Starting and driving

5-147

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Read and understand the limitations of
the sonar system as contained in this
section. The colors of the sonar indicator
indicates different distances to the
object.

Inclement weather or ultrasonic sources
such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem; this may include reduced perfor-
mance or a false activation.

The sonar system is designed as an aid to
the driver in detecting large stationary
objects to help avoid damaging the
vehicle.

The sonar system is not designed to pre-
vent contact with small or moving ob-
ject. Always move slowly. The system
will not detect small objects below the
bumper, and may not detect objects
close to the bumper or on the ground.

The sonar system may not detect the fol-
lowing objects: fluffy objects such as
snow, cloth, cotton, glass-wool, etc.;
thin objects such as rope, wire and chain,
etc.; or wedge-shaped objects.

CAUTION

Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.

The front and rear sonar detect the dis-
tance between the vehicle and the ob-
stacle by detecting the sound wave re-
flected from the surface of an obstacle.
When there is a sound such as horn, or an
ultrasonic source (such as sonar of other
vehicles) around the vehicle, the sonar
may not detect objects properly.

Keep the sonar sensors (located on the
bumper fascia) free from snow, ice and
large accumulations of dirt. Do not clean
the sonar with sharp objects. If the sen-
sors are covered, the accuracy of the so-
nar function will be diminished.

SYSTEM OPERATION

The system informs with a visual and audible
signal of front obstacles when the shift lever
is in the D (Drive) position and both front and
rear obstacles when the shift lever is in the R
(Reverse) position.

Sonar Operation Table

FR Sensor

RR Sensor

Range

Sound Display Sound Display

P

x

x

R

o

o

o

o

N

x

x

D

o

o

x

o – Display/Beep when detect
† – Display on camera view
x – No Display and Beep

The system is deactivated at speeds above 6
mph (10 km/h). It is reactivated at lower
speeds.

The intermittent tone will stop after 3 sec-
onds when an obstacle is detected by only
the corner sensor and the distance does not
change. The tone will stop when the obstacle
get away from the vehicle.

When the object is detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking increases. When the vehicle is very
close to the object, the indicator stops blink-
ing and turns red, and the tone sounds
continuously.

5-148

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SONAR FUNCTION SETTINGS

The camera aiding sonar function settings
can

be

changed

using

the

following

procedures.

1. Press the MENU button on the Display

Commander.

2. Touch the “Settings” key on the touch

screen display.

3. Touch the “Parking Sonar” key.

Available setting items:

Setting item

Action

Auto Show Sonar Image

When the sonar detects an object while this item is turned on, the Around View® Monitor or the RearView
Monitor will interrupt the current view in the display to show the surround area of the vehicle.

Front

When this item is turned on, only the front sonar is activated. The amber markers are displayed at the front cor-
ners of the vehicle icon.

Rear

When this item is turned on, only the rear sonar is activated. The amber markers are displayed at the rear cor-
ners of the vehicle icon.

Distance

Adjust the sensitivity level of the sonar.

Volume

Adjust the tone volume of the sonar.

NOTE:

Do not adjust any of the Parking Sonar set-
tings while the vehicle is moving. Make sure
the parking brake is firmly applied.

Starting and driving

5-149

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TURNING ON AND OFF THE
SONAR FUNCTION

When the “P” key

O

A

is touched, the indicator

light

O

B

on the key will turn off and the sonar

will turn off temporarily.

The Moving Object Detection (MOD) (if so
equipped), the Rear Automatic Braking
(RAB), and the Blind Spot Intervention (BSI)
(if so equipped) systems will also be turned
off at the same time. See “Moving Object
Detection (MOD)” (P. 4-27), “Rear Automatic
Braking (RAB)” (P. 5-104) and “Blind Spot
Intervention (BSI)” (P. 5-53).

When the “P” key

O

A

is touched again, the

indicator light

O

B

will turn on and the sonar

will turn back on.

In the cases below, the sonar will be turned
back on automatically:
• When the shift lever is in the R (Reverse)

position.

• When the CAMERA button is pressed and

a screen other than the camera view is
shown on the display.

• When vehicle speed decreases below ap-

proximately 5 mph (8 km/h).

• When the ignition switch is placed in the

OFF position and turned back to the ON
position again.

To prevent the sonar system from activating
altogether, use the sonar system settings
menu.

See

“Sonar

function

settings”

(P. 5-149).

When both Sonar and the MOD system are
deactivated from the settings menu, the "P"
key

O

A

will disappear from the display. (See

“Sonar function settings” (P. 5-149) and
“Moving Object Detection (MOD)” (P. 4-27).)

When the corner of the vehicle moves closer
to an object, the corner sonar indicator

O

A

appears. When the center of the vehicle
moves close to an object, the center sonar (if
so equipped) indicator

O

B

appears.

LSD4241

LSD2136

5-150

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The system indicators

O

A

will appear when

the vehicle moves closer to an object.

SONAR LIMITATIONS

WARNING

Listed below are the system limitations for
the sonar system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.

Read and understand the limitations of
the sonar system as contained in this
section. Inclement weather may affect
the function of the sonar system; this
may include reduced performance or a
false activation.

The sonar system is deactivated at
speeds above 6 mph (10 km/h). It is re-
activated at lower speeds.

Inclement weather or ultrasonic sources
such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sonar
system; this may include reduced perfor-
mance or a false activation.

The sonar system is not designed to pre-
vent contact with small or moving ob-
jects. Always move slowly. The system
will not detect small objects below the
bumper or on the ground.

The sonar system may not detect the fol-
lowing objects: fluffy objects such as
snow, cloth, cotton, glass-wool, etc.;
thin objects such as rope, wire and chain,
etc.; or wedge-shaped objects; complex-
shaped objects or multiple objects in
close.

The sonar system may not detect objects
at speeds above 3 mph (5 km/h) and may
not detect certain angular or moving
objects.

The sonar system may not operate in the
following conditions:

When rain, snow, ice, dirt, etc. ad-
heres to the sonar.

When a loud sound is heard in the
area around the vehicle.

When the surface of the obstacle is
diagonal to the front or rear of the
vehicle.

When a sonar or the area around the
sensor is extremely hot or cold.

The sonar system may unintentionally
operate in the following conditions:

When there is overgrown grass in the
area around the vehicle.

When there are bumps, protrusions
or manhole covers on the road
surface.

When the vehicle drives through a
draped flag or a curtain.

When there is an accumulation of
snow or ice behind the vehicle.

When driving on a steep hill.

LSD4242

Starting and driving

5-151

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM TEMPORARILY
UNAVAILABLE

When sonar blockage is detected, the system
will be deactivated automatically.

The system is not available until the condi-
tions no longer exist.

The sonar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the sonar sensors.

Action to take:

When the above conditions no longer exist,
the system will resume automatically.

SYSTEM MAINTENANCE

The sonar sensors are located on the front
and rear bumpers. See “Exterior front”
(P. 0-3) and “Exterior rear” (P. 0-4).
• Always keep the area near the sonar sen-

sors clean.

• If the sonar sensors are dirty, wipe them off

with a soft cloth while being careful to not
damage them.

• The sonar sensors may be blocked by tem-

porary ambient conditions such as splash-
ing water, mist or fog. The blocked condi-
tion may also be caused by objects such as
ice, frost or dirt obstructing the sonar sen-
sors. Check for and remove objects ob-
structing the area around the sonar
sensors.

• Do not subject the area around the sonar

sensors to strong impact. Also, do not re-
move or disassemble the sonar sensors. If
the sonar sensors and peripheral areas are
deformed in an accident, etc., have the so-
nar sensors checked by a INFINITI retailer.

• Do not attach stickers (including transpar-

ent material), install accessories or apply
additional paint on the sonar sensors and
their surrounding areas. This may cause a
malfunction or improper operation.

• When washing the vehicle using a high-

pressure washer, do not apply direct
washer pressure on the sonar sensors. This
may cause a malfunction of the sonar
sensors.

LSD2993

5-152

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock be-
comes frozen, heat the key before inserting it
into the key hole, or use the INFINITI Intelli-
gent Key.

ANTIFREEZE

In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper winter
protection. For additional information, see
“Engine cooling system” (P. 8-4).

BATTERY

If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see “Battery” (P. 8-12).

DRAINING OF COOLANT WATER

If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For additional information, see
“Changing engine coolant” (P. 8-5).

TIRE EQUIPMENT

1. SUMMER tires have a tread designed to

provide superior performance on dry
pavement. However, the performance of
these tires will be substantially reduced in
snowy and icy conditions. If you operate
your vehicle on snowy or icy roads,
INFINITI recommends the use of MUD &
SNOW or ALL SEASON TIRES on all four
wheels. It is recommended that you visit
an INFINITI retailer for the tire type, size,
speed rating and availability information.

2. For additional traction on icy roads, stud-

ded tires may be used. However, some
U.S. states and Canadian provinces pro-
hibit their use. Check local, state and pro-
vincial laws before installing studded tires.

Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires.

3. Tire chains may be used. For additional

information, see “Tire chains”(P. 8-37).

SPECIAL WINTER EQUIPMENT

It is recommended that the following items
be carried in the vehicle during winter:
• A scraper and stiff-bristled brush to re-

move ice and snow from the windows and
wiper blades.

• A sturdy, flat board to be placed under the

jack to give it firm support.

• A shovel to dig the vehicle out of

snowdrifts.

• Extra washer fluid to refill the windshield-

washer fluid reservoir.

DRIVING ON SNOW OR ICE

WARNING

Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and very
hard to drive on. The vehicle will have
much less traction or “grip” under these
conditions. Try to avoid driving on wet
ice until the road is salted or sanded.

Whatever the condition, drive with
caution. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction.

Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.

Allow greater following distances on
slippery roads.

COLD WEATHER DRIVING

Starting and driving

5-153

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.

Do not use the cruise control on slippery
roads.

Snow can trap dangerous exhaust gases
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.

ENGINE BLOCK HEATER (if so
equipped)

Engine block heaters are used to assist with
cold temperature starting.

The engine block heater should be used when
the outside temperature is 20°F (-7°C) or
lower.

WARNING

Do not use your engine block heater with
an ungrounded electrical system or a
2-pronged adapter. You can be seriously
injured by an electrical shock if you use
an ungrounded connection.

Disconnect and properly store the engine
block heater cord before starting the en-
gine. Damage to the cord could result in
an electrical shock and can cause serious
injury.

Use a heavy-duty 3-wire, 3-pronged ex-
tension cord rated for at least 10 A. Plug
the extension cord into a Ground Fault
Interrupt (GFI) protected, grounded
110-VAC outlet. Failure to use the
proper extension cord or a grounded
outlet can result in a fire or electrical
shock and cause serious personal injury.

To use the engine block heater:

1. Turn the engine off.

2. Open the hood and unwrap the engine

block heater cord.

3. Plug the engine block heater cord into a

grounded 3-wire, 3-pronged extension
cord.

4. Plug the extension cord into a Ground

Fault Interrupt (GFI) protected, grounded
110-volt AC (VAC) outlet.

5. The engine block heater must be plugged

in for at least 2 - 4 hours, depending on
outside temperatures, to properly warm
the engine coolant. Use an appropriate
timer to turn the engine block heater on.

6. Before starting the engine, unplug and

properly store the cord to keep it away
from moving parts.

5-154

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ACTIVE NOISE CANCELLATION

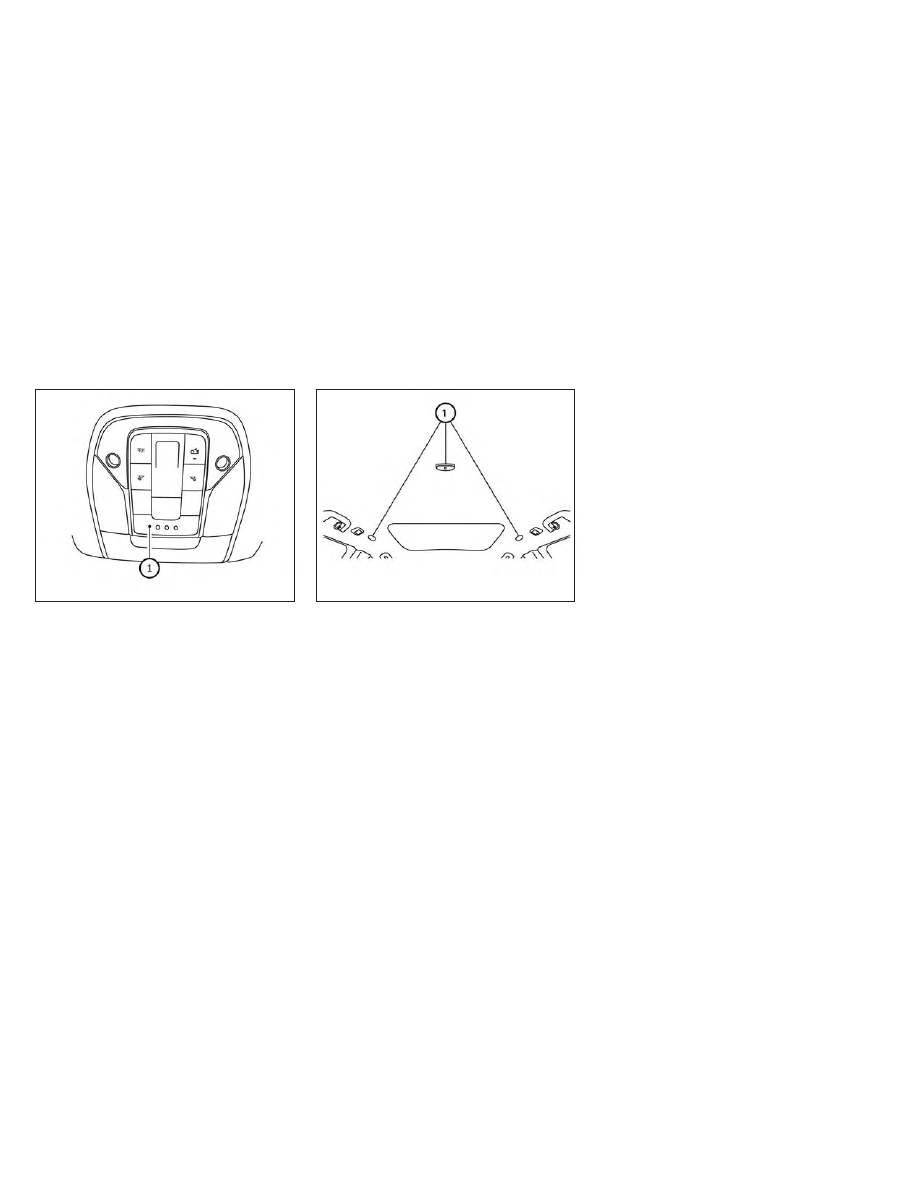

This system uses microphones

O

1

located

inside the vehicle to detect engine booming
noise. The system then automatically gener-
ates a noise canceling sound through the
speakers and woofer (if so equipped) to re-
duce engine booming noise.

NOTE:
To operate the active noise cancellation
system properly:

• Do not cover the speakers or woofer (if so

equipped).

• Do not cover the microphones.
• Do not change or modify speakers includ-

ing the woofer (if so equipped) and any
audio related components such as the
amplifier.

• Do not make any modification including

sound deadening or modifications around
the microphones or speakers.

ACTIVE SOUND ENHANCEMENT

Active sound enhancement enhances exist-
ing engine sounds according to the engine
speed and driving modes through the speak-
ers and woofer (if so equipped).

LSD2959

Front Microphone

LSD4152

Rear Microphone

ACTIVE NOISE CANCELLATION/
ACTIVE SOUND ENHANCEMENT

Starting and driving

5-155

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

5-156

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights flash.

WARNING

If stopping for an emergency, be sure to
move the vehicle well off the road.

Do not use the hazard warning flashers
while moving on the highway unless un-
usual circumstances force you to drive so
slowly that your vehicle might become a
hazard to other traffic.

Turn signals do not work when the haz-
ard warning flasher lights are on.

The flashers will operate with the ignition
switch placed in any position.

Some jurisdictions may prohibit the use of
the hazard warning flasher switch while
driving.

In the event of a roadside emergency, road-
side assistance service is available to you.
Please refer to your Warranty Information
Booklet (U.S.) or the Warranty & Roadside
Assistance Information Booklet (Canada) for
details.

LIC0394

HAZARD WARNING FLASHER
SWITCH

ROADSIDE ASSISTANCE PROGRAM

6-2

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
– Rapidly push the push-button ignition

switch three consecutive times in less than
1.5 seconds, or

– Push and hold the push-button ignition

switch for more than 2 seconds.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

This vehicle is equipped with Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires. When the low tire pres-
sure warning light is lit, and the “Tire Pressure
Low - Add Air” or “Flat Tire-Visit dealer” (if so
equipped) warning appears in the vehicle in-
formation display, one or more of your tires is
significantly under-inflated. The system also
displays pressure of all tires (except the spare
tire) on the vehicle information display screen
by sending a signal from a sensor that is
installed in each wheel. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light. This system will acti-
vate only when the vehicle is driven at speeds
above 16 mph (25 km/h). For additional in-
formation, see “Warning lights, indicator
lights and audible reminders” (P. 2-9) and
“Tire Pressure Monitoring System (TPMS)”
(P. 8-27).

WARNING

Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.

If the low tire pressure warning light illu-
minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
OFF. If the light still illuminates while
driving after adjusting the tire pressure,
a tire may be flat or the TPMS may be
malfunctioning. If you have a flat tire,
replace it with a replacement tire as soon
as possible. If no tires are flat and all tires
are properly inflated, have the vehicle
checked. It is recommended that you
visit an INFINITI retailer for this service.

EMERGENCY ENGINE SHUT OFF

FLAT TIRE

In case of emergency

6-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When using a wheel without TPMS such
as the spare tire, the TPMS will not func-
tion and the low tire pressure warning
light will flash for approximately 1 min-
ute. The light will remain on after 1 min-
ute. Have your tires replaced and/or
TPMS system reset as soon as possible.
It is recommended that you visit an
INFINITI retailer for these services.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.

RUN-FLAT TIRES

This vehicle is equipped with run-flat tires.
Run-flat tires can be used temporarily if they
are punctured. When the “Flat Tire — Visit
dealer” warning appears in the vehicle infor-
mation display, one or more of your tires is
punctured. For additional information, see
“Run-flat tires” (P. 8-36).

For additional information, refer to the tire
safety information in the Warranty Informa-
tion Booklet.

WARNING

Although you can continue driving with a
punctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and per-
sonal injury. Also, driving a long distance
at high speeds may damage the tires.

Do not drive at speeds above 50 mph (80
km/h) and do not drive more than ap-
proximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature, ve-
hicle load, road conditions and other
factors.

Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the vehicle.

If you detect any unusual sounds or vi-
brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.

CAUTION

Never install tire chains on a punctured
run-flat tire, as this could damage your
vehicle.

Avoid diving over any projection or pot-
hole, as the clearance between the ve-
hicle and the ground is smaller than
normal.

Do not enter an automated car wash
with a punctured run-flat tire.

Have the punctured tire inspected by an
INFINITI retailer or other authorized re-
pair shop. Replace the tire as soon as
possible if the tire is seriously damaged.

6-4

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To start your engine with a booster battery,
the instructions and precautions below must
be followed.

WARNING

If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also dam-
age your vehicle.

Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the
battery.

Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a corro-
sive sulfuric acid solution which can
cause severe burns. If the fluid should
come into contact with anything, imme-
diately flush the contacted area with
water.

Keep battery out of the reach of children.

The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle.

Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.

Do not attempt to jump start a frozen
battery. It could explode and cause seri-
ous injury.

Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away from
it.

JUMP STARTING

In case of emergency

6-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Always follow the instructions below. Fail-
ure to do so could result in damage to the
charging system and cause personal injury.

1. If the booster battery is in another vehicle,

position the two vehicles to bring their
batteries near each other.

Do not allow the two vehicles to touch.

2. Apply the parking brake. Engage the P

(Park) position. Switch off all unnecessary
electrical systems (lights, heater, air con-
ditioner, etc.).

3. Place the ignition switch to the LOCK or

OFF position.

4. Connect the jumper cables in the se-

quence illustrated (

O

A

,

O

B

,

O

C

,

O

D

).

CAUTION

Always connect positive (+) to positive
(+) and negative (−) to body ground (for
example, strut mounting bolt, engine lift
bracket, etc.) — not to the battery.

Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal.

5. Start the engine of the booster vehicle and

let it run for a few minutes.

6. Keep the engine speed of the booster ve-

hicle at about 2,000 rpm and start the
engine of the vehicle being jump started.

CAUTION

Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, place the ignition
switch in the OFF position and wait 3 to 4
seconds before trying again.

7. After starting the engine, carefully discon-

nect the negative cable and then the posi-
tive cable.

LCE2223

6-6

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Continuously

Variable

Transmission

(CVT) models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.

Do not push start this vehicle. The three-
way catalyst may be damaged.

WARNING

Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.

To avoid the danger of being scalded,
never remove the coolant reservoir cap
while the engine is still hot. When the
coolant reservoir cap is removed, pres-
surized hot water will spurt out, possibly
causing serious injury.

Do not open the hood if steam is coming
out.

If your vehicle is overheating (indicated by an
extremely high temperature gauge reading),
or if you feel a lack of engine power, detect
abnormal noise, etc. take the following steps.

1. Move the vehicle safely off the road, apply

the parking brake and engage the P (Park)
position.

Do not stop the engine.

2. Turn off the air conditioner. Open all the

windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.

3. Get out of the vehicle. Look and listen for

steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.

4. Open the engine hood.

WARNING

If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.

5. Visually check drive belts for damage or

looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the
engine.

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

In case of emergency

6-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6. After the engine cools down, check the

coolant level in the engine coolant reser-
voir tank with the engine running. Add
coolant to the engine coolant reservoir
tank if necessary. Have your vehicle re-
paired. It is recommended that you visit an
INFINITI retailer for this service.

When towing your vehicle, all jurisdictions
and local regulations for towing must be fol-
lowed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from an INFINITI retailer. Local ser-
vice operators are generally familiar with the
applicable laws and procedures for towing.
To assure proper towing and to prevent ac-
cidental damage to your vehicle, INFINITI
recommends having a service operator tow
your vehicle. It is advisable to have the service
operator

carefully

read

the

following

precautions:

WARNING

Never ride in a vehicle that is being
towed.

Never get under your vehicle after it has
been lifted by a tow truck.

CAUTION

When towing, make sure that the trans-
mission, axles, steering system and pow-
ertrain are in working condition. Use dol-
lies or flatbed if any of the listed systems
are not working.

Always attach safety chains before
towing.

For additional information about towing your
vehicle behind a Recreational Vehicle (RV),
see “Flat towing for all wheel drive vehicle”
(P. 10-20).

NOTE:

If the battery is completely drained, the
transmission will not manually shift to other
positions. For shifting to other positions,
charge the battery or supply power follow-
ing the jump starting procedure. Push the
park button to shift to the P (Park) position
before shifting to other positions.

TOWING RECOMMENDED BY
INFINITI

INFINITI recommends towing your vehicle
based upon the type of drivetrain. For addi-
tional information, refer to the diagrams in
this section to ensure that your vehicle is
properly towed.

TOWING YOUR VEHICLE

6-8

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

All-Wheel Drive (AWD) models with
Continuously Variable Transmission
(CVT)

INFINITI recommends that towing dollies be
used when towing your vehicle or place the
vehicle on a flatbed truck as illustrated.

CAUTION

Never tow AWD models equipped with a
Continuously Variable Transmission (CVT)
with any of the wheels on the ground as
this may cause serious and expensive dam-
age to the transfer case and transmission.

NOTE:

If the battery is completely drained the
transmission will not manually shift to other
positions.

VEHICLE RECOVERY (freeing a
stuck vehicle)

WARNING

To avoid vehicle damage, serious personal
injury or death when recovering a stuck
vehicle:

Contact a professional towing service to
recover the vehicle if you have any ques-
tions regarding the recovery procedure.

Tow chains or cables must be attached
only to main structural members of the
vehicle.

Do not use the vehicle tie-downs to tow
or free a stuck vehicle.

Only use devices specifically designed for
vehicle recovery and follow the manu-
facturer's instructions.

Always pull the recovery device straight
out from the front of the vehicle. Never
pull at an angle.

Route recovery devices so they do not
touch any part of the vehicle except the
attachment point.

If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device designed
specifically for vehicle recovery. Always fol-
low the manufacturer's instructions for the
recovery device.

LCE2468

In case of emergency

6-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rocking a stuck vehicle

WARNING

Stand clear of a stuck vehicle.

Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.

If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:

1. Turn off the Vehicle Dynamic Control

(VDC) system.

2. Make sure the area in front and behind the

vehicle is clear of obstructions.

3. Turn the steering wheel right and left to

clear an area around the front tires.

4. Slowly rock the vehicle forward and

backward.

• Shift back and forth between R (Re-

verse) and D (Drive).

• Apply the accelerator as little as pos-

sible to maintain the rocking motion.

• Release the accelerator pedal before

shifting between R (Reverse) and D
(Drive).

• Do not spin the tires above 35 mph (55

km/h).

5. If the vehicle cannot be freed after a few

tries, contact a professional towing ser-
vice to remove the vehicle.

6-10

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7 Appearance and care

Cleaning exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Removing spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Underbody . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Aluminum alloy wheels . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Tire dressings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-4

Cleaning interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-4

Air fresheners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Power moonroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Floor mats (if so equipped) . . . . . . . . . . . . . . . . . . . . 7-5
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Cleaning the seat tracks . . . . . . . . . . . . . . . . . . . . . . . 7-7

Corrosion protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

Most common factors contributing to
vehicle corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Environmental factors influence the rate
of corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Protect your vehicle from corrosion . . . . . . . . . . . .7-8

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In order to maintain the appearance of your
vehicle, it is important to take proper care of
it.

To protect the paint surfaces, wash your ve-
hicle as soon as you can:
• After a rainfall to prevent possible damage

from acid rain.

• After driving on coastal roads.
• When contaminants such as soot, bird

droppings, tree sap, metal particles or bugs
get on the paint surface.

• When dust or mud builds up on the surface.

Whenever possible, store or park your vehicle
inside a garage or in a covered area.

When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.

Be careful not to scratch the paint surface
when putting on or removing the body cover.

WASHING

Wash dirt off with a wet sponge and plenty
of water. Clean the vehicle thoroughly using a
mild soap, a special vehicle soap or general
purpose dishwashing liquid mixed with clean,
lukewarm (never hot) water.

CAUTION

Do not concentrate water spray directly
on the sonar sensors (if so equipped) on
the bumper as this will result in damage
to the sensors. Do not use pressure
washers capable of spraying water over
1,200 psi (8,274 kPa) to wash your ve-
hicle. Use of high-pressure washers over
1,200 psi (8,274 kPa) can result in dam-
age to or removal of paint or graphics.
Avoid using a high-pressure washer
closer than 12 inches (30 cm) to the ve-
hicle. Always use a wide-angle nozzle
only, keep the nozzle moving and do not
concentrate the water spray on any one
area.

Do not use car washes that use acid in the
detergent. Some car washes, especially
brushless ones, use some acid for clean-
ing. The acid may react with some plastic
vehicle components, causing them to
crack. This could affect their appear-
ance, and also could cause them not to
function properly. Always check with
your car wash to confirm that acid is not
used.

Do not wash the vehicle with strong
household soap, strong chemical deter-
gents, gasoline or solvents.

Do not wash the vehicle in direct sunlight
or while the vehicle body is hot, as the
surface may become water-spotted.

Avoid using tight-napped or rough
cloths, such as washing mitts. Care must
be taken when removing caked-on dirt
or other foreign substances so the paint
surface is not scratched or damaged.

Rinse the vehicle thoroughly with plenty of
clean water.

Inside edges, seams and folds on the doors,
hatches and hood are particularly vulnerable
to the effects of road salt. Therefore, these
areas must be cleaned regularly. Take care
that the drain holes in the lower edge of the
door are open. Spray water under the body
and in the wheel wells to loosen the dirt and
wash away road salt.

A damp chamois can be used to dry the ve-
hicle to avoid water spots.

WAXING

Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove built-up
wax residue and to avoid a weathered ap-
pearance before re-applying wax.

An INFINITI retailer can assist you in choos-
ing the proper product.

CLEANING EXTERIOR

7-2

Appearance and care

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Wax your vehicle only after a thorough

washing. Follow the instructions supplied
with the wax.

• Do not use a wax containing any abrasives,

cutting compounds or cleaners that may
damage the vehicle finish.

Machine compounding or aggressive polish-
ing on a base coat/clear coat paint finish may
dull the finish or leave swirl marks.

REMOVING SPOTS

Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the surface of the paint to avoid lasting dam-
age or staining. Special cleaning products are
available at an INFINITI retailer or any auto-
motive accessory store. It is recommended
that you visit an INFINITI retailer for these
products.

UNDERBODY

In areas where road salt is used in winter, it is
necessary to clean the underbody regularly in
order to prevent dirt and salt from building up
and causing the acceleration of corrosion on
the underbody and suspension. Before the
winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.

GLASS

Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.

CAUTION

When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.

ALUMINUM ALLOY WHEELS

Wash the wheels regularly with a sponge
dampened in a mild soap solution, especially
during winter months in areas where road
salt is used. If not removed, road salt can
discolor the wheels.

CAUTION

Follow the directions below to avoid stain-
ing or discoloring the wheels:

Do not use a cleaner that uses strong acid
or alkali contents to clean the wheels.

Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as am-
bient temperature.

Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.

CHROME PARTS

Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.

CAUTION

Follow the directions below to avoid stain-
ing or discoloring the chrome parts:

Do not use a cleaner that uses strong acid
or alkali contents to clean the chrome
parts.

Appearance and care

7-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TIRE DRESSINGS

INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a
compound. This compound may come off the
tire while driving and stain the vehicle paint.

If you choose to use a tire dressing, take the
following precautions:
• Use a water-based tire dressing. The coat-

ing on the tire dissolves more easily than
with an oil-based tire dressing.

• Apply a light coat of tire dressing to help

prevent it from entering the tire tread/
grooves (where it would be difficult to
remove).

• Wipe off excess tire dressing using a dry

towel. Make sure the tire dressing is com-
pletely

removed

from

the

tire

tread/grooves.

• Allow the tire dressing to dry as recom-

mended by tire dressing manufacturer.

This vehicle has new and unique surfaces on
the center console and door pull finishers. If
cleaning is required use mild soap and water.
However if mild soap and water won’t clean
the center console and door pull finishers, use
Genuine INFINITI Vinyl and Leather Cleaner
(or equivalent).

Occasionally remove loose dust from the in-
terior trim, plastic parts and seats using a
vacuum cleaner or soft bristled brush. Wipe
the vinyl and leather surfaces with a clean,
soft cloth dampened in mild soap solution,
then wipe clean with a dry, soft cloth.

Regular care and cleaning is required in order
to maintain the appearance of the leather.

Before using any fabric protector, read the
manufacturer's

recommendations.

Some

fabric protectors contain chemicals that may
stain or bleach the seat material.

Use a cloth dampened only with water to
clean the meter and gauge lens.

Use a slightly moist (with water) microfiber
cloth to clean the wood trim. If necessary, use
water with natural soap or wood dedicated
cleaning products, such as furniture polish.

WARNING

Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification sen-
sor. This can also affect the operation of
the air bag system and result in serious per-
sonal injury.

CAUTION

Never use benzine, thinner, or any similar
material on the interior surfaces or sur-
face damage may occur. Such damage is
not

covered

under

the

INFINITI

warranty.

Small dirt particles can be abrasive and
damaging to leather surfaces and should
be removed promptly. Do not use saddle
soap, car waxes, polishes, oils, cleaning
fluids, solvents, detergents or ammonia-
based cleaners as they may damage the
leather's natural finish.

Never use fabric protectors unless rec-
ommended by the manufacturer.

Do not use glass or plastic cleaner on me-
ter or gauge lens covers. It may damage
the lens cover.

CLEANING INTERIOR

7-4

Appearance and care

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Never use chloride solutions for cleaning
aluminum decoratives (if so equipped),
damage may occur.

AIR FRESHENERS

Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
• Hanging-type air fresheners can cause per-

manent discoloration when they contact
vehicle interior surfaces. Place the air fresh-
ener in a location that allows it to hang free
and not contact an interior surface.

• Liquid-type air fresheners typically clip on

the vents. These products can cause imme-
diate damage and discoloration when
spilled on interior surfaces.

Carefully read and follow the manufacturer's
instructions before using the air fresheners.

POWER MOONROOF

The sunshade is made from a tricot material.

CAUTION

To help prevent damaging the moonroof
while cleaning:

Do not rub the material with a cloth. Do-
ing so can damage the surface of the ma-
terial or cause a stain to spread.

Never use benzine, thinner or any similar
chemical to clean the sunshade. This may
discolor the moonroof and damage the
surface.

Clean water based stains by patting the
surface with a clean soft cloth dampened
in warm water. Press a clean dry cloth
onto the surface to remove as much
dampness as possible and then let air dry.

Clean oil based stains by patting the sur-
face with a clean soft cloth dampened in
warm water. Press a clean dry cloth onto
the surface to remove as much dampness
as possible and then let air dry.

FLOOR MATS (if so equipped)

WARNING

To avoid potential pedal interference that
may result in a collision, injury or death:

NEVER place a floor mat on top of an-
other floor mat in the driver front posi-
tion or install them upside down or
backwards.

Use only Genuine INFINITI floor mats or
equivalent floor mats, specifically de-
signed for use in your vehicle model and
model year.

LAI2094

Appearance and care

7-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     11      12      13      14     ..
