CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)
How to Disconnect Normal
Charging Status
Indicator
Charger
Charging in
Illuminates (green)
1. The vehicle doors must be unlocked
progress
in order to be able to disconnect the
charging connector. A lock system
Fully charged
Off
prevents charger cable disconnec-
Blinks (green) and
tion when the vehicle's doors are
Scheduled charging
then turns off
locked.
Malfunction
Blinks (red)
NOTICE
In order to disconnect the charg-
OLFP0Q5016K
ing connector, unlock the doors to
2. Hold the charging connector han-
unlatch the charging connector
dle and pull it while pressing the
lock system. If not, the charging
release button (1).
connector and the vehicle's charg-
ing inlet may be damaged.
NOTICE
When disconnecting the charging
connector, do not try to discon-
nect it by force while not pressing
the release button. This may dam-
age the charging connector and
vehicle charging inlet.
H12
NOTICE
Trickle Charger (Stage-1 type)
• Do not modify or disassemble
the charging cable components.
It may cause a fire or an electric
shock with personal injury.
Charging Connector
• Keep the charging connector
Control Box
and the charging plug clean and
dry. The charging cable should
Cord and Plug
be also kept dry.
Charging Cable
(cord set)
• Use an air gun to blow any for-
OLFP0Q5017K
eign substances from the charg-
ing connector and the charging
3. Make sure to securely close the
OLFP0Q5019K
plug.
charging inlet cover.
Trickle charger Stage-1 type can be
4. Make sure to securely close the
used if Normal Charger stage-2 type
charging door.
is unavailable.
H13
CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)
How to Connect Portable
Charging Cable
(ICCB: In-Cable Control Box)
OLFP0Q5022K
OLFP0Q5012K
3. Check if all LED lamps on the con-
4. Depress the brake pedal and
trol box blinks for
0.5 seconds.
apply the parking brake.
OLFP046585N
Then, check if the power lamp
5. Open the charging door by press-
(green) turns ON.
ing it.
1. Turn OFF all switches, move the
shift lever to P
(Park), and turn
OFF the vehicle.
i Information
2. Connect the plug to a household
The charging door does not open
electric outlet.
when the theft alarm system is armed.
H14
OLFP0Q5014K
OLFP0Q5015K
OLFP0Q5022K
6. Open the charging inlet cover (1).
7. Remove any dust on the charging
9. Charging starts automatically.
connector and charging inlet.
Check if the power lamp and charg-
i
Information
8. Hold the charging connector han-
ing lamp (orange) are ON.
dle. Then, insert it into the charg-
To open the charging inlet cover, all
ing inlet, until you hear a click
vehicle doors must be unlocked. When
sound. If it is not fully connected,
the doors are locked, the charging
improper connection between the
inlet cover will not open.
charging connector and the charg-
ing terminals are a potential fire
hazard.
H15
CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)
i
Information
•
The charging is in progress only
with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. However,
it may discharge the 12-V battery.
Thus, if possible, charge the battery
with the Engine Start/Stop button in
the OFF position.
•
Moving the shift lever from P (Park)
OLFP046575N
OLFP045260N
to R (Reverse)/N(Neutral)/D (Drive)
10. Check if the charging cable con-
11. After charging has started, the
stops the charging process.
nection indicator of the high volt-
estimated charging time is dis-
To restart the charging process,
age battery in the instrument
played on the instrument cluster
move the shift lever to P (Park),
cluster is turned ON.
for about 1 minute. It is also dis-
press the Engine Start/Stop button
played, when the driver’s door is
Charging does not occur when
to the OFF position, and disconnect
opened with charging in progress.
the indicator is OFF. When the
the charging cable. Then, connect
When scheduled charging is set,
charging connector is not con-
the charging cable and restart the
the estimated charging time is dis-
nected properly, reconnect the
vehicle again.
played as "--".
charging cable to charge.
H16
Unlock Charging Door in
Checking Charging Status
Charging Status
Indicator
Emergency
Charging in
Illuminates (green)
progress
Fully charged
Off
Blinks (green) and
Scheduled charging
then turns off
Malfunction
Blinks (red)
OLFP0Q5009K
OLFP075118
You can monitor the charging status
If the charging door does not open
outside of the vehicle when charging
due to battery discharge, open the
the high-voltage battery.
hood and slightly pull the emergency
cable as shown above. The charging
door will then open.
H17
CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)
Charging Status Indicator Lamp for Portable Charging Cable
Category
Lamp ON
Lamp OFF
Blinking
LED Status
-
Control Box
Charger Status
Power
Charge
Fault
Status / Diagnosis / Countermeasure
ON/OFF Status
Initial Preparation Mode
When applying power to the initial ICCB wall
OLFP0Q5025K
When ICCB charging connector is not connected
Charging Preparation
-
-
to the vehicle, or connected but charging status
Mode
is in Standby mode
OLFP0Q5024K
Charging Mode
-
Charging
OLFP0Q5023K
-
ICCCB failure or
Stop charging immediately and contact an
Failure
electrical leak-
authorized HYUNDAI dealer for ICCB check.
age detected
-
OLFP0Q5026K
H18
How to Disconnect
PortableCharging Cable
(ICCB: In-Cable Control Box)
1. Before disconnecting the charging
connector, make sure the doors
are unlocked. When the door is
locked, the charging connector
lock system will not allow discon-
nection.
NOTICE
OLFP0Q5016K
OLFP0Q5017K
In order to disconnect the charg-
2. Hold the charging connector han-
3. Make sure to securely close the
ing connector, unlock the doors to
dle and pull it while pressing the
charging inlet cover.
unlatch the charging connector
release button (1).
4. Make sure to securely close the
lock system. If not, the charging
charging door.
connector and the vehicle's charg-
NOTICE
ing inlet may be damaged.
When disconnecting the charging
connector, do not try to discon-
nect it by force while not pressing
the release button. This may dam-
age the charging connector and
vehicle charging inlet.
H19
CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)
Precautions for Portable
•
If the ICCB case and normal
Charging Cable
charging connector is damaged,
(ICCB: In-Cable Control Box)
cracked, or the wires are exposed
in any way, do not use the portable
•
Use the portable charging cable
charging cable.
that is certified by HYUNDAI.
•
Do not let children operate or touch
•
Do not try to repair, disassemble,
the portable charging cable.
or adjust the portable charging
cable.
•
Keep the control box free of water.
•
Do not use an extension cord or
•
Keep the normal charging connec-
adapter.
tor or plug terminal free of foreign
substances.
OLFP046585N
•
Stop using immediately if failure
warning light occurs.
•
Do not step on the cable or cord.

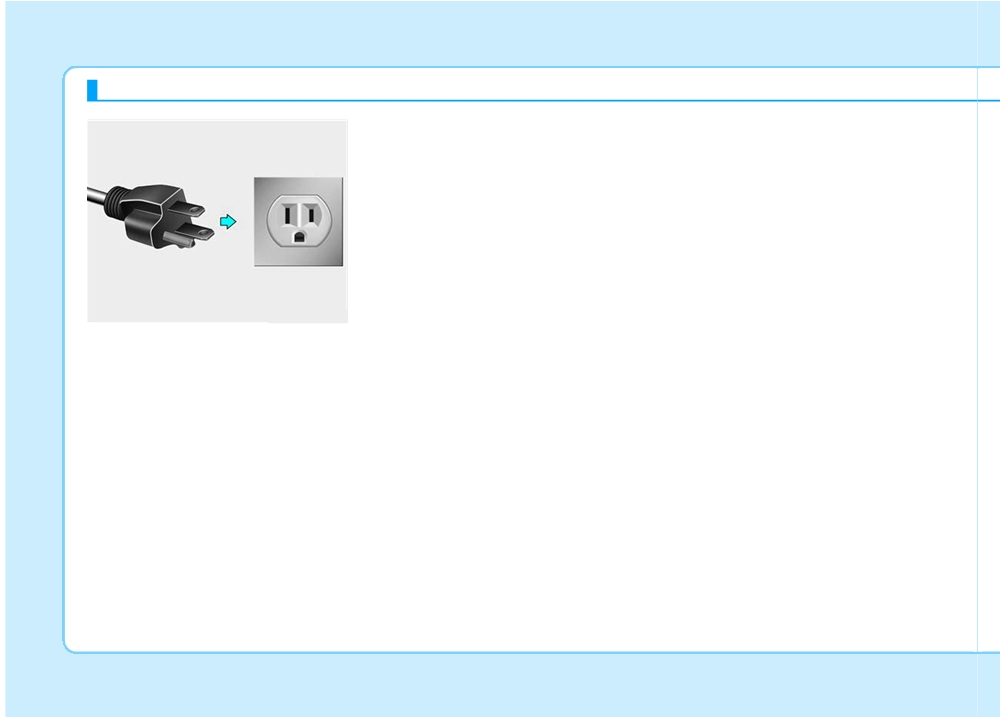

5. Disconnect the plug from the
Do not pull the cable or cord and
household electric outlet. Do not
•
Do not touch the plug and charging
do not twist or bend it.
pull the cable when disconnecting
connector with wet hands.
•
Do not charge when there is light-
the plug.
•
Do not touch the terminal part of
ning.
6. Close the protective cover for the
the normal charging connector and
•
Do not drop the control box or
charging connector so that foreign
the normal charging inlet on the
vehicle.
place a heavy object on the control
material cannot get into the termi-
box.
nal.
•
Do not connect the charging con-
7. Put the charging cable inside the
nector to voltage that does not
cable compartment to protect it.
comply with regulations.
•
Do not use the portable charging
cable if it is worn out, exposed, or
there exists any type of damage on
the portable charging cable.
H20
• Do not place an object that can
generate high temperatures near
the charger when charging.
• Charging with the worn out or dam-
aged household electric outlet can
result in a risk of electric shock. If
you are in doubt to the household
electric outlet condition, have it
checked by a licensed electrician.
• Stop using the portable charging
cable immediately if the household
electric outlet or any components
is overheated or you notice burnt
odors.
H21
DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE
Starting the vehicle
ECONOMICAL and SAFE OPERA-
i
Information
TION of Hybrid system
1. Carry the smart key or leave it
In the hybrid system, the engine auto-
inside the vehicle.
•
Drive smoothly. Accelerate at a
matically runs and stops. When the
moderate rate and maintain a
2. Make sure the parking brake is
hybrid system operates, the "
"
steady cruising speed. Do not
firmly applied.
indicator is illuminated.
make "jack-rabbit" starts. Do not
3. Place the shift lever in P (Park).
In the following situation, the engine
race between stoplights.
With the shift lever in N (Neutral),
may operate automatically.
Avoid heavy traffic whenever pos-
you cannot start the vehicle.
- When the engine is ready to run
sible. Always maintain a safe dis-
4. Depress the brake pedal.
tance from other vehicles so you
- When the hybrid battery is being
5. Press the Engine Start/Stop but-
can avoid unnecessary braking.
charged
ton. If the hybrid system starts, the
This also reduces brake wear out.
- Depending on the temperature con-
"
" indicator will come on and a
•
The regenerative brake generates
dition of the hybrid battery
double chime can be heard.
energy when the vehicle deceler-
Whether the engine is cold or
ates.
WARNING
warm, it should be started without
•
When the hybrid battery power is
depressing the accelerator.
low, the hybrid system automatical-
To avoid serious injury, turn off
After following the start proce-
ly recharges the hybrid battery.
hybrid system and be sure " "
dures, "
" indicator on the
•
When the engine is running with
indicator is off before working
instrument cluster will turn on.
the shift lever in N (Neutral), the
under hood. Engine may start
For more information, please
hybrid system cannot generate
unexpectedly.
check Chapter 5.
electricity. The hybrid battery can-
not recharge with the shift lever in N
(Neutral).
H22
Special features
If any of following occur, it's a normal
NOTICE
condition if you hear a motor sound
Hybrid vehicles sound different than
in the engine compartment:
The hybrid system contains many
gasoline engine vehicles. When the
electronic components. High volt-
hybrid system operates, you may
- After turning off the hybrid system,
age components, such as cables
hear a sound from the hybrid battery
the brake pedal is released.
and other parts, may emit electro-
system behind the rear seat. If you
- When the hybrid system is turned
magnetic waves. Even when the
apply the accelerator pedal rapidly,
off, the brake pedal is applied.
electromagnetic cover blocks elec-
you may hear an unconventional
- When the driver door is opened.
tromagnetic emissions, electro-
sound. When you apply the brake
magnetic waves may have an
When the hybrid system is turned
pedal, you may hear a sound from
effect on electronic appliances.
ON, the gasoline engine may acti-
the regenerative brake system.
When your vehicle is not used for
vate or may not. In this situation, you
When the hybrid system is turned off
a long period of time, the hybrid
may feel a vibration. This does not
or on, you may hear a sound in the
system will discharge. You need to
indicate a malfunction. When the
engine compartment. If you depress
drive the vehicle several times a
"
" indicator illuminates, the
the brake pedal repeatedly when the
month. We recommend driving at
hybrid system is ready to begin driv-
hybrid system is turned on, you may
least for 1 hour or 10 miles. When
ing. Even if the engine is off, you can
hear a sound in the engine compart-
the hybrid battery is discharged,
operate the vehicle as long as the
ment. None of these sounds indicate
or when it is impossible to jump
"
" indicator is illuminated.
a problem. These are normal charac-
start the vehicle, contact your
teristics of hybrid vehicles.
HYUNDAI dealer.
H23
DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE (CONT.)
Virtual Engine Sound System
Hybrid system gauge
WARNING
(VESS)
The Virtual Engine Sound System
•
When you start the hybrid
generates engine sounds for pedes-
system with the shift lever in
trians to hear vehicle sound because
P (Park), the "
" indicator
there is limited sound while electric
illuminates on the instrument
power is used.
cluster. The driver can drive
the vehicle, even when the
gasoline engine is off.
What Does Regenerative
•
When you leave the vehicle,
Braking Do?
you should turn OFF the vehi-
It uses an electric motor when decel-
cle and place the shift lever in
erating and braking and transforms
P (Park). If you depress the
OLFP045204K
kinetic energy to electrical energy in
accelerator pedal by mistake,
order to charge the high voltage bat-
The hybrid system gauge indicates
or when the shift lever is not
tery.
whether the current driving condition
in P
(Park), the vehicle will
is fuel efficient or not.
abruptly move, possibly
Battery
• CHARGE :
resulting in serious injury or
death.
• The vehicle is composed of a high-
Shows that the energy made by
voltage battery that drives the
the vehicle is being converted
motor and air-conditioner, and an
to electrical energy. (Regenerated
auxiliary battery (12 V) that drives
energy)
the lamps, wipers, and audio sys-
• ECO :
tem.
Shows that the vehicle is being
• The auxiliary battery is automati-
driven in an Eco-friendly manner.
cally charged when the vehicle is in
• POWER :
the ready (
) mode.
Shows that the vehicle is exceeding
the Eco-friendly range.
H24
According to the hybrid system
Hybrid Battery SOC
However, if the Service Indicator (
)
gauge area, the "EV" indicator comes
(State of Charge) Gauge
and Malfunction Indicator Lamp (MIL)
on or off.
■ Hybrid model vehicles only
(
) turn on when the SOC (State of
- "EV" indicator ON : Vehicle is driven
charge) gauge is near the "L (Low)"
using the electric motor or the
gasoline engine is stopped.
level, have the vehicle checked by an
- "EV" indicator OFF : Vehicle is driv-
authorized HYUNDAI dealer.
en using the gasoline engine.
OLFH044205K
■ Plug-in hybrid model vehicles only
OLFP045107
This gauge indicates the remaining
hybrid battery power. If the SOC is
near the "L (Low)" level, the vehicle
automatically operates the engine to
charge the battery.
H25
DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE (CONT.)
Changing plug-in hybrid mode
When the HEV button is pressed in
Plug-in hybrid mode indicator
the HEV-charging mode, the mode
• CD (Charge Depleting, Electric) mode
changes as below.
:The high-voltage
-
Shortly pressed : It changes to the
(hybrid) battery is
CS mode.
used to drive the
-
Press and hold: It remains in the
vehicle.
HEV-charging mode.
OLFP0Q5002K
• CS (Charge Sustaining, Hybrid) mode
: The high-voltage
(hybrid) battery and
gasoline engine is
OLFP045065N
used to drive the
OLFP0Q5003K
vehicle.
Pressing the HEV button changes
the plug-in hybrid system modes, as
• HEV-charging mode
below.
: Gasoline engine is
• Shortly pressed:
used to drive the
EV mode ↔ HEV mode
vehicle and charge
the high-voltage
• Press and hold:
It changes to the HEV-charging
OLFP0Q5004K
(hybrid) battery
mode.
A corresponding message is displayed
to indicate the selected mode.
OLFP045564N/OLFP045565N/OLFP045566N
H26
Warning and indicator lights
Service Warning Light
EV Mode Indicator
EV
Ready Indicator
This warning light illuminates :
This indicator illuminates when the
• When the Engine Start/Stop button
vehicle is driven by the electric motor.
is in the ON position.
This indicator illuminates :
- It normally flashes on momentar-
Charging Cable
When the vehicle is ready to be driven.
ily for 3 seconds at Ready On and
Connection Indicator
- ON : Normal driving is possible.
should then stay off.
(Plug-in hybrid)
- OFF : Normal driving is not possible,
• When there is a problem with the
or a problem has occurred.
hybrid vehicle control system or
This indicator illuminates in red when
- Blinking : Limp home driving mode.
hardware.
the charging cable is connected.
When the ready indicator goes OFF
When the warning light illuminates
or blinks, there is a problem with the
while driving, or does not go OFF after
system. In this case, have your vehi-
starting the vehicle, have your vehicle
cle inspected by an authorized
inspected by an authorized HYUNDAI
HYUNDAI dealer.
dealer.
H27
DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE (CONT.)
Regenerative Brake
Warning messages
Check Hybrid system.
Warning Light
Turn off engine.
Check Hybrid system
(red color)
(yellow color)
This warning light illuminates :
When the regenerative brake is not
operating. This causes the Brake
Warning light (red) and Regenerative
Brake Warning Light (yellow) to illu-
minate simultaneously as soon as
possible.
In this case, drive safely and have
OLFH044228L
OLFH044248L
your vehicle inspected by an author-
This warning message is displayed
This warning message is displayed
ized HYUNDAI dealer.
when there is a problem with the
when there is a problem with the
The service brake still function, how-
hybrid system. The "
" indicator
hybrid control system.
ever, the operation of the brake pedal
will blink and a warning chime will
Refrain from driving when the warn-
may be more difficult than normal
sound until the problem is solved.
ing message is displayed.
and the braking distance can
In this case, have your vehicle
In this case, have your vehicle
increase.
inspected by an authorized HYUNDAI
inspected by an authorized HYUNDAI
dealer.
dealer.
H28
