Maintenance
Pneumatic tire
Radial Ply Tire
Tread
A mechanical device made of rubber,
A pneumatic tire in which the ply
The portion of a tire that comes into
chemicals, fabric and steel or other
cords that extend to the beads are
contact with the road.
materials, that, when mounted on an
laid at 90 degrees to the centerline of
automotive wheel, provides the trac-
the tread.
Treadwear Indicators
tion and contains the gas or fluid that
sustains the load.
Narrow bands, sometimes called
Rim
"wear bars", that show across the
A metal support for a tire and upon
tread of a tire when only 1/16 inch of
Production options weight
which the tire beads are seated.
tread remains.
The combined weight of installed
regular production options weighing
Sidewall
UTQGS
over 5 lb. (2.3 kg) in excess of the
standard items which they replace,
The portion of a tire between the
Uniform Tire Quality Grading
not previously considered in curb
tread and the bead.
Standards is a tire information sys-
weight or accessory weight, includ-
tem that provides consumers with
ing heavy duty brakes, ride levelers,
ratings for a tire’s traction, tempera-
Speed Rating
roof rack, heavy duty battery, and
ture and treadwear. Ratings are
An alphanumeric code assigned to a
determined by tire manufacturers
special trim.
tire indicating the maximum speed at
using government testing proce-
which a tire can operate.
dures. The ratings are molded into
Recommended Inflation
the sidewall of the tire.
Pressure
Traction
Vehicle manufacturer’s recommend-
The friction between the tire and the
Vehicle Capacity Weight
ed tire inflation pressure as shown
road surface. The amount of grip pro-
The number of designated seating
on the tire placard.
vided.
positions multiplied by 150 lbs. (68
kg) plus the rated cargo and luggage
load.
7-56
Vehicle Maximum Load on the
All season tires
Snow tires
Tire
HYUNDAI specifies all season tires
If you equip your car with snow tires,
Load on an individual tire due to curb
on some models to provide good
they should be the same size and
and accessory weight plus maximum
performance for use all year round,
have the same load capacity as the
occupant and cargo weight.
including snowy and icy road condi-
original tires. Snow tires should be
tions. All season tires are identified
installed on all four wheels; other-
by ALL SEASON and/or M+S (Mud
wise, poor handling may result. Snow
Vehicle Normal Load on the Tire
and Snow) on the tire sidewall. Snow
tires should carry
4 psi
(28 kPa)
Load on an individual tire that is
tires have better snow traction than
more air pressure than the pressure
determined by distributing to each
all season tires and may be more
recommended for the standard tires
axle its share of the curb weight,
appropriate in some areas.
on the tire label on the driver’s side of
accessory weight, and normal occu-
the center pillar, or up to the maxi-
pant weight and dividing by 2.
mum pressure shown on the tire
Summer tires
sidewall, whichever is less. Do not
HYUNDAI specifies summer tires on
drive faster than 75 mph (120 km/h)
Vehicle Placard
some models to provide superior
when your vehicle is equipped with
A label permanently attached to a
performance on dry roads. Summer
snow tires.
vehicle showing the original equip-
tire performance is substantially
ment tire size and recommended
reduced in snow and ice. Summer
inflation pressure.
tires do not have the tire traction rat-
ing M+S (Mud and Snow) on the tire
7
side wall. If you plan to operate your
vehicle in snowy or icy conditions,
HYUNDAI recommends the use of
snow tires or all season tires on all
four wheels.
7-57
Maintenance
Radial-ply tires
Longer wearing tires can be more
Low aspect ratio tires
susceptible to irregular tread wear. It
Radial-ply tires provide improved
Low aspect ratio tires, the aspect
is very important to follow the tire
tread life, road hazard resistance and
ratio is lower than 50, are provided
rotation interval in this chapter to
smoother high speed ride. The radi-
for sporty looks.
achieve the tread life potential of
al-ply tires used on this vehicle are of
Because low aspect ratio tires are opti-
these tires. Cuts and punctures in
belted construction, and are selected
radial-ply tires are repairable only in
mized for handling and braking, their
to complement the ride and handling
sidewall is a little stiffer than a standard
the tread area, because of sidewall
characteristics of your vehicle.
flexing. Consult your tire dealer for
tire. Also low aspect ratio tires tend to
Radial-ply tires have the same load
be wider and consequently have a
radial-ply tire repairs.
carrying capacity, as bias-ply or bias
greater contact patch with the road
belted tires of the same size, and use
surface. In some instances they may
the same recommended inflation
WARNING
generate more road noise compared
pressure. Mixing of radial-ply tires
with standard tires.
with bias-ply or bias belted tires is
Do not mix bias ply and radial
not recommended. Any combina-
ply tires under any circum-
tions of radial-ply and bias-ply or bias
stances. This may cause unusu-
belted tires when used on the same
al handling characteristics that
vehicle will seriously deteriorate
may cause loss of vehicle con-
vehicle handling. The best rule to fol-
trol resulting in an accident.
low is: Identical pairs of radial-ply
tires should always be used as a set
for the front tires and a set for the
rear tires.
7-58
CAUTION
CAUTION
Because the sidewall of a low
•
It is not easy to recognize tire
aspect ratio tire is shorter than
damage with your own eyes.
a standard tire, the rim of the
But if there is the slightest
wheel and the tire itself is more
hint of tire damage, have the
easily susceptible to damage.
tire checked or replaced
Use caution when driving and
because the tire damage may
follow the guidelines below to
cause air leakage from the
help minimize damage to the
tire.
wheel and tire:
•
If the tire is damaged by driv-
- When driving on a rough road
ing on a rough road, off road,
or off road, drive cautiously
pothole, manhole, or curb
because tires and wheels may
stone, it will not be covered by
be damaged. And after driving,
the warranty.
inspect tires and wheels.
- When passing over a pothole,
speed bump, manhole, or curb
stone, drive slowly so that the
tires and wheels are not dam-
7
aged.
- If the tire is subjected to a
severe impact, have the tire
and wheel inspected by an
authorized HYUNDAI dealer.
- Inspect the tire condition and
pressure every
1,800 miles
(3,000km).
7-59
Maintenance
FUSES
■ Blade type
A vehicle’s electrical system is pro-
i
Information
tected from electrical overload dam-
age by fuses.
Three kinds of fuses are used: blade
type for lower amperage rating, car-
This vehicle has 2 (or 3) fuse panels,
tridge type, and fusible link for higher
one located in the driver’s side panel
Normal
Blown
amperage ratings.
bolster, the other in the engine com-
■ Cartridge type
partment near the battery.
WARNING
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
NEVER replace a fuse with any-
the appropriate circuit fuse. If a fuse
thing but another fuse of the
has blown, the element inside the
same rating.
Normal
Blown
fuse will be melted or broken.
■ Multi fuse
• A higher capacity fuse could
If the electrical system does not
cause damage and possibly
work, first check the driver’s side
cause a fire.
fuse panel. Before replacing a blown
• Do not install a wire or alu-
fuse, turn the engine and all switches
minum foil instead of the
off, and then disconnect the negative
proper fuse - even as a tem-
battery cable. Always replace a
Normal
Blown
blown fuse with one of the same rat-
porary repair. It may cause
extensive wiring damage and
ing.
possibly a fire.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and imme-
CAUTION
diately consult an authorized
HYUNDAI dealer.
Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
Normal
Blown
short circuit and damage the
OLF074075
system.
7-60

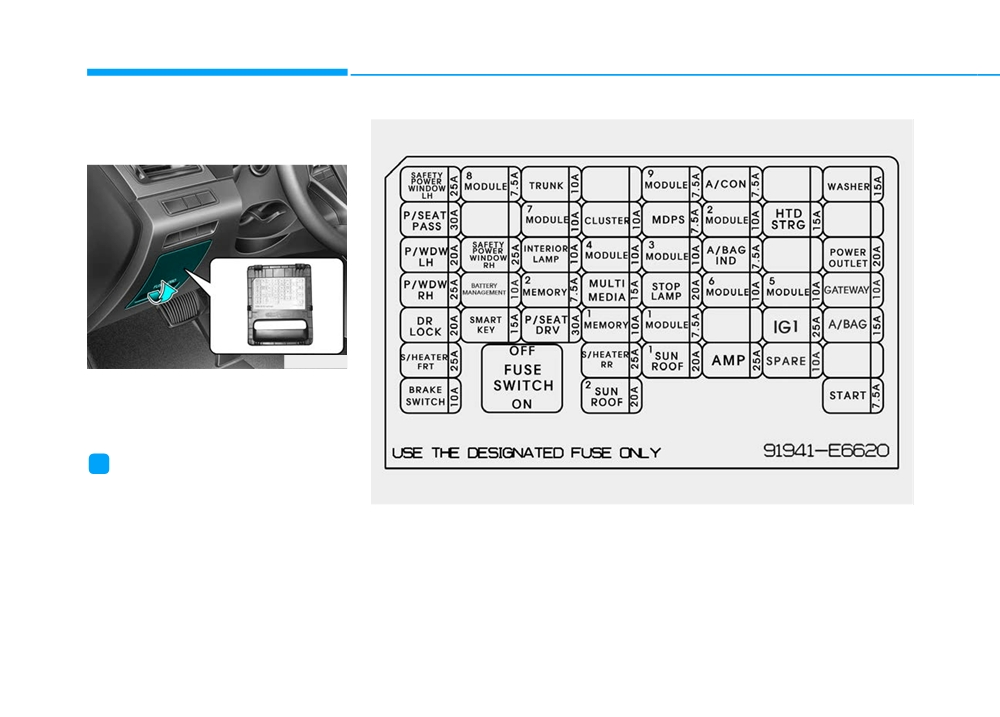

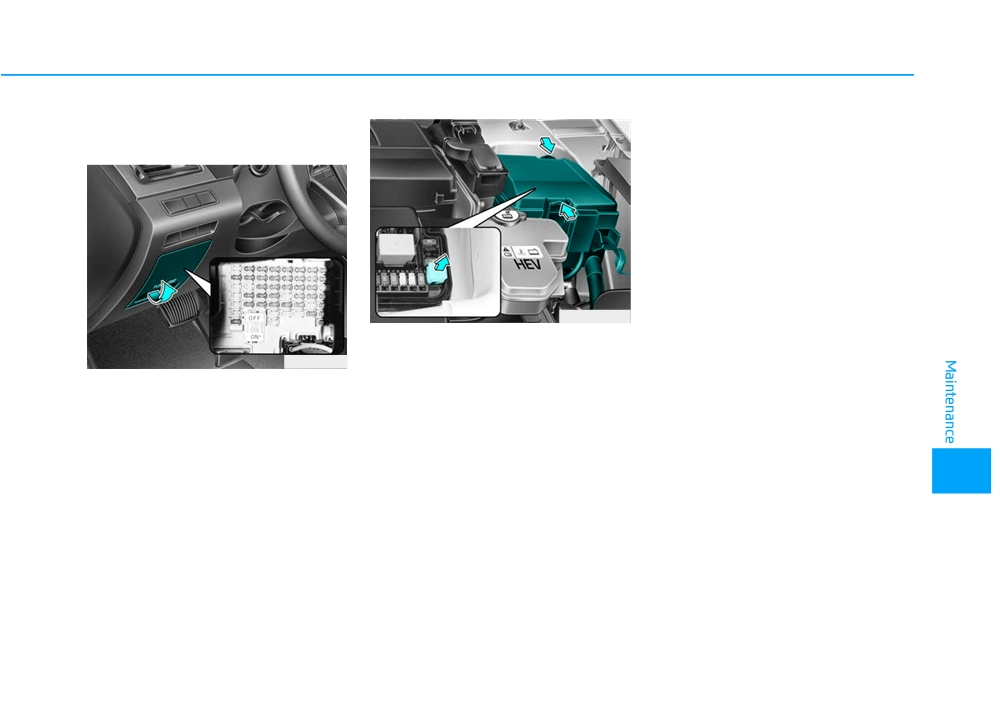

Instrument panel fuse replace-
In an emergency, if you do not have
ment
a spare fuse, use a fuse of the same
rating from a circuit you may not
need for operating the vehicle, such
as the cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced with the
same rating.
OLFH074012
5. Pull the suspected fuse straight
out. Use the removal tool provided
OLF074021
in the engine compartment fuses
1. Turn the hybrid system off.
panel.
2. Turn all other switches OFF.
6. Check the removed fuse; replace
3. Open the fuse panel cover.
it if it is blown. Spare fuses are
provided in the instrument panel
4. Refer to the label on the inside of
fuse panels (or in the engine com-
the fuse panel cover to locate the
7
partment fuse panel).
suspected fuse location.
7. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.
7-61
Maintenance

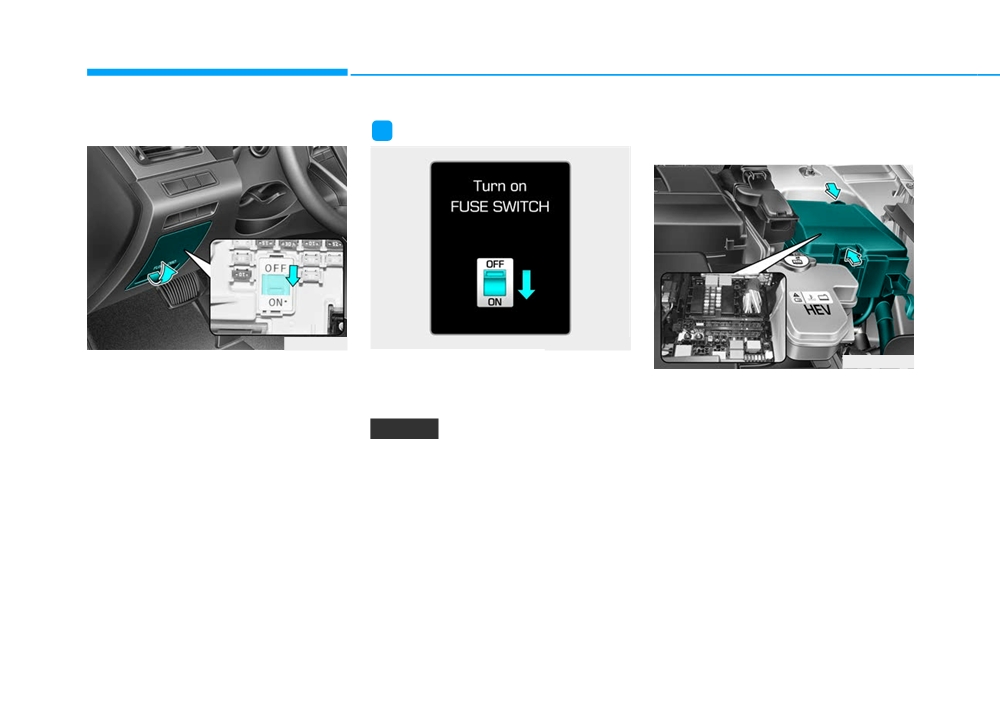

Fuse switch

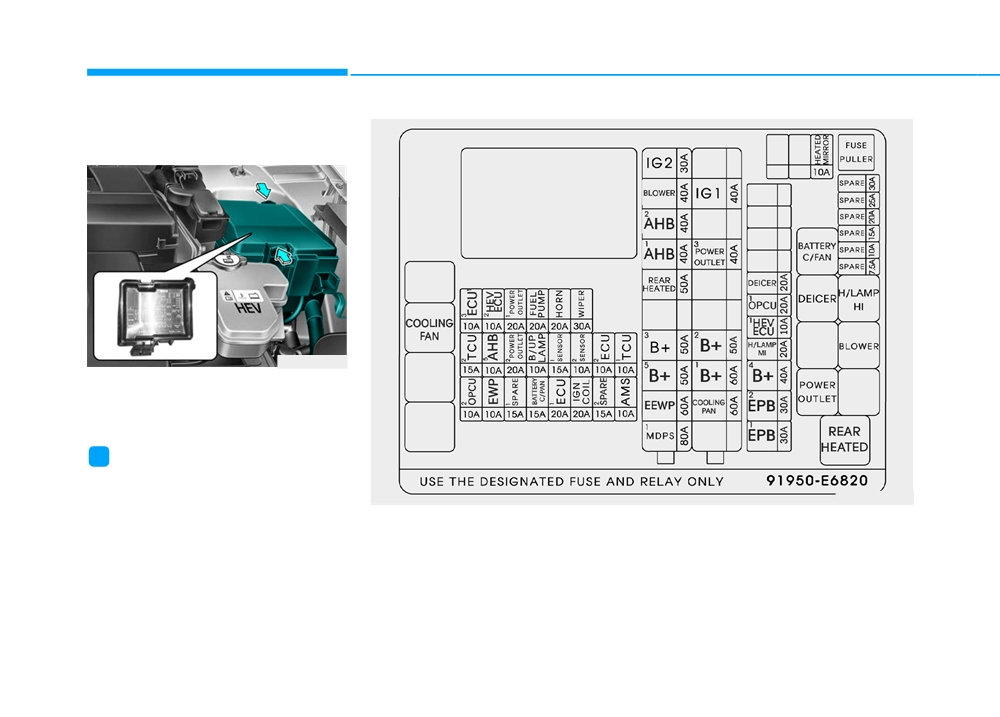

Engine compartment panel
i
Information
fuse replacement
OLF074023
OLFH044149L
OLFH074015
Always, place the fuse switch to the
If the fuse switch is OFF, the above
ON position.
1. Turn the hybrid system off.
message will appear.
If you move the switch to the OFF
2. Turn all other switches OFF.
position, some items such as the
NOTICE
3. Remove the fuse panel cover by
audio system and digital clock must
pressing the tap and pulling up.
be reset and the smart key may not
• Always place the fuse switch in
work properly.
the ON position while driving the
4. Check the removed fuse; replace
it if it is blown. To remove or insert
vehicle.
the fuse, use the fuse puller in the
• Do not move the fuse switch
engine compartment fuse panel.
repeatedly. The fuse switch may
5. Push in a new fuse of the same
be damaged.
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.
7-62

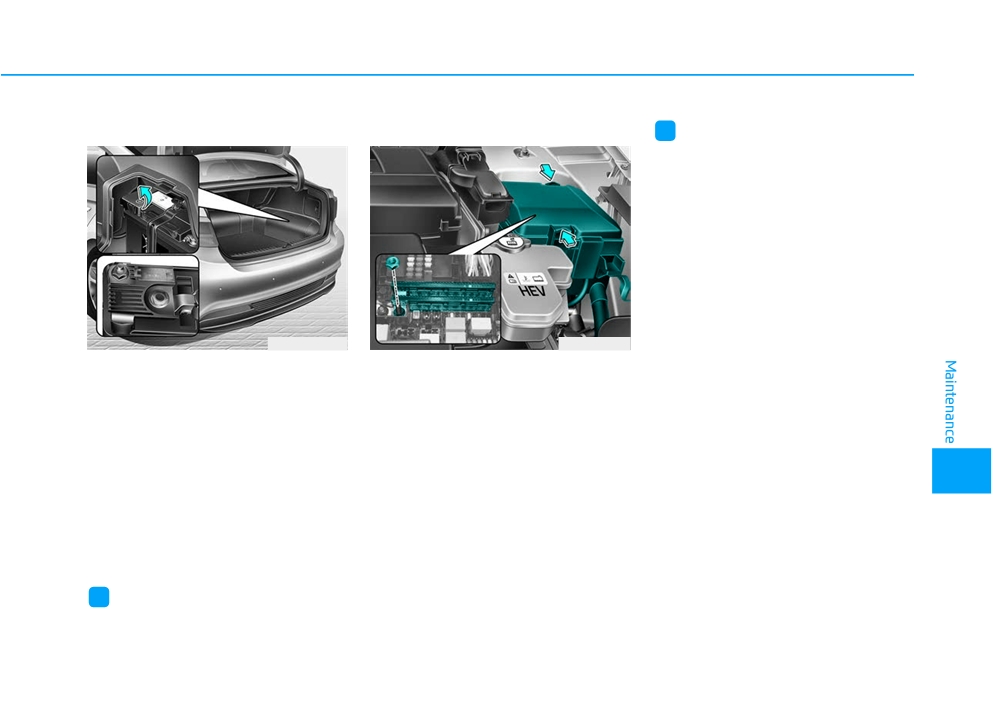

Main fuse
Multi fuse
i
Information
If the multi fuse is blown, consult an
authorized HYUNDAI dealer.
OLFP075017N
OLFH074014
If the main fuse is blown, it must be
If the multi fuse is blown, it must be
removed as follows:
removed as follows:
1. Turn off the engine.
1. Turn off the engine.
2. Disconnect the negative battery
2. Disconnect the negative battery
cable.
cable.
3. Remove the fuse panel cover by
3. Remove the fuse panel cover by
pressing the tab and pulling it up.
7
pressing the tab and pulling it up.
4. Remove the nuts shown in the pic-
ture above.
4. Remove the nuts shown in the pic-
5. Replace the fuse with a new one
ture above.
of the same rating.
5. Replace the fuse with a new one
6. Reinstall in the reverse order of
of the same rating.
removal.
6. Reinstall in the reverse order of
i
Information
removal.
If the main fuse is blown, consult an
authorized HYUNDAI dealer.
7-63
Maintenance
Fuse/relay panel description
Instrument panel fuse (Hybrid)
OLF074027
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
Not all fuse panel descriptions in this
OLFH075058N
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
7-64
Instrument panel fuse (Hybrid)
Fuse Name
Fuse rating
Protected Component
SAFETY WINDOW LH
25A
Driver Safety Power Window Module
P/SEAT PASS
30A
Passenger Seat Manual Switch
P/WDW LH
20A
Power Window Main Switch, Rear Power Window Module LH
Power Window Main Switch, Rear Power Window Module RH, Passenger Door Module, Passenger
P/WDW RH
25A
Power Window Switch
DR LOCK
20A
Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
S/HEATER FRT
25A
Front Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH
10A
Stop Lamp Switch, Immobilizer Module, Smart Key Control Module
8MODULE
7.5A
BCM, Smart Key Control Module
SAFETY POWER
25A
Passenger Safety Power Window Module
WINDOW RH
BATTERY
10A
BMS Control Module
MANAGEMENT
SMART KEY
15A
Smart Key Control Module
TRUNK
10A
Trunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
Driver/Passenger Door Module, Rear Parking Assist Sensor, Electric Parking Brake Module, Digital
7MODULE
10A
7
Clock, Blind Spot Detection Radar
Glove Box Lamp, Foot Lamp IND., Driver/Passenger Foot Lamp, Front Vanity Lamp Switch LH/RH,
INTERIOR LAMP
10A
Overhead Console Lamp, Room Lamp, Rear Personal Lamp LH/RH, Trunk Room Lamp,
Driver/Passenger Door Lamp
2MEMORY
7.5A
Electro Chromic Mirror
P/SEAT DRV
30A
Driver Seat Manual Switch, Driver IMS Module
CLUSTER
10A
Instrument Cluster
7-65
Maintenance
Instrument panel fuse (Hybrid)
Fuse Name
Fuse rating
Protected Component
4MODULE
10A
Smart Key Control Module
MULTI MEDIA
15A
Audio, A/V & Navigation Head Unit, TMU Unit
Driver/Passenger Door Module, Driver Ims Module, A/C Control Module, Auto Light & Photo Sensor,
1MEMORY
10A
Rear Curtain Unit, Data Link Connector, Instrument Cluster, Rain Sensor, Tire Pressure Monitoring
Module, BCM, Digital Clock, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
S/HEATER RR
25A
Rear Seat Warmer Module
2SUN ROOF
20A
Panorama Sunroof Motor
Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module, Rear
9MODULE
7.5A
Curtain Unit
MDPS
7.5A
MDPS Unit
3MODULE
10A
BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP
20A
Stop Signal Electronic Module
Natural Vacuum Leak Detection, Active Air Flap, Driver/Passenger Smart Key Outside Handle,
1MODULE
7.5A
Driver/Passenger Power Outside Mirror, Driver/Passenger Door Module
1SUN ROOF
20A
Panorama Sunroof Motor
A/CON
7.5A
A/C Control Module, E/R Junction Block (RLY. 3 - Blower Relay), Electronic A/C Compressor
Audio, A/V & Navigation Head Unit, TMU Unit, Digital Clock, BCM, AMP, Power Outside Mirror
2MODULE
10A
Switch, Digital Clock, Smart Key Control Module, Overhead Console Lamp
A/BAG IND
7.5A
Instrument Cluster
Multipurpose Check Connector, TMU Unit, A/C Control Module, Vess Unit, Electro Chromic Mirror,
Rear Seat Warmer Module, A/T Shift Lever Ind., Front Air Ventilation Seat Module, Front Seat
6MODULE
10A
Warmer Module, Auto Head Lamp Leveling Device Module, Head Lamp LH/RH, Crash Pad Switch,
A/V & Navigation Head Unit, Driver Ims Module
AMP
25A
AMP (JBL/MOBIS)
7-66
Instrument panel fuse (Hybrid)
Fuse Name
Fuse rating
Protected Component
HTD STRG
15A
BCM
Front Console, Switch Fuel Filler Door & Trunk Lid Switch, Front Parking Assist Sensor, Tire Pressure
5MODULE
10A
Monitoring Module, Lane Departure Warning Unit, Smart Cruise Control Unit, Active Air Flap, BMS
Control Module
IG1
25A
PCB Block (Fuse - F1/F2/F7/F8/F15/F16)
WASHER
15A
Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET
20A
Front Power Outlet
A/BAG
15A
SRS Control Module, Occupant Detection Sensor
START
7.5A
Transmission Range Switch, HPCU
7
7-67
Maintenance
Instrument panel fuse
(Plug-in hybrid)
OLF074027
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
Not all fuse panel descriptions in this
OLFP075058N
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
7-68
Instrument panel fuse (Plug-in hybrid)
Fuse rating
Fuse Name
Protected Component
SAFETY POWER
25A
Driver Safety Power Window Module
WINDOW LH
P/SEAT
30A
Passenger Seat Manual Switch
PASS
P/WDW LH
20A
Power Window Main Switch, Rear Power Window Module LH
Power Window Main Switch, Rear Power Window Module RH, Passenger Door Module,
P/WDW RH
25A
Passenger Power Window Switch
DR LOCK
20A
Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
S/HEATER
25A
Front Air Ventilation Seat Module, Front Seat Warmer Module
FRT
BRAKE
10A
Stop Lamp Switch, Smart Key Control Module
SWITCH
8 MODULE
7.5A
BCM, Smart Key Control Module
SAFETY POWER
25A
Passenger Safety Power Window Module
WINDOW RH
BATTERY
10A
BMS Control Module
MANAGEMENT
7
SMART
15A
Smart Key Control Module
KEY
TRUNK
10A
Trunk Lid Relay, ICM Relay Box (Fuel Filler Relay)
Driver/Passenger Door Module, Rear Parking Assist Sensor, Digital Clock,
7 MODULE
10A
Electric Parking Brake Module, Blind Spot Detection Radar LH/RH
INTERIOR
Glove Box Lamp, Front Vanity Lamp Switch LH/RH, Room Lamp, Overhead Console Lamp,
10A
LAMP
Rear Personal Lamp LH/RH, Trunk Room Lamp, Driver/Passenger Door Lamp
2 MEMORY
7.5A
Not Used
7-69
Maintenance
Instrument panel fuse (Plug-in hybrid)
Fuse rating
Fuse Name
Protected Component
P/SEAT
30A
Driver Seat Manual Switch, Driver IMS Module
DRV
CLUSTER
10A
Instrument Cluster
4 MODULE
10A
Smart Key Control Module
MULTI MEDIA
15A
Audio, A/V & Navigation Head Unit, TMU Unit
Driver/Passenger Door Module, Driver IMS Module, A/C Control Module, Auto Light & Photo Sensor,
1 MEMORY
10A
Data Link Connector, Instrument Cluster, Rain Sensor, Tire Pressure Monitoring Module, BCM, Digital Clock
S/HEATER
25A
Rear Seat Warmer Module
RR
2 SUNROOF
20A
Panorama Sunroof Motor
9 MODULE
7.5A
Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module
MDPS
7.5A
MDPS Unit
3 MODULE
10A
BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP
20A
Stop Signal Electronic Module
Active Air Flap, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror,
1 MODULE
7.5A
Driver/Passenger Door Module
1 SUNROOF
20A
Panorama Sunroof Motor
A/CON
7.5A
A/C Control Module, E/R Junction Block (Blower Relay, PTC Heater 1/2 Relay), Electronic A/C Compressor
Audio, A/V & Navigation Head Unit, TMU Unit, Overhead Console Lamp BCM, AMP,
2 MODULE
10A
Power Outside Mirror Switch, Digital Clock, Smart Key Control Module
A/BAG
7.5A
Instrument Cluster
IND
7-70
Instrument panel fuse (Plug-in hybrid)
Fuse rating
Fuse Name
Protected Component
Multipurpose Check Connector, TMU Unit, A/C Control Module, Vess Unit, Electro Chromic Mirror,
6 MODULE
10A
Rear Seat Warmer Module, A/T Shift Lever IND., Front Air Ventilation Seat Module,
Front Seat Warmer Module, Driver IMS Module, ICM Relay Box (IG3 #1 Relay)
AMP
25A
AMP (JBL/MOBIS)
HTD STRG
15A
BCM
Front Console, Switch Fuel Filler Door & Trunk Lid Switch, Active Air Flap Tire Pressure Monitoring Module,
5 MODULE
10A
Lane Departure Warning Unit, Smart Cruise Control Unit
IG1
25A
PCB Block (Fuse - TCU 2/HEV ECU 2/OPCU 2/AHB 3)
WASHER
15A
Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET
20A
Cigarette Lighter
GATEWAY
10A
Gateway
A/BAG
15A
SRS Control Module, Occupant Detection Sensor
IG3
15A
ICM Relay Box (IG3 #1/2/3 Relay)
START
7.5A
Transaxle Range Switch, HPCU
7
7-71
Maintenance
Engine compartment fuse panel
(Hybrid)
OLFH074016
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
Not all fuse panel descriptions in this
manual may be applicable to your
OLFP076057N
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
7-72
