Roof antenna
NOTICE
Steering Wheel Audio Controls
•
Before entering a place with a low
height clearance or a car wash,
remove the antenna by rotating it
counterclockwise. If not, the
antenna may be damaged.
•
When reinstalling your antenna,
it is important that it is fully
tightened and adjusted to the
upright position to ensure prop-
4
er reception.
OAE046481L
OAE046438
The roof antenna receives both AM
and FM broadcast signals. Rotate
NOTICE
the roof antenna in a counterclock-
Do not operate multiple audio
wise direction to remove it. Rotate it
remote control buttons simultane-
in a clockwise direction to reinstall it.
ously.
4-3
Multimedia System
VOLUME (VOL + / - ) (1)
If the SEEK/PRESET switch is
Bluetooth® Wireless
pressed up or down, it will function
Technology Hands-Free
• Press the VOLUME switch up to
in the following modes:
increase volume.
• Press the VOLUME switch down to
RADIO mode
decrease volume.
It will function as the PRESET STA-
TION UP/DOWN button.
SEEK/PRESET (
/
) (2)
MEDIA mode
If the SEEK/PRESET switch is
It will function as the TRACK UP/
pressed up or down and held for 0.8
DOWN button.
second or more, it will function in the
following modes:
MODE (3)
OAE046440
RADIO mode
Press the MODE button to toggle
It will function as the AUTO SEEK
through Radio, SXM, or AUX modes.
select button. It will SEEK until you
release the button.
MUTE (
) (4)
MEDIA mode
• Press the MUTE button to mute the
It will function as the FF/RW button.
sound.
• Press the MUTE button again to
activate the sound.
OAE046447
i
Information
With the Bluetooth® Wireless
Detailed information for audio control
Technology in the vehicle, you can
buttons are described in the Car
use the phone wireless.
Multimedia User's Manual that is
(1) Call / Answer button
supplied with the vehicle.
(2) Call end button
4-4
(3) Microphone
How Vehicle Audio Works
This can be due to factors, such as
the distance from the radio station,
Detailed information for the Bluetooth®
FM reception
closeness of other strong radio sta-
Wireless Technology hands-free is
tions or the presence of buildings,
described in the Car Multimedia
bridges or other large obstructions in
User's Manual.
the area.
Audio (Display Audio) / Video /
Navigation System (AVN)
(if equipped)
Detailed information for the AVN sys-
4
tem is described in the Car
Multimedia User's Manual.
JBM001

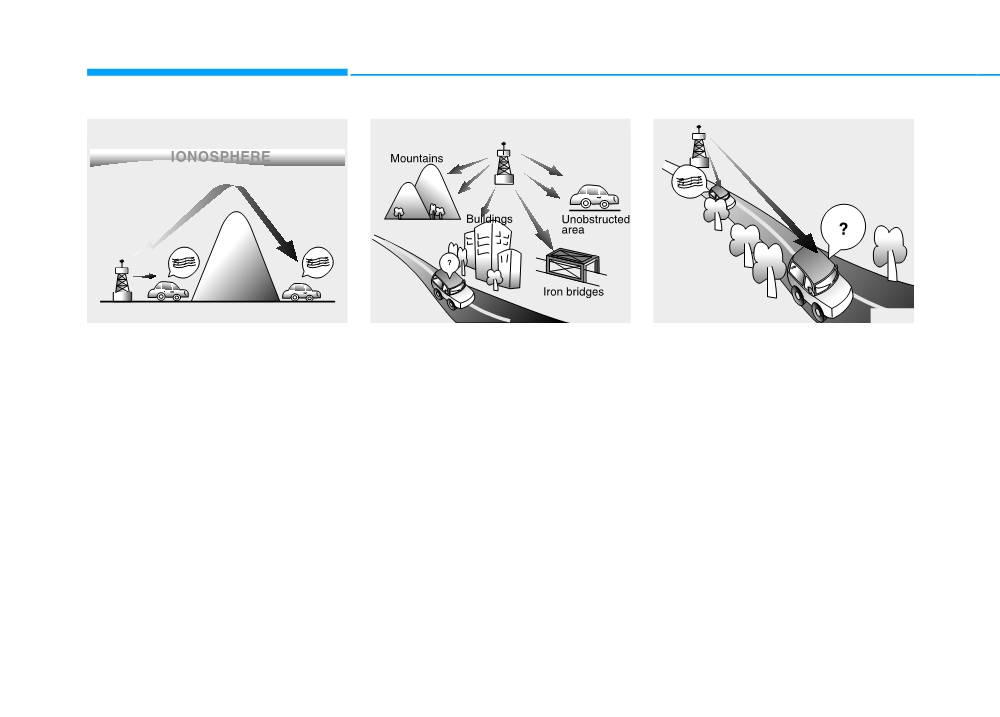

AM and FM radio signals are broad-
cast from transmitter towers located
around your city. They are intercept-
ed by the radio antenna on your vehi-
cle. This signal is then processed by
the radio and sent to your vehicle
speakers.
When a strong radio signal has
reached your vehicle, the precise
engineering of your audio system
ensures the best possible quality
reproduction. However, in some
cases the signal coming to your vehi-
cle may not be strong and clear.
4-5
Multimedia System
AM reception
FM radio station
JBM002
JBM003
JBM004
AM broadcasts can be received at
FM broadcasts are transmitted at
• Fading
- As your vehicle moves
greater distances than FM broad-
high frequencies and do not bend to
away from the radio station, the sig-
casts. This is because AM radio
follow the earth's surface. Because
nal will weaken and sound will
waves are transmitted at low fre-
of this, FM broadcasts generally
begin to fade. When this occurs, we
quencies. These long distance, low
begin to fade within short distances
suggest that you select another
frequency radio waves can follow the
from the station. Also, FM signals are
stronger station.
curvature of the earth rather than
easily affected by buildings, moun-
• Flutter/Static - Weak FM signals or
travelling straight. In addition, they
tains, and obstructions. This can lead
large obstructions between the
curve around obstructions resulting
to undesirable or unpleasant listen-
transmitter and your radio can dis-
in better signal coverage.
ing conditions which might lead you
turb the signal causing static or flut-
to believe a problem exists with your
tering noises to occur. Reducing the
radio. The following conditions are
treble level may lessen this effect
normal and do not indicate radio
until the disturbance clears.
trouble:
4-6
Features of Your Vehicle
• If you are driving on a mountain
road where is the signal blocked by

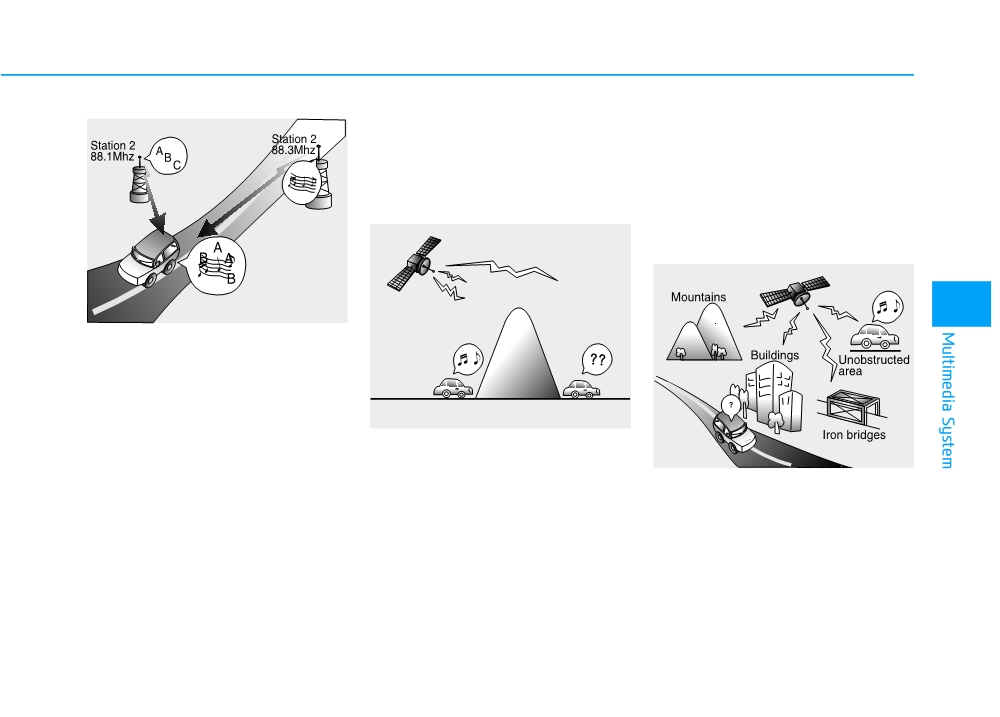

Satellite radio reception
mountains.
You may experience difficulties in
• If you are driving in an area with tall
receiving SiriusXM® satellite radio
trees that block the signal (30 ft.
signals in the following situations.
/10m or more), for example on an
road that goes through a dense for-
est.
4
JBM005
• Station Swapping - As an FM signal
weakens, another more powerful
signal near the same frequency
may begin to play. This is because
your radio is designed to lock onto
the clearest signal. If this occurs,
SATELLITE1
select another station with a
• If you are driving in a tunnel or a
stronger signal.
covered parking area.
SATELLITE2
• Multi-Path Cancellation - Radio sig-
• If you are driving beneath the top
• The signal can become weak in
nals being received from several
level of a multi-level freeway.
some areas that are not covered by
directions can cause distortion or
• If you are driving under a bridge.
the SiriusXM® repeater network.
fluttering. This can be caused by a
direct and reflected signal from the
• If you are driving next to a tall vehi-
same station, or by signals from two
cle (such as a truck or a bus) that
stations with close frequencies. If
blocks the signal.
this occurs, select another station
• If you are driving in a valley where
until the condition has passed.
the surrounding hills or peaks block
the signal from the satellite.
4-7
Multimedia System
Using a cellular phone or a two-
NOTE:
i
Information
way radio
Order of playing files (folders) :
There may also be additional unfore-
When a cellular phone is used inside
1. Song playing order
:
to
seen circumstances leading to recep-
the vehicle, noise may be produced
sequentially.
tion problems with the SiriusXM®
from the audio system. This does not
satellite radio signal.
2. Folder playing order :
mean that something is wrong with
Advisory Messages, such as 'CH
❋ If no song file is contained in the
the audio equipment. In such a case,
Unavailable' may occur when starting
folder, that folder is not displayed.
try to operate mobile devices as far
SiriusXM® Radio.
from the audio equipment as possible.
CAUTION
When using a communication
system such as a cellular phone
or a radio set inside the vehicle, a
separate external antenna must
be fitted. When a cellular phone
or a radio set is used with an
internal antenna alone, it may
interfere with the vehicle's electri-
cal system and adversely affect
safe operation of the vehicle.
WARNING
Do not use a cellular phone
while driving. Stop at a safe
location to use a cellular phone
or set up the hands-free calling
feature.
4-8
iPod®
Pandora®
iPod® is a registered trademark of Apple Inc.
Pandora, the Pandora logo, and the Pandora trade dress
are trademarks or registered trademarks of Pandora
Media, Inc. Used with permission.
Bluetooth® Wireless Technology
Pandora is only available in certain countries. Please visit
The Bluetooth® word mark and logos are registered
http://www.pandora.com/legal for more information.
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by HYUNDAI is under license. Other trade-
marks and trade names are those of their respective
owners.
4
A Bluetooth® Wireless Technology enabled cell phone is
required to use Bluetooth® Wireless Technology.
Bluetooth® Wireless Technology phone compatibility can
be checked by visiting https://www.hyundaiusa.com/blue-
tooth.
4-9
Multimedia System

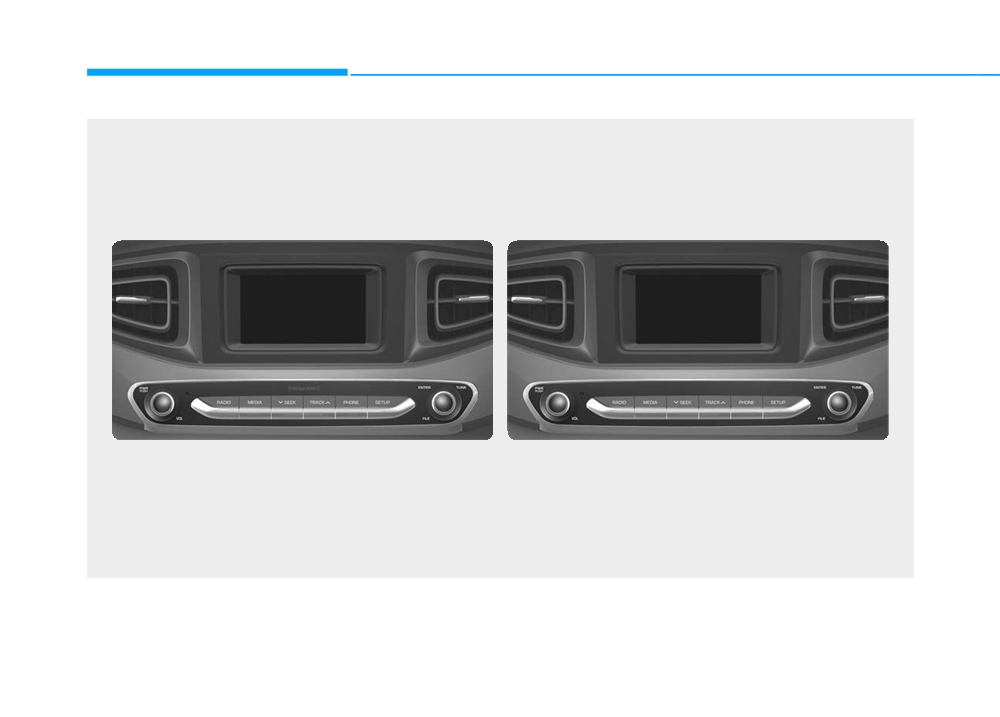

AUDIO (With Touch Screen)
■ Type A
■ Type B
(With Bluetooth® Wireless Technology)
G2H4G0000EU/G2H4G0001EU
4-10
Feature of Your Audio
❈ The actual image in the vehicle
(5) SEEK/TRACK
may differ from the illustration.
• Search for next station in FM or AM
radio mode.

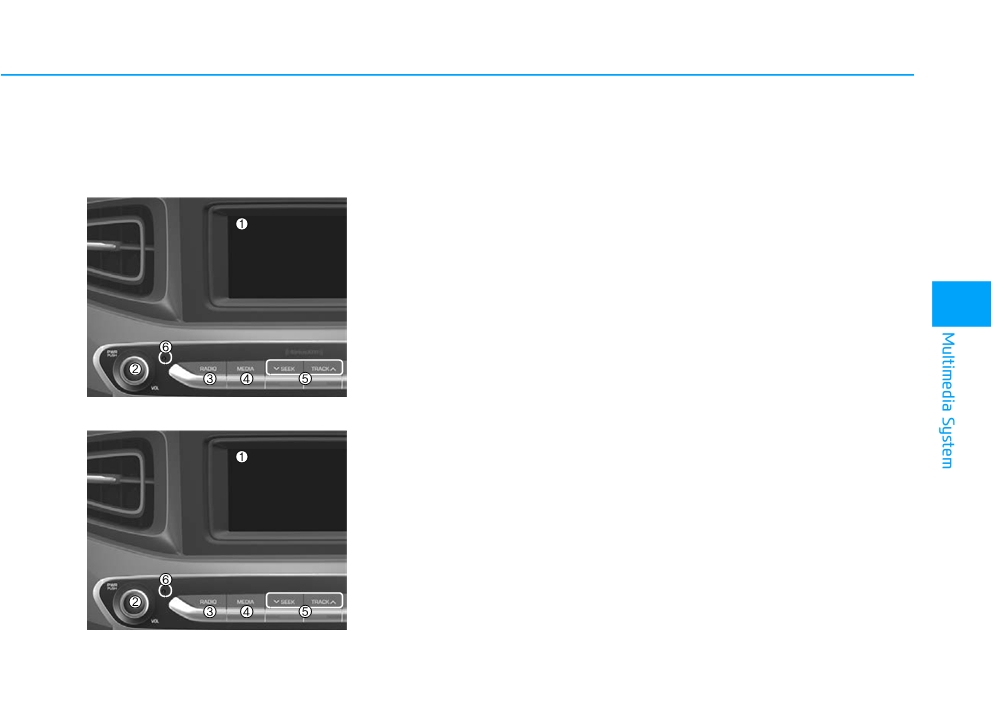

Head unit
(1) LCD screen
■ Type A
• Search for next station in SiriusXM*
• Tap the screen to select a button.
radio mode.
• Change the current song in media
(2) POWER/VOL knob
mode.
• Turn to adjust the volume.
* if equipped
• Press to turn the device on or off.
(6) RESET
4
(3) RADIO
• Shutdown and restart the system.
• Start FM, AM and SiriusXM*.
* if equipped
(4) MEDIA
■ Type B
• Select USB(iPod®), Bluetooth®
Wireless Technology(BT) Audio,
AUX and My Music or Pandora.
• Display the media menu when two
or more media are connected or
when the
[MEDIA] button is
pressed in media mode.
4-11
Multimedia System
■ Type A

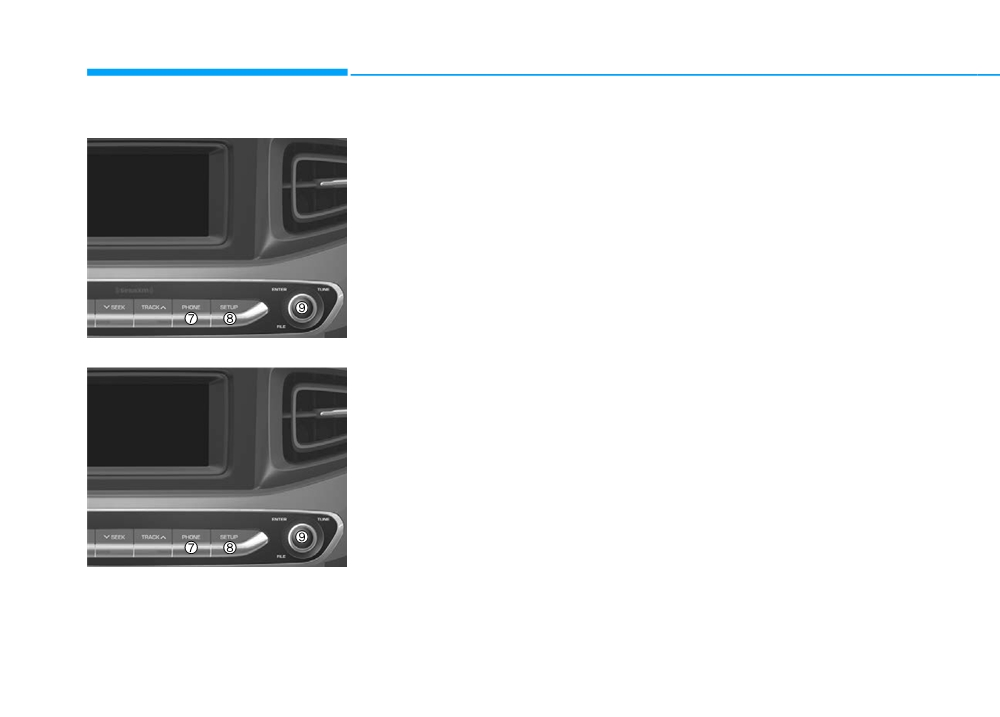

(7) PHONE
• Start Bluetooth® Wireless Technology
Phone mode.
(8) SETUP
• Access Display, Sound, Date/Time,
Bluetooth, System, Screen Saver
and Display Off settings.
(9) TUNE knob
• Turn to navigate through the sta-
tions/songs list.
■ Type B
• Press to select an item.
4-12

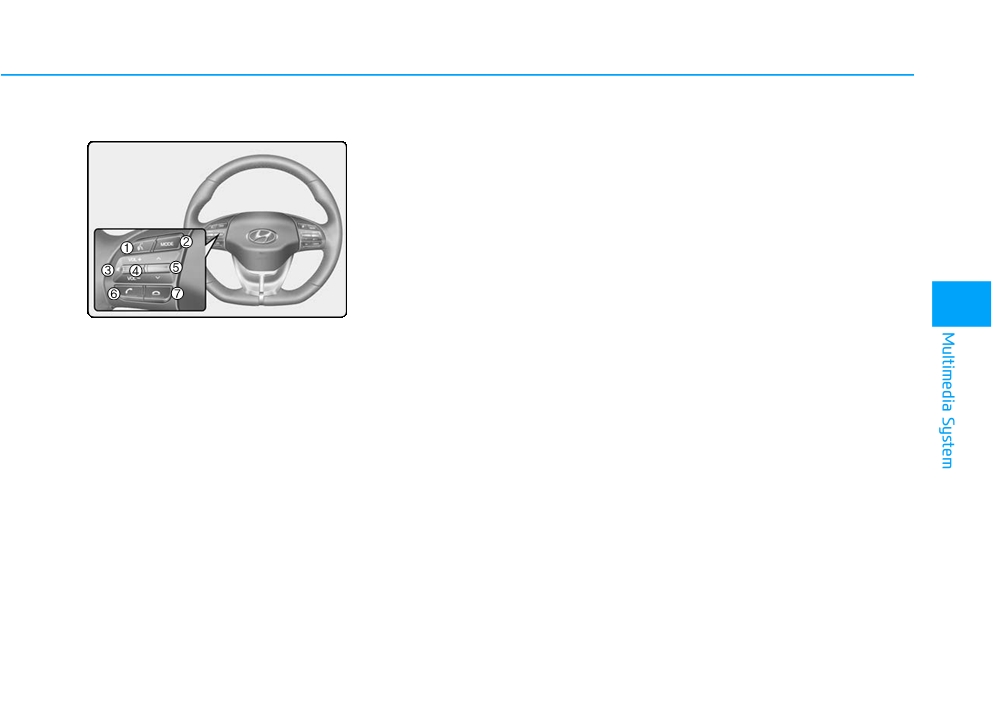

Steering wheel remote control
(3) MUTE
Third press: Dial the phone num-
ber entered.
• Press to mute audio output.
• When a call is active, mic volume is
- Press in the Incoming Call notifica-
tion screen to accept the phone call.
muted.
- Press in Bluetooth® Wireless
(4) VOLUME
Technology Handsfree mode to
switch to the waiting call.
• Press to adjust the volume.
•
Pressing and holding the button
(over 1.0 seconds)
(5) UP/DOWN
- If not in Bluetooth® Wireless
• Press the button in radio mode to
4
Technology Handsfree mode or
search Presets.
receiving a phone call, the most
• Press and hold the button in radio
recently Dialed Call number is
❈ The actual image in the may differ
mode to search frequencies.
dialed.
from the illustration.
• Press the button in media mode to
- Press in Bluetooth® Wireless
change the current song.
Technology Handsfree mode to
(1) VOICE
• Press and hold the button in media
transfer the call to your cell
• Pressing the button
mode to quick search through songs.
phone.
- If Siri is not active: Starts Siri.
- Press in cell phone mode to
- If Siri is active: Re-starts Siri.
(6) CALL
switch to Bluetooth® Wireless
Technology Handsfree mode.
• Pressing and holding the button:
• Pressing the button
Siri is deactivated.
- If not in Bluetooth® Wireless
(7) END
Technology Handsfree mode or
(2) MODE
receiving a phone call.
• Press in Bluetooth® Wireless
• Press the button to change the
First press: Display Dial Number
Technology Handsfree mode to
end the phone call.
mode in the following order: Radio
screen.
➟ Media.
• Press in the incoming call screen
Second press: Automatically dis-
to reject the call.
• Press and hold the button to turn off.
play the most recently Dialed
Call number.
4-13
Multimedia System
WARNING
(Continued)
WARNING
•
Exercise caution not to spill
Audio System Safety Warning
Distracted Driving
water or introduce foreign
•
Do not use a cellular phone
objects into the device. Such
Driving while distracted can
while driving. Stop at a safe
acts could lead to smoke, fire,
result in a loss of vehicle con-
location to use a cellular
or product malfunction.
trol that may lead to an acci-
phone.
•
Please refrain from use if the
dent, severe personal injury,
screen is blank or no sound
and death. The driver’s primary
•
Do not stare at the screen
can be heard as these signs
responsibility is in the safe and
while driving. Staring at the
may indicate product malfunc-
legal operation of a vehicle, and
screen for prolonged periods
tion. Continued use in such
use of any handheld devices,
of time could lead to traffic
conditions could lead to acci-
other equipment, or vehicle sys-
accidents.
dents (fires, electric shock) or
tems which take the driver’s
•
Do not disassemble, assemble,
product malfunctions.
eyes, attention and focus away
or modify the audio system.
from the safe operation of a
•
Do not touch the antenna dur-
Such acts could result in acci-
vehicle or which are not permis-
dents, fire, or electric shock.
ing thunder or lightening as
sible by law should never be
such acts may lead to light-
•
Using the phone while driving
used during operation of the
ning induced electric shock.
may lead to a lack of attention
vehicle.
of traffic conditions and
•
Do not stop or park in park-
increase the likelihood of
ing-restricted areas to operate
accidents. Use the phone fea-
the product. Such acts could
ture after parking the vehicle.
lead to traffic accidents.
(Continued)
4-14
NOTICE
Information on status icons
i
Information
Icons showing audio status are shown
Turn on the car ignition before using
•
Do not subject the device to
in the upper-right corner of the screen.
this device. Do not operate the audio
severe shock or impact. Direct
system for long periods of time with
pressure onto the front side of
Icon
Description
the ignition turned off as such opera-
the monitor may cause damage
tions may lead to battery discharge.
to the LCD or touch screen.
Mute
Mute engaged
•
When cleaning the device, make
Remaining battery life of
sure to turn off the device and
Battery
a connected Bluetooth®
use a dry and smooth cloth.
device
Never use rough materials,
Handsfree +
Bluetooth® Handsfree
4
chemical cloths, or solvents
Audio stream-
call and audio stream-
(alcohol, benzene, thinners,
ing connection
ing available
etc.). As such materials may
Handsfree
Bluetooth® Handsfree
damage the device panel or
connection
call available
cause color/quality deteriora-
Bluetooth®
Bluetooth®
audio
tion.
audio streaming
streaming available
•
Do not place beverages close to
Downloading contacts
the audio system. Spilling bever-
Downloading
through Bluetooth® wire-
ages may lead to system mal-
contacts
less communications
function.
Downloading call history
Downloading
•
Placing the audio system within
through Bluetooth® wire-
call history
an electromagnetic environment
less communications
may result in noise interference.
Line busy
Phone call in progress
i
Information
Mic muted during a call
Mute mic
(caller cannot hear your
In this case of product malfunction,
voice)
please contact your dealer or vehicle
Display the phone signal
service center.
Phone signal
strength for a cell phone
strength
connected by Bluetooth®
4-15
Multimedia System
Radio
(5) Presets 1~40
List
Save or listen to favorite stations.
A list of all available stations is dis-
You can listen to FM, AM and
played. Press the desired station.
SiriusXM* radio.
Switching between FM, AM and
Favorite stations can be saved to
SiriusXM*
[Presets] by selecting the [+].
• Press the [RADIO] button on the
audio system to switch between
Menu
FM, AM and SiriusXM*.
Select [Menu], and select the desired
• Select [Band] on the screen to switch
function.
between FM, AM and SiriusXM*.
•
Presets: Save up to 40 frequently
* if equipped
used stations.
To listen to a preset, press the
Searching stations
desired station.

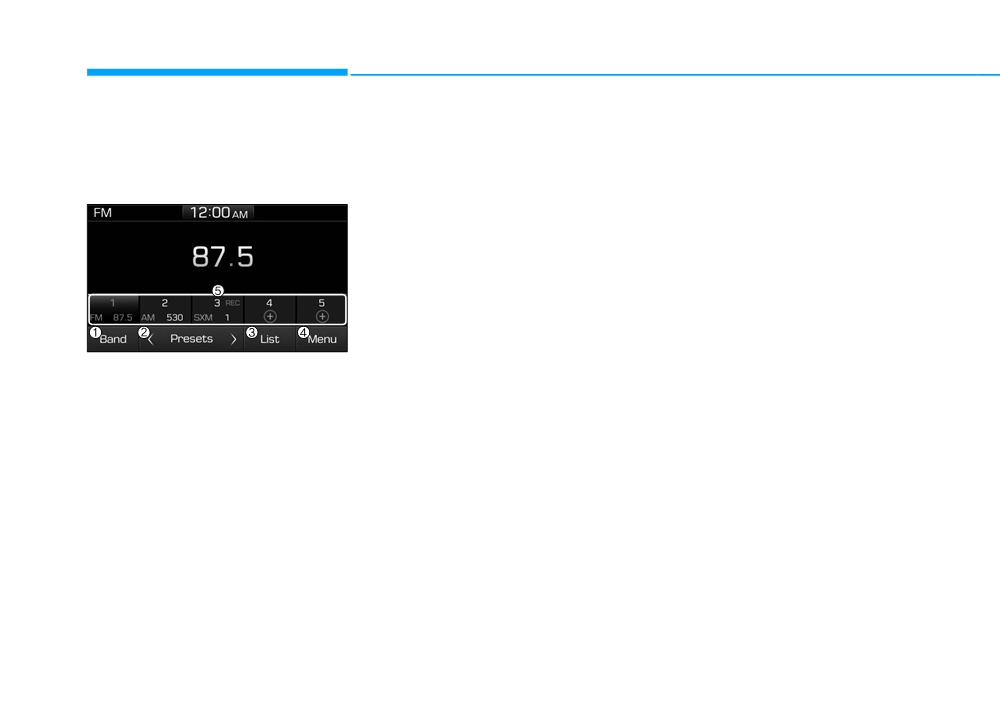

(1) Band
Searching stations by pressing the
Press and hold the desired slot
[SEEK/TRACK] button on the prod-
from 1 through 40. This saves the
Switch between FM, AM and
uct.
current station in the selected slot.
SiriusXM*.
If the slot is empty, simply pressing
* if equipped
< Presets >
saves the station to the slot.
By selecting [< Presets >], the but-
•
Scan: All stations available in the
(2) Presets
tons for Presets 1~40 displayed on
current location of the vehicle are
Change the preset number on the
played for five seconds each.
the screen can be changed.
main screen.
•
Information: View detailed station
Presets 1~40
information.
(3) List
Press the button to listen to a preset.
•
Sound Settings: Audio sound set-
Display all available stations.
tings can be changed.
Press and hold the button number to
•
Station Info: Set whether to receive
save the current station. If the slot is
(4) Menu
station information such as Station
empty, simply pressing saves the
Navigate to the menu screen.
Name, Program Type or Information.
station to the slot.
4-16
(Continued)
(Continued)
i
Information - SiriusXM®
- Antenna obstructions: For opti-
•
SiriusXM services require a sub-
Satellite Radio information
mal reception performance, keep
scription sold separately, or as a
(if equipped)
the antenna clear of snow and ice
package, by Sirius XM Radio Inc. If
• Satellite Radio channels:
build-up and keep luggage and
you decide to continue service after
Enjoy SiriusXM Satellite Radio with a
other material as far away from
your trial, the subscription plan you
3-month trial subscription to the
the antenna as possible.
choose will automatically renew
Sirius Select package. You’ll get over
thereafter and you will be charged
•
SiriusXM Satellite Radio service:
variable channels, including commer-
according to your chosen payment
SiriusXM is a subscription-based satel-
cial free music, plus all your favorite
method at then-current rates. Fees
lite radio service that broadcasts music,
sports, exclusive talk, entertainment,
and taxes apply. To cancel you must
sports, news and entertainment pro-
4
and a selection of premium program-
call SiriusXM at
1-866-635-2349.
gramming to radio receivers, which are
ming. For more information and a
See SiriusXM Customer Agreement
available for installation in motor vehi-
complete list of SiriusXM channels,
for complete terms at www.sir-
cles or factory installed, as well as for
visit siriusxm.com in the United States,
iusxm.com. SiriusXM U.S. satellite
the home, portable and wireless devices,
siriusxm.ca in Canada, or call
and data services are available only
and through an Internet connection on
SiriusXM at 1-888-539-7474.
in the 48 contiguous states, DC and
a personal computer.
•
Satellite Radio reception factors:
Puerto Rico (with coverage limita-
Vehicles that are equipped with a
tions). SiriusXM satellite service is
To receive the satellite signal, your
factory installed SiriusXM Satellite
also available in Canada; see
vehicle has been equipped with a
Radio system include:
www.siriusxm.ca. All fees and pro-
satellite radio antenna located on
- Hardware and an introductory
gramming subject to change. Sirius,
the roof of your vehicle. The vehicle
trial subscription term, which
XM and all related marks and logos
roof provides the best location for
begins on the date of sale or lease
are trademarks of Sirius XM Radio
an unobstructed, open view of the
of the vehicle.
Inc.
sky, a requirement of a satellite
- For a small upgrade fee, access to
radio system. Like AM/FM, there
SiriusXM music channels, and
are several factors that can affect
other select channels over the
satellite radio reception perform-
Internet using any computer con-
ance:
nected to the Internet (U.S. cus-
(Continued)
tomers only).
(Continued)
4-17
Multimedia System
SiriusXM
(5) Presets 1~40

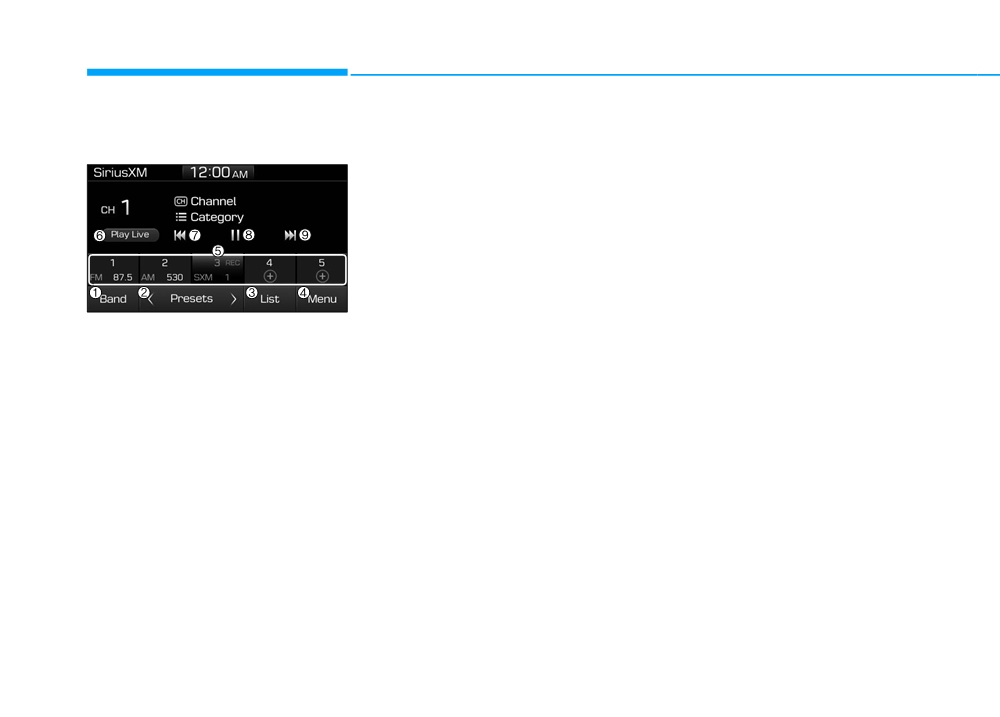

Switching between FM, AM and
SiriusXM
Save or listen to favorite channels.
• Press the [RADIO] button on the
audio system to switch between
(6) Play Live
FM, AM and SiriusXM.
Switches to the live broadcast mode.
• Select [Band] on the screen to switch
between FM, AM and SiriusXM.
(7) Skip Backward
Repeats the previously broadcasted
Searching channels
program.
Press the [SEEK/TRACK] button to
- Holding for less than 0.8 seconds:
search channels.
Moves to the previous segment.
(1) Band
- Holding for over 1.0 seconds: Moves
< Presets >
Switch between FM, AM and
to the previous 5 seconds.
By selecting [< Presets >], the but-
SiriusXM.
tons for Presets 1~40 displayed on
(8) Play/Pause
the screen can be changed.
(2) Presets
Pauses/plays the current broadcast-
Change the preset number on the
ing program.
Presets 1~40
main screen.
Press the button to listen to a preset.
(9) Skip Forward
Press and hold the button number to
(3) List
Moves to the next segment.
save the current channel.
Display all channels.
List
(4) Menu
A list of all channels is displayed.
Navigate to the menu screen.
Press the desired channel.
Favorite channels can be saved to
[Presets] by selecting the [+].
4-18
Menu
Media
i
Information
Select [Menu], and select the desired
Up to 50 songs can be tagged.
function.
i
Information - Using MP3
•
Presets: Save up to 40 frequently
•
Scan: All channels available in the
Supported audio formats
used channels.
vehicle’s current location are
To listen to a preset, press the
MPEG1 Audio Layer3
played for ten seconds each.
desired channel.
MPEG2 Audio Layer3
•
Program Schedule: View the
Compressed
Press and hold the desired slot
Program schedule.
MPEG2.5 Audio Layer3
audio formats
from 1 through 40. This saves the
Windows Media Audio Ver 7.X
•
Featured Favorites: The Featured
current channel in the selected
& 8.X
Favorites feature allows SiriusXM™
4
slot.
to broadcast additional presets.
NOTICE
If the slot is empty, simply pressing
- Example
1: During holidays,
saves the channel to the slot.
“Holiday Music” might include all
File formats other than the formats
•
Categories: Channels can be
SiriusXM™ channels that are
above may not be recognized or
searched by category.
playing holiday music for easy
playable. Information such as file
access by users.
name may not be displayed.
•
Direct Tune: The desired channel
can be selected by entering num-
Multiple sets of Featured Favorites
bers.
data can be broadcast by SiriusXM™
•
Sound Settings: Audio sound set-
and can change from time to time.
tings can be changed.
•
Information: View detailed channel
•
Tag Song: Tag the current song
information.
information.
•
Category Lock: Search or scan
When an Apple device (iPhone®,
channels in the current category
iPod®) is connected, tagged song
only.
information is sent automatically to
the connected device.
4-19
