Hyundai Ioniq Plug-in Hybrid (2018 year). Manual - part 13
Convenient features of your vehicle
Windshield Washers
NOTICE
WARNING
•
To prevent possible damage to
When the outside temperature
the washer pump, do not oper-
is below freezing, ALWAYS
ate the washer when the fluid
warm the windshield using the
reservoir is empty.
defroster to help prevent the
•
To prevent possible damage to
washer fluid from freezing on
the wipers or windshield, do not
the windshield and obscuring
operate the wipers when the
your vision which could result
windshield is dry.
in an accident and serious
•
To prevent damage to the wiper
injury or death.
arms and other components, do
not attempt to move the wipers
OLF044095N
manually.
In the OFF position, pull the lever
•
To prevent possible damage to
gently toward you to spray washer
the wipers and washer system,
fluid on the windshield and to run the
use anti-freezing washer fluids
wipers
1-3 cycles. The spray and
in the winter season or cold
wiper operation will continue until you
weather.
release the lever. If the washer does
not work, you may need to add wash-
er fluid to the washer fluid reservoir.
3-124
DRIVER ASSIST SYSTEM
Rear View Camera
This is a supplemental system that
WARNING
helps provide a view of the area
behind the vehicle through the A/V
•
Never rely solely on the Rear
display while the vehicle is in the R
(Reverse) position.
View Camera when backing-
up.
•
ALWAYS look around your
WARNING
vehicle to make sure there are
3
no objects or obstacles before
The Rear View Camera is not a
moving the vehicle in any
safety device. It only serves to
direction to prevent a collision.
assist the driver in identifying
OAE046407N
•
Always pay close attention
objects directly behind the mid-
when the vehicle is driven
dle of the vehicle. The camera
close to objects, particularly
does NOT cover the complete
pedestrians, and especially
area behind the vehicle.
children.
NOTICE
Always keep the camera lens
clean. The camera may not work
normally if the lens is covered
OAE046406
with dirt, water or snow.
The Rear View Camera will activate
when the vehicle is in the ready (
)
mode and when you shift to the R
(Reverse) position.
3-125
Convenient features of your vehicle
Rear Parking Assist System
Operation of the Rear Parking
WARNING
(if equipped)
Assist System
Operating condition
•
ALWAYS look around your vehi-
cle to make sure there are not
•
This system will activate when
any objects or obstacles before
backing up. However, if the vehicle
moving the vehicle in any direc-
speed exceeds 3 mph (5 km/h), the
tion to prevent a collision.
system may not detect objects.
•
Always pay close attention
•
If the vehicle speed exceeds 6 mph
when the vehicle is driven close
(10 km/h), the system will not warn
to objects, particularly pedestri-
you even though objects are
ans, and especially children.
detected.
•
Be aware that some objects
•
When more than two objects are
Sensor
may not be visible on the
sensed at the same time, the clos-
OAE046403
est one will be recognized first.
screen or be detected by the
The Rear Parking Assist System
sensors, due to the objects
assists the driver during reverse
distance, size or material, all of
movement of the vehicle by chiming
which can limit the effective-
if any object is sensed within approx-
ness of the sensor.
imately 50 in (120 cm) behind the
vehicle.
This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.
3-126
Types of warning sound and indicator
Non-operational conditions of
Parking Assist System
Types of warning sound
Indicator
The Rear Parking Assist System
may not operate normally when:
When an object is approximately 24 to 47 in (60 to 120
cm) from the rear bumper, the warning sound beeps inter-
• Moisture is frozen to the sensor.
mittently.
• The sensor is covered with dirt or
debris such as snow or ice, or the
3
sensor cover is blocked.
When an object is approximately 12 to 24 in (30 to 60 cm)
from the rear bumper, the warning sound beeps more fre-
quently.
There is a possibility of the Rear
Parking Assist System malfunction
when:
When an object is within 12 in (30 cm) from the rear
•
Driving on uneven road surfaces
bumper, the warning sound beeps continuously.
such as unpaved roads, gravel,
bumps, or gradient.
•
Objects generating excessive noise
NOTICE
such as vehicle horns, loud motor-
• The indicator may differ from the illustration as objects or sensors sta-
cycle engines, or truck air brakes
can interfere with the sensor.
tus. If the indicator blinks, have your vehicle checked by an authorized
HYUNDAI dealer.
•
Heavy rain or water spray is present.
• If the audible warning does not sound or if the buzzer sounds intermit-
•
Wireless transmitters or mobile
tently when shifting into R (Reverse) position, this may indicate a mal-
phones are present near the sensor.
function with the Parking Assist System. If this occurs, have your vehicle
•
The sensor is covered with snow.
checked by an authorized HYUNDAI dealer as soon as possible.
•
Any non-factory equipment or
accessories have been installed, or
if the vehicle bumper height or sen-
sor installation has been modified.
3-127
Convenient features of your vehicle
Detecting range may decrease when:
Rear parking assist system pre-
• Do not spray the sensors or its sur-
cautions
rounding area directly with a high
• Outside air temperature is extreme-
pressure washer. Doing so may
ly hot or cold.
•
The rear parking assist system
cause the sensors to fail to operate
• Undetectable objects smaller than
may not operate consistently in
normally.
40 inches (1 m) and narrower than
some circumstances depending on
6 inches (14 cm) in diameter.
the speed of the vehicle and the
shapes of the objects detected.
WARNING
•
The rear parking assist system may
The following objects may not be
malfunction if the vehicle bumper
Your new vehicle warranty does
recognized by the sensor:
height or sensor installation has
not cover any accidents or dam-
•
Sharp or slim objects such as
been modified or damaged. Any
age to the vehicle or injuries to
ropes, chains or small poles.
non-factory installed equipment or
its occupants related to a Rear
•
Objects, which tend to absorb sen-
accessories may also interfere with
Parking Assist System. Always
sor frequency such as clothes,
the sensor performance.
drive safely and cautiously.
spongy material or snow.
•
The sensor may not recognize
objects less than 15 in. (40 cm)
from the sensor, or it may sense an
incorrect distance. Use caution.
•
When the sensor is blocked with
snow, dirt, debris, or ice, the rear
parking assist system may be inop-
erative until the snow or ice melts,
or the debris is removed. Use a
soft cloth to wipe debris away from
the sensor.
•
Do not push, scratch or strike the
sensor with any hard objects that
could damage the surface of the
sensor. Sensor damage could occur.
3-128

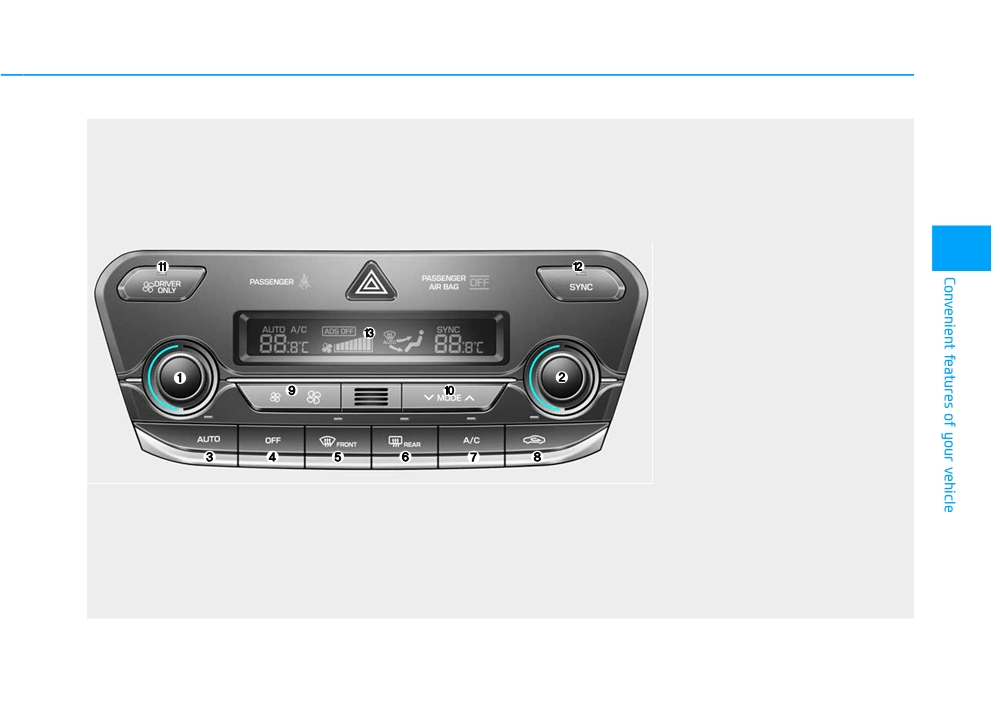

AUTOMATIC CLIMATE CONTROL SYSTEM

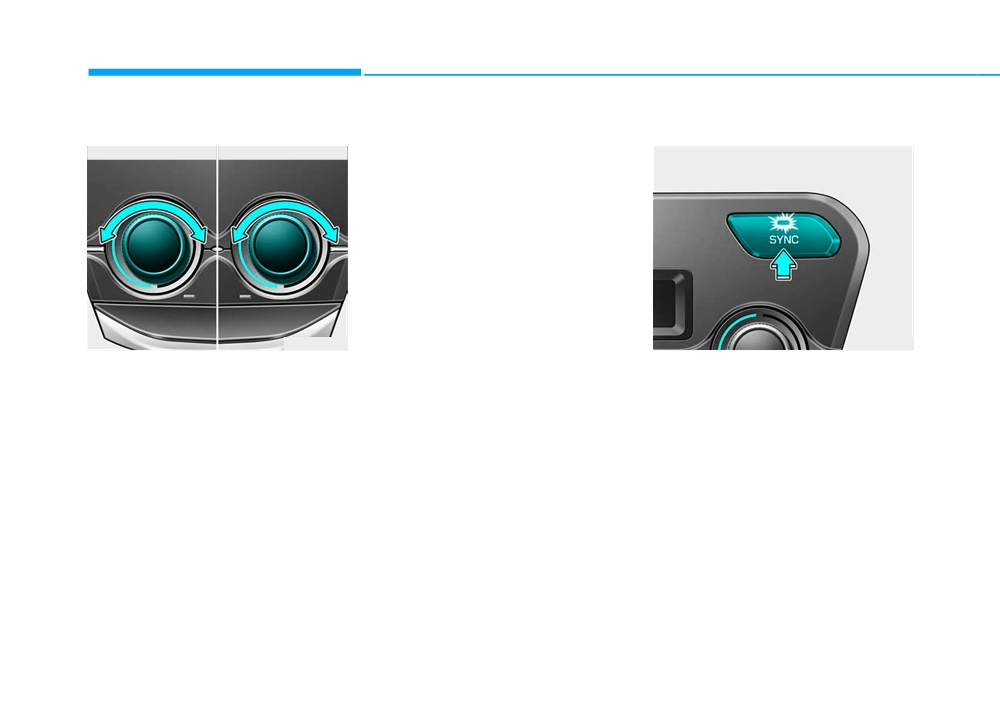

1. Driver's temperature control knob
2. Passenger’s temperature control knob
3
3. AUTO (automatic control) button
4. OFF button
5. Front windshield defrost button
6. Rear window defrost button
7. Air conditioning button
8. Air intake control button
9. Fan speed control button
10. Mode selection button
11. Driver only button
12. SYNC button
13. Climate control information screen
OAE046500
3-129
Convenient features of your vehicle
Automatic Heating and Air
To turn the automatic operation off,
Conditioning
select any button of the following:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO'
sign will illuminate on the infor-
mation screen once again.)
- Fan speed control button
OAE046303
The selected function will be con-
trolled manually while other functions
2. Turn the temperature control knob
operate automatically.
to the desired temperature. If the
OAE046302
For your convenience and to improve
temperature is set to the lowest
The Automatic Climate Control
setting
(Lo), the air conditioning
the effectiveness of the climate con-
System is controlled by setting the
system will operate continuously.
trol, use the AUTO button and set the
desired temperature.
After the interior has cooled suffi-
temperature to 73°F (23°C).

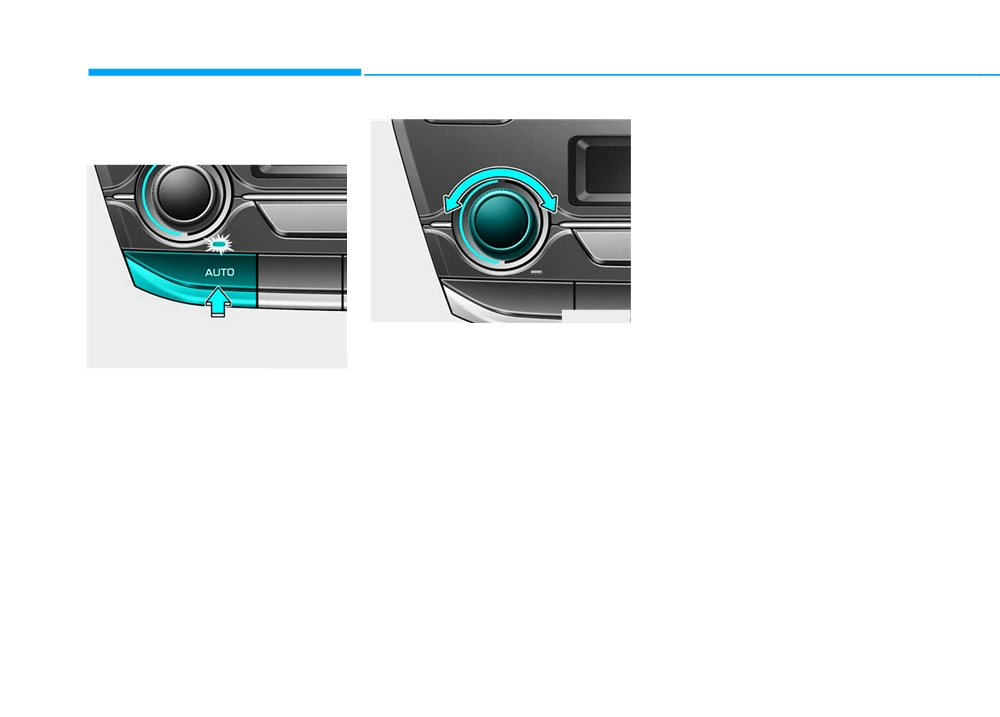

1. Press the AUTO button.
ciently, adjust the knob to a higher
temperature set point whenever
The modes, fan speeds, air intake
possible.
and air-conditioning will be controlled
automatically by the temperature set-
ting you select.
3-130
Manual Heating and Air
3. Set the temperature control to the
Conditioning
desired position.
4. Set the air intake control to the
The heating and cooling system can
be controlled manually by pushing
outside (fresh) air position.
buttons other than the AUTO button.
5. Set the fan speed control to the
In this case, the system works
desired speed.
sequentially according to the order of
6. If air conditioning is desired, turn
buttons selected.
3
the air conditioning system on.
When pressing any button except the
7. Press the AUTO button to convert
AUTO button while using automatic
to full automatic control of the sys-
operation, the functions not selected
OAE046304N
tem.
will be controlled automatically.
NOTICE
1. Start the vehicle
(
indicator
ON).
Never place anything near the
sensor to ensure better control of
2. Set the mode to the desired posi-
the heating and cooling system.
tion.
To improve the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3-131
Convenient features of your vehicle

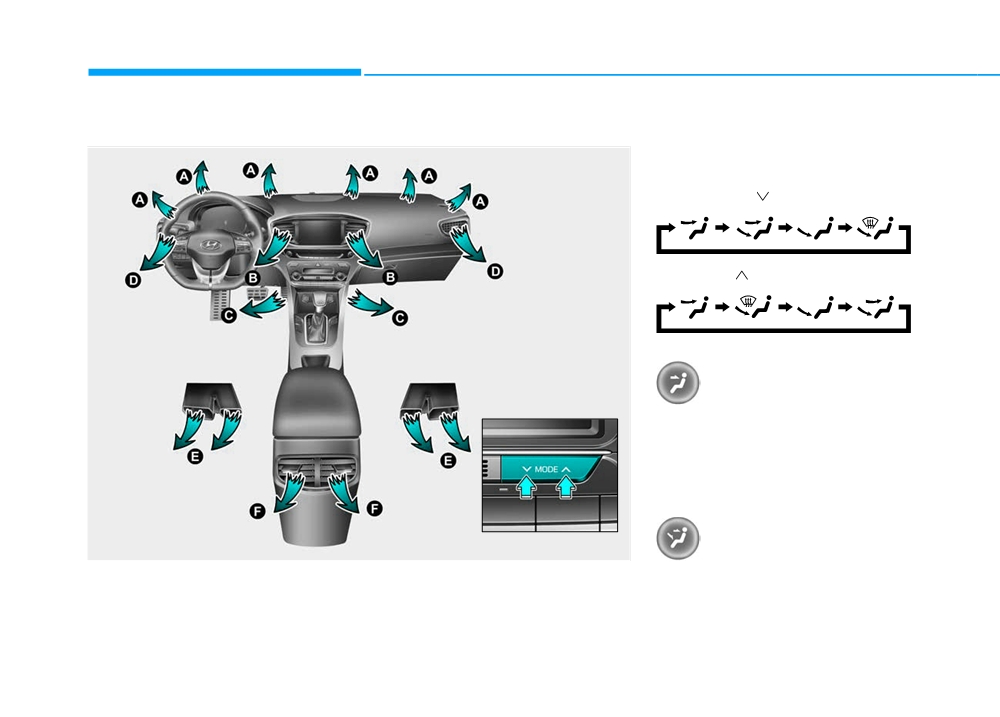

Mode selection
The air flow outlet direction is cycled
as follows:
■ MODE DOWN (
)
■ MODE UP (
)
Face-Level (B, D, F)
Air flow is directed toward the upper
body and face. Additionally, each
outlet can be controlled to direct the
air discharged from the outlet.
Bi-Level (B, C, D, E, F)
OAE046306N/OAE046305
The mode selection button controls the direction of the air flow through the
Air flow is directed towards the face
ventilation system.
and the floor.
3-132
■ Front
Floor & Defrost
(A, C, E, F)
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
3
OAE046308
■ Rear
Floor-Level (A, C, E, F)
OAE046307
Defrost-Level (A)
Most of the air flow is directed to the
Most of the air flow is directed to the
floor, with a small amount of the air
windshield with a small amount of air
being directed to the windshield and
directed to the side window defrosters.
side window defrosters.
OAE046309
Interior panel vents
The outlet vents can be opened or
closed (
) using the vent control
lever.
Also, you can adjust the direction of
air delivered from these vents using
the vent control lever as shown.
3-133
Convenient features of your vehicle
Temperature control
Temperature conversion
Sync button
■ Driver’s side
■ Front passenger’s side
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.
To change the temperature unit from
°F to °C or °C to °F:
- On the instrument cluster, go to
User Settings Mode
➝ Other
(Features) ➝ Temperature Unit.
- Press and hold the AUTO and OFF
buttons on the climate control unit
for 3 seconds.
OAE046310
OAE046311
Turn the knob to the right to increase
Adjusting the driver and passenger
The temperature unit on both on the
the temperature. Turn the knob to the
side temperature equally
cluster LCD display and climate con-
left to decrease temperature.
trol information screen will change.
• Press the "SYNC" button to oper-
The temperature will increase or
ate the driver and passenger side
decrease by 1°F/0.5°C.
temperature equally.
The passenger side temperature
will be set to the same temperature
as the driver side temperature.
• Turn the left temperature control
knob. The driver and passenger
side temperature will be adjusted
equally.
3-134
Adjusting the driver and passenger

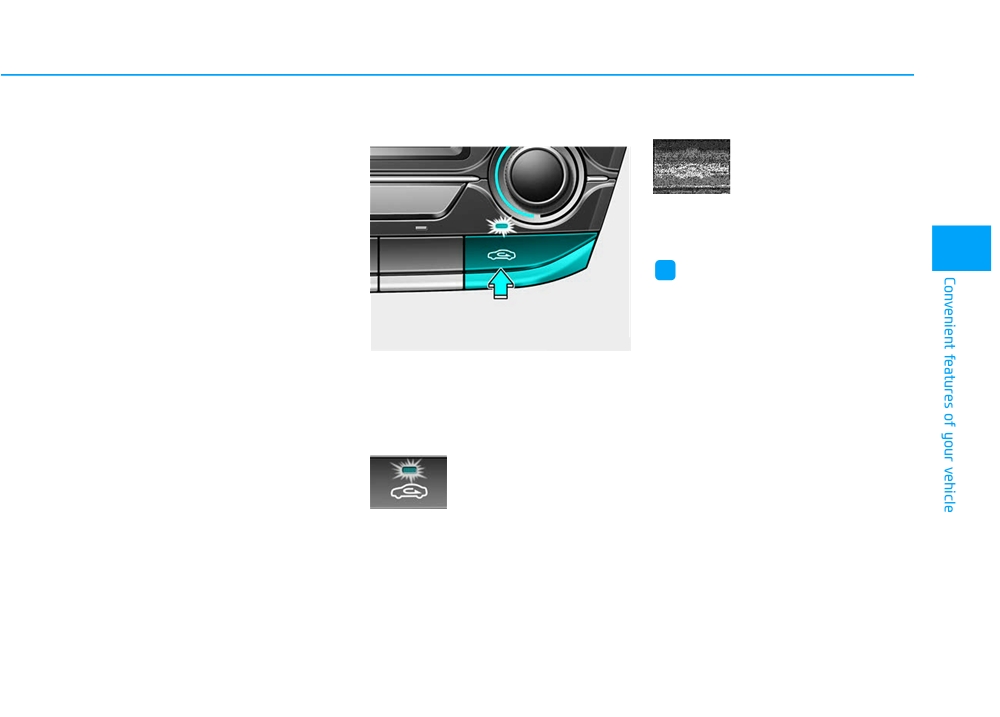

Air intake control
Outside (fresh) air position
side temperature individually
With the outside (fresh)
Press the "SYNC" button again to
air position selected, air
operate the driver and passenger
enters the vehicle from
side temperature individually.
The
outside and is heated or
button indicator will turn off.
cooled according to the
function selected.
3
i
Information
Using the system in the fresh air posi-
tion is recommended.
Prolonged operation of the heater in
OAE046312
the recirculated air position (without
This button is used to select the out-
air conditioning selected) can cause
side (fresh) air position or recirculat-
fogging of the windshield and side
ed air position.
windows and the air within the pas-
senger compartment will become
stale.
Recirculated air position
In addition, prolonged use of the air
With the recirculated air
conditioning with the recirculated air
position selected, air
position selected will result in exces-
from the passenger
sively dry air in the passenger com-
compartment will be
partment.
drawn through the heat-
ing system and heated
or cooled according to
the function selected.
3-135
Convenient features of your vehicle
Fan speed control
NOTICE
WARNING
Operating the fan when the
•
Continued use of the climate
Engine Start/Stop button is in the
control system operation in
ON position could cause the bat-
the recirculated air position
tery to discharge. Operate the fan
can cause drowsiness or
when the vehicle is in the ready
sleepiness, that may cause
(
) mode.
loss of vehicle control result-
ing in an accident. Set the air
intake control to the outside
(fresh) air position as much as
possible while driving.
•
Continued use of the climate
OAE046313
control system operation in
The fan speed can be set as desired
the recirculated air position
by pushing the fan speed control but-
(without the air conditioning
ton.
selected) may allow humidity
More air is delivered with higher fan
to increase inside the vehicle
speeds.
which may fog the glass and
obscure visibility.
Pressing the OFF button turns off the
fan.
•
Do not sleep in a vehicle with
the air conditioning or heating
system on. It may cause seri-
i
Information
ous injury or death due to a
For better voice recognition, fan speed
drop in the oxygen level
may automatically slow down for a
and/or body temperature.
couple of minutes when you activate
voice recognition or hands free.
3-136

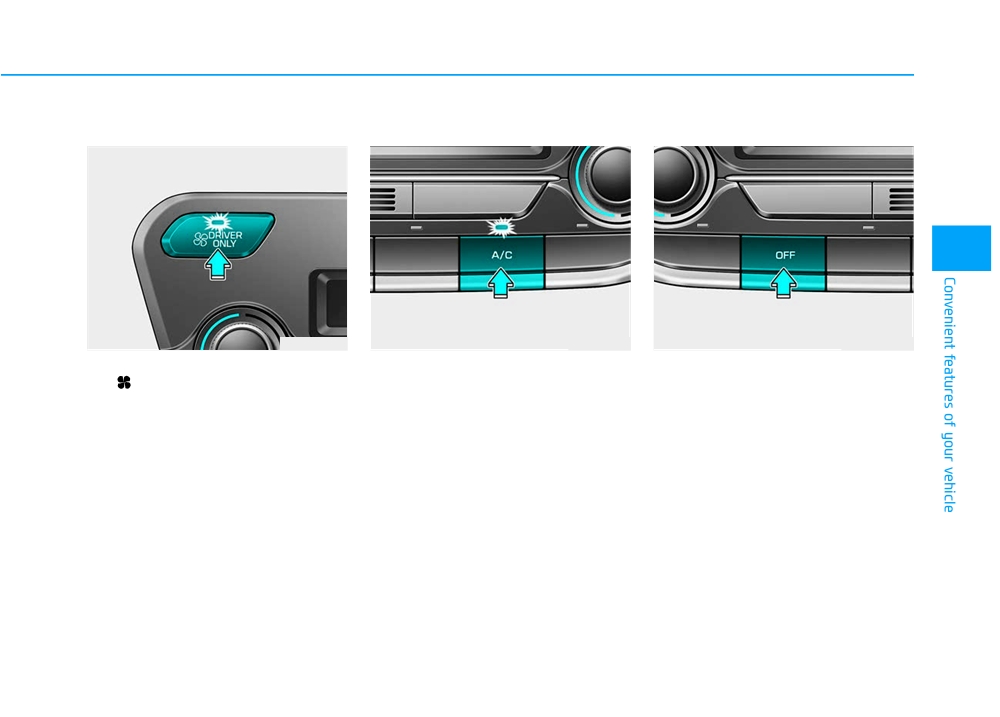

Driver only
Air conditioning
OFF mode
3
OAE046314
OAE046315
OAE046316
If you press the DRIVER ONLY but-
Push the A/C button to manually turn
Push the OFF button to turn the cli-
DRIVER
ton(
ONLY
) and the indicator light
the system on (indicator light will illu-
mate control system off.
illuminates, air mostly blows in the
minate) and off.
You can still operate the mode and
direction of the driver’s seat.
air intake buttons as long as the
However, some of the air may come
Engine Start/ Stop button is in the
out of other seating position ducts to
ON position.
keep indoor air pleasant.
If you use the button with no passen-
ger in the front passenger seat, ener-
gy consumption will be reduced.
DRIVER ONLY button will be turned
off under the following conditions:
1) Defrost on
(the DRIVER ONLY
button indicator is not turned off)
2) DRIVER ONLY button re-push
3-137
Convenient features of your vehicle
System Operation
Operation Tips
Air conditioning
Ventilation
•
To keep dust or unpleasant fumes
All HYUNDAI Air Conditioning
from entering the car through the
Systems are filled with environmen-
1. Select the Face Level
mode.
ventilation system, temporarily set
tally friendly R-134a refrigerant.
2. Set the air intake control to the
the air intake control to the recircu-
1. Start the vehicle.
outside (fresh) air position.
lated air position. Return the con-
2. Push the air conditioning button.
3. Set the temperature control to the
trol to the fresh air position when
desired position.
the irritation has passed. This will
3. Set the mode to the Face Level
help keep the driver alert and com-
mode.
4. Set the fan speed control to the
fortable.
4. Set the air intake control to the
desired speed.
•
To prevent the inside of the wind-
recirculated air position. However,
shield from fogging, set the air
prolonged operation of the recircu-
Heating
lated air position will excessively
intake control to the fresh air posi-
1. Select the Floor Level
mode.
tion and fan speed to the desired
dry the air. In this case, change the
position, turn on the air conditioning
air position.
2. Set the air intake control to the
outside (fresh) air position.
system, and adjust the temperature
5. Adjust the fan speed control and
control to the desired temperature.
temperature control to maintain
3. Set the temperature control to the
maximum comfort.
desired position.
When maximum cooling is desired,
4. Set the fan speed control to the
set the temperature control to the
desired speed.
extreme left position then set the fan
5. If dehumidified heating is desired,
speed control to the highest speed.
turn the air conditioning system on.
If the windshield fogs up, select the
Floor & Defrost
mode or press
the Front Defrost
mode.
3-138
Air conditioning system operation
System Maintenance
Checking the amount of air
tips
conditioner refrigerant and
Climate control air filter
•
If the vehicle has been parked in
compressor lubricant
direct sunlight during hot weather,
When the amount of refrigerant is
Outside air
open the windows for a short time
low, the performance of the air con-
to let the hot air inside the vehicle
ditioning is reduced. Overfilling also
Recirculated
escape.
reduces the performance of the air
air
•
After sufficient cooling has been
conditioning system.
3
achieved, switch back from the
Therefore, if abnormal operation is
recirculated air to the fresh outside
found, have the system inspected by
air position.
an authorized HYUNDAI dealer.
Blower
•
To help reduce moisture inside of
Heater core
the windows on rainy or humid
Climate control
Evaporator
NOTICE
air filter
core
days, decrease the humidity inside
1LDA5047
It is important that the correct
the vehicle by operating the air
This filter is installed behind the glove
type and amount of oil and refrig-
conditioning system with the win-
box. It filters the dust or other pollu-
erant is used. Otherwise, damage
dows and sunroof closed.
tants that enter the vehicle through the
to the compressor and abnormal
•
Use the air conditioning system
heating and air conditioning system.
system operation may occur.
every month only for a few minutes
Have the climate control air filter be
to ensure maximum system per-
replaced by an authorized HYUNDAI
formance.
dealer according to the maintenance
•
If you operate air conditioner
schedule. If the vehicle is being driv-
excessively, the difference between
en in severe conditions such as dusty
the temperature of the outside air
or rough roads, more frequent air
and that of the windshield could
conditioner filter inspections and
cause the outer surface of the
changes are required.
windshield to fog up, causing loss
If the air flow rate suddenly decreas-
of visibility. In this case, set the
es, the system should be checked at
mode selection knob or button to
an authorized HYUNDAI dealer.
the
position and fan speed
control to the lower speed.
3-139
Convenient features of your vehicle
Air conditioning refrigerant label
WARNING
■ Example
Because the refriger-
ant is at very high
pressure, the air con-
ditioning
system
should only be serv-
iced by trained and certified
technicians. It is important that
the correct type and amount of
POE
oil and refrigerant is used, oth-
erwise damage to the vehicle
and personal injury may occur.
OLFP046583N
The actual Air Conditioning refriger-
ant label in the vehicle may differ
The air conditioning system should
from the illustration.
be serviced by an authorized
HYUNDAI dealer.
Each symbols and specification on
air conditioning refrigerant label
means as below :
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubri-
cant
Refer to chapter 8 for more detail
location of the air conditioning refrig-
erant label.
3-140
