Driving your vehicle
COASTING GUIDE (PLUG-IN HYBRID VEHICLE, IF EQUIPPED)
■ Type A
■ Type B
The driver can activate the coasting
i
Information
guide by placing the ignition switch in
Coasting guide is only a supplemental
the ON position and by selecting:
system to assist with fuel-efficient
• User settings
driving. Thus, the operating condi-
User Settings → Driver Assistance
tions may be different in accordance
→ Coasting Guide
with traffic/road conditions (i.e. driv-
For the explanation of the system,
ing in a traffic jam, driving on a slope,
press and hold the [OK] button.
driving on a curve). Thus, take the
actual driving conditions into consid-
eration, such as distances from the
Operation conditions
vehicles ahead/ behind, while refer-
OAEPH047504L/OAE046505N
To activate the system, take the fol-
ring to the coasting guide system as
The coasting guide function informs
lowing procedures. Enter your desti-
guidance.
nation information on the navigation
the driver when to take the foot off
from the accelerator by anticipating a
and select the driving route. Have the
vehicle in ECO mode by driving the
decelerating event* based on the
analysis of driving routes and road
vehicle in D (Drive). Then, satisfy the
following.
conditions of the navigation. It
encourages the driver to remove foot
- The operational speed is above 25
from the pedal and allow coasting
mph (40 km/h).
down the road with EV motor only.
This helps prevent unnecessary fuel
i
Information
consumption and increases fuel effi-
The operating speed may vary due to
ciency.
difference between instrument cluster
and navigation effected by tire infla-
i
Information
tion level.
Example of a deceleration event is
making a right/left turn, driving
through a rotary, entering or exiting a
highway (freeway), etc.
5-22
BRAKING SYSTEM
Power Brakes
WARNING
(Continued)
Your vehicle has power-assisted
•
Wet brakes may impair the
brakes that adjust automatically
Take the following precautions:
vehicle's ability to safely slow
through normal usage.
•
Do not drive with your foot
down; the vehicle may also
If the vehicle is not in the ready
pull to one side when the
resting on the brake pedal.
(
) mode or the vehicle is turned
This will create abnormal high
brakes are applied. Applying
off while driving, the power assist for
the brakes lightly will indicate
brake temperatures, exces-
the brakes will not work. You can still
sive brake lining and pad
whether they have been
stop your vehicle by applying greater
affected in this way. Always
wear, and increased stopping
force to the brake pedal than typical.
distances.
test your brakes in this fash-
The stopping distance, however, will
ion after driving through deep
•
When descending down a
be longer than with power brakes.
water. To dry the brakes, light-
long or steep hill, move the
When the vehicle is not in the ready
ly tap the brake pedal to heat
gear shift lever to Manual
up the brakes while maintain-
(
) mode, the reserve brake
Shift Mode and manually
5
power is partially depleted each time
ing a safe forward speed until
downshift to a lower gear in
brake performance returns to
the brake pedal is applied. Do not
order to control your speed
pump the brake pedal when the
normal. Avoid driving at high
without using the brake pedal
speeds until the brakes func-
power assist has been interrupted.
excessively. Applying the
tion correctly.
Pump the brake pedal only when
brakes continuously will
necessary to maintain steering con-
cause the brakes to overheat
trol on slippery surfaces.
and could result in a tempo-
rary loss of braking perform-
ance.
(Continued)
5-23
Driving your vehicle
NOTICE
Disc Brake Wear Indicator
Parking Brake
When your brake pads are worn and
Always set the parking brake before
Do not depress the brake pedal
new pads are required, you will hear
leaving the vehicle. To apply the
continuously without the "
"
a high pitched warning sound from
parking brake:
indicator ON. The battery may be
your front or rear brakes. You may
discharged.
hear this sound come and go or it
•
Some noise and vibration may
may occur whenever you depress
occur during braking. This is
the brake pedal.
normal.
Note that some driving conditions or
•
In below cases, some electric
climates may cause a brake squeal
brake pump noise and motor
when you first apply (or lightly apply)
vibration may occur temporarily.
the brakes. This is normal and does
This is normal operation.
not indicate a problem with your
- When the pedal is depressed
brakes.
very quickly
- When the pedal is depressed
NOTICE
OAE056014
multiple times in short inter-
To avoid costly brake repairs, do
vals
not continue to drive with worn
Firmly depress the brake pedal.
- When the ABS function is acti-
brake pads.
vated during braking
Depress the parking brake pedal
down as far as possible.
i
Information
Always replace brake pads as com-
plete front or rear axle sets.
5-24
To release:
WARNING
WARNING
To reduce the risk of SERIOUS
•
Whenever leaving the vehicle
INJURY or DEATH, do not oper-
or parking, always come to a
ate the parking brake while the
complete stop and continue to
vehicle is moving except in an
depress the brake pedal. Move
emergency situation. It could
the shift lever into P
(Park)
damage the brake system and
position, then apply the park-
lead to an accident.
ing brake, and place the
Engine Start/Stop button in
the OFF position.
Vehicles with the parking
OAE056013
brake not fully engaged are at
Firmly depress the brake pedal.
risk for moving inadvertently
5
and causing injury to yourself
Depress the parking brake pedal
or others.
down and it will release automatical-
•
NEVER allow anyone who is
ly.
unfamiliar with the vehicle to
If the parking brake does not release
touch the parking brake. If the
or does not release all the way, have
parking brake is released
your vehicle checked by an author-
unintentionally, serious injury
ized HYUNDAI dealer.
may occur.
•
Only release the parking
brake when you are seated
inside the vehicle with your
foot firmly on the brake pedal.
5-25
Driving your vehicle
NOTICE
Check the Parking
Anti-lock Brake System (ABS)
Brake Warning Light
•
Do not apply the accelerator
by placing the Engine
WARNING
pedal while the parking brake is
Start/Stop button to
engaged. If you depress the
the ON position (vehi-
An Anti-Lock Braking System
accelerator pedal with the park-
cle not in the ready
(ABS) or an Electronic Stability
ing brake engaged, warning will
(
) mode).
Control (ESC) system will not
sound. Damage to the parking
This light will be illuminated when the
prevent accidents due to
brake may occur.
parking brake is applied with the
improper or dangerous driving
•
Driving with the parking brake
Engine Start/Stop button in the
maneuvers. Even though vehi-
on can overheat the braking sys-
START or ON position.
cle control is improved during
tem and cause premature wear
emergency braking, always
Before driving, be sure the parking
or damage to brake parts. Make
brake is released and the Brake
maintain a safe distance
sure the parking brake is
between you and objects ahead
Warning Light is OFF.
released and the Brake Warning
of you. Vehicle speeds should
If the Parking Brake Warning Light
Light is off before driving.
always be reduced during
remains on after the parking brake is
extreme road conditions. The
released while the vehicle is in the
braking distance for cars
ready (
) mode, there may be a
equipped with ABS or ESC may
malfunction in the brake system.
be longer than for those without
Immediate attention is necessary.
these systems in the following
If at all possible, cease driving the
road conditions.
vehicle immediately. If that is not pos-
(Continued)
sible, use extreme caution while
operating the vehicle and only con-
tinue to drive the vehicle until you
can reach a safe location.
5-26
Using ABS
ABS cannot prevent a loss of stabili-
(Continued)
ty. Always steer moderately when
To obtain the maximum benefit from
Drive your vehicle at reduced
braking hard. Severe or sharp steer-
your ABS in an emergency situation,
speeds during the following
ing wheel movement can still cause
do not attempt to modulate your
conditions:
your vehicle to veer into oncoming
brake pressure and do not try to
• Rough, gravel or snow-cov-
traffic or off the road.
pump your brakes. Depress your
ered roads.
brake pedal as hard as possible.
On loose or uneven road surfaces,
• On roads where the road sur-
operation of the anti-lock brake sys-
When you apply your brakes under
face is pitted or has different
tem may result in a longer stopping
conditions which may lock the
surface height.
distance than for vehicles equipped
wheels, you may hear sounds from
with a conventional brake system.
• Tire chains are installed on
the brakes, or feel a corresponding
your vehicle.
sensation in the brake pedal. This is
The ABS warning light (
) will stay
normal and it means your ABS is
on for several seconds after the
The safety features of an ABS
active.
Engine Start/Stop button is in the ON
or ESC equipped vehicle should
5
position. During that time, the ABS
not be tested by high speed
ABS does not reduce the time or dis-
will go through self-diagnosis and the
driving or cornering. This could
tance it takes to stop the vehicle.
light will go off if everything is nor-
endanger the safety of yourself
Always maintain a safe distance from
mal. If the light stays on, you may
or others.
the vehicle in front of you.
have a problem with your ABS.
ABS will not prevent a skid that
Contact an authorized HYUNDAI
results from sudden changes in
dealer as soon as possible.
ABS is an electronic braking system
direction, such as trying to take a
that helps prevent a braking skid.
corner too fast or making a sudden
ABS allows the driver to steer and
lane change. Always drive at a safe
brake at the same time.
speed for the road and weather con-
ditions.
5-27
Driving your vehicle
Electronic Stability Control
WARNING
CAUTION
(ESC)
If the ABS warning light (
) is
When you drive on a road hav-
on and stays on, you may have
ing poor traction, such as an icy
a problem with the ABS. Your
road, and apply your brakes
power brakes will work normal-
continuously, the ABS will be
ly. To reduce the risk of serious
active continuously and the
injury or death, contact your
ABS warning light (
) may
HYUNDAI dealer as soon as
illuminate. Pull your car over to
possible.
a safe place and turn the vehicle
off.
Restart the vehicle. If the ABS
warning light is off, then your
ABS system is normal.
OAEPH057016
Otherwise, you may have a
The Electronic Stability Control
problem with your ABS system.
(ESC) system helps to stabilize the
Contact an authorized HYUNDAI
vehicle during cornering maneuvers.
dealer as soon as possible.
ESC checks where you are steering
and where the vehicle is actually
going. ESC applies braking pressure
i
Information
to any one of the vehicle's brakes
When you jump start your vehicle
and intervenes in the engine man-
because of a drained battery, the ABS
agement system to assist the driver
warning light (
) may turn on at the
with keeping the vehicle on the
same time. This happens because of
intended path. It is not a substitute
the low battery voltage. It does not
for safe driving practices. Always
mean your ABS is malfunctioning.
adjust your speed and driving to the
Have the battery recharged before
road conditions.
driving the vehicle.
5-28
When operating
■ Type A
■ Type B
WARNING
When the ESC is in opera-
tion, the ESC indicator light
Never drive too fast for the road
blinks:
conditions or too quickly when
cornering. The ESC system will
•
When you apply your brakes under
not prevent accidents.
conditions which may lock the
wheels, you may hear sounds from
Excessive speed in turns, abrupt
the brakes, or feel a corresponding
maneuvers, and hydroplaning
sensation in the brake pedal. This
on wet surfaces can result in
is normal and it means your ESC is
severe accidents.
active.
OLF054101N/OAE056018L
•
When the ESC activates, the vehi-
ESC operation
cle may not respond to the accel-
ESC OFF condition
erator as it does under routine con-
To cancel ESC operation :
ESC ON condition
5
ditions.
When the Engine Start/Stop button
•
If the Cruise Control was in use
is in the ON position, the ESC and
• State 1
when the ESC activates, the
the ESC OFF indicator lights illumi-
Press the ESC OFF button briefly.
Cruise Control automatically disen-
nate for approximately three sec-
The ESC OFF indicator light and
gages. The Cruise Control can be
onds. After both lights go off, the
message will illuminate. In this state,
reengaged when the road condi-
ESC is enabled.
the traction control function of ESC
tions allow. See "Cruise Control
(engine management) is disabled,
System" later in this chapter. (if
but the brake control function of ESC
equipped)
(braking management) still operates.
•
When moving out of the mud or
driving on a slippery road, the
engine RPM
(revolutions per
minute) may not increase even if
you press the accelerator pedal
deeply. This is to maintain the sta-
bility and traction of the vehicle and
does not indicate a problem.
5-29
Driving your vehicle
■ Type A
■ Type B
Indicator lights
WARNING
■ ESC indicator light (blinks)
When the ESC is blinking, this
indicates the ESC is active:
Drive slowly and NEVER attempt
to accelerate. NEVER turn the
■ ESC OFF indicator light (comes on)
ESC off while the ESC indicator
light is blinking or you may lose
control of the vehicle resulting in
an accident.
OLF054100N/OAE056020L
• State 2
NOTICE
When the Engine Start/Stop button
Press and hold the ESC OFF button
is placed to the ON position, the ESC
Driving with wheels and tires with
continuously for more than 3 sec-
indicator light illuminates, then goes
different sizes may cause the ESC
onds. The ESC OFF indicator light
off if the ESC system is operating
system to malfunction. Before
and message illuminates and a
normally.
replacing tires, make sure all four
warning chime sounds. In this state,
tires and wheels are the same
The ESC indicator light blinks when-
both the traction control function of
size. Never drive the vehicle with
ever the ESC is operating.
ESC (engine management) and the
different sized wheels and tires
brake control function of ESC (brak-
If ESC indicator light stays on, your
installed.
ing management) are disabled.
vehicle may have a malfunction with
the ESC system. When this warning
light illuminates have your vehicle
If the Engine Start/Stop button is
checked by an authorized HYUNDAI
placed to the OFF position when
dealer as soon as possible.
ESC is off, ESC remains off. Upon
The ESC OFF indicator light comes
restarting the vehicle, the ESC will
on when the ESC is turned off.
automatically turn on again.
5-30
ESC OFF usage
NOTICE
Vehicle Stability Management
When Driving
(VSM)
To prevent damage to the trans-
The ESC OFF mode should only be
The Vehicle Stability Management
mission:
used briefly to help free the vehicle if
(VSM) is a function of the Electronic
• Do not allow wheel(s) of one
stuck in snow or mud by temporarily
Stability Control
(ESC) system. It
axle to spin excessively while
stopping operation of the ESC to
helps ensure the vehicle stays stable
the ESC, ABS, and parking brake
maintain wheel torque.
when accelerating or braking sud-
warning lights are displayed.
denly on wet, slippery and rough
To turn ESC off while driving, press
The repairs would not be cov-
roads where traction over the four
the ESC OFF button while driving on
ered by the vehicle warranty.
tires can suddenly become uneven.
a flat road surface.
Reduce engine power and do
not spin the wheel(s) excessive-
ly while these lights are dis-
WARNING
played.
Take the following precautions
5
• When operating the vehicle on a
when using the Vehicle Stability
dynamometer, make sure the
Management (VSM):
ESC is turned off (ESC OFF light
• ALWAYS check the speed and
illuminated).
the distance to the vehicle
ahead. The VSM is not a sub-
i
Information
stitute for safe driving prac-
Turning the ESC off does not affect
tices.
ABS or standard brake system opera-
• Never drive too fast for the
tion.
road conditions. The VSM sys-
tem will not prevent acci-
dents. Excessive speed in bad
weather, slippery and uneven
roads can result in severe
accidents.
5-31
Driving your vehicle
VSM operation
NOTICE
WARNING
VSM ON condition
The VSM does not operate when:
The VSM operates when:
If ESC indicator light
(
) or
• Driving on a banked road such
• The Electronic Stability Control
EPS warning light (
) stays on
as gradient or incline.
(ESC) is on.
or blinks, your vehicle may have
• Driving rearward.
a malfunction with the VSM sys-
• Vehicle speed is approximately
• ESC OFF indicator light is on.
tem. When the warning light illu-
above 9 mph (15 km/h) on curve
• EPS
(Electric Power Steering)
minates, have your vehicle
roads.
warning light
(
) is on or
checked by an authorized
• Vehicle speed is approximately
blinks.
HYUNDAI dealer as soon as pos-
above 12 mph (20 km/h) when the
sible.
vehicle is braking on rough roads.
Driving with wheels and tires with dif-
When operating
ferent sizes may cause the ESC sys-
When you apply your brakes under
tem to malfunction. Before replacing
conditions which may activate the
tires, make sure all four tires and
ESC, you may hear sounds from the
wheels are the same size. Never
brakes, or feel a corresponding sen-
drive the vehicle with different sized
sation in the brake pedal. This is nor-
tires and wheels installed.
mal and it means your VSM is active.
5-32
Hill-Start Assist Control (HAC)
Good Braking Practices
To dry the brakes, apply the brakes
lightly until the braking action returns
The Hill-Start Assist Control (HAC)
to normal, taking care to keep the
helps prevent the vehicle from rolling
WARNING
vehicle under control at all times. If
backwards when starting a vehicle
the braking action does not return to
from a stop on a hill. The system
Whenever leaving the vehicle or
normal, stop as soon as it is safe to
operates the brakes automatically for
parking, always come to a com-
do so and call an authorized
approximately 2 seconds and releas-
plete stop and continue to
HYUNDAI dealer for assistance.
es the brake after 2 seconds or when
depress the brake pedal. Move
the accelerator pedal is depressed.
DO NOT drive with your foot resting
the shift lever into P (Park) posi-
on the brake pedal. Even light, but
tion, then apply the parking
constant pedal pressure can result in
WARNING
brake, and place the Engine
the brakes overheating, brake wear,
Start/Stop button in the OFF
and possibly even brake failure.
Always be ready to depress the
position.
accelerator pedal when starting
Vehicles parked with the park-
If a tire goes flat while you are driv-
5
ing, apply the brakes gently and
off on a incline.The HAC activates
ing brake not applied or not
only for approximately 2 seconds.
fully engaged may roll inadver-
keep the vehicle pointed straight
ahead while you slow down. When
tently and may cause injury to
you are moving slowly enough for it
the driver and others. ALWAYS
NOTICE
to be safe to do so, pull off the road
apply the parking brake before
and stop in a safe location.
exiting the vehicle.
• The HAC does not operate when
Keep your foot firmly on the brake
the shift lever is in P (Park) or N
pedal when the vehicle is stopped to
(Neutral).
Wet brakes can be dangerous! The
prevent the vehicle from rolling for-
• The HAC activates even though
brakes may get wet if the vehicle is
ward.
the ESC
(Electronic Stability
driven through standing water or if it
Control) is off but does not acti-
is washed. Your vehicle will not stop
vate when the ESC has malfunc-
as quickly if the brakes are wet. Wet
tioned.
brakes may cause the vehicle to pull
to one side.
5-33
Driving your vehicle
BLIND-SPOT COLLISION WARNING (BCW) SYSTEM (IF EQUIPPED)
(1) Blind-spot Collision Warning
The time of alert varies according
(BCW)
to the speed difference between
you and the approaching vehicle.
The Blind-spot Collision Warning
Blind spot area
(BCW) range varies relative to
vehicle speed. Note that if your
WARNING
vehicle is traveling much faster
than the vehicles around you, the
•
Always be aware of road con-
warning will not occur.
ditions while driving and be
Closing at high speed

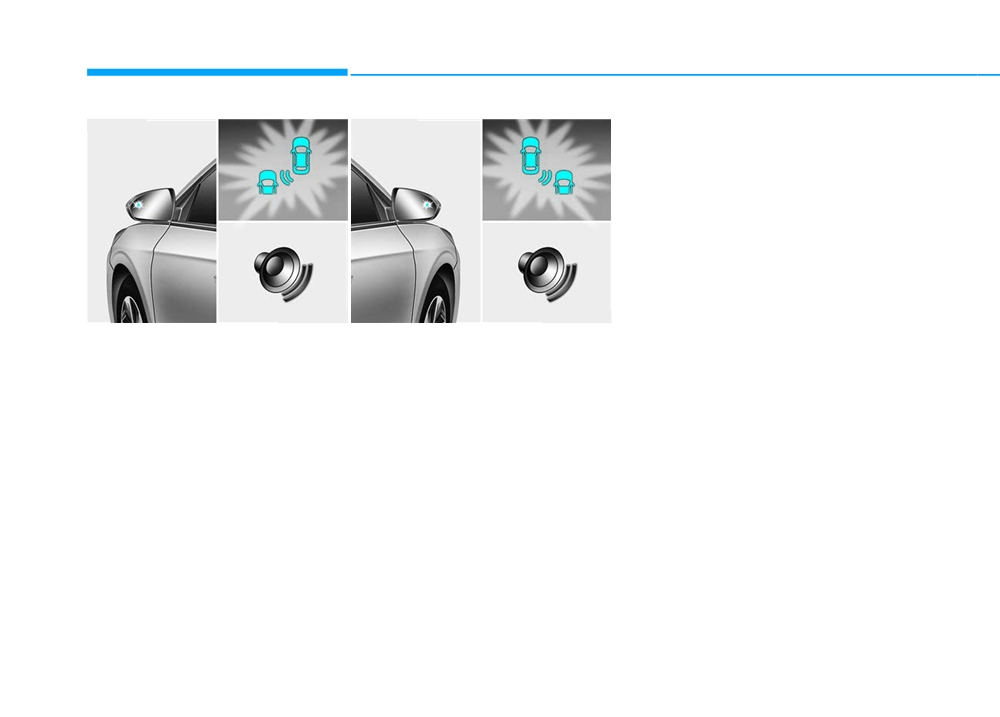

(2) BCW : Closing at high speed
alert for unexpected situa-
The BCW-Closing at high speed
tions even though the Blind-
feature will help alert you when a
spot Collision Warning (BCW)
vehicle is approaching in an adja-
system is operating.
cent lane at a high rate of speed.
•
The Blind-spot Collision
If the driver activates the turn sig-
Warning (BCW) system is not
nal when the system detects an
a substitute for proper and
oncoming vehicle, the system
safe driving. Always drive
sounds an audible alert. The time
safely and use caution when
OAE056106
of alert varies according to the
changing lanes or backing up
speed difference between you
the vehicle. The Blind-spot
The Blind-spot Collision Warning
and the approaching vehicle.
Collision Warning (BCW) sys-
(BCW) system uses radar sensors in
the rear bumper to monitor and warn
(3) RCCW
(Rear Cross-Traffic
tem may not detect every
the driver of an approaching vehicle
Collision Warning)
object alongside the vehicle.
in the driver's blind spot area.
The RCCW feature monitors
The system monitors the rear area of
approaching cross traffic from the
the vehicle and provides information
left and right side of the vehicle
to the driver with an audible alert and
when your vehicle is in reverse.
an indicator on the outer side view
The feature will operate when the
mirrors.
vehicle is moving in reverse
below about 6 mph (10 km/h). If
oncoming cross traffic is detected
a warning chime will sound.
5-34
BCW (Blind-spot Collision
To cancel:
■ Left side
Warning)
Press the BCW switch again. The
indicator on the switch will go off.
Operating conditions
When the system is not used, turn
the system off by turning off the
switch.
■ Right side
i
Information
• If the Engine Start/Stop button is
turned OFF and then ON again, the
BCW system returns to the previous
OAE056035
state.
First stage alert
• When the system is turned on, the
If a vehicle is detected within the
5
warning light will illuminate for 3
OAEPH057033
boundary of the system, a warning
seconds on the outer side view mir-
light
(yellow) will illuminate on the
To operate:
ror.
outer side view mirror.
Press the BCW switch with the
Once the detected vehicle is no
Engine Start/Stop button in the ON
The function will activate when:
longer within the blind spot area, the
position.
warning will turn off depending on
1. The system is on.
The indicator on the BCW switch will
the driving conditions of the vehicle.
2. The vehicle speed is above
illuminate.
approximately 20 mph (30 km/h).
3. An oncoming vehicle is detected
in the blind spot area.
5-35
Driving your vehicle
■ Left side
■ Right side
•
The second stage alarm may be
deactivated.
- To deactivate the warning chime:
Cluster type A
Go to the 'User Settings → Driver
Assistance
→ Rear Collision
Warning and deselect Blind-Spot
Collision Warning Sound' on the
LCD display.
Cluster type B
OAE056036
OAE056037
Go to the 'User Settings → Driver
Assistance and deselect Blind-
Second stage alert
Spot Collision Warning Sound' on
A warning chime to alert the driver will activate when:
the LCD display.
1. A vehicle has been detected in the blind spot area by the radar system
(the warning light will illuminate on the outer side view mirror) (i.e., in
the first stage alert) AND
2. The turn signal is applied (same side as where the vehicle is being
detected).
When this alert is activated, the warning light on the side view mirror will
also blink.
If you turn off the turn signal indicator, the second stage alert (warning
chime and blinking warning light on the outer side view mirror) will be
deactivated.
5-36
- To activate the warning chime:
RCCW (Rear Cross-Traffic
Operating conditions
Cluster type A
Collision Warning)
To operate:
(if equipped)
Go to the 'User Settings → Driver
Cluster type A
Assistance
→ Rear Collision
Go to the 'User Settings → Driver
Warning and select Blind-Spot
Assistance
→ Rear Collision
Collision Warning Sound' on the
Warning and select Rear Cross-
LCD display.
Traffic Collision Warning' on the LCD
Cluster type B
display.
Go to the 'User Settings → Driver
Cluster type B
Assistance and select Blind-Spot
Go to the 'User Settings → Driver
Collision Warning Sound' on the
Assistance and select Rear Cross-
LCD display.
Traffic Collision Warning' on the LCD
display
5
i
Information
The system will turn on and standby
OAE056106
The warning chime function helps
to activate. The system will activate
The Rear Cross-Traffic Collision
when vehicle speed is below 6 mph
alert the driver. Deactivate this func-
Warning function monitors approach-
(10 km/h) and with the shift lever in R
tion only when it is necessary. For
ing cross traffic from the left and right
(Reverse).
more information, refer to "LCD
side of the vehicle when your vehicle
Display Modes" in chapter 3.
If the function is deselected from the
is in reverse.
instrument cluster, the function will
deactivate.
For more information, refer to
"LCD Display Modes" in chapter 3.
5-37
Driving your vehicle
Warning type
i
Information
i
Information
•
The last selected setting
(ON or
■ Left
•
The warning chime will turn off
• Type A
• Type B
OFF) of the RCCW is remained in
when:
the system.
- The detected vehicle moves out of
•
The system will activate when vehi-
the sensing area or
cle speed is below 6 mph (10 km/h)
- when the vehicle is right behind
and with the shift lever in R
your vehicle or
(Reverse).
- when the vehicle is not approach-
•
The RCCW (Rear Cross-Traffic
ing your vehicle or
Collision Warning) detecting range
- when the other vehicle slows down.
is approximately 1 ft ~ 65 ft (0.5 m ~
OAE058220/OAE058046
•
The system may not operate proper-
20 m) in the direction of both later-
■ Right
• Type A
• Type B
ly due to other factors or circum-
al sides of the vehicle.
stances. Always pay attention to
An approaching vehicle will be
your surroundings.
detected if their vehicle speed is
within 2.5 ~ 22.5 mph (4 km/h ~ 36
•
If the sensing area near the rear
km/h).
bumper is blocked by either a wall
or barrier or by a parked vehicle,
Note that the detecting range may
the system sensing area may be
vary under certain conditions. As
reduced.
always, use caution and pay close
attention to your surroundings
OAE058221/OAE058047
when backing up your vehicle.
If the vehicle detected by the sensors
approaches your vehicle, the warn-
ing chime will sound, the warning
light on the outer side view mirror will
blink and a message will appear on
the LCD display.
5-38
