Driving your vehicle
ENGINE START/STOP BUTTON
WARNING
(Continued)
This may lead to loss of direc-
To turn the vehicle off in an
tional control and braking
emergency:
function, which could cause
Press and hold the Engine
an accident.
Start/Stop button for more than
•
Before leaving the driver's
two seconds OR rapidly press
seat, always make sure the
and release the Engine Start/
shift lever is in the P (Park)
Stop button three times (within
position, set the parking
three seconds).
brake, press the Engine Start/
OAE056001
If the vehicle is still moving, you
Stop button to the OFF posi-
can restart the engine without
tion, and take the Smart Key
Whenever the front door is opened,
depressing the brake pedal by
with you. Unexpected vehicle
the Engine Start/Stop button will illu-
pressing the Engine Start/Stop
movement may occur if these
minate and will go off 30 seconds
button with the shift lever in the
precautions are not followed.
after the door is closed.
N (Neutral) position.
•
NEVER reach through the
steering wheel for the Engine
WARNING
Start/Stop button or any other
control while the vehicle is in
WARNING
To reduce risk of serious injury
motion. The presence of your
or death, NEVER allow children
hand or arm in this area may
• NEVER press the Engine
or any person who is unfamiliar
cause a loss of vehicle control
Start/Stop button while the
with the vehicle to touch the
resulting in an accident.
vehicle is in motion except in
Engine Start/Stop button or
an emergency. This will result
related parts. Unexpected and
in the engine turning off and
sudden vehicle movement can
loss of power assist for the
occur.
steering and brake systems.
(Continued)
5-6
Engine Start/Stop Button Positions
Button Position
Action
Notice
OFF
To turn off the vehicle, press the Engine
Start/Stop button with shift lever in P (Park).
When you press the Engine Start/Stop but-
ton without the shift lever in P (Park), the
Engine Start/Stop button does not turn to the
OFF position, but turns to the ACC position.
5
ACC
Press the Engine Start/Stop button when the
If you leave the Engine Start/Stop button in the
button is in the OFF position without depress-
ACC position for more than one hour, the bat-
ing the brake pedal.
tery power will turn off automatically to prevent
the battery from discharging.
Some electrical accessories are usable.
5-7
Driving your vehicle
Button Position
Action
Notice
ON
Press the Engine Start/Stop button while it is
Do not leave the Engine Start/Stop button in
in the ACC position without depressing the
the ON position when the vehicle is not in the
brake pedal.
ready (
) mode to prevent the battery from
discharging.
The warning lights can be checked before
the vehicle is started.
START
To start the vehicle, depress the brake pedal
If you press the Engine Start/Stop button with-
and press the Engine Start/Stop button with
out depressing the brake pedal, the vehicle
the shift lever in the P (Park) position.
does not start and the Engine Start/Stop but-
ton changes as follows:
OFF → ACC → ON → OFF
However, the vehicle may start if you depress
the brake pedal within 0.5 second after press-
ing the Engine Start/Stop button from the OFF
position.
5-8
Starting the Vehicle
1. Always carry the smart key with
i
Information
you.
•
The vehicle will start by pressing the
WARNING
2. Make sure the parking brake is
Engine Start/Stop button, only when
applied.
the smart key is in the vehicle.
•
Always wear appropriate shoes
3. Make sure the shift lever is in P
•
Even if the smart key is in the vehi-
when operating your vehicle.
(Park).
cle, if it is far away from the driver,
Unsuitable shoes, such as
4. Depress the brake pedal.
the vehicle may not start.
high heels, ski boots, sandals,
5. Press the Engine Start/Stop but-
•
When the Engine Start/Stop button
flip-flops, etc., may interfere
ton. If the vehicle starts, the "
"
is in the ACC or ON position, if any
with your ability to use the
indicator will come on.
door is open, the system checks for
brake and accelerator pedals.
the smart key. If the smart key is not
•
Do not start the vehicle with the
in the vehicle, the "
" indicator
i
Information
accelerator pedal depressed.
will blink and the warning "Key not
The vehicle can move and lead
• Do not wait for the engine to warm
5
in vehicle" will come on and if all
to an accident.
up while the vehicle remains station-
doors are closed, the chime will also
ary. Start driving at moderate
•
Wait until the engine rpm is
sound for about 5 seconds. Keep the
engine speeds. (Aggressive accelerat-
normal. The vehicle may sud-
smart key in the vehicle when in the
ing and decelerating should be
denly move if the brake pedal
ACC position or if the vehicle is in
avoided.)
is released when the rpm is
the ready (
) mode.
high.
• Always start the vehicle with your
foot on the brake pedal. Do not
depress the accelerator while start-
ing the vehicle. Do not rev the
engine while warming it up.
5-9
Driving your vehicle
NOTICE
NOTICE
To prevent damage to the vehicle:
To prevent damage to the vehicle:
•
If the "
" indicator turns off
When the stop lamp switch fuse is
while you are in motion, do not
blown, you can't start the engine
attempt to shift to the P (Park)
normally. Replace the fuse with a
position.
new one. If you are not able to
replace the fuse, you can start the
If traffic and road conditions
vehicle by pressing and holding
permit, you may put the shift
the Engine Start/Stop button for
lever in the N (Neutral) position
10 seconds with the Engine Start/
while the vehicle is still moving
Stop button in the ACC position.
and press the Engine Start/Stop
OAE056002
button in an attempt to restart
Do not press the Engine Start/Stop
i
Information
the engine.
button for more than 10 seconds
except when the stop lamp switch
If the smart key battery is weak or the
•
Do not push or tow your vehicle
to start the vehicle.
fuse is blown.
smart key does not work correctly,
For your safety always depress
you can start the engine by pressing
the brake pedal before starting the
the Engine Start/Stop button with the
vehicle.
smart key in the direction of the pic-
ture above.
5-10
Turning Off the Vehicle
1. Depress the brake pedal fully.
2. Shift to P (Park).
3. Apply the parking brake.
4. Press the Engine Start/Stop but-
ton to turn the vehicle off.
5. Make sure the "
" indicator
light on the instrument cluster is
turned off.
CAUTION
If the "
" indicator light on
5
the instrument cluster is still
on, the vehicle is not turned off
and can move when the gear is
in any position except P (Park).
5-11
Driving your vehicle
DUAL CLUTCH TRANSMISSION
Dual Clutch Transmission
Operation
The dual clutch transmission has six
forward speeds and one reverse
speed.
The individual speeds are selected
automatically when the shift lever is
in the D (Drive) position.
•
The dual clutch transmission can
be thought of as an automatically
shifting manual transmission. It
gives the driving feel of a manual
transmission, yet provides the
Manual shift mode
ease of a fully automatic transmis-
sion.
•
When D (Drive) is selected, the
transmission will automatically shift
through the gears similar to a con-
ventional automatic transmission.
Unlike a traditional automatic
transmission, the gear shifting can
Press the shift button, then move shift lever.
sometimes be felt and heard as the
Depress the brake pedal, press the shift button, and then move shift lever.
actuators engage the clutches and
the gears are selected.
Move shift lever.
OAE056004N
•
The dual clutch transmission incor-
porates a dry-type dual clutch
❈ To move the shift lever from/to P (Parking) or between R (Reverse) and D
mechanism, which allows for better
(Drive), you must depress the brake pedal for the vehicle to stand still.
acceleration performance and
increased fuel efficiency while driv-
ing.
5-12
But it differs from a conventional
•
When accelerating from a stop on
WARNING
automatic transmission because it
an incline, press the accelerator
does not incorporate a torque con-
smoothly and gradually to avoid
To reduce the risk of serious
verter. Instead, the transition from
any shudder feeling or jerkiness.
injury or death:
one gear to the next is managed by
•
When traveling at a lower vehicle
clutch slip, especially at lower
•
ALWAYS check the surround-
speed, if you release the accelera-
speeds.
ing areas near your vehicle for
tor pedal quickly, you may feel
people, especially children,
As a result, shifts are sometimes
engine braking before the trans-
before shifting a vehicle into
more noticeable, and a light vibra-
mission changes gears. This
D (Drive) or R (Reverse).
tion can be felt as the transmission
engine braking feeling is similar to
shaft speed is matched with the
operating a manual transmission at
•
Before leaving the driver's
engine shaft speed. This is a nor-
low speed.
seat, always make sure the
mal condition of the dual clutch
shift lever is in the P (Park)
•
When driving downhill, you may
transmission.
position, then set the parking
wish to move the gear shift lever to
brake, and place the Engine
5
•
The dry-type clutch transfers
Manual Shift mode and downshift
Start/Stop button in the OFF
torque more directly and provides
to a lower gear in order to control
position. Unexpected and
a direct-drive feeling which may
your speed without using the brake
sudden vehicle movement
feel different from a conventional
pedal excessively.
can occur if these precautions
automatic transmission. This may
•
When you turn the vehicle on and
are not followed.
be more noticeable when launch-
off, you may hear clicking sounds
ing the vehicle from a stop or when
•
Do not use aggressive engine
as the system goes through a self-
traveling at low, stop-and-go vehi-
braking (shifting from a high-
test. This is a normal sound for the
cle speeds.
er gear to a lower gear) on
dual clutch transmission.
slippery roads. This could
•
When rapidly accelerating from a
•
During the first 1000 miles (1,500
cause the tires to slip and may
lower vehicle speed, the engine
km), you may feel that the vehicle
result in an accident.
rpm may increase dramatically as
may not be smooth when acceler-
a result of clutch slip as the dual
ating at low speed. During this
clutch transmission selects the cor-
break-in period, the shift quality
rect gear. This is a normal condi-
and performance of your new vehi-
tion.
cle is continuously optimized.
5-13
Driving your vehicle
NOTICE
DCT Warning Messages
• If the vehicle is held or creeping
forward on an incline by applying
Steep Grade
•
Always come to a complete stop
the accelerator pedal, the clutch
This warning message is displayed
before shifting into D (Drive) or
and transmission may overheat
R (Reverse).
when vehicle is driven slowly on a
which can result in damage. At this
grade and the vehicle detects that
•
Do not put the shift lever in N
time, a warning message will
the brake pedal is not applied.
(Neutral) while driving.
appear on the LCD display.
•
To avoid damage to your trans-
• If the LCD display warning is
mission, do not try to accelerate
active, the foot brake must be
in R (Reverse) or any forward
applied.
gear position with the brakes
• Ignoring the warnings can lead to
applied.
damage to the transmission.
•
When stopped on a slope, do
not hold the vehicle with accel-
NOTICE
erator pedal. Use the brake
pedal or the parking brake.
To hold the vehicle on a hill use
the foot brake or the parking
brake. If the vehicle is held by
WARNING
applying the accelerator pedal on
OTLE055018
a hill, the clutch and transmission
Due to transmission failure, you
Driving up hills or on steep grades:
will be overheated resulting in
may not continue to drive and
• To hold the vehicle on an incline
damage.
the position indicator (D, P) on
use the foot brake or the parking
the instrument cluster will bilnk.
brake.
Contact an authorized HYUNDAI
• When in stop-and-go traffic on an
dealer and have the system
incline, allow a gap to form ahead
checked.
of you before moving the vehicle
forward. Then hold the vehicle on
the incline with the foot brake.
5-14
•
If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes
and shift the vehicle to P (Park),
and allow the transmission to cool.
•
If you ignore this warning, the driv-
ing condition may become worse.
You may experience abrupt shifts,
frequent shifts, or jerkiness.
•
When the message "Trans cooled.
Resume driving." appears you can
OTLE055023
continue to drive your vehicle.
OAE056196N/OTLE055027

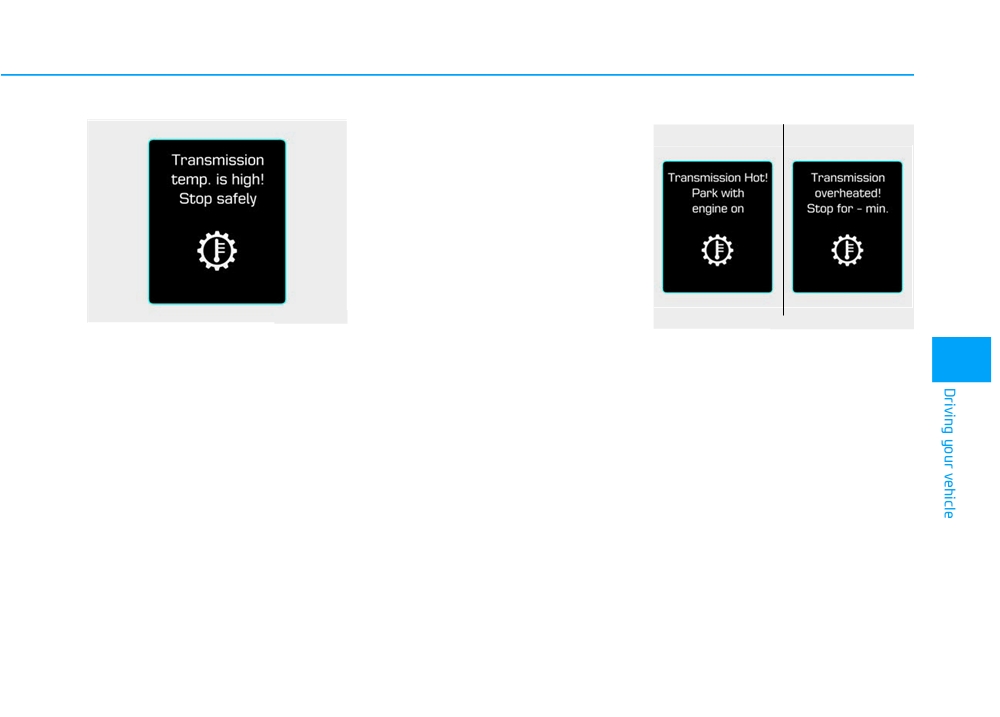

Transmission High Temperature
•
When possible, drive the vehicle
Transmission Overheated
•
Under certain conditions, such as
smoothly.
•
If the vehicle continues to be driv-
5
repeated stop-and-go launches on
en and the clutch temperatures
steep grades, sudden take off or
reach the maximum temperature
acceleration, or other harsh driving
limit, the "Transmission Hot! Park
conditions, the transmission clutch
with engine on" warning will be dis-
temperatures will increase exces-
played. When this occurs the clutch
sively.
is disabled until the clutch cools to
•
When the clutch temperatures are
normal temperatures.
too high, the "Transmission temp is
•
The warning will display a time to
high! Stop safely" warning mes-
wait for the transmission to cool.
sage will appear on the LCD dis-
•
If this occurs, pull over to a safe
play, a chime will sound, and the
location, stop the vehicle with the
transmission shifting may not be
engine running, apply the brakes
smooth.
and shift the vehicle to P (Park),
and allow the transmission to cool.
5-15
Driving your vehicle
• When the message "Trans cooled.
Shift Lever Position
WARNING
Resume driving." appears you can
P (Park)
continue to drive your vehicle.
Always come to a complete stop
•
Shifting into P (Park) while the
• When possible, drive the vehicle
before shifting into P (Park).
vehicle is in motion may
smoothly.
cause you to lose control of
To shift from P (Park), you must depr
If any of the warning messages in
the vehicle.
ess firmly on the brake pedal and
the LCD display continue to blink, for
make sure your foot is off the accel-
•
After the vehicle has stopped,
your safety, contact an authorized
erator pedal.
always make sure the shift
HYUNDAI dealer and have the sys-
lever is in P (Park), apply the
If you have done all of the above
tem checked.
and still cannot shift the lever out
parking brake, and turn the
vehicle off.
of P
(Park), see "Shift-Lock
Release" in this section.
•
When parking on an incline,
place the shift lever in Park
The shift lever must be in P (Park)
before turning the vehicle off.
and apply the parking brake to
prevent the vehicle from
rolling downhill.
•
Do not use the P (Park) posi-
tion in place of the parking
brake.
5-16
R (Reverse)
If you drive the vehicle with the shift
WARNING
lever in D
(Drive), the vehicle will
Use this position to drive the vehicle
automatically change to ECO mode.
backward.
Do not shift into gear unless
The
indicator will illuminate on
your foot is firmly on the brake
the instrument cluster.
NOTICE
pedal. Shifting into gear when
When driving in ECO mode, the vehi-
the engine is running at high
Always come to a complete stop
cle improves fuel efficiency for eco-
speed can cause the vehicle to
before shifting into or out of R
friendly driving.
move very rapidly. You could
(Reverse); you may damage the
lose control of the vehicle and
transmission if you shift into R
hit people or objects.
S (Sport)
(Reverse) while the vehicle is in
motion.
If you drive the vehicle with the shift
lever in S
(Sport), the vehicle will
D (Drive)
automatically change to SPORT
N (Neutral)
This is the normal driving position.
mode. The
indicator will illumi-
5
The wheels and transmission are not
The transmission will automatically
nate on the instrument cluster.
engaged.
shift through a six-gear sequence,
When driving in SPORT mode, the
providing the best fuel economy and
Always depress the brake pedal
vehicle provides sporty but firm rid-
power.
when you are shifting from N
ing.
(Neutral) to another gear.
For extra power when passing anoth-
er vehicle or driving uphill depress
i
Information
the accelerator pedal further until
WARNING
you feel the transmission downshift
In SPORT mode, the fuel efficiency
to a lower gear.
may decrease.
Do not drive with the shift lever
in N (Neutral). The engine brake
will not work and lead to an
CAUTION
accident.
Depress the brake pedal fully to
prevent unintended movement
when stopping the vehicle.
5-17
Driving your vehicle
Shift-lock system
i
Information
For your safety, the dual clutch trans-
•
Only the six forward gears can be
mission has a shift-lock system
selected. To reverse or park the
which prevents shifting the transmis-
vehicle, move the shift lever to the R
sion from P (Park) into R (Reverse)
(Reverse) or P (Park) position as
unless the brake pedal is depressed.
+ (UP)
required.
To shift the transmission from P
•
Downshifts are made automatically
(Park) into R (Reverse):
when the vehicle slows down. When
1. Depress and hold the brake pedal.
-
(DOWN)
the vehicle stops, 1st gear is automat-
ically selected.
2. Start the vehicle or place the
OAE056012N
•
When the engine rpm approaches
Engine Start/Stop button in the
the red zone the transmission will
ON position.
Manual shift mode
upshift automatically.
3. Move the shift lever.
Whether the vehicle is stationary or
•
If the driver presses the lever to
in motion, manual shift mode is
+ (Up) or - (Down) position, the
selected by pushing the shift lever
transmission may not make the
from the D (Drive) position into the
requested gear change if the next
manual gate. To return to D (Drive)
gear is outside of the allowable
range operation, push the shift lever
engine rpm range. The driver must
back into the main gate.
execute upshifts in accordance with
In Manual Shift Mode, moving the
road conditions, taking care to keep
shift lever backwards and forwards
the engine rpms below the red zone.
will allow you to select the desired
range of gears for the current driving
conditions.
+ (Up) : Push the lever forward once
to shift up one gear.
- (Down) : Pull the lever backwards
once to shift down one
gear.
5-18
Shift-lock release
5. Move the shift lever.

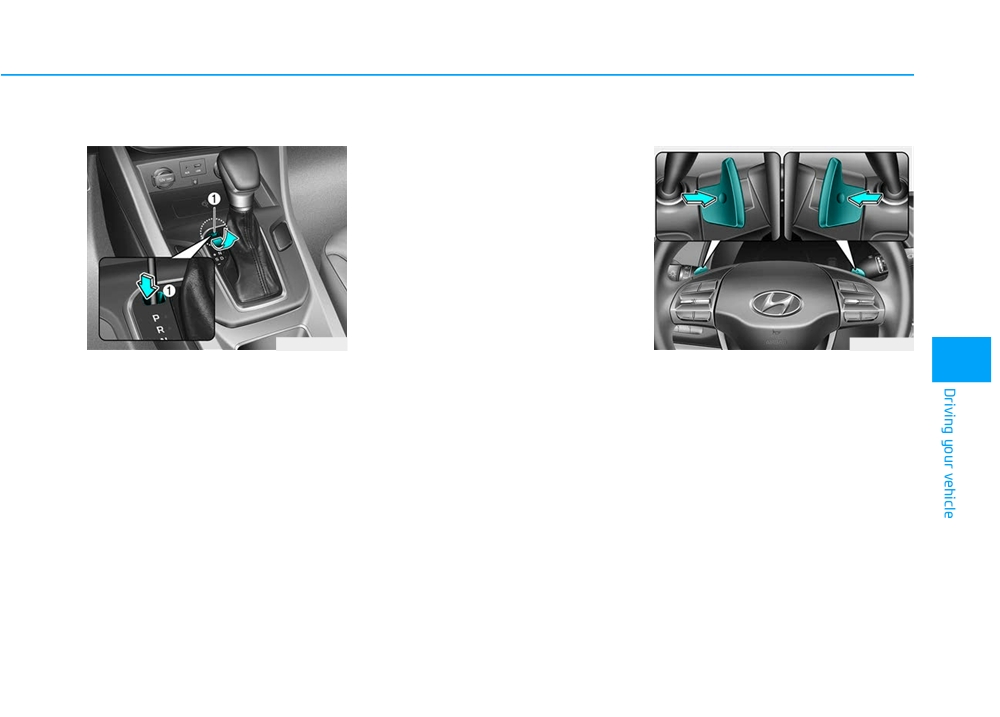

Paddle Shifter (if equipped)
6. Remove the tool from the shift-
lock override access hole then
install the cap.
If you need to use the shift-lock
release, have your vehicle inspected
by an authorized HYUNDAI dealer
immediately.
OAE056011N
OPD056015
5
If the shift lever cannot be moved from
The paddle shifter is functional when
the P (Park) position into R (Reverse)
the shift lever is in the D (Drive) or S
position with the brake pedal
(Sport) position, or the manual shift
depressed, continue depressing the
mode.
brake, and then do the following:
The paddle shifter will operate when
1. Place the Engine Start/Stop but-
the vehicle speed is more than 3
ton in the OFF position.
mph (5 km/h).
2. Apply the parking brake.
Pull the [+] or [-] paddle shifter once
3. Carefully remove the cap (1) cov-
to shift up or down one gear and the
ering the shift-lock release access
system changes from automatic
hole.
mode to manual mode.
4. Insert a tool (e.g. flathead screw-
driver) into the access hole and
press down on the tool.
5-19
Driving your vehicle
• The system changes from manual
Parking
Good Driving Practices
mode to automatic mode when
Always come to a complete stop and
•
Never move the shift lever from P
- the vehicle speed is lower than 3
continue to depress the brake pedal.
(Park) or N (Neutral) to any other
mph (5 km/h),
Move the shift lever into the P (Park)
position with the accelerator pedal
- you depress the accelerator
position, apply the parking brake,
depressed.
pedal for more than 5 seconds,
and place the Engine Start/Stop but-
•
Never move the shift lever into P
ton in the OFF position. Take the key
- you pull the [+] paddle shifter for
(Park) when the vehicle is in
with you when exiting the vehicle.
more than 1 second, or
motion.
- you move the shift lever from D
Be sure the vehicle is completely
(Drive) to S
(Sport) or manual
WARNING
stopped before you attempt to shift
shift mode (+, -) and then back to
into R (Reverse) or D (Drive).
D (Drive).
When you stay in the vehicle
•
Do not move the shift lever to N
with the engine running, be
(Neutral) when driving. Doing so
careful not to depress the accel-
i
Information
may result in an accident because
erator pedal for a long period of
of a loss of engine braking and the
If the [+] and [-] paddle shifters are
time. The engine or exhaust
transmission could be damaged.
pulled at the same time, gear shift may
system may overheat and start
•
Do not drive with your foot resting
not occur.
a fire.
on the brake pedal. Even light, but
The exhaust gas and the
consistent pedal pressure can
exhaust system are very hot.
result in the brakes overheating,
Keep away from the exhaust
brake wear and possibly even
system components.
brake failure.
Do not stop or park over flam-
•
Depressing both accelerator and
mable materials, such as dry
brake pedals at the same time can
grass, paper or leaves. They
trigger logic for engine power
may ignite and cause a fire.
reduction to assure vehicle decel-
eration. Vehicle acceleration will
resume after the brake pedal is
released.
5-20
•
When driving in Manual Shift
WARNING
(Continued)
Mode, slow down before shifting to
a lower gear. Otherwise, the lower
•
In the event your vehicle
To reduce the risk of SERIOUS
leaves the roadway, do not
gear may not be engaged if the
INJURY or DEATH:
steer sharply. Instead, slow
engine rpms are outside of the
allowable range.
•
ALWAYS wear your seatbelt.
down before pulling back into
In a collision, an unbelted
the travel lanes.
•
Always apply the parking brake
occupant is significantly more
•
HYUNDAI recommends you
when leaving the vehicle. Do not
likely to be seriously injured
follow all posted speed limits.
depend on placing the transmis-
or killed than a properly belt-
sion in P (Park) to keep the vehicle
ed occupant.
from moving.
•
Avoid high speeds when cor-
•
Exercise extreme caution when
nering or turning.
driving on a slippery surface. Be
especially careful when braking,
•
Do not make quick steering
5
accelerating or shifting gears. On a
wheel movements, such as
slippery surface, an abrupt change
sharp lane changes or fast,
in vehicle speed can cause the
sharp turns.
drive wheels to lose traction and
•
The risk of rollover is greatly
may cause loss of vehicle control
increased if you lose control
resulting in an accident.
of your vehicle at highway
•
Optimum vehicle performance and
speeds.
economy is obtained by smoothly
•
Loss of control often occurs if
depressing and releasing the
two or more wheels drop off
accelerator.
the roadway and the driver
over steers to reenter the
roadway.
(Continued)
5-21
