Hyundai i30 N (2018 year). Manual

Using the Tire Mobility Kit

CAUTION

OPD067014

OPDEN067015

2. Connect the filling hose (3) to the

4. Unscrew the valve cap from the

sealant bottle (2) in the direction of

valve of the defective wheel and

OPD066013

(A) and connect the sealant bottle

screw the filling hose (3) of the

Detach the speed restriction

to the compressor (5) in the direc-

sealant bottle onto the valve.

label (1) from the sealant bottle

tion of (B).

(2), and place it in a highly visi-

3. Ensure that the compressor is

ble place inside the vehicle

switched OFF.

such as on the steering wheel

to remind the driver not to drive

too fast.

1. Shake the sealant bottle (1).

6-33

What to do in an emergency

Be careful not to overinflate the

CAUTION

tire and stay away from the tire

when filling it.

Securely install the sealant fill-

ing hose to the valve. If not,

sealant may flow backward,

CAUTION

possibly clogging the filling

hose.

Tire pressure

Do not attempt to drive your

vehicle if the tire pressure is

below 200 kPa (29 psi). This

OPDEN067017

could result in an accident due

to sudden tire failure.

5. Plug the compressor power cord

(4) into the vehicle power outlet.

7. Switch off the compressor.

8. Detach the hoses from the sealant

NOTICE

bottle connector and from the tire

Only use the front passenger side

valve.

OPDEN067016

power outlet when connecting the

Return the Tire Mobility Kit to its stor-

power cord.

age location in the vehicle.

6. With the ignition switch in the ON

WARNING

position, switch on the compres-

sor and let it run for approximately

Carbon monoxide

5~7 minutes to fill the sealant up

Do not leave your vehicle run-

to proper pressure. (refer to the

ning in a poorly ventilated area

Tire and Wheels, chapter 8). The

for extended periods of time.

inflation pressure of the tire after

Carbon monoxide poisoning

filling is unimportant and will be

and suffocation can occur.

checked/corrected later.

6-34

Distributing the sealant

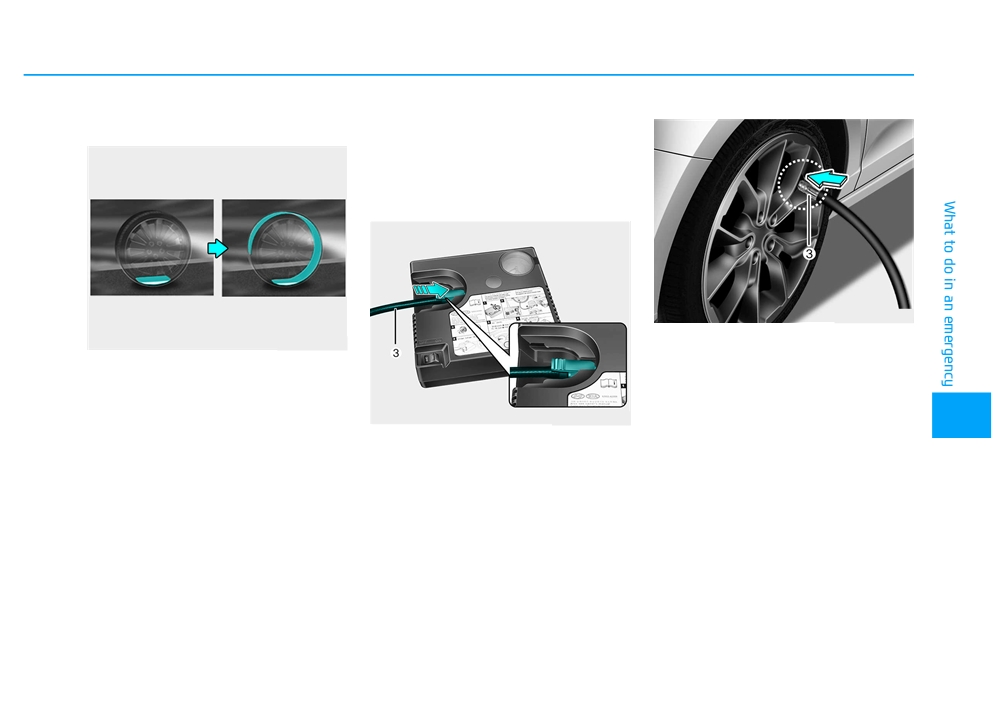

Checking the tire inflation

pressure

1. After driving approximately 7~10

km (4~6 miles or about 10 min),

stop at a safety location.

OPDEN067015

3. Connect the other end of the filling

OLMF064106

hose (3) directly into the tire valve.

9. Immediately drive approximately

4. Plug the compressor power cord

7~10 km (4~6 miles or, about

(4) into the vehicle power outlet.

10min) to evenly distribute the

sealant in the tire.

OAEPH067041

5. Adjust the tire inflation pressure to

the recomended tire inflation.

Do not exceed a speed of 80 km/h

2. Connect the filling hose (3) direct-

(50 mph). If possible, do not fall

With the ignition swithched on,

ly into the compressor.

below a speed of 20 km/h (12 mph).

proceed as follows.

While driving, if you experience any

- To increase the inflation pres-

unusual vibration, ride disturbance or

sure : Switch on the compressor.

noise, reduce your speed and drive

To check the current inflation

with caution until you can safely pull

pressure setting, briefly switch off

off of the side of the road.

the compressor.

Call for road side service or towing.

- To reduce the inflation pres-

sure: Press the button (9) on the

compressor.

6-35

What to do in an emergency

NOTICE

CAUTION

Do not let the compressor run for

more than 10 minutes, otherwise

If the inflation pressure is not

Tire pressure sensor

the device will overheat and may

maintained, drive the vehicle a

(if equipped with TPMS)

be damaged.

second time, refer to Distributing

The sealant on the tire pressure

the sealant. Then repeat steps 1

sensor and wheel should be

to 4.

Information

removed when you replace the

Use of the TMK may be ineffec-

tire with a new one and inspect

The pressure gauge may show higher

tual for tire damage larger than

the tire pressure sensors at an

than actual reading when the com-

approximately 4 mm (0.16 in).

authorized dealer.

pressor is running. To get an accurate

We recommend that you contact

tire reading, the compressor needs to

an authorized HYUNDAI dealer if

be turned off.

the tire cannot be made road-

Information

worthy with the Tire Mobility Kit.

When reinstalling the repaired or

replaced tire and wheel on the vehicle,

tighten the wheel lug nut to

11~13

WARNING

kgf·m (79~94 lbf·ft).

The tire inflation pressure must

be at least 220 kPa (32 psi). If it

is not, do not continue driving.

Call for road side service or tow-

ing.

6-36

TOWING

Towing service

It is acceptable to tow the vehicle

CAUTION

with the rear wheels on the ground

(without dollies) and the front wheels

•

Do not tow the vehicle with the

off the ground.

front wheels on the ground as

If any of the loaded wheels or sus-

this may cause damage to the

pension components are damaged

vehicle.

or the vehicle is being towed with the

front wheels on the ground, use a

towing dolly under the front wheels.

When being towed by a commercial

tow truck and wheel dollies are not

Dollies

used, the front of the vehicle should

always be lifted, not the rear.

OPD066019

•

Do not tow with sling-type

equipment. Use wheel lift or

Dollies

flatbed equipment.

OPD066018

If emergency towing is necessary,

we recommend having it done by an

authorized HYUNDAI dealer or a

commercial tow-truck service.

Proper lifting and towing procedures

OPD066020

are necessary to prevent damage to

the vehicle. The use of wheel dollies

or flatbed is recommended.

6-37

What to do in an emergency

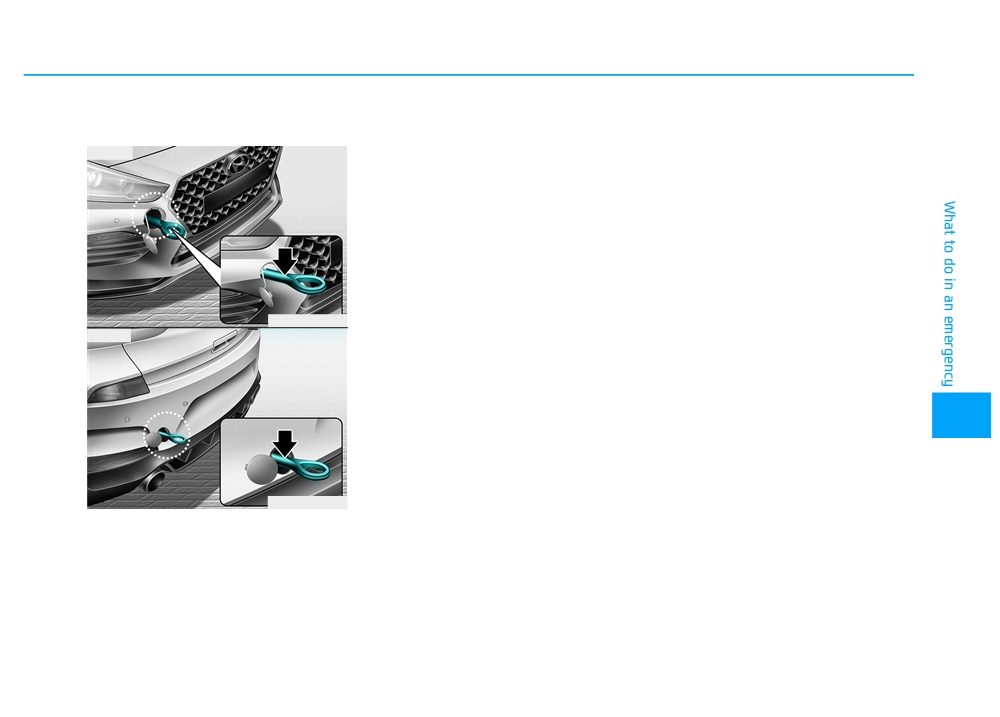

Removable towing hook

■ Front

WARNING

If your vehicle is equipped with

a rollover sensor, place the igni-

tion switch in the LOCK/OFF or

ACC position when the vehicle

is being towed. The side impact

and curtain air bag may deploy

if the sensor detects the situa-

tion as a rollover.

OPDEN067021

■ Rear

When towing your vehicle in an

OPDEN067035

emergency without wheel dollies:

1. Open the tailgate, and remove the

1. Place the ignition switch in the

towing hook from the tool case.

ACC position.

2. Place the shift lever in neutral.

3. Release the parking brake.

OPDEN067023

CAUTION

2. Remove the hole cover pressing

Failure to place the shift lever in

the lower part of the cover on the

neutral may cause internal dam-

bumper.

age to the transmission.

3. Install the towing hook by turning it

clockwise into the hole until it is

fully secured.

4. Remove the towing hook and

install the cover after use.

6-38

Emergency towing

If a towing service is not available in

Always follow these emergency tow-

an emergency, your vehicle may be

ing precautions:

■ Front

temporarily towed using a cable or

•

Place the ignition switch in the ACC

chain secured to the emergency tow-

position so the steering wheel is not

ing hook at the front (or rear) of the

locked.

vehicle.

•

Place the shift lever in neutral.

Use extreme caution when towing

•

Release the parking brake.

the vehicle with a cable or chain. A

driver must be in the vehicle to steer

•

Depress the brake pedal with more

it and operate the brakes.

force than normal as you will have

reduced braking performance.

Towing in this manner may be done

OPDEN067022

only on hard-surfaced roads for a

•

More steering effort will be required

■ Rear

short distance and at low speeds.

because the power steering system

Also, the wheels, axles, power train,

will be disabled.

steering and brakes must all be in

•

Use a vehicle heavier than your

good condition.

own to tow your vehicle.

•

The drivers of both vehicles should

communicate with each other fre-

quently.

•

Before emergency towing, check

that the hook is not broken or dam-

aged.

OPDEN067026

•

Fasten the towing cable or chain

If towing is necessary, we recommend

securely to the hook.

you have it done by an authorized

HYUNDAI dealer or a commercial tow

•

Do not jerk the hook. Apply steady

truck service.

and even force.

6-39

What to do in an emergency

CAUTION

To avoid damage to your vehicle

and vehicle components when

towing:

• Always pull straight ahead

when using the towing hooks.

Do not pull from the side or at

a vertical angle.

• Do not use the towing hooks

OTL065029

to pull a vehicle out of mud,

sand or other conditions from

•

Use a towing cable or chain less

which the vehicle cannot be

than 5 m (16 feet) long. Attach a

driven out under its own

white or red cloth (about 30 cm (12

power.

inches) wide) in the middle of the

cable or chain for easy visibility.

•

Drive carefully so the towing cable

or chain remains tight during tow-

ing.

6-40

EMERGENCY COMMODITY (IF EQUIPPED)

Your vehicle is equipped with emer-

First aid kit

To check the tire pressure, take the

gency commodities to help you

following steps:

Supplies for use in giving first aid

respond to emergency situation.

such as scissors, bandage and

1. Unscrew the inflation valve cap

adhesive tape, etc. are provided.

that is located on the rim of the

tire.

Fire extinguisher

2. Press and hold the gauge against

If there is small fire and you know

Triangle reflector

the tire valve. Some air will leak as

how to use the fire extinguisher, fol-

Place the triangle reflector on the

you begin and more will leak if you

low these steps carefully.

road to warn oncoming vehicles dur-

don't press the gauge in firmly.

1. Pull out the safety pin at the top of

ing emergencies, such as when the

3. A firm non-leaking push will acti-

the extinguisher that keeps the

vehicle is parked by the roadside due

vate the gauge.

handle from being accidentally

to problems.

pressed.

4. Read the tire pressure on the

gauge to see whether the tire

2. Aim the nozzle towards the base

Tire pressure gauge

pressure is low or high.

of the fire.

(if equipped)

5. Adjust the tire pressure to the

3. Stand approximately 2.5 m (8 ft)

Tires normally lose some air in day-

specified pressure. Refer to "Tires

away from the fire and squeeze

to-day use, and you may have to add

and Wheels" in chapter 8.

the handle to discharge the extin-

a air periodically and usually it is not

6. Reinstall the inflation valve cap.

guisher. If you release the handle,

a sign of a leaking tire, but of normal

the discharge will stop.

wear. Always check tire pressure

4. Sweep the nozzle back and forth

when the tires are cold because tire

at the base of the fire. After the fire

pressure increases with tempera-

appears to be out, watch carefully

ture.

since it may re-ignite.

6-41

Maintenance

Engine compartment

7-3

Brake/clutch fluid

7-25

Maintenance services

7-4

Checking the brake/clutch fluid level

7-25

Owner's responsibility

7-4

Washer fluid

7-26

Owner maintenance precautions

7-4

Checking the washer fluid level

7-26

Owner maintenance

7-5

Parking brake

7-26

Owner maintenance schedule

7-5

Checking the parking brake

7-26

Scheduled maintenance services

7-7

Air cleaner

7-27

Normal Maintenance Schedule (for Europe)

7-8

Filter replacement

7-27

Maintenance Under Severe Usage and

Climate control air filter

7-29

Low Mileage Conditions (for Europe)

7-11

Filter inspection

7-29

Normal Maintenance Schedule (except Europe)

7-13

Filter replacement

7-29

Maintenance Under Severe Usage and

Wiper blades

7-30

Low Mileage Conditions (except Europe)

7-16

Blade inspection

7-30

Explanation of scheduled maintenance items.7-18

Blade replacement

7-31

Engine oil

7-20

Battery

7-33

Checking the engine oil level

7-20

For best battery service

7-34

Checking the engine oil and filter

7-21

Battery capacity label

7-34

Engine coolant

7-22

Battery recharging

7-35

Checking the engine coolant level

7-22

Reset items

7-36

Changing the engine coolant

7-24

Tires and wheels

7-37

Light bulbs

7-61

Tire care

7-38

Headlamp, static bending lamp, position lamp,

Recommended cold tire inflation pressures

7-38

turn signal lamp and daytime running light bulb

Check tire inflation pressure

7-39

replacement

7-62

Tire rotation

7-39

Headlamp aiming (for Europe)

7-62

Wheel alignment and tire balance

7-40

Side repeater lamp replacement

7-66

Tire replacement

7-41

Rear combination lamp bulb replacement

7-66

Wheel replacement

7-42

Rear fog lamp replacement

7-68

Tire traction

7-42

High mounted stop lamp replacement

7-69

Tire maintenance

7-42

License plate light bulb replacement

7-69

Tire sidewall labeling

7-42

Interior light bulb replacement

7-69

Low aspect ratio tires

7-46

Appearance care

7-71

Fuses

7-47

Exterior care

7-71

Instrument panel fuse replacement

7-48

Interior care

7-75

Engine compartment panel fuse replacement

7-49

Emission control system

7-78

Fuse/Relay panel description

7-51

Crankcase emission control system

7-78

Evaporative emission control system

7-78

Exhaust emission control system

7-79

Maintenance

MAINTENANCE SERVICES

You should exercise the utmost care

Detailed warranty information is pro-

NOTICE

to prevent damage to your vehicle

vided in your Service Passport.

and injury to yourself whenever per-

Improper owner maintenance dur-

Repairs and adjustments required as

forming any maintenance or inspec-

ing the warranty period may affect

a result of improper maintenance or

tion procedures.

warranty coverage. For details, read

a lack of required maintenance are

the separate Service Passport pro-

We recommend you have your vehi-

not covered.

vided with the vehicle. If you're

cle maintained and repaired by an

unsure about any servicing or main-

authorized HYUNDAI dealer. An

Owner maintenance precautions

tenance procedure, we recommend

authorized HYUNDAI dealer meets

that the system be serviced by an

HYUNDAI’s high service quality stan-

Inadequate, incomplete or insufficient

authorized HYUNDAI dealer.

dards and receives technical support

servicing may result in operational

from HYUNDAI in order to provide

problems with your vehicle that could

you with a high level of service satis-

lead to vehicle damage, an accident,

faction.

or personal injury. This chapter pro-

vides instructions only for the mainte-

nance items that are easy to perform.

Owner’s responsibility

Several procedures can be done only

Maintenance service and record reten-

by an authorized HYUNDAI dealer

tion are the owner’s responsibility.

with special tools.

You should retain documents that show

Your vehicle should not be modified in

proper maintenance has been per-

any way. Such modifications may

formed on your vehicle in accordance

adversely affect the performance,

with the scheduled maintenance serv-

safety or durability of your vehicle and

ice charts shown on the following

may, in addition, violate conditions of

pages. You need this information to

the limited warranties covering the

establish your compliance with the

vehicle.

servicing and maintenance require-

ments of your vehicle warranties.

7-4

OWNER MAINTENANCE

Owner maintenance schedule

WARNING

(Continued)

When you stop for fuel:

• If you must run the engine

Performing maintenance work

during maintenance, do so

• Check the engine oil level.

on a vehicle can be dangerous.

out doors or in an area with

• Check the coolant level in the

If you lack sufficient knowledge

plenty of ventilation.

engine coolant reservoir.

and experience or the proper

• Keep flames, sparks, or smok-

• Check the windshield washer fluid

tools and equipment to do the

ing materials away from the

level.

work, we recommend that the

battery and fuel-related parts.

system be serviced by an author-

• Check for low or under-inflated tires.

ized HYUNDAI dealer. ALWAYS

follow these precautions for

The following lists are vehicle checks

WARNING

performing maintenance work:

and inspections that should be per-

• Park your vehicle on level

formed by the owner or an authorized

Be careful when checking your

ground, move the shift lever

HYUNDAI dealer at the frequencies

engine coolant level when the

into neutral, apply the parking

indicated to help ensure safe, depend-

engine is hot. This may result in

brake, and place the ignition

able operation of your vehicle.

coolant being blown out of the

switch in the LOCK/ OFF posi-

opening and cause serious

Any adverse conditions should be

tion.

burns and other injuries.

brought to the attention of your dealer

• Block the tires (front and back)

as soon as possible.

to prevent the vehicle from

These Owner Maintenance vehicle

moving.

checks are generally not covered by

Remove loose clothing or jew-

warranties and you may be charged

elry that can become entan-

for labor, parts and lubricants used.

gled in moving parts.

(Continued)

7-5

Maintenance

While operating your vehicle:

At least monthly:

At least once a year:

•

Note any changes in the sound of

• Check coolant level in the engine

•

Clean body and door drain holes.

the exhaust or any smell of exhaust

coolant reservoir.

•

Lubricate door hinges and hood

fumes in the vehicle.

• Check the operation of all exterior

hinges.

•

Check for vibrations in the steering

lights, including the stoplights, turn

•

Lubricate door and hood locks and

wheel. Notice if there is any

signals and hazard warning flashers.

latches.

increased steering effort or loose-

• Check the inflation pressures of all

•

Lubricate door rubber weather

ness in the steering wheel, or

tires including the spare for tires

strips.

change in its straight-ahead position.

that are worn, show uneven wear,

•

Check the air conditioning system.

•

Notice if your vehicle constantly turns

or are damaged.

slightly or “pulls” to one side when

•

Clean the battery and terminals.

• Check for loose wheel lug nuts.

traveling on smooth, level road.

•

Check the brake fluid level.

•

When stopping, listen and check for

At least twice a year:

unusual sounds, pulling to one side,

(i.e., every Spring and Autumn)

increased brake pedal travel or

“hard-to-push” brake pedal.

• Check radiator, heater and air condi-

tioning hoses for leaks or damage.

•

Check the parking brake.

• Check windshield washer spray

•

Check for fluid leaks under your

and wiper operation. Clean wiper

vehicle (water dripping from the air

blades with a clean cloth damp-

conditioning system during or after

ened with washer fluid.

use is normal).

• Check headlamp alignment.

• Check muffler, exhaust pipes,

shields and clamps.

• Check the seat belts for wear and

function.

7-6

SCHEDULED MAINTENANCE SERVICES

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply.

If any of the following conditions apply, you must follow the Maintenance Under Severe Usage Conditions.

• Repeated driving short distance of less than 8 km (5 miles) in normal temperature or less than 16 km (10 miles) in

freezing temperature

• Extensive engine idling or low speed driving for long distances

• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

• Driving in areas using salt or other corrosive materials or in very cold weather

• Driving in heavy traffic area

• Driving on uphill, downhill, or mountain road repeatedly

• Towing a trailer or using a camper, or roof rack

• Driving as a patrol car, taxi, other commercial use of vehicle towing

• Driving over 170 km/h (106 mile/h)

• Frequently driving in stop-and-go condition

If your vehicle is operated under the above conditions, you should inspect, replace or refill more frequently than the

following Normal Maintenance Schedule. After the periods or distance shown in the chart, continue to follow the pre-

scribed maintenance intervals.

7-7

Maintenance

Normal Maintenance Schedule (for Europe)

MAINTENANCE

Months

120

144

168

192

INTERVALS

Miles x 1,000

100

120

140

160

MAINTENANCE

ITEM

Km x 1,000

120

150

180

210

240

At first, inspect at 90,000 km (60,000 miles) or 72 months,

Drive belts *1

after that, every 30,000 km (20,000 miles) or 24 months

Engine oil and engine oil filter ** *2

Replace every 10,000 km (6,000 miles) or 12 months

Fuel additives *3

Add every 10,000 km (6,000 miles) or 12 months

Intercooler, in/out hose, air intake hose

Inspect every 10,000 km (6,000 miles)

Air cleaner filter

Spark plugs

Replace every 75,000 km (50,000 miles) *4 or 60 months

Vapor hose and fuel filler cap

Fuel tank air filter

I : Inspect and if necessary, adjust, correct, clean or replace.

R : Replace or change.

** : The engine oil level should be checked regularly and maintained properly. Operating with an insufficient amount of oil can dam-

age the engine, and such damage is not covered by warranty.

*1 : Inspect drive belt tensioner, idler and alternator pulley and if necessary correct or replace.

*2 : Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.

*3 : If good quality gasolines meet Europe Fuel standards (EN228) or equivalents including fuel additives is not available, one bot-

tle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how to

use them. Do not mix other additives.

*4 : For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.

7-8

Hyundai i30 N (2018 year). Manual - part 23
