BE-71

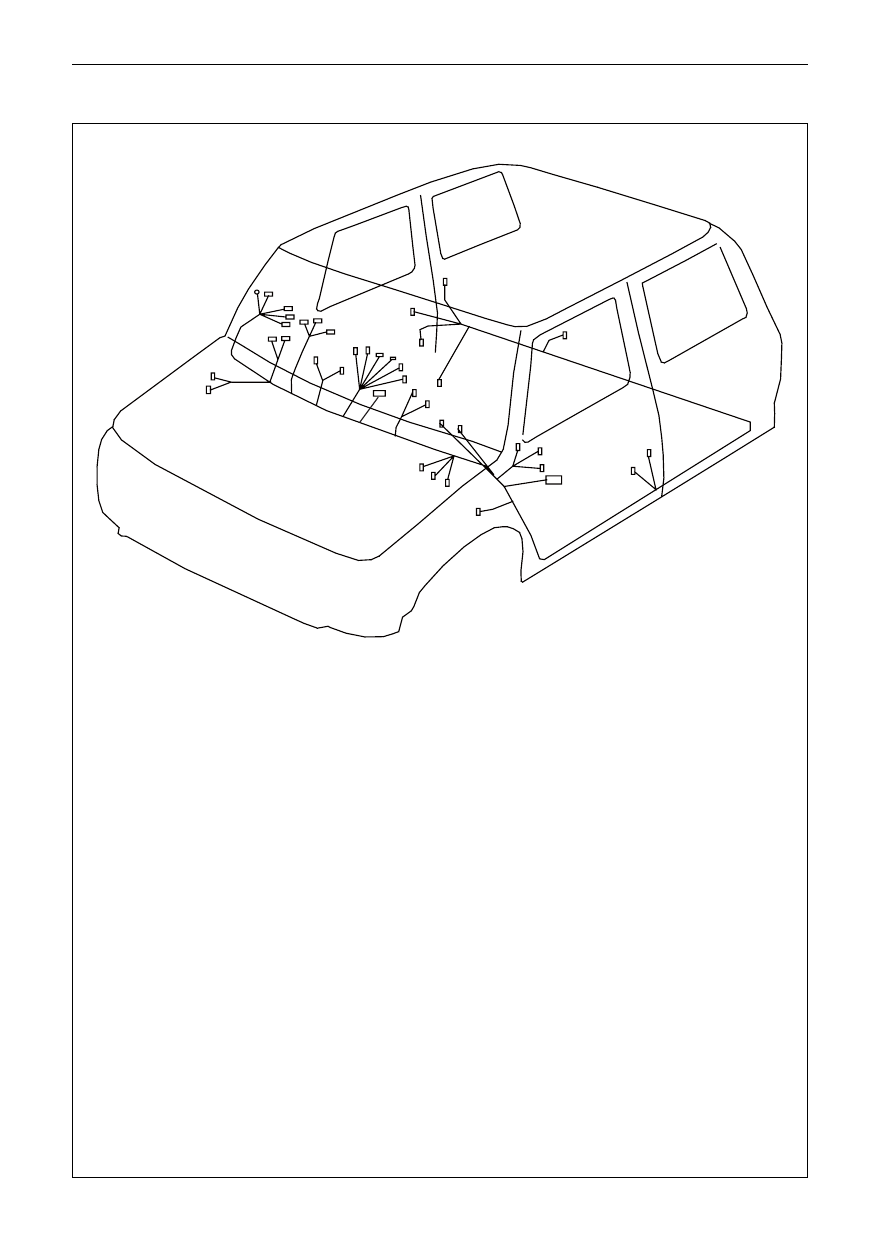

Cab wire harness

a ê

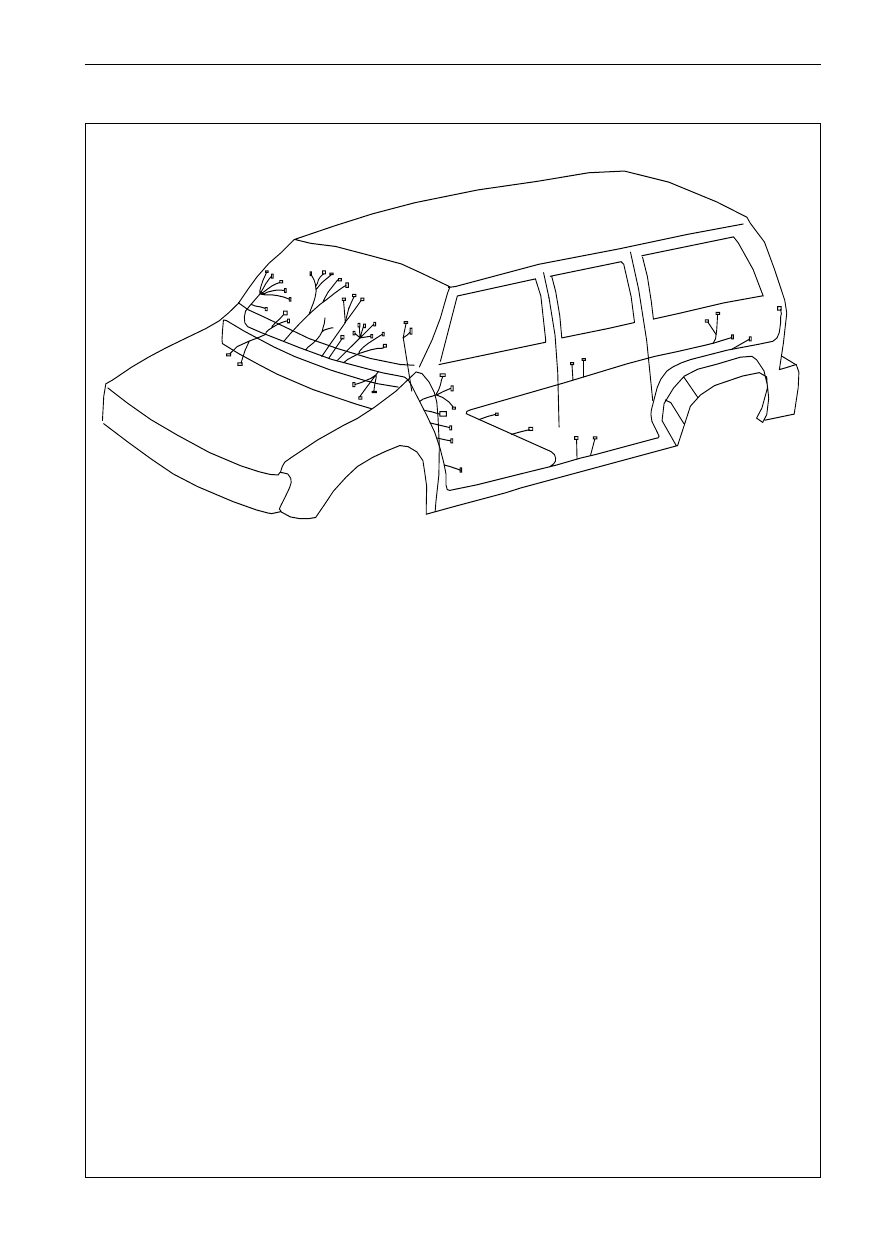

1

right front turn lamp

2

outdoor temperature sensor

3

right lever-shaped lamp

4

front fog lamp

5

horn

6

accumulator wire of 220V

7

electromagnetic fan

8

temperature control switch

9

protective box II

10 turn signal lamp on right side

11 brush motor

12 plug of engine wire harness

13 wire harness at right rear door

14 plug of frame wire harness

15 door lamp switch

16 wire harness at right front door

17 door lamp

18 right external electric rear vision mirror

19 protective box III

20 indoor temperature sensor

21 right loudspeaker

22 speed-adjusting resistance

23 air blower

24 grounding wire

25 A/C switch

26 controlling element

27 ashtray lamp

28 receiver wire

29 cigarette lighter

30 cigarette lighter

31 rear sound box wire

32 amplifying plate of air-conditioner

33 grounding wire

34 heat-sensitive resistance

35 dual flasher switch

36 fog lamp switch

37 temperature indicator

38 combined switch shell lamp

39 combined switch

40 ignition switch

41 combination instrument A

42 combination instrument B

43 parking brake switch

44 brake switch

45 left loudspeaker

46 control case of central control lock

47 grounding wire

48 grounding wire

49 voltage regulator

50 brake liquid level alarming device

51 protective box I

52 plug of wire harness at left rear door

53 door lamp

54 door lamp switch

55 ceiling lamp

56 lamp for reading

57 door lamp

58 door lamp switch

59 backup radar screen

60 right rear loudspeaker

61 highly-mounted stop lamp

62 left rear loudspeaker

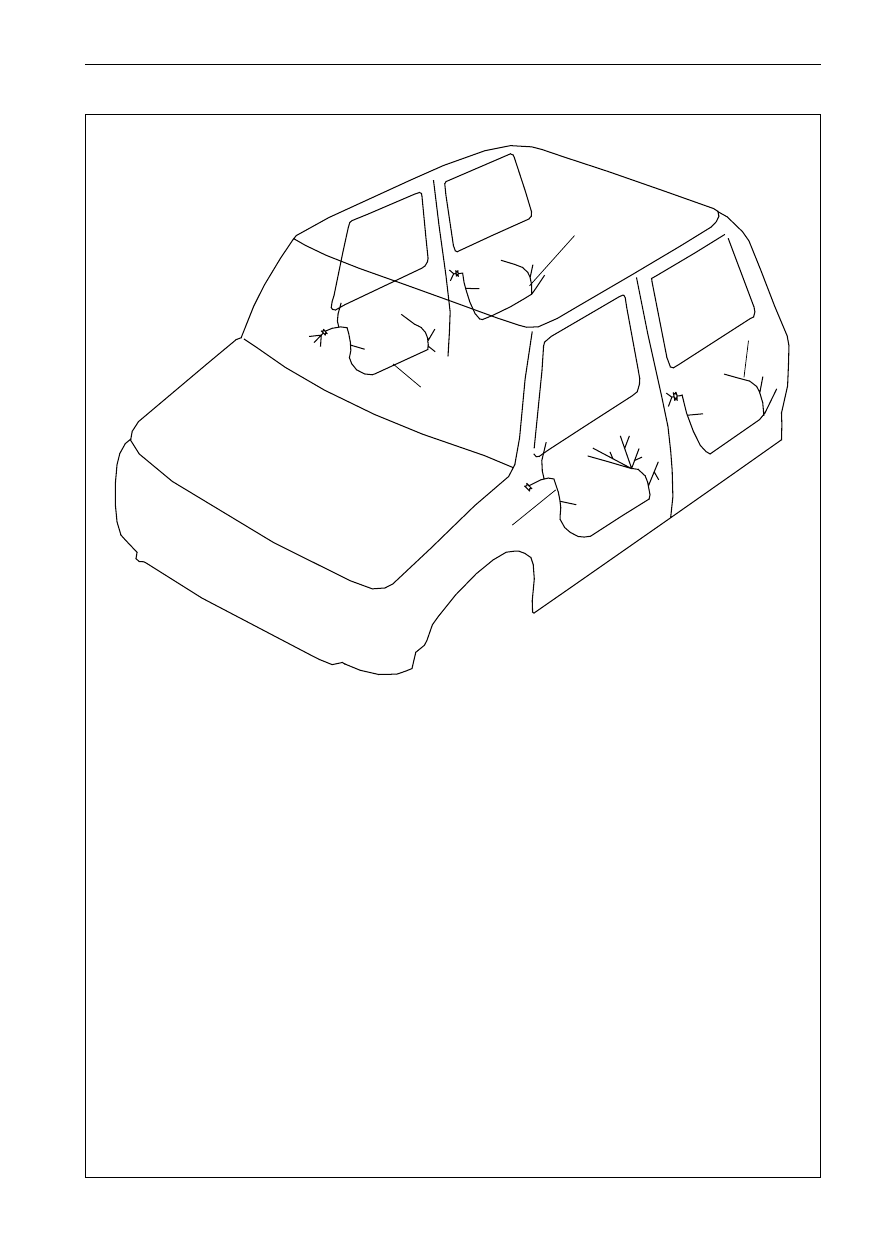

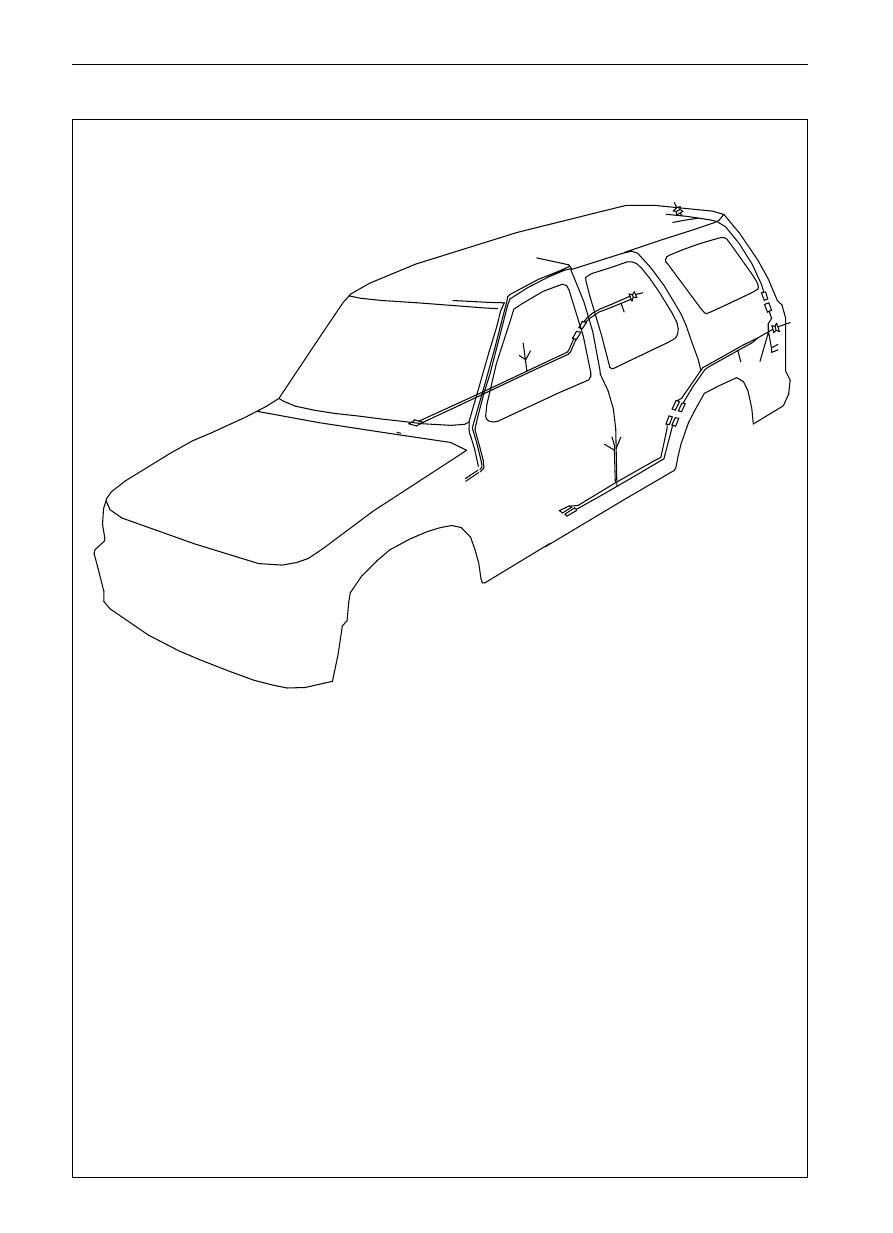

1

2

3

4

5

6

7 8

9

10

11

12

13

14

15

16

17

18

19

20 21

22

23

24

25

26

27

28

29 30

31

32

33

34

35

36 37

38

39 40

41

42

43

44

45

46

47 48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

Body Electric System

Wire Harness Distribution

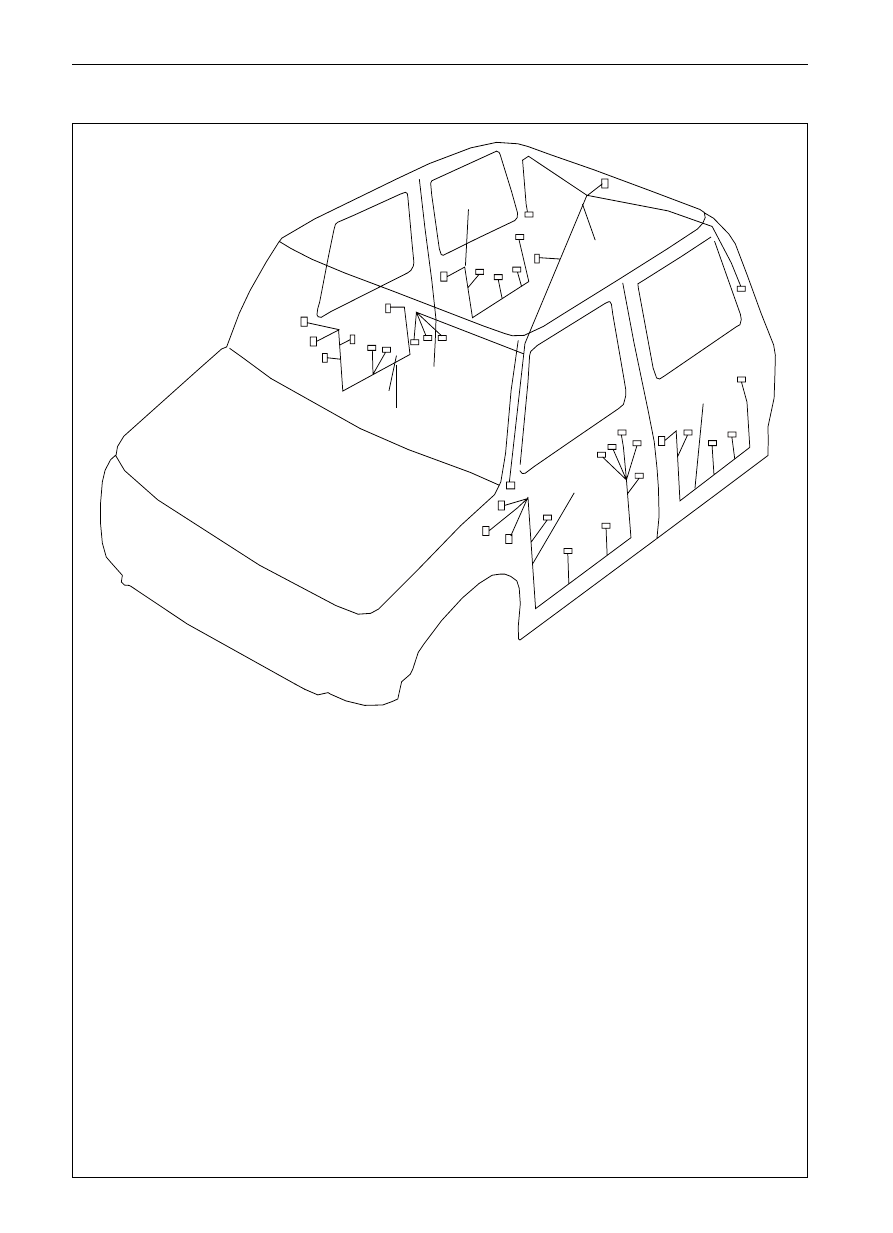

BE-72

pi=ph

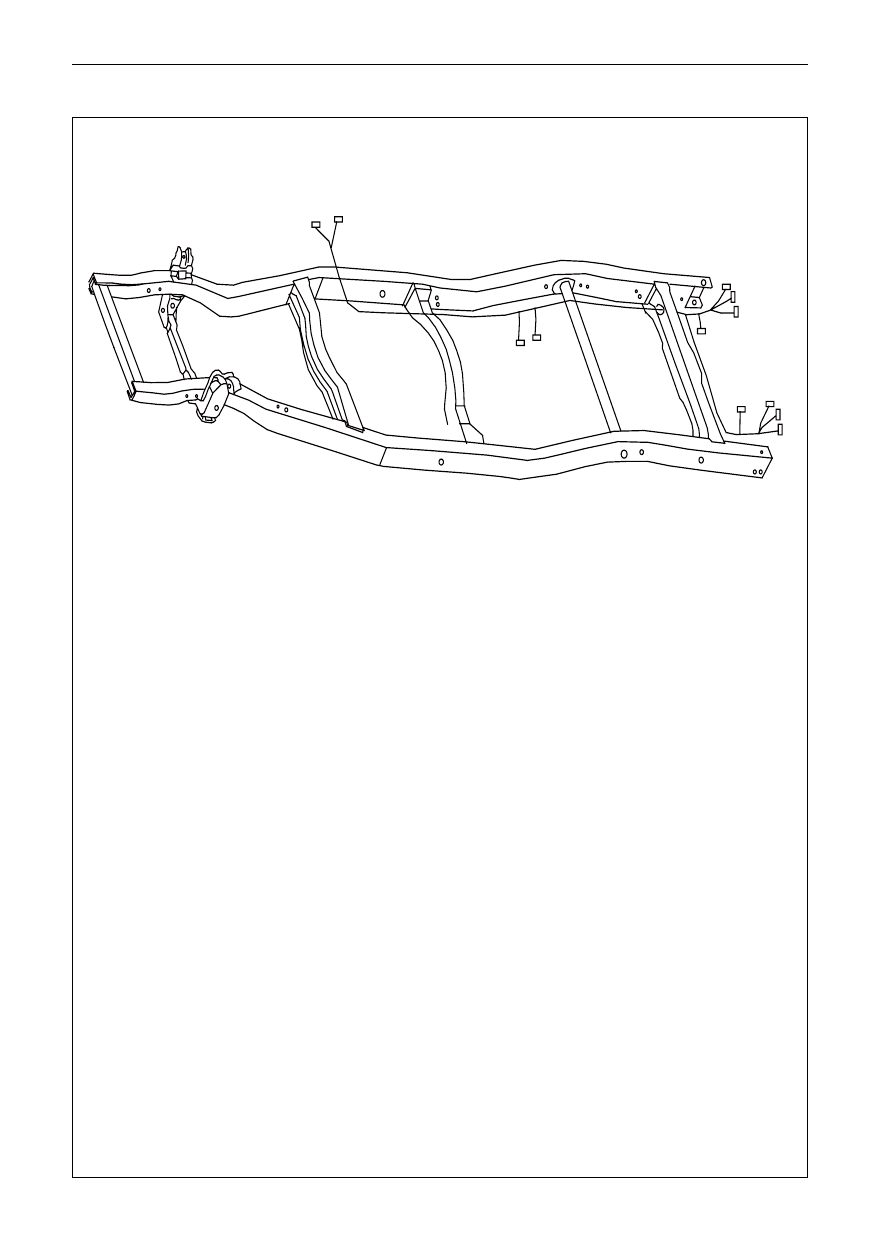

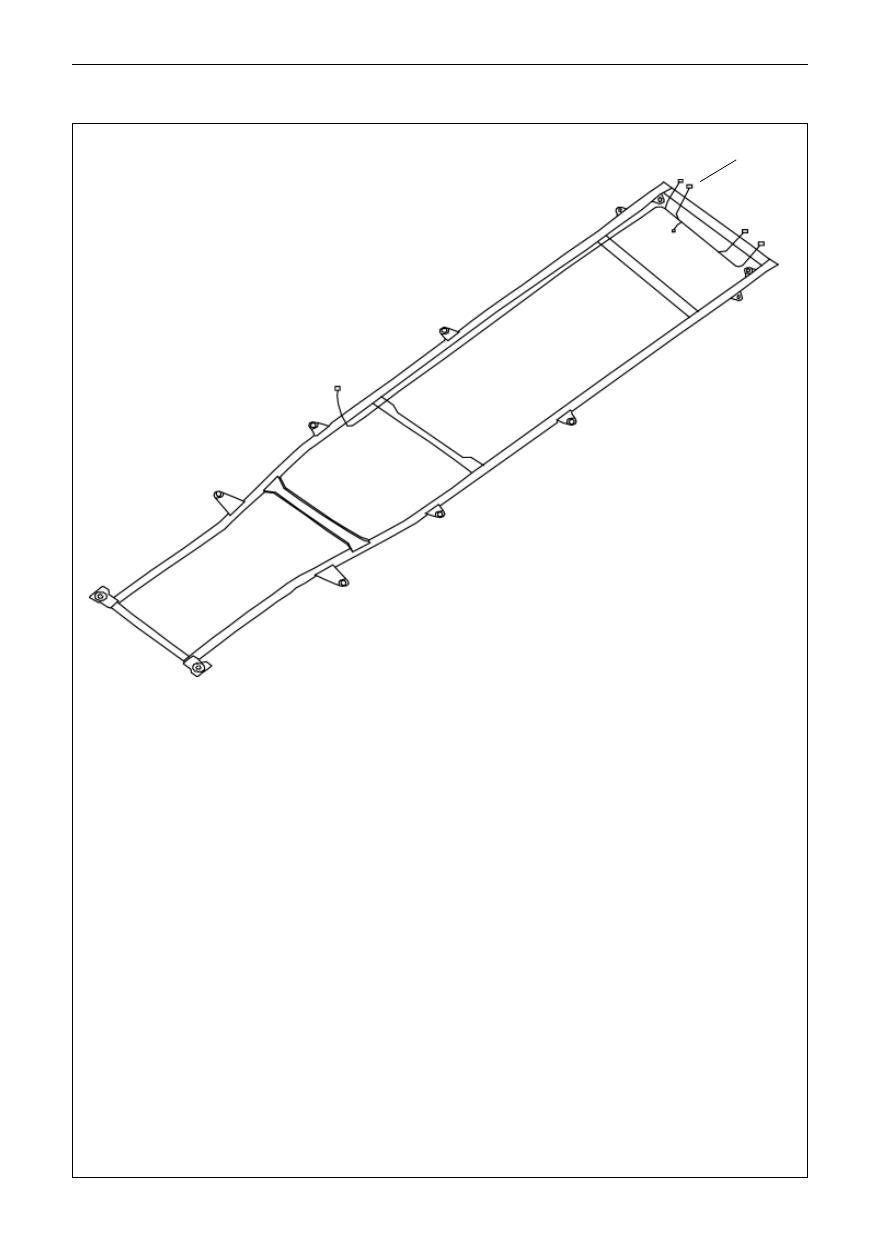

1

grounding wire

2

wire harness at right front door

3

warm air motor

4

wire harness at right front door

5

control case of central control lock

6

heat-sensitive resistance

7

speed-adjusting resistance

8

connected to housing wire harness

9

connected to housing wire harness

10 A/C switch

11 air-volume switch

12 ashtray luminous lamp

13 ECU

14 receiver

15 rear loudspeaker

16 cigarette lighter

17 cigarette lighter grounding wire

18 cigarette lighter luminous lamp

19 fog lamp switch

20 dual flasher switch

21 luminous lamp on air-conditioner panel

22 combined switch

23 instrument

24 instrument

25 stop lamp switch

26 connected to roof wire harness

27 connected to housing wire harness

28 connected to housing wire harness

29 connected to housing wire harness

30 connected to wire harness at left front door

31 connected to wire harness at left front door

32 connected to wire harness at left front door

33 protective box I

34 grounding wire

35 wire harness at left front door

36 connected to wire harness at left rear door

37 parking brake switch

38 connected to wire harness at right rear door

39 right front door lamp switch

40 connected to chassis wire harness

1 2

3

4

5

6

7

8

9

10 11

12

13

14

15

1617

18 19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

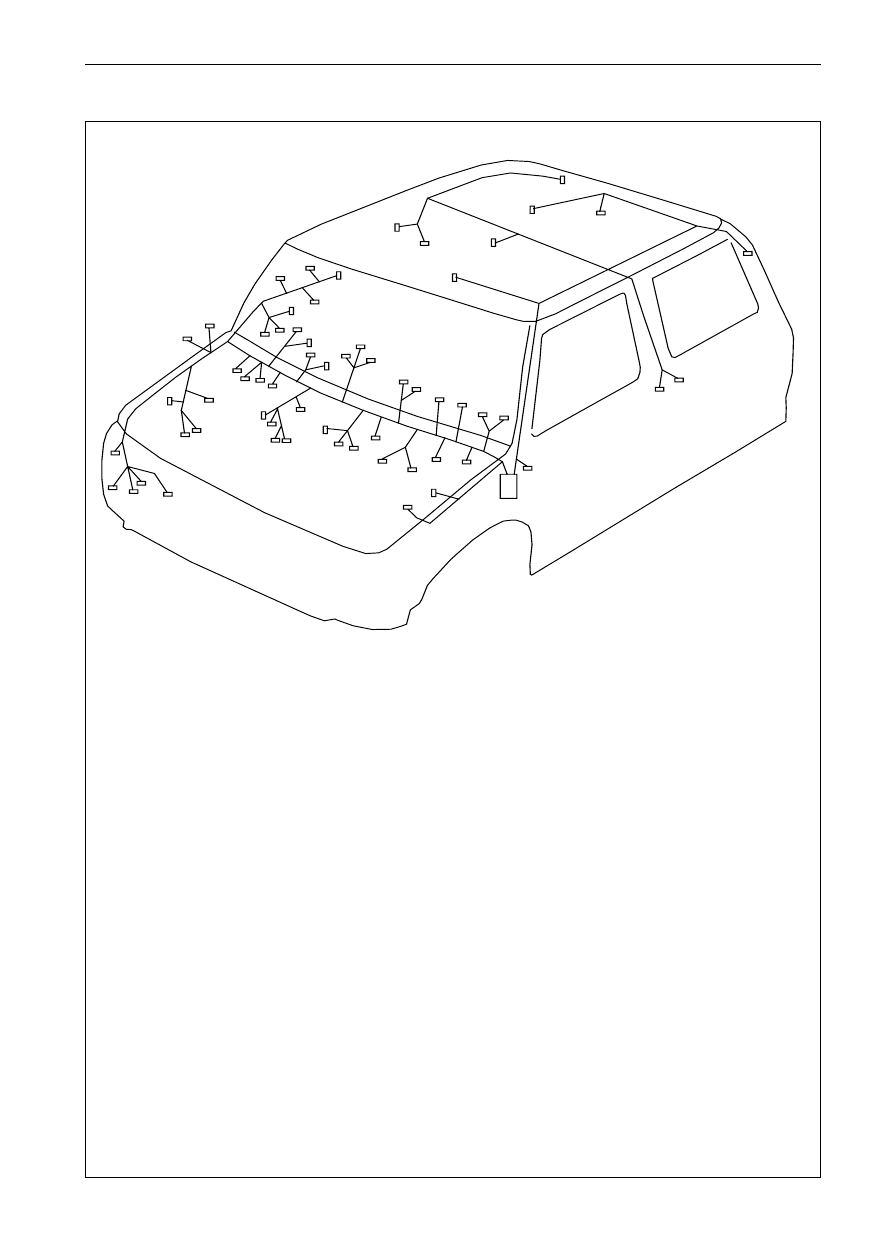

Cab Wire harness (continued)

40

Body Electric System

Wire Harness Distribution

BE-73

SY SJ

1

grounding wire

2

wire harness at right front door

3

warm air motor

4

connected to wire harness at right front door

5

control case of central control lock

6

electric aerial

7

heat-sensitive resistance

8

speed-adjusting resistance

9

connected to housing wire harness

10 connected to housing wire harness

11 A/C switch

12 air-volume switch

13 ashtray luminous lamp

14 grounding wire

15 ECU

16 CD device

17 CD device

18 cigarette lighter

19 cigarette lighter grounding wire

20 cigarette lighter luminous lamp

21 combined switch

22 fog lamp switch

23 dual flasher switch

24 rear defroster switch

25 rear brush switch

26 rear washer switch

27 combination instrument

28 combination instrument

29 stop lamp switch

30 roof wire harness

31 connected to housing wire harness

32 connected to housing wire harness

33 connected to housing wire harness

34 connected to wire harness at left front door

35 connected to wire harness at left front door

36 connected to wire harness at left front door

37 protective box

38 rear defrost relay

39 connected to wire harness of rear air-conditioner

40 grounding wire

41 parking brake switch

42 connected to chassis wire harness

43 wire harness at right rear door

44 right front door lamp switch

45 right rear loudspeaker

46 rear washer motor

47 connected to wire harness at tail door

48 left front door lamp switch

49 wire harness at left rear door

50 left rear loudspeaker

51 standby power seat

1 2

3

4

5

6 7

8

9

10

111213

14

15

16

17

18 19

20

21

22

2324

25

26

27

28

29

30

31

32 33

34

35

36

37

38
39

40

41

42

43 44

45

46

47

48 49

50

51

Cab wire harness (continued)

Body Electric System

Wire Harness Distribution

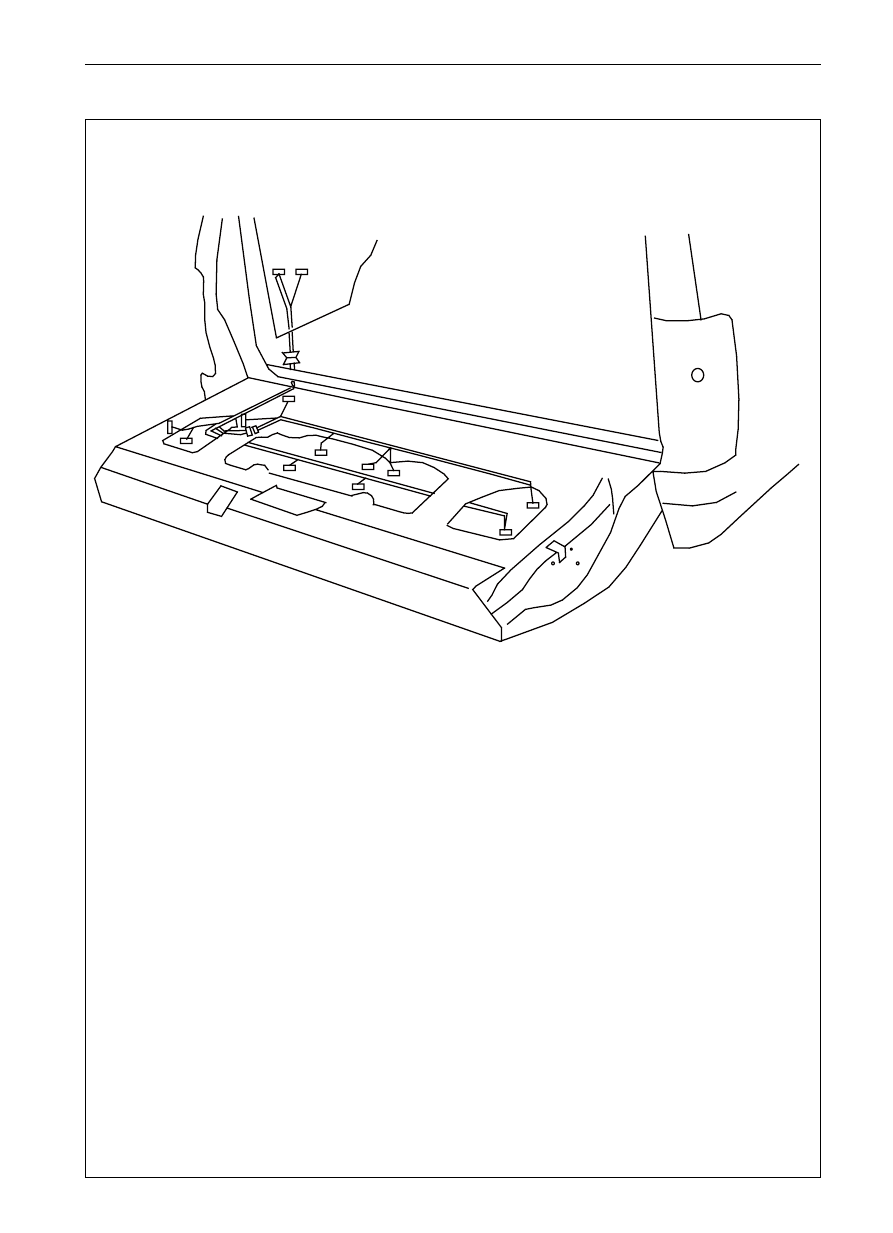

BE-74

SF

8

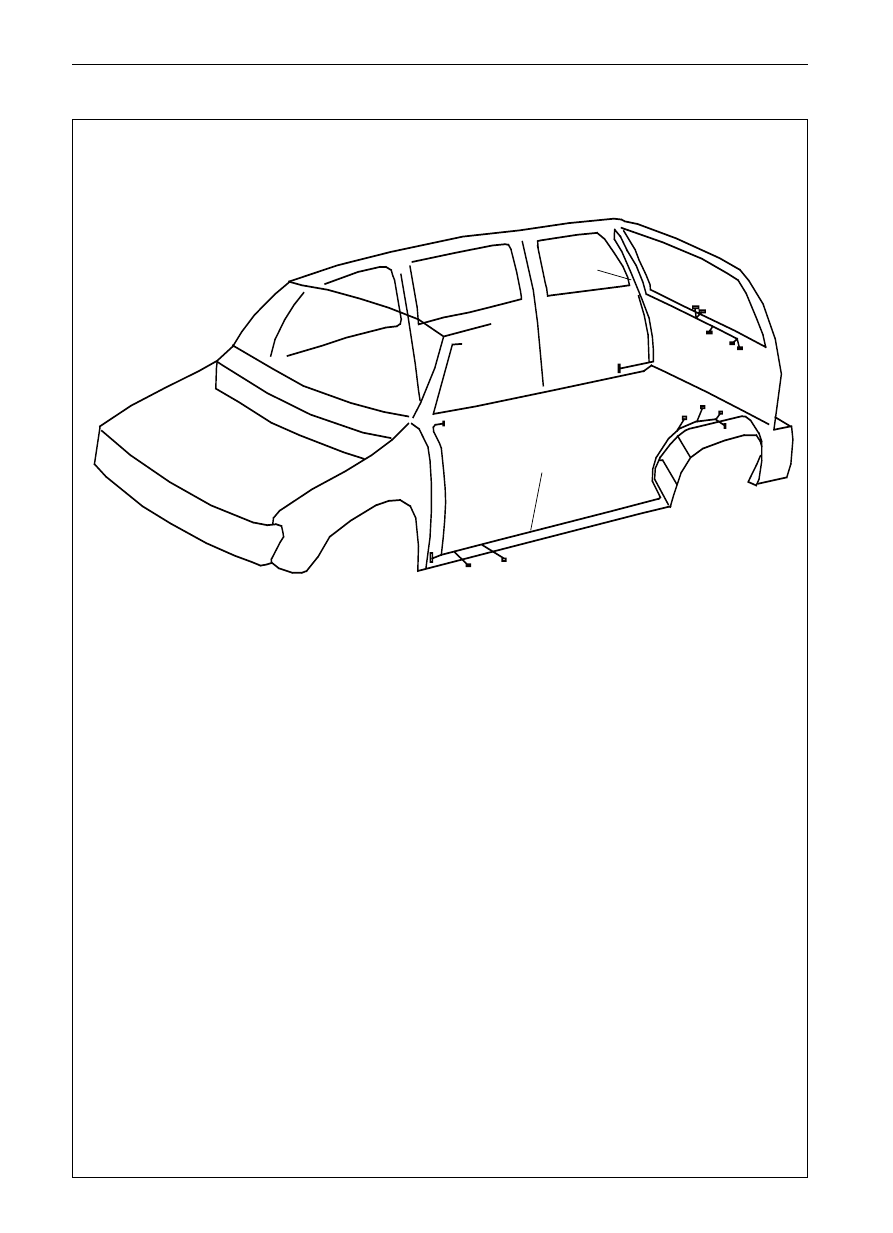

1

connected to cab wire harness

2

left rear door lamp switch

3

door lamp at left rear door

4

electric rocker and lock-out device at left rear door

5

left rear sound box

6

controller for brush, door and window at rear door

7

connected to wire harness at tail door

8

left rear combination lamp

9

highly-mounted stop lamp

10 rear ceiling lamp

11 rear brusher motor

12 right rear combination lamp

13 right rear sound box

14 front ceiling lamp

15 lamp for reading

16 electric rocker and lock-out device at right rear door

17 right rear door lamp

18 right rear door lamp switch

19 connected to cab wire harness

20 connected to protective box I

1

2

3 4

5

6

7

9

10

11

12

13

14

15

16

17

18

19

20

Cab Wire harness (continued)

Body Electric System

Wire Harness Distribution

BE-75

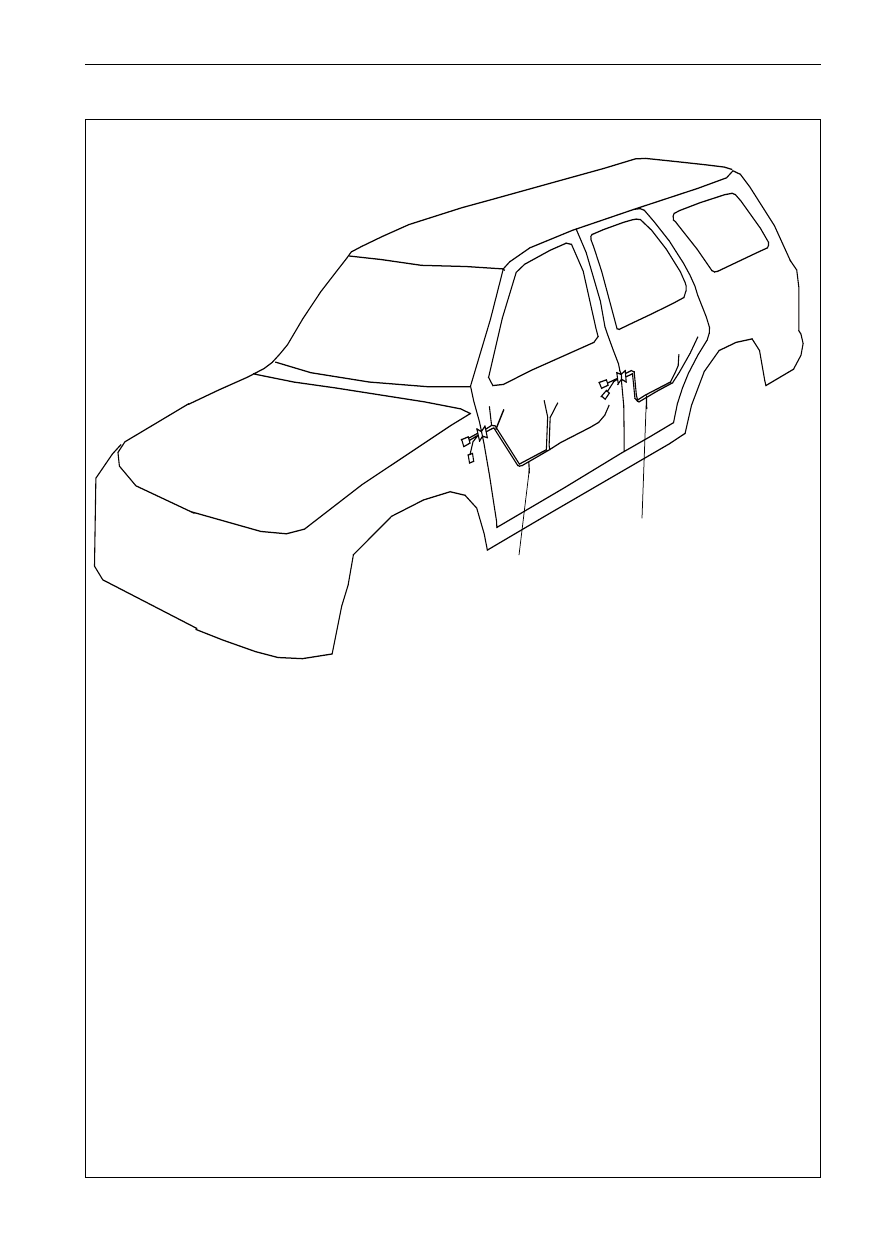

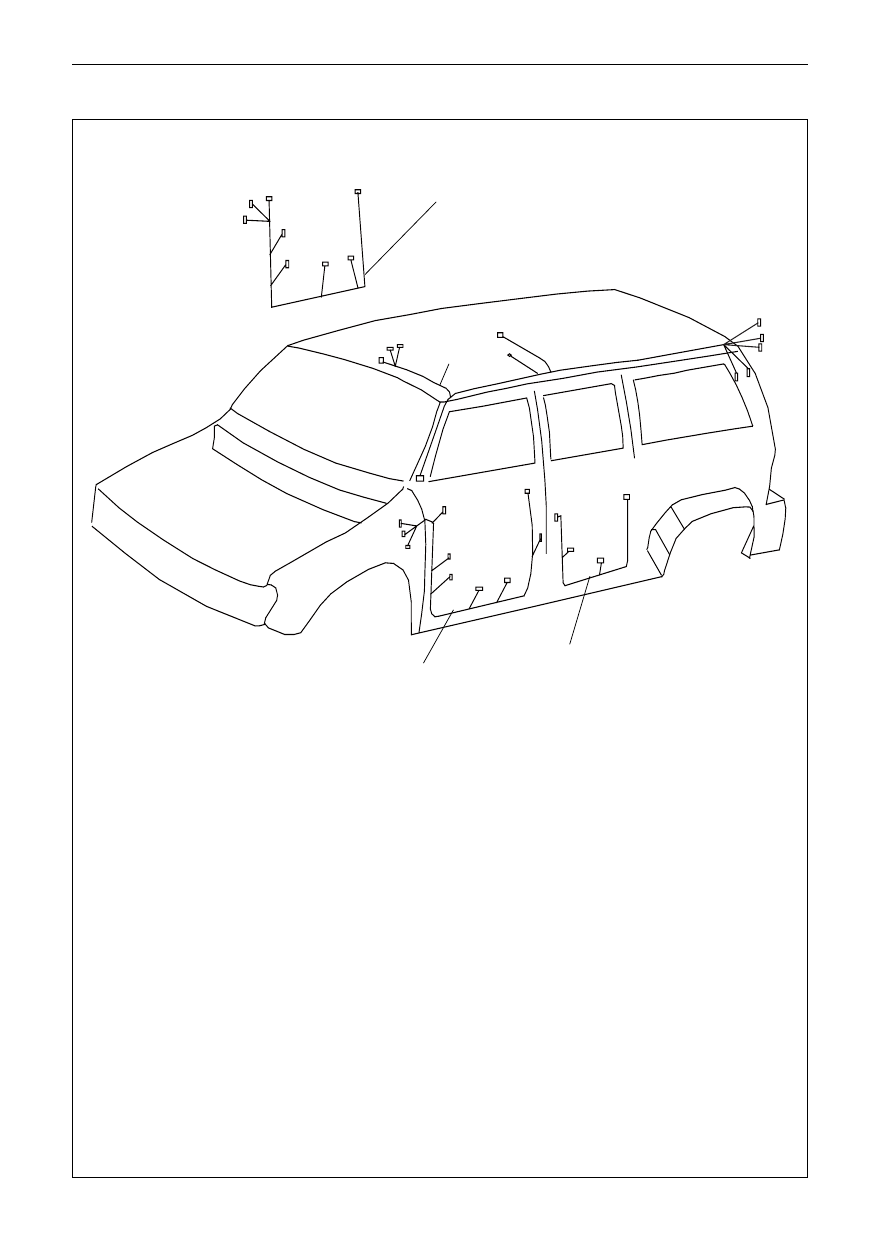

Wire harness at four door

Dr

1

2

P

4

5 6

7 8

9

1011

12

13

14

15

16

17

18

19

20

21

22

23

24

25

OS

27

28

29

30

31

32

1

connected to cab wire harness

2

left external electric rear vision mirror

3

electric rocker

4

rear vision mirror switch

5

power switch

6

romote control lock switch

7

rocker switch

8

rocker switch

9

rocker switch

10 rocker switch

11 lock-out device at left front door

12 left front door lamp

13 left rear door lamp

14 connected to wire harness a left rear door

15 left rear door lamp switch

16 left rear door switch

17 electric rocker

18 lock-out device at left rear door

19 right rear door lamp

20 connected to wire harness at right rear door

21 right rear door lamp switch

22 right rear door switch

23 electric rocker

24 lock-out device at right rear door

25 right front door lamp switch

26 connected to cab wire harness

27 connected to cab wire harness

28 right external electric rear vision mirror

29 electric rocker

30 rocker switch

31 lock-out device at right front door

32 right front door lamp

Wire harness at leftfront door

Wire harness at left rear door

Wire harness at right front door

Wire harness at right rear door

Body Electric System

Wire Harness Distribution

BE-76

1

connected to cab wire harness

2

connected to cab wire harness

3

connected to cab wire harness

4

left front loudspeaker

5

left door lamp

6

electric rocker

7

rocker switch

8

rocker switch

9

rocker switch

10 rocker switch

11 left front lock-out device

12 connected to cab wire harness

13 left rear loudspeaker

14 electric rocker

15 left rear lock-out device

16 rocker switch

17 left rear door lamp switch

18 highly-mounted stop lamp

19 right rear door lamp switch

20 ceiling lamp

21 connected to cab wire harness

22 lamp for reading

23 car door display

24 temperature display

25 rocker switch

26 right rear lock-out device

27 electric rocker

28 right rear loudspeaker

29 connected to cab wire harness

30 rocker switch

31 right front lock-out device

32 electric rocker

33 right front loudspeaker

34 right door lamp

35 connected to cab wire harness

36 connected to cab wire harness

wire harness at left

rear door

wire harness at left

front door

roof wire harness

wire harness at

right rear door

wire harness at right front door

1

2

3

4

5

10

6

7

8

9

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

SL SK

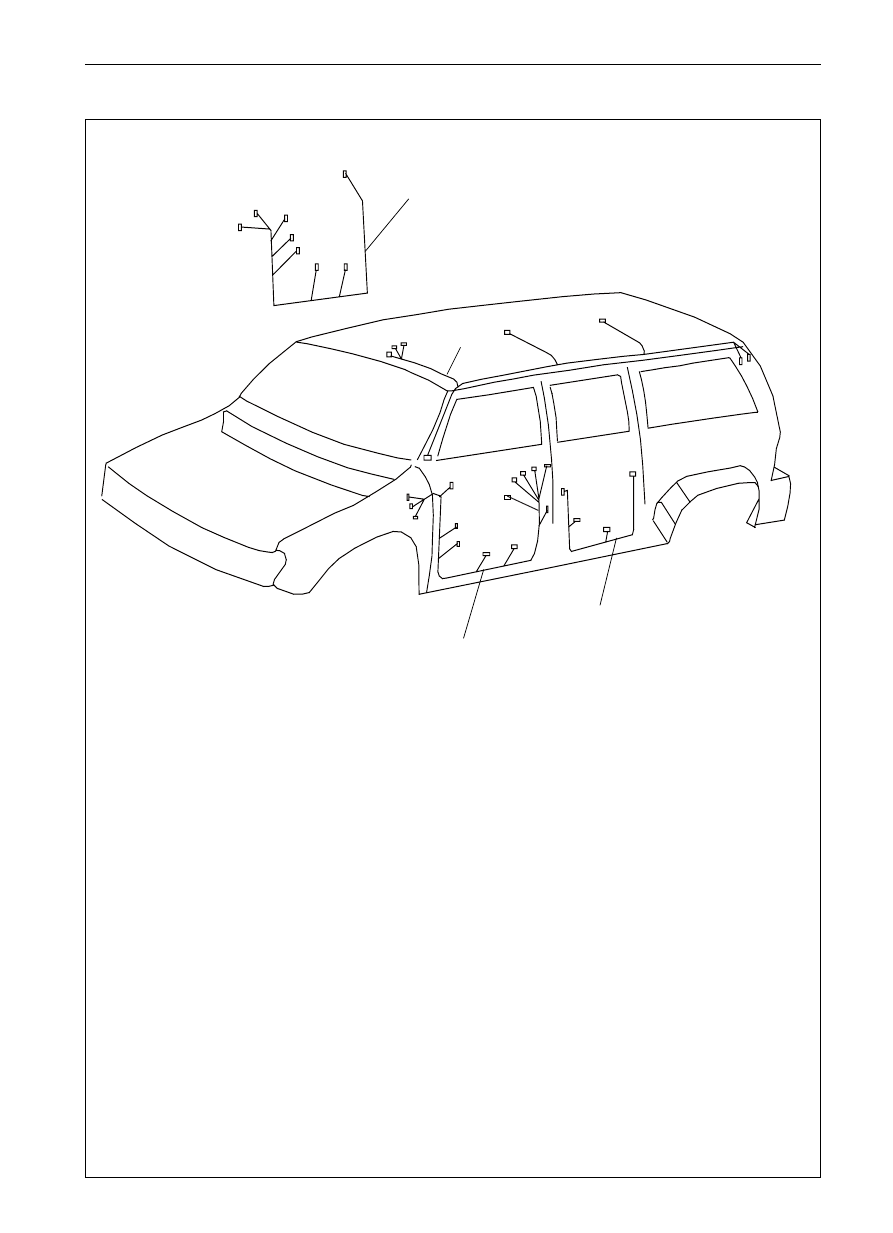

Wire harness at four doors and body roof

Body Electric System

Wire Harness Distribution

BE-77

SY

Wire harness at right rear door is distributed in the same way as that at left front rear door.

1

connected to cab wire harness

2

connected to cab wire harness

3

connected to cab wire harness

4

left external electric rear vision mirror

5

left front loudspeaker

6

left door lamp

7

electric rocker

8

left front lock-out device

9

rear vision mirror switch

10 rocker switch

11 rocker switch

12 rocker switch

13 rocker switch

14 inhibitor switch

15 connected to cab wire harness

16 electric rocker

17 left rear lock-out device

18 rocker switch

19 highly-mounted stop lamp

20 rear ceiling lamp

21 front ceiling lamp

22 lamp for reading

23 car door display

24 temperature display

25 connected to cab wire harness

26 connected to cab wire harness

27 right external electric rear vision mirror

28 right front loudspeaker

29 right door lamp

30 electric rocker

31 right front lock-out device

32 rocker switch

wire harness at left front door

wire harness at left rear door

1
2

3

4

5

6

7

8

V

NM

11

12

13

14

15

16

17

18

19

20

21

23

22

25

26

27

28

29

30

31

roof wire harness

wire harness at right front door

Wire harness at four doors and body roof (continued)

24

32

Body Electric System

Wire Harness Distribution

BE-78

wire harness at left front door

Wire harness at right rear door is distributed in the same way as that at left rear door.

1

connected to cab wire harness

2

connected to cab wire harness

3

connected to cab wire harness

4

left external electric rear vision mirror

5

left front loudspeaker

6

left door lamp

7

electric rocker

8

left front lock-out device

9

rear vision mirror switch

10 rocker switch

11 connect to cab wire harness

12 electric rocker

13 left rear lock-out device

14 rocker switch

15 highly-mounted stop lamp

16 bass speaker(top SY)

17 ceiling lamp

18 grounding wire(top SY)

19 lamp for reading

20 car door display

21 temperature display

22 connected to cab wire harness

23 connected to cab wire harness

24 right external electric rear vision mirror

25 right front loudspeaker

26 right door lamp

27 electric rocker

28 right front lock-out device

29 rocker switch

1

2

3

4

5

6

7

8

9

10

11

12 13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

wire harness at right front door

roof wire harness

wire harness at left rear door

Top style SY SJ

Wire harness at four doors and body roof (continued)

28

29

Body Electric System

Wire Harness Distribution

BE-79

SF

1

connected to protective box I

2

connected to protective box I

3

rear vision mirror

4

front door-lamp switch

5

rocker switch

6

rocker at front door

Wire harness distribution at front left door, front right door, rear left door and rear right door are same with each other.

1

2

3 4

5 6

7

8

9

10

11

wire harness at front door

wire harness at rear door

Wire harness of four doors(continued)

Body Electric System

Wire Harness Distribution

7

lock-out device at front door

8

wire harness at central part

9

wire harness at central part

10 rocker at rear door

11 rocker switch

BE-80

Wire harness at tail door and of rear air-conditioner

SY SJ

wire harness of rear

air-conditioner

wire harness

of rear brush

1

2

3

4

5

6

7

8

V

10

11

12

13

NQ

Only the vehicle with SY model has the wire harness of rear air-conditioner shown in above-mentioned wire harness.

1

rear A/C switch

2

connected to cab wire harness

3

rear air-conditioning relay

4

grounding wire

5

temperature control switch

6

electromagnetic valve

7

temperature controller

8

speed-adjusting resistance

9

license lamp

10

license lamp

11

rear brusher motor

12

defroster

13

defroster

14

connected to cab wire harness

Body Electric System

Wire Harness Distribution

BE-81

SF

1

connected to left rear wire harness

2

connected to left rear wire harness

3

lock switch at left tail door

4

electro-heating gate at tail door

5

electro-heating gate at tail door

6

left license lamp

7

electric rocker at tail door

8

right license lamp

9

lower limit switch at tail door

10 alarming switch at tail door

11 lock barrel at tail door

12 lock switch at right tail door

1

2

3

4

5

6

7

8

9

10

11

12

Wire harness at tail door (continued)

Body Electric System

Wire Harness Distribution

BE-82

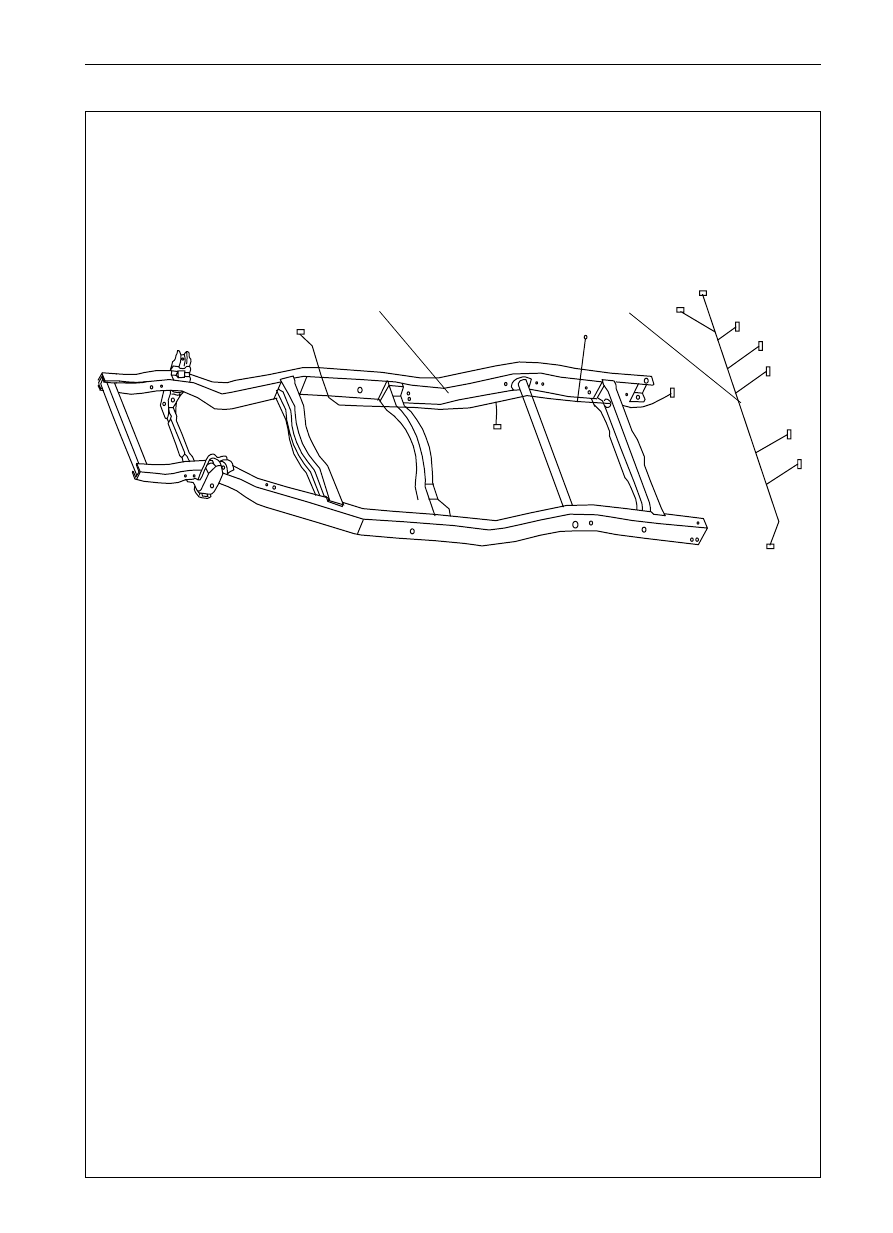

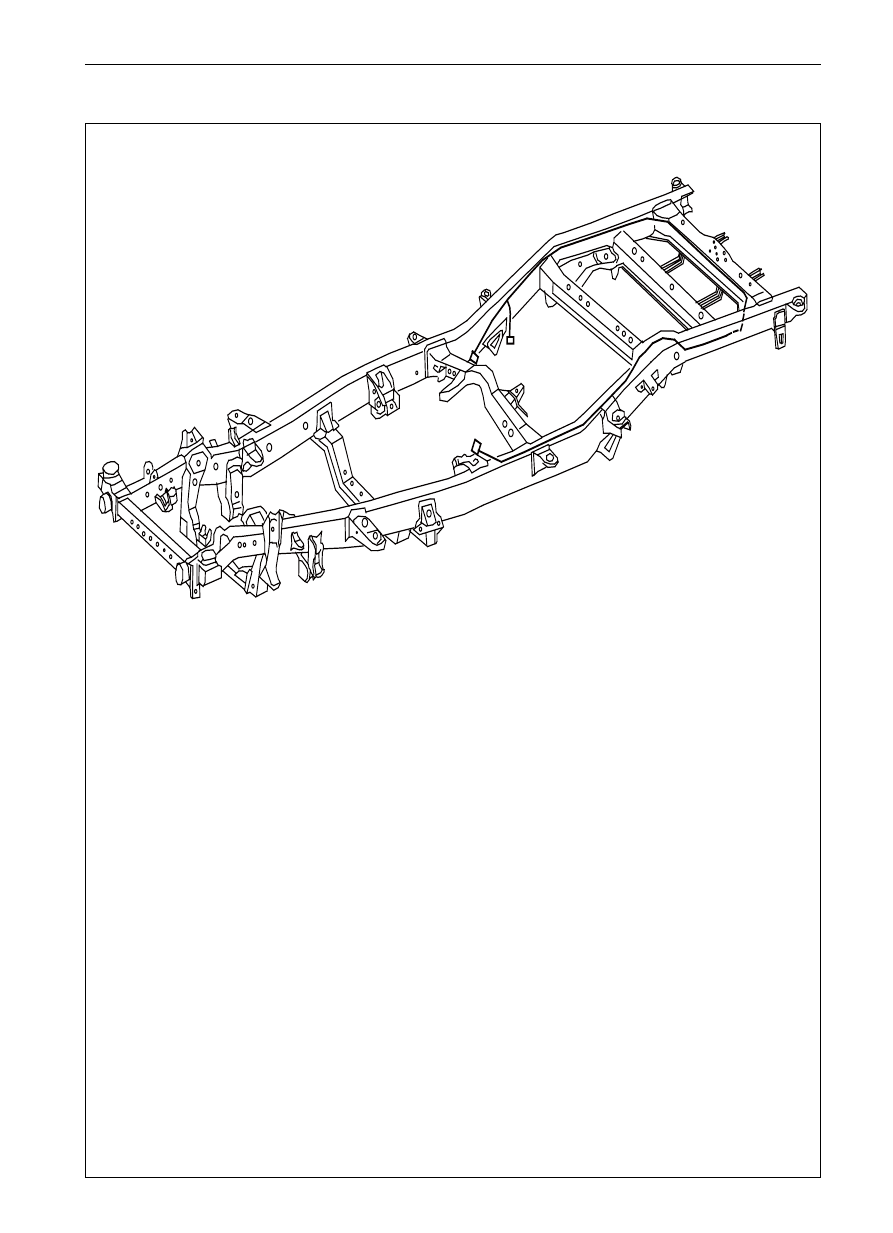

Chassis Wire Harness

Dr

1

2

3

4

5

6

7

8

9

10

11

12

1

connected to cab wire harness

2

back up radar

3

fuel pump

4

fuel sensor

5

left backup radar probe

6

left rear fog lamp

7

left license lamp

8

left rear combination lamp

9

right backup radar probe

10 right rear fog lamp

11 right license lamp

12 right rear combination lamp

Body Electric System

Wire Harness Distribution

BE-83

SL SK

1

connected to cab wire harness

2

fuel pump

3

grounding wire

4

connected to wire harness

5

connected to chassis wire harness

6

right rear combination lamp

7

right rear fog lamp

8

back up radar control box

9

right license lamp

10 left license lamp

11 left rear fog lamp

12 left rear combination lamp

Tail lamp wire harness should be fixed at the inner side of the rear baffle of load-compartment.

1

2

3

4

5

6

7

8

9

10

11

12

chassis wire harness

tail lamp wire harness

Chassis wire harness (continued)

Body Electric System

Wire Harness Distribution

BE-84

SY SJ

only for SJ model vehicle

N

2 3

4

5

6

Chassis Wire Harness (continued)

Body Electric System

Wire Harness Distribution

1

connected to cab wire harness

2

right rear combination lamp

3

right rear fog lamp

4

electric fuel pump

5

left rear fog lamp

6

left rear combination

BE-85

SF

1

fuel level sensor

2

electric fuel pump

3

connected to cab wire harness

1

2

3

Chassis Wire Harness (continued)

Body Electric System

Wire Harness Distribution

AC-1

Page

Introduction ................................................................. AC-2

Electric circuit diagram of air-conditioning system ...... AC-4

System constitutes ...................................................... AC-8

General introduction .................................................... AC-9

Troubleshooting .......................................................... AC-10

Inspection for refrigerant quantity ................................ AC-11

Compressor ................................................................. AC-12

Liquid container ........................................................... AC-14

Condenser ................................................................... AC-15

Cooling device ............................................................. AC-16

Refrigerant pipeline ..................................................... AC-20

AC

Air-conditioning System















Content      ..     28      29      30      31     ..
