Great Wall V200. Instruction - part 11





thickness           Component No.    thickness         Component No.

Adjustment of front and rear brake belt

1. Setting procedure of brake belt

The setting procedure of brake belt is shown as follows:

a. For the calculating method of front servo mechanism thrust lever refer to Figure 8.62,  dimension; standard A.

.Allow the air pressure is in 650/700kPa in the operating area of front servo mechanism  (external of B1),  (refer to

Figure 8.63).

. The forward dimension of thrust lever minus 3mm.

Dimension requirement for selection of shim:

Caution:

The small shim requires that the shim size is 1mm always; the available thickness is listed in Table 8.2.

.

Release air.

b.  Proper shim to end of thrust lever pole.

Check the shim for damage, worn or corrosion; replace it if necessary.

The shim is installed on the support surface between the transmission and pole flange, refer to Figure 8.62.

Install the shim by hand, and not the hammer or pressure.

Press the shim by hand until has the click the noise. The noise means the shim is clamped by the housing correctly.

     c.   Recheck the stroke of thrust lever 3mm

0.25mm.

2. Setting procedure of rear brake belt

The setting procedure of rear brake belt is shown as follows:

a. The setting of distance A is form the back surface of servo piston to inner surface of transmission, use the vernier caliper. Refer

to Figure 8.64.

A allows the air pressure of 650/700kPa is in the front servo mechanism operating area (external of B2),  (refer to Figure

8.63).

Deduct 3.75mm from the movement of piston and use the 2.5 mm shim to divide the rest distance.

Caution:

The small shim requires that the shim size is 1mm always; the available thickness is listed in Table 8.2.

. Release air.

b.  Select the proper shim for end of thrust lever pole.

Check the shim for damage, worn or corrosion; replace it if necessary.

The shim is installed on the support surface between the transmission and pole flange, refer to Figure 8.64.

Install the shim by hand, and not the hammer or pressure.

Press the shim by hand until has the click the noise. The noise means the shim is clamped by the housing correctly.

c.  Recheck the stroke of piston for 3.75mm

0.625mm.

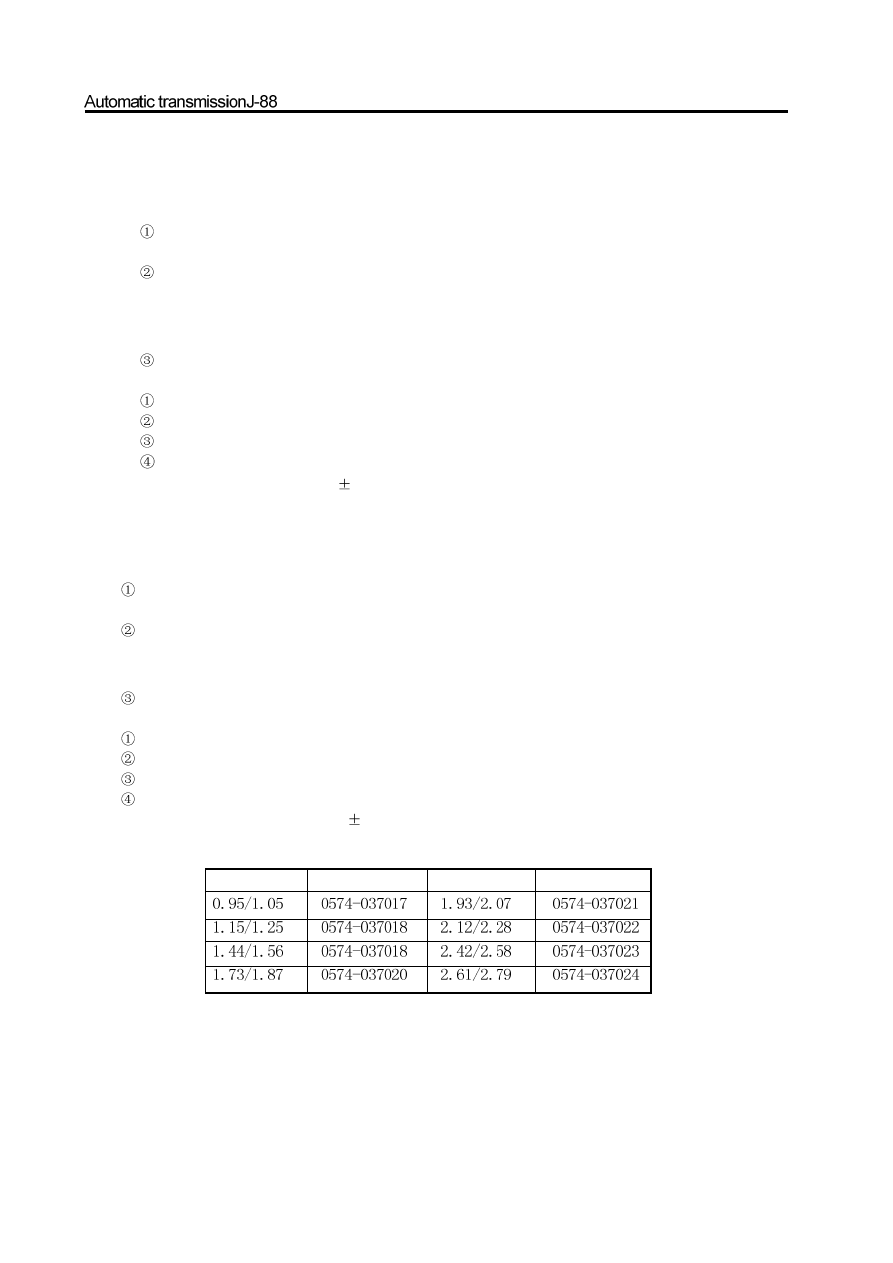

Table 8.2   Effective thickness of shim

-------------------------------------------------------------------------------------------------------------------------------------------------------------

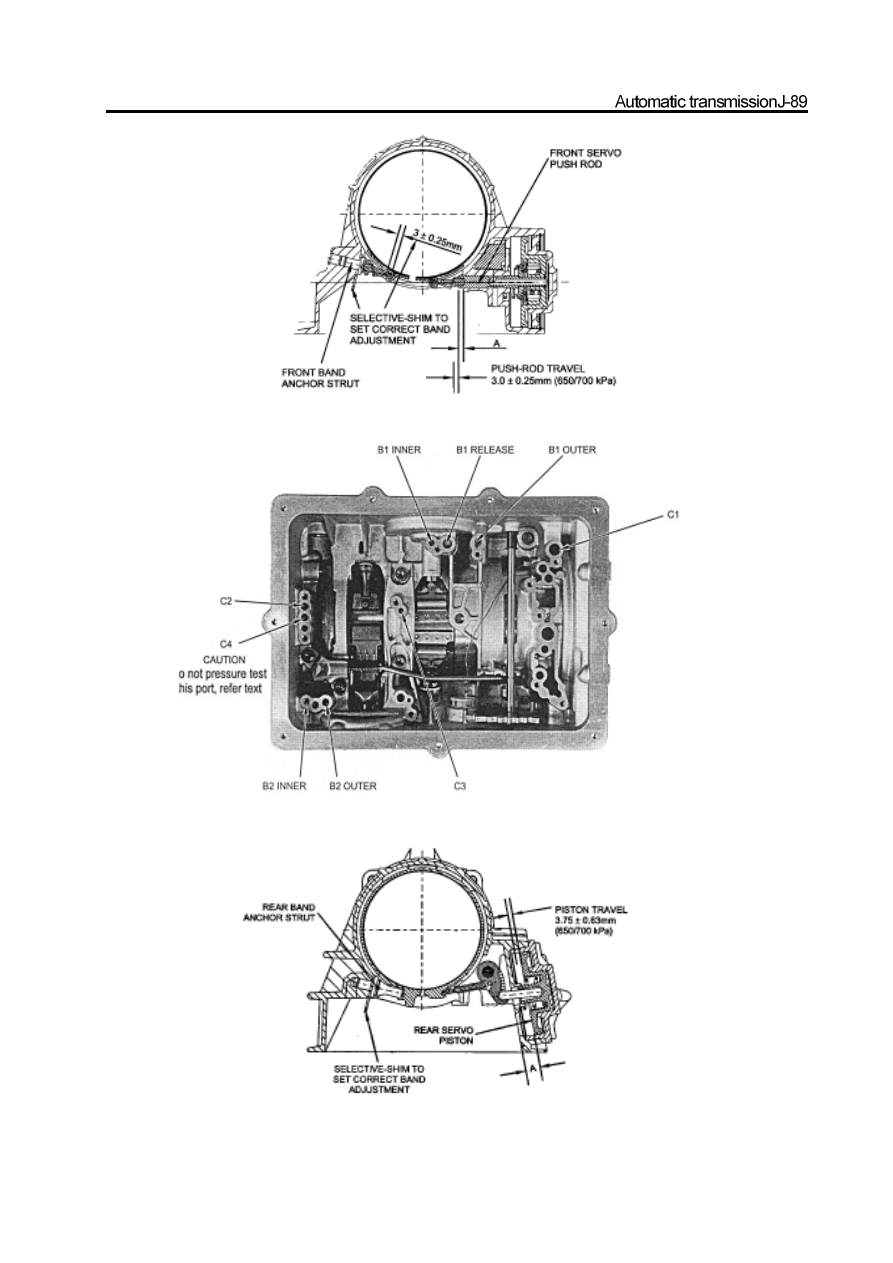

Figure 8.62  Setting of brake belt

  Figure 8.63  External port position of B1 and B2

Figure 8.64  Setting of rear brake belt

-------------------------------------------------------------------------------------------------------------------------------------------------------------

O il filling procedure

According to the procedure described in 7.2.

Specification and special tools

T ype and specification

hydraulic torque converter

    maximum torque multiplier factor

          179K

    stalled speed (80 to 100  ℃  rpm)

       (179K torque converter )

Specification



2.00:    1



2090

G ear  ratio

First gear

Second gear

Third gear

Fourth gear

Reverse gear



2.393:1

1.450:1

1.000:1

0.677:1

2.093:1

Lubricant

 type

 dry system

 alternative of maintenance

Castrol T Q95

9.0 L (approximation)

4.5L (approximation)

Axial movement of gear assembly

0.50-0.65 mm

Fixed pinion axle movement

0.10-0.50 mm

Table 9.1- Type specification

Pressing factor of clutch

 0588-000001

C1

  structure (friction disk )

      steel

5 (2)

C2

  structure (friction disk )

      steel

4 (2)





C3

  structure (friction disk )

      steel

4 (2)

C4

  structure (friction disk )

      steel

4 (1)

Table 9.2 Shifting point of clutch assembly details

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Shifting point

Opening

degree of

throttle

position

Shifting

1/2          2/3          3/4            4L

Opening

degree of

throttle

position

shifting

1/2     2/3     3/4     4L

0%



10 20 34 63 0%

  14



26 41



87

40%



26



47 82 95 40%  30 56 76



113



100%

(WOT)



53  93  126 150 100%

(WOT)

53





94 127



152

decreasing 55 89 137



152

decreasing

55 96 137

152



Table 9.3- Shifting point-km/h

Maximum speed of typical Gear-decreasing of vehicle



The Gear-decreasing will be disabled when beyond the following speed.

Gear-decreasing type

Speed point for disable of Gear-decreasing

Instruction 2-1

In 59 km/h

Instruction 3-2

89 km/h

Instruction 4-3



119 km/h

Instruction 4-2 (4-2 direct)

68 km/h

Instruction 4-2 (sequence of 4-3-2)

89 km/h

Figure 9.4 - Special tools for maximum disable speed of instruction Gear-decreasing

Special tools

tools Part

No.

Platform bracket of transmission



oil pump remover



Cross shaft disassembly /installation

(brake lever)



clutch spring compressing tools



clutch assembly clearance positioning tools



Shaft end floating connector



Shaft end floating measuring tools



cross shaft seal disassembly tools



cross shaft seal installation tools



Pump sealing installation tools



Sealing ring expander extender /compressor



Cross shaft lever disassembly /installation

(disable switch)



solenoid valve /electric heating regulator,

electric meter



solenoid valve, platform meter



Assembly ball spool







Sealing gasket disc



                                                                Figure 9.5 Special tools

-------------------------------------------------------------------------------------------------------------------------------------------------------------

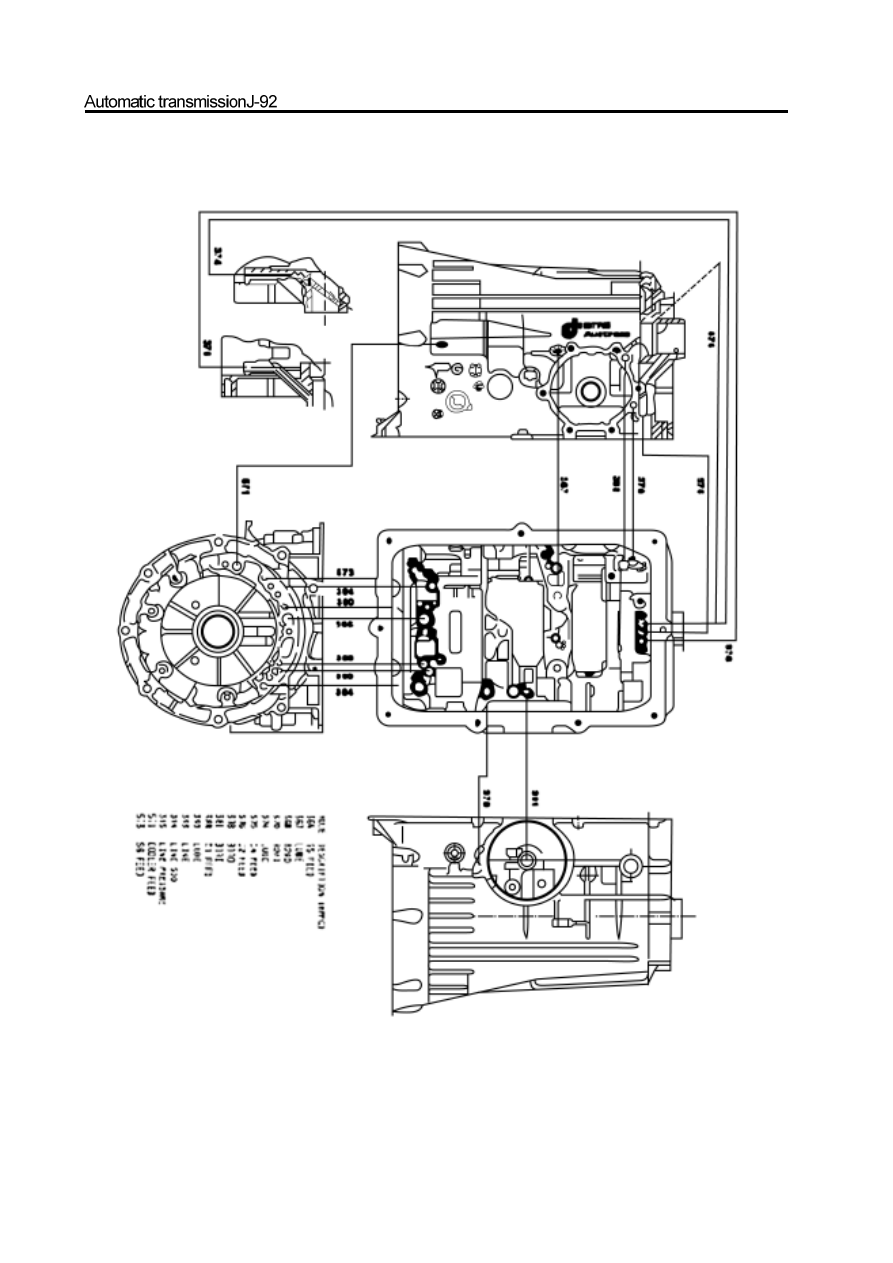

Annex

Description for oil inlet hole of main housing

-------------------------------------------------------------------------------------------------------------------------------------------------------------

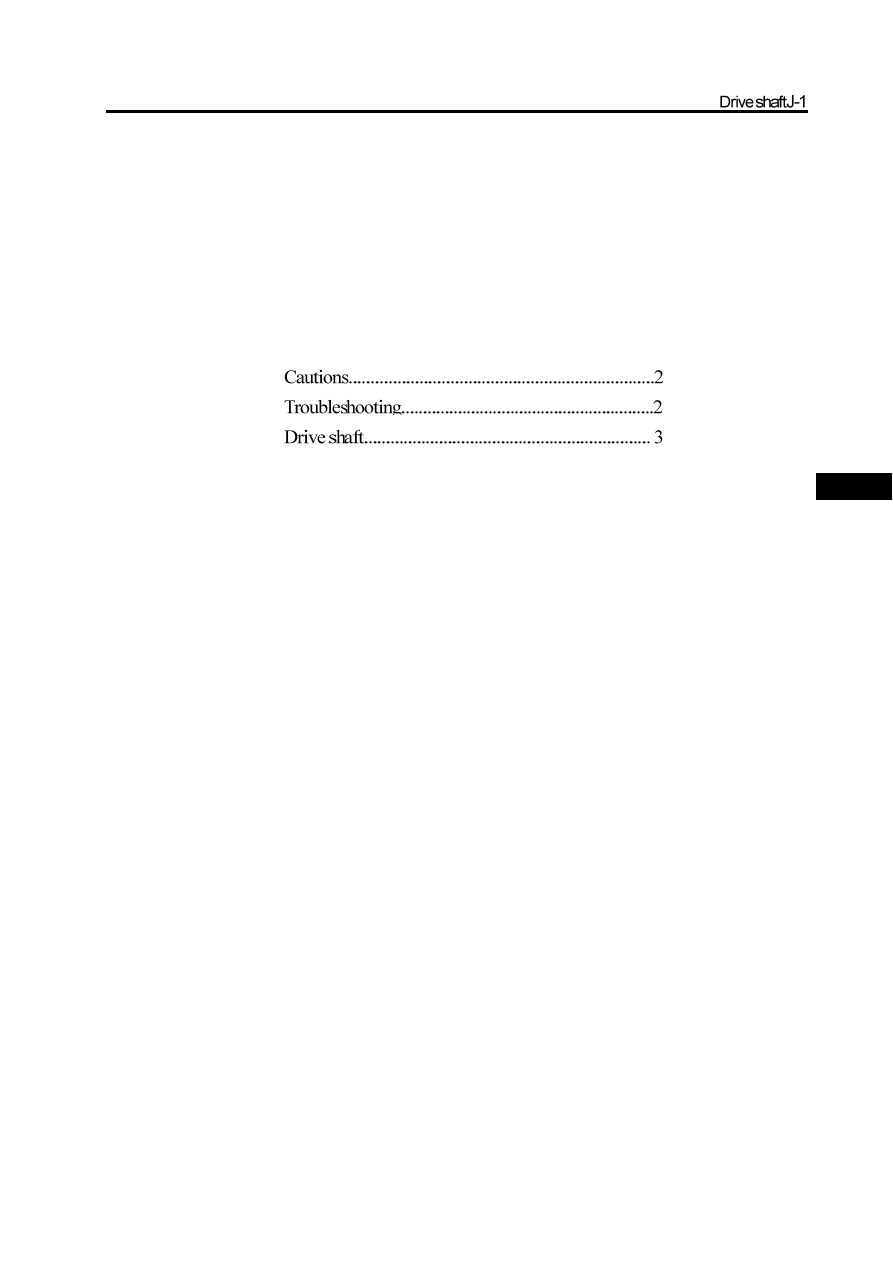

    Chapter 6

             Drive shaft

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cautions

Do not clamp the drive shaft bushing too tightened by the bench

vice to avoid the deformation.



failure Possible

causes

Method

Noise

The spline of universal-joint fork is worn

The intermediate bearing is worn

The cross-axle bearing is worn or jammed

Replace the universal-joint

fork

Replace the intermediate

bearing

Replace the cross-axle bearing

vibration

Runout of drive shaft

Unbalance of drive shaft

The rear bearing bushing of transmission

extended housing is worn

The spline of universal-joint fork is jammed

Replace the drive shaft

Replace the drive shaft

Replace the bushing

Replace the universal-joint

fork

-------------------------------------------------------------------------------------------------------------------------------------------------------------

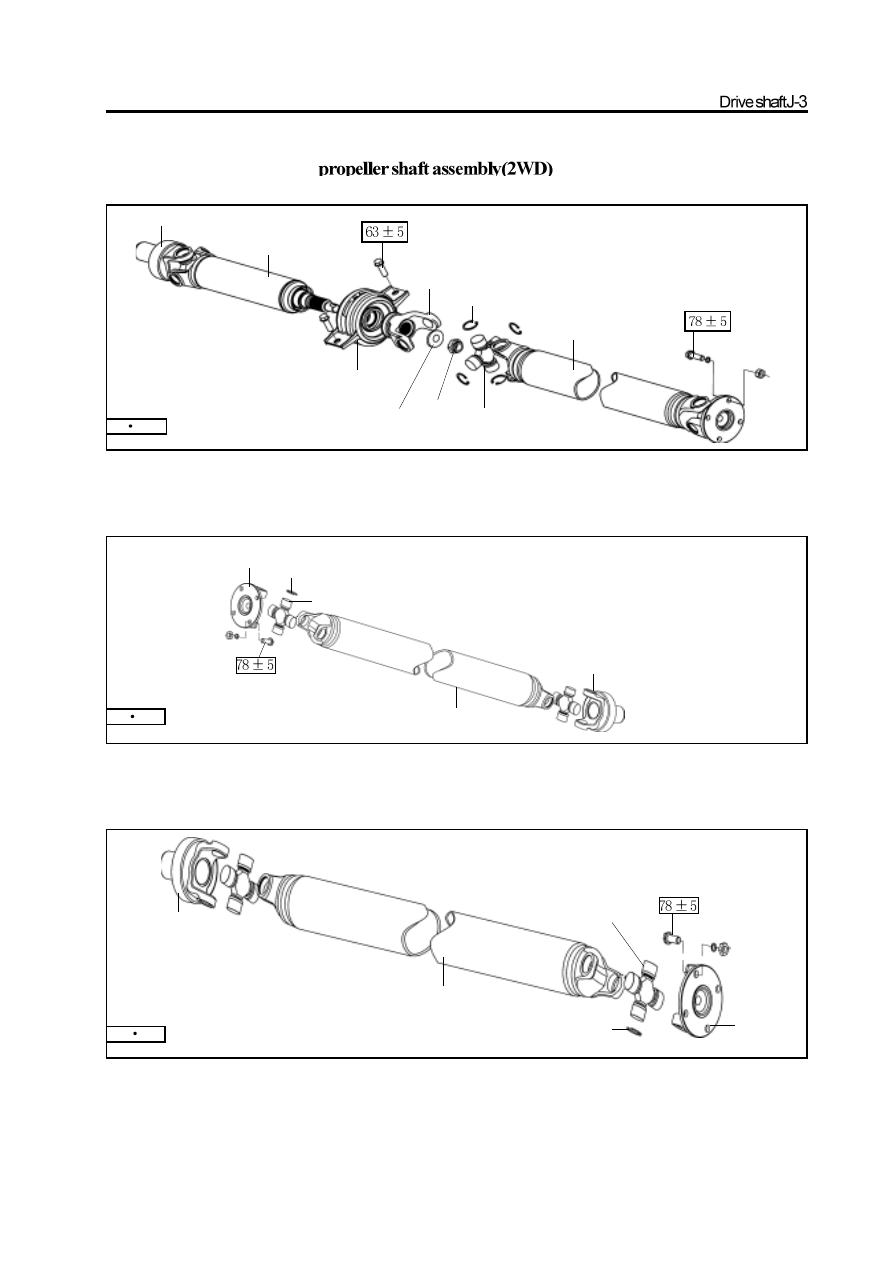

Front axle propeller shaft (4WD) assembly

Rear axle propeller shaft (4WD) assembly



m:      Specified torque

universal-joint fork

front section of

rear axle propeller

shaft

intermediate sup-

port assembly

universal-

joint fork

shim

nut

circlip

cross-axle assembly

rear section assembly of

rear axle propeller shaft

flange fork

circlip

cross-axle assembly

axle tube assembly

front axle drive shaft assembly

m:        Specified torque

universal-joint fork

circlip

cross-axle

assembly

drive shaft axle

pipe assembly

m:    Specified torque

flange fork

-------------------------------------------------------------------------------------------------------------------------------------------------------------

transmission

drive shaft assembly

rear axle assembly

front axle drive shaft assembly

transmission

rear axle drive
shaft assembly

transfer case

rear axle assembly

Disassembly of drive shaft:

Remove the intermediate support bolt of drive shaft firstly (CC6460KY

is without intermediate support connecting bolt ), then remove the

connecting bolt between the drive shaft and rear axle , lastly, pull out

the drive shaft assembly from the transmission output spline shaft and

remove it in integral.

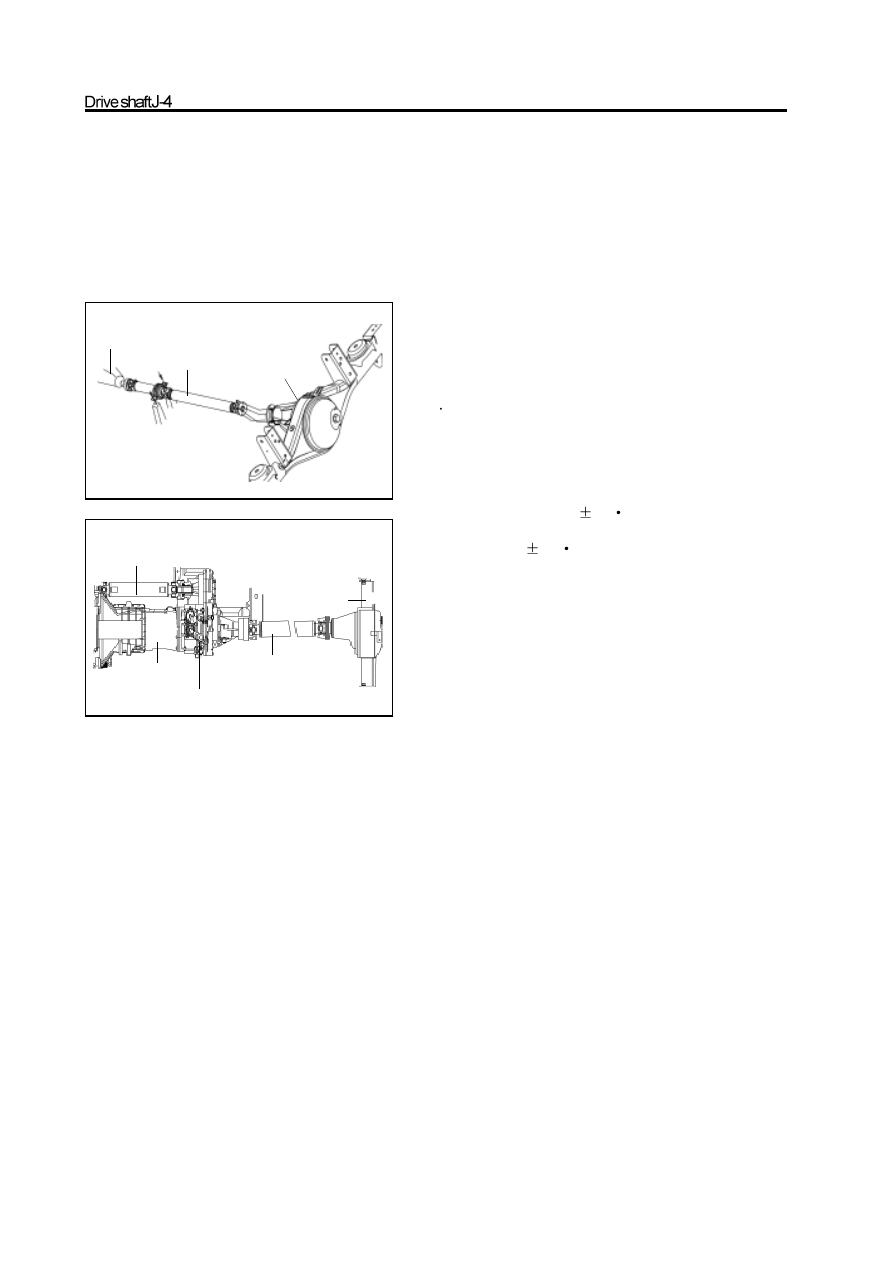

Installation of drive shaft:

1

. Firstly, check the drive shaft for damage, spline for corrosion

and connecting surface for deficiency of damage or sand hole by

itself.

2

Install the connecting spline bushing of drive shaft on the

transmission output spline shaft carefully; then install the drive

shaft intermediate support on the intermediate support bracket

of carriage.

3

.  Use the special drive shaft bolt, nut and spring shim to connect

the drive shaft to the vehicle axle ring flange and tighten it. The

tightening torque is 78

5N

m

4

. Tighten the drive shaft intermediate support nut, the tightening

torque is 63

5N

m (the front and rear drive shaft in

CC6460KY model are the integral and has the installation

content)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

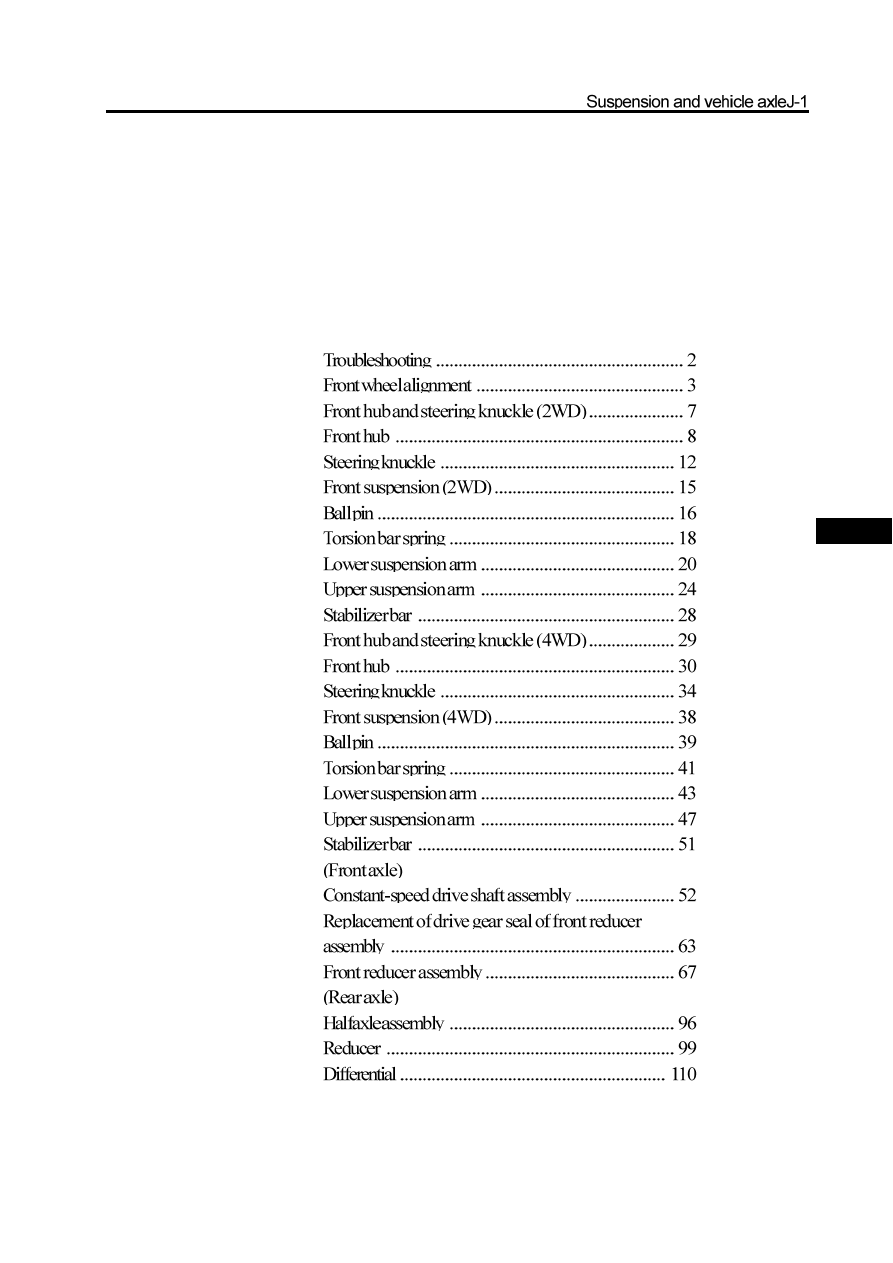

Chapter 7

Suspension and vehicle axle

Rear suspension …………………………………112

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting

Failure Cause

Repair

content

Floating/pulling

The tyre is worn or charged improperly.



The front wheel alignment is incorrect.



The wheel bearing is adjusted too tightened.

The front /rear suspension components is loose or

damaged

The steering linkage is loose or worn

The steering device is connected unsound or worn.

Charge the tyre to the proper pressure or

replace the tyre.

Check the condition of front wheel

alignment.

Adjust the wheel bearing

Tighten or replace the suspension

partTighten or replace the steering

linkage

Adjust or replace the steering device

Subsidence of vehicle body

Overload of vehicle

vibration damper is worn

spring is weak

Check the load weight

Replace the vibration damper

Replace the spring

Left-right swing/up-down

bounce

The tyre is charged improperly

The stabilizer bar is bend or damaged

The vibration damper is worn

Charge the tyre to the proper pressure

Replace the stabilizer bar

Replace the vibration damper

Front wheel vibration

The tyre is worn or is charged improperly



Unbalance of each wheel

The vibration damper is worn

The front wheel alignment is incorrect



The wheel bearing is worn or adjusted badly

The ball joint or bushing is worn

The steering system is loose or worn

The steering mechanism is adjusted badly or damaged

Replace the tyre or charge it to the proper

pressure.

Balance all wheels

Replace the vibration damper

Check the condition of front wheel

alignment

Replace or adjust the wheel bearing

Check the ball joint or bushing

Tighten or replace the steering linkage

Adjust or repair the steering device

Abnormal abrasion of tyre

The tyre is charged improperly

The vibration damper is worn

The front wheel alignment is badly



The suspension part is worn

Charge the tyre to the proper pressure

Replace the vibration damper

Check the condition of front wheel

alignment

Replace the suspension part

Oil leakage of differential

High oil level or incorrect oil grade



The oil seal is worn or damaged

The matching flange is loose or damaged

Drain the oil to the specified level or

replace the oil

Replace the oil seal

Tighten or replace the flange

The axle has the noise

The oil grade is low or incorrect



The clearance of the pinion, ring gear or side gear is

large.

The ring, pinion gear or side gear is worn    or broken

The pinion gear bearing is worn

The bearing of rear axle half shaft is worn.

The differential bearing is loose or worn

Fill with the lubrication oil or replace the

oil according to the specification

Check the clearance



Check each gear

Replace the bearing

Replace the bearing

Tighten or replace the bearing

-------------------------------------------------------------------------------------------------------------------------------------------------------------

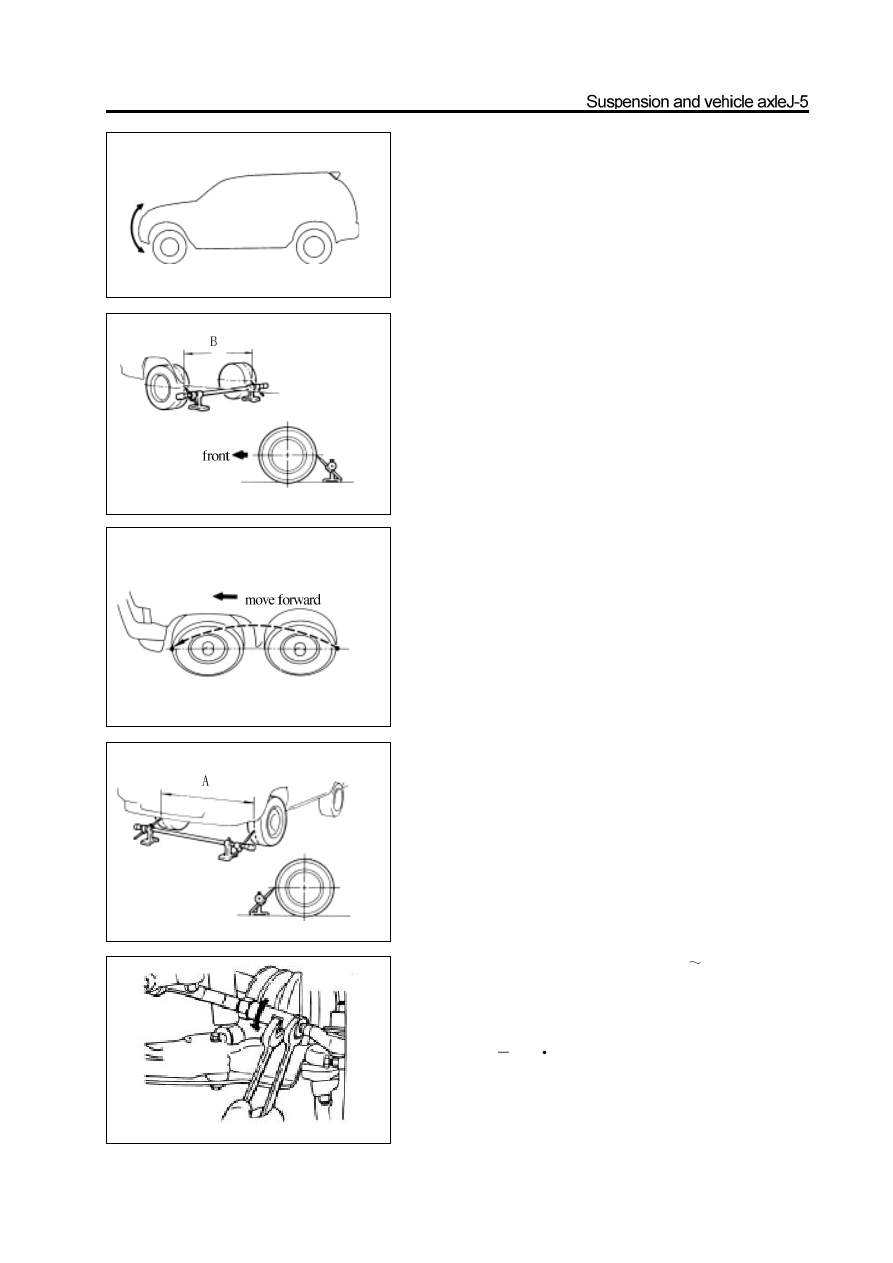

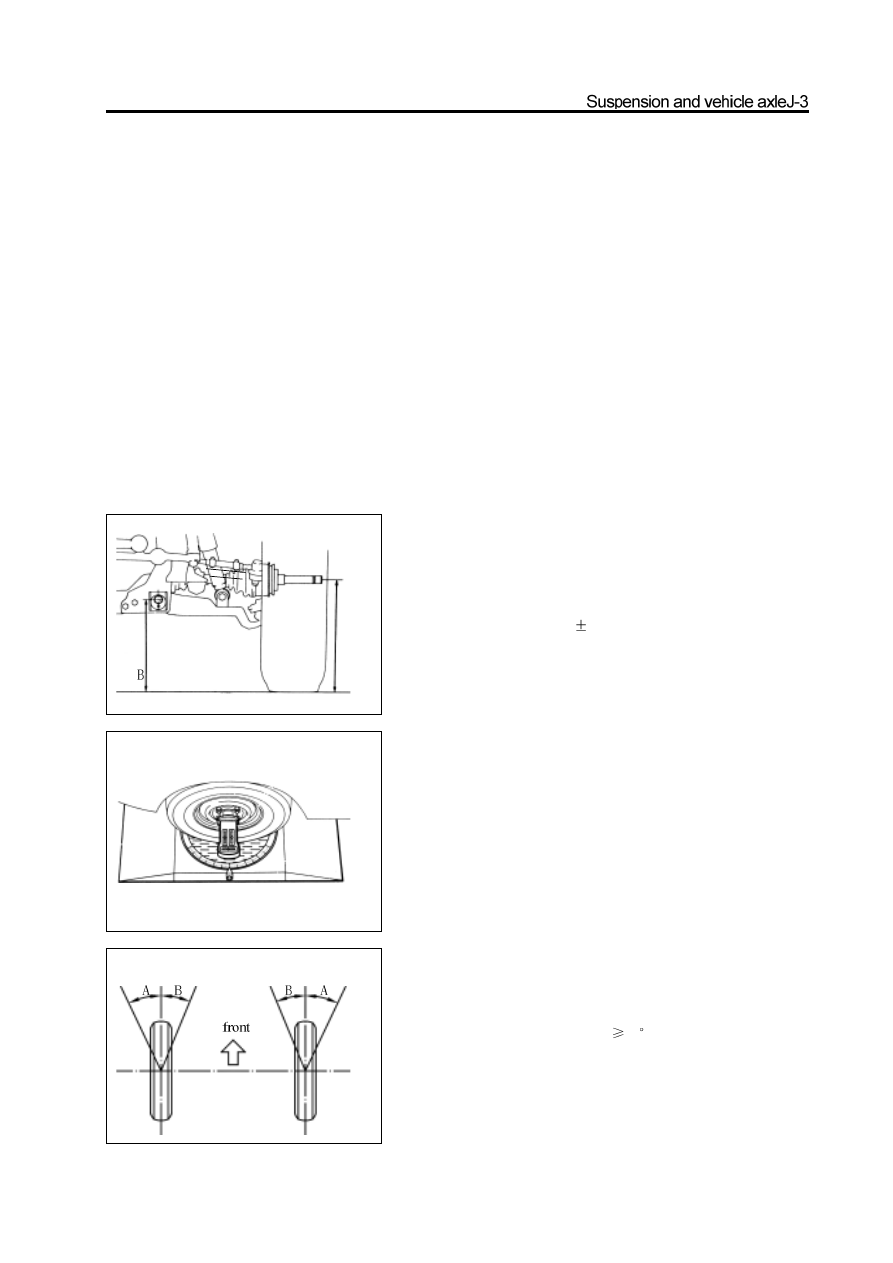

Front wheel alignment

1. Process the following inspection and eliminate

    all problems

a. Check the wear condition of tyre and proper inflation.

Tyre inflation pressure:   230kPa

b. Check the wheel bearing of front wheel for loose.

c. Check the front suspension for loose.

d. Check the steering drive device for loose.

e.   Process the standard elastic test; check thefrontvibration damper

for normal operation.

3. Install the 4-Wheel alignment instrument

Processed according to the detailed description of equipment

manufacturer.

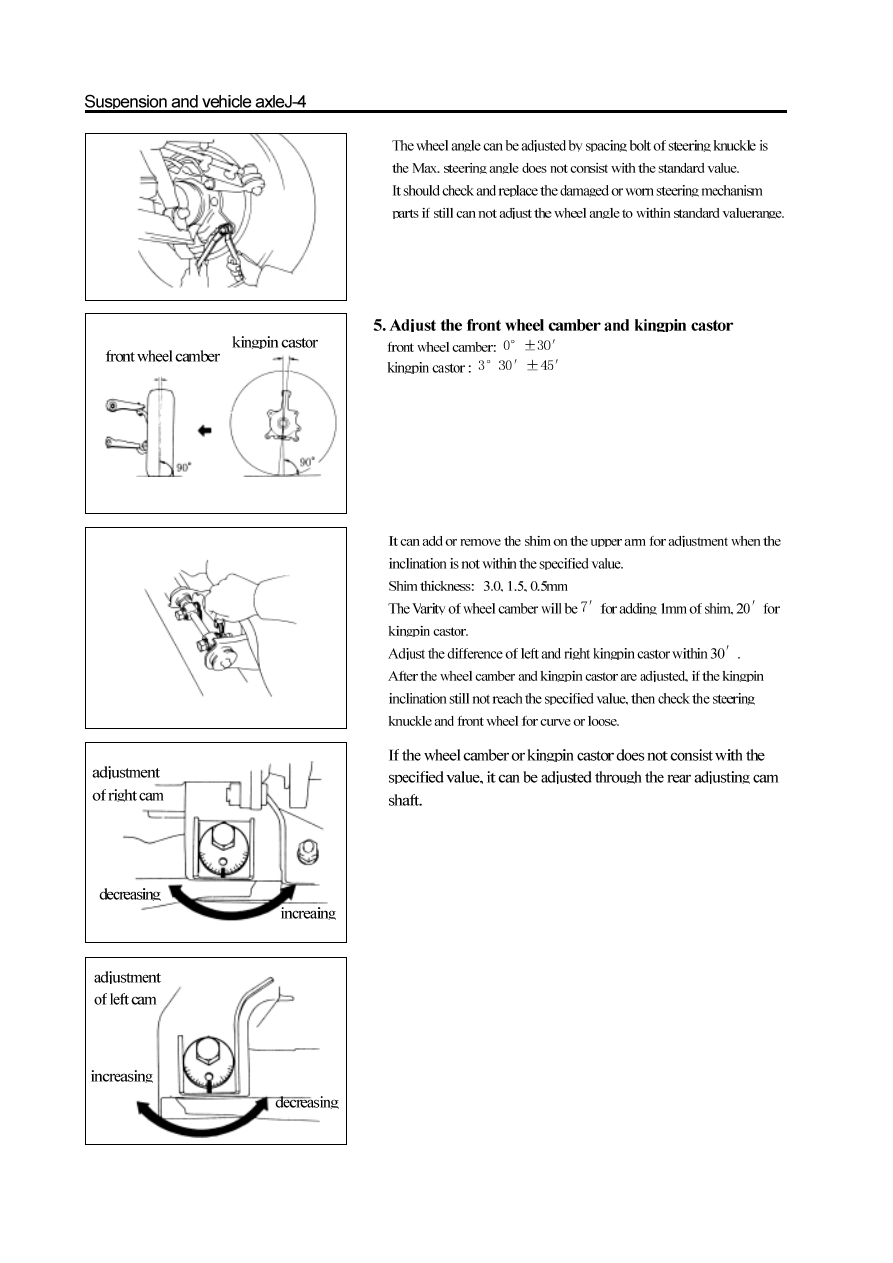

4. Adjust the wheel angle

Remove the cover of spacing bolt of steering knuckle; check the internal

wheel’s steering angle A.

Internal wheel’s steering angle:

32

Caution: The wheel should not touch the brake hose of car body

when the steering wheel is rotated to limit.

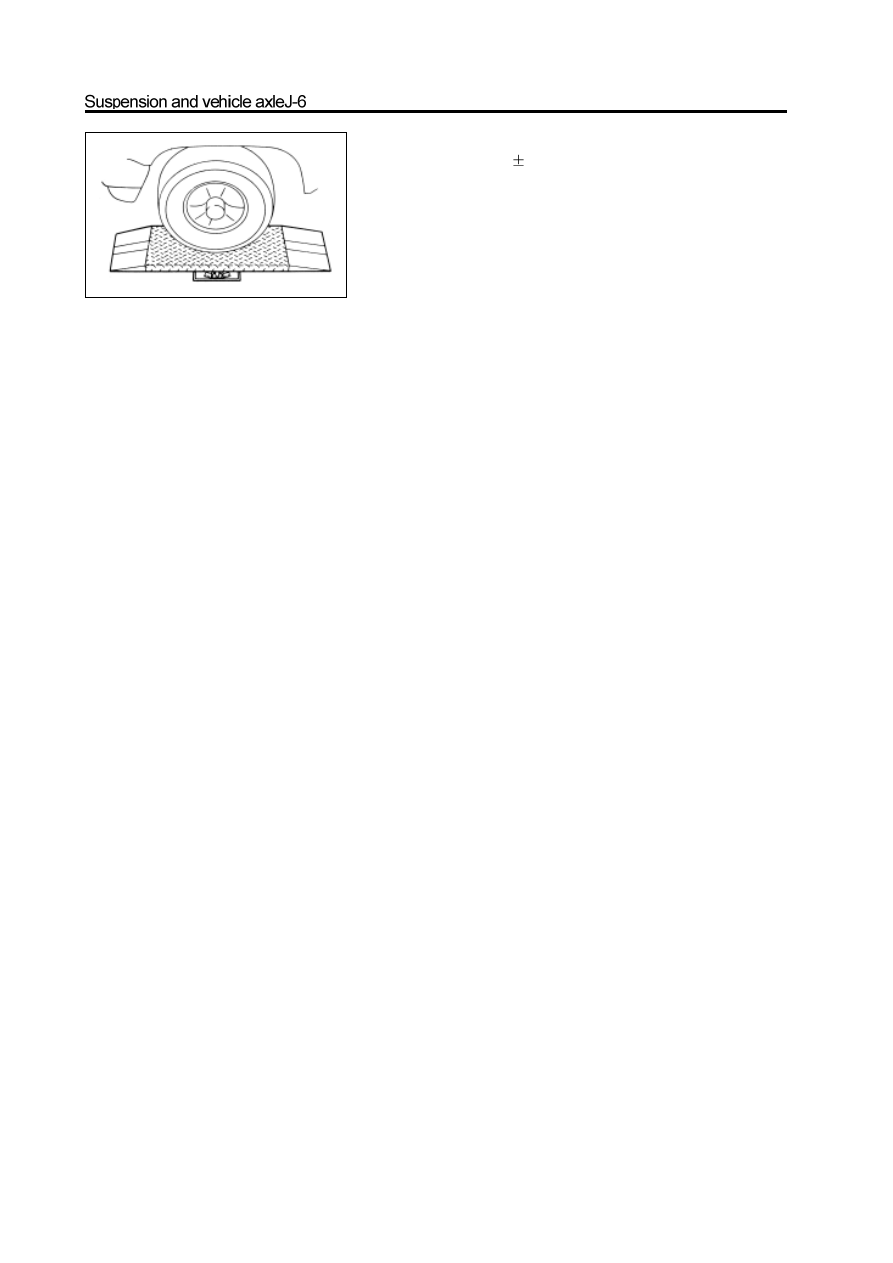

2. Adjust the height of car

A:Adjust the height of car to the standard value for theconvenience of

processing the front wheel alignmentinspection.

B: Front fixed bolt of lower suspension arm

The standard no-load height is: the center of front fixed boltof lower

suspension arm is 295

1mm away form theground.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6. Adjust the wheel toe

Adjust the wheel toe according to the following method

a. Shake the car upwardly and downwardly to make the suspension

reach the stable status.

 b.  Push the car forwardly for 5m in flat ground when the front

 wheel is in the straight forward position.

c.   Mark the center of each rear wheel; measure the distance “B”

  between the marks of left and right tyre.

d.  Push the car forwardly to move the mark on the back of tyre to

 the position of front instrument.

Remarks: if the tyre moves too far, repeat the procedure (b).

e.  Measure the distance “A” ‘between the marks on front of tyre.

f.   Measure the toe of wheel.

 toe =B-A

 Inspection standard: 0-2mm

 If the toe does not consist with the specified value, it can be

 adjusted by the left and right draw-bar.

 Move the vehicle forwardly

g. Adjustment of toe: the standard value is 0

2mm.  The toe is

adjusted by rotating the cross draw-bar. When adjust the toe, it

should rotate the cross draw-bar on left and right side uniformly.

After the adjustment, tighten the lock nut, the tightening torque

is 55

65N

m.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

h. Check the sideslip

Sideslip: Within

5m/km

-------------------------------------------------------------------------------------------------------------------------------------------------------------

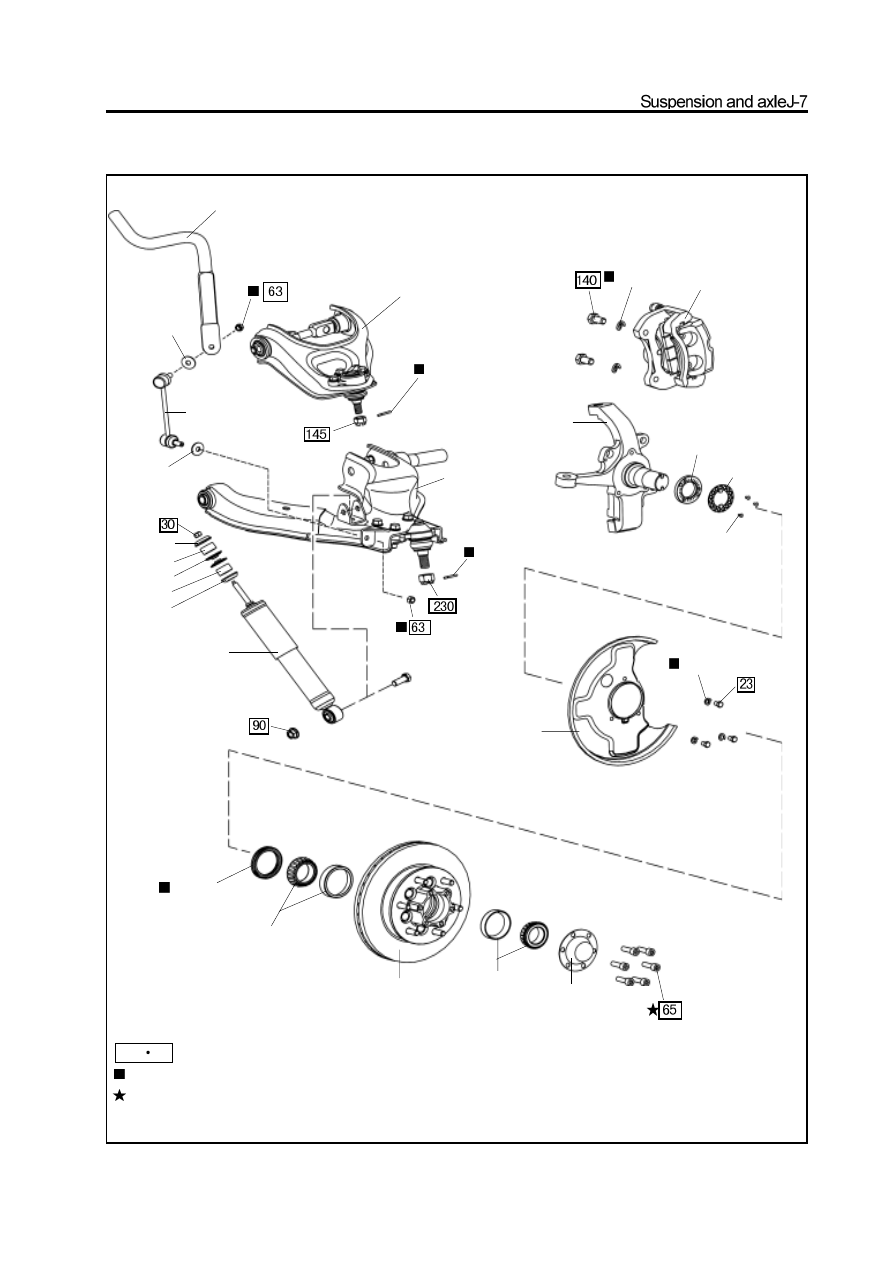

Front hub and steering knuckle (2WD)

stabilizer bar

connecting rod

of stabilizer bar

flat shim

disk shim

fill block

shim

fill block
disk shim

absorber

bearing

hub cap

brake cover

spring shim

split pin

lower suspension arm

split pin

upper suspension arm

spring shim

brake caliper assembly

steering knuckle

tight nut

lock washer

screw

oil seal

bearing

hub and brake disc

flat shim

m:   specified torque

Used component which can not be used any more

precoated component

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     9      10      11      12     ..
