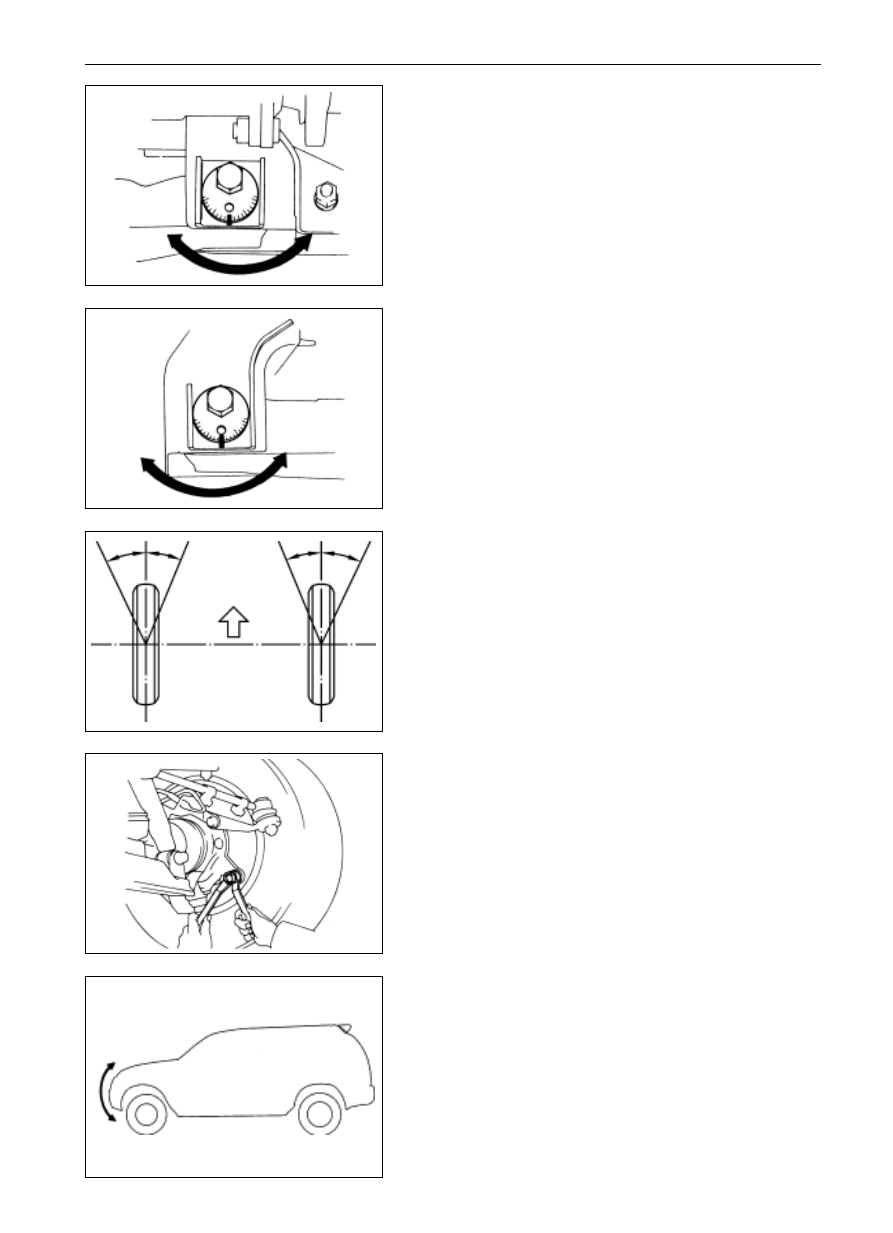

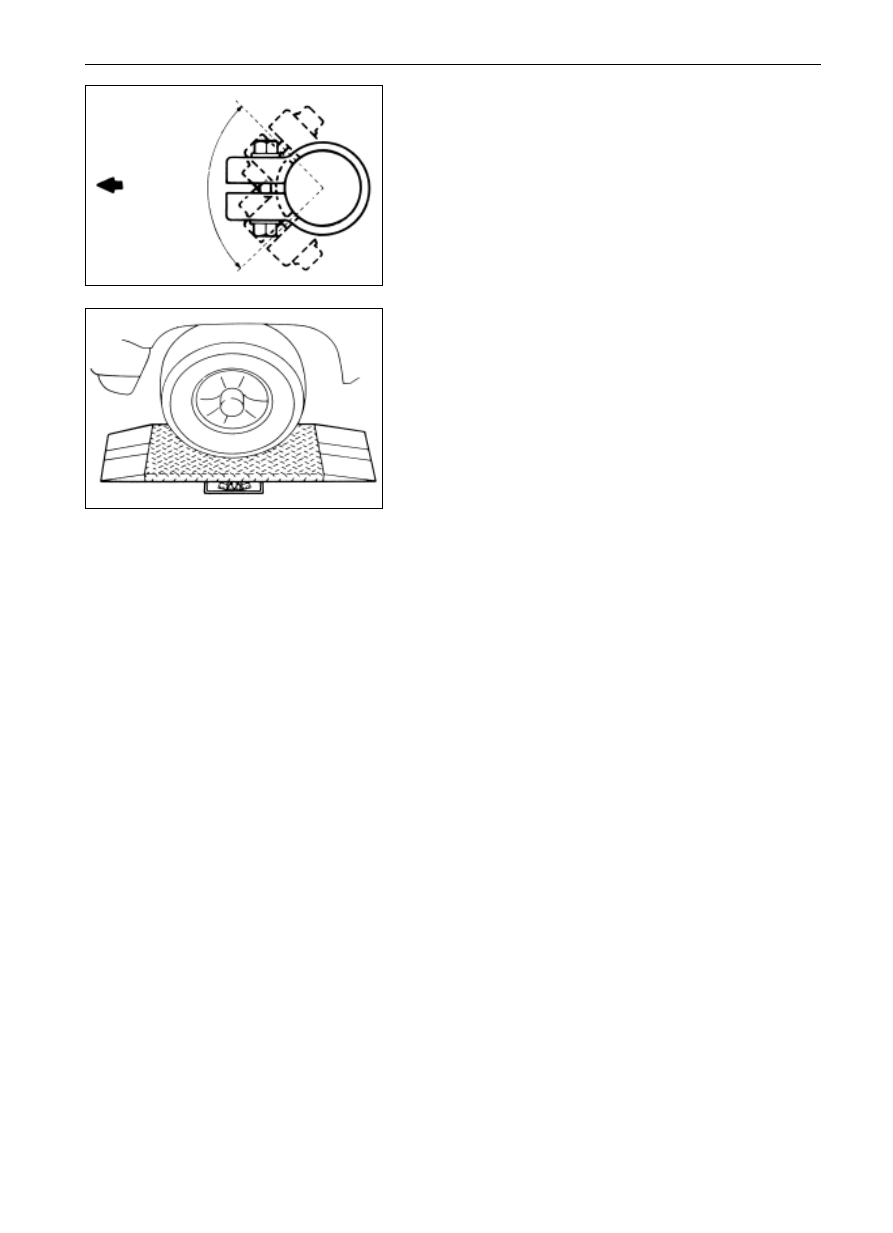

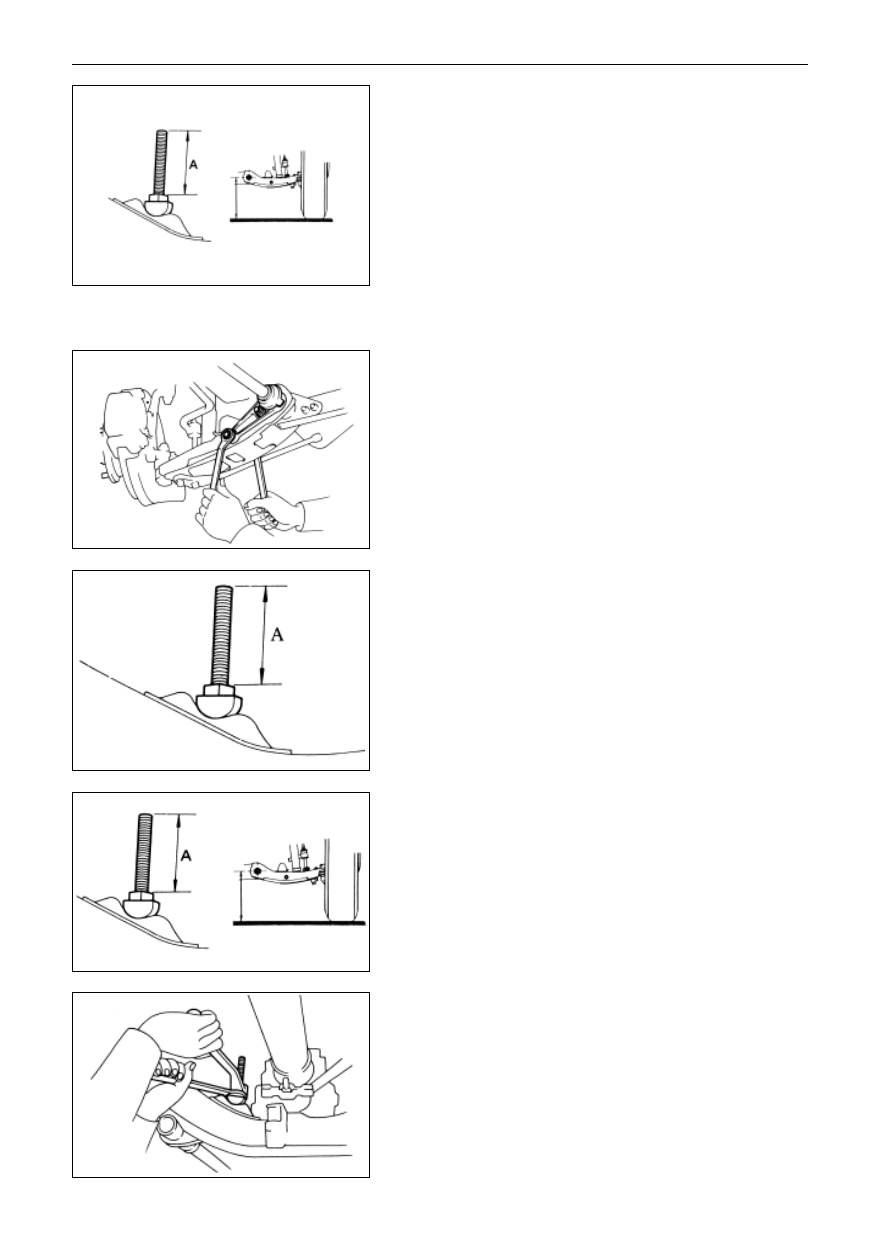

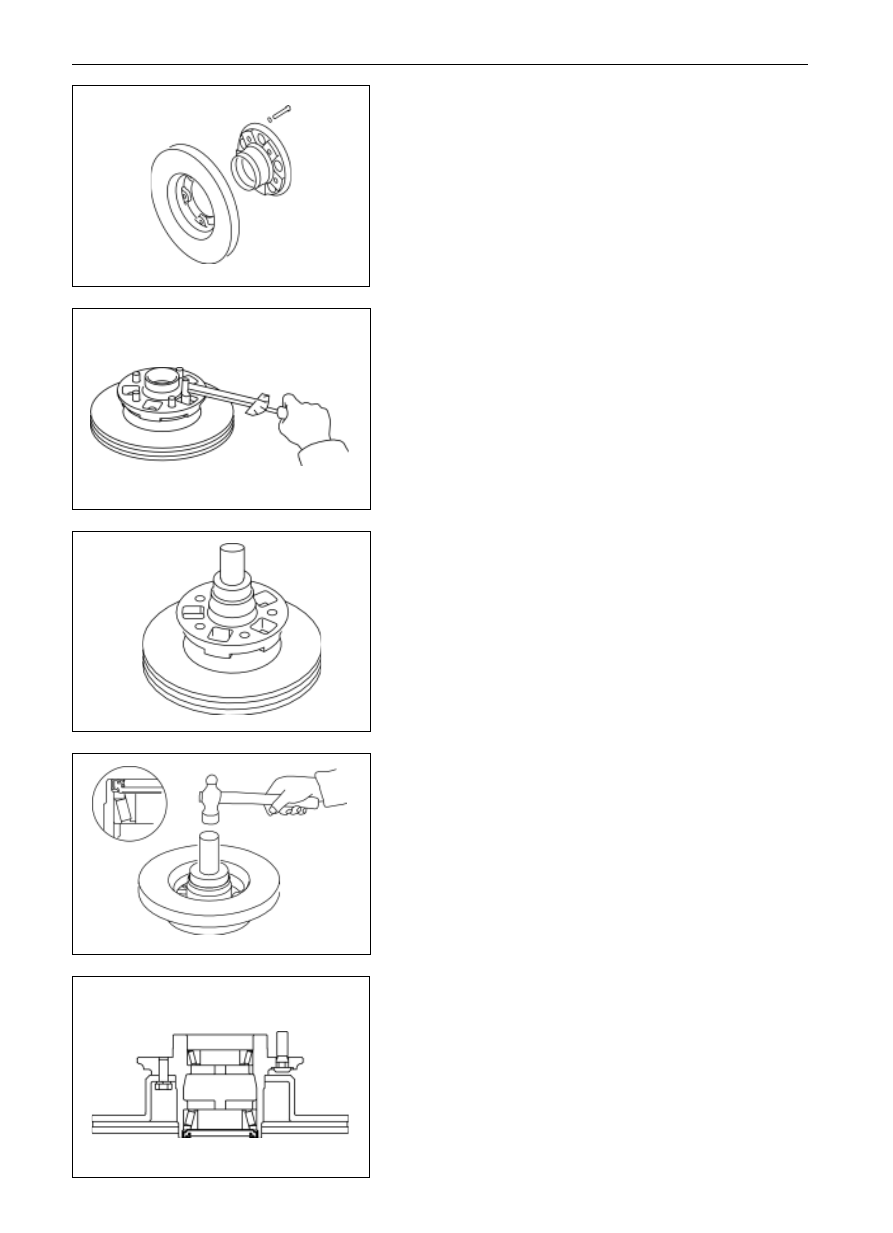

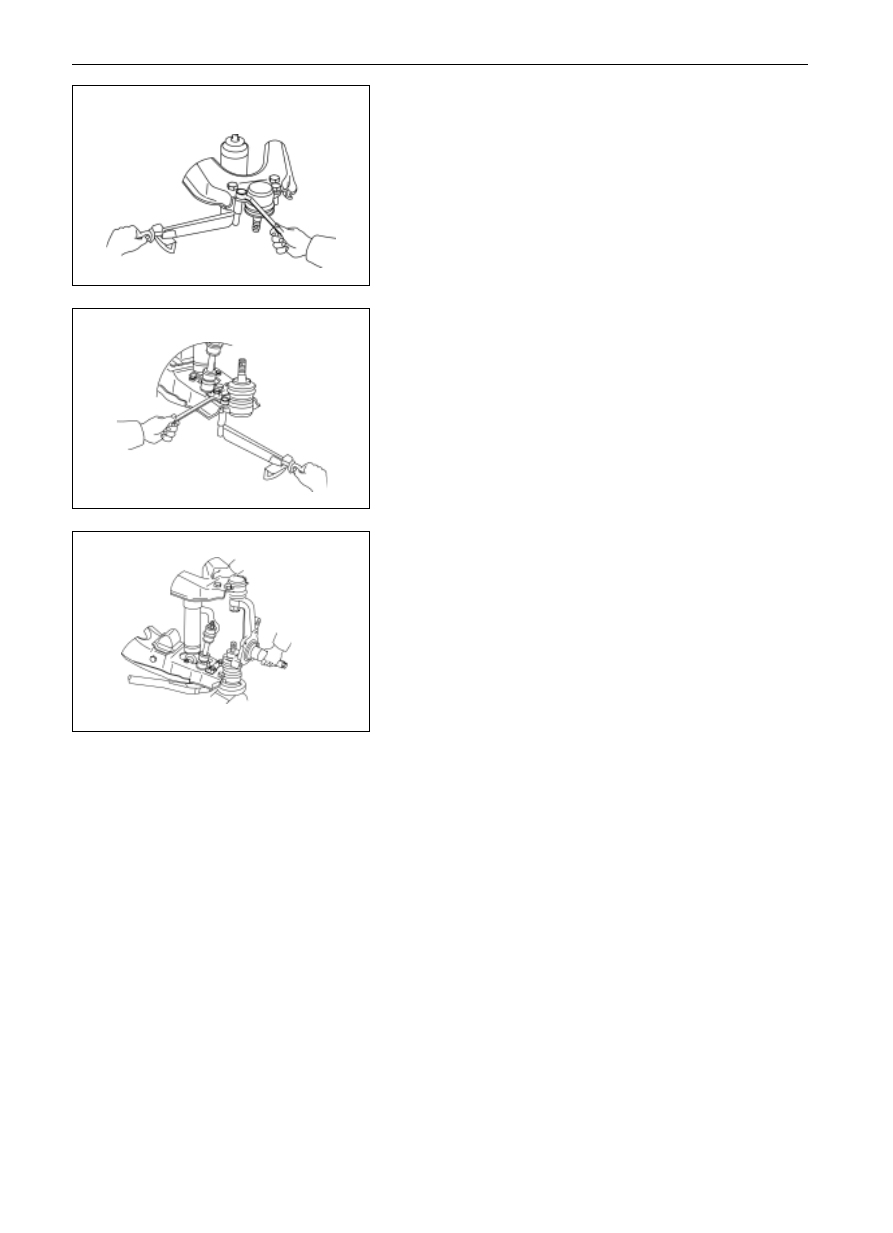

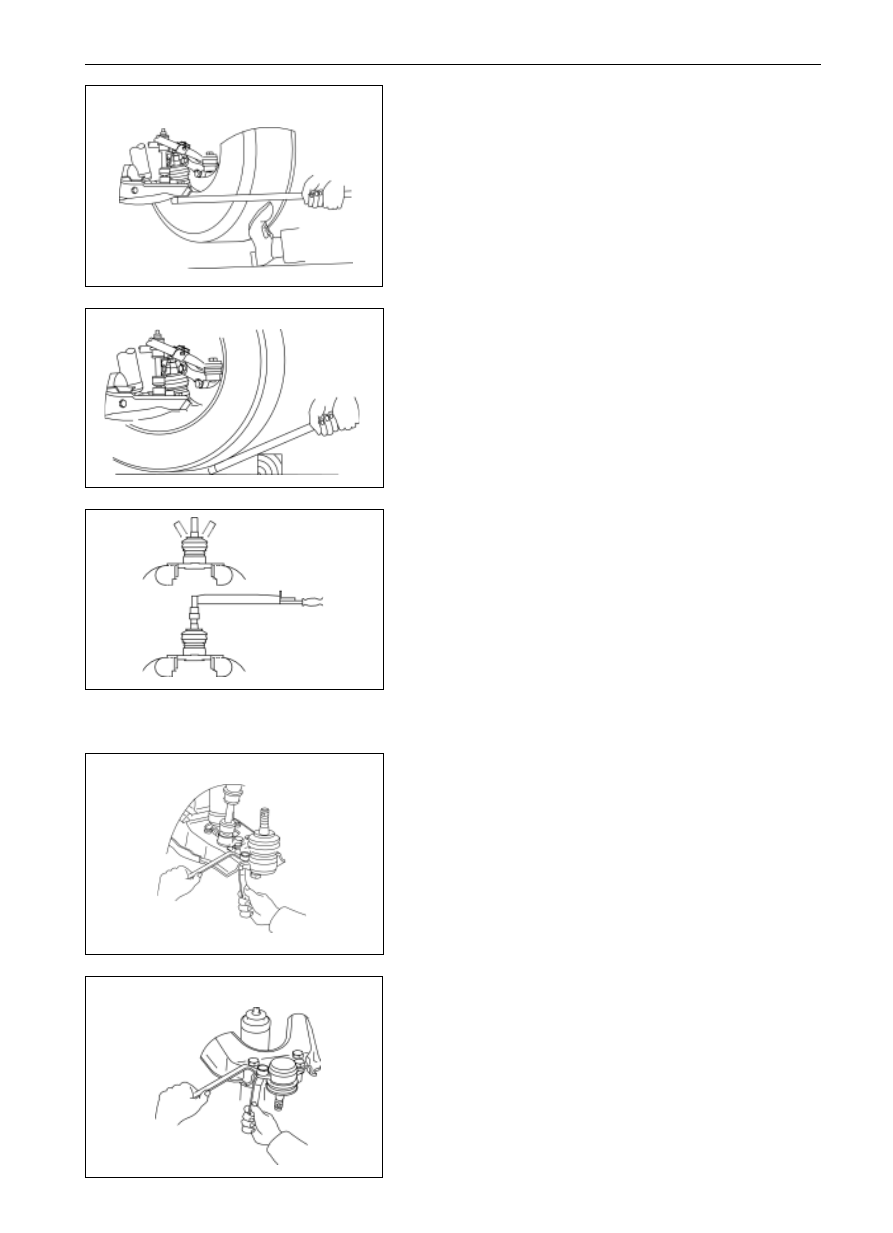

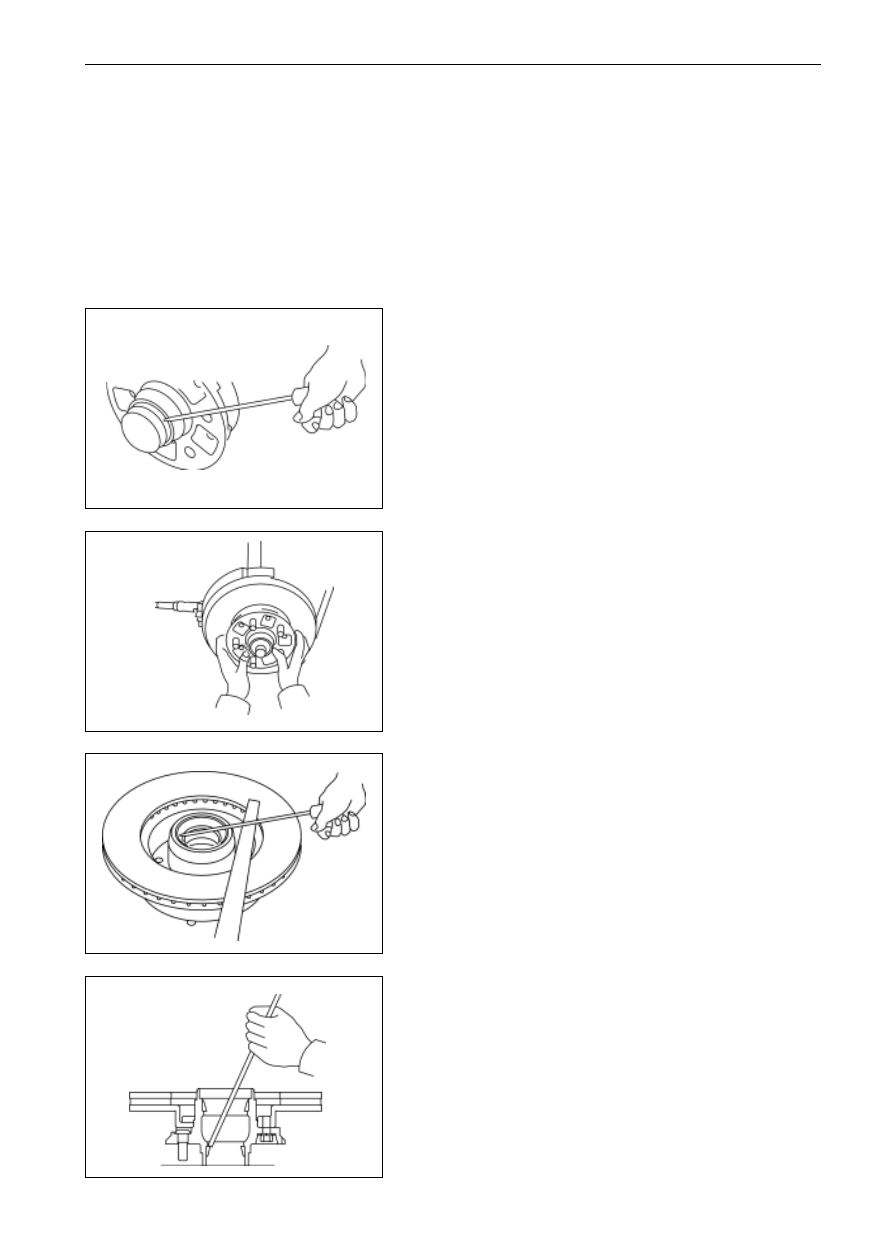

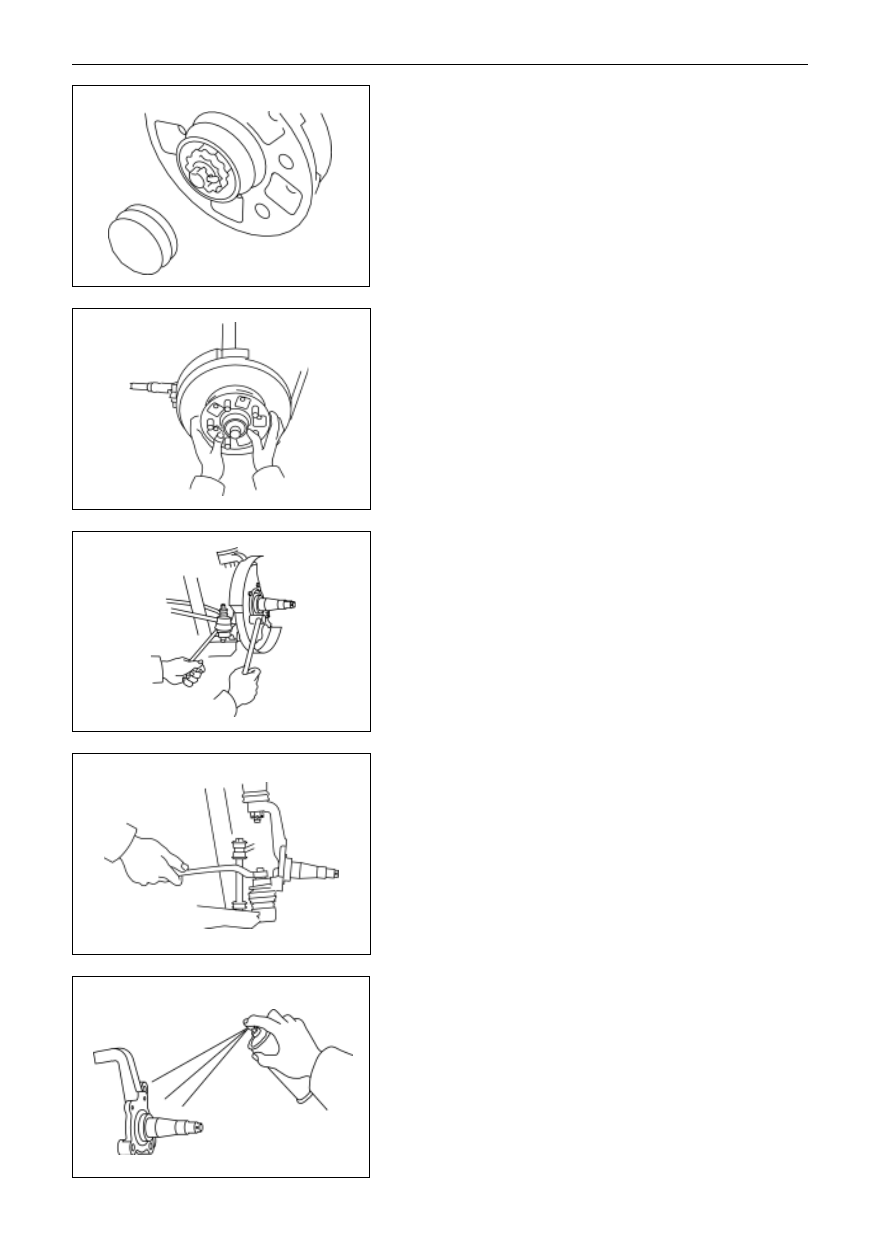

SA-7 Suspension System and Automobile Axle Alignment of Front Wheel Alignment of Front Wheel (SF) In case the outer tilt angle of front wheel or the back tilt angle of kingpin fails to conform to the specified value, adjust the cam forward or backward may amend them. 5. Wheel angel adjustment Take apart the limit bolt cap of the steering knuckle to check the inner wheel steering angle A. The inner wheel steering angle: =32

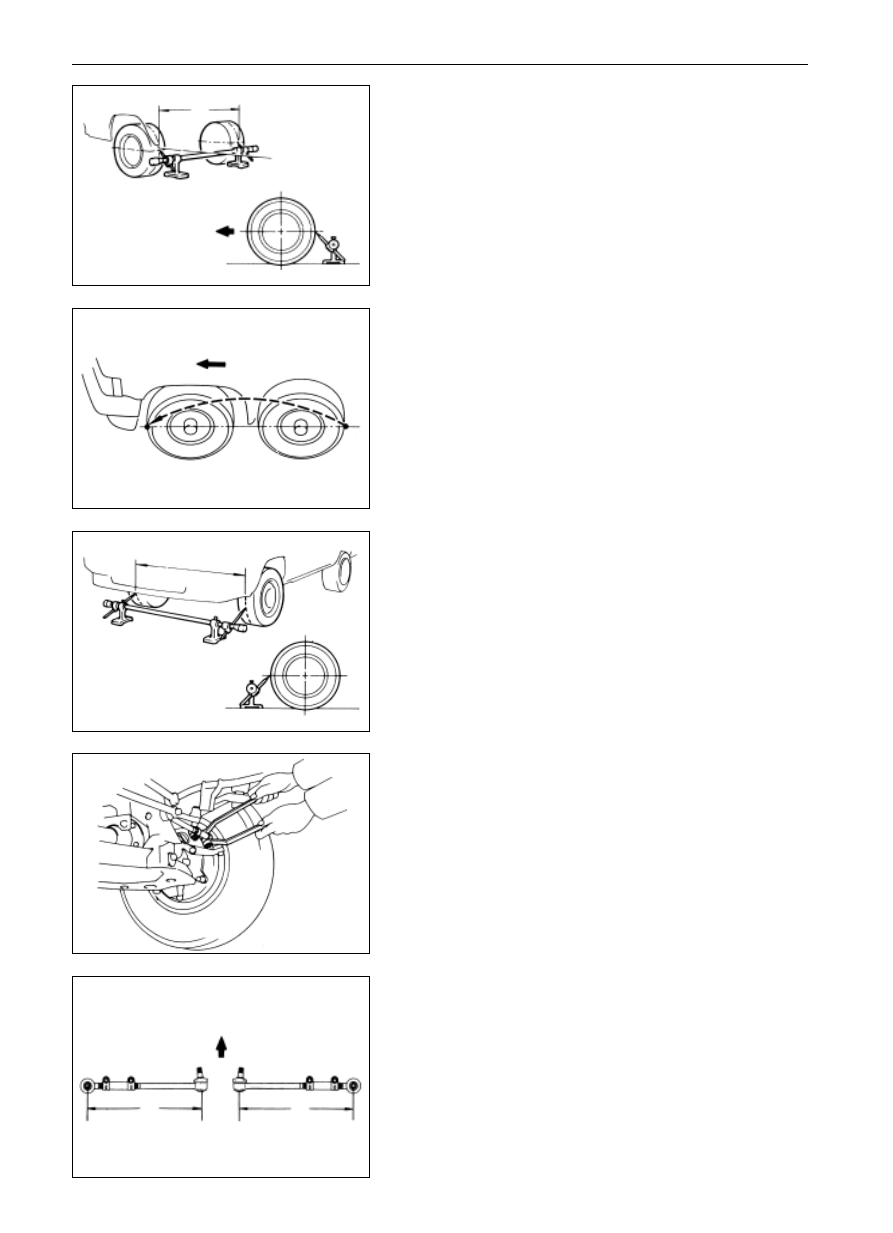

Notice:The wheel should not touch the body brake hose when the steering wheel is rotated to the bottom. In case the max steering angle is not in the conformity with the standard value, adjust the wheel angle through the limit bolts of steering knuckle. In case the wheel angle still fails to fall within the standard range, make a inspection and change the weary and damaged steering mechanism parts. 6. Wheel toe-in adjustment Adjust the wheel toe-in according to the following approach (a) Raise or reduce the vehicle until the suspension stands in balance. (b) Push the vehicle on the ground 5 meters forward under the condition that the front wheels locate forward in a line. front cam adjustment rear cam adjustment reduce increase increase reduce A B A B front |
