Ford C-MAX Hybrid / Energi (2016 year). Manual - part 51





Obtaining a French Owner’s
Manual

French Owner’s Manual can be obtained
from your authorized dealer or by
contacting Helm, Incorporated using the
contact information listed previously in this
section.

REPORTING SAFETY DEFECTS
(U.S. ONLY)

E142557

If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.

If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.

To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:

Administrator

1200 New Jersey Avenue,
Southeast

Washington, D.C. 20590

You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform Transport Canada and
Ford of Canada.

Transport Canada Contact Information

www.tc.gc.ca/eng/motorvehiclesafety/safevehicles-defectinvestigations-
index-76.htm (English)

Website

www.tc.gc.ca/fra/securiteautomobile/VehiculesSecuritaires-Enquetes-
index-76.htm (French)

Website

1–800–333–0510

Phone

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

FUSE SPECIFICATION CHART

Pre-Fuse Box

Your vehicle has a pre-fuse box attached
to the power distribution box. There is a
second pre-fuse box attached to the
12-volt battery terminal in the rear of your
vehicle. They contain high-current fuses.
If you need to replace one of these fuses,
see an authorized dealer.

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high current fuses.

WARNINGS

To reduce risk of electrical shock,
always replace the cover to the
power distribution box before

reconnecting the battery or refilling fluid
reservoirs.

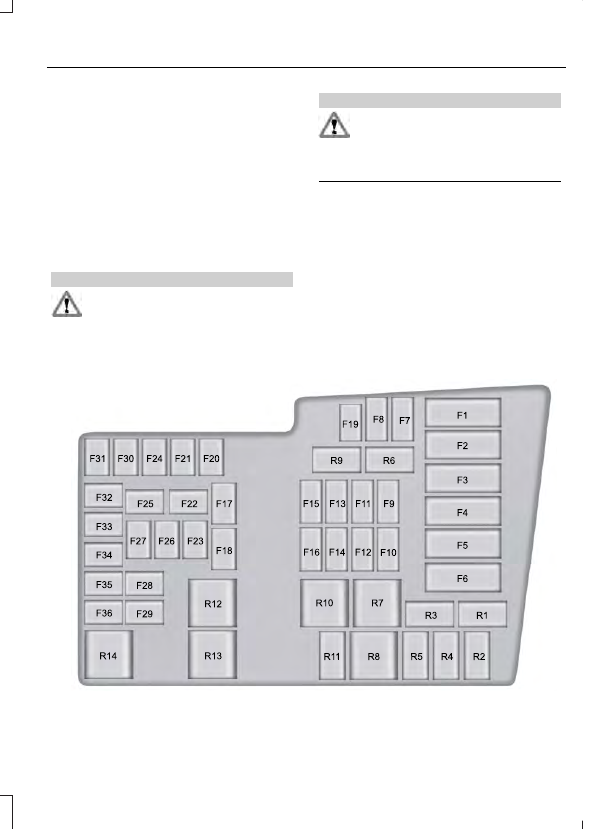

The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.

If you disconnect and reconnect the
battery, you will need to reset some
features.  See Changing the 12V Battery
(page 228).

Lift the release lever at the rear of the cover
to remove it.

E162196

Protected components

Fuse amp rating

Fuse or relay number

Cooling fan module.

50A Midi

F1

Electric water pump.

50A Midi

F2

Body control module supply 1.

50A Midi

F3

Body control module supply 2.

50A Midi

F4

Not used.

F5

Not used.

F6

Anti-lock brake system pump.

40A**

F7

Anti-lock brake system valve.

30A**

F8

Vacuum pump.

40A**

F9

Heater blower motor.

40A**

F10

Engine management.

30A**

F11

Not used.

F12

Powertrain control module relay.

25A**

F13

Rear wiper.

20A**

F14

Body control module KL30 supply.

30A**

F15

Body control module 15 feed.

20A**

F16

Transmission oil pump (C-MAX Energi).

20A**

F17

Front wiper motor.

20A**

F18

Anti-lock brake system and electronic
stability program module.

5A*

F19

Horn.

15A*

F20

Stop light switch.

5A*

F21

Vacuum pump monitoring.

5A*

F22

Engine control module 15.

5A*

F23

Powertrain control module 15.
Transmission oil pump 15.

Relay coils.

5A*

F24

Light switch module.
